Krypteria/Neo4LDAP

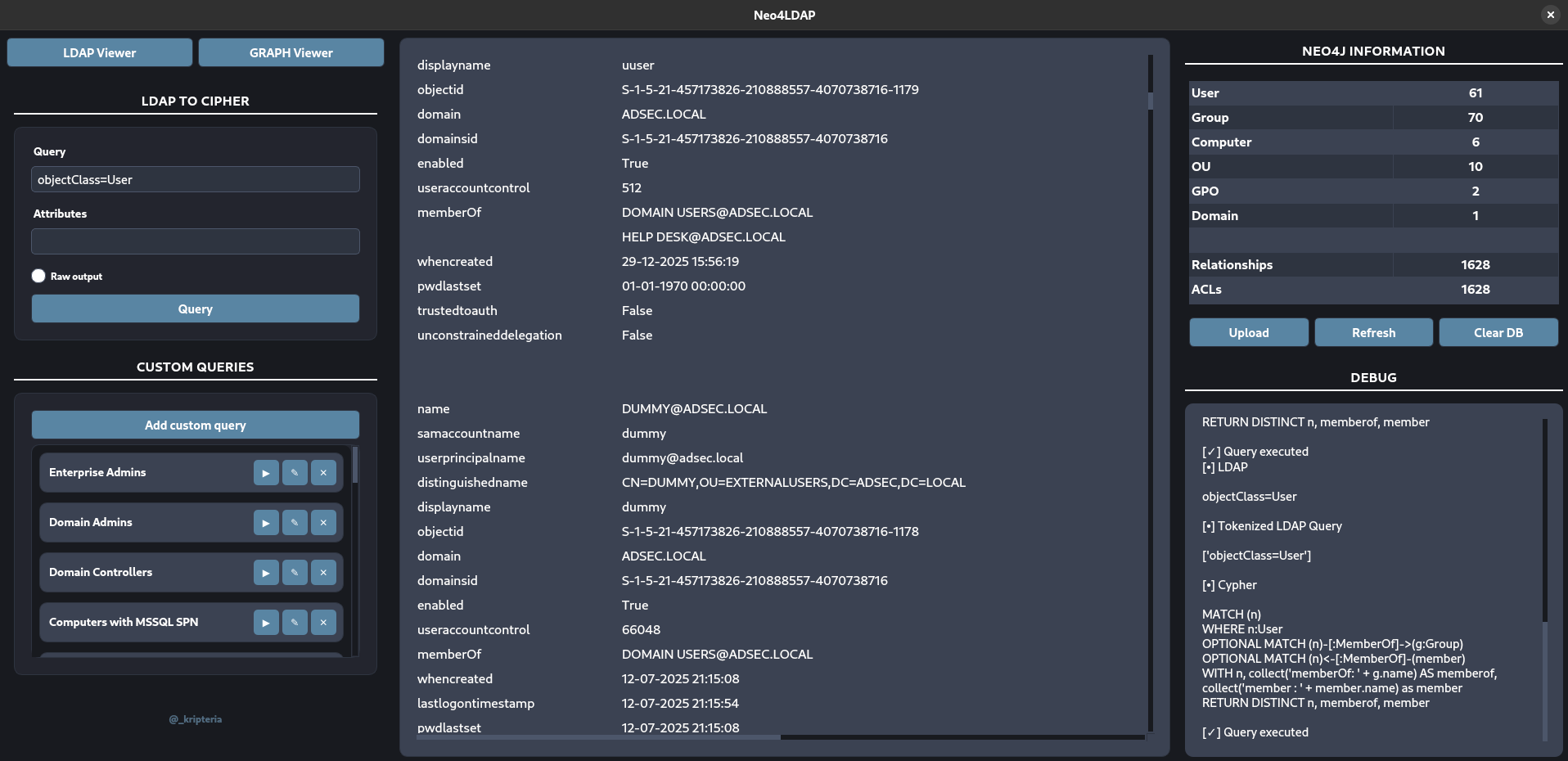

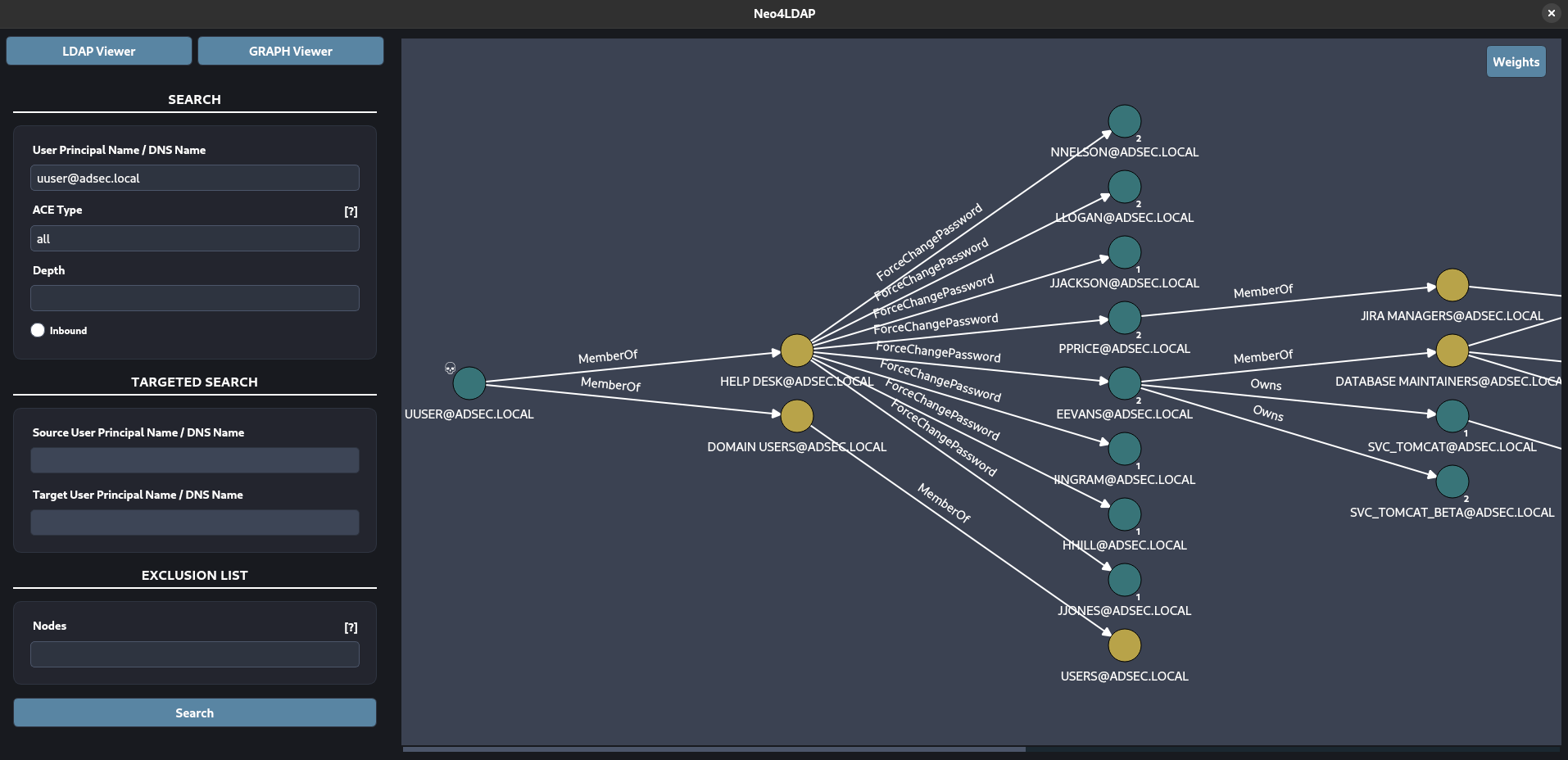

## About Neo4LDAP **Neo4LDAP** is a query and visualization tool focused on **Active Directory**. It combines LDAP syntax with graph-based data analysis in Neo4j, offering an alternative approach to tools like BloodHound. ## Capabilities ### LDAP Viewer - Run **complex and expressive queries** directly against Neo4j - **No need to learn Cypher**: queries can be written in **LDAP syntax** - Create **custom reusable queries** - **Owned nodes** are highlighted to improve visibility and search efficiency ### Graph Viewer - Analyze Active Directory ACLs through **interactive graphs**. - Outbound analysis - Inbound analysis - Targeted analysis - Advanced techniques to **reduce visual noise** - **Exclude nodes** to remove irrelevant elements from the view - **Temporarily hide graph sections** to improve focus and readability - **Depth-limited search** to control graph size and prevent visual clutter - Full control over **graph behavior** - Define the relevance of each ACE to match your objectives - **Context-driven algorithms** that adapt to your analytical needs ### Integration with BloodHound Workflows - Neo4LDAP can **ingest data from BloodHound JSON files** - Support for both **Legacy** and **Community Edition (CE)** formats - **Fast, multithreaded** ingestion ### Other capabilities Additionally, there are **two articles** covering the tool's internals: - [Goodbye Cypher, Hello LDAP: Querying Neo4j with Neo4LDAP](https://medium.com/@kripteria.sec/goodbye-cypher-hello-ldap-querying-neo4j-with-neo4ldap-5e6466426a01) - [Finding optimal attack paths in Active Directory with Neo4LDAP](https://medium.com/@kripteria.sec/finding-optimal-attack-paths-in-active-directory-with-neo4ldap-3d2158419f35) # Recommendations Ingestion of large JSONs may affect memory efficiency. If you have a large JSON file, it is advisable to split it into chunks using [ShredHound](https://github.com/ustayready/ShredHound) before uploading them. You can modify the scale factor of Neo4LDAP by using the following command: QT_SCALE_FACTOR= neo4ldap # Installation Neo4LDAP uses **Neo4j** as its database. To use the tool, you must install and run a Neo4j instance. For installation instructions, please refer to the [official Neo4j installation guide](https://neo4j.com/docs/operations-manual/2025.08/installation/) Once Neo4j is installed, start it by running: neo4j console To install **Neo4LDAP**, it is recommended to use a **Conda virtual environment** with **Python 3.9.13 or higher** to isolate the installation and avoid dependency conflicts: conda create -n neo4ldap python=3.9.13 conda activate neo4ldap Once the conda environment is activated, install the following **Python dependencies** using `pip`: pip install networkx neo4j-rust-ext PySide6 Depending on the display server protocol you are using, you must install **some extra dependencies**. To check which display server protocol you are using, execute the following command: echo $XDG_SESSION_TYPE If that command returns ```x11```, you must install the following **dependency**: sudo apt install libxcb-cursor0 It is recommended to define the following **shell alias** in .bashrc, .zshrc, or equivalent shell configuration: nano ~/.bashrc neo4ldap() { cd || return python -m Neo4LDAP.Neo4LDAP } source ~/.bashrc # Acknowledgements Special thanks to [@_wald0](https://twitter.com/_wald0), [@CptJesus](https://twitter.com/CptJesus), and [@harmj0y](https://twitter.com/harmj0y) for their work on **BloodHound**, a tool that has served as a foundational reference and source of inspiration for the development of Neo4LDAP.
