# Supported Sandboxes
| Sandboxer | Sandbox | Status |
|------------|------------------|-----------------|
| MicroVM | Cloud Hypervisor | Supported |
| | QEMU | Supported |
| | Firecracker | Planned in 2025 |
| | StratoVirt | Supported |
| Wasm | WasmEdge | Supported |
| | Wasmtime | Supported |
| App Kernel | Quark | Supported |
| runC | runC | Supported |
# Why Kuasar?
In the container world, a sandbox is a technique used to separate container processes from each other, and from the operating system itself. After the introduction of the [Sandbox API](https://github.com/containerd/containerd/issues/4131), sandbox has become the first-class citizen in containerd. With more and more sandbox techniques available in the container world, a management service called "sandboxer" is expected to be proposed.
Kuasar supports various types of sandboxers, making it possible for users to select the most appropriate sandboxer for each application, according to application requirements.
Compared with other container runtimes, Kuasar has the following advantages:

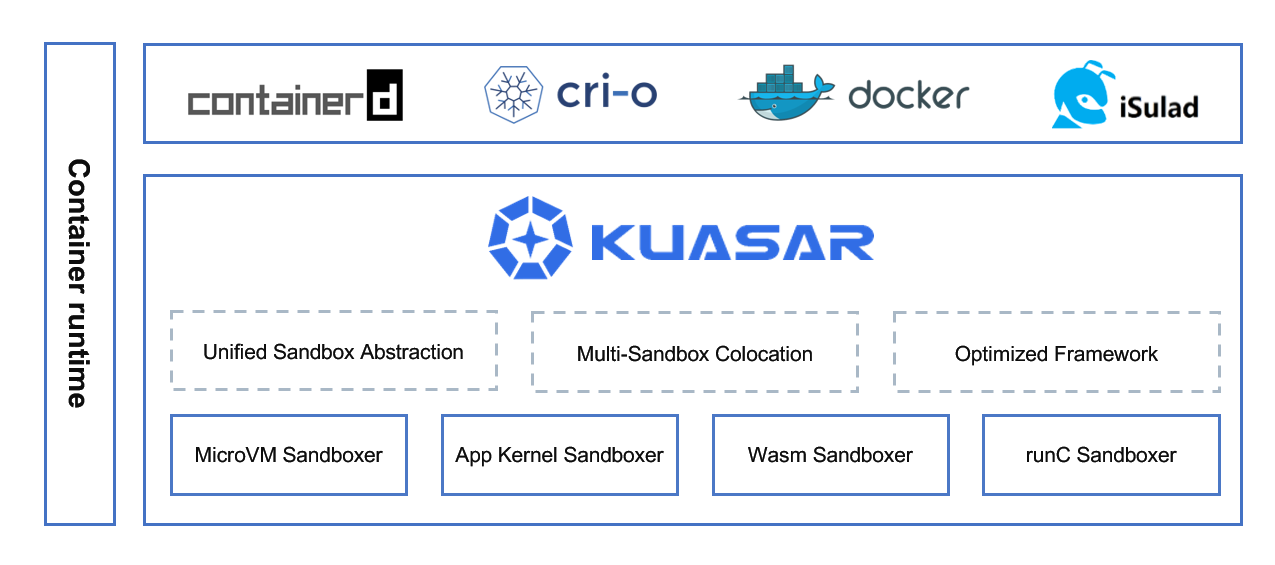

# Kuasar Architecture
Currently, Kuasar provides three types of sandboxers - **MicroVM Sandboxer**, **App Kernel Sandboxer** and **Wasm Sandboxer** - all of which have been proven to be secure isolation techniques in a multi-tenant environment. The general architecture of a sandboxer consists of two modules: one that implements the Sandbox API to manage the sandbox's lifecycle, and the other that implements the Task API to handle operations related to containers.
Additionally, Kuasar is also a platform under active development, and we welcome more sandboxers can be built on top of it, such as Runc sandboxer.

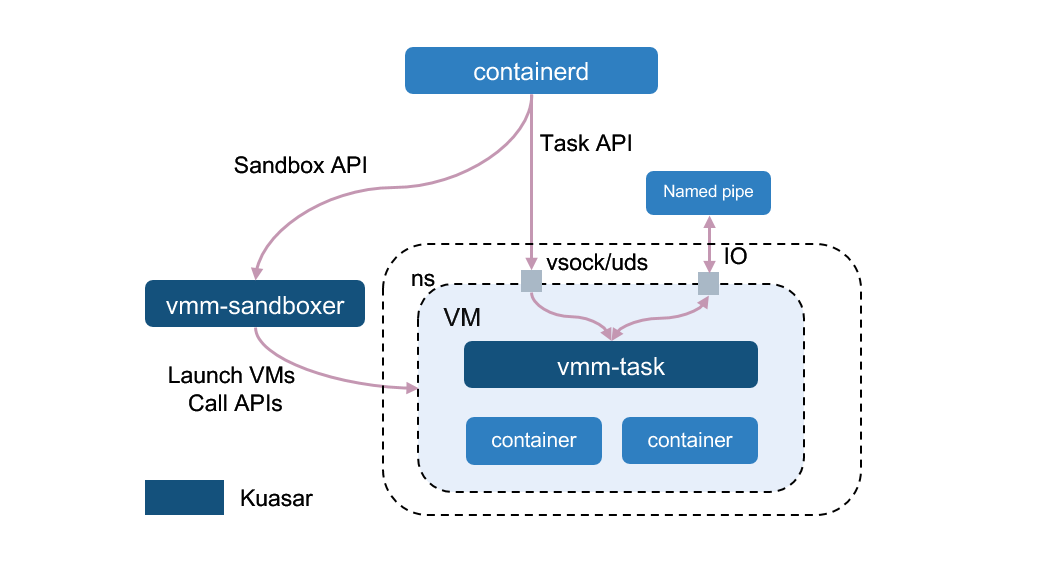

## MicroVM Sandboxer
In the microVM sandbox scenario, the VM process provides complete virtual machines and Linux kernels based on open-source VMMs such as [Cloud Hypervisor](https://www.cloudhypervisor.org/), [StratoVirt](https://gitee.com/openeuler/stratovirt), [Firecracker](https://firecracker-microvm.github.io/) and [QEMU](https://www.qemu.org/). **All of these vm must be running on virtualization-enabled node, otherwise, it won't work!**. Hence, the `vmm-sandboxer` of MicroVM sandboxer is responsible for launching VMs and calling APIs, and the `vmm-task`, as the init process in VMs, plays the role of running container processes. The container IO can be exported via vsock or uds.
The microVM sandboxer avoids the necessity of running shim process on the host, bringing about a cleaner and more manageable architecture with only one process per pod.
*Please note that only Cloud Hypervisor, StratoVirt and QEMU are supported currently.*

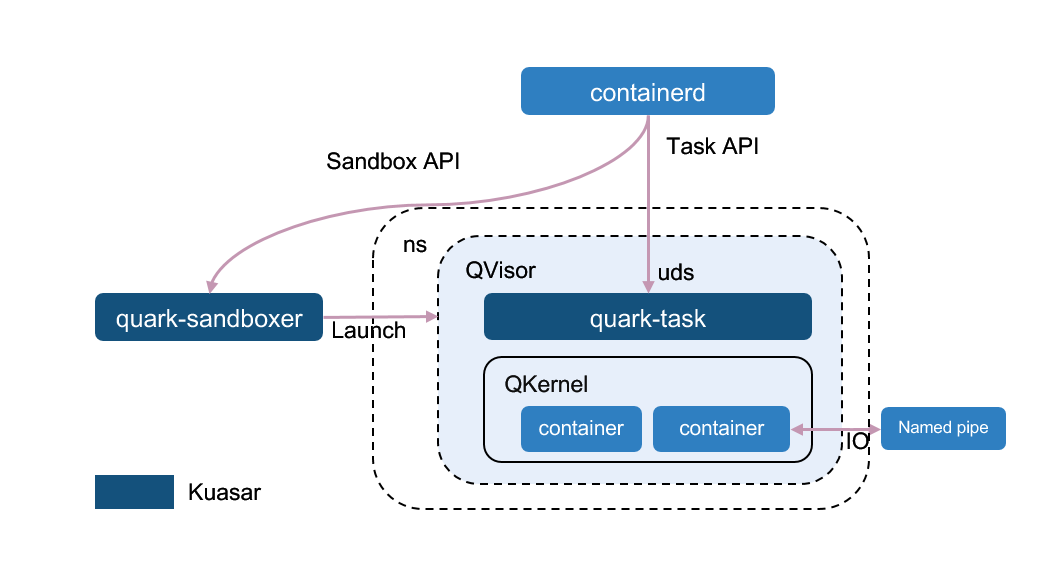

## App Kernel Sandboxer
Quark is an application kernel sandbox that utilizes its own hypervisor named `QVisor` and a customized kernel called `QKernel`. With customized modifications to these components, Quark can achieve significant performance.
The `quark-sandboxer` of app kernel sandboxer starts `Qvisor` and an app kernel named `Qkernel`. Whenever containerd needs to start a container in the sandbox, the `quark-task` in `QVisor` will call `Qkernel` to launch a new container. All containers within the same pod will be running within the same process.
*Please note that only Quark is currently supported.*

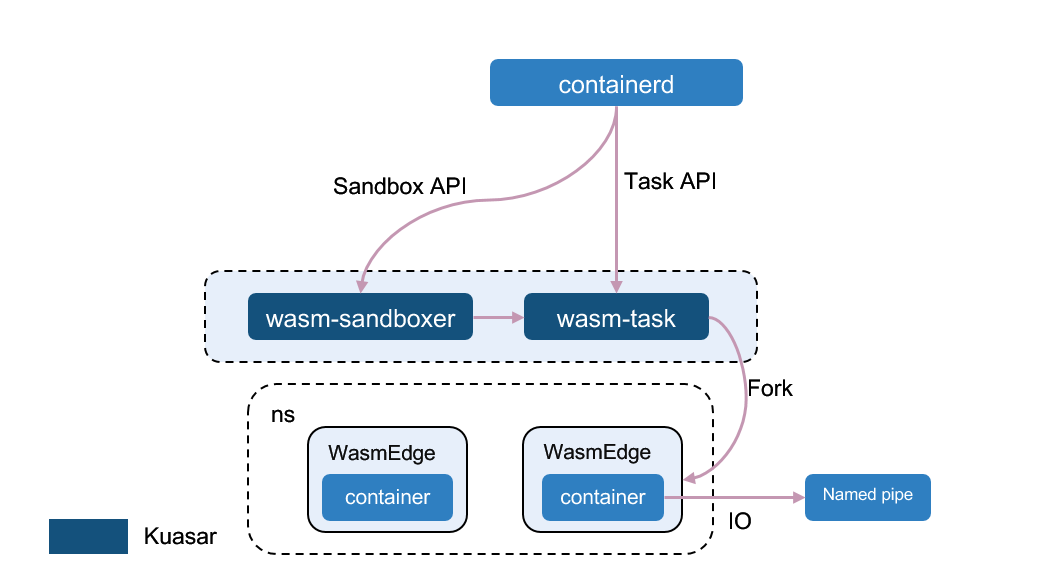

## Wasm Sandboxer
The wasm sandbox, such as [WasmEdge](https://wasmedge.org/) or [Wasmtime](https://wasmtime.dev/), is incredibly lightweight, but it may have constraints for some applications at present. The `wasm-sandboxer` and `wasm-task` launch containers within a WebAssembly runtime. Whenever containerd needs to start a container in the sandbox, the `wasm-task` will fork a new process, start a new WasmEdge runtime, and run the Wasm code inside it. All containers within the same pod will share the same Namespace/Cgroup resources with the `wasm-task` process.

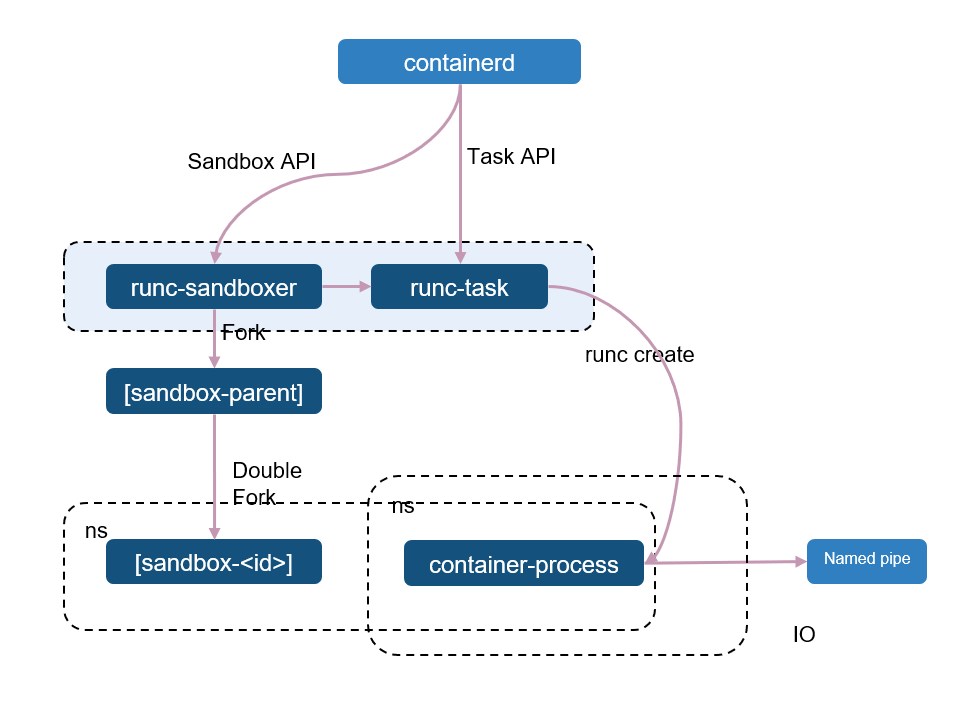

## Runc Sandboxer
Except secure containers, Kuasar also has provide the ability for [runC](https://github.com/opencontainers/runc) containers. In order to generate a separate namespace, a slight process is created by the `runc-sandboxer` through double folked and then becomes the PID 1. Based on this namespace, the `runc-task` can create the container process and join the namespace. If the container need a private namespace, it will unshare a new namespace for itself.
# Performance
The performance of Kuasar is measured by two metrics:
+ End-to-End containers startup time.
+ Process memory consumption to run containers.
We used the Cloud Hypervisor in the benchmark test and tested the startup time of 100 PODs under both serial and parallel scenario. The result demonstrates that Kuasar outperforms open-source [Kata-containers](https://github.com/kata-containers/kata-containers) in terms of both startup speed and memory consumption.
For detailed test scripts, test data, and results, please refer to the [benchmark test](tests/benchmark/Benchmark.md).
# Quick Start
## Prerequisites
### 1. OS
The minimum versions of Linux distributions supported by Kuasar are *Ubuntu 22.04* or *CentOS 8* or openEuler 23.03.
Please also note that Quark requires a Linux kernel version >= 5.15.
### 2. Sandbox
+ MicroVM: To launch a microVM-based sandbox, a hypervisor must be installed on the **virtualization-enabled** host.
+ It is recommended to install Cloud Hypervisor by default. You can find Cloud Hypervisor installation instructions [here](https://github.com/cloud-hypervisor/cloud-hypervisor/blob/main/docs/building.md).
+ If you want to run kuasar with iSulad container engine and StratoVirt hypervisor, you can refer to this guide [how-to-run-kuasar-with-isulad-and-stratovirt](docs/vmm/how-to-run-kuasar-with-isulad-and-stratovirt.md).
+ Quark: To use Quark, please refer to the installation instructions [here](docs/quark/README.md).
+ WasmEdge: To start WebAssembly sandboxes, you need to install WasmEdge v0.13.5. Instructions for installing WasmEdge can be found in [install-a-specific-version-of-wasmedge](https://wasmedge.org/docs/start/install/#install-a-specific-version-of-wasmedge).
### 3. containerd
Kuasar sandboxers are external plugins of containerd, so both containerd and its CRI plugin are required in order to manage the sandboxes and containers.
We offer two ways to interact Kuasar with containerd:
+ **EXPERIMENTAL in containerd 2.0 milestone**: If you desire the full experience of Kuasar, please install [containerd under kuasar-io organization](docs/containerd.md). Rest assured that our containerd is built based on the official v1.7.0, so there is no need to worry about missing any functionalities.
+ If the compatibility is a real concern, you need to install official containerd v1.7.0 with an extra [kuasar-shim](shim) for request forwarding, see [here](docs/shim/README.md). However, it's possible that this way may be deprecated in the future as containerd 2.0 evolves.
### 4. crictl
Since Kuasar is built on top of the Sandbox API, which has already been integrated into the CRI of containerd, it makes sense to experience Kuasar from the CRI level.
`crictl` is a debug CLI for CRI. To install it, please see [here](https://github.com/kubernetes-sigs/cri-tools/blob/master/docs/crictl.md#install-crictl)
### 5. virtiofsd
MicroVMs like Cloud Hypervisor needs a virtiofs daemon to share the directories on the host. Please refer to [virtiofsd guide](https://gitlab.com/virtio-fs/virtiofsd).
## Build from source
Rust 1.67 or higher version is required to compile Kuasar. Build it with root user:
git clone https://github.com/kuasar-io/kuasar.git
cd kuasar
make all
make install
## Start Kuasar
Launch the sandboxers by the following commands:
+ For vmm: `nohup vmm-sandboxer --listen /run/vmm-sandboxer.sock --dir /run/kuasar-vmm &`
+ For quark: `nohup quark-sandboxer --listen /run/quark-sandboxer.sock --dir /var/lib/kuasar-quark &`
+ For wasm: `nohup wasm-sandboxer --listen /run/wasm-sandboxer.sock --dir /run/kuasar-wasm &`
+ For runc: `nohup runc-sandboxer --listen /run/runc-sandboxer.sock --dir /run/kuasar-runc &`
## Start Container
Since Kuasar is a low-level container runtime, all interactions should be done via CRI in containerd, such as crictl or Kubernetes. We use crictl as examples:
+ For vmm, quark or runc, run the following scripts:
`examples/run_example_container.sh kuasar-vmm`, `examples/run_example_container.sh kuasar-quark` or `examples/run_example_container.sh kuasar-runc`
+ For wasm: Wasm container needs its own container image so our script has to build and import the container image at first.
`examples/run_example_wasm_container.sh`
# Contact
If you have questions, feel free to reach out to us in the following ways:
- [mailing list](https://groups.google.com/forum/#!forum/kuasar)
- [slack](https://cloud-native.slack.com/archives/C052JRURD8V) | [Join](https://slack.cncf.io/)
# License
Kuasar is under the Apache 2.0 license. See the [LICENSE](LICENSE) file for details.
Kuasar documentation is under the [CC-BY-4.0 license](https://creativecommons.org/licenses/by/4.0/legalcode).
