heiher/hev-socks5-tunnel

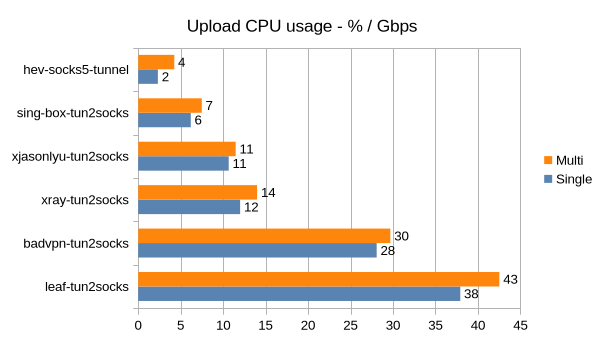

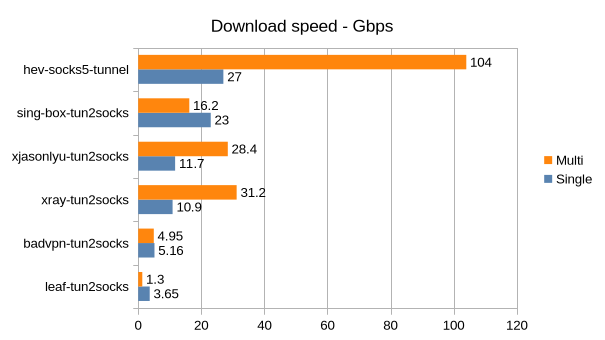

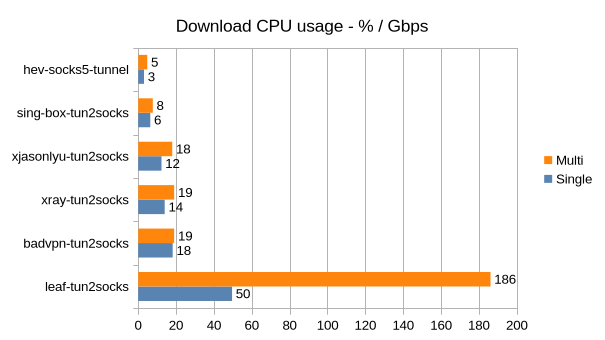

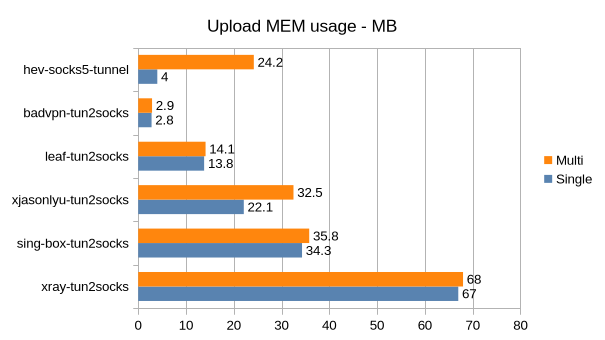

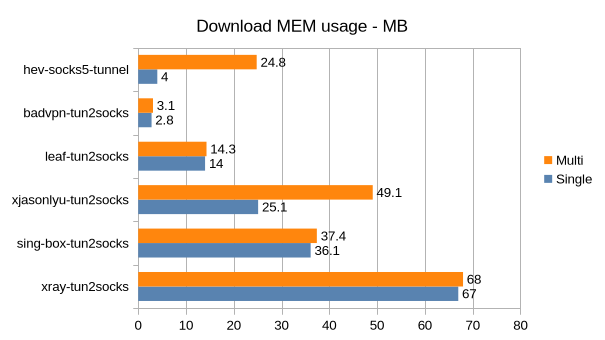

# HevSocks5Tunnel [](https://github.com/heiher/hev-socks5-tunnel) 一个基于 Socks5 代理的简单、轻量级隧道 (tun2socks)。 ## 功能特性 * IPv4/IPv6。（双栈） * 重定向 TCP 连接。 * 重定向 UDP 数据包。（Fullcone NAT，UDP-in-UDP 和 UDP-in-TCP [^1]） * 支持 Linux/Android/FreeBSD/macOS/iOS/Windows。 ## 基准测试 更多详情请见[此处](https://github.com/heiher/hev-socks5-tunnel/wiki/Benchmarks)。 ### 速度   ### CPU 占用   ### 内存占用   ## 如何构建 ### Unix ``` git clone --recursive https://github.com/heiher/hev-socks5-tunnel cd hev-socks5-tunnel make ``` ### Android ``` mkdir hev-socks5-tunnel cd hev-socks5-tunnel git clone --recursive https://github.com/heiher/hev-socks5-tunnel jni ndk-build ``` ### iOS 和 macOS ``` git clone --recursive https://github.com/heiher/hev-socks5-tunnel cd hev-socks5-tunnel # 将生成 HevSocks5Tunnel.xcframework ./build-apple.sh ``` ### Windows (MSYS2) ``` export MSYS=winsymlinks:native git clone --recursive https://github.com/heiher/hev-socks5-tunnel cd hev-socks5-tunnel make ``` ### 库 ``` git clone --recursive https://github.com/heiher/hev-socks5-tunnel cd hev-socks5-tunnel # 静态库 make static # 动态库 make shared ``` ## 如何使用 ### 配置 ``` tunnel: # Interface name name: tun0 # Interface MTU mtu: 8500 # Multi-queue multi-queue: false # IPv4 address ipv4: 198.18.0.1 # IPv6 address ipv6: 'fc00::1' # Post up script # post-up-script: up.sh # Pre down script # pre-down-script: down.sh socks5: # Socks5 server port port: 1080 # Socks5 server address (ipv4/ipv6) address: 127.0.0.1 # Socks5 UDP relay mode (tcp|udp) udp: 'udp' # Override the UDP address provided by the Socks5 server (ipv4/ipv6) # udp-address: '' # Socks5 handshake using pipeline mode # pipeline: false # Socks5 server username # username: 'username' # Socks5 server password # password: 'password' # Socket mark # mark: 0 #mapdns: # Mapped DNS address # address: 198.18.0.2 # Mapped DNS port # port: 53 # Mapped IP network base # network: 100.64.0.0 # Mapped IP network mask # netmask: 255.192.0.0 # Mapped DNS cache size # cache-size: 10000 #misc: # task stack size (bytes) # task-stack-size: 86016 # tcp buffer size (bytes) # tcp-buffer-size: 65536 # udp socket recv buffer (SO_RCVBUF) size (bytes) # udp-recv-buffer-size: 524288 # number of udp buffers in splice, 1500 bytes per buffer. # udp-copy-buffer-nums: 10 # maximum session count (0: unlimited) # max-session-count: 0 # connect timeout (ms) # connect-timeout: 10000 # TCP read-write timeout (ms) # tcp-read-write-timeout: 300000 # UDP read-write timeout (ms) # udp-read-write-timeout: 60000 # stdout, stderr or file-path # log-file: stderr # debug, info, warn or error # log-level: warn # If present, run as a daemon with this pid file # pid-file: /run/hev-socks5-tunnel.pid # If present, set rlimit nofile; else use default value # limit-nofile: 65535 ``` ### 运行 #### Linux ``` # 设置 socks5.mark = 438 bin/hev-socks5-tunnel conf/main.yml # 禁用反向路径过滤 sudo sysctl -w net.ipv4.conf.all.rp_filter=0 sudo sysctl -w net.ipv4.conf.tun0.rp_filter=0 # 绕过上游 socks5 服务器 sudo ip rule add fwmark 438 lookup main pref 10 sudo ip -6 rule add fwmark 438 lookup main pref 10 # 路由其他 sudo ip route add default dev tun0 table 20 sudo ip rule add lookup 20 pref 20 sudo ip -6 route add default dev tun0 table 20 sudo ip -6 rule add lookup 20 pref 20 ``` #### FreeBSD/macOS ``` # 绕过上游 socks5 服务器 # 10.0.0.1: socks5 服务器 # 10.0.2.2: 默认网关 sudo route add -net 10.0.0.1/32 10.0.2.2 # 路由其他 sudo route change -inet default -interface tun0 sudo route change -inet6 default -interface tun0 ``` #### Windows ``` # 绕过上游 socks5 服务器 # 10.0.0.1: socks5 服务器 # 10.0.2.2: 默认网关 route add 10.0.0.1/32 10.0.2.2 # 路由其他 route change 0.0.0.0/0 0.0.0.0 if tun-index route change ::/0 :: if tun-index ``` #### OpenWrt 24.10+ 仓库：https://github.com/openwrt/packages/tree/master/net/hev-socks5-tunnel ``` # 安装软件包 opkg install hev-socks5-tunnel # 编辑 /etc/config/hev-socks5-tunnel # 重启服务 /etc/init.d/hev-socks5-tunnel restart ``` #### 低内存占用 在 iOS 等低内存系统上，减小 TCP 缓冲区和任务栈的大小，以及限制最大会话数，有助于防止内存溢出 (OOM) 问题。 ``` misc: # task stack size (bytes) task-stack-size: 24576 # 20480 + tcp-buffer-size # tcp buffer size (bytes) tcp-buffer-size: 4096 # maximum session count max-session-count: 1200 ``` #### Docker Compose ``` version: "3.9" services: client: image: alpine:latest # just for network testing tty: true # you can test network in terminal depends_on: tun: condition: service_healthy network_mode: "service:tun" tun: image: ghcr.io/heiher/hev-socks5-tunnel:latest # `latest` for the latest published version; `nightly` for the latest source build; `vX.Y.Z` for the specific version cap_add: - NET_ADMIN # needed devices: - /dev/net/tun:/dev/net/tun # needed environment: TUN: tun0 # optional, tun interface name, default `tun0` MTU: 8500 # optional, MTU is MTU, default `8500` IPV4: 198.18.0.1 # optional, tun interface ip, default `198.18.0.1` TABLE: 20 # optional, ip route table id, default `20` MARK: 438 # optional, ip route rule mark, dec or hex format, default `438` SOCKS5_ADDR: a.b.c.d # socks5 proxy server address SOCKS5_PORT: 1080 # socks5 proxy server port SOCKS5_USERNAME: user # optional, socks5 proxy username, only set when need to auth SOCKS5_PASSWORD: pass # optional, socks5 proxy password, only set when need to auth SOCKS5_UDP_MODE: udp # optional, UDP relay mode, default `udp`, other option `tcp` SOCKS5_UDP_ADDR: a.b.c.d # optional, override the UDP address provided by the Socks5 server CONFIG_ROUTES: 1 # optional, set 0 to ignore TABLE, IPV4_INCLUDED_ROUTES and IPV4_EXCLUDED_ROUTES, with MARK defaults to 0 IPV4_INCLUDED_ROUTES: 0.0.0.0/0 # optional, demo means proxy all traffic. for multiple network segments, join with `,` or `\n` IPV4_EXCLUDED_ROUTES: a.b.c.d # optional, demo means exclude traffic from the proxy itself. for multiple network segments, join with `,` or `\n` LOG_LEVEL: warn # optional, default `warn`, other option `debug`/`info`/`error` dns: - 8.8.8.8 ``` 您也可以设置包含多个网段的路由规则，例如： ``` environment: IPV4_INCLUDED_ROUTES: 10.0.0.0/8,172.16.0.0/12,192.168.0.0/16 IPV4_EXCLUDED_ROUTES: |- a.b.c.d/24 a.b.c.f/24 ``` ## API ``` /** * hev_socks5_tunnel_main: * @config_path: config file path * @tun_fd: tunnel file descriptor * * Start and run the socks5 tunnel, this function will blocks until the * hev_socks5_tunnel_quit is called or an error occurs. * * Alias of hev_socks5_tunnel_main_from_file * * Returns: returns zero on successful, otherwise returns -1. * * Since: 2.4.6 */ int hev_socks5_tunnel_main (const char *config_path, int tun_fd); /** * hev_socks5_tunnel_main_from_file: * @config_path: config file path * @tun_fd: tunnel file descriptor * * Start and run the socks5 tunnel, this function will blocks until the * hev_socks5_tunnel_quit is called or an error occurs. * * Returns: returns zero on successful, otherwise returns -1. * * Since: 2.6.7 */ int hev_socks5_tunnel_main_from_file (const char *config_path, int tun_fd); /** * hev_socks5_tunnel_main_from_str: * @config_str: string config * @config_len: the byte length of string config * @tun_fd: tunnel file descriptor * * Start and run the socks5 tunnel, this function will blocks until the * hev_socks5_tunnel_quit is called or an error occurs. * * Returns: returns zero on successful, otherwise returns -1. * * Since: 2.6.7 */ int hev_socks5_tunnel_main_from_str (const unsigned char *config_str, unsigned int config_len, int tun_fd); /** * hev_socks5_tunnel_quit: * * Stop the socks5 tunnel. * * Since: 2.4.6 */ void hev_socks5_tunnel_quit (void); /** * hev_socks5_tunnel_stats: * @tx_packets (out): transmitted packets * @tx_bytes (out): transmitted bytes * @rx_packets (out): received packets * @rx_bytes (out): received bytes * * Retrieve tunnel interface traffic statistics. * * Since: 2.6.5 */ void hev_socks5_tunnel_stats (size_t *tx_packets, size_t *tx_bytes, size_t *rx_packets, size_t *rx_bytes); ``` ## 使用案例 ### Android VPN * [SocksTun](https://github.com/heiher/sockstun) ### iOS * [Tun2SocksKit](https://github.com/EbrahimTahernejad/Tun2SocksKit) ## 贡献者 * **arror** - https://github.com/arror * **bazuchan** - https://github.com/bazuchan * **codewithtamim** - https://github.com/codewithtamim * **dovecoteescapee** - https://github.com/dovecoteescapee * **ebrahimtahernejad** - https://github.com/ebrahimtahernejad * **heiby** - https://github.com/heiby * **hev** - https://hev.cc * **katana** - https://github.com/officialkatana * **pronebird** - https://github.com/pronebird * **saeeddev94** - https://github.com/saeeddev94 * **sskaje** - https://github.com/sskaje * **wankkoree** - https://github.com/wankkoree * **xz-dev** - https://github.com/xz-dev * **yiguous** - https://github.com/yiguous * **yujinpan** - https://github.com/yujinpan * **zheshinicheng** - https://github.com/zheshinicheng ## 许可证 MIT [^1]: 参见[协议规范](https://github.com/heiher/hev-socks5-core/tree/main?tab=readme-ov-file#udp-in-tcp)。[hev-socks5-server](https://github.com/heiher/hev-socks5-server) 支持通过 TCP 进行 UDP 中继。
