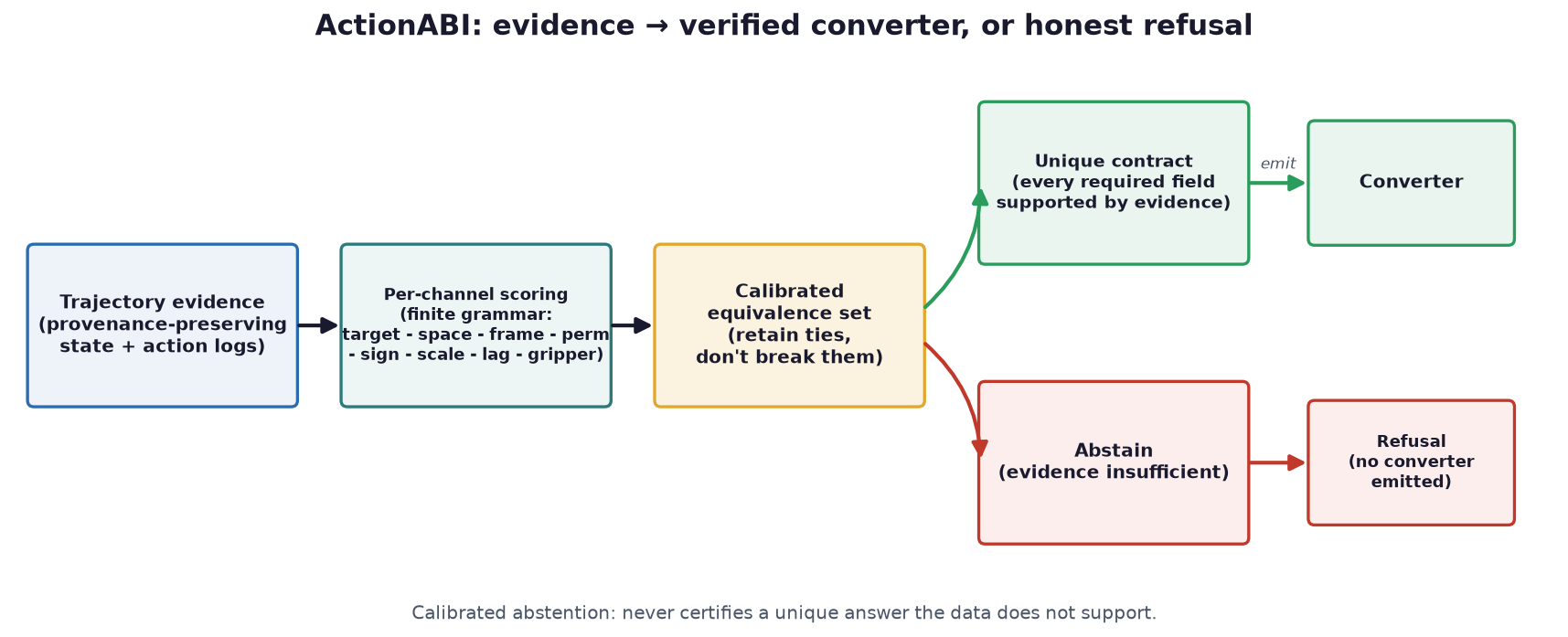

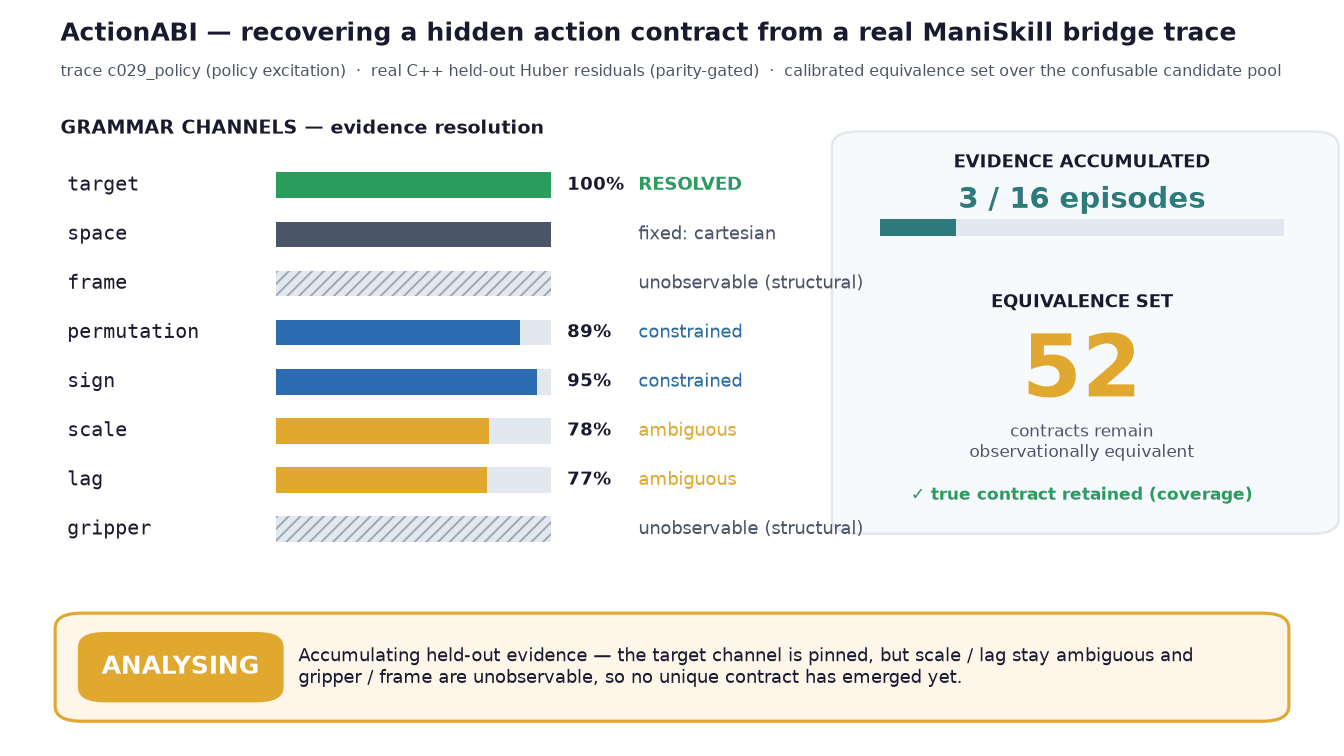

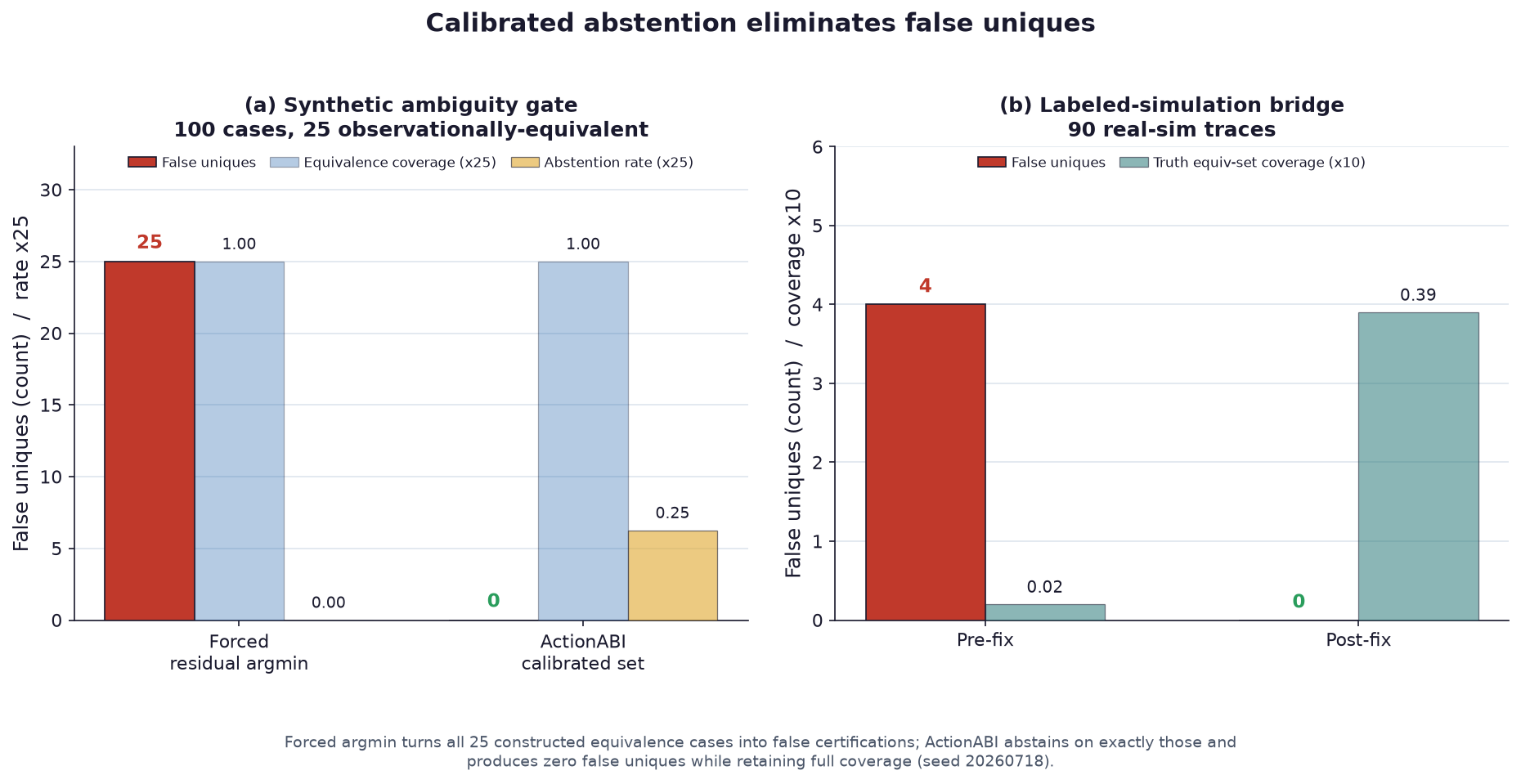

# ActionABI ActionABI is an evidence-first C++20 audit tool for **forensic recovery of undocumented robot action-tensor contracts**. Given provenance-preserving trajectories and a finite set of candidate contracts, it scores candidates on held-out episodes, **retains a calibrated equivalence set instead of breaking ties**, proposes bounded separating probes, and emits a converter **only when every required field is supported** by an evidence report. Its defining discipline is **calibrated abstention**: it never certifies a unique answer the data does not support.  *Real ActionABI output on a real ManiSkill bridge trace (`c029_policy`): the animation replays the tool's own C++ held-out Huber residuals (Python parity-gated at 5e-17) as evidence accumulates over the trace. The `target` channel resolves, but the joint contract never collapses to a unique answer — 56 contracts remain observationally equivalent (the true one retained) — so ActionABI **abstains** and emits no converter. High per-channel confidence is not a unique joint contract. Regenerate with `python media/make_media.py`.*  *Evidence in, a verified converter or an honest refusal out. The equivalence set is the heart of the tool: when two contracts fit the data equally well, ActionABI keeps both and abstains, rather than picking one and certifying a lie.* ## Part of the Action-Interface pair ActionABI is one half of a two-project attack on the **hidden action-interface contract** problem — when the meaning of a robot's action numbers is undocumented or silently changed. ActionABI is the *offline forensic* half: given only logged trajectories it recovers an action-interface contract after the fact, retains a calibrated equivalence set, and abstains when the evidence is insufficient. Its sibling, [**ActionShift**](https://github.com/Archerkattri/actionshift), is the *online adaptation* half: a benchmark that measures whether a policy can recover the same hidden contract on its own, in the loop, from a handful of bounded probes. The two share one **contract grammar** (permutation · sign · scale · target · frame · lag · gripper), and the coupling is real code, not just a theme: **this project's C++ evidence scorer runs as a live backend inside ActionShift's belief loop** via a pybind11 fusion module, with verified numerical parity (see ActionShift's [`reports/cpp_fusion.md`](https://github.com/Archerkattri/actionshift/blob/main/reports/cpp_fusion.md)). Forensic recovery ↔ online adaptation, one shared grammar, one shared scorer. → **[ActionABI](https://github.com/Archerkattri/actionabi)** · **[ActionShift](https://github.com/Archerkattri/actionshift)** ## Contents - [What is this?](#what-is-this) - [Who is this for?](#who-is-this-for) - [How it works](#how-it-works) - [How it performed (evidence summary)](#how-it-performed-evidence-summary) - [Build and run](#build-and-run) - [Python bindings (pybind11 fusion backend)](#python-bindings-pybind11-fusion-backend) - [Results index (frozen real-data matrix)](#results-index-frozen-real-data-matrix) - [Claims (graded SOTA ledger)](#claims-graded-sota-ledger) - [Reproducing](#reproducing) - [Report index](#report-index) - [Related work & positioning](#related-work--positioning) - [Honest limits](#honest-limits) - [Competitive boundary](#competitive-boundary) - [License, citation, and data](#license-citation-and-data) ## What is this? When a robot policy is trained on one dataset and run on another robot — or when a dataset is published without a complete spec — the *meaning* of the action tensor is often missing: is the third channel a delta or an absolute target? Is the gripper `1 = open` or `1 = close`? Which channel drives which joint, with what sign, gain, frame, and latency? Guessing wrong does not throw an error; it moves a real robot the wrong way. ActionABI treats that undocumented **action contract** as a *forensic inference target* over the trajectories themselves — the logged state and action streams — and recovers what the evidence supports while refusing to invent what it does not. Concretely, ActionABI scores a finite declared grammar of candidate contracts on held-out episodes, groups observationally-equivalent candidates into a **calibrated equivalence set**, and only emits an action converter when every field the converter needs is forced by the evidence. When the data is under-determined — a stationary axis, a passive log with no frame information, a saturating controller that hides scale — it **abstains** and says so, field by field. The supported claim is deliberately narrow. ActionABI can distinguish *some* members of its declared finite grammar when the recorded trajectories carry enough excitation and observability. It does not recover arbitrary controllers, certify a universal action interface, infer semantics absent from the sensors, or make a robot-safe probe without device-specific bounds. The CUDA backend is **experimental** because it failed the preregistered transfer-inclusive 5× performance gate. ## Who is this for? - **Dataset maintainers and robot-learning practitioners** who inherit trajectories with missing or untrusted action-space metadata and need to know, honestly, which convention fields are recoverable from the data and which are not — before a policy is trained or transferred on a wrong assumption. - **Anyone deploying a policy across robot stacks** where the action contract may silently differ. ActionABI is the data-side complement to [ActionShift](../actionshift/README.md), which studies the same hidden-contract problem from the *policy adaptation* side; ActionABI's C++ scoring core is in fact [load-bearing inside ActionShift's belief loop](#python-bindings-pybind11-fusion-backend). - **Robotics-systems and safety engineers** who want a converter that comes with an evidence report and a refusal gate, not a best-guess mapping — because a wrong action-semantics guess moves a real robot. Real robot-learning ecosystems already disagree on these conventions in practice — which is exactly why the problem is not invented. See the [gripper-polarity disagreement](#how-it-performed-evidence-summary) between two actively-used dataset families below. ## How it works **The finite declared grammar** covers: - **target** — absolute position, delta position, or velocity; - **space** — joint or Cartesian; - **frame** — world / base / tool; - **permutation** of channels; per-channel **sign**; per-channel positive **scale**; - nonnegative integer **lag** (a command that lands `lag` steps late); - **gripper inversion**. `schemas/action_spec.schema.json` defines the JSON boundary. Canonical JSONL input starts with one metadata record (source filename, SHA-256, extraction date, state columns, units), followed by sample records with `episode_id`, `t_ns`, `state`, and `action`. Unsupported or ambiguous fields stay explicit: fixed resets can preserve absolute/episode-relative equivalence; stationary or correlated axes can preserve sign/permutation equivalence; passive logs may lack frame, lag, gripper, or controller evidence; Cartesian evidence needs an opt-in URDF/Pinocchio build and never runs IK to force an answer. **The pipeline** (see the diagram at the top) scores each candidate contract's per-channel evidence on held-out episodes, folds observationally-equivalent candidates into a calibrated equivalence set, and then branches: if the evidence forces a unique contract with every required field supported, it emits a converter; otherwise it abstains and emits a refusal with a field-by-field evidence report. Documentation, when present, is used only as a *label to score recovered conventions against* — never as an inference input. ## How it performed (evidence summary) Every number below is committed under `results/` (raw) and written up in `reports/` (analysis). **Calibrated abstention eliminates false uniques.** On a 100-case synthetic ambiguity gate with 25 deliberately observationally-equivalent cases, a naive forced-argmin baseline turns all 25 into false unique certifications; ActionABI abstains on exactly those 25 and produces **zero** false uniques while retaining full coverage. The same calibration property holds on the labeled-simulation bridge, where a bias-robustness fix drove false uniques from 4 to 0 and lifted truth equivalence-set coverage 0.02 → 0.39.  ### Synthetic falsification — abstention eliminates false uniques (`reports/benchmark_sprint.md`) 100 finite-grammar cases, 25 deliberately observationally-equivalent (zero excitation), seed `20260718`. Documentation is never an inference input. | Method | Field accuracy (target / lag) | Equivalence coverage | **False unique** | Abstention | |---|---:|---:|---:|---:| | Forced residual argmin | 0.82 / 0.82 | 1.00 | **25** | 0.00 | | **ActionABI calibrated set** | 1.00 / 1.00 | 1.00 | **0** | 0.25 | Forced argmin turns all 25 constructed equivalence cases into false unique certifications; ActionABI abstains on exactly those 25 and produces **zero** false uniques while retaining full coverage. ### Labeled-simulation supervised accuracy (`reports/labeled_sim_traces.md`, `reports/scorer_fixes.md`) First supervised measurement against **ground-truth latent contracts** recovered from real GPU simulation dynamics (ManiSkill PickCube-v1, `pd_ee_delta_pose`), 90 traces over 45 hash-disjoint contracts. Labels are written to a separate file and are never an inference input. Forced-argmin per-field accuracy, **pre-fix → post-fix** (measurement-driven hardening, same 90 traces): | Field (overall) | permutation | sign | scale | target | lag | |---|---:|---:|---:|---:|---:| | pre-fix | 0.63 | 0.76 | 0.24 | 0.74 | 0.39 | | **post-fix** | **0.80** | **0.84** | **0.31** | 0.74 | **0.66** | Structural fields are identifiable: permutation/sign reach **0.92 / 0.93** at lag 0 and **0.97 / 0.98** under random excitation. Calibrated ActionABI vs. forced argmin, pre-fix → post-fix: **false unique certifications 4 → 0**, truth equivalence-set coverage **0.02 → 0.39**, abstention 0.96 → 1.00. Scale stays low (~0.6× systematic under-tracking) — a controller/response-model confound, not a grammar limit. The measurement surfaced two real ActionABI defects (below), now fixed. ### 35-dataset LeRobot Hub audit — zero contradictions (`reports/lerobot_hub_audit.md`) ActionABI pointed at **35 in-the-wild LeRobot datasets** (6 pinned + 29 new) across six ecosystems, scoring recovered conventions against documented ones (documentation is a **label only**, never an inference input). Over **139 documented field-labels**: | Metric | Value | |---|---:| | Contradictions (ActionABI asserts what documentation refutes) | **0 / 139** | | Unique field certifications | 5 | | — documentation-correct | **5 / 5** | | — false unique certifications | **0** | | Abstention-consistent (honest abstention on a knowable field) | 115 | Every abstention lands on a field documentation confirms was in principle knowable — honest, not vacuous. The narrower six-dataset baseline (27 labels, 0 contradictions) is in `reports/documentation_agreement.md`.  **The premise is real, not invented: robot ecosystems actively disagree on action conventions.** The audit surfaced at least five distinct documented gripper conventions across dataset families — most starkly, ALOHA documents `0 = closed / 1 = open` while Open X-Embodiment documents `1 = close / −1 = open / 0 = no-change`. The same numeric channel carries the opposite physical meaning across two actively-used dataset families — independent evidence that action semantics silently vary.  ### Three defects found and fixed as measurement-driven hardening Each was surfaced by a measurement above, root-caused, fixed, and guarded by a regression test: 1. **Lag observable spanned `lag+1` steps** instead of a single delayed step (`src/score_cpu.cpp`, `cuda/score_cuda.cu`). Fixed to `state[row+lag+1] - state[row+lag]`; now matches the Python reference scorer for every lag (C++/Python residual parity max gap `2.8e-16`). Regression test in `tests/test_score.cpp` reproduces the old bug (fails on the span, passes on the fix). lag>0 accuracy improves sharply post-fix (e.g. lag=2 permutation 0.49→0.89, lag recovery 0.25→0.88); an honest counter-movement at lag=0 (permutation 0.92→0.72) is reported alongside, not hidden. 2. **Calibration was not robust to systematic response bias** (`experiments/bias_robust.py`). A fail-closed guard estimates a systematic-bias bound from the argmin's held-out residual structure and abstains under detected misspecification. Drove labeled-sim false uniques 4 → 0; no-op on zero-mean noise, so the synthetic matrix is unchanged. 8 new tests in `experiments/test_bias_robust.py`. 3. **Gate false-equivalence bug** (`experiments/real_dataset_gate.py`): a near-static reset trajectory made absolute ~ episode-relative fit each other, certifying a 2-way set that *excluded* the strictly-better delta (one contradiction on `berkeley_rpt`). Fixed to require the best-fit target in the equivalence branch; all 6 pinned outcomes preserved. Regression test `test_delta_control_with_fixed_resets_is_not_false_equivalence`. Full verification ledger: 8/8 CTests (Release), 8/8 under ASan/UBSan, CUDA parity pass, 32/32 Python tests — `reports/scorer_fixes.md`. ## Build and run The project requires **CMake 3.26+**, a C++20 compiler, and Python 3.11+. The host `/usr/bin/cmake` may be too old; a pinned modern CMake via `uvx` is the reference recipe: uvx --from cmake cmake -S . -B build -DACTIONABI_BUILD_TESTS=ON -DCMAKE_BUILD_TYPE=Release uvx --from cmake cmake --build build -j 8 uvx --from cmake ctest --test-dir build --output-on-failure ./build/actionabi --version ./build/actionabi infer \ --input tests/fixtures/simple.jsonl \ --contract tests/fixtures/absolute.json \ --contract tests/fixtures/delta.json \ --output build/evidence.json The `infer` CLI scores supplied contracts; it does not silently expand an unbounded search. Python adapters and experiments use the pinned packages in `requirements-experiments.txt`. **Test fixtures.** Only synthetic, redistributable trajectories belong in `tests/fixtures/`; each records its generator seed, expected contract equivalence set, state-column semantics, units, and source hash. Real LeRobot shards remain outside git. `simple.jsonl` is a hand-auditable one-axis absolute-position trace (deterministic values); its expected minimum is `absolute.json`, with `delta.json` as a deliberately worse comparison. The embedded source hash is a synthetic provenance sentinel, not a hash of private data. ### Optional backends (all OFF by default, see `cmake/ActionABIOptions.cmake`) | Option | Effect | |---|---| | `-DACTIONABI_ENABLE_CUDA=ON` | Batched CUDA trajectory scorer with parity tests (experimental). | | `-DACTIONABI_ENABLE_PINOCCHIO=ON` | URDF/Pinocchio Cartesian evidence backend. | | `-DACTIONABI_BUILD_BENCHMARKS=ON` | `score_benchmark` scaling harness. | | `-DACTIONABI_BUILD_PYBIND=ON` | The pybind11 fusion backend (see below). | For any CUDA target on an RTX 5090, add `-DCMAKE_CUDA_ARCHITECTURES=120`. **CUDA backend benchmark (failed 5× gate; CUDA remains experimental).** CPU: AMD Ryzen Threadripper PRO 7975WX 32-Cores; GPU: NVIDIA GeForce RTX 5090; Compiler GNU 12.3.0; Release; hardware concurrency 64. Gate: transfer-inclusive CUDA median must be ≥ 5× faster than multicore CPU. | Hypotheses | Residual evaluations | Single CPU ms | Multicore CPU ms | CUDA total ms | CUDA kernel ms | Speedup | |---:|---:|---:|---:|---:|---:|---:| | 128 | 10001408 | 88.370 | 4.358 | 6.157 | 5.301 | 0.71× | | 1024 | 10010624 | 87.322 | 4.105 | 2.963 | 2.376 | 1.39× | | 8192 | 10092544 | 89.176 | 4.377 | 2.338 | 1.149 | 1.87× | | 65536 | 11010048 | 93.776 | 6.571 | 10.170 | 0.470 | 0.65× | ## Python bindings (pybind11 fusion backend) `bindings/` builds ActionABI's evidence-scoring core as a Python extension, `actionabi_cells`, used as a **live identification backend inside ActionShift's factorized-grammar Bayesian belief loop**. It computes exactly the per-cell Gaussian log-evidence and pooled per-hypothesis log-likelihood ActionShift otherwise computes in torch — but as a single fused C++ pass with no intermediate tensors, using the FIXED single-step-delayed lag semantics from `reports/scorer_fixes.md` (defect 1). | File | Purpose | |---|---| | `bindings/cell_score.hpp` | Header-only fused scoring core (`score_cells`, `score_hypotheses`), f32/f64. | | `bindings/module.cpp` | pybind11 module definition and shape validation. | | `bindings/cell_score_cuda.cu` | Optional transfer-inclusive CUDA path for `score_cells`. | **Build.** Enable with `-DACTIONABI_BUILD_PYBIND=ON` (OFF by default). pybind11 is discovered via its installed CMake config, or fetched at `v2.13.6` as a fallback. uvx --from cmake cmake -S . -B build-pybind -DACTIONABI_BUILD_PYBIND=ON -DCMAKE_BUILD_TYPE=Release uvx --from cmake cmake --build build-pybind -j 8 # -> build-pybind/actionabi_cells*.so python -c "import sys; sys.path.insert(0,'build-pybind'); import actionabi_cells as a; print(a.has_cuda)" **Optional CUDA path.** Add `-DACTIONABI_CELLS_ENABLE_CUDA=ON`. On an RTX 5090 also pass `-DCMAKE_CUDA_ARCHITECTURES=120` (the CMake default for this target is already `120` when unset). The CUDA path is transfer-inclusive by construction — the host entry point uploads every input, launches one thread per output cell, and downloads the result — so reported latency is honest end-to-end. When built, the module exposes `score_cells_cuda` and `has_cuda == True`. uvx --from cmake cmake -S . -B build-pybind-cuda \ -DACTIONABI_BUILD_PYBIND=ON -DACTIONABI_CELLS_ENABLE_CUDA=ON \ -DCMAKE_CUDA_ARCHITECTURES=120 -DCMAKE_BUILD_TYPE=Release uvx --from cmake cmake --build build-pybind-cuda -j 8 **API.** All arrays are C-contiguous numpy; the caller dispatches on dtype so parity is exact per precision. - `score_cells_f32 / score_cells_f64(history, observed, alpha, sigma, signs, scales, mode_target, mode_lag, num_threads=1)` Returns `(num_modes, batch, channels, channels, |signs|, |scales|)` per-cell Gaussian log-evidence. `history` is `(depth, batch, channels)`; `mode_target` is `0=delta, 1=absolute`; `mode_lag` is the per-mode lag. - `score_hypotheses_f32 / score_hypotheses_f64(predicted, observed, alpha, sigma, num_threads=1)` Returns `(batch, hypotheses)` pooled per-hypothesis log-likelihood. - `score_cells_cuda(...)` — float32 CUDA variant of `score_cells` (only when built with CUDA). - `has_cuda` — module-level bool. ActionShift consumes the extension through `actionshift/src/actionshift/adaptation/cpp_backend.py` (`load_cells_module`, `CppCellScorer`); see `actionshift/reports/cpp_fusion.md` for the fusion benchmark, including the honest CPU-win / GPU-loss regime map. ## Results index (frozen real-data matrix) The six reports in `results/` were generated from pinned Hugging Face dataset revisions. The Parquet inputs are not redistributed. `results/manifest.json` hashes the exact local Parquet collections; the case-study table below is regenerable as a local `results/TABLE.md` artifact via `experiments/plot_results.py`. All evaluations use the episode split and grammar frozen in `experiments/corpus.yaml`. A matched expected outcome means the precommitted qualitative falsification gate was reproduced; it does **not** mean every contract field was identified. Each JSON report separates strong evidence, weak evidence, missing populations, missing sensor modalities, missing validation settings, and clinical/device relevance. Converter generation remains blocked for every case because the passive real-data analysis does not identify all required fields. **Pinned revisions and licenses:** | Case | Repository | Revision | Declared license | |---|---|---|---| | PushT | [lerobot/pusht](https://huggingface.co/datasets/lerobot/pusht) | `7628202a2180972f291ba1bc6723834921e72c19` | MIT | | ALOHA | [lerobot/aloha_sim_insertion_scripted](https://huggingface.co/datasets/lerobot/aloha_sim_insertion_scripted) | `8ab660912970111cbb26738b11458e6fc4a4aed1` | MIT | | UR5 | [lerobot/berkeley_autolab_ur5](https://huggingface.co/datasets/lerobot/berkeley_autolab_ur5) | `c4e26a697fc4c04776b0558f83e563d14be0109f` | CC-BY-4.0 | | DROID-100 | [lerobot/droid_100](https://huggingface.co/datasets/lerobot/droid_100) | `87301a2d2e99340e2010c9ef0f1d8e780b08aaf9` | MIT | | HYDRA | [lerobot/stanford_hydra_dataset](https://huggingface.co/datasets/lerobot/stanford_hydra_dataset) | `ff06383708a1df7f38c21ec960a286ca6d0b7e7e` | MIT | | XArm | [lerobot/xarm_lift_medium](https://huggingface.co/datasets/lerobot/xarm_lift_medium) | `79efb0e3cef0e530ddec4b8569b190966ab45808` | MIT | **Frozen case-study outcomes** (passive-evidence audits, not universal contract certifications): | Dataset | Episodes | Rows | Outcome | Target field | Converter | Expected | |---|---:|---:|---|---|---|---| | aloha | 50 | 20000 | absolute_episode_relative_equivalence | ambiguous | blocked | yes | | droid | 100 | 32212 | report_without_unique_requirement | unsupported | blocked | yes | | hydra | 570 | 358234 | report_without_unique_requirement | unsupported | blocked | yes | | pusht | 206 | 25650 | unique_absolute | identified | blocked | yes | | ur5 | 1000 | 97939 | partial_cartesian | partially_identified | blocked | yes | | xarm | 800 | 20000 | report_without_unique_requirement | unsupported | blocked | yes | To reproduce, download only `data/**/*.parquet` from each pinned revision into one directory per case, then pass those directories to `experiments/run_case_studies.py`. Running twice must produce identical `manifest.json` files; wall-clock runtimes are deliberately excluded from the manifest. ## Claims (graded SOTA ledger) Sim-only, no hardware. Every claim follows the project's "we are not aware of X" convention — no "first" claims. Grading is deliberately harsh. Sources: the `reports/*.md` files and the [Related work](#related-work--positioning) section. ### Claim 1. Not aware of prior work inferring undocumented action-tensor semantics from passive trajectories with abstention — **STRONG** **Claim:** We are not aware of prior work that treats undocumented robot action-tensor semantics (permutation/sign/scale/delta-absolute/frame/lag/gripper) as a forensic inference target over passive trajectories alone, with explicit equivalence-class reasoning and abstention when evidence is insufficient. **Evidence / external comparator:** Closest collision, ExecSpec (arXiv:2606.03724, unreviewed single-author cs.CR preprint) *checks declared metadata* against a spec — it assumes correct metadata is knowable, the inverse of ActionABI's missing/untrusted-metadata setting. ORTF v0.2 and LeRobot's action-representation docs define forward-looking schemas, not retrospective inference. Protocol- reverse-engineering literature (BinPRE, CCS 2024; Discoverer-lineage survey) shares the epistemic shape (infer format from passive traces) but targets network/binary formats, not physical action tensors with a converter-refusal safety gate. Robot self-modeling (Science Robotics 2022/2023) infers the robot's own body, not what an externally authored action tensor means. **Caveats:** novelty rests on the **combination** (trajectory-only + physical action semantics + abstention + converter-refusal), not on any single ingredient — do not claim novelty of equivalence-class reasoning itself (well-established in identifiability/statistics). ORTF is a commercial data-vendor resource; cite descriptively, not as a scientific baseline "beaten." ### Claim 2. A 0-false-uniques calibration property, verified synthetically and against real-dataset documentation — **STRONG** **Claim:** ActionABI's calibrated equivalence-set decision never emits a false unique certification, on a 100-case synthetic ambiguity gate against a naive best-fit baseline that makes 25, and — separately — on all documentable field-labels checked across the real passive datasets. **Evidence:** Synthetic: `experiments/sprint_accuracy.py`, seed 20260718, 100 cases (25 deliberately ambiguous) — ActionABI 0 false uniques / 1.00 equivalence coverage / 0.25 abstention vs forced-argmin 25 false uniques; **reconfirmed unchanged** after both the lag-observable fix and the bias-robustness fix (`reports/scorer_fixes.md`). Real-data: `reports/documentation_agreement.md` — 0/27 contradictions across 6 datasets (PushT/ALOHA/UR5/DROID/HYDRA/xArm); extended to **0/139** contradictions across 35 datasets in `reports/lerobot_hub_audit.md`, with 5/5 unique certifications documentation-correct. **Caveats:** most real-data verdicts are honest **abstentions**, not identifications — this confirms the calibration is conservative, not that ActionABI positively identifies most real-world fields. One flagged discrepancy exists (UR5 frame: ActionABI's partial fit best-matches "tool," the dataset documents "world" — recorded as `partial_discrepant`, not a contradiction, since ActionABI never uniquely certified it). Do not claim this property holds outside the specific synthetic matrix and the pinned real datasets. ### Claim 3. Supervised accuracy against ground-truth latent contracts from real simulated dynamics — **MODERATE** (numbers need re-verification before publication) **Claim:** Scored against ground-truth contracts recovered from real ManiSkill GPU simulation (not synthetic, not documentation-only), ActionABI recovers permutation and sign substantially above chance, with target (delta/absolute) identification strong under policy excitation. **Evidence (current, post-fix — use these numbers):** overall (90 traces, 45 contracts, one task/one backbone) permutation **0.80**, sign **0.84**, target 0.74, lag 0.66 (up from pre-fix 0.63/0.76/0.74/0.39) — `reports/labeled_sim_traces.md`, post-fix table. Target identification is excitation-dependent: 0.91–0.95 under policy excitation vs 0.45–0.65 under random. **Caveats — why this is MODERATE, not STRONG:** the "0.97/0.98" permutation/sign figure sometimes cited is the **pre-fix** `lag=0, random-excitation` stratum (22→11 traces). The lag-observable fix caused the overall `lag=0` stratum to *regress* (permutation 0.92→0.72, sign 0.93→0.75) because previously-mis-scored lag>0 hypotheses now compete fairly at lag=0 too — and the by-excitation-type breakdown was **not re-reported post-fix**, so the 0.97/0.98 number's current value is unverified. Use the post-fix **overall** 0.80/0.84 figures instead. Scale is **not** identifiable (0.24–0.33 throughout, a controller/response-model confound, not a grammar limit). Single task (PickCube), single backbone, 90 traces — not a multi-task or multi-seed campaign. Gripper is structurally excluded (unobservable from the tcp-pose response). Frame is degenerate in this dataset (identity-rotation wrapper) — declared, not scored. ### Claim 4. Measurement-driven hardening: real defects found, fixed, and regression-tested — **STRONG** **Claim:** Running ActionABI against ground-truth-labeled real simulated traces surfaced two real defects in the scoring/calibration code (not measurement artifacts), both root-caused, fixed, and guarded by regression tests shown to fail on the old code and pass on the fix. **Evidence:** Defect 1 (lag observable scored a multi-step span instead of the correct single-step delay) — new CTest verified to fail (7/8 assertions) on the old code and pass (8/8) on the fix; lag>0 accuracy improves sharply post-fix (lag=2 permutation 0.49→0.89, lag recovery 0.25→0.88). Defect 2 (calibration not robust to systematic response bias) — a fail-closed misspecification guard, 8 new tests, reduces false unique certifications on the bridge traces from 4 to **0** while raising truth equivalence-set coverage 0.02→0.39, with **no regression** on the 100-case synthetic matrix. Full verification ledger: 8/8 CTests (Release), 8/8 under ASan/UBSan, CUDA parity pass, 32/32 Python tests — `reports/scorer_fixes.md`. (A third defect — the gate false-equivalence bug — is documented under the evidence summary above.) **Caveats:** Defect 1 introduces an honest counter-movement at `lag=0` (permutation 0.92→0.72) — report it alongside the lag>0 gains, not silently. Both fixes are scoped to the C++ scorer and calibration comparator; do not extend the "hardening" claim to code paths these fixes did not touch. ### Claim 5. C++ evidence-scoring core is load-bearing inside ActionShift's belief loop, with verified numerical parity — **STRONG (scope-limited)** **Claim:** ActionABI's C++20 scoring core, exposed via a pybind11 binding, computes the per-transition evidence scores that drive ActionShift's factorized-grammar MAP decision end-to-end on real ManiSkill GPU simulation, reproducing the torch reference to float64 precision and matching torch's end-to-end success rate within one episode of noise; in the many-parallel-environment CPU regime the C++ scorer is roughly an order of magnitude faster than a 32-thread torch reference. **Evidence:** Parity: float64 max relative diff **5.7e-14** (target ≤1e-6, met with ~7 orders of margin); float32 (production) MAP decisions bit-identical to torch. End-to-end: real PickCube/seen slice, torch 0.320 [0.259,0.388] vs C++ 0.315 [0.255,0.382] (one-episode difference). CPU benchmark: single-thread C++ beats 32-thread torch by **~13× at 8 envs, ~11× at 1024 envs** on the heavy factorized kernel — `actionshift/reports/cpp_fusion.md`. **External comparator (positioning citation, not a head-to-head win):** NAG Technical Report TR1/17 reports the same qualitative small-batch CPU/GPU crossover pattern (CPU beats naive GPU by 20–40×, GPU wins 10–20× at scale once transfer is excluded); arXiv:2311.07602 independently corroborates CPU-optimized batched small-matmul beating GPU-oriented libraries by >2× across multiple CPU architectures. The 13× figure sits inside this reported envelope; state it as *consistent with* the documented pattern, never as *beating* either paper's specific number. **Caveats:** the 13× figure is specific to single-thread C++ vs 32-thread torch at particular env counts; multi-threaded C++ carries a ~0.2 ms thread-spawn cost and underperforms single-thread below 1024 envs. On GPU, torch-CUDA wins at scale (flat ~0.32–0.38 ms) and the transfer-inclusive C++ CUDA path **loses at every size tested** — reproducing ActionABI's own preregistered transfer-inclusive negative. Only the evidence-scoring step is in C++; history ring, masks, MAP assignment, and encode remain in torch — do not claim "the whole adapter is in C++." The C++ backend inherits the same identifiability walls (gripper, scale, absolute-target) as the torch scorer. ### Claim 6. Real-world action-space convention disagreement exists independent of this project — **MODERATE** **Claim:** Documented real robot-learning ecosystems actively disagree on action-space conventions (e.g., gripper polarity), independent evidence that ActionABI's premise — that action semantics are a real, silently-varying axis in practice, not an invented problem — holds outside the project's own data. **Evidence:** ALOHA documents 0=closed/1=open; Open X-Embodiment/OXE builders document 1=close/−1=open/0=no-change — a direct, sourced disagreement between two actively-used dataset families (`reports/documentation_agreement.md`). **Caveats:** this is one axis (gripper polarity) across two dataset families — a real, citable data point, not a broad survey. Do not inflate to "action conventions disagree everywhere" — the same documentation pass found high agreement on target (delta/absolute) and frame conventions within each individual dataset's own card. ### DO NOT CLAIM (ActionABI) - **Do not claim any hardware or real-robot result.** ActionABI is sim-only: synthetic + real *passive datasets* with documentation-agreement scoring only, never ground truth. - **Do not claim ActionABI "identifies" real-world action semantics with measured accuracy.** Its real-data evidence is documentation-*agreement* (0 contradictions, correct unique certifications, honest abstentions) — a weaker, correctness-audit-style claim than the labeled-simulation supervised accuracy (Claim 3), which is itself the only ground-truth-based accuracy number available and is scoped to one task/one backbone. - **Do not claim a general C++ CUDA speedup** for the ActionABI/ActionShift fusion. The transfer-inclusive C++ CUDA path loses to torch-CUDA at every measured size; only the CPU many-environment regime is a defensible win. - **Do not claim scale is identifiable** under `pd_ee_delta_pose` — it is a ~0.6× systematic under-tracking confound (0.24–0.33 throughout). - **No "first" claims anywhere** — always "we are not aware of X." ## Reproducing Use **CMake 3.26+**, a C++20 compiler, and Python 3.11+. Commands are run from this directory. The host `/usr/bin/cmake` may be older than 3.26; the reference recipe uses a pinned modern CMake via `uvx` (substitute a plain `cmake` 3.26+ if you have one). ### CPU build and falsification tests uvx --from cmake cmake -S . -B build-clean -DACTIONABI_BUILD_TESTS=ON -DCMAKE_BUILD_TYPE=Release uvx --from cmake cmake --build build-clean -j 8 uvx --from cmake ctest --test-dir build-clean --output-on-failure python -m venv build-data-env build-data-env/bin/pip install -r requirements-experiments.txt build-data-env/bin/python -m unittest discover -s experiments -p 'test_*.py' -v Expected: 9/9 CTests (the `cell_score` test builds header-only; `cli_version` runs `tests/test_cli.py`) and 42/42 Python experiment tests. The premise-only command below returns `needs_real_dataset_gate` by design when real inputs are absent: build-data-env/bin/python experiments/run_falsification.py \ --config experiments/corpus.yaml --output build-clean/falsification-premise.json ### Synthetic accuracy/calibration and performance matrix Reproduces `reports/benchmark_sprint.md` (seed `20260718`). Accuracy is CPU-only and deterministic: build-data-env/bin/python experiments/sprint_accuracy.py Performance sweeps and the CUDA scaling matrix use `benchmarks/score_benchmark` (see the optional CUDA section); the committed RTX 5090 matrix failed the transfer-inclusive 5× headline gate, so CUDA is described as experimental. ### Pinned real-data gate Install the current `hf` CLI, then download only Parquet data from each revision listed in the [Results index](#results-index-frozen-real-data-matrix). For example: hf download lerobot/pusht --type dataset \ --revision 7628202a2180972f291ba1bc6723834921e72c19 \ --include 'data/**/*.parquet' --local-dir build-data/pusht Repeat for the other five pinned repositories and run: build-data-env/bin/python experiments/run_falsification.py \ --config experiments/corpus.yaml --output build-clean/falsification.json \ --dataset pusht=build-data/pusht --dataset aloha=build-data/aloha \ --dataset ur5=build-data/ur5 --dataset droid=build-data/droid \ --dataset hydra=build-data/hydra --dataset xarm=build-data/xarm build-data-env/bin/python experiments/run_case_studies.py \ --config experiments/corpus.yaml --out build-clean/cases \ --dataset pusht=build-data/pusht --dataset aloha=build-data/aloha \ --dataset ur5=build-data/ur5 --dataset droid=build-data/droid \ --dataset hydra=build-data/hydra --dataset xarm=build-data/xarm The falsification report must contain `"decision": "continue"`. A second case-study run must produce the same `manifest.json`; runtime is intentionally excluded. Then score the frozen outcomes: build-data-env/bin/python experiments/score_doc_agreement.py ### Labeled-simulation bridge (supervised accuracy) Reproduces `reports/labeled_sim_traces.md` and `reports/scorer_fixes.md`. Step 1 exports labeled traces on the ActionShift side (GPU, ManiSkill); step 2 scores them with the ActionABI C++ CLI. # 1. Export labeled traces (ActionShift venv, GPU 1) cd ../actionshift CUDA_VISIBLE_DEVICES=1 .venv/bin/python experiments/export_labeled_traces.py \ --output artifacts/actionabi_bridge --contracts 45 --num-envs 16 --steps 40 # 2. Build ActionABI and score the labeled bridge cd ../actionabi uvx --from cmake cmake -S . -B build-fix -DACTIONABI_BUILD_TESTS=ON -DCMAKE_BUILD_TYPE=Release uvx --from cmake cmake --build build-fix -j 8 build-data-env/bin/python experiments/score_labeled_traces.py \ --binary build-fix/actionabi \ --dataset ../actionshift/artifacts/actionabi_bridge --out results/labeled_sim `summary.json` and `raw.jsonl` are the committed machine-readable results; the large `grammar_basis/` and `cli_reports/` intermediates are regenerable and gitignored. ### 35-dataset LeRobot Hub audit Reproduces `reports/lerobot_hub_audit.md`. Harvest metadata and download bounded trajectory subsets (~383 MB total; revisions frozen in `results/hub_audit.json`), build the fixed CLI, then run the audit: uvx --from cmake cmake -S . -B build-fix -DACTIONABI_BUILD_TESTS=ON -DCMAKE_BUILD_TYPE=Release uvx --from cmake cmake --build build-fix -j 4 OMP_NUM_THREADS=4 build-data-env/bin/python -m experiments.run_hub_audit \ --data-root /tmp/hub_audit/data --harvest /tmp/hub_audit/harvest.json \ --binary build-fix/actionabi --out-dir results/hub --audit-json results/hub_audit.json ### README media The evidence charts and pipeline diagram are regenerable from the committed report numbers: python media/make_media.py # diagram_pipeline.png, chart_hub_audit.png, chart_calibration.png, chart_gripper_conventions.png `media/make_media.py` renders every figure from `media/style.py`'s shared palette (kept in sync with the ActionShift media so both projects read as one visual system). ### Optional Pinocchio Provide Pinocchio 3 through the system or a CMake prefix, then configure with `-DACTIONABI_ENABLE_PINOCCHIO=ON`. The `pinocchio` CTest loads `tests/fixtures/two_link.urdf`, checks known Cartesian displacement, and verifies missing configuration variables and frames fail closed. Use a fresh build directory to avoid linking against a stale `urdfdom`. ### Optional CUDA uvx --from cmake cmake -S . -B build-cuda -DACTIONABI_ENABLE_CUDA=ON \ -DACTIONABI_BUILD_TESTS=ON -DACTIONABI_BUILD_BENCHMARKS=ON \ -DCMAKE_BUILD_TYPE=Release -DCMAKE_CUDA_ARCHITECTURES=120 uvx --from cmake cmake --build build-cuda -j 8 uvx --from cmake ctest --test-dir build-cuda -R 'cuda_parity|benchmark_smoke' --output-on-failure compute-sanitizer --tool memcheck ./build-cuda/test_cuda_parity Run `score_benchmark` at 128, 1024, 8192, and 65536 hypotheses with 10,000,000 residual evaluations, five warmups, and 30 measurements. The committed RTX 5090 matrix failed the transfer-inclusive 5× headline gate, so CUDA must remain described as experimental. ### Optional pybind11 fusion backend uvx --from cmake cmake -S . -B build-pybind -DACTIONABI_BUILD_PYBIND=ON -DCMAKE_BUILD_TYPE=Release uvx --from cmake cmake --build build-pybind -j 8 python -c "import sys; sys.path.insert(0,'build-pybind'); import actionabi_cells as a; print(a.has_cuda)" Add `-DACTIONABI_CELLS_ENABLE_CUDA=ON -DCMAKE_CUDA_ARCHITECTURES=120` for the CUDA path. See the [Python bindings](#python-bindings-pybind11-fusion-backend) section for the API and how ActionShift consumes it. ## Report index | Report | Contents | |---|---| | `reports/benchmark_sprint.md` | Synthetic accuracy/calibration + RTX 5090 CUDA scaling (failed 5× gate). | | `reports/labeled_sim_traces.md` | Supervised accuracy on ground-truth latent contracts (+ post-fix). | | `reports/scorer_fixes.md` | Defects 1-2 (lag observable, bias-robust calibration): mechanism, tests, before/after. | | `reports/lerobot_hub_audit.md` | 35-dataset Hub audit, defect 3, cross-ecosystem convention clusters. | | `reports/documentation_agreement.md` | Six-dataset documentation-agreement baseline (27 labels). | ## Related work & positioning Absence-of-evidence framing only ("we are not aware of X," never "first"). Both a 2026-07-18 internal red-team and a 2026-07-21 literature pass reach these findings; full dated matrix and primary-source links in git history (`docs/positioning_litcheck.md`, `docs/weakness_sota_recon.md`). **No prior work recovers undocumented action-tensor semantics from passive trajectories with abstention.** Closest neighbors, and why each differs: - **ExecSpec** ("Same Weights, Different Robot," arXiv:2606.03724, unreviewed single-author cs.CR preprint): formalizes an executable policy specification and shows metadata mismatches collapse success (28/28→2/28, 26/26→0/26), but *detects drift analytically from declared metadata* and assumes correct metadata is knowable pre-rollout. ActionABI's case is when metadata is **missing/untrusted/absent** and the only evidence is the trajectory. The closest safety-framing neighbor — **must be cited** with this distinction stated in the first related-work paragraph, not buried. - **ORTF v0.2** (Gerra, `gerra.com/research/ortf`) and **LeRobot action-representation docs** (`huggingface.co/docs/lerobot/action_representations`): forward-looking schemas that a validator checks, not retrospective inference over data that doesn't conform. ActionABI is complementary/upstream. Cite ORTF descriptively (commercial data-vendor resource, not peer-reviewed), never as a baseline "beaten." - **Demystifying Action Space Design** (arXiv:2602.23408, 500+ trained models): a training-time design-choice study (absolute-vs-delta, joint-vs-task-space), not deployment-time recovery of an undocumented convention. - **Protocol reverse engineering** (BinPRE, CCS 2024, `dl.acm.org/doi/10.1145/3658644.3690299`; Discoverer-lineage survey; automatic state-machine inference arXiv:2412.02540): same epistemic shape (infer undocumented format from passive traces with field-level confidence) but on network/binary message formats, not physical action tensors — different failure mode (a wrong action-semantics guess *moves a real robot*, which is why ActionABI has a converter-refusal gate PRE tools lack). The general CS lineage to cite for the "forensic recovery from passive evidence" framing. - **Robot self-modeling** (Science Robotics 2022 `scirobotics.abn1944` / 2023 `scirobotics.adh0972`; Reconfigurable Robot Identification arXiv:2403.10496): infers the robot's own morphology, not what an externally-authored action tensor *means* — same spirit, different target; one scoped sentence. - **Implicit Kinematic Policies** (ICRA 2022, arXiv:2203.01983): a policy-learning robustness trick across Cartesian/joint spaces, not a provenance-preserving audit/converter with abstention. **Novelty rests on the combination** (trajectory-only + physical action semantics + abstention + converter-refusal), not any single ingredient — do not claim novelty of equivalence-class reasoning itself. **Documented-convention sources for weak-label scoring** (LeRobot / OXE; the documentation ActionABI scores recovered conventions against, a label never an inference input): PushT `[2]` absolute EE-position, world frame, 10 fps (`huggingface.co/datasets/lerobot/pusht`, Diffusion Policy arXiv:2303.04137); ALOHA 14-dim absolute joint positions, gripper 0=closed/1=open, ~50 Hz (arXiv:2304.13705); DROID 7-dim delta EE (3 pos + 3 rot + 1 gripper), tool frame, 15 Hz (arXiv:2403.12945); Berkeley UR5 (OXE) 7-dim delta, `world_vector`+`rotation_delta`+`gripper_closedness_action`, gripper **1=close/−1=open/0=no-change**, EE frame (arXiv:2310.08864); xArm (`ucsd_kitchen`, OXE) shape `(8,)` inferred by OXE-template analogy; HYDRA (`stanford_hydra`, Belkhale et al. arXiv:2306.17237) 7-dim delta, EE frame, binary close-gripper. LeRobot's taxonomy doc distinguishes joint vs EE space and delta vs absolute (with a `RelativeActionsProcessorStep`) but does **not** name permutation, sign, or scale as axes, and leaves gripper convention per-dataset — where **ALOHA (0=closed/1=open) and OXE (1=close/−1=open/0=no-change) actively disagree**, itself supporting ActionABI's premise that gripper polarity is a real, silently-varying axis. Scale under `pd_ee_delta_pose` is a known open problem (|α| ≈ 0.02–0.04, R² 0.09–0.34, recovered scale attenuated ~0.6×); the field's mature answer is Hammerstein-Wiener actuator-nonlinearity identification (a hardware-free post-hoc fit on logged command/response pairs) or differentiable-simulation trajectory matching (arXiv:2604.10351) — methods citations, not external-number opportunities (no leaderboard exists for "recover exact scale under a saturating PD controller"). **Venue framing.** A systems/tools venue fits the C++20 implementation, CUDA/CPU benchmarking, and CLI/converter framing — ICRA (systems/tools track) or a robotics-software/safety workshop as the fastest honest home, escalating to a full venue once labeled real latent-contract data matures. Strongest honest headline: *"ActionABI turns undocumented robot action tensors into either a verified converter or an honest refusal — on a 100-case synthetic ambiguity gate it eliminates all 25 false-unique certifications a naive best-fit baseline makes, and on real passive datasets it reports exactly which contract fields are recoverable from evidence alone, without inventing metadata that isn't there."* ## Honest limits - **Scale is not identifiable under `pd_ee_delta_pose`.** The controller under-tracks large commanded deltas (~0.6×), a response-model confound the grammar can express but the physics does not linearly encode. - **Gripper is unobservable from the tcp-pose response**, so `gripper_inverted` is labeled but excluded from identification and reported as unsupported. - **No hardware validation.** All dynamics evidence is simulated; passive real datasets carry no latent-contract labels. No hardware-safety or device claim is made; a safe numerical probe under declared bounds is not hardware-safe without device validation. - **The grammar is finite.** Scales live on a 6-value grid, lag in {0,1,2}, targets {delta, absolute, velocity}. A passed synthetic gate does not imply arbitrary-contract recovery. - **Passive under-determination is the dominant outcome by design.** On real data ActionABI uniquely identifies a field only when the evidence forces it; agreement with documentation is not agreement with dynamics. ## Competitive boundary ActionABI is complementary to explicit action-data schemas and executable-policy metadata certificates. ExecSpec (arXiv:2606.03724) already establishes that normalization metadata and controller conventions belong to the executable policy. ActionABI's narrower target is forensic recovery from trajectories when that metadata is absent or untrusted, with explicit equivalence and abstention. It does not claim the general executable-specification idea or a new robot dataset. ## License, citation, and data ActionABI code is licensed under **MIT** (`LICENSE`). Cite via `CITATION.cff`. Dataset files are not included; each source retains its own license and attribution requirements. The small generated JSONL/URDF test fixtures contain no private robot data.
