# Enterprise Cloud Infrastructure and DevSecOps Patterns
## Table of Contents
- [1. Architectural Strategy and High-Impact Blueprint](#1-architectural-strategy-and-high-impact-blueprint)
- [2. Strategic Presentations and Video Overviews](#2-strategic-presentations-and-video-overviews)
- [2.1 Master Architectural Summary (Start Here)](#21-master-architectural-summary-start-here)
- [2.2 AI-Generated Video Summaries (NotebookLM)](#22-ai-generated-video-summaries-notebooklm)
- [2.3 Vision 2026 Architectural Executive Summary](#23-vision-2026-architectural-executive-summary)
- [2.4 Vision 2026 Technical Engineering Patterns](#24-vision-2026-technical-engineering-patterns)
- [2.5 NotebookLM Technical Deep Dives](#25-notebooklm-technical-deep-dives)
- [3. Document Inventory](#3-document-inventory)
- [4. Foundations and Engineering Onboarding](#4-foundations-and-engineering-onboarding)
- [4.1 Engineering Requirements](#41-engineering-requirements)
- [4.2 Global Regions and Carbon-Aware Naming](#42-global-regions-and-carbon-aware-naming)
- [4.2.1 The Nomenclature Logic (prefix 'd')](#421-the-nomenclature-logic-prefix-d)
- [4.3 Automation Glossary](#43-automation-glossary)
- [4.4 Engineering Environment: VSCode Optimization](#44-engineering-environment-vscode-optimization)
- [5. Core Design Principles](#5-core-design-principles)
- [5.1 Zero-Trust Identity and Compound Auth](#51-zero-trust-identity-and-compound-auth)
- [5.2 IaC Sovereignty (100% Terraform)](#52-iac-sovereignty-100-terraform)
- [5.3 Hybrid-First Integration and AppLink Pattern](#53-hybrid-first-integration-and-applink-pattern)
- [5.4 Observability-by-Design](#54-observability-by-design)
- [5.5 Immutable Infrastructure and Stateless Design](#55-immutable-infrastructure-and-stateless-design)
- [6. Lifecycle Strategy and Environment Matrix](#6-lifecycle-strategy-and-environment-matrix)
- [6.1 IaC Engineering vs. Application Tiering](#61-iac-engineering-vs-application-tiering)
- [6.1.1 IaC Engineering Phase (Branch: `develop` and prefix `d`)](#611-iac-engineering-phase-branch-develop-and-prefix-d)
- [6.1.2 Stable IaC Execution (Branch: `main`)](#612-stable-iac-execution-branch-main)
- [6.1.3 Application Tiering (The Developer's View)](#613-application-tiering-the-developers-view)
- [6.1.4 Lifecycle Visualization and Environment Matrix](#614-lifecycle-visualization-and-environment-matrix)
- [6.2 Detailed Infrastructure Lifecycle Matrix](#62-detailed-infrastructure-lifecycle-matrix)
- [6.3 Tier Parity Strategy: ENG vs PRO](#63-tier-parity-strategy-eng-vs-pro)
- [6.4 Global Environment and Subscription Matrix](#64-global-environment-and-subscription-matrix)
- [7. The Architecture Wiring: DRY Logic and Referential Linking](#7-the-architecture-wiring-dry-logic-and-referential-linking)
- [7.1 Multi-Layer Logic Lifecycle](#71-multi-layer-logic-lifecycle)
- [7.2 Logic Transformation Matrix: Module-Specific Evidence](#72-logic-transformation-matrix-module-specific-evidence)
- [7.3 The "Instance Generator" Core Logic: Deep-Dive](#73-the-instance-generator-core-logic-deep-dive)
- [7.3.1 Logic Transformation Matrix: Branch and Nomenclature Strategy](#731-logic-transformation-matrix-branch-and-nomenclature-strategy)
- [7.3.2 Branch Awareness and The "d" Prefix Logic (IaC Lab Mode)](#732-branch-awareness-and-the-d-prefix-logic-iac-lab-mode)
- [7.3.3 Shared Infrastructure Mapping: Tier Segregation](#733-shared-infrastructure-mapping-tier-segregation)
- [7.3.4 Dynamic App Registration and FQDN Naming](#734-dynamic-app-registration-and-fqdn-naming)
- [7.4 Multi-Region Fan-Out: The Regional Logic](#74-multi-region-fan-out-the-regional-logic)
- [7.4.1 Regional Short-Notation Matrix](#741-regional-short-notation-matrix)
- [8. Architecture Blueprint: Visualizations and Deep-Dives](#8-architecture-blueprint-visualizations-and-deep-dives)
- [8.1 High-Fidelity Infrastructure Visualization and Traffic Flow](#81-high-fidelity-infrastructure-visualization-and-traffic-flow)
- [8.2 Global Traffic Engineering and Regional Failover](#82-global-traffic-engineering-and-regional-failover)
- [8.3 App Service and Microservices Ecosystem](#83-app-service-and-microservices-ecosystem)
- [8.4 AKS and Machine Learning Inference Ecosystem](#84-aks-and-machine-learning-inference-ecosystem)
- [8.5 Scaling Intelligence: Autoscale and Elasticity](#85-scaling-intelligence-autoscale-and-elasticity)
- [8.5.1 Cluster Autoscaler (CA) - The Compute Backbone](#851-cluster-autoscaler-ca-the-compute-backbone)
- [8.5.2 Workload Scaling (HPA and VPA)](#852-workload-scaling-hpa-and-vpa)
- [8.5.3 App Service Elasticity](#853-app-service-elasticity)
- [8.5.4 Scaling Strategy Comparison Matrix](#854-scaling-strategy-comparison-matrix)
- [8.6 Global CI/CD Pipeline Orchestration: The IaC Lifecycle](#86-global-cicd-pipeline-orchestration-the-iac-lifecycle)
- [8.6.1 Pipeline Architecture and Dependency Flow](#861-pipeline-architecture-and-dependency-flow)
- [8.6.2 Pipeline Inventory and Matrix (IaC Lifecycle Order)](#862-pipeline-inventory-and-matrix-iac-lifecycle-order)
- [8.6.3 The "Immutable Deployment" Execution Flow](#863-the-immutable-deployment-execution-flow)
- [8.7 Secure Secret Management and Pipeline Integration](#87-secure-secret-management-and-pipeline-integration)
- [8.7.1 The "Zero-Secret" Trust Fabric](#871-the-zero-secret-trust-fabric)
- [8.7.2 Secret Access and Governance Matrix](#872-secret-access-and-governance-matrix)
- [8.7.3 AKS "Triad" Certificate Provisioning and Day2 Lifecycle](#873-aks-triad-certificate-provisioning-and-day2-lifecycle)
- [8.8 Automated Secret and Certificate Rotation](#88-automated-secret-and-certificate-rotation)
- [8.8.1 Secret Rotation Inventory Matrix](#881-secret-rotation-inventory-matrix)
- [8.9 Backup, DR and Business Continuity Plan (BCP)](#89-backup-dr-and-business-continuity-plan-bcp)
- [8.9.1 Multi-Region Data Resiliency: Atlas vs. Cosmos DB (POC)](#891-multi-region-data-resiliency-atlas-vs-cosmos-db-poc)
- [8.10 Business Continuity Implementation Details](#810-business-continuity-implementation-details)
- [9. Terraform Module Architecture: Domain-Driven Composition](#9-terraform-module-architecture-domain-driven-composition)
- [9.1 Categorization: Why "Composite" over "Atomic"?](#91-categorization-why-composite-over-atomic)
- [9.2 Master Ecosystem Inventory and Deployment Order](#92-master-ecosystem-inventory-and-deployment-order)
- [9.3 Architectural Dependency Chain (Logical Hierarchy)](#93-architectural-dependency-chain-logical-hierarchy)
- [9.3.1 Dependency Visualization](#931-dependency-visualization)
- [9.4 Internal Execution Flow (High-Fidelity Diagram)](#94-internal-execution-flow-high-fidelity-diagram)
- [9.4.1 The 5-Stage Lifecycle Breakdown](#941-the-5-stage-lifecycle-breakdown)
- [9.5 Referential Attribute Linking](#95-referential-attribute-linking)
- [9.6 Real-World Code Evidence](#96-real-world-code-evidence)
- [9.7 Orchestration Strategy](#97-orchestration-strategy)
- [9.8 Advanced Architectural Patterns](#98-advanced-architectural-patterns)
- [9.8.1 Data Transformation: YAML-Driven IaC](#981-data-transformation-yaml-driven-iac)
- [9.8.2 Advanced RBAC Matrixing and Granular Control](#982-advanced-rbac-matrixing-and-granular-control)
- [9.8.3 Collection-Driven Scaling Logic](#983-collection-driven-scaling-logic)
- [9.9 Repository Engineering Metrics and Analytics](#99-repository-engineering-metrics-and-analytics)
- [9.9.1 Visual Distribution Analysis](#991-visual-distribution-analysis)
- [10. Engineering Strategy: Federated Multi-Repo vs. Mono-Repo](#10-engineering-strategy-federated-multi-repo-vs-mono-repo)
- [10.1 The "Enterprise Stack" Pattern](#101-the-enterprise-stack-pattern)
- [10.2 Architecture Comparison Matrix](#102-architecture-comparison-matrix)
- [10.3 Implementation Evidence: The Decoupling Logic](#103-implementation-evidence-the-decoupling-logic)
- [11. DevSecOps: Identity, Secrets and OAuth Flow](#11-devsecops-identity-secrets-and-oauth-flow)
- [11.1 Governance-First Identity Model](#111-governance-first-identity-model)
- [11.1.1 OAuth 2.0 and OBO Flow Deep-Dive](#1111-oauth-20-and-obo-flow-deep-dive)
- [11.1.2 Advanced DevSecOps: The Compound Identity Model](#1112-advanced-devsecops-the-compound-identity-model)
- [11.2 Identity Flow and OAuth Deep-Dive](#112-identity-flow-and-oauth-deep-dive)
- [11.3 Token Comparison Table](#113-token-comparison-table)
- [11.4 Technical Flow Constraints](#114-technical-flow-constraints)
- [12. Zero-Trust Identity and OIDC Flow (Secretless CI/CD)](#12-zero-trust-identity-and-oidc-flow-secretless-cicd)
- [12.1 The Workload Identity Trust Chain](#121-the-workload-identity-trust-chain)
- [12.2 Workload Identity Federation (OIDC) Evidence](#122-workload-identity-federation-oidc-evidence)
- [13. Security-by-Design Checklist](#13-security-by-design-checklist)
- [14. GreenOps and Sustainability](#14-greenops-and-sustainability)
- [15. Validated Reference Library (Official and Community)](#15-validated-reference-library-official-and-community)
- [15.1 Foundational and Governance](#151-foundational-and-governance)
- [15.2 Infrastructure as Code (Terraform)](#152-infrastructure-as-code-terraform)
- [15.3 Security and Zero-Trust Identity](#153-security-and-zero-trust-identity)
- [15.4 Networking and Traffic Orchestration](#154-networking-and-traffic-orchestration)
- [15.5 Compute and Kubernetes (AKS)](#155-compute-and-kubernetes-aks)
- [15.6 SRE, FinOps and Sustainability](#156-sre-finops-and-sustainability)
- [15.7 Community and Expert Influences](#157-community-and-expert-influences)
## 1. Architectural Strategy and High-Impact Blueprint
[](https://www.terraform.io/)
[](https://azure.microsoft.com/)
[](https://azure.microsoft.com/en-us/services/devops/)
[](https://kubernetes.io/)
This repository is a definitive technical blueprint for orchestrating a production-ready, multi-tenant ecosystem on **Microsoft Azure**. It showcases the synergy between **Managed PaaS (App Services)**, **High-Performance Compute (AKS)**, and **Hybrid Connectivity**, underpinned by a strict **Zero-Trust Security model**.

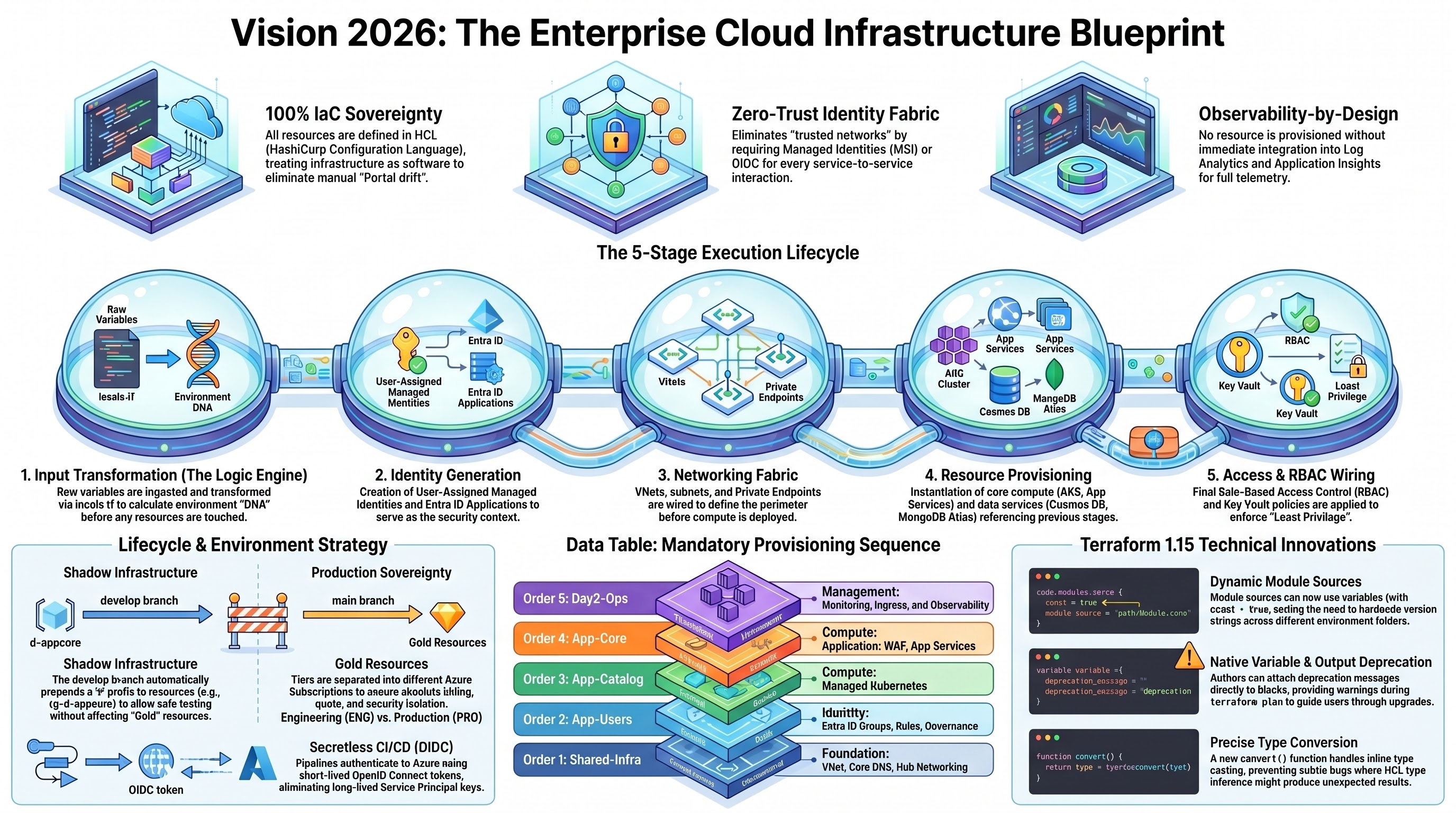

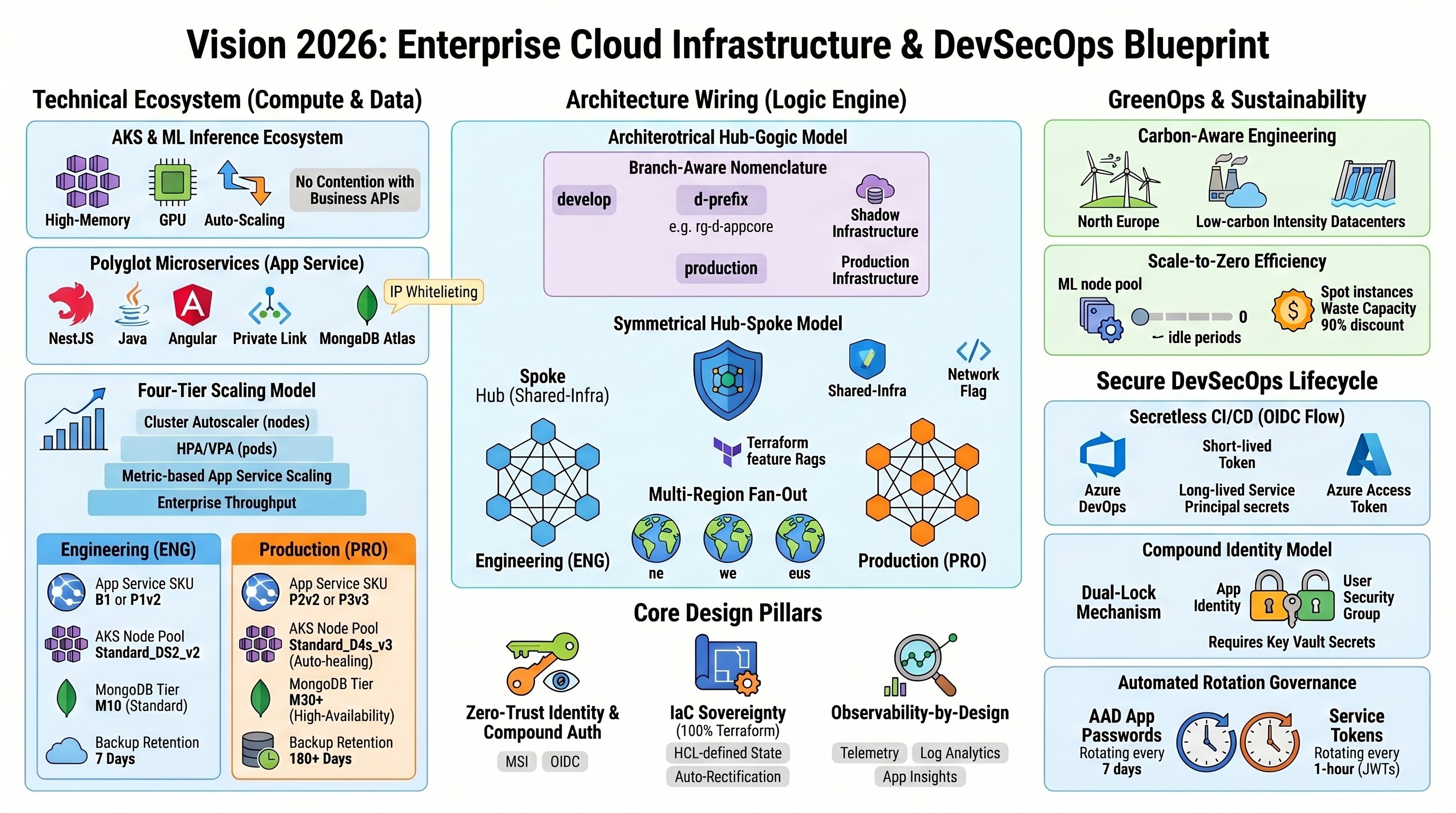

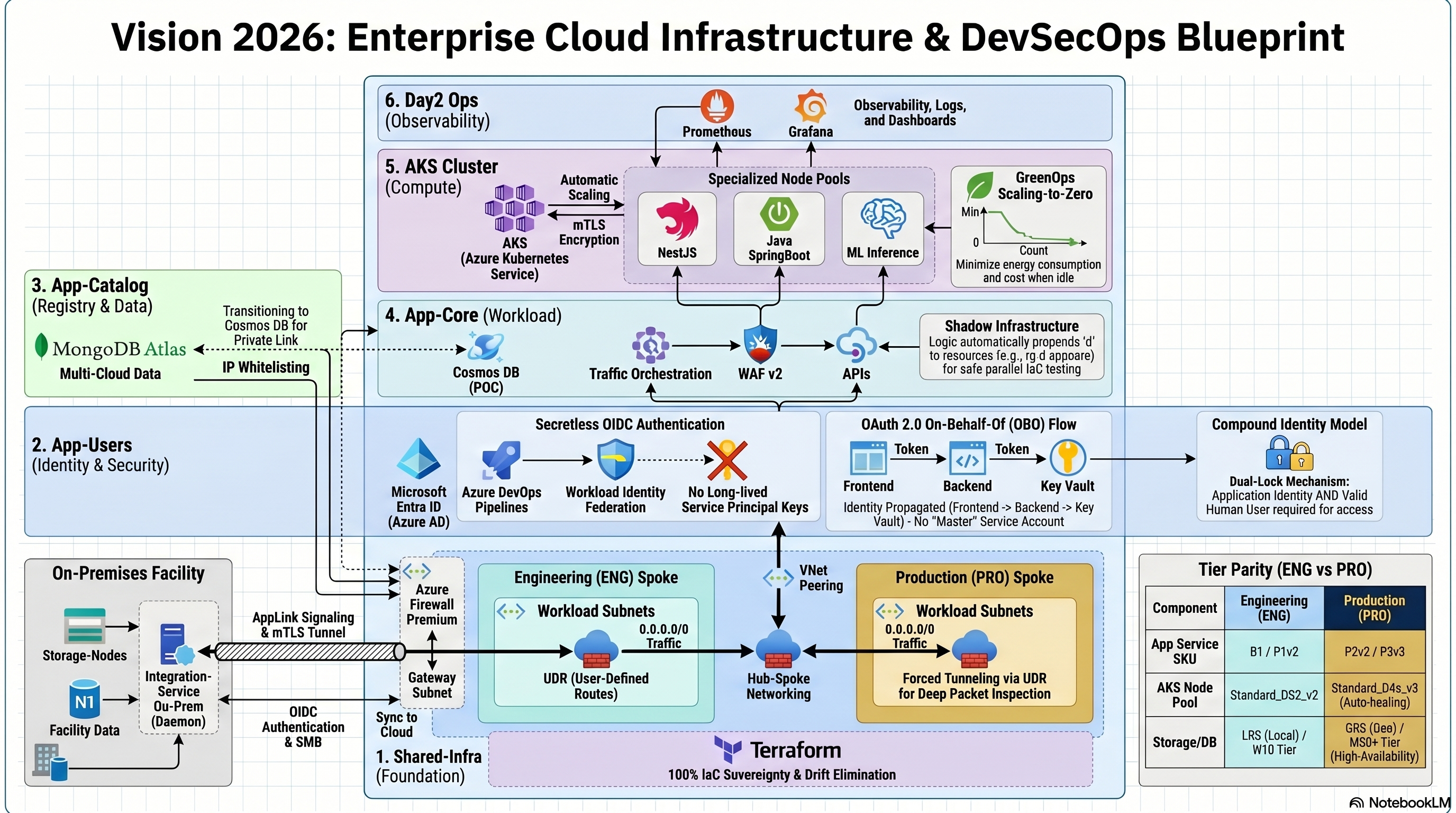

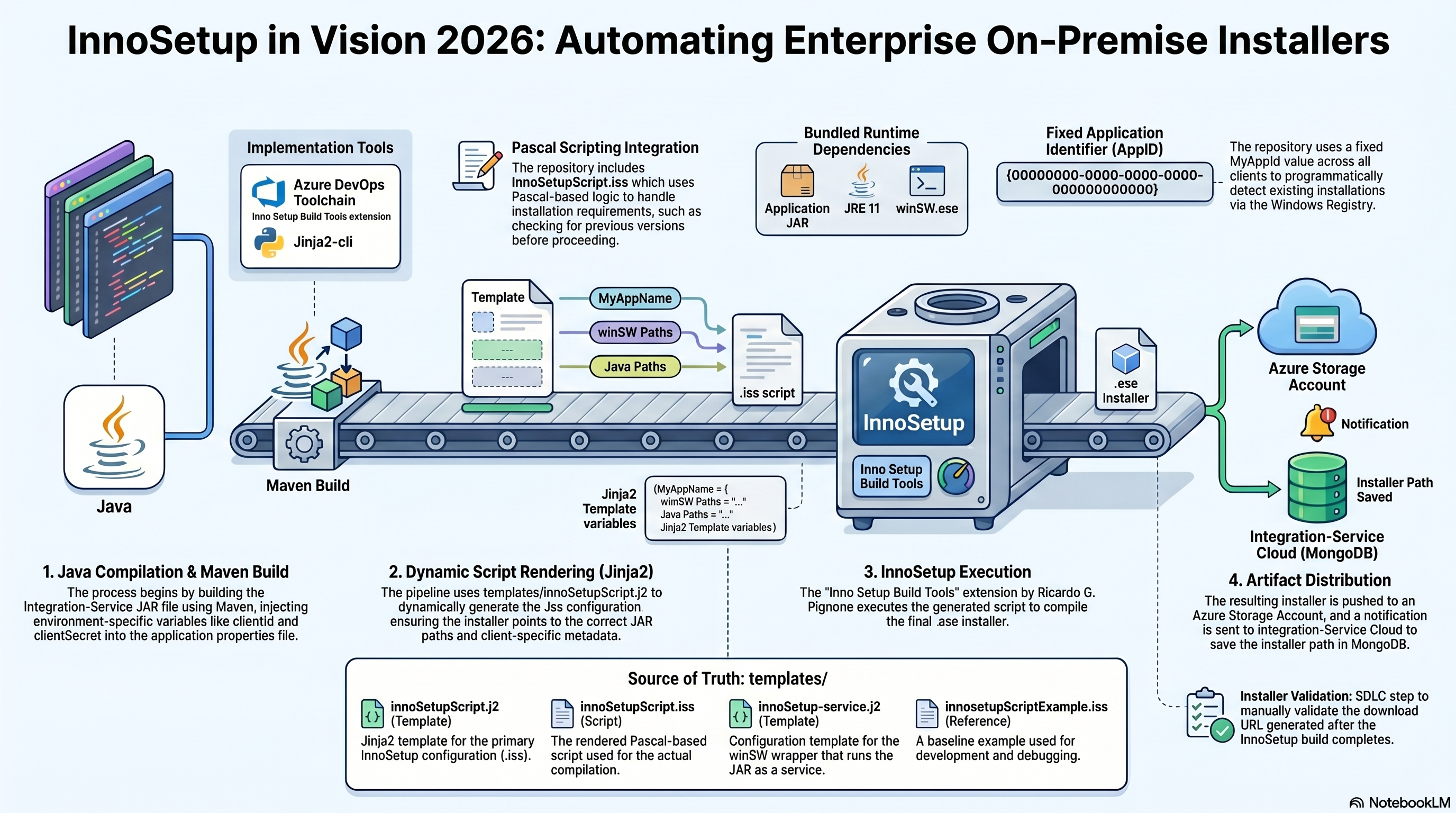

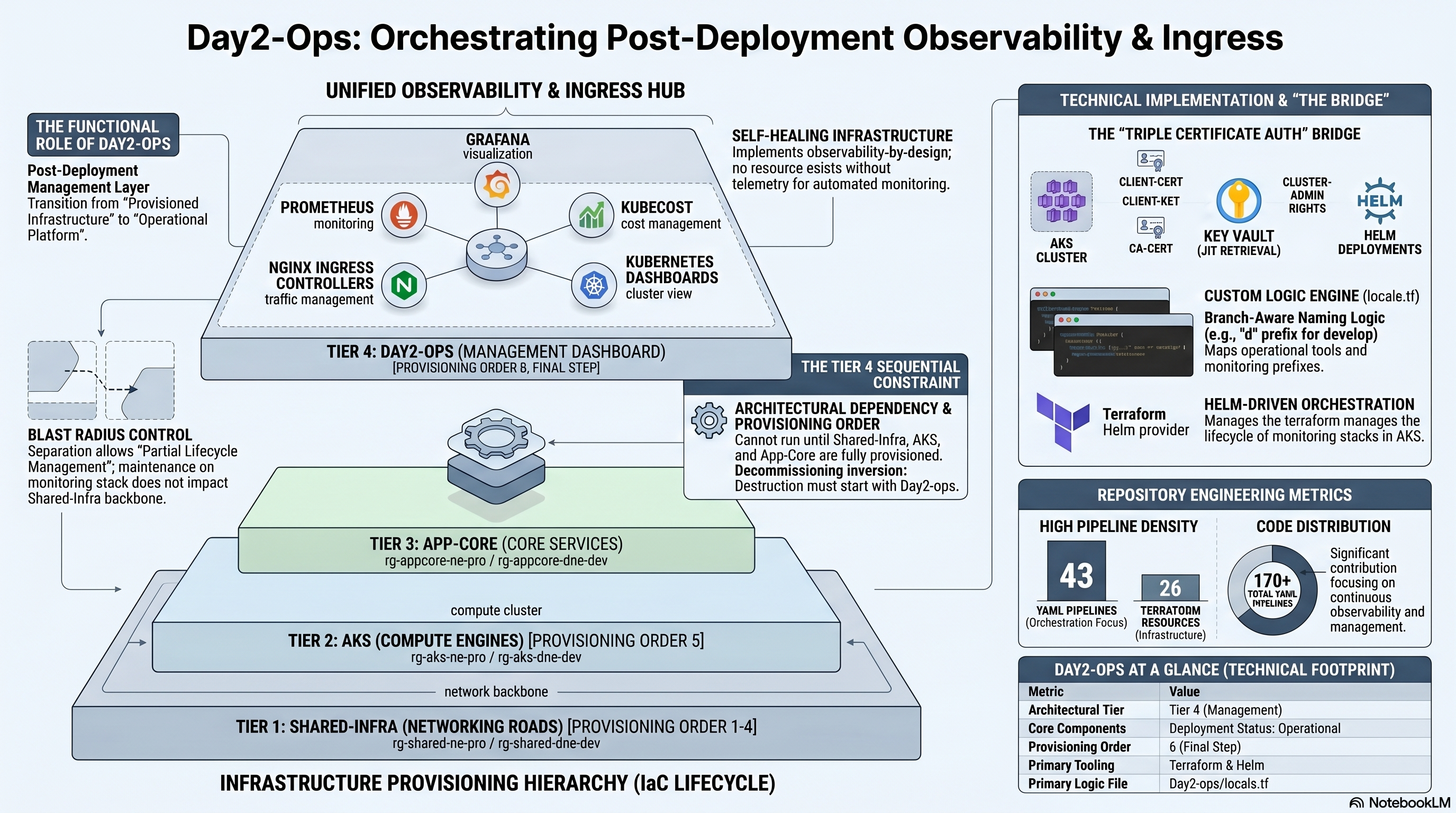

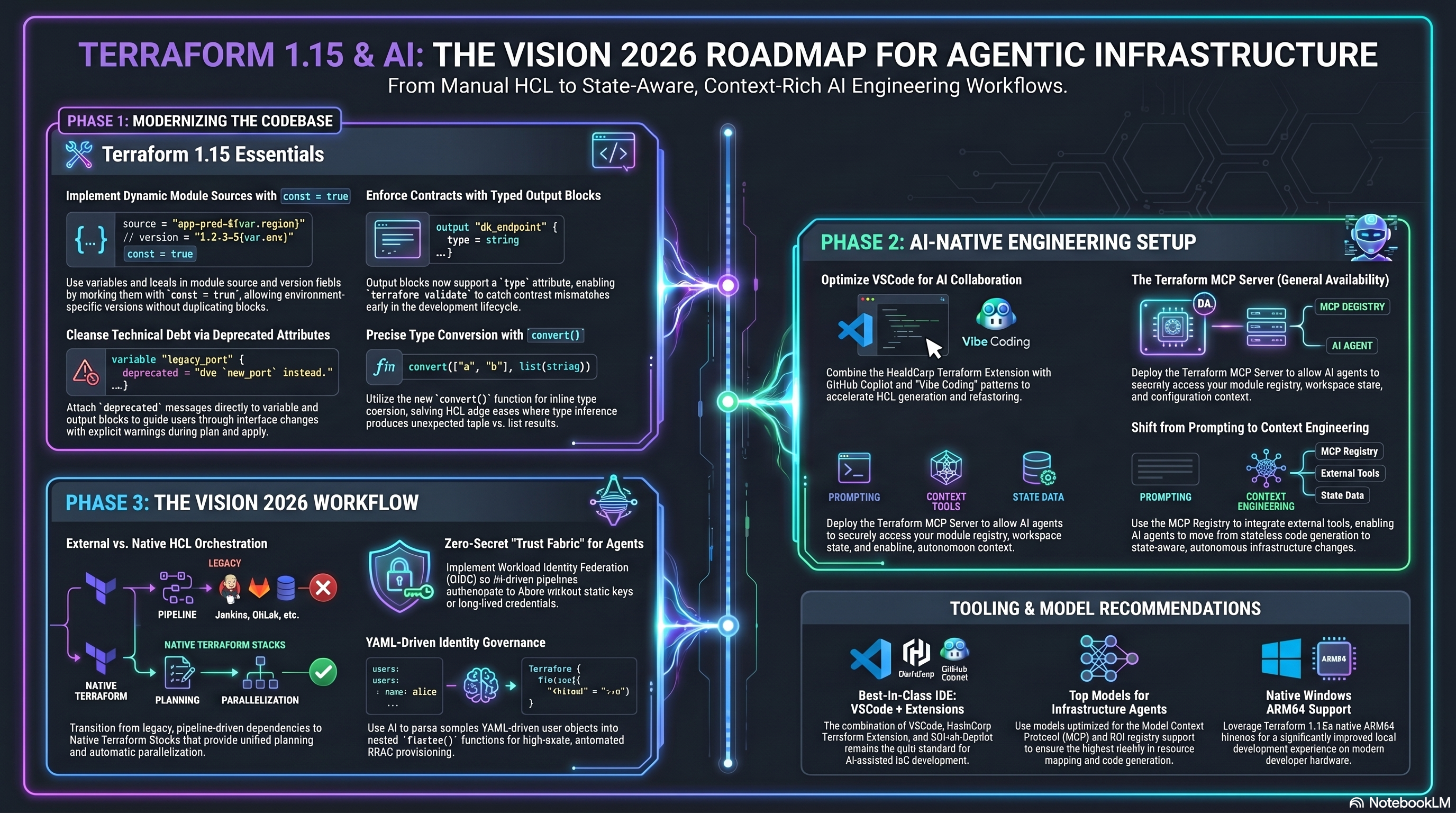

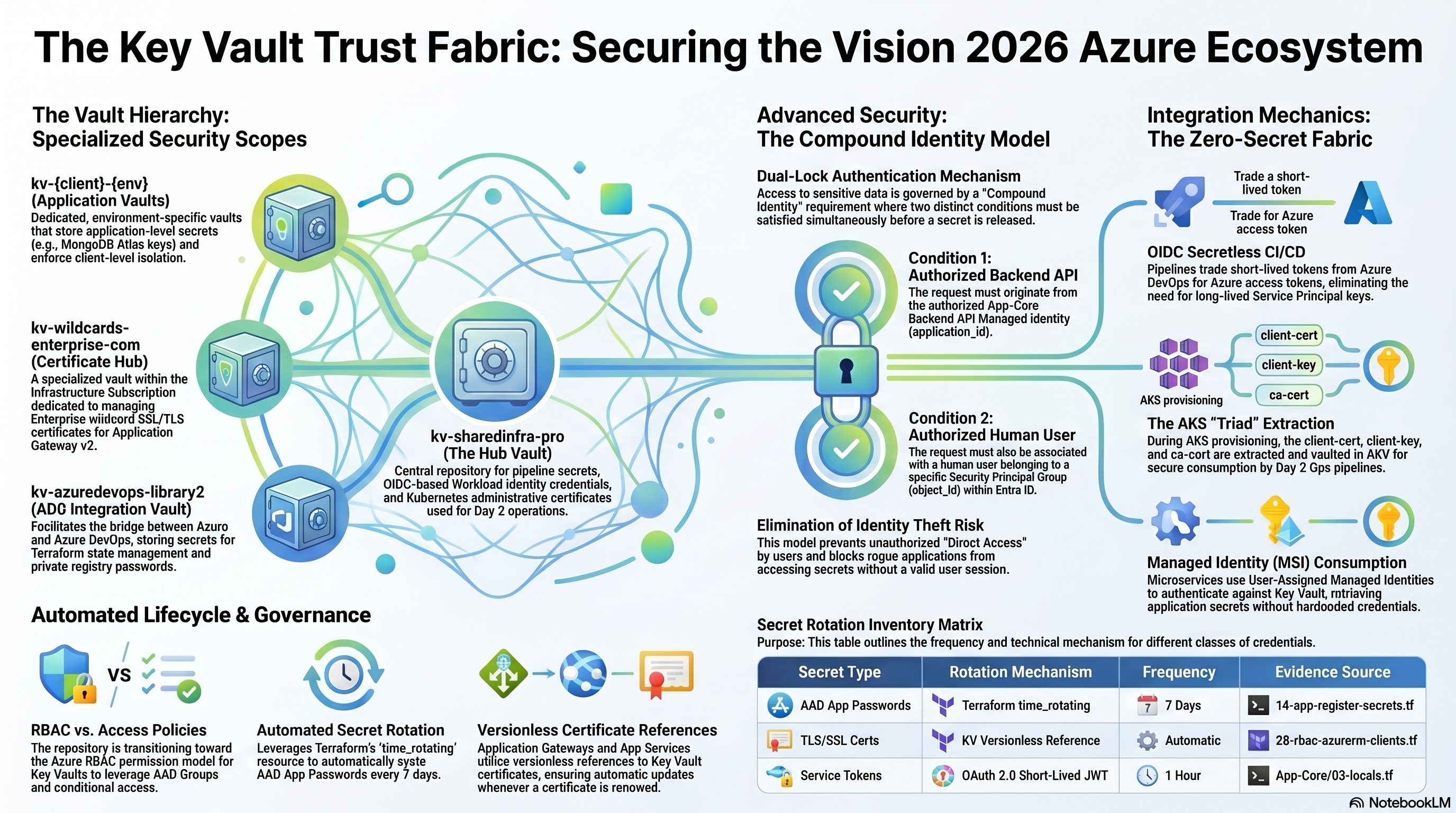

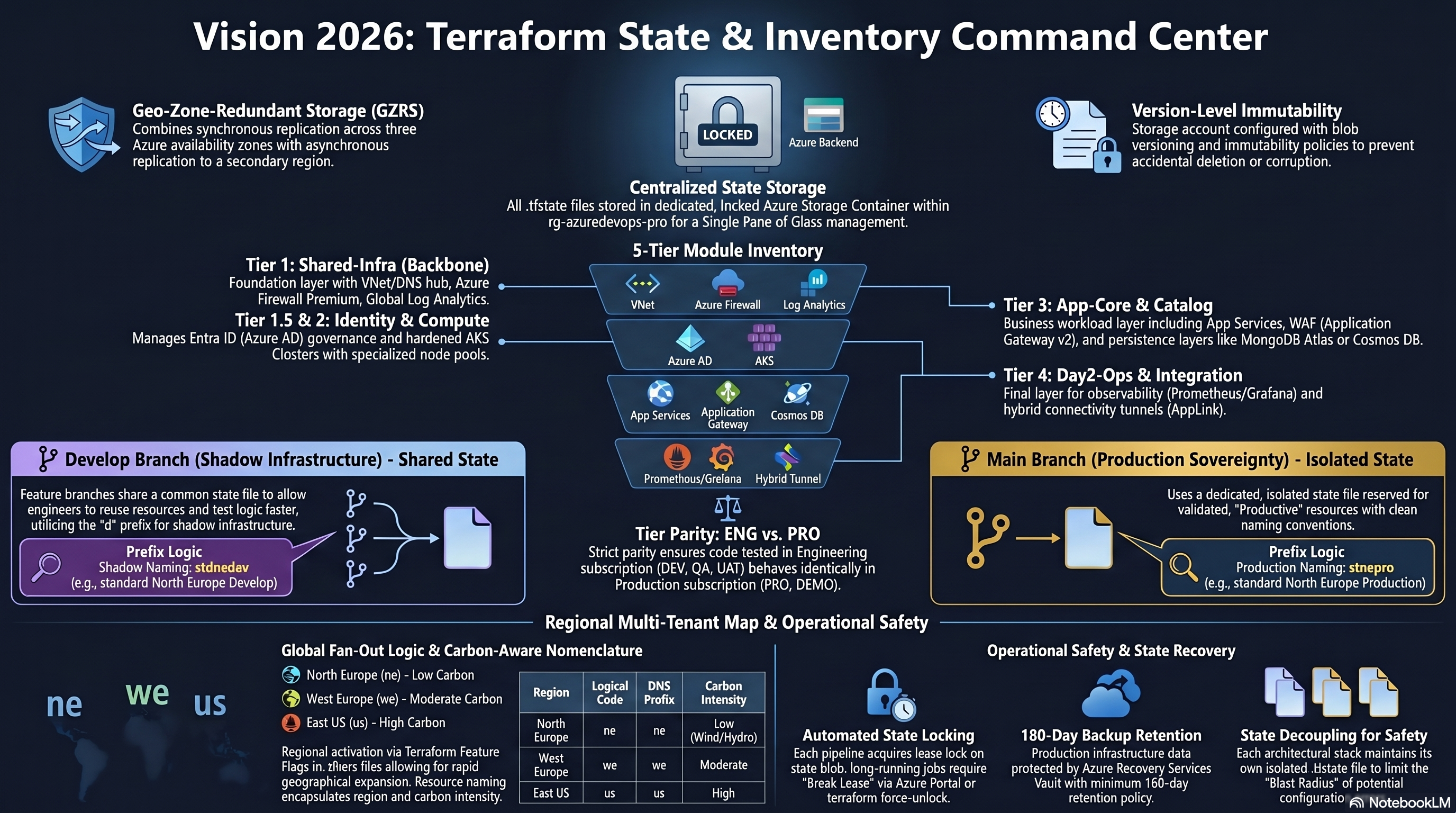

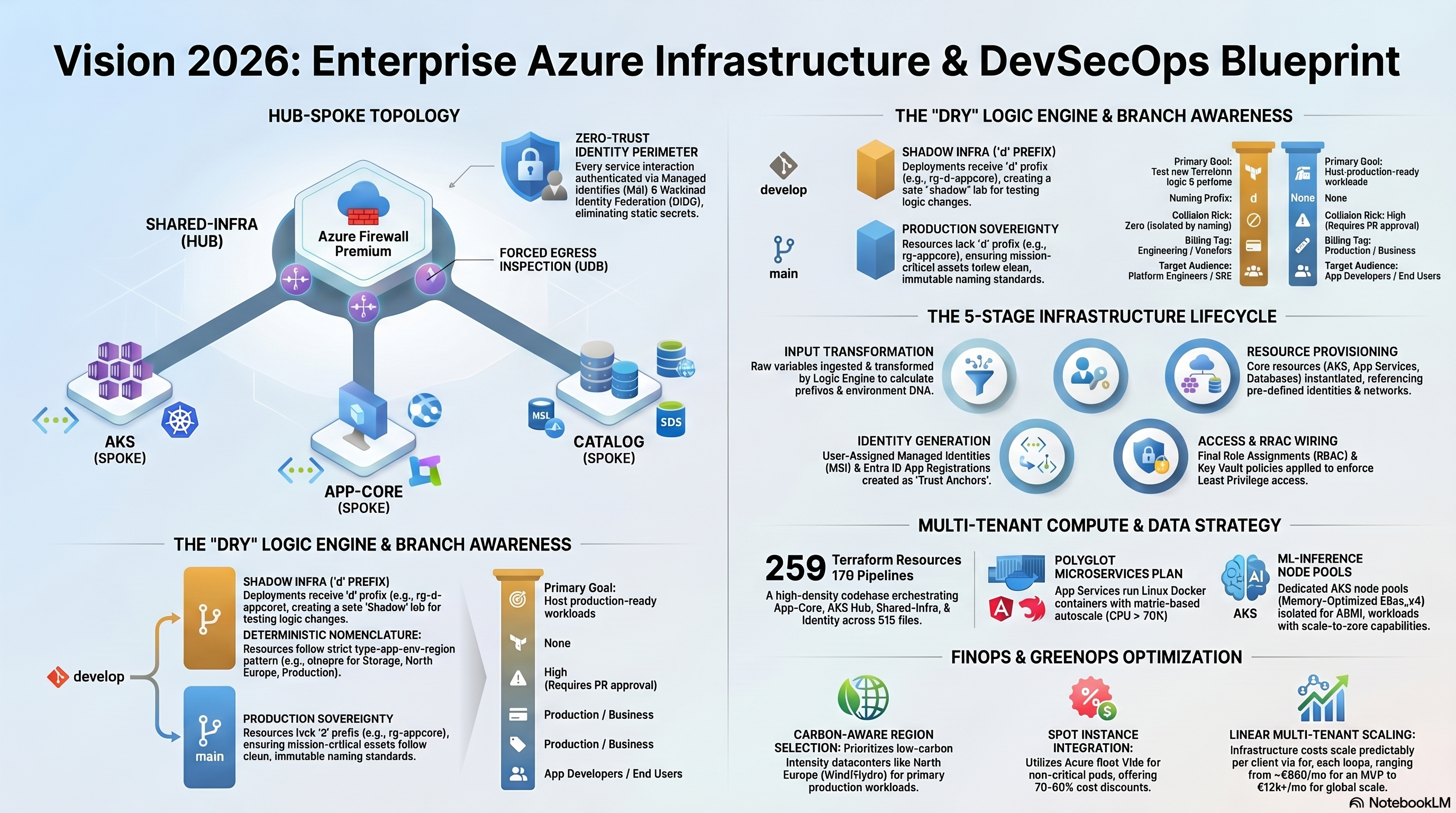

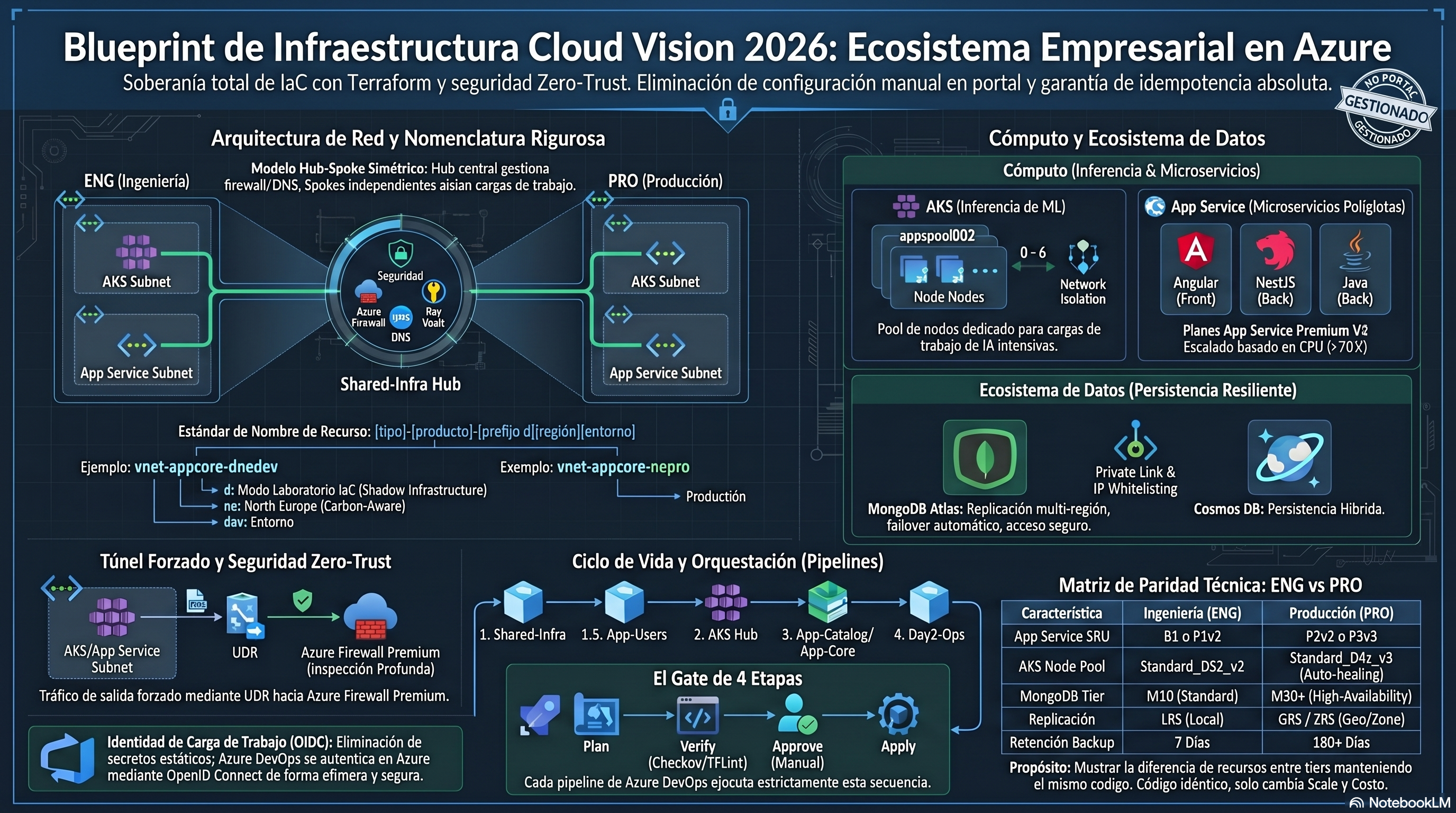

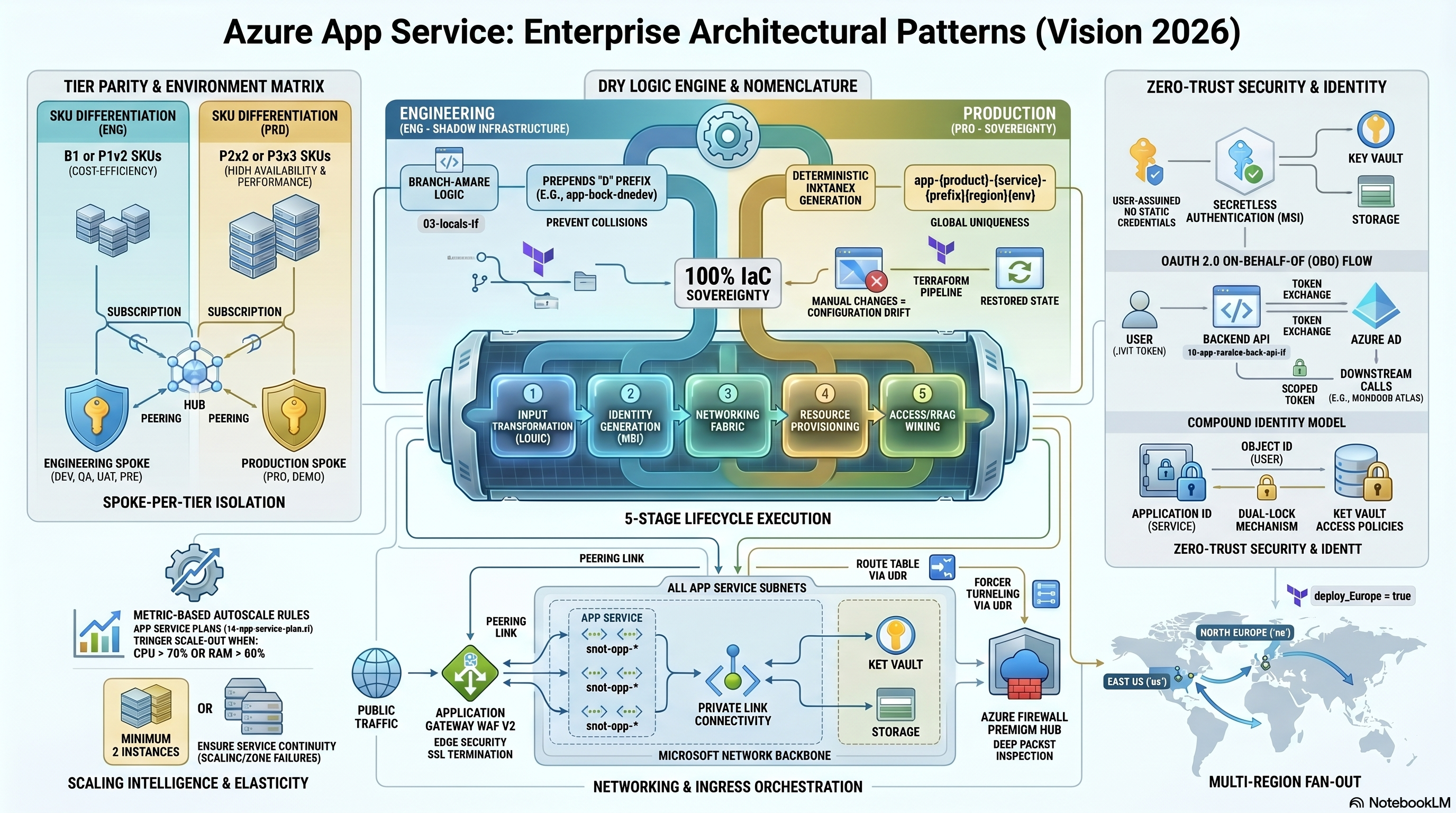

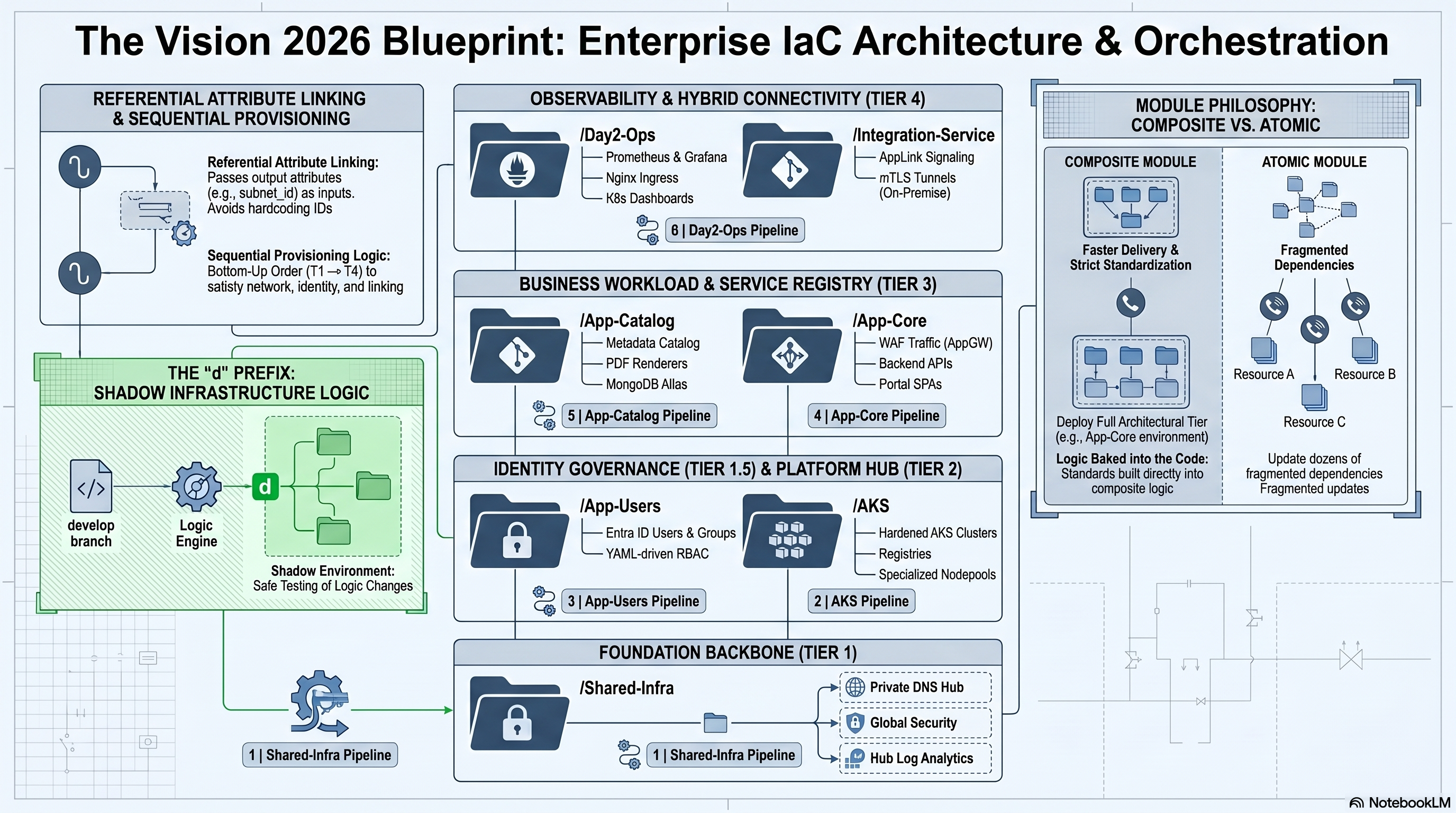

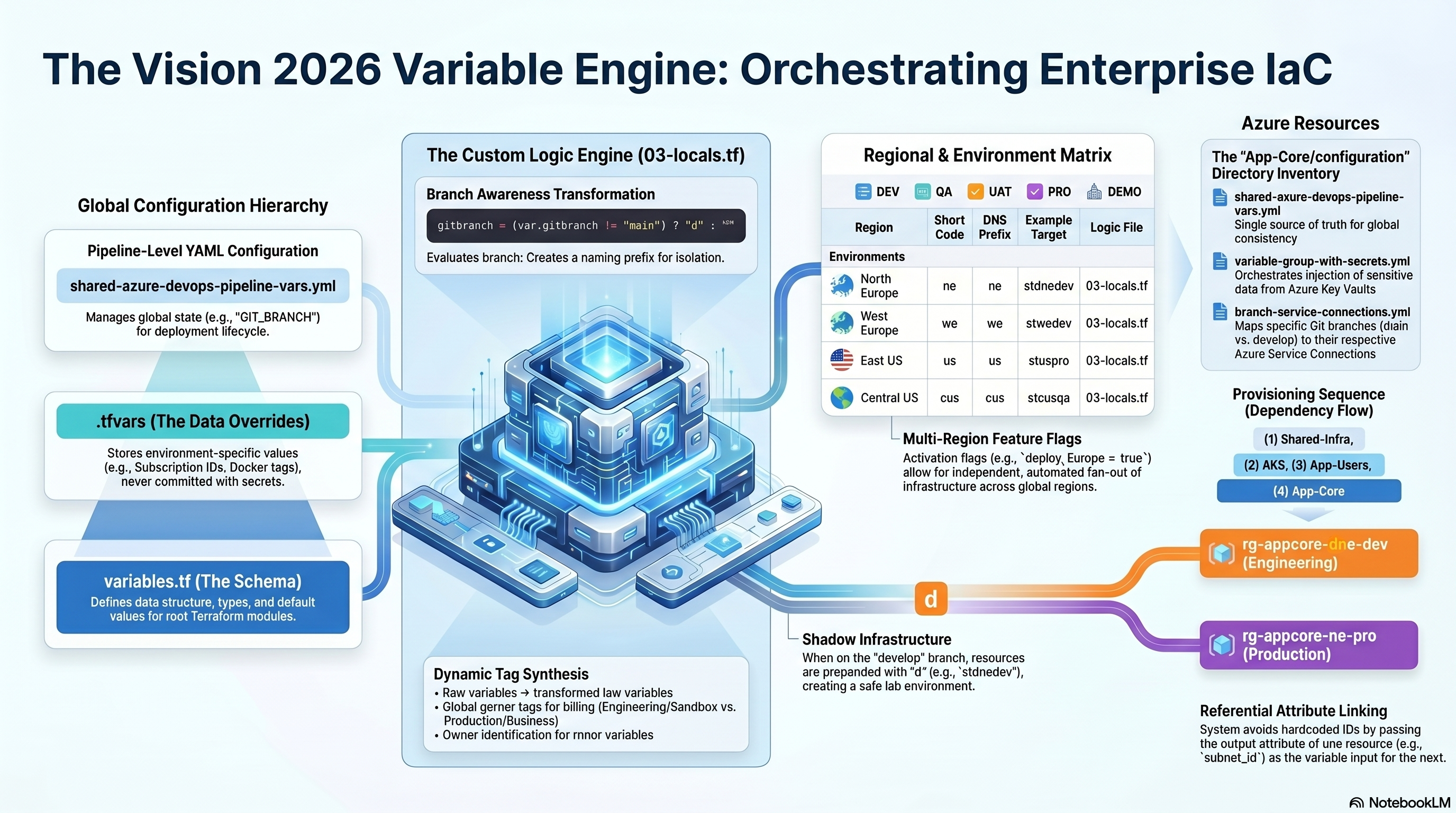

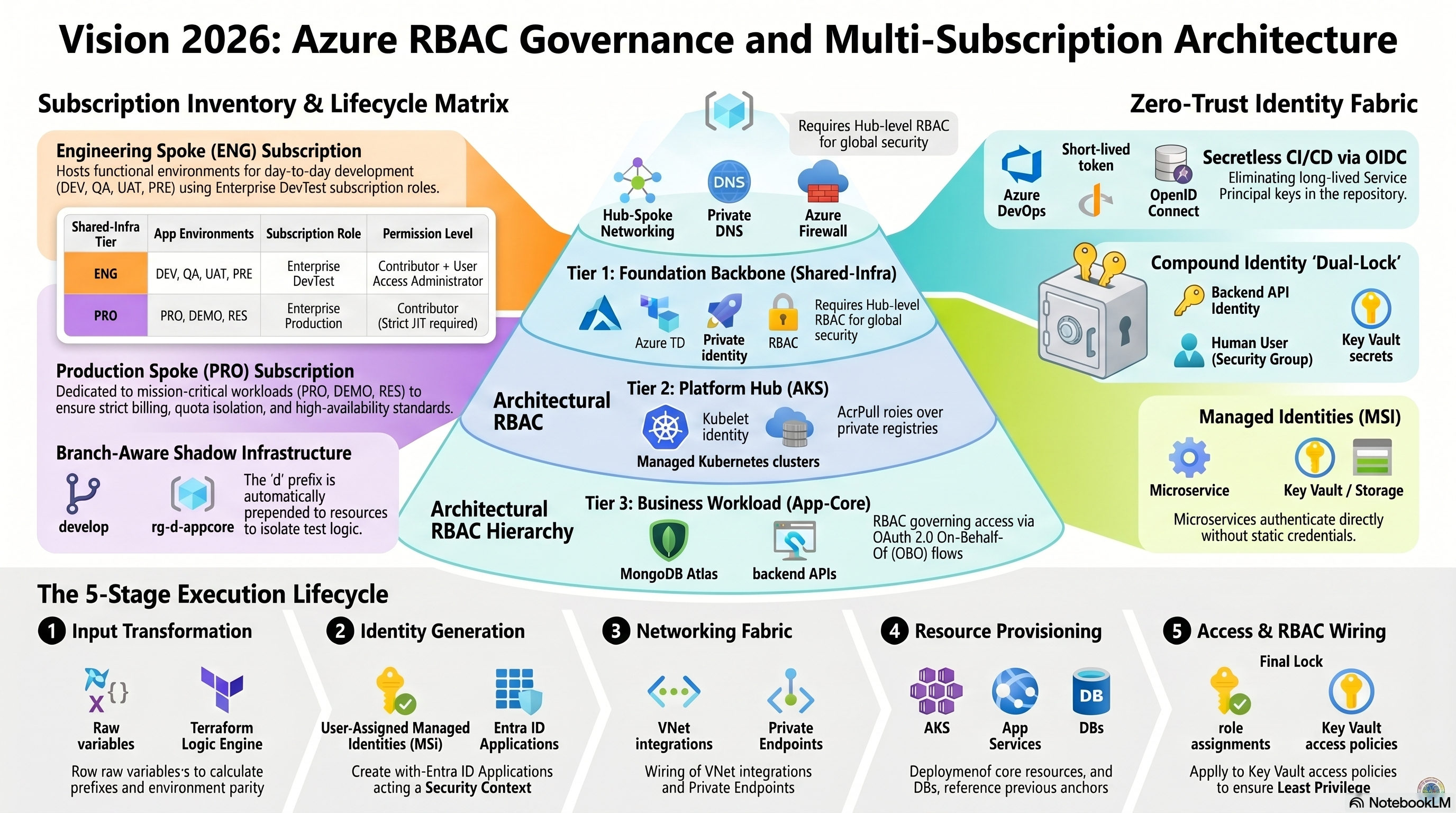

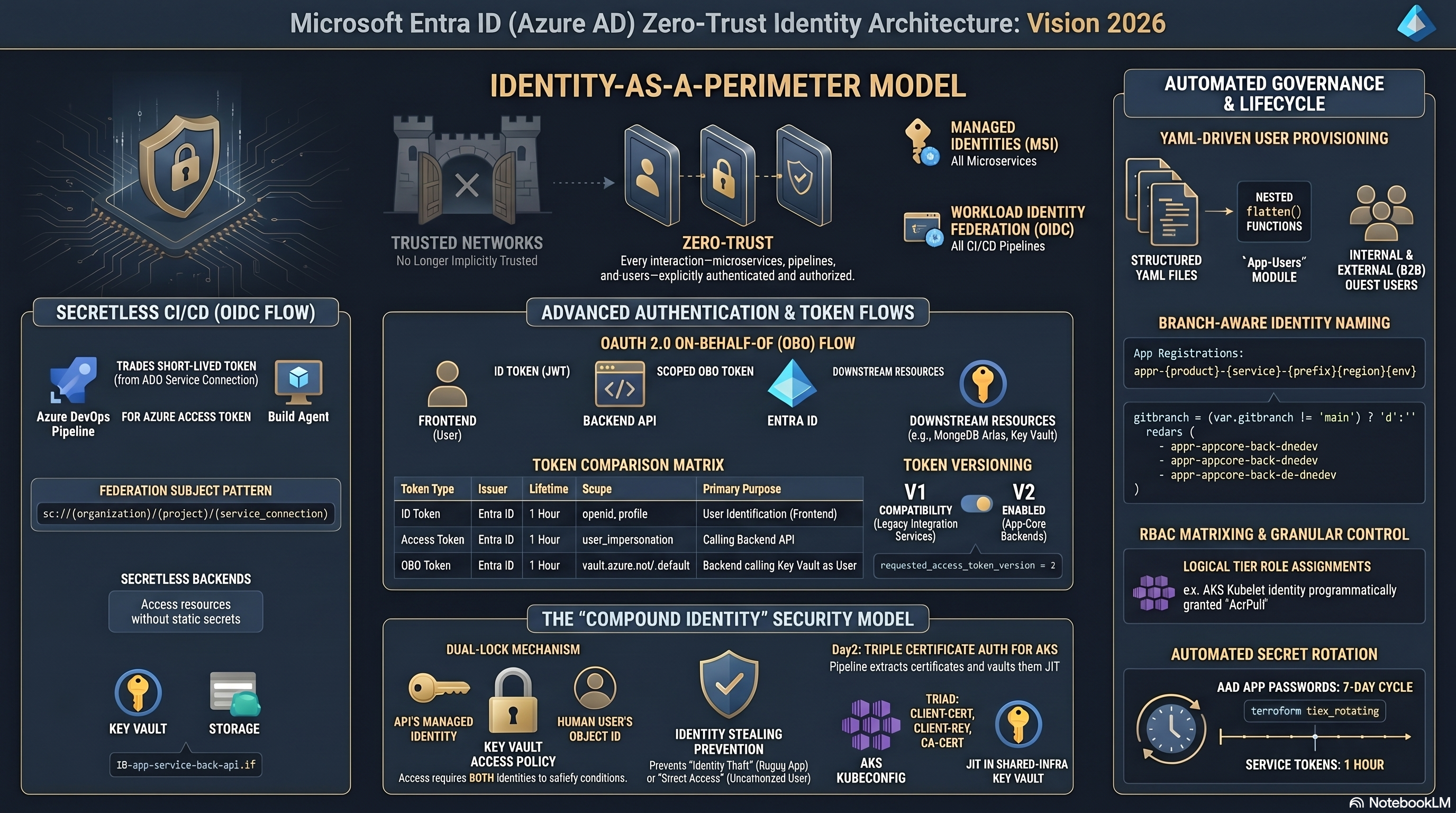

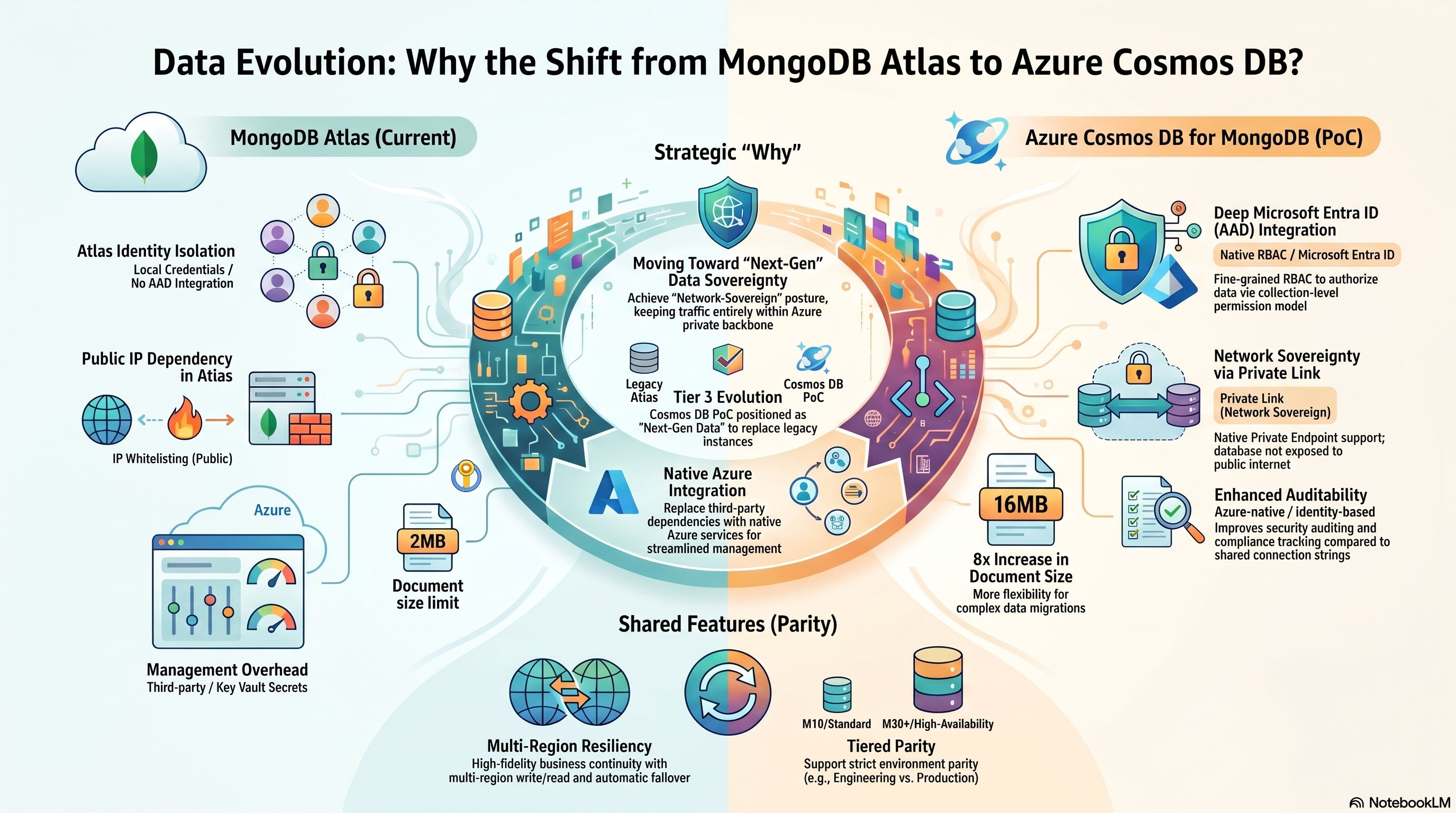

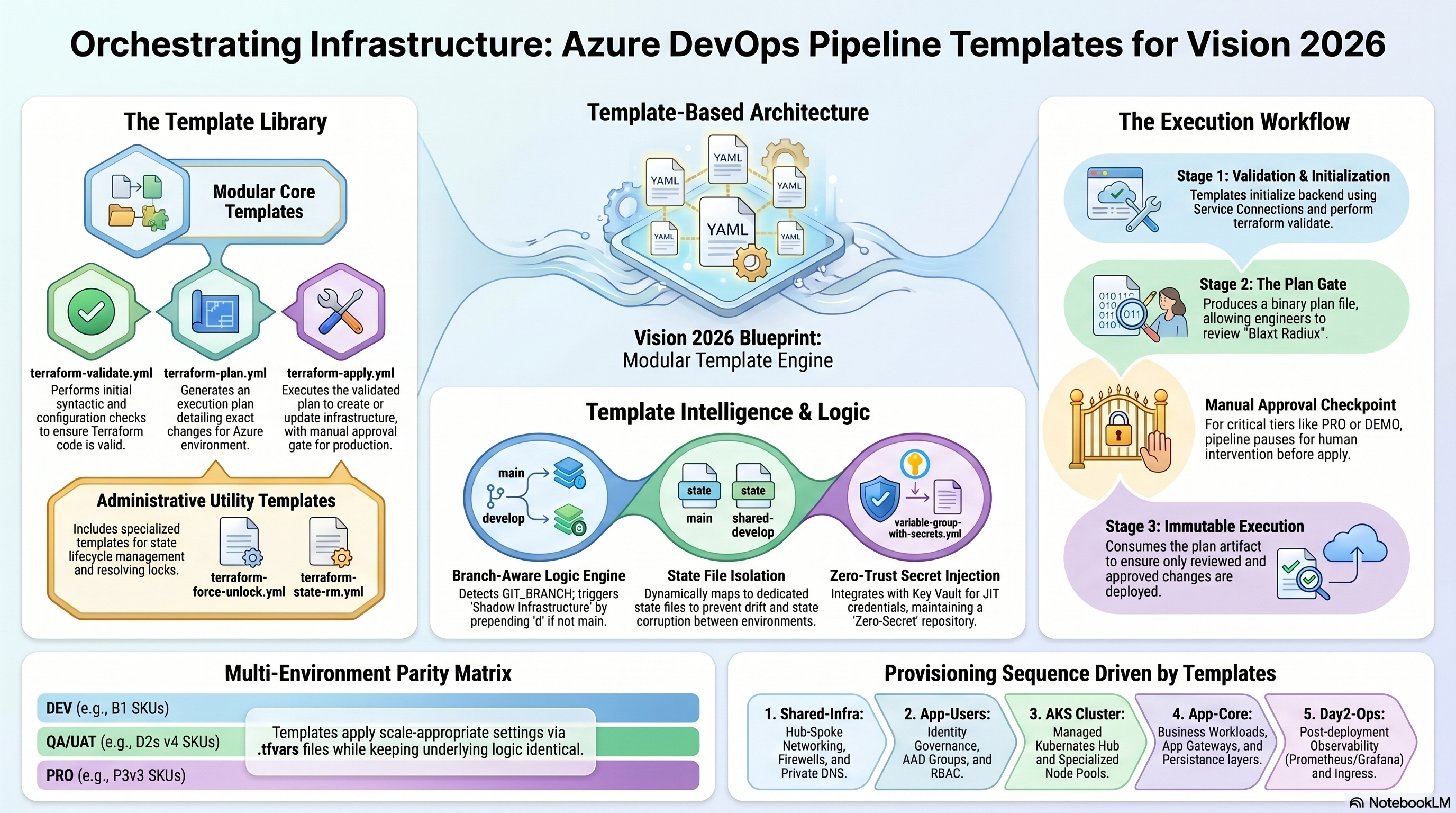

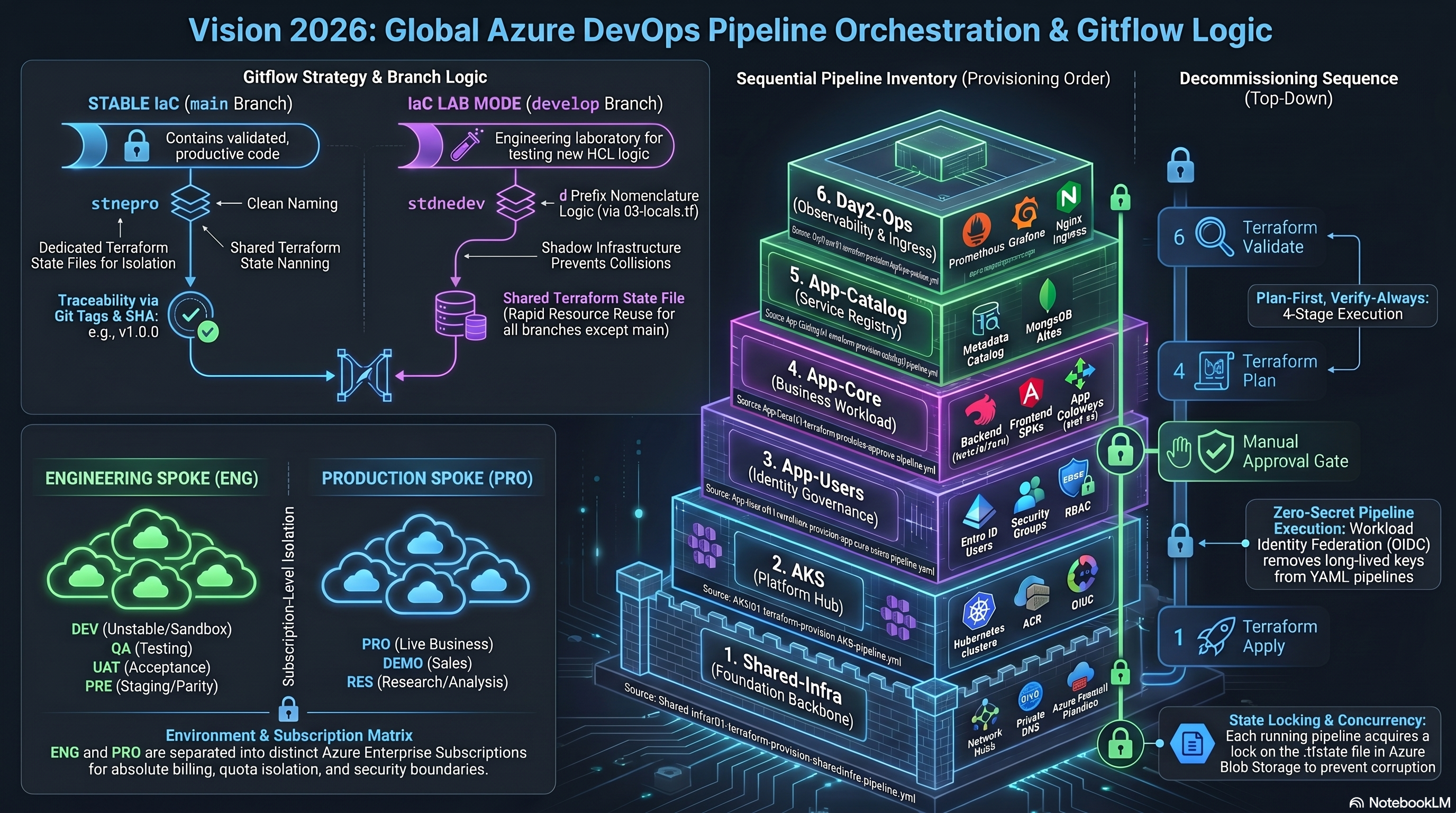

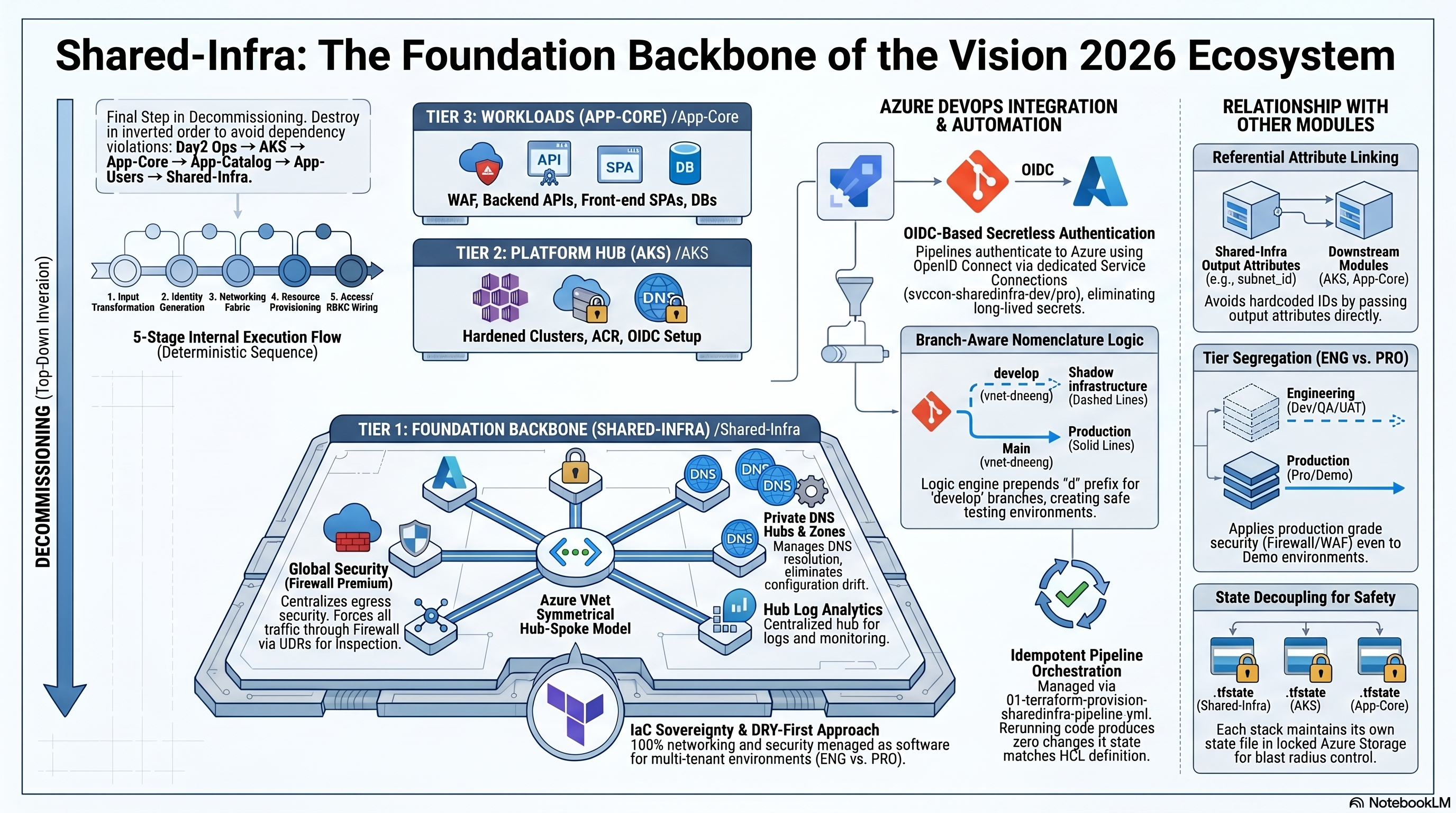

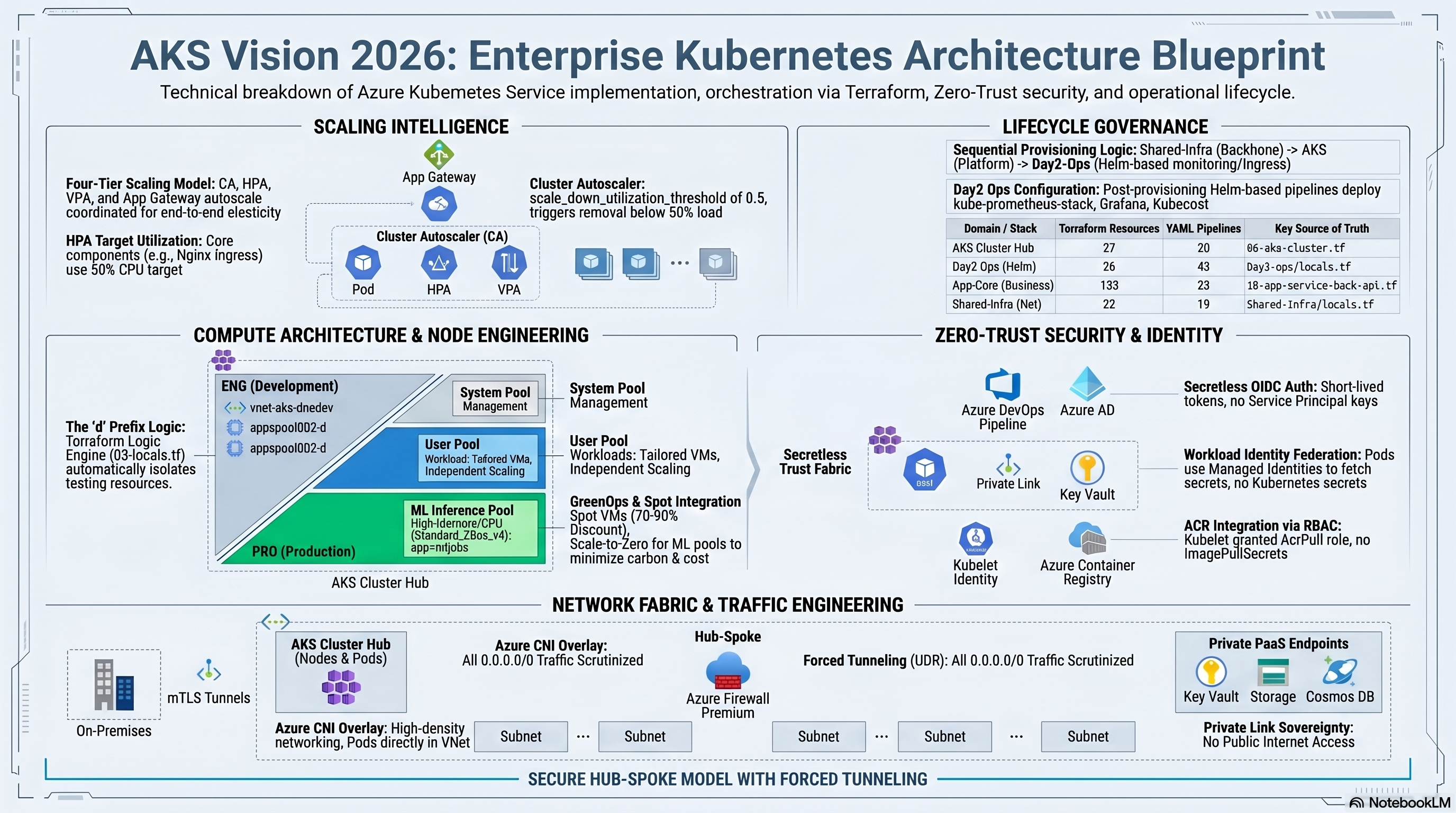

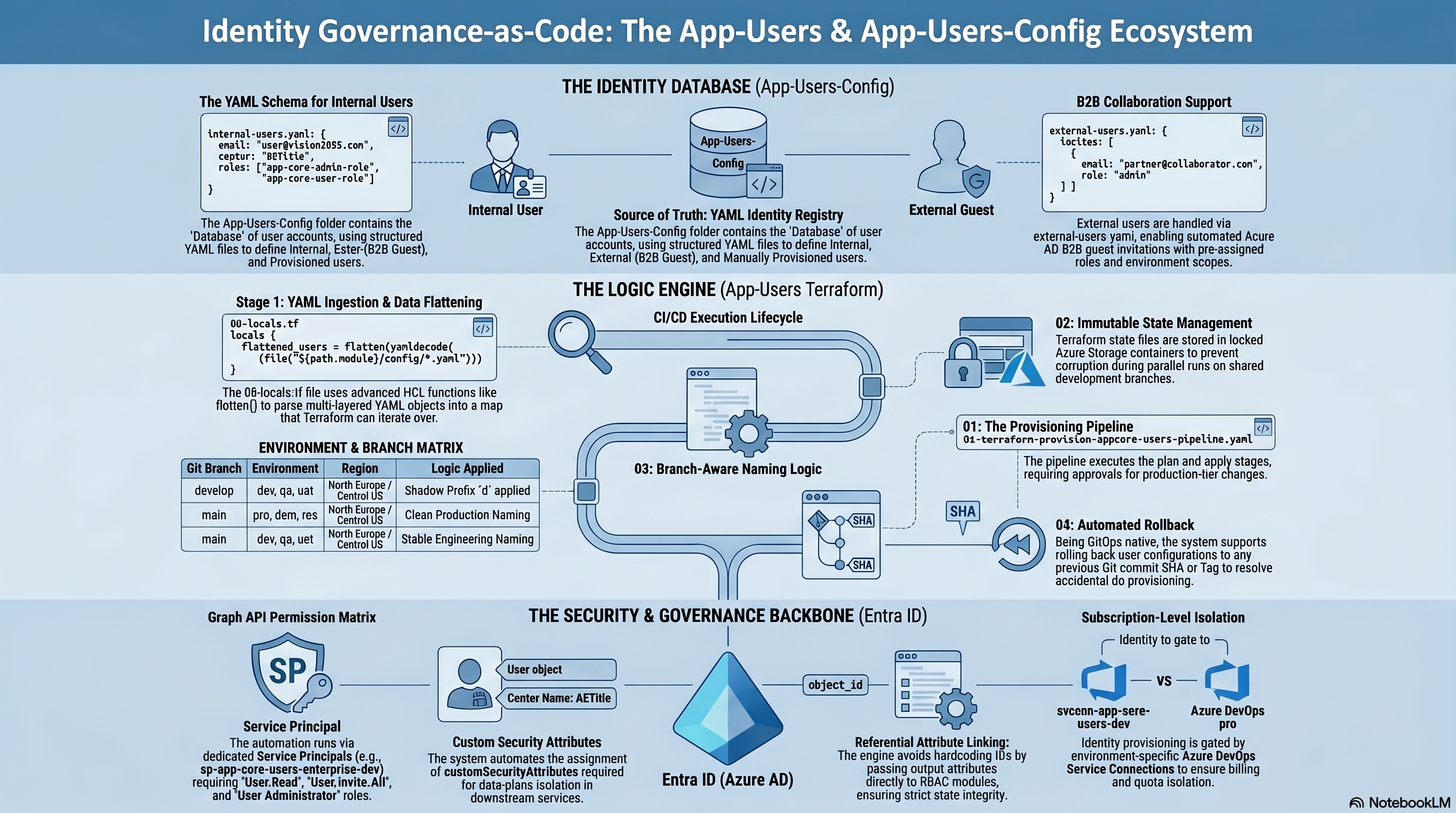

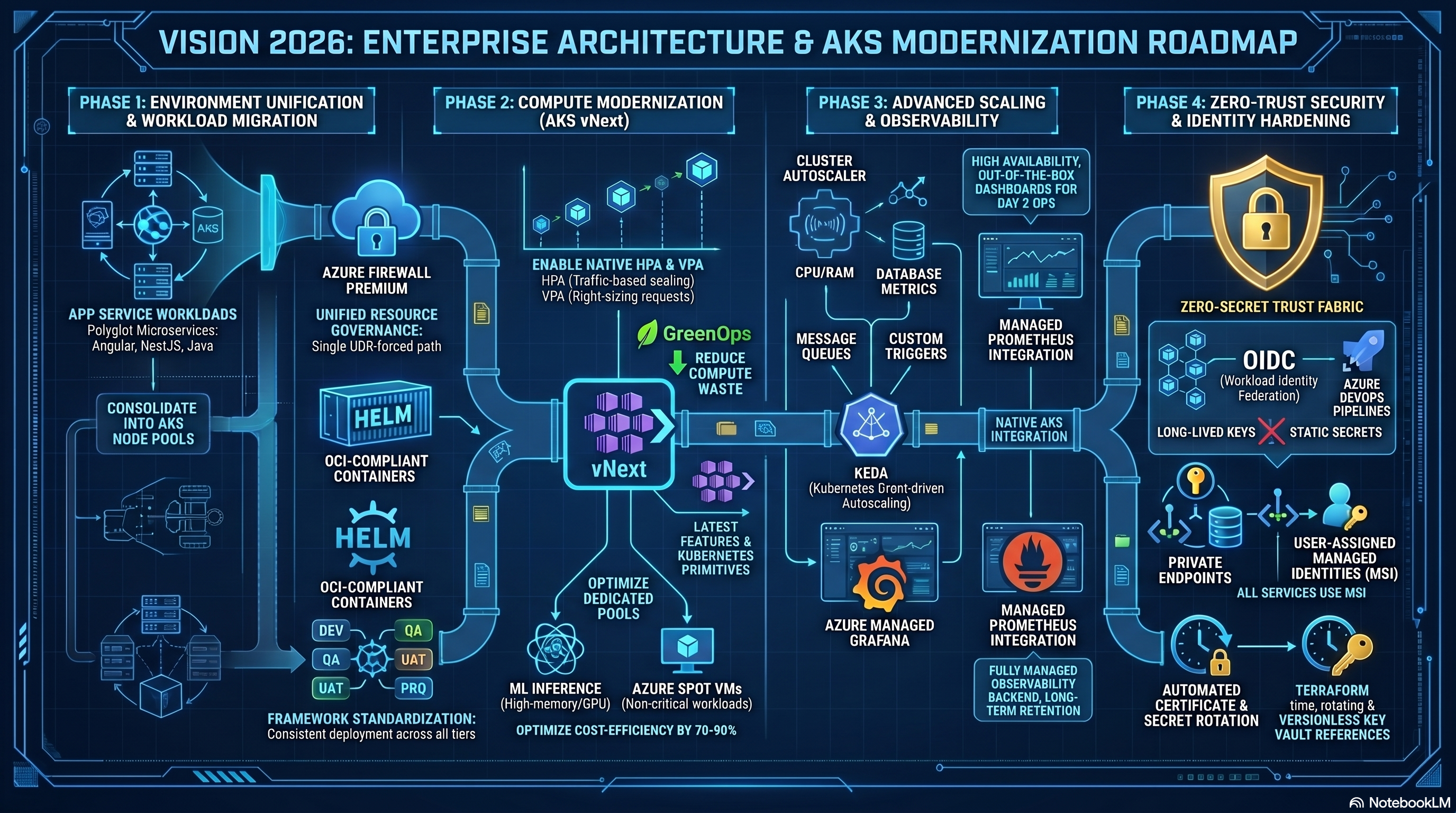

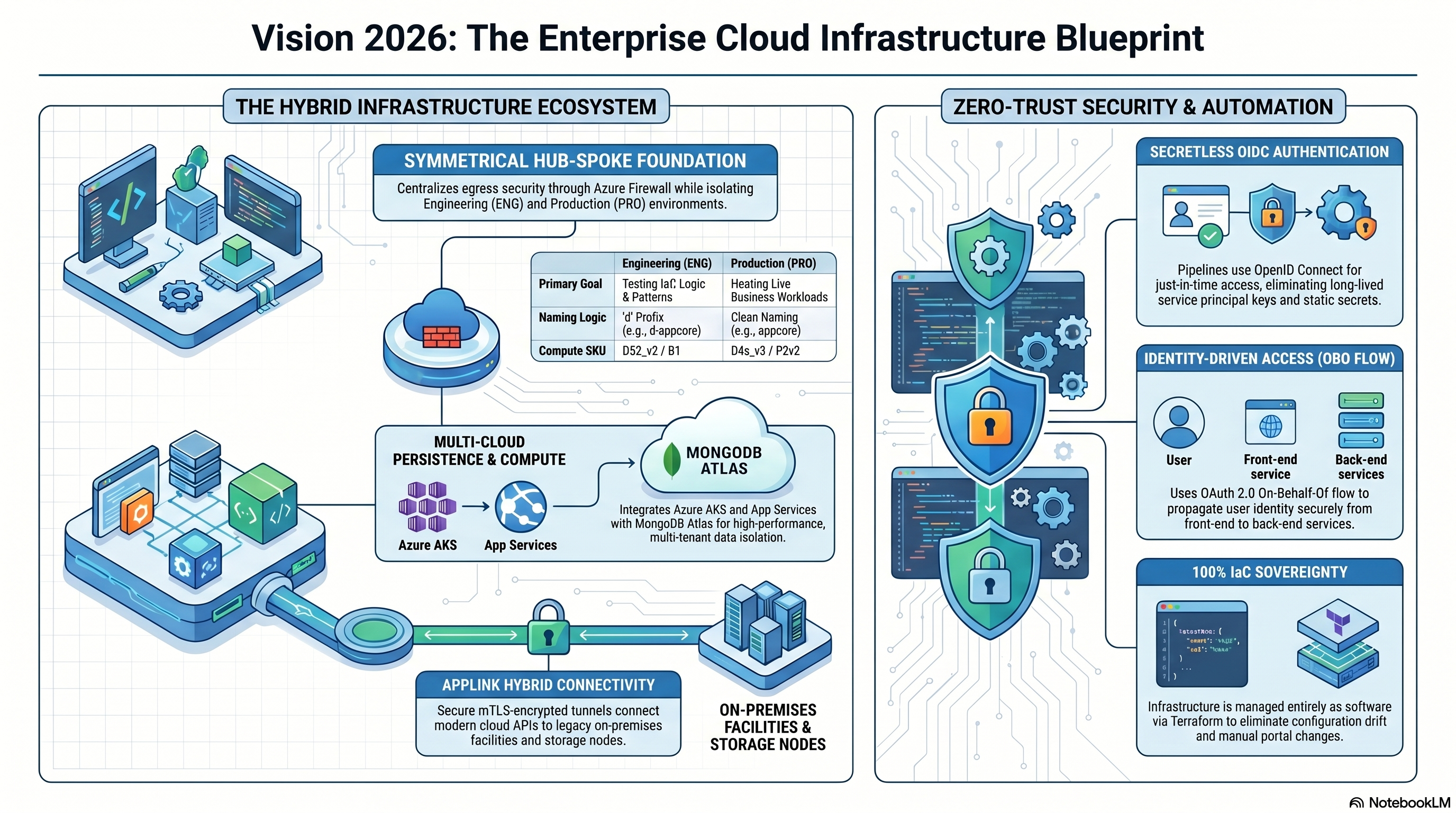

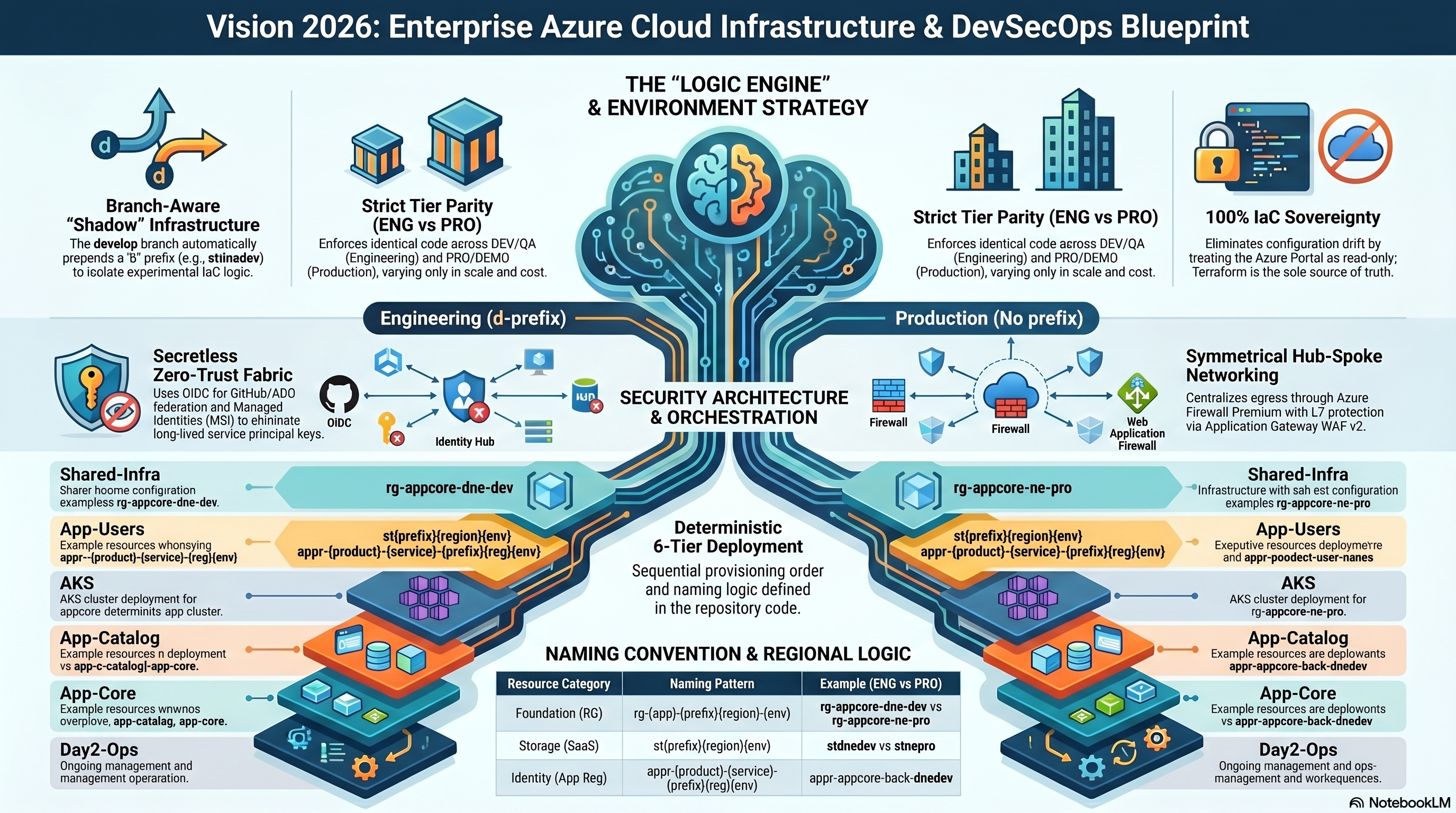

### 🎨 Vision 2026 Architectural Infographic Gallery
To facilitate the assimilation of the complex Vision 2026 architecture, we have organized our high-fidelity infographics into four strategic categories. You can explore them individually or use the **Master Gallery** to view the entire collection at once.

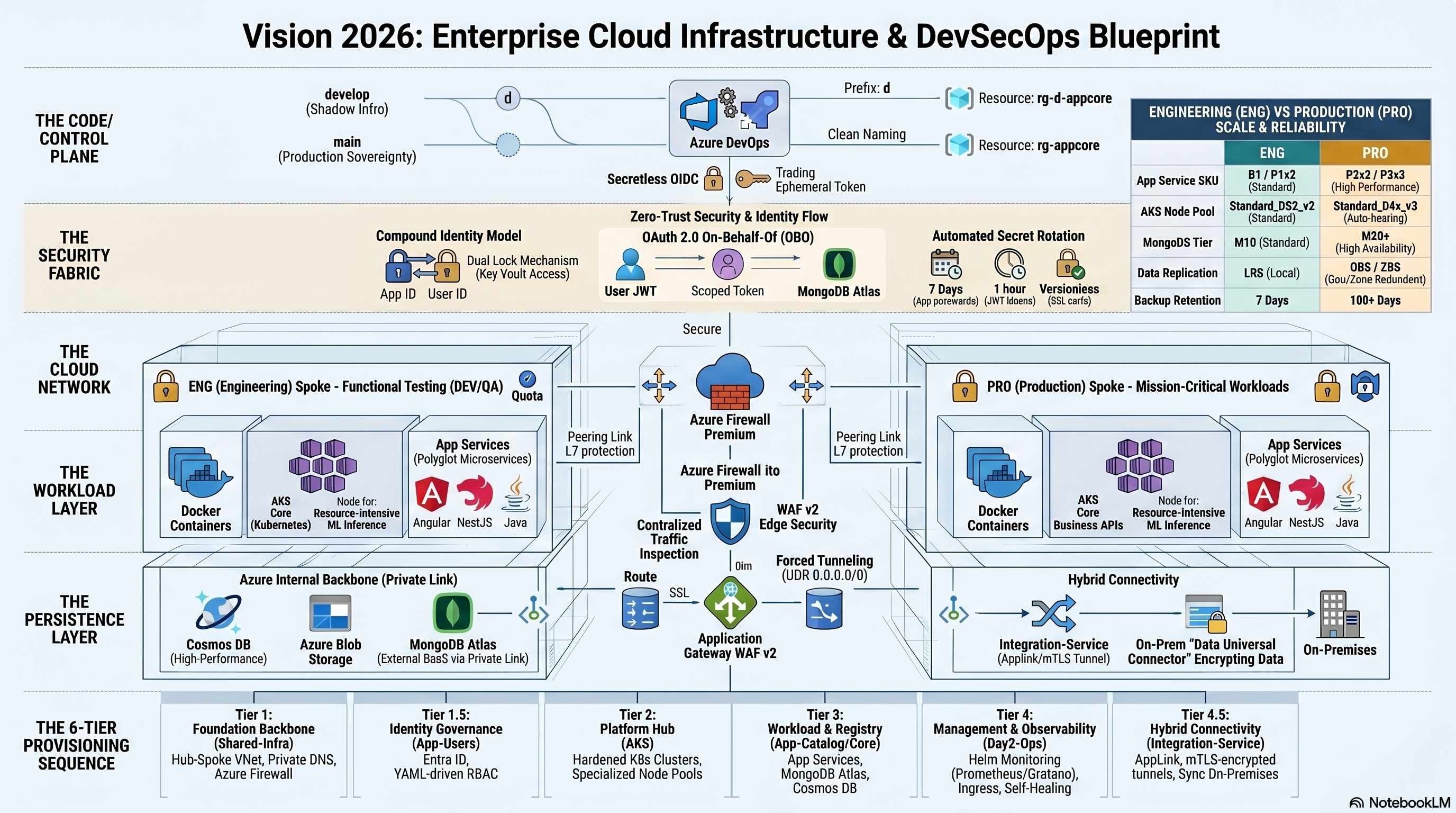

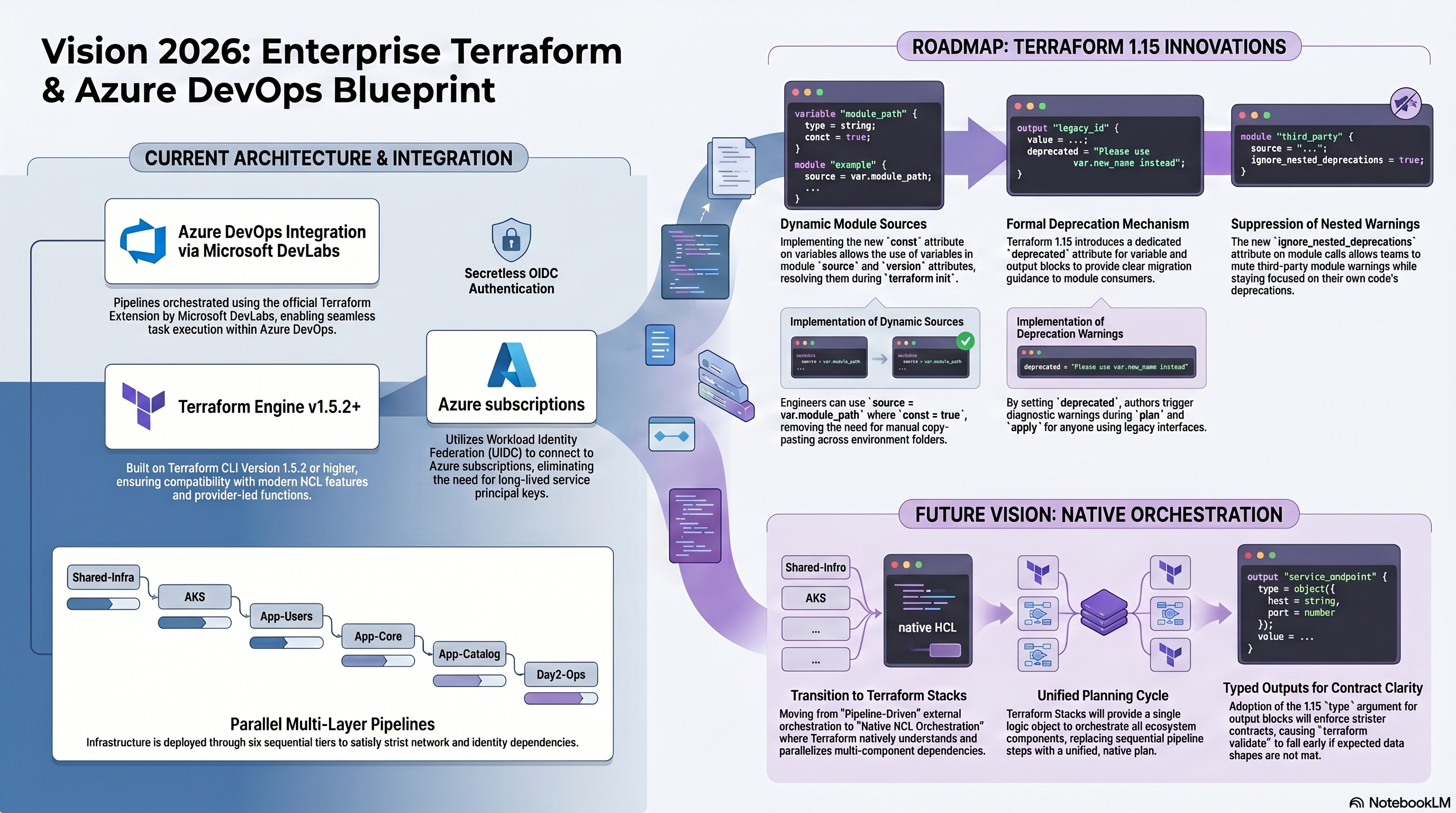

#### A. Strategic Vision and High-Level Blueprints
#### B. Architectural Anatomy and Low-Level Deep-Dives

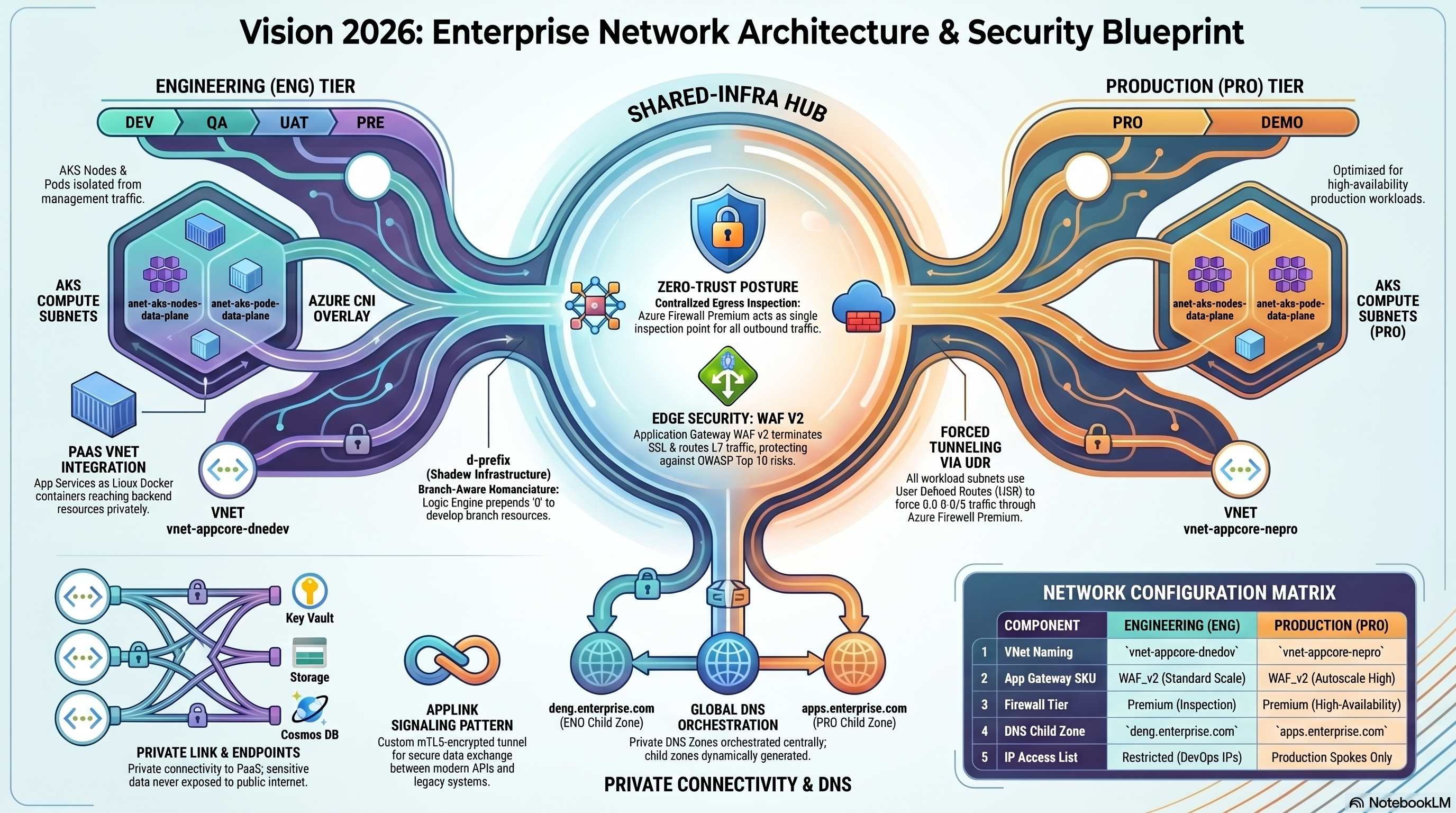

#### C. Networking, DNS and Traffic Engineering

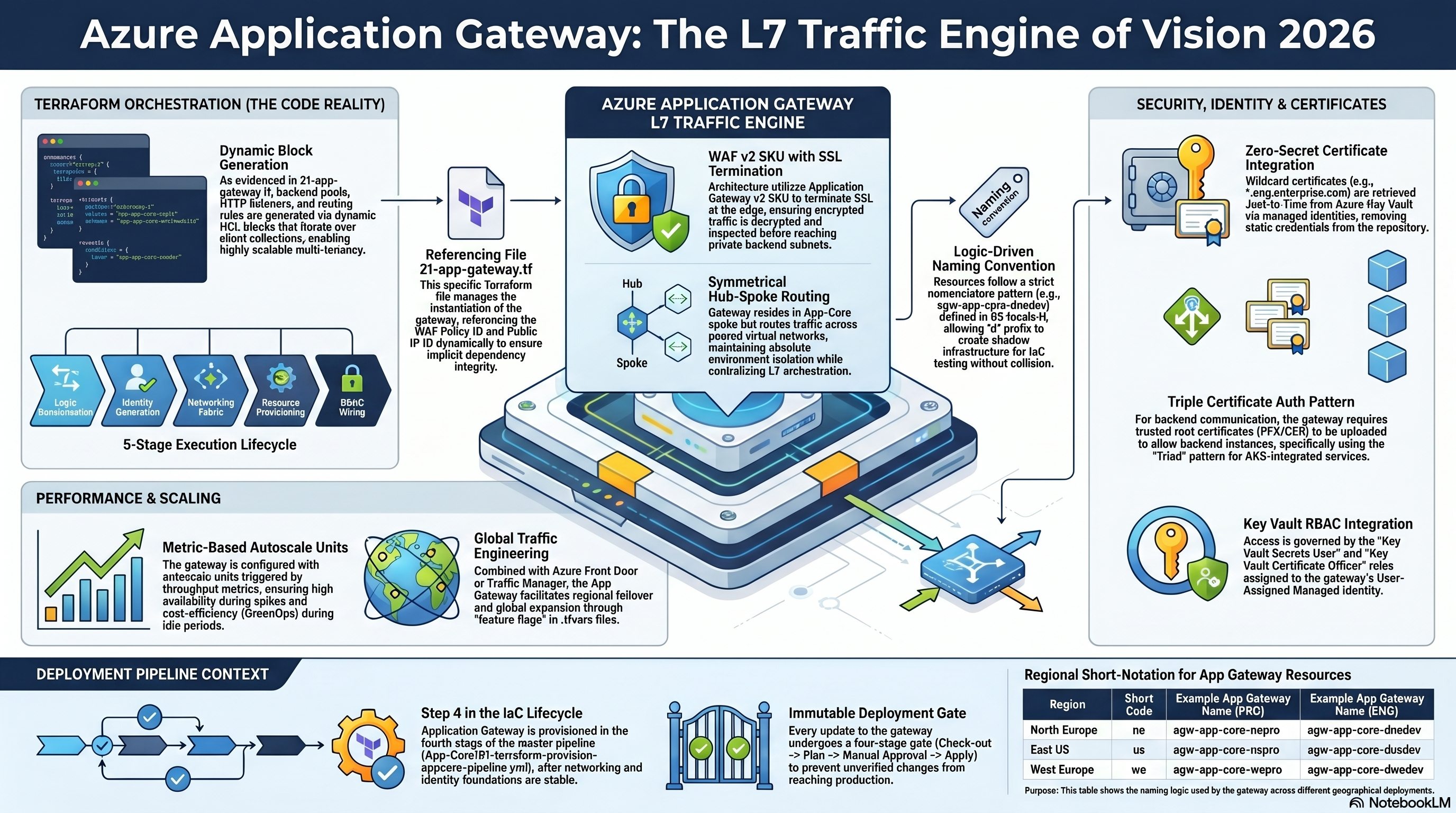

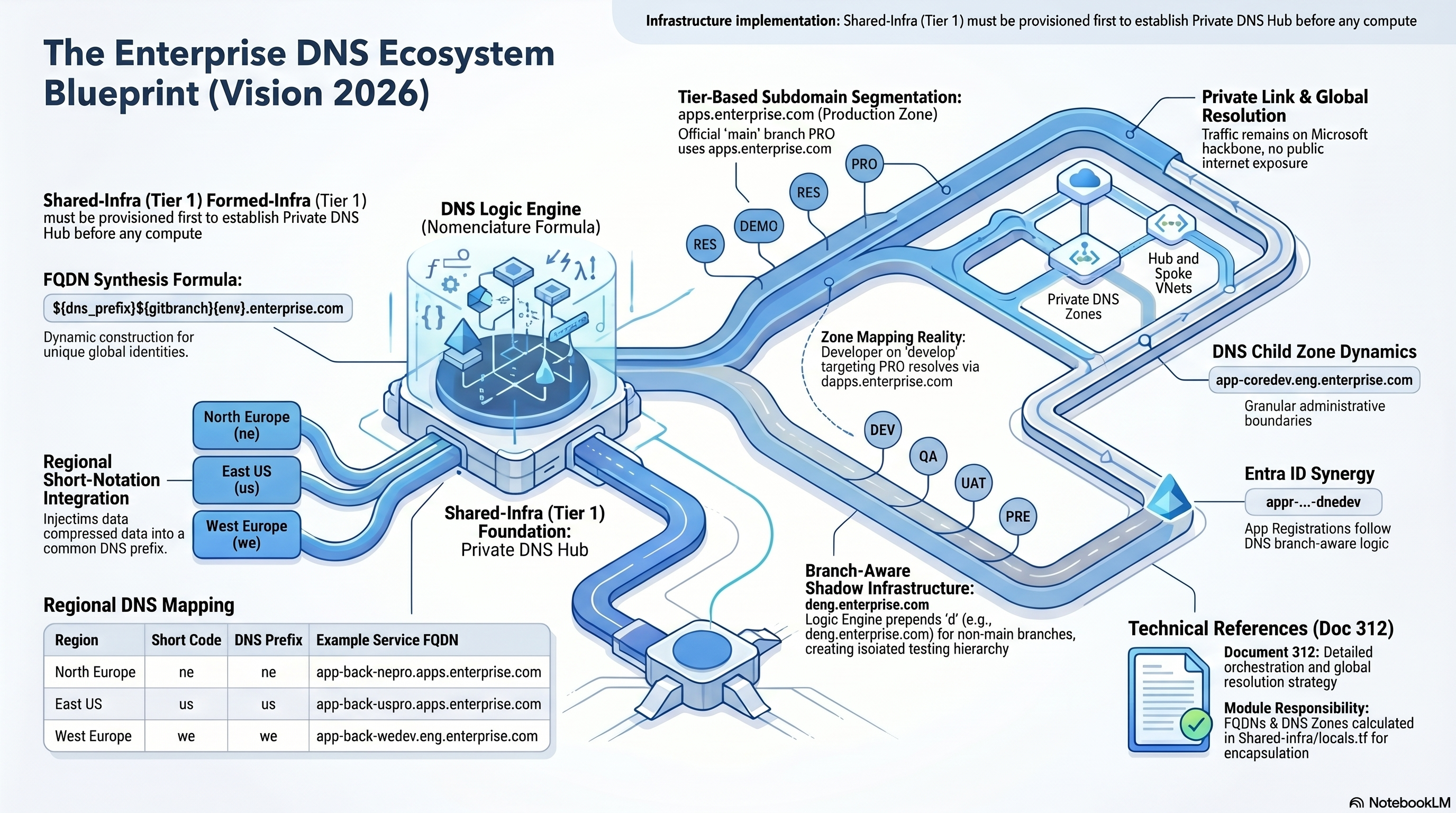

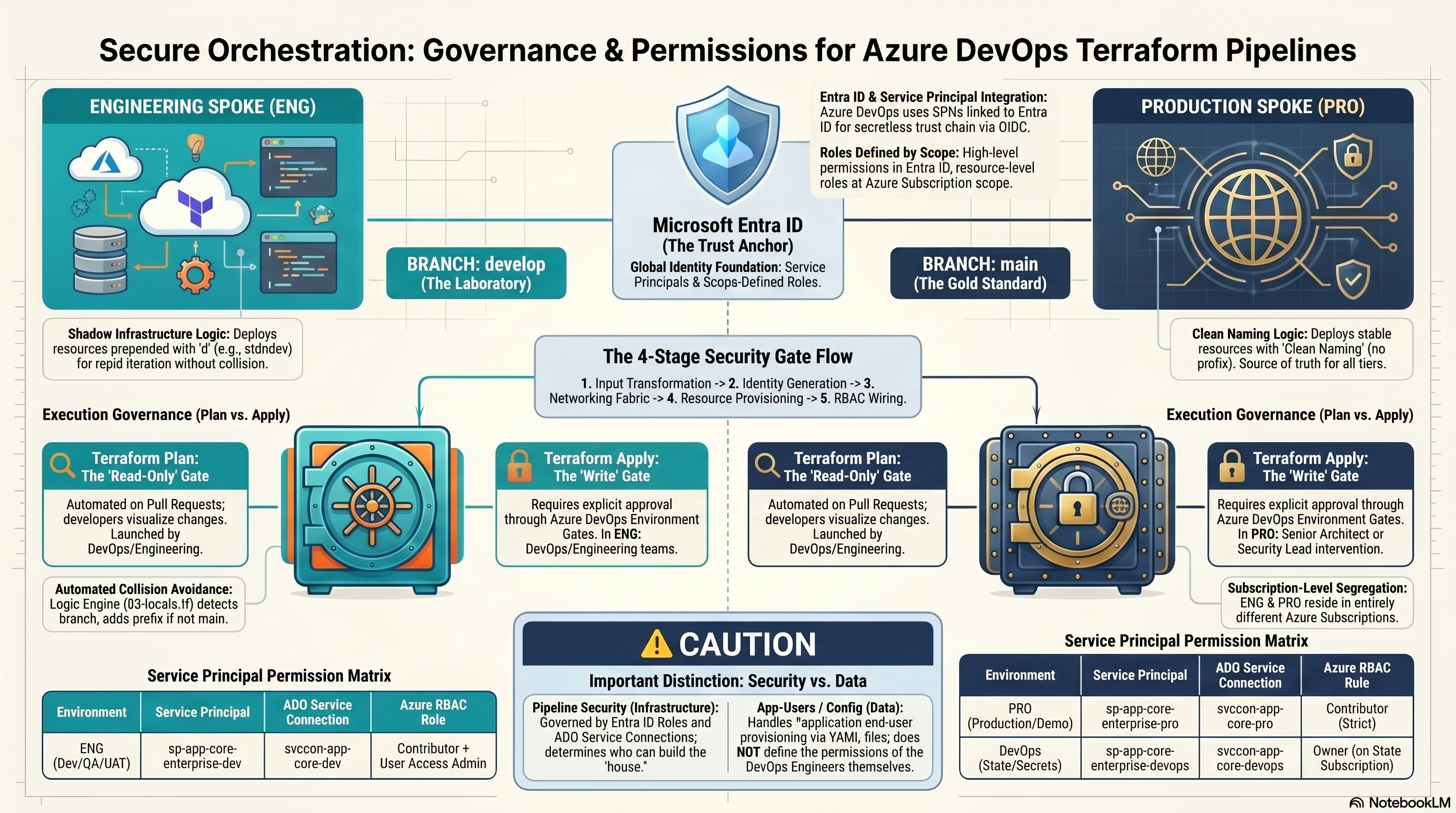

#### D. Identity, Security and Governance

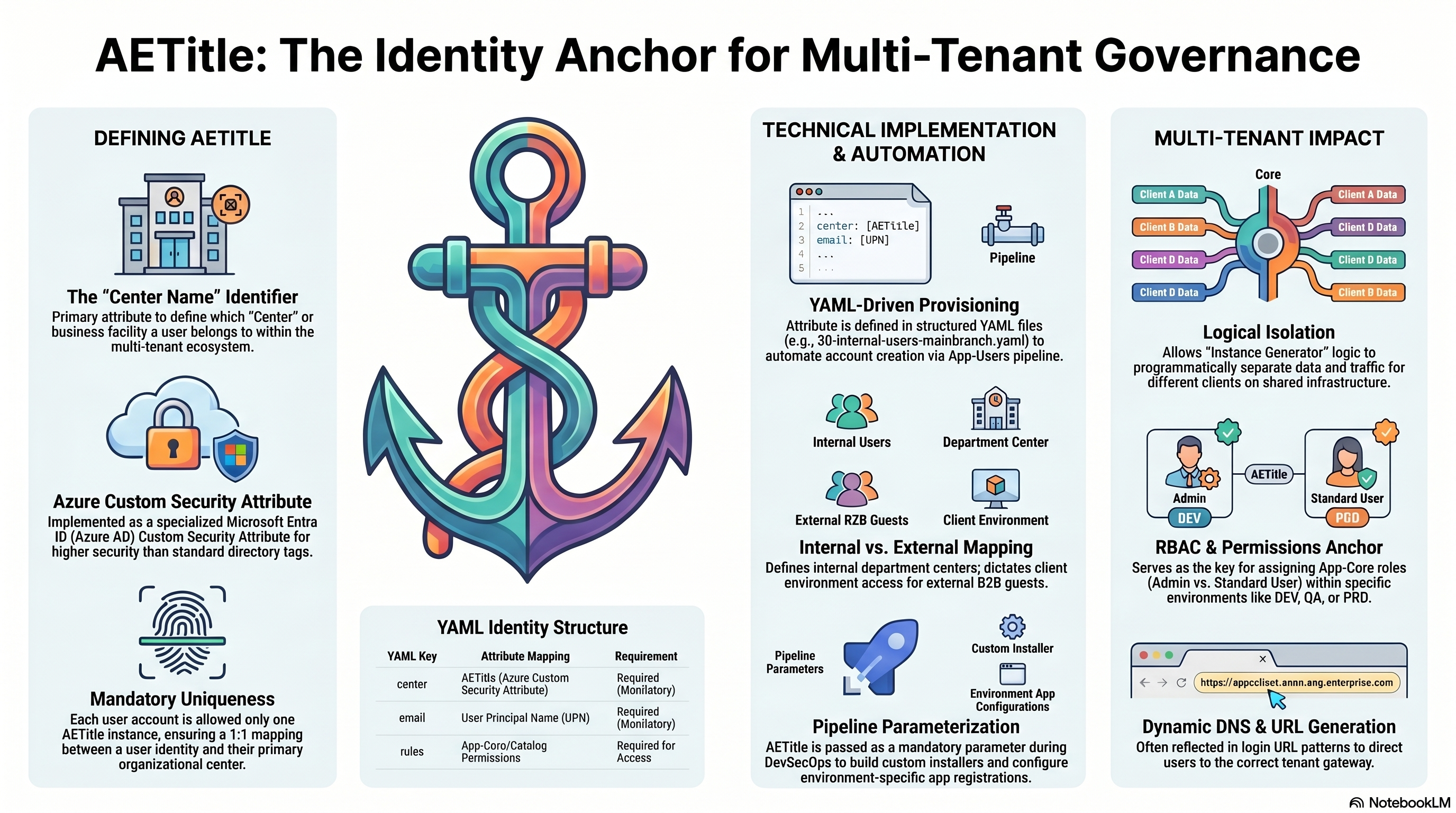

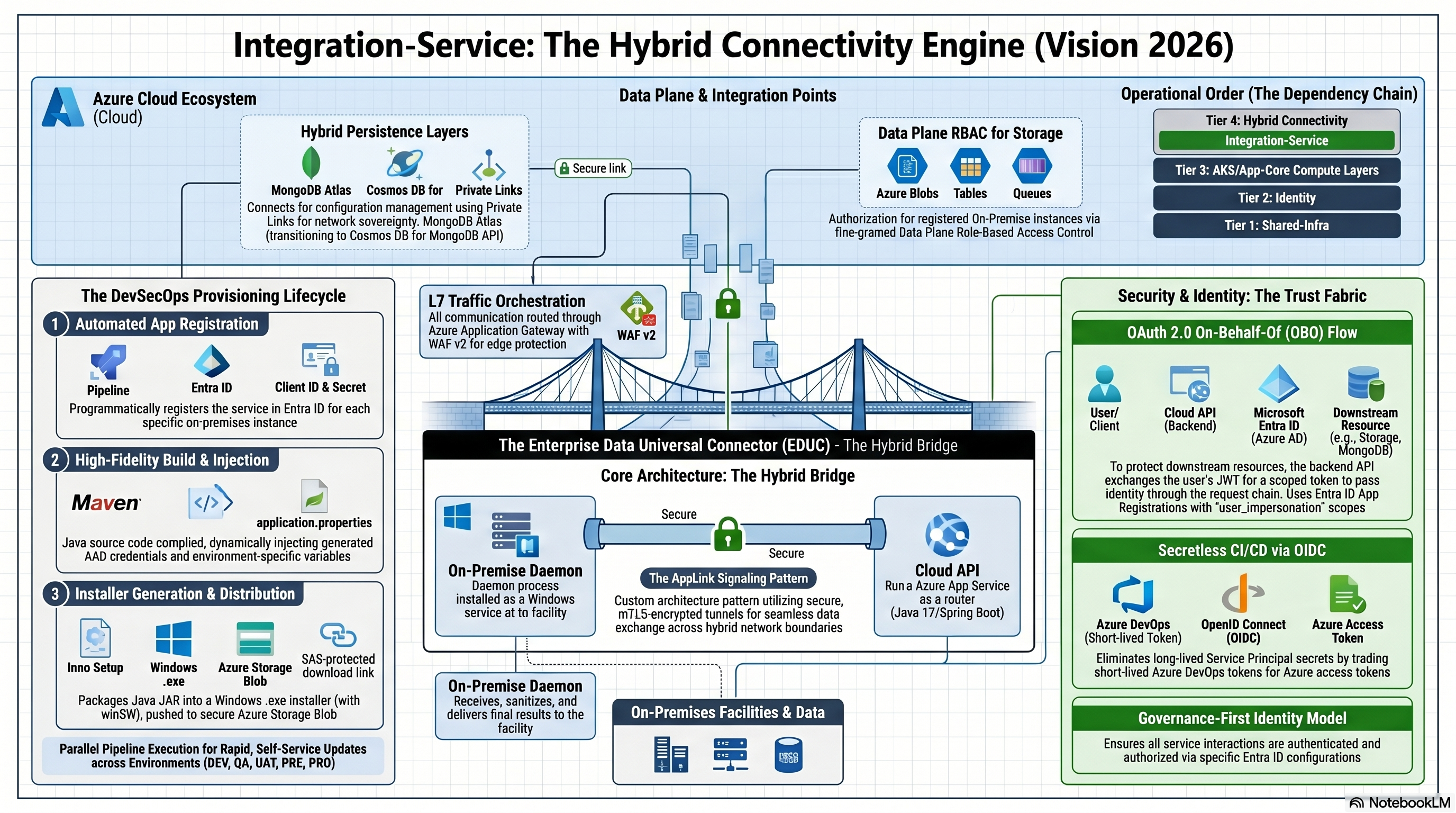

#### E. Compute, Data and Hybrid Integration

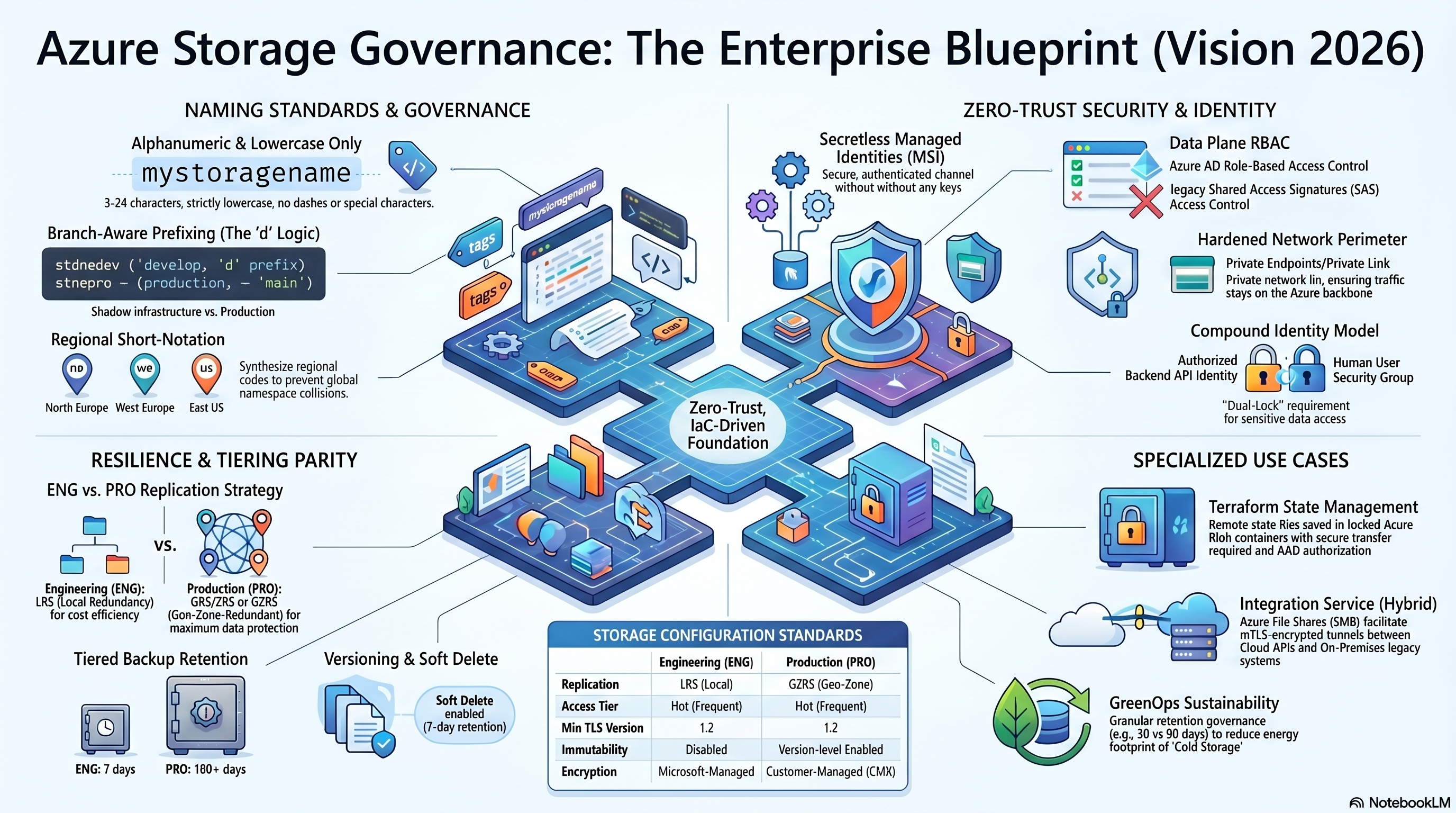

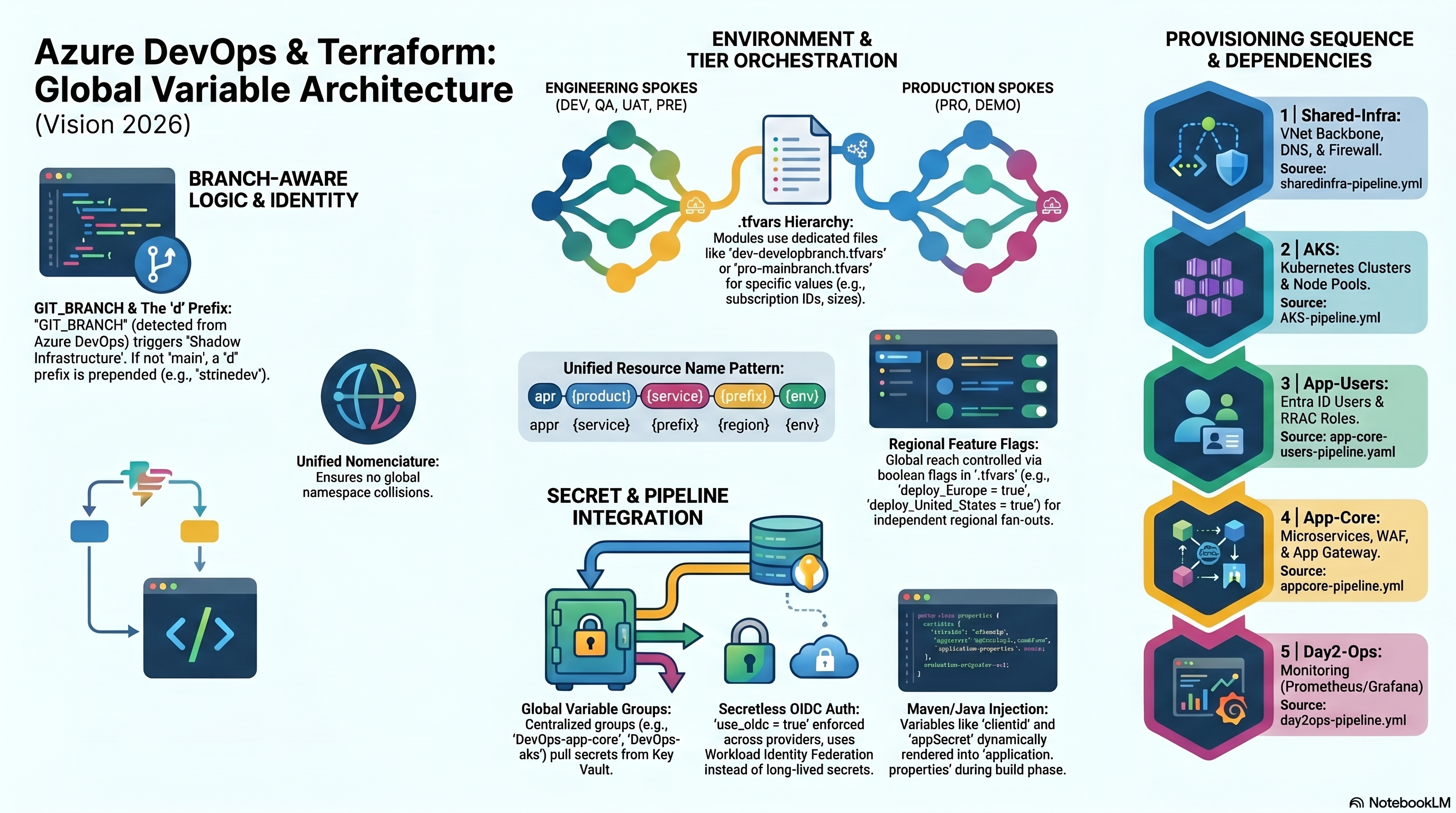

#### F. IaC Engine and Data Orchestration

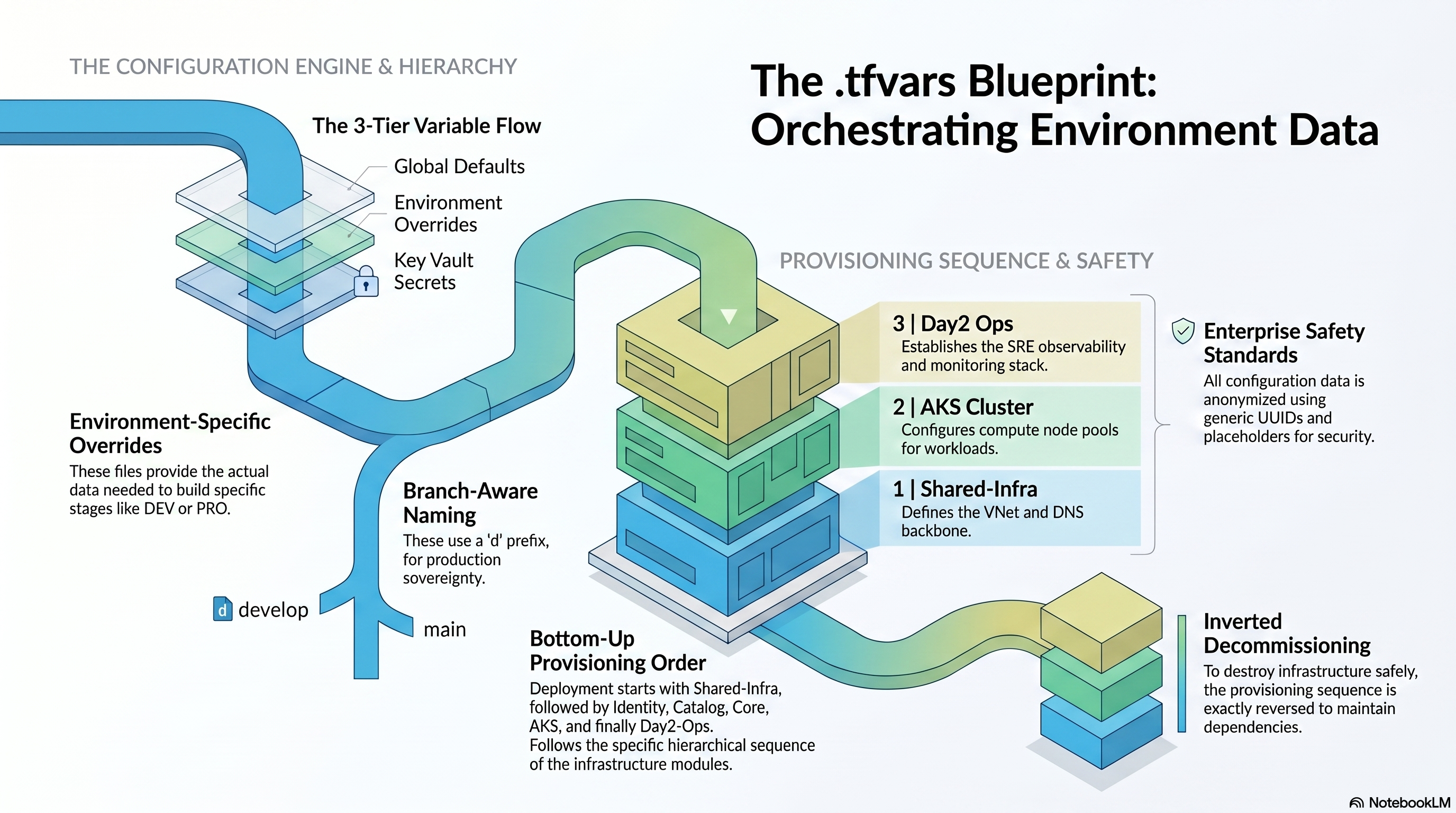

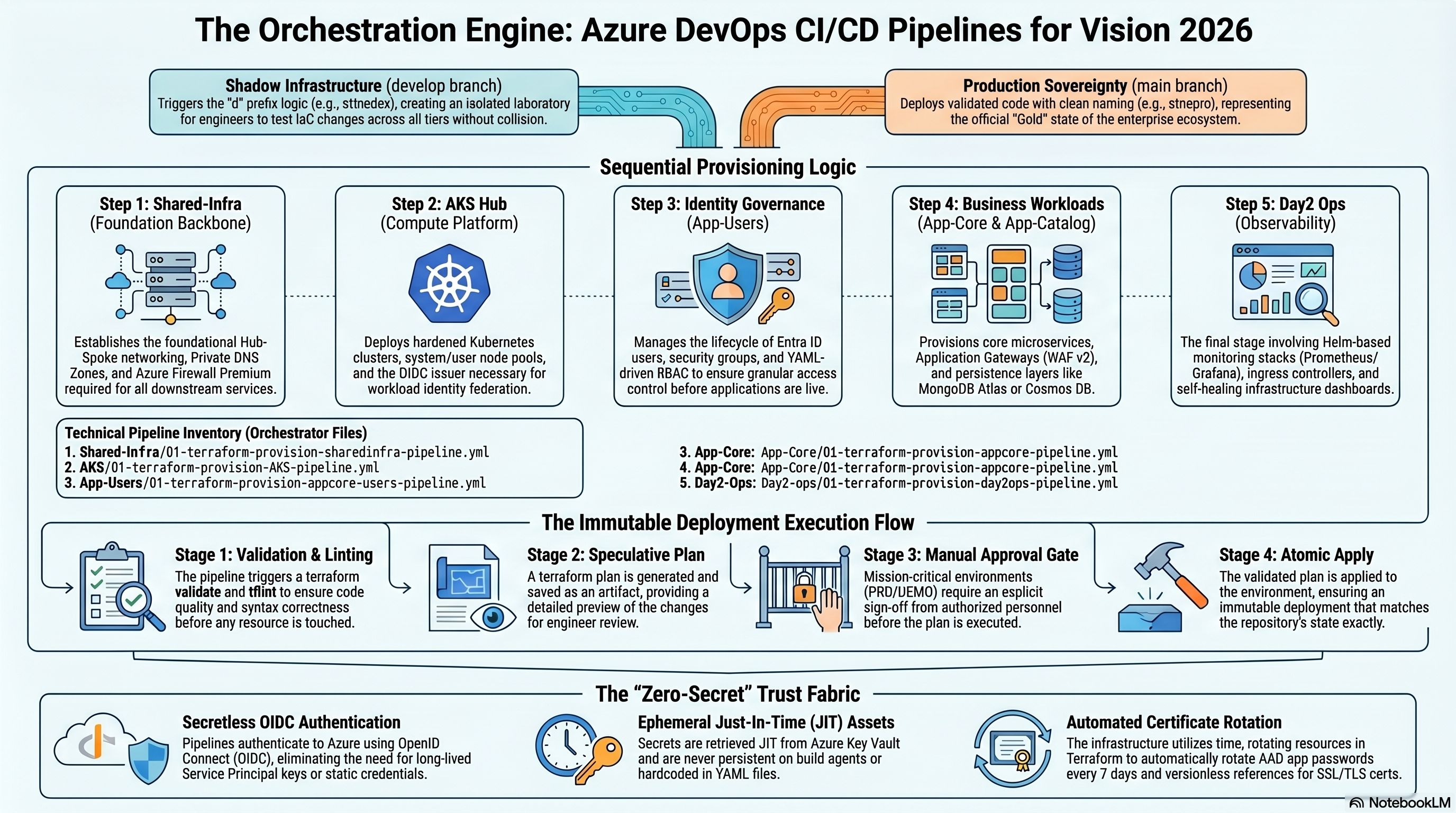

#### G. DevSecOps and Day 2 Operations

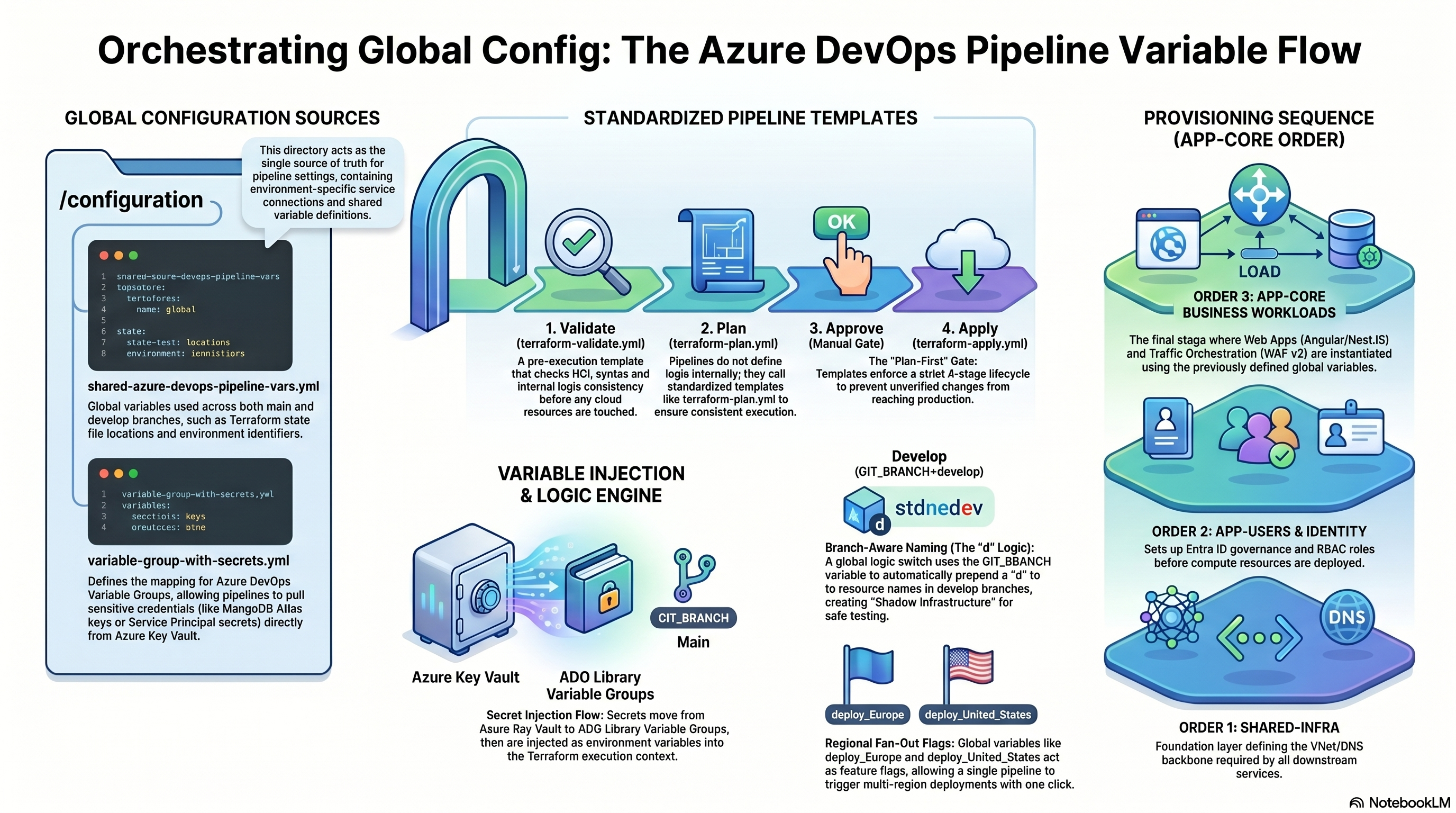

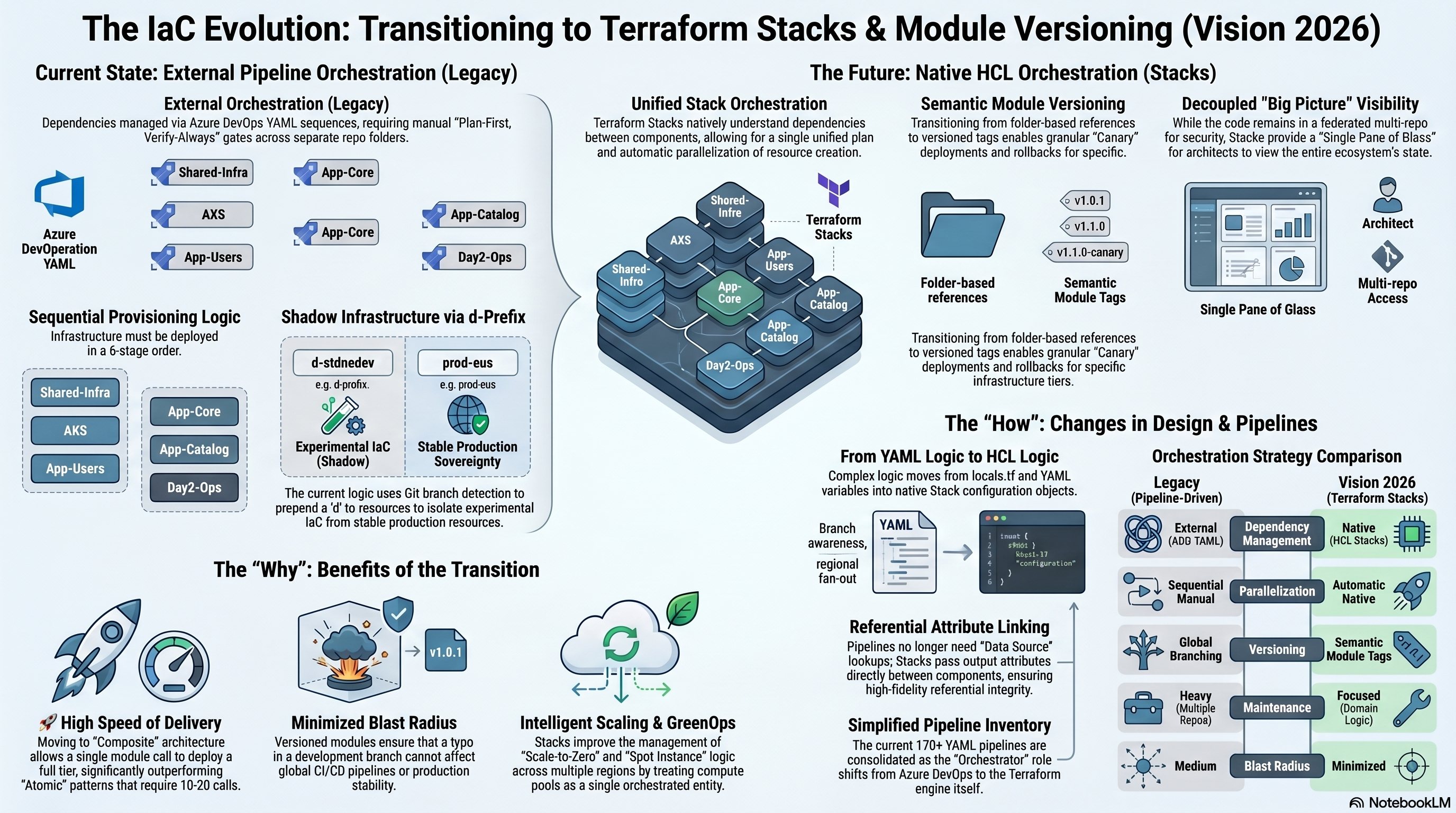

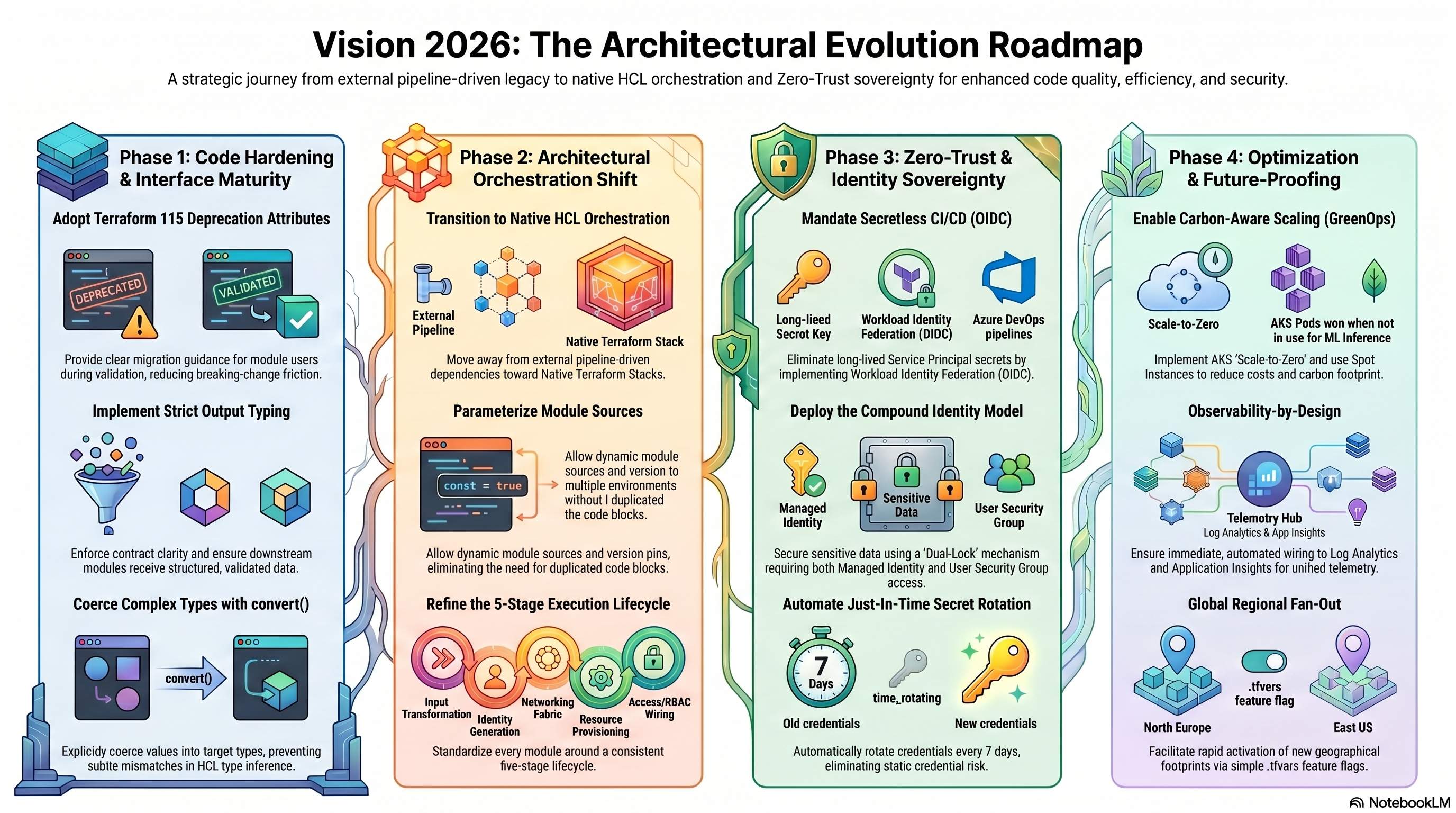

#### H. Future Roadmap and Evolution
## 2. Strategic Presentations and Video Overviews
This repository includes high-fidelity architectural presentations and AI-generated video summaries designed to provide an immediate visual and strategic understanding of the Vision 2026 infrastructure. These resources serve as an excellent starting point before diving into the detailed Markdown documentation.
### 2.1 Master Architectural Summary (Start Here)
- **Target Audience:** Everyone visiting the repository for the first time.
- **Content:** This is the most comprehensive summary of the Vision 2026 architecture. It was generated by **NotebookLM** using all 49 architectural infographics found in this repository as its primary source. It provides a structured, high-fidelity overview of the entire ecosystem, making it the perfect starting point for understanding the platform's DNA.
- **Download:** [Terraform Azure DevOps Enterprise Blueprint 2026 (PDF Summary)](./slides/Terraform_Azure_DevOps_Enterprise_Blueprint_2026.pdf)
### 2.2 AI-Generated Video Summaries (NotebookLM)
These videos provide a comprehensive audio-visual walkthrough of the entire project documentation (README and `docs/`). They are ideal for quick onboarding, offering a narrated dialogue that synthesizes the complex architectural patterns into an accessible format.
#### 2.2.1 Core Architecture and Strategy
- **Project Overview (English):** [Vision 2026 Cloud Blueprint](./videos/Vision_2026_Cloud_Blueprint_English.mp4) | [Alternative Blueprint Summary](./videos/Vision_2026__Cloud_Blueprint.mp4)
- **Project Overview (Español):** [Vision 2026 Cloud Arch](./videos/Vision_2026__Cloud_Arch_Spanish.mp4)
- **Cloud Enterprise Vision (Español):** [Cloud Enterprise Vision 2026](./videos/Cloud_Enterprise__Vision_2026_Spanish.mp4)
- **App-Core and App-Catalog (English):** [Vision 2026 App-Core App-Catalog](./videos/Vision_2026_App-Core_App-Catalog.mp4)
- **App-Core and App-Catalog (Español):** [Visión 2026 App-Core App-Catalog](./videos/Vision_2026_App-Core_App-Catalog_Spanish.mp4)
#### 2.2.2 Identity and Security (Zero-Trust)
- **Identity Automation (English):** [App-Users Identity Automation](./videos/App-Users_Identity_Automation.mp4)
- **Identidad Zero-Trust (Español):** [Identidad Zero-Trust](./videos/Identidad_Zero-Trust_Spanish.mp4)

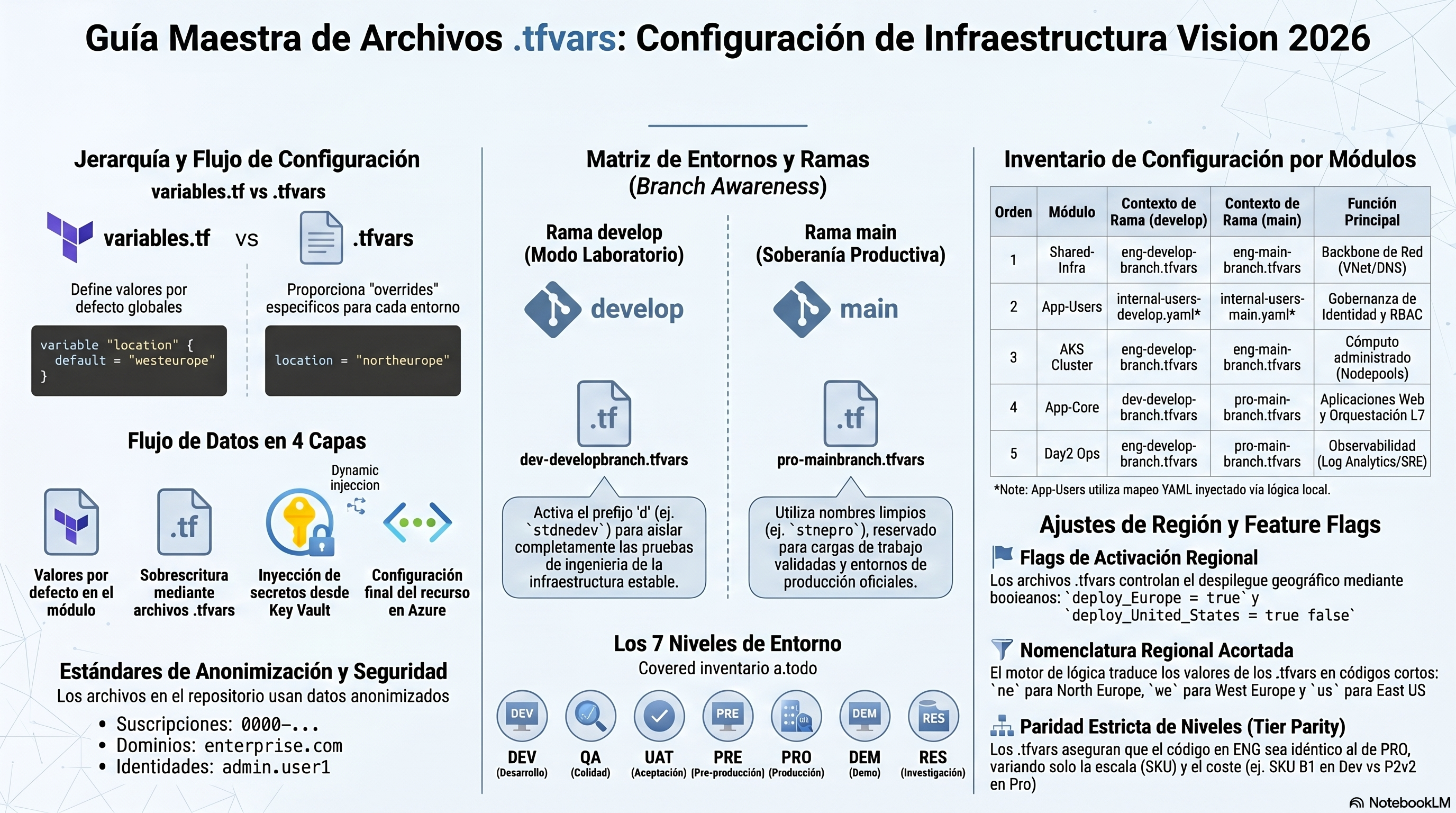

#### 2.2.3 Infrastructure Engine and tfvars
- **Demystifying tfvars (English):** [The Deterministic Engine Logic](./videos/Demystifying_tfvars.mp4)
- **Archivos tfvars (Español):** [Lógica de Archivos tfvars](./videos/Archivos_tfvars_Vision_2026_Spanish.mp4)
#### 2.2.4 MLOps and Advanced Compute
- **Secure MLOps (English):** [Vision 2026 Secure MLOps](./videos/Vision_2026__Secure_MLOps.mp4)
- **MLOps Empresarial (Español):** [MLOps Empresarial](./videos/Vision_2026__MLOps_Empresarial_Spanish.mp4)
#### 2.2.5 Networking and DNS
- **Networking and DNS (English):** [Vision 2026 Terraform Networking and DNS](./videos/Vision_2026_Terraform_Networking_DNS.mp4)
- **Networking y DNS (Español):** [Visión 2026 Terraform Networking y DNS](./videos/Vision_2026_Terraform_Networking_DNS_Spanish.mp4)
- **DNS Module IaC (English):** [DNS Module Infrastructure](./videos/Enterprise_Cloud_IaC_DNS-top-level-domain-module.mp4)
- **Desacoplamiento DNS (Español):** [Desacoplando el Módulo DNS](./videos/Desacoplando_el_Modulo_DNS-top-level-domain_Spanish.mp4)
#### 2.2.6 Hybrid Integration and Legacy Connectivity
- **Integration Service (English):** [Integration Service Guide](./videos/Integration-Service_Guide.mp4)
- **Integration Service (Español):** [Guía de Integration Service](./videos/Integration-Service_Guide_Spanish.mp4)
### 2.3 Vision 2026 Architectural Executive Summary
- **Target Audience:** C-Level Executives, Engineering Directors, and Lead Cloud Architects.
- **Content:** A highly visual, strategic overview of the platform. It covers the core design principles (Zero-Trust Identity, IaC Sovereignty), high-level Hub & Spoke networking topography, global traffic engineering, and the roadmap for AI-ready infrastructure.
- **Downloads:** [PPTX Format (Animated/Editable)](./slides/Vision_2026_Architectural_Executive_Summary.pptx) | [PDF Format (Static/Viewable)](./slides/Vision_2026_Architectural_Executive_Summary.pdf)
### 2.4 Vision 2026 Technical Engineering Patterns
- **Target Audience:** Platform Engineers, DevOps Specialists, SREs, and Security Architects.
- **Content:** An exhaustive, schematic breakdown of the engineering machinery. It details the custom "DRY Logic Engine", Tier Parity matrices (ENG vs PRO), strict CI/CD lifecycle pipelines, and the internal dependency flow of Terraform composite modules.
- **Downloads:** [PPTX Format (Animated/Editable)](./slides/Vision_2026_Technical_Engineering_Patterns.pptx) | [PDF Format (Static/Viewable)](./slides/Vision_2026_Technical_Engineering_Patterns.pdf)
### 2.5 NotebookLM Technical Deep Dives
These high-fidelity technical presentations provide granular deep dives into specific architectural domains, complementing the primary documentation.
- **Core Architecture:** [Enterprise Cloud Blueprint (App-Core/App-Catalog)](./slides/Enterprise_Cloud_Blueprint_App-Core_App-Catalog.pdf)
- **Identity:** [Enterprise Identity GitOps](./slides/Enterprise_Identity_GitOps.pdf)
- **Core Logic:** [The Deterministic Engine](./slides/The_Deterministic_Engine.pdf) | [Vision 2026 Infrastructure Engine](./slides/Vision_2026_Infrastructure_Engine.pdf)
- **MLOps:** [Vision 2026 MLOps Blueprint](./slides/Vision_2026_MLOps_Blueprint.pdf)
- **Networking:** [Networking and DNS Dynamic Infrastructure Blueprint](./slides/Networking_DNS_Dynamic_Infrastructure_Blueprint.pdf) | [The Decoupled Foundation (DNS Module)](./slides/The_Decoupled_Foundation_DNS-top-level-domain-module.pdf)
- **Hybrid Integration:** [Integration Service Universal Connector Architecture Blueprint](./slides/Integration-Service_Universal_Connector_Architecture_Blueprint.pdf)
- **Infrastructure DNA (Español):** [Infrastructure DNA Blueprint](./slides/Infrastructure_DNA_Blueprint_Spanish.pdf)
- **MLOps:** [Vision 2026 MLOps Blueprint](./slides/Vision_2026_MLOps_Blueprint.pdf)
- **Networking:** [Networking and DNS Dynamic Infrastructure Blueprint](./slides/Networking_DNS_Dynamic_Infrastructure_Blueprint.pdf) | [The Decoupled Foundation (DNS Module)](./slides/The_Decoupled_Foundation_DNS-top-level-domain-module.pdf)
- **Hybrid Integration:** [Integration Service Universal Connector Architecture Blueprint](./slides/Integration-Service_Universal_Connector_Architecture_Blueprint.pdf)
- **Infrastructure DNA (Español):** [Infrastructure DNA Blueprint](./slides/Infrastructure_DNA_Blueprint_Spanish.pdf)
## 3. Document Inventory
| Code | Primary Category | Sub-Category | Document | Description |
| :--- | :--- | :--- | :--- | :--- |
| **111** | Foundations and Strategy | Vision | [Architecture Strategy](./docs/111-ARCHITECTURE_2026.md) | Enterprise Architecture Strategy and evolution towards AI-assisted engineering. |
| **112** | Foundations and Strategy | Vision | [Presentation Notebook](./docs/112-PRESENTATION_NOTEBOOK.md) | High-level summary and reference architecture for notebook environments. |
| **121** | Foundations and Strategy | Legal | [Provenance and Legal](./docs/121-PROVENANCE_AND_LEGAL.md) | Code provenance, technical references, and legal disclaimers. |
| **131** | Foundations and Strategy | Platform | [Internal Developer Platform](./docs/131-INTERNAL_DEVELOPER_PLATFORM.md) | Platform Engineering strategy and IDP for elevating Developer Experience. |
| **141** | Foundations and Strategy | Adoption | [IPAM and Adaptation](./docs/141-ARCHITECTURE_ADOPTION_AND_IPAM_GUIDE.md) | Guide for de-obfuscating network CIDRs and adapting the blueprint for production. |
| **211** | IaC Engineering and Patterns | Terraform Architecture | [Module Design Patterns](./docs/211-TERRAFORM_MODULE_DESIGN_PATTERNS.md) | Deep-dive into module philosophy: Composite vs. Atomic patterns. |
| **212** | IaC Engineering and Patterns | Terraform Architecture | [Variable Architecture](./docs/212-TERRAFORM_VARIABLE_ARCHITECTURE_AND_DATA_STRATEGY.md) | Orchestration of variables, dynamic locals, and YAML-driven data. |
| **213** | IaC Engineering and Patterns | Terraform Architecture | [Configuration Inventory](./docs/213-TERRAFORM_ENVIRONMENT_CONFIGURATION_AND_TFVARS_INVENTORY.md) | Inventory of environment configurations (.tfvars), provisioning sequence, and safety standards. |
| **221** | IaC Engineering and Patterns | Visualization | [Visualizations](./docs/221-TERRAFORM_VISUALIZATIONS_AND_DEPENDENCY_GRAPHS.md) | Visualizing infrastructure dependencies and resource graphing. |
| **311** | Infrastructure Pillars | Networking | [Hub-Spoke Backbone](./docs/311-SHARED_INFRA_NETWORKING_HUB_SPOKE_BACKBONE.md) | Hub-Spoke network backbone and shared infrastructure design. |
| **312** | Infrastructure Pillars | Networking | [DNS Ecosystem](./docs/312-NETWORKING_AND_DNS_ECOSYSTEM.md) | Private DNS orchestration and global resolution strategy. |
| **313** | Infrastructure Pillars | Networking | [App Gateway Deep Dive](./docs/313-APP_GATEWAY_DEEP_DIVE.md) | Advanced L7 traffic orchestration and Application Gateway v2. |
| **314** | Infrastructure Pillars | Networking | [Azure WAF Improvements](./docs/314-AZURE_WAF_IMPROVEMENTS.md) | Web Application Firewall policies and edge security hardening. |
| **321** | Infrastructure Pillars | Identity and Security | [Microsoft Entra ID Integration](./docs/321-MICROSOFT_ENTRA_ID_INTEGRATION.md) | Modern Auth, RBAC governance, and Identity Perimeter design. |
| **322** | Infrastructure Pillars | Identity and Security | [Identity Governance Automation](./docs/322-ENTRA_ID_IDENTITY_GOVERNANCE_AUTOMATION.md) | YAML-driven user provisioning and lifecycle automation. |
| **323** | Infrastructure Pillars | Identity and Security | [Key Vault Trust Architecture](./docs/323-KEY_VAULT_TRUST_ARCHITECTURE.md) | Secret management, RBAC vs Access Policies, and Compound Identity. |
| **324** | Infrastructure Pillars | Identity and Security | [Security-by-Design Checklist](./docs/324-SECURITY_BY_DESIGN_CHECKLIST.md) | Technical deep-dive into hardening, Private Link, and DDoS protection. |
| **331** | Infrastructure Pillars | Compute | [AKS Compute Hub](./docs/331-AKS_COMPUTE_HUB_AND_ML_ORCHESTRATION.md) | Managed Kubernetes, specialized node pools, and ML workloads. |
| **332** | Infrastructure Pillars | Compute | [AKS Networking Masterclass](./docs/332-AKS_NETWORKING_MASTERCLASS.md) | CNI, API Server integration, and advanced K8s networking. |
| **341** | Infrastructure Pillars | Data | [Database Architecture](./docs/341-DATABASE_ARCHITECTURE_AND_PERSISTENCE_STRATEGY.md) | Hybrid data orchestration (Atlas vs Cosmos DB). |
| **342** | Infrastructure Pillars | Data | [Storage Governance](./docs/342-STORAGE_GOVERNANCE_AND_LIFECYCLE.md) | Data persistence, isolation, and recovery service vaults. |
| **411** | DevSecOps and Operations | Orchestration and Security | [Azure DevOps Pipelines](./docs/411-AZURE_DEVOPS_PIPELINES_ORCHESTRATION.md) | Global CI/CD orchestration and multi-layer lifecycle management. |
| **412** | DevSecOps and Operations | Orchestration and Security | [Pipeline Security and Governance](./docs/412-AZURE_DEVOPS_PIPELINE_SECURITY_AND_GOVERNANCE.md) | Pipeline hardening, branch policies, and environment gates. |
| **421** | DevSecOps and Operations | Day 2 Ops | [Observability and Day2 Operations](./docs/421-OBSERVABILITY_AND_DAY2_OPERATIONS.md) | Unified monitoring, logging, and self-healing infrastructure. |
| **811** | Analytical and Governance (GRC) | Resilience | [DR and BCP Arch Analysis](./docs/811-DR_BCP_ARCH_ANALYSIS.md) | Disaster Recovery and Business Continuity architectural audit. |
| **821** | Analytical and Governance (GRC) | Economics | [FinOps Arch Analysis](./docs/821-FINOPS_ARCH_ANALYSIS.md) | Cloud financial management and cost reverse engineering. |
| **911** | Reference and Closure | SRE and Runbooks | [Troubleshooting and Runbooks](./docs/911-TROUBLESHOOTING_AND_OPERATIONAL_RUNBOOKS.md) | SRE guide for diagnosing and resolving complex failures. |
| **999** | Reference and Closure | Roadmap and Backlog | [Future Roadmap and Strategic Architectural Backlog](./docs/999-FUTURE_ROADMAP_AND_IMPROVEMENT_BACKLOG.md) | Strategic evolution path and engineering improvement backlog. |
## 4. Foundations and Engineering Onboarding
### 4.1 Engineering Requirements
Before initiating the first deployment, ensure the following prerequisites are met:
| Category | Requirement | Source of Truth |
| :--- | :--- | :--- |
| **Azure** | 2x Enterprise Subscriptions (ENG, PRO) | [Section 6.3](#63-global-environment--subscription-matrix) |
| **SCM** | `git` (CLI version `>= 2.40`) | [Git Docs](https://git-scm.com/) |
| **Terraform** | CLI Version `>= 1.5.2` | [`providers.tf`](./App-Core/terraform-manifests/providers.tf) |
| **ADO** | Terraform Extension by Microsoft DevLabs | [Pipelines](./AKS/01-terraform-provision-AKS-pipeline.yml) |
| **Identity** | Global Admin (for initial SPN / OIDC setup) | [Entra ID](./docs/321-MICROSOFT_ENTRA_ID_INTEGRATION.md) |
| **Tools** | `az cli`, `pwsh` (7+), `bash`, `kubelogin`, `kubectl`, `helm` | [`scripts/`](./Shared-Infra/scripts/) |
| **IDE** | `VSCode` + [HashiCorp Terraform Extension](https://marketplace.visualstudio.com/items?itemName=HashiCorp.terraform) | [Section 4.4](#44-engineering-environment-vscode-optimization) |
### 4.2 Global Regions and Carbon-Aware Naming
Naming in this platform is a functional identifier. It encapsulates the geographical footprint, the carbon intensity of the datacenter, and the branch lifecycle status.
| Region Name | Logical Code | Carbon Intensity | Primary Use Case | Source of Truth |
| :--- | :---: | :--- | :--- | :--- |
| **North Europe** | `ne` | Low (Wind/Hydro) | Primary Production & High-Scale Tiers | [`03-locals.tf`](./App-Core/terraform-manifests/modules/appcore_module/03-locals.tf) |
| **West Europe** | `we` | Moderate | Disaster Recovery & Staging | [`03-locals.tf`](./App-Core/terraform-manifests/modules/appcore_module/03-locals.tf) |
| **East US** | `eus` | High | North American Edge & Global Expansion | [`03-locals.tf`](./App-Core/terraform-manifests/modules/appcore_module/03-locals.tf) |
#### 4.2.1 The Nomenclature Logic (prefix 'd')
As detailed in [Section 6.1](#61-iac-engineering-vs-application-tiering), the platform distinguishes between stable and experimental code via branch-based prefixes.
- **Shadow Infrastructure (prefix 'd')**: Automatically prepended when deploying from `develop` (e.g., `stdnedev`). This allows engineers to safely test IaC logic without affecting production-grade resources.
- **Production Sovereignty (no prefix)**: Reserved for resources deployed from `main` (e.g., `stnepro`), ensuring that mission-critical resources follow a clean, immutable naming standard.
- **Logic Verification**: `gitbranch = (var.gitbranch != 'main') ? 'd':''` in [`03-locals.tf`](./App-Core/terraform-manifests/modules/appcore_module/03-locals.tf).
### 4.3 Automation Glossary
- **IaC (Infrastructure as Code)**: The practice of managing and provisioning infrastructure through machine-readable definition files.
- **Idempotency**: A property of our Terraform manifests where multiple executions of the same code result in the same state without side effects.
- **Zero-Trust**: A security framework requiring all users/devices, whether in or out of the network, to be authenticated and authorized.
- **OIDC (OpenID Connect)**: An identity layer on top of OAuth 2.0 used for secretless pipeline authentication.
- **Private Link / Endpoint**: A technology that provides private connectivity between a VNet and an Azure PaaS service, removing public internet exposure.
- **UDR (User Defined Route)**: A manual routing rule used here to force all spoke traffic through the central Firewall.
### 4.4 Engineering Environment: VSCode Optimization
For the best engineering experience, use the following `settings.json` configuration:
{
"terraform.languageServer": true,
"terraform.indexing.enabled": true,
"terraform.validation.enable": true,
"editor.formatOnSave": true,
"[terraform]": {
"editor.defaultFormatter": "hashicorp.terraform"
}
}
## 5. Core Design Principles
### 5.1 Zero-Trust Identity and Compound Auth
We eliminate the concept of "Trusted Networks" by requiring every service interaction to be authenticated.
- **Managed Identities (MSI)**: Microservices use User-Assigned Managed Identities to authenticate against Azure services (Key Vault, Storage) without static secrets.
- **Workload Identity Federation**: Azure DevOps pipelines authenticate to Azure using OIDC, removing long-lived service principal keys.
- **Evidence**: [`15-app-register-service-principals.tf`](./App-Core/terraform-manifests/modules/appcore_module/15-app-register-service-principals.tf) and [`shared-azure-devops-pipeline-vars.yml`](./Shared-Infra/configuration/shared-azure-devops-pipeline-vars.yml).
### 5.2 IaC Sovereignty (100% Terraform)
The infrastructure is treated as software. Any change made via the Azure Portal is considered "Configuration Drift" and is automatically rectified by the next pipeline run.
- **Declarative State**: 100% of resources are defined in HCL.
- **Idempotency**: Rerunning the code with the same inputs produces zero changes, guaranteeing deterministic environments.
- **Evidence**: [`AKS/01-terraform-provision-AKS-pipeline.yml`](./AKS/01-terraform-provision-AKS-pipeline.yml).
### 5.3 Hybrid-First Integration and AppLink Pattern
Seamless connectivity between modern Cloud-Native APIs and legacy On-Premises systems.
- **AppLink Signaling**: A custom pattern that allows secure, mTLS-encrypted tunnels for data exchange across hybrid networks.
- **Evidence**: [`Integration-Service/README.md`](./Integration-Service/README.md) and [`Shared-Infra/terraform-manifests/modules/sharedinfra_dns_module/`](./Shared-Infra/terraform-manifests/modules/sharedinfra_dns_module/).
### 5.4 Observability-by-Design
Infrastructure is "born" with monitoring. No resource exists without telemetry.
- **Evidence**: [`35-log-analytics-workspace.tf`](./App-Core/terraform-manifests/modules/appcore_module/35-log-analytics-workspace.tf) and [`36-application-insights.tf`](./App-Core/terraform-manifests/modules/appcore_module/36-application-insights.tf).
### 5.5 Immutable Infrastructure and Stateless Design
We prioritize resource replacement over patching.
- **Evidence**: [`18-app-service-back-api.tf`](./App-Core/terraform-manifests/modules/appcore_module/18-app-service-back-api.tf).
## 6. Lifecycle Strategy and Environment Matrix
### 6.1 IaC Engineering vs. Application Tiering
It is critical to distinguish between the **Lifecycle of the Infrastructure Code (IaC)** and the **Functional Tiering of the Applications**.
#### 6.1.1 IaC Engineering Phase (Branch: `develop` and prefix `d`)
The **`develop` branch** is the laboratory for the Platform Engineering team. All changes to Terraform manifests and pipelines are developed and tested here first.

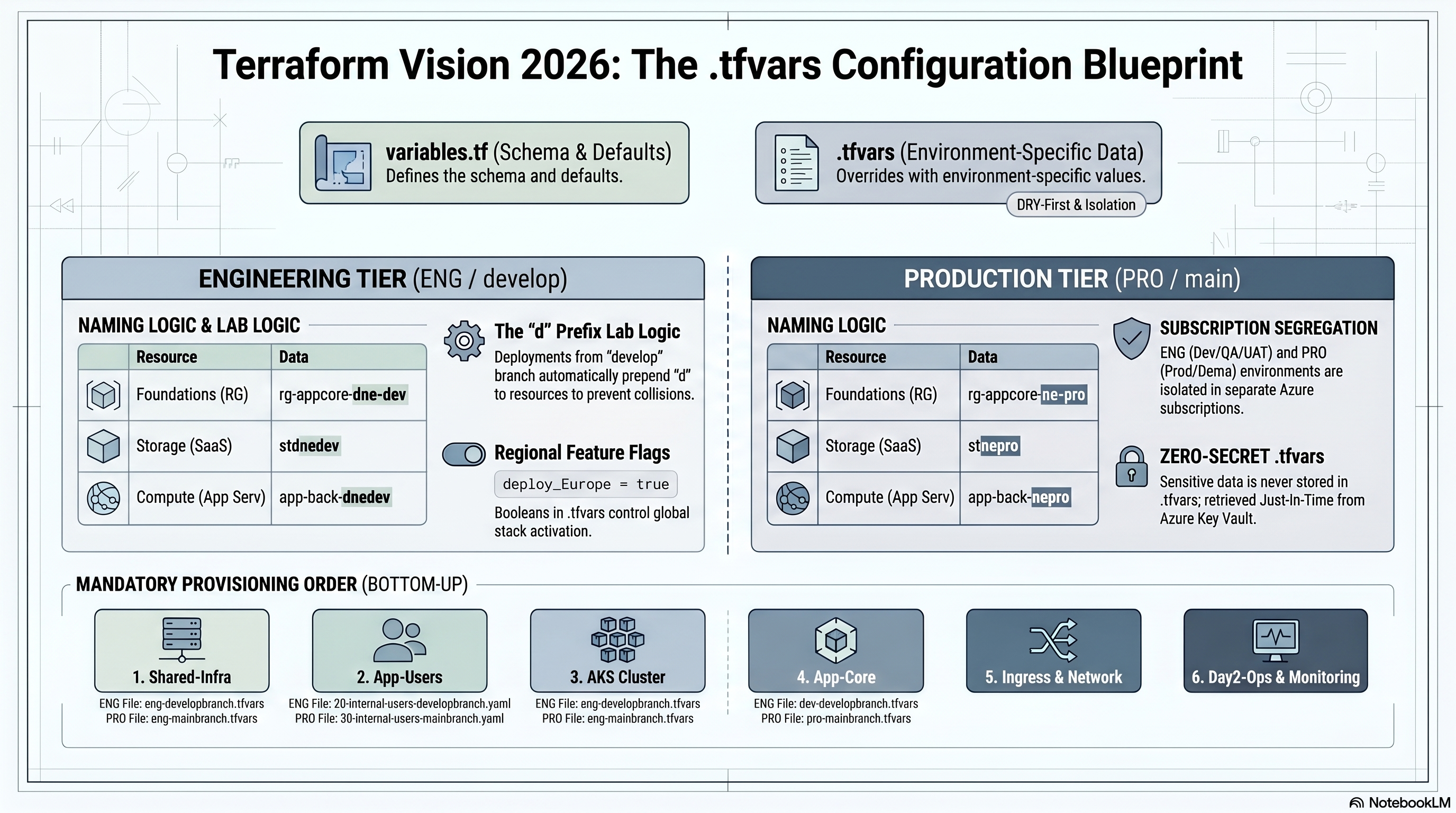

- **The "d" Prefix Logic**: When deploying from any branch other than `main` (typically `develop` or feature branches), the Logic Engine automatically prepends a **`d`** to all resource names.
- **Purpose**: This creates a "Shadow Infrastructure" where engineers can test IaC changes across **all tiers** (Dev, QA, and even Pro) without overwriting or impacting the stable, "gold" resources.
- **Evidence**: [`03-locals.tf`](./App-Core/terraform-manifests/modules/appcore_module/03-locals.tf) logic: `gitbranch = (var.gitbranch != "main") ? "d":""`.
#### 6.1.2 Stable IaC Execution (Branch: `main`)
The **`main` branch** contains the validated, "Productive" version of the infrastructure code.
- **Clean Naming**: Resources deployed from `main` lack the `d` prefix, representing the official state of the environment.
- **Dual Support**: Both Engineering Tiers (Dev/QA) and Production Tiers (Pro/Demo) use the code from their respective `main` states once validated.
#### 6.1.3 Application Tiering (The Developer's View)
Independent of the IaC branch, the architecture provides two distinct **Subscription Tiers** for application developers:
1. **Engineering Spoke (ENG)**: Hosting functional environments for day-to-day development: **DEV, QA, UAT, and PRE**.
2. **Production Spoke (PRO)**: Hosting mission-critical environments: **PRO and DEMO**.

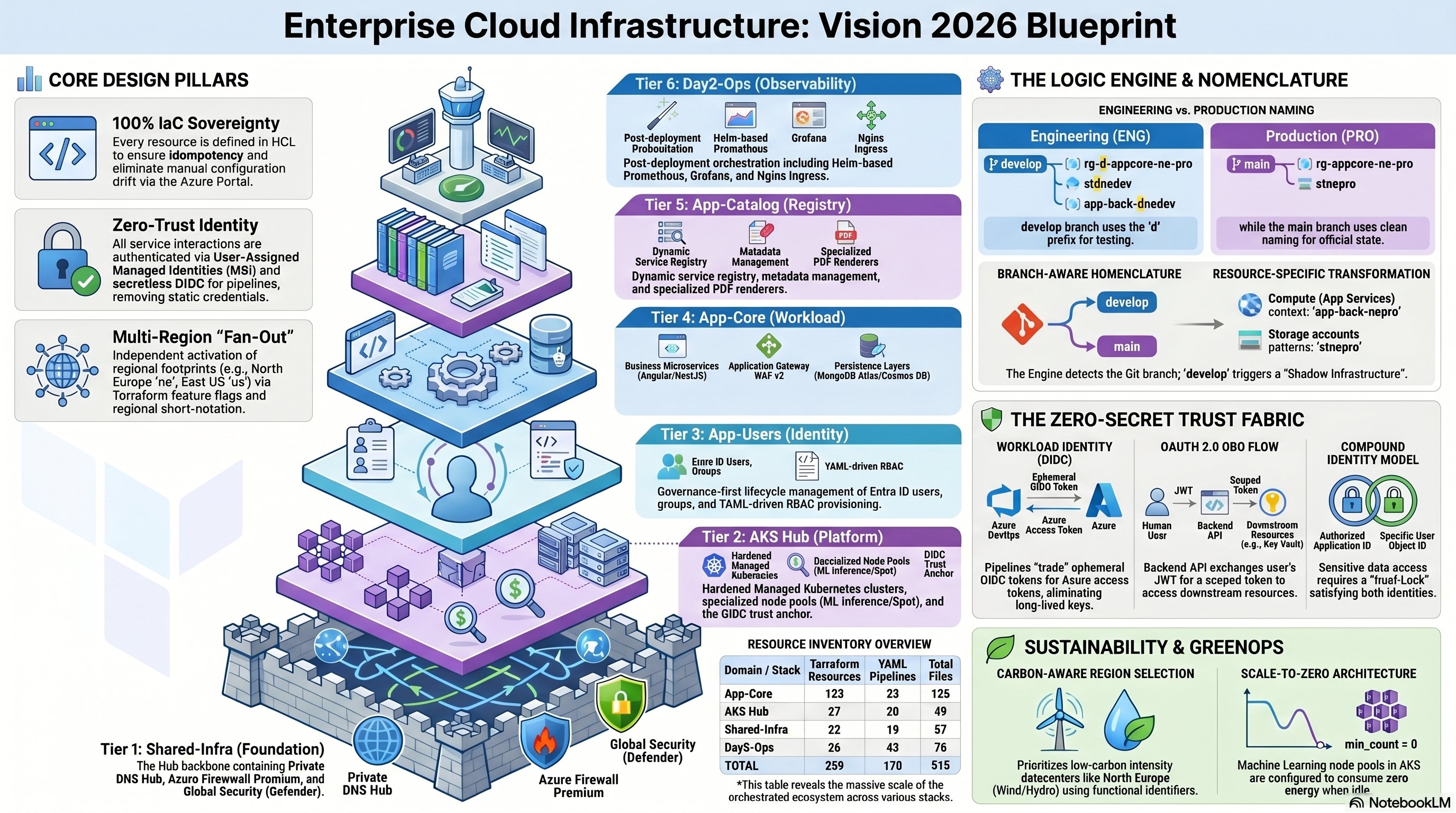

#### 6.1.4 Lifecycle Visualization and Environment Matrix

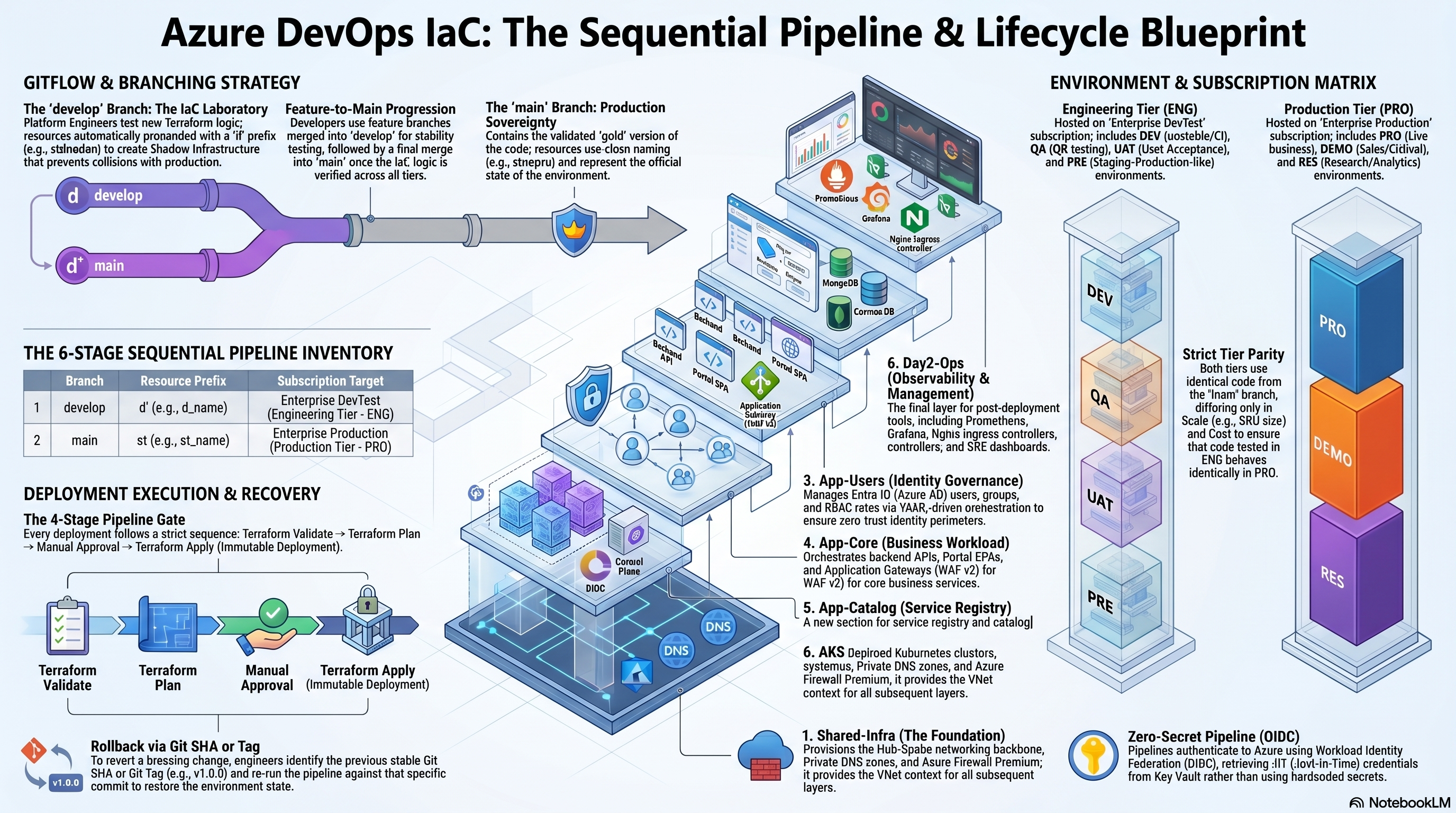

The following diagram illustrates the flow of code and the separation between the **Engineering of the Code (IaC)** and the **Production of the Resources**.
(IaC Engineering)"] MAIN_B["main branch
(Stable IaC)"] end subgraph Resource_Generation [Nomenclature Logic] direction LR P_D["Prefix 'd'
Shadow Infrastructure"] P_N["No Prefix
Official Resources"] end subgraph Subscriptions [Azure Tiers] direction LR subgraph Sub_ENG [Engineering Spoke] E1[DEV] E2[QA] E3[UAT] end subgraph Sub_PRO [Production Spoke] PR1[PRO] PR2[DEMO] end end %% Flows DEV_B --> P_D MAIN_B --> P_N P_D -.->|"Test IaC in any Env"| Sub_ENG P_D -.->|"Test IaC in any Env"| Sub_PRO P_N ===>|"Run stable Apps"| Sub_ENG P_N ===>|"Run stable Apps"| Sub_PRO class DEV_B,MAIN_B branch class P_D prefix_d class P_N prefix_none class Sub_ENG,Sub_PRO tier
### 6.2 Detailed Infrastructure Lifecycle Matrix
| Dimension | Engineering IaC (develop/d) | Stable IaC (main) |
| :--- | :--- | :--- |
| **Primary Goal** | Test new Terraform logic & patterns | Host production-ready workloads |
| **Naming Prefix** | **`d`** (e.g., `rg-d-appcore-ne-pro`) | **None** (e.g., `rg-appcore-ne-pro`) |
| **Collision Risk** | **Zero** (Isolated by naming) | High (Requires strict PR approval) |
| **Billing Tag** | `Engineering / Sandbox` | `Production / Business` |
| **Environments** | **ANY** (Dev, QA, UAT, PRO, DEMO) | **ANY** (Dev, QA, UAT, PRO, DEMO) |
| **Target Audience** | Platform Engineers / SRE | App Developers / End Users |
| **Evidence** | [`App-Core/03-locals.tf`](./App-Core/terraform-manifests/modules/appcore_module/03-locals.tf) | [`AKS/01-provisioning-pipeline.yml`](./AKS/01-terraform-provision-AKS-pipeline.yml) |
### 6.3 Tier Parity Strategy: ENG vs PRO
We enforce strict **Tier Parity** to ensure that code tested in ENG behaves identically in PRO, with the only differences being **Scale** and **Cost**.
| Feature | Engineering (ENG) | Production (PRO) | Code Evidence |
| :--- | :--- | :--- | :--- |
| **App Service SKU** | `B1` or `P1v2` | `P2v2` or `P3v3` | [`variables.tf`](./App-Catalog/terraform-manifests/variables.tf) |
| **AKS Node Pool** | `Standard_DS2_v2` | `Standard_D4s_v3` (Auto-healing) | [`06-aks-cluster.tf`](./AKS/terraform-manifests/modules/sharedinfra_aks_module/06-aks-cluster.tf) |
| **MongoDB Tier** | `M10` (Standard) | `M30+` (High-Availability) | [`15-mongodb.tf`](./App-Catalog/terraform-manifests/modules/appanalysis_module/15-mongodb.tf) |
| **Replication** | LRS (Local) | GRS / ZRS (Geo/Zone) | [`07-storage-account.tf`](./App-Core/terraform-manifests/modules/appcore_module/07-storage-account.tf) |
| **Backup** | 7 Days Retention | 180+ Days Retention | [`10-backup-policy.tf`](./App-Core/terraform-manifests/modules/appcore_module/10-file-share-clients-backup-policy.tf) |
### 6.4 Global Environment and Subscription Matrix
The platform utilizes a **Spoke-Per-Tier** subscription model to ensure absolute billing and quota isolation. **Source of Truth**: Mapping logic in [`App-Core/03-locals.tf`](./App-Core/terraform-manifests/modules/appcore_module/03-locals.tf) where `sharedinfra_environment` is calculated.
| Shared-Infra Env | App Env | Subscription Role | Service Connection | SPN Permission Level |
| :--- | :--- | :--- | :--- | :--- |
| **ENG** | DEV, QA, UAT | `Enterprise DevTest` | `svccon-ent-dev` | `Contributor` + `User Access Administrator` |
| **PRO** | PRO, DEMO | `Enterprise Prod` | `svccon-ent-pro` | `Contributor` (Strict JIT required) |
- **Service Connection Isolation**: Each environment tier is bound to a dedicated Azure DevOps Service Connection, preventing a "Dev" pipeline from accidentally touching "Prod" resources.
- **Quota Management**: By separating ENG and PRO into different subscriptions, we avoid AKS core-limit exhaustion during heavy testing phases.
## 7. The Architecture Wiring: DRY Logic and Referential Linking
This repository transcends traditional IaC by implementing a **Custom Logic Engine**. It ensures that high-level architectural intent is automatically translated into hundreds of low-level Azure resources, enforcing organizational standards without duplicating a single line of code.
### 7.1 Multi-Layer Logic Lifecycle

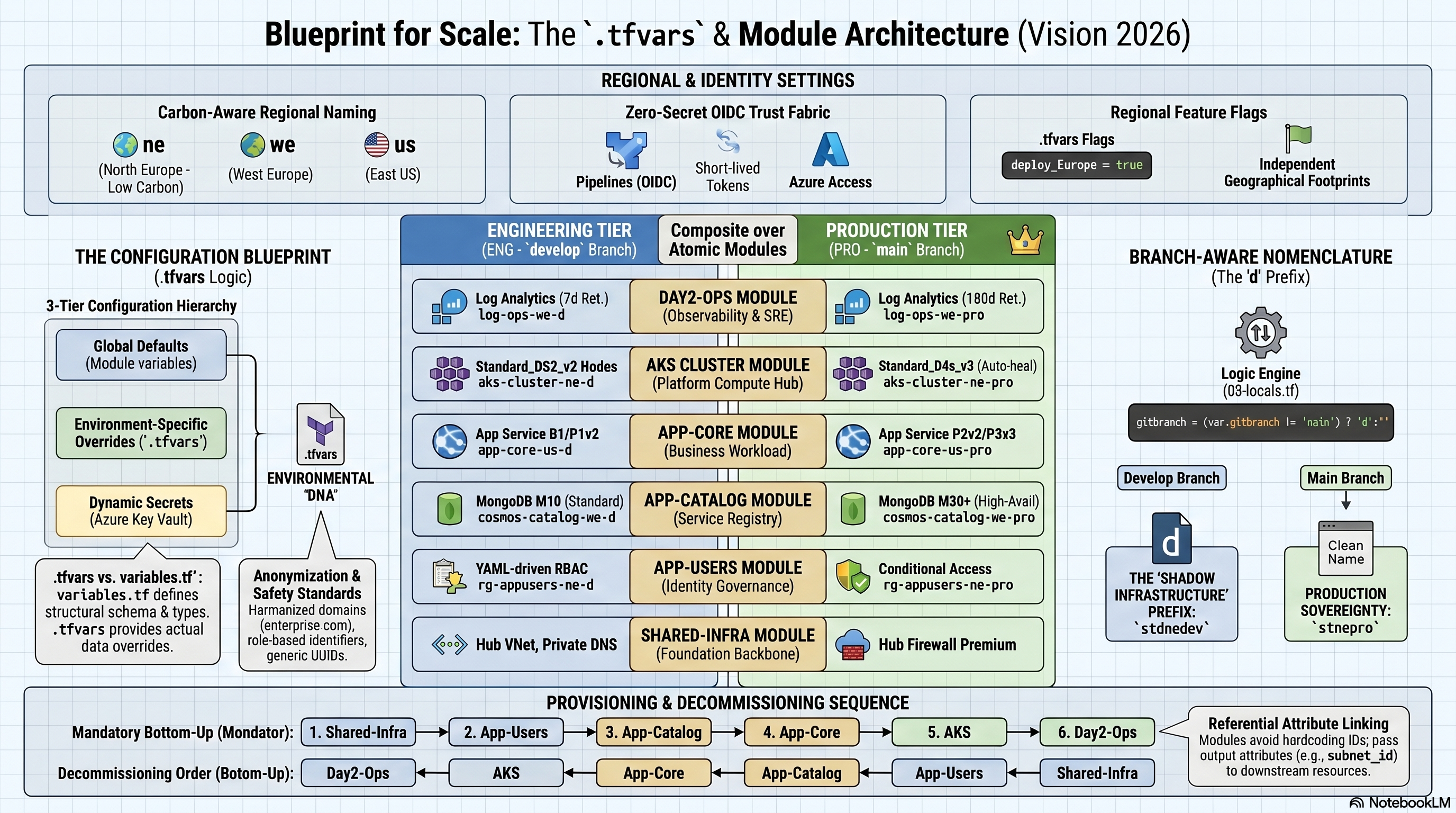

The following diagram illustrates how raw inputs are processed by the Engine (`locals.tf`) to produce a deterministic environment.
(Region, Environment)"] PARAM["Pipeline Parameters
(Git Branch)"] end subgraph Engine ["Stage 2: The Logic Engine (locals.tf)"] direction TB B_A["Branch Awareness
If Branch != main
then prefix = 'd'"] I_G["Instance Generator
{prefix}-{region}-{env}"] TAG["Global Tagging
Product, Dept,
Team, CostCenter"] end subgraph Output ["Stage 3: Composite Modules"] direction TB NET["Network Fabric
(VNet, Snet, UDR)"] COMP["Compute Tier
(AKS, AppService)"] SEC["Security Silos
(KeyVault, IAM)"] end TFVARS --> Engine PARAM --> Engine B_A --> I_G I_G --> NET I_G --> COMP I_G --> SEC TAG -.-> Output class TFVARS,PARAM input class B_A,I_G,TAG engine class NET,COMP,SEC resource
### 7.2 Logic Transformation Matrix: Module-Specific Evidence
The Engine is distributed across specialized `locals.tf` files. Each module handles its own logic transformations to maintain strict encapsulation while adhering to global standards.
| Logical Domain | Primary Responsibility | Key Files (Source of Truth) |
| :--- | :--- | :--- |
| **Global Environment** | Branch awareness (`d` prefix) and global tag synthesis. | [`App-Core/03-locals.tf`](./App-Core/terraform-manifests/modules/appcore_module/03-locals.tf) |
| **AKS Cluster** | Naming for clusters, registries, and AD groups. | [`AKS/locals.tf`](./AKS/terraform-manifests/modules/sharedinfra_aks_module/locals.tf) |
| **Network & DNS** | Calculation of FQDNs and DNS Zone resource groups. | [`Shared-Infra/locals.tf`](./Shared-Infra/terraform-manifests/modules/dns_top_level_domain_module/locals.tf) |
| **Day2 Ops** | Mapping of operational tools and monitoring prefixes. | [`Day2-ops/locals.tf`](./Day2-ops/terraform-manifests/modules/day2_ops_module/locals.tf) |
| **User Identity** | Dynamic YAML mapping for user provisioning. | [`App-Users/06-locals.tf`](./App-Users/terraform-manifests/06-locals.tf) |
### 7.3 The "Instance Generator" Core Logic: Deep-Dive
The **Environment Instance Generator** is the deterministic function that defines the "DNA" of the stack. It synthesizes inputs to ensure environment parity and cost isolation, strictly adhering to the **IaC Engineering vs. Application Tiering** strategy defined in Section 6.1.
#### 7.3.1 Logic Transformation Matrix: Branch and Nomenclature Strategy
The Logic Engine applies distinct transformation rules based on the resource category. A critical feature is the **Branch Awareness** logic, which automatically segregates Engineering from Production resources.
| Resource Category | Logic Applied | Naming Pattern (ENG vs PRO) | Evidence (Source of Truth) |
| :--- | :--- | :--- | :--- |
| **Foundation** | RG naming follows the instance identity. | `rg-appcore-dne-dev` vs `rg-appcore-ne-pro` | [`03-locals.tf`](./App-Core/terraform-manifests/modules/appcore_module/03-locals.tf) |
| **SaaS/PaaS** | Storage accounts lack dashes and use restricted lengths. | `stdnedev` vs `stnepro` | [`07-storage-account.tf`](./App-Core/terraform-manifests/modules/appcore_module/07-storage-account.tf) |
| **Compute** | App Services include the framework and branch context. | `app-back-dnedev` vs `app-back-nepro` | [`18-app-service-back-api.tf`](./App-Core/terraform-manifests/modules/appcore_module/18-app-service-back-api.tf) |
| **Identity** | Automated Service Principal mapping. | `appr-appcore-back-dnedev` | [`12-app-register-back-api.tf`](./App-Core/terraform-manifests/modules/appcore_module/12-app-register-back-api.tf) |
| **DNS** | Child zones are generated based on branch status. | `deng.enterprise.com` vs `apps.enterprise.com` | [`Shared-Infra/locals.tf`](./Shared-Infra/terraform-manifests/modules/dns_top_level_domain_module/locals.tf) |

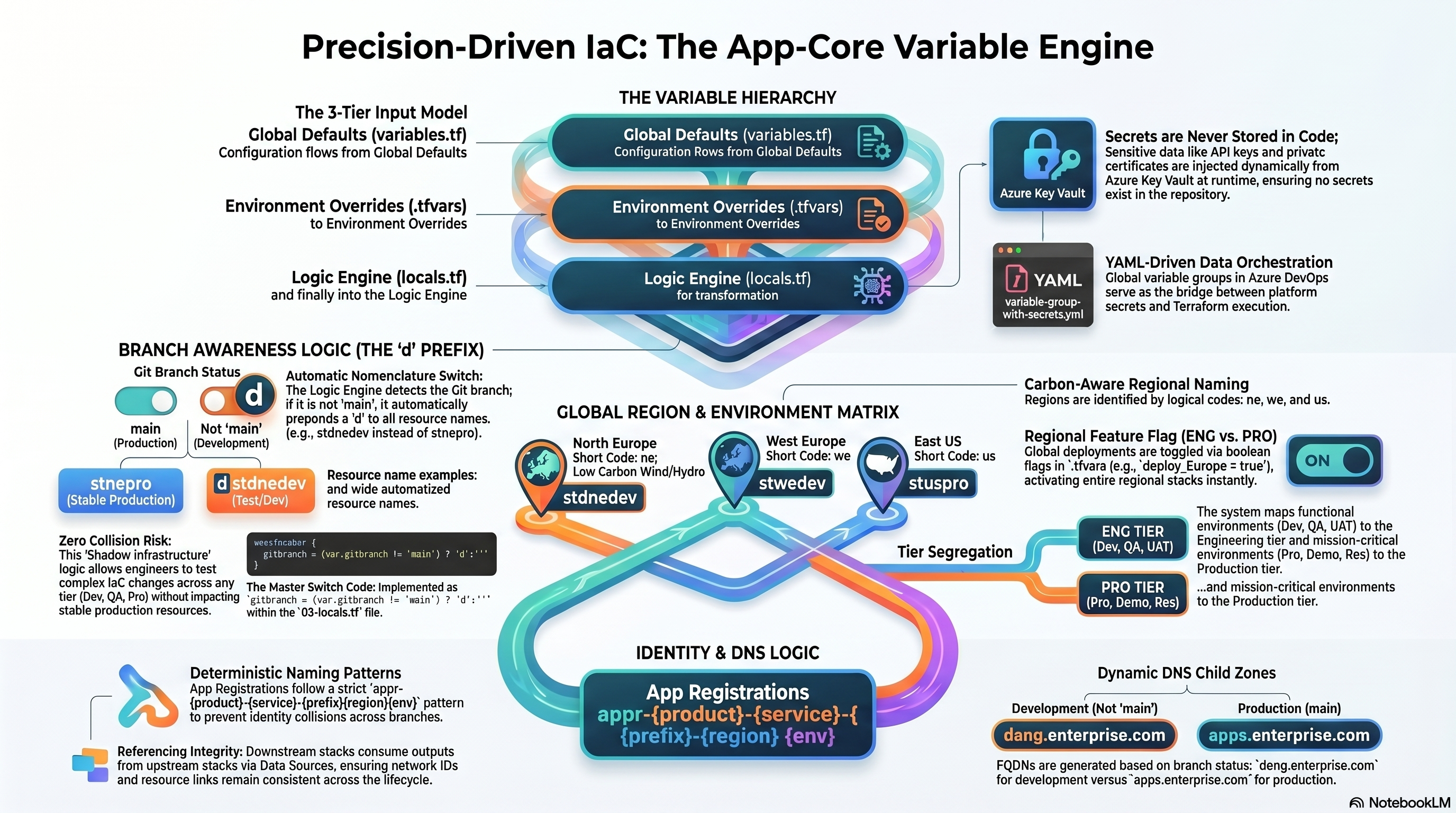

#### 7.3.2 Branch Awareness and The "d" Prefix Logic (IaC Lab Mode)
The master switch for nomenclature is the Git branch detection.
- **High-Level Intent**: Ensure that IaC development work (in `develop` or feature branches) never conflicts with stable production naming, regardless of the target subscription.
- **Low-Level Implementation**:
# Source: App-Core/terraform-manifests/modules/appcore_module/03-locals.tf
# This switch enables "Lab Mode" by adding a 'd' prefix for any branch other than main
gitbranch = (var.gitbranch != "main") ? "d" : "" # d = develop branch , "" = main branch
When the pipeline runs on the `develop` branch, every resource name starts with `d`, such as `stdnedev` (Engineering Storage) vs `stnepro` (Production Storage).
This creates a **Shadow Infrastructure** (e.g., `stdnedev`) that mirrors the structure of official resources (`stnepro`) for testing purposes.
#### 7.3.3 Shared Infrastructure Mapping: Tier Segregation
The engine distinguishes between **Engineering (ENG)** and **Production (PRO)** Shared-Infra tiers, including non-standard environments.
- **PRO-Grade**: Environments `pro`, `dem` (Demo), and `res` (Research) are treated as **Production**.
- **ENG-Grade**: Environments `dev`, `qa`, `uat`, and `pre` are treated as **Engineering**.
- **High-Level Intent**: Apply production-grade security standards (Firewall, WAF, Private Link) to Demo and Research environments by mapping them to the PRO Shared-Infra tier.
- **Low-Level Implementation**:
# Source: App-Core/terraform-manifests/modules/appcore_module/03-locals.tf
# PRO, DEM (Demo), and RES (Research) are treated as PRODUCTION-grade tiers
sharedinfra_environment = (var.environment != "pro" && var.environment != "dem" && var.environment != "res") ? "eng" : "pro"
**DNS Child Zone Dynamics:**
# Source: Day2-ops/terraform-manifests/modules/day2_ops_module/locals.tf
dns_child_zone = (var.environment != "pro") ? "${local.gitbranch}eng":"${local.gitbranch}apps"
#### 7.3.4 Dynamic App Registration and FQDN Naming
To prevent identity collisions, even **Entra ID App Registrations** and **DNS Zones** follow the branch-aware logic.
- **Naming Pattern**: `appr-{product}-{service}-{prefix}{region}{env}`
- **DNS Pattern**: `${dns_prefix}${gitbranch}{env}.enterprise.com`
- **Technical Evidence**: Defined via the `suffix_name` and `appcore_dns_name` variables in [`App-Core/03-locals.tf`](./App-Core/terraform-manifests/modules/appcore_module/03-locals.tf). This ensures that an engineer testing a new AAD permission in `develop` branch creates a separate App Registration (`appr-...-dnedev`) rather than modifying the stable one.
### 7.4 Multi-Region Fan-Out: The Regional Logic
The architecture is designed for global scale, allowing for the independent activation of geographical footprints via Terraform "Feature Flags".
- **Activation Flags**: Managed in `.tfvars` files.
- `deploy_Europe = true`: Activates the European stack.
- `deploy_United_States = true`: Activates the North American stack.
- **Regional Nomenclature**:
The Logic Engine synthesizes regional codes into every resource name to prevent global namespace collisions.
#### 7.4.1 Regional Short-Notation Matrix
| Region | Short Code | DNS Prefix | Example Resource |
| :--- | :---: | :---: | :--- |
| **North Europe** | `ne` | `ne` | `stdnedev` |
| **East US** | `us` | `us` | `stuspro` |
| **West Europe** | `we` | `we` | `stwedev` |

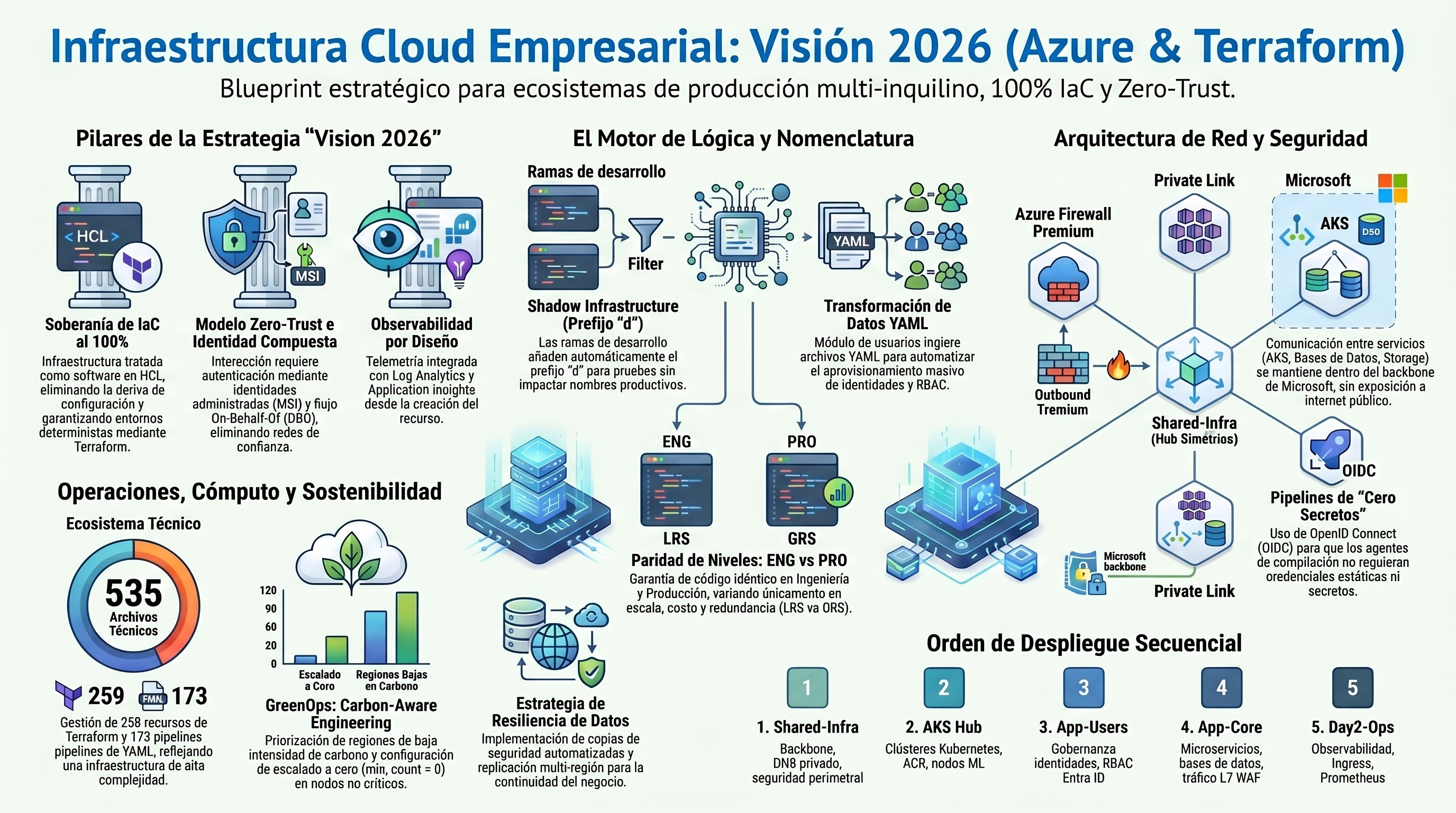

## 8. Architecture Blueprint: Visualizations and Deep-Dives
### 8.1 High-Fidelity Infrastructure Visualization and Traffic Flow
(vnet-sharedinfra-pro)"] direction TB FW["Azure Firewall
Premium"] DNS["Private DNS
Resolver"] VPN["VPN Gateway"] subgraph HubSubnets ["Hub Subnets"] S_FW["AzureFirewallSubnet"] S_GW["GatewaySubnet"] end end subgraph ENG ["Engineering Spoke: ENG
(vnet-appcore-dnedev)"] direction TB subgraph VNet_ENG ["VNet-ENG"] AKS_E["aks-dnedev
(Cluster)"] AS_Plan_E["plan-appcore-dnedev
(Premium V3)"] subgraph Apps_ENG [App Services] direction TB APP_FRONT_E["app-front-dnedev
(Angular)"] APP_BACK_E["app-back-dnedev
(NestJS)"] end subgraph ENGSubnets [ENG Subnets] S_AKS_E["snet-aks-dnedev"] S_APP_E["snet-app-dnedev"] S_PE_E["snet-pe-dnedev"] end RT_E["rt-force-fw-dnedev
(UDR: 0.0.0.0/0)"] end KV_E["kv-client-dnedev"] end subgraph PRO ["Production Spoke: PRO
(vnet-appcore-nepro)"] direction TB subgraph VNet_PRO ["VNet-PRO"] AKS_P["aks-nepro
(Cluster)"] AS_Plan_P["plan-appcore-nepro
(Premium V3)"] WAF["appgw-nepro
+ WAF v2"] subgraph Apps_PRO [App Services] direction TB APP_FRONT_P["app-front-nepro
(Angular)"] APP_BACK_P["app-back-nepro
(NestJS / Java)"] end subgraph PROSubnets [PRO Subnets] S_AKS_P["snet-aks-nepro"] S_APP_P["snet-app-nepro"] S_AGW_P["snet-agw-nepro"] S_PE_P["snet-pe-nepro"] end subgraph PEndpoints_P [Private Endpoints] PE_DB_P["pe-cosmosdb-nepro"] PE_KV_P["pe-keyvault-nepro"] PE_SA_P["pe-storage-nepro"] end RT_P["rt-force-fw-nepro
(UDR: 0.0.0.0/0)"] end KV_P["kv-client-nepro"] end subgraph Atlas ["External Cloud: MongoDB Atlas"] direction TB subgraph Atlas_ENG [Project: appcore-dnedev] DB_E["Cluster: appcore-dnedev"] end subgraph Atlas_PRO [Project: appcore-nepro] DB_P["Cluster: appcore-nepro"] end end VPN --- S_GW FW --- S_FW HubSubnets <==>|"VNet Peering"| VNet_ENG HubSubnets <==>|"VNet Peering"| VNet_PRO RT_E ==>|"Force Tunneling"| FW RT_P ==>|"Force Tunneling"| FW WAF -.->|"L7 / mTLS"| Apps_PRO WAF -.->|"L7 Routing"| AKS_P Apps_ENG -- "Internet Egress" --> DB_E Apps_PRO -- "Internet Egress" --> DB_P class Hub,HubSubnets,S_FW,S_GW,FW,DNS,VPN hub class ENG,VNet_ENG,AKS_E,AS_Plan_E,Apps_ENG,S_AKS_E,S_APP_E,S_PE_E,RT_E eng class PRO,VNet_PRO,AKS_P,AS_Plan_P,Apps_PRO,RT_P,S_AKS_P,S_APP_P,S_AGW_P,S_PE_P pro class KV_P,KV_E storage class WAF security class Atlas,Atlas_ENG,Atlas_PRO,DB_E,DB_P atlas
- **Strategic Overview (High-Level)**:
This architecture implements a **Symmetrical Hub-Spoke model** to achieve absolute environment isolation while centralizing egress security. The Hub (Shared-Infra) acts as the single inspection point for all internet-bound traffic, enforcing a **Zero-Trust** posture. By mirroring the Engineering (ENG) and Production (PRO) spokes, we eliminate configuration drift and ensure environment parity across the delivery lifecycle.
- **Technical Implementation (Low-Level)**:
- **Forced Tunneling (UDR)**: Workload subnets (`snet-aks-*`, `snet-app-*`) are associated with Route Tables that implement a `0.0.0.0/0` route with the **Azure Firewall Premium** IP as the next hop. This is evidenced in [`05-vnet.tf`](./App-Core/terraform-manifests/modules/appcore_module/05-vnet.tf).
- **Naming Convention Synergy**: Resources use the `d` prefix for ENG (e.g., `vnet-appcore-dnedev`) and clean naming for PRO (e.g., `vnet-appcore-nepro`), as defined in [`03-locals.tf`](./App-Core/terraform-manifests/modules/appcore_module/03-locals.tf).
- **Edge Security**: The **Application Gateway WAF v2** terminates SSL and routes traffic to Spokes over peering links, ensuring L7 protection for all public-facing services.
### 8.2 Global Traffic Engineering and Regional Failover
(Global Entry Point)"] subgraph EU_Stack ["European Stack (ne)"] AGW_EU["App Gateway + WAF v2
(North Europe)"] APP_EU["App Service / AKS"] end subgraph US_Stack ["USA Stack (us)"] AGW_US["App Gateway + WAF v2
(East US)"] APP_US["App Service / AKS"] end USER ==>|"HTTPS (Anycast)"| AFD AFD -- "Health Probe" --> AGW_EU AFD -- "Health Probe" --> AGW_US AFD -.->|"Route: Latency"| AGW_EU AFD -.->|"Route: Failover"| AGW_US AGW_EU --- APP_EU AGW_US --- APP_US class USER user class AFD global class EU_Stack,US_Stack,AGW_EU,AGW_US regional
### 8.3 App Service and Microservices Ecosystem
Detailed view of the polyglot application ecosystem (Angular, NestJS, Java) and its secure integration with MongoDB Atlas.
plan-appcore-nepro") subgraph PRO_Apps ["Microservices (PRO)"] SPA_P["app-front-nepro
(Angular / TS)"] API_P["app-back-nepro
(NestJS / Node)"] INTEG_P["integration-svc-nepro
(Java / SpringBoot)"] end KV_P{{"Key Vault (PRO)
kv-client-nepro"}} PLAN_P --- PRO_Apps API_P -.->|"Get Secret"| KV_P end %% ENGINEERING ENVIRONMENT subgraph ENG_Tier ["ENGINEERING ENVIRONMENT"] direction TB PLAN_E("App Service Plan (ENG)
plan-appcore-dnedev") subgraph ENG_Apps ["Microservices (ENG)"] SPA_E["app-front-dnedev
(Angular / TS)"] API_E["app-back-dnedev
(NestJS / Node)"] INTEG_E["integration-svc-dnedev
(Java / SpringBoot)"] end KV_E{{"Key Vault (ENG)
kv-client-dnedev"}} PLAN_E --- ENG_Apps API_E -.->|"Get Secret"| KV_E end %% EXTERNAL DATA - MONGODB ATLAS subgraph Atlas_Cloud ["External Cloud:
MongoDB Atlas"] direction TB subgraph Proj_PRO ["Project: appcore-nepro"] C_PRO[("Cluster: appcore-nepro")] AUTH_P["DB User Auth
+ IP Whitelist"] end subgraph Proj_ENG ["Project: appcore-dnedev"] C_ENG[("Cluster: appcore-dnedev")] AUTH_E["DB User Auth
+ IP Whitelist"] end AUTH_P --- C_PRO AUTH_E --- C_ENG end %% Logical Connections (Securized) API_P ==>|"1. Secure Egress"| AUTH_P INTEG_P ==>|"1. Secure Egress"| AUTH_P API_E ==>|"1. Secure Egress"| AUTH_E INTEG_E ==>|"1. Secure Egress"| AUTH_E %% Assign Classes class SPA_P,SPA_E angular class API_P,API_E nest class INTEG_P,INTEG_E java class PLAN_P,PLAN_E plan class Atlas_Cloud,Proj_PRO,Proj_ENG,C_PRO,C_ENG atlas class KV_P,KV_E,AUTH_P,AUTH_E security
- **Strategic Overview (High-Level)**:
The ecosystem is built on a **Polyglot Microservices** philosophy. By using specialized frameworks (**NestJS** for orchestration and **Java/SpringBoot** for core integration), we optimize developer productivity while maintaining a consistent **Angular** frontend. The architecture ensures that each service is horizontally scalable and independently deployable.
- **Technical Implementation & Security (Low-Level)**:
- **Runtime & Isolation**: All applications are deployed as **Linux Docker Containers** on **Premium V3 App Service Plans** ([`18-app-service-back-api.tf`](./App-Core/terraform-manifests/modules/appcore_module/18-app-service-back-api.tf)). Segregation between **PRODUCTION** and **ENGINEERING** tiers is enforced at the Service Plan level to prevent resource contention.
- **MongoDB Atlas Securization**:
- **Isolation**: Each Azure environment is mapped to a dedicated **MongoDB Atlas Project** (e.g., `appcore-nepro`).
- **Authentication**: Backends authenticate using database users with secrets stored and rotated in **Azure Key Vault** ([`23-key-vault-clients.tf`](./App-Core/terraform-manifests/modules/appcore_module/23-key-vault-clients.tf)).
- **Network Security**: Connection is restricted via **IP Whitelisting** (IP Access List) in Atlas, allowing traffic only from the NAT Gateways or Public IPs of the corresponding Azure Spokes.
- **Identity Propagation**: User identity is maintained via **MSAL** on the frontend and the **OAuth 2.0 OBO (On-Behalf-Of) Flow** on the backend to propagate the security context to downstream services.
### 8.4 AKS and Machine Learning Inference Ecosystem
This sub-architecture details the high-performance compute layer dedicated to **ML Model Inference** within the AKS cluster, including its strict network isolation and DevSecOps integrations.
Ingress / Core DNS") P_ML("ML Node Pool (User)
appspool002 (GPU/High-Mem)") P_SYS -.->|"L7 Routing"| P_ML end subgraph Subnets ["Network Isolation"] direction TB S_AKS["Subnet: aks-node-subnet"] S_PE["Subnet: pe-subnet"] end end subgraph Security ["DevSecOps and Data Silos"] direction TB ACR["Azure Container Registry
(Private ML Images)"] KV["Azure Key Vault
(Model Secrets/Keys)"] SA["Azure Storage
(Model Weights/Data)"] end %% Network mapping AKS --- S_AKS S_PE --- Security %% DevSecOps and Data Flows P_ML -.->|"1. AcrPull
(Managed Identity)"| ACR P_ML ==>|"2. Get Secret
(Workload Identity)"| KV P_ML ==>|"3. Fetch Weights
(Private Link)"| SA class AKS,P_SYS k8s class P_ML ai class VNet,Subnets,S_AKS,S_PE net class Security,ACR,KV,SA security
- **Strategic Overview (High-Level)**:
By segregating ML inference workloads into dedicated, purpose-built node pools (High-Memory or GPU-enabled), we ensure that resource-intensive AI models do not cause compute contention for core business APIs. The architecture enforces a strict **Zero-Trust** boundary: models are pulled from private registries, secrets are fetched dynamically via identity, and datasets are accessed exclusively through the Azure network backbone.
- **Technical Implementation & Security (Low-Level)**:
- **Dedicated Node Pools (Compute Isolation)**: The ML pool (`appspool002`) is configured as a `User` mode pool utilizing powerful VMs (e.g., `Standard_E8as_v4` or N-Series GPU instances) with `enable_auto_scaling = true` (Min: 0, Max: 6). It is labeled with `"app" = "mljobs"` to ensure precise pod scheduling ([`08-aks-cluster-nodepool-002-enterprise-ml-jobs.tf`](./AKS/terraform-manifests/modules/sharedinfra_aks_module/08-aks-cluster-nodepool-002-enterprise-ml-jobs.tf)).
- **Network Fabric**: The nodes and pods are injected directly into dedicated subnets (`vnet_subnet_id = azurerm_subnet.aks_nodes_data_plane.id` and `pod_subnet_id = azurerm_subnet.aks_pods_data_plane.id`), ensuring all egress traffic is subject to the UDR forcing it through the Azure Firewall Premium.
- **DevSecOps Integration (Registry)**: The AKS cluster's Kubelet Managed Identity is programmatically granted the `AcrPull` RBAC role over the private Azure Container Registry (`acr-{env}`). This eliminates the need to manage Kubernetes ImagePullSecrets manually ([`14-rbac.tf`](./AKS/terraform-manifests/modules/sharedinfra_aks_module/14-rbac.tf)).
- **Secure Data & Secrets (Private Link)**: When an ML pod spins up, it uses **Workload Identity** to securely authenticate against Azure Key Vault to retrieve decryption keys or external API tokens. It then fetches multi-gigabyte model weights from Azure Blob Storage via a **Private Endpoint**, guaranteeing that sensitive AI assets are never exposed to the public internet.
### 8.5 Scaling Intelligence: Autoscale and Elasticity
This architecture implements a **Four-Tier Scaling Model** to handle massive enterprise throughput while optimizing cost during idle periods.
- **Strategic Overview (High-Level)**:
This architecture implements a **Multi-Layer Scaling Strategy** designed to handle unpredictable enterprise workloads. By combining automatic cluster expansion with fine-grained pod-level scaling, we ensure high availability during traffic spikes and extreme cost-efficiency during idle hours (GreenOps).
- **Technical Implementation (Low-Level - Reverse Engineering):**
#### 8.5.1 Cluster Autoscaler (CA) - The Compute Backbone
The AKS cluster is configured to automatically adjust the number of nodes in the system node pool based on resource requests.
- **Master Switch**: `enable_auto_scaling = true` in [`06-aks-cluster.tf`](./AKS/terraform-manifests/modules/sharedinfra_aks_module/06-aks-cluster.tf).
- **Profile Tuning**:
- `expander = "most-pods"`: Logic that prioritizes nodes capable of scheduling the largest number of pending pods.
- `scale_down_utilization_threshold = 0.5`: Triggers node removal when the average load drops below 50%, optimized for cost.
#### 8.5.2 Workload Scaling (HPA and VPA)
- **Horizontal Pod Autoscaler (HPA)**: Enforced via Helm values for core components like Nginx Ingress.
- **Logic**: `targetCPUUtilizationPercentage = 50`, ensuring that new replicas are spawned before the existing ones reach exhaustion.
- **Vertical Pod Autoscaler (VPA)**: Utilized in the [`kube-prometheus-stack`](./Day2-ops/terraform-manifests/helm/kube-prometheus-stack/values.yaml) to automatically size monitoring pods based on historical metrics.
#### 8.5.3 App Service Elasticity
App Service Plans are configured with metric-based autoscale rules.
- **Evidence**: [`16-app-service-plan.tf`](./App-Core/terraform-manifests/modules/appcore_module/16-app-service-plan.tf).
- **Rules**: Scale-out triggered by **CPU > 70%** or **RAM > 80%**, maintaining a minimum of 2 instances in PRO for high availability.
#### 8.5.4 Scaling Strategy Comparison Matrix
| Tier | Component | Method | Metric | Source of Truth |
| :--- | :--- | :--- | :--- | :--- |
| **Compute (Nodes)** | AKS | **Autoscaler (CA)** | Pending Pods | [`06-aks-cluster.tf`](./AKS/terraform-manifests/modules/sharedinfra_aks_module/06-aks-cluster.tf) |
| **Compute (Pods)** | AKS | **HPA / VPA** | CPU / RAM / Metrics | [`Day2-ops/helm/`](./Day2-ops/terraform-manifests/helm/) |
| **PaaS (Web)** | App Service | **Scale-Out** | CPU > 70% | [`16-app-service-plan.tf`](./App-Core/terraform-manifests/modules/appcore_module/16-app-service-plan.tf) |
| **Edge (WAF)** | App Gateway | **Autoscale Units** | Throughput | [`21-app-gateway.tf`](./App-Core/terraform-manifests/modules/appcore_module/21-app-gateway.tf) |
### 8.6 Global CI/CD Pipeline Orchestration: The IaC Lifecycle
The repository acts as the **Central Control Plane** for the entire enterprise cloud estate. Infrastructure is deployed through a multi-tiered pipeline strategy that ensures architectural consistency, security compliance, and zero-drift environments.
- **High-Level Intent**: Automate the full lifecycle of the Hub-Spoke ecosystem, from foundational networking to application-level microservices, using a "Plan-First, Verify-Always" approach.
#### 8.6.1 Pipeline Architecture and Dependency Flow
Infrastructure must be provisioned in a specific order to satisfy network and identity dependencies. The following diagram illustrates the **Sequential Provisioning Logic**:
Hub, DNS, Firewall"] end subgraph Tier2 [Layer 2: Platform] P2["2. AKS Cluster
Control Plane, Nodepools"] P3["3. App-Users
Entra ID Groups and IAM"] end subgraph Tier3 [Layer 3: Workload] P4["4. App-Core
APIs, SPA, WAF, Cosmos"] P5["5. App-Catalog
Metadata Services"] end subgraph Tier4 [Layer 4: Operations] P6["6. Day2-Ops
Prometheus, Grafana, Helm"] end P1 ==> P2 P1 ==> P4 P2 ==> P4 P2 ==> P6 P3 -.-> P4 class P1 foundation class P2,P3 platform class P4,P5 workload class P6 ops
#### 8.6.2 Pipeline Inventory and Matrix (IaC Lifecycle Order)
| Order | Pipeline Name | Responsibility | Orchestrator YAML (Source of Truth) |
| :--- | :--- | :--- | :--- |
| **1** | **Shared-Infra** | Foundational Hub-Spoke networking, Private DNS Zones, and Azure Firewall Premium. | [`Shared-Infra/01-terraform-provision-sharedinfra-pipeline.yml`](./Shared-Infra/01-terraform-provision-sharedinfra-pipeline.yml) |
| **2** | **AKS** | Managed Kubernetes Clusters (ENG/PRO), system/user node pools, and OIDC issuer setup. | [`AKS/01-terraform-provision-AKS-pipeline.yml`](./AKS/01-terraform-provision-AKS-pipeline.yml) |
| **3** | **App-Users** | Lifecycle management of Entra ID (Azure AD) users, security groups, and administrative roles. | [`App-Users/01-terraform-provision-appcore-users-pipeline.yaml`](./App-Users/01-terraform-provision-appcore-users-pipeline.yaml) |
| **4** | **App-Core** | Core Business Microservices (Angular/NestJS), Application Gateways (WAF v2), and Persistence. | [`App-Core/01-terraform-provision-appcore-pipeline.yml`](./App-Core/01-terraform-provision-appcore-pipeline.yml) |
| **5** | **App-Catalog** | Dynamic catalog services and metadata management for client analysis. | [`App-Catalog/01-terraform-provision-catalog3-pipeline.yml`](./App-Catalog/01-terraform-provision-catalog3-pipeline.yml) |
| **6** | **Day2-Ops** | Post-deployment orchestration: Helm-based monitoring stacks, Ingress controllers, and Dashboards. | [`Day2-ops/01-terraform-provision-day2ops-pipeline.yml`](./Day2-ops/01-terraform-provision-day2ops-pipeline.yml) |
#### 8.6.3 The "Immutable Deployment" Execution Flow
Every pipeline follows a strict **four-stage gate** to ensure that production is never compromised by unverified changes.
### 8.7 Secure Secret Management and Pipeline Integration
This architecture implements a **Zero-Secret Pipeline** model, where credentials are never stored in the repository, hardcoded in YAML, or persistent on build agents. Secrets are treated as ephemeral assets retrieved *Just-In-Time* (JIT).
#### 8.7.1 The "Zero-Secret" Trust Fabric
(kv-sharedinfra-pro)"] subgraph Secrets [Sensitive Data Silos] S1["KubeConfig Certs"] S2["DB Connection Strings"] S3["API Passwords"] end end subgraph Control_Plane [Control Plane: Azure DevOps] direction TB SC["Service Connection
(Workload Identity / OIDC)"] VG["Variable Group
(Link to KV enabled)"] end subgraph Build_Runtime [Execution Tier: Pipeline Agent] direction TB ENV["Environment Variables
(Runtime Only)"] MASK["Log Scrubber
(Secret Masking)"] TF["Terraform / Kubectl"] end %% Flow SC ==>|"1. Authenticate"| KV KV --- Secrets Secrets -.->|"2. Map JIT"| VG VG ==>|"3. Inject"| ENV ENV --- TF TF -.->|"4. Execution Logs"| MASK %% Assign Classes class KV,Secrets security class SC,VG ado class Build_Runtime,ENV,MASK,TF agent
#### 8.7.2 Secret Access and Governance Matrix
| Secret Category | Storage Location | Access Protocol | Source of Truth |
| :--- | :--- | :--- | :--- |
| **Pipeline Secrets** | `kv-sharedinfra-pro` | Workload Identity (OIDC) | [`Shared-Infra/01-pipeline.yml`](./Shared-Infra/01-terraform-provision-sharedinfra-pipeline.yml) |
| **Application Secrets** | `kv-{client}-{env}` | On-Behalf-Of (OBO) Flow | [`23-key-vault-clients.tf`](./App-Core/terraform-manifests/modules/appcore_module/23-key-vault-clients.tf) |
| **K8s Credentials** | `kv-sharedinfra-pro` | Azure AD RBAC | [`06-aks-cluster.tf`](./AKS/terraform-manifests/modules/sharedinfra_aks_module/06-aks-cluster.tf) |

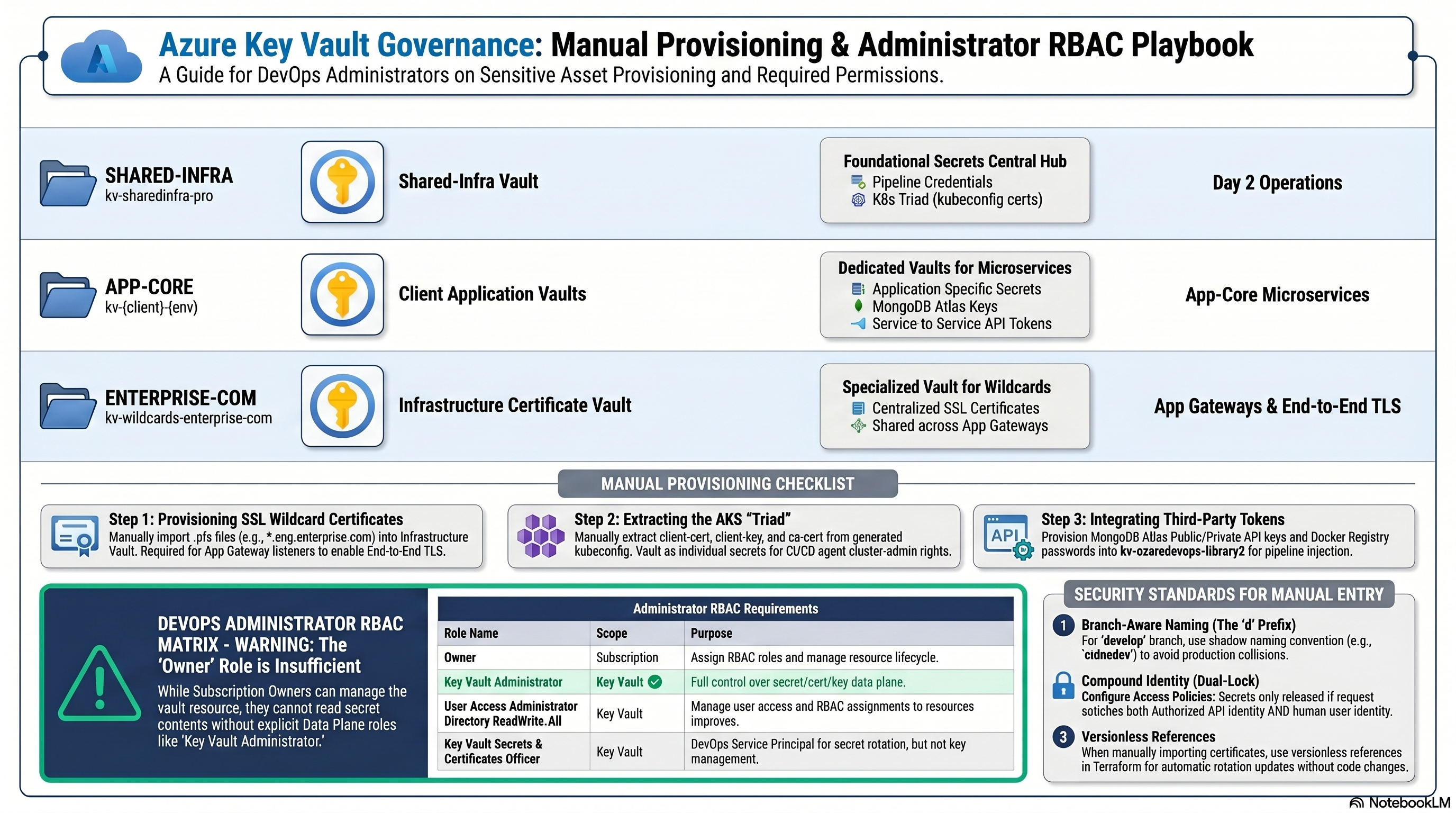

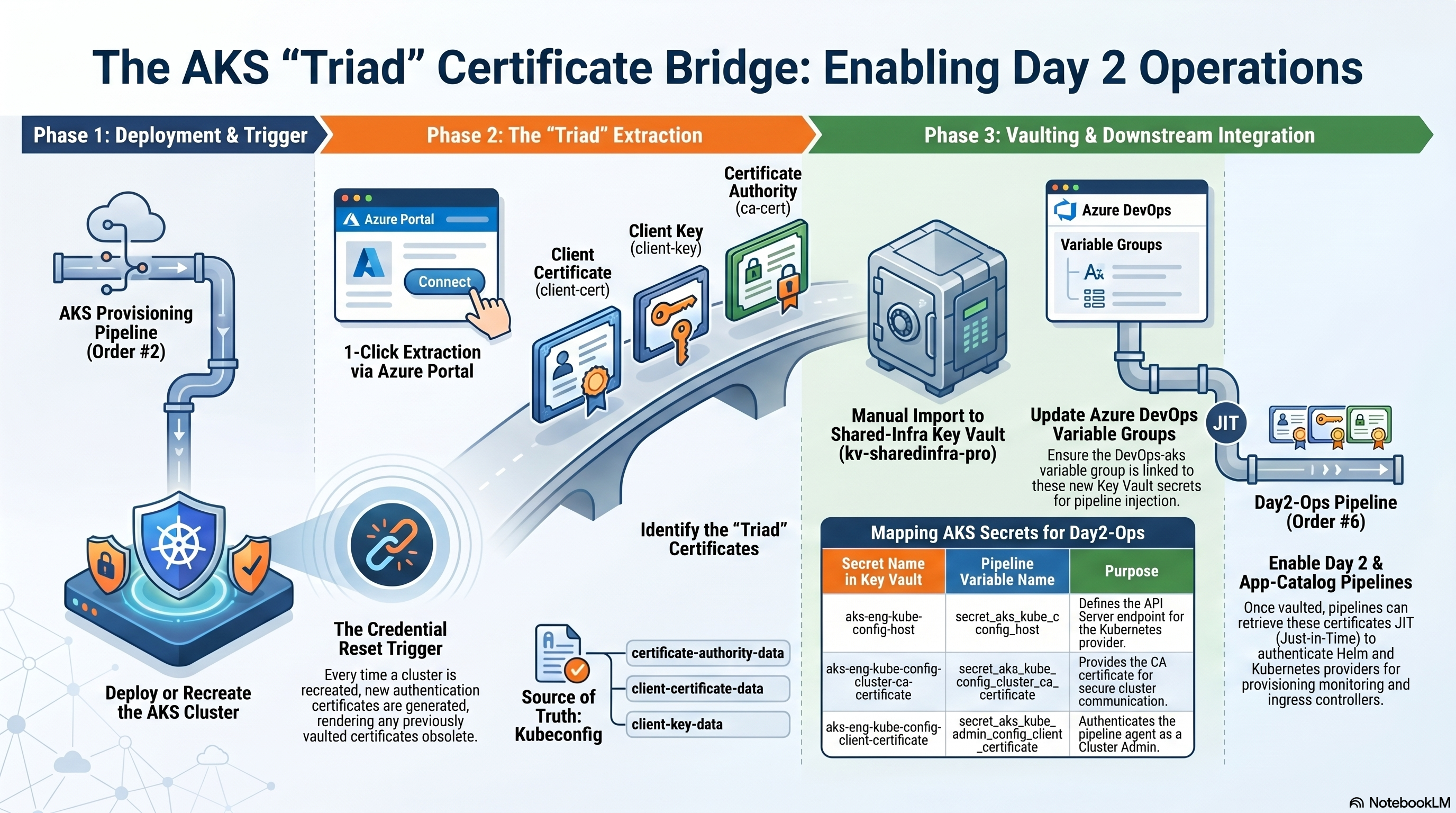

#### 8.7.3 AKS "Triad" Certificate Provisioning and Day2 Lifecycle
A critical security bridge in this architecture is the manual/automated transition from **AKS Provisioning** to **AKS Configuration (Day2 Ops)**. Because the CI/CD agent needs cluster-admin rights to deploy Helm charts, we use a **Triple Certificate Auth** pattern.
1. **Extraction**: Upon AKS creation, the `client-cert`, `client-key`, and `ca-cert` are extracted from the kubeconfig.
2. **Vaulting**: These are stored as individual secrets in the Shared-Infra Key Vault.
3. **Consumption**: Pipelines for [**Day2-ops**](./Day2-ops) and [**App-Catalog**](./App-Catalog) retrieve these JIT to authenticate the Helm and Kubernetes providers.
### 8.8 Automated Secret and Certificate Rotation
- **High-Level Strategic Intent**: Eliminate "Static Credential Risk" by ensuring that no password or certificate lives long enough to be effectively exploited.
#### 8.8.1 Secret Rotation Inventory Matrix
| Secret Type | Rotation Mechanism | Frequency | Evidence |
| :--- | :--- | :--- | :--- |
| **AAD App Passwords** | Terraform `time_rotating` | **7 Days** | [`14-app-register-secrets.tf`](./App-Core/terraform-manifests/modules/appcore_module/14-app-register-secrets.tf) |
| **TLS/SSL Certs** | KV Versionless Reference | Automatic | [`28-rbac-azurerm-clients.tf`](./App-Core/terraform-manifests/modules/appcore_module/28-rbac-azurerm-clients.tf) |
| **Service Tokens** | OAuth 2.0 Short-Lived JWT | **1 Hour** | [`App-Core/03-locals.tf`](./App-Core/terraform-manifests/modules/appcore_module/03-locals.tf) |

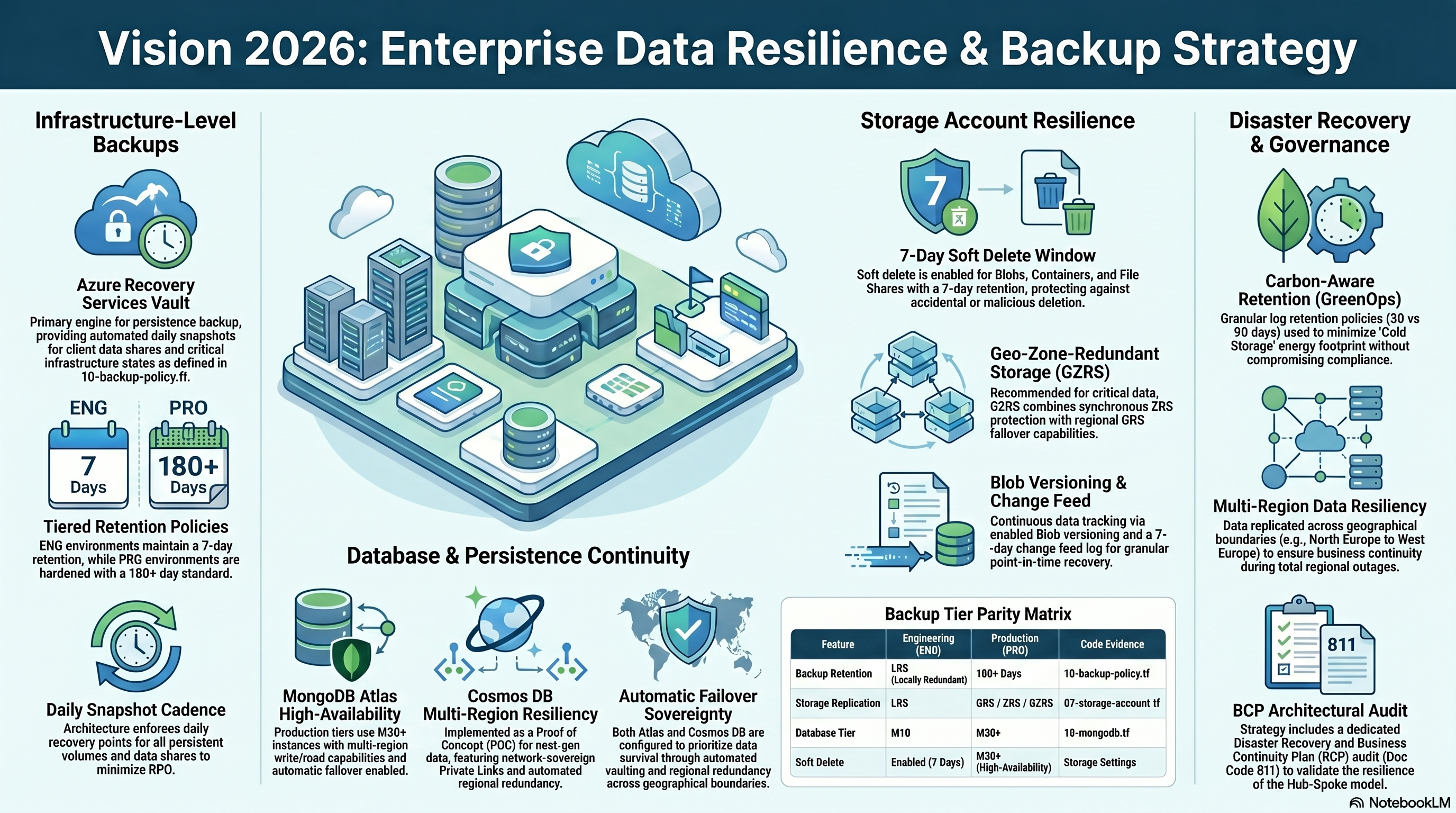

### 8.9 Backup, DR and Business Continuity Plan (BCP)
#### 8.9.1 Multi-Region Data Resiliency: Atlas vs. Cosmos DB (POC)
To ensure business continuity across geographical boundaries, the persistence layer utilizes a multi-cloud and multi-region replication strategy.
(Cluster: NE)"] P_US["Project: appcore-uspro
(Cluster: US)"] P_EU == "Cross-Project Sync" ==> P_US end subgraph Azure_POC ["POC Tier: Cosmos DB"] direction TB C_DB[("Cosmos DB Account
(POC-Lab)")] C_REP[("Secondary Replica
(Geo-Failover)")] C_DB -. "Internal Replication" .-> C_REP end class P_EU,P_US,Atlas_Global atlas class Azure_POC,C_DB,C_REP poc
### 8.10 Business Continuity Implementation Details
The architecture enforces data survival through automated vaulting and regional redundancy.
- **Persistence Backup**: Managed via **Azure Recovery Services Vault** ([`10-backup-policy.tf`](./App-Core/terraform-manifests/modules/appcore_module/10-file-share-clients-backup-policy.tf)), providing daily snapshots for client data shares.
- **Failover Sovereignty**: Cosmos DB (POC) and MongoDB Atlas are configured with multi-region write/read capabilities and **Automatic Failover** enabled.
## 9. Terraform Module Architecture: Domain-Driven Composition

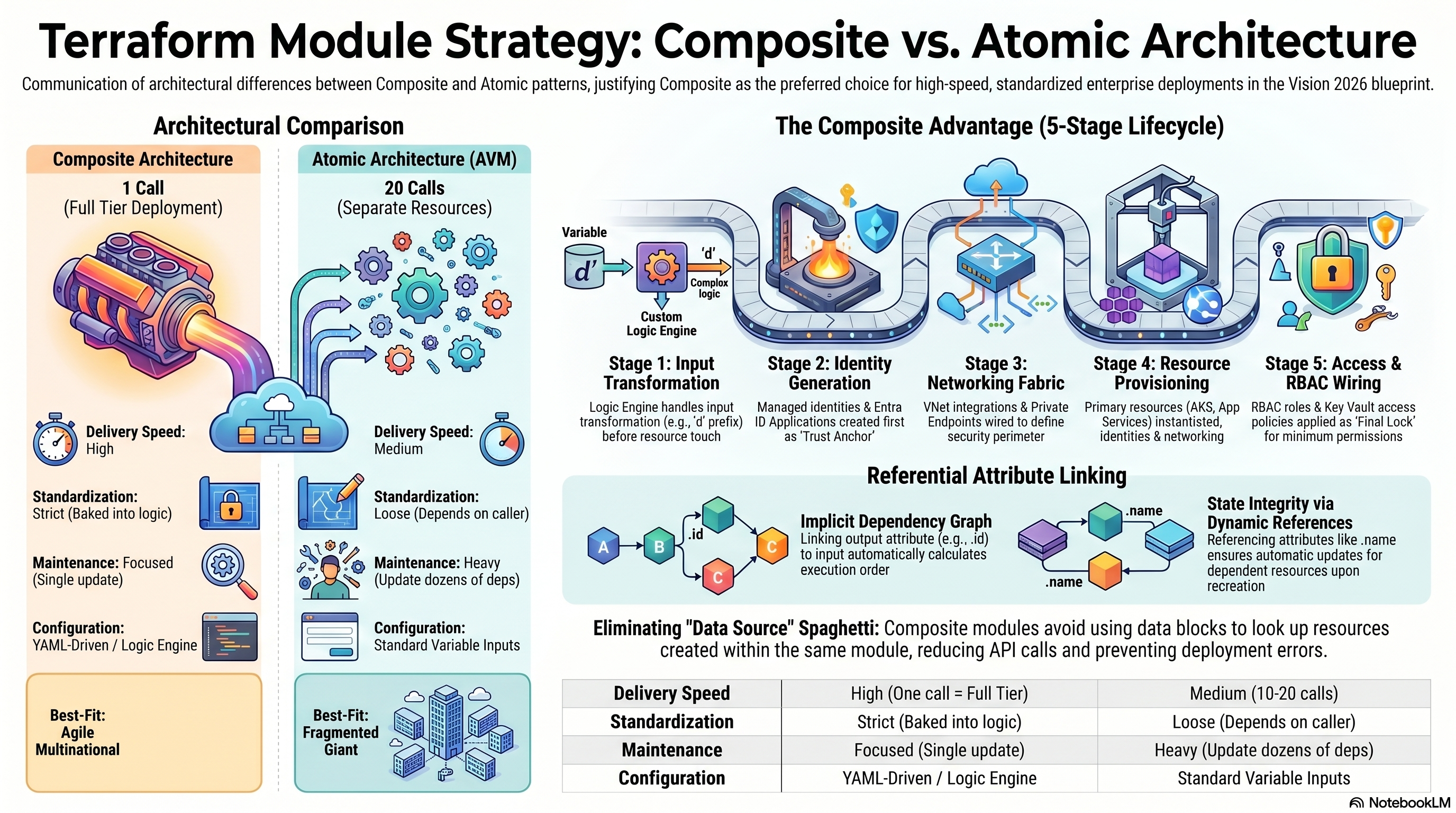

### 9.1 Categorization: Why "Composite" over "Atomic"?
| Feature | Composite Architecture (This Repo) | Atomic Architecture (AVM) |
| :--- | :--- | :--- |
| **Speed of Delivery** | 🚀 High (One module call = Full Tier) | 🐢 Medium (Requires 10-20 calls) |
| **Standardization** | ✅ Strict (Standards baked into logic) | ⚠️ Loose (Depends on caller inputs) |
| **Maintenance** | 🛠 Focused (Update domain logic once) | 🔄 Heavy (Update dozens of dependencies) |
| **Business Fit** | **Agile Mid/Large Multinational** | **Fragmented Giant Enterprise** |
### 9.2 Master Ecosystem Inventory and Deployment Order
The following table serves as the **Source of Truth** for the entire ecosystem, mapping logical tiers to physical folders and defining their primary responsibilities and mandatory deployment sequence.
| Tier | Azure DevOps Repo | Mono-Repo Folder (Physical) | Logical Role & Primary Responsibility |
| :---: | :--- | :--- | :--- |
| **1** | `Shared-Infra` | [`/Shared-Infra`](./Shared-Infra/terraform-manifests/modules/) | **Foundation Backbone**: Private DNS Hub, Global Security (Defender) & Hub Log Analytics. |
| **1.5** | `App-Users` | [`/App-Users`](./App-Users/terraform-manifests/) | **Identity Governance**: Entra ID Users, Groups, Conditional Access & YAML-driven RBAC. |
| **2** | `AKS` | [`/AKS`](./AKS/terraform-manifests/modules/) | **Platform Hub**: Hardened AKS Clusters, ACR (Registry), VNets & Specialized Nodepools (ML/Spot). |
| **3** | `App-Catalog` | [`/App-Catalog`](./App-Catalog/terraform-manifests/modules/) | **Service Registry**: Metadata Catalog, PDF Renderers & MongoDB Atlas (Catalog). |
| **3** | `App-Core (POC)`| [`/App-Core/poc-cosmosdb-mongo`](./App-Core/poc-cosmosdb-mongo/) | **Next-Gen Data**: Cosmos DB for MongoDB API & Private Link (Network-Sovereign). |
| **3** | `App-Core` | [`/App-Core`](./App-Core/terraform-manifests/modules/) | **Business Workload**: WAF Traffic (AppGW), Backend APIs, Portal SPAs & MongoDB Atlas (Business). |
| **4** | `Day2-ops` | [`/Day2-ops`](./Day2-ops/terraform-manifests/modules/) | **Observability & Ingress**: Prometheus, Grafana, Kubecost, Nginx Ingress & K8s Dashboards. |
| **4** | `Integration-Service` | [`/Integration-Service`](./Integration-Service/) | **Hybrid Connectivity**: AppLink Signaling, mTLS Tunnels and Legacy On-Premise Links. |
### 9.3 Architectural Dependency Chain (Logical Hierarchy)
Although this repository uses isolated Terraform states for safety (Blast Radius control), it follows a strict **3-Tier Logical Hierarchy** derived from the inventory above. Each tier provides the "hook points" required by the next layer.
#### 9.3.1 Dependency Visualization
(Network and DNS)"] M2["2. Platform (AKS)
(Compute and Orchestration)"] M3["3. Workload (Apps)
(APIs and Frontend)"] M1 ==>|"VNet and Subnet Hooks"| M2 M2 ==>|"OIDC and Identity Hooks"| M3 M1 -.->|"DNS and Cert Hooks"| M3 end class M1 foundation class M2 platform class M3 workload
##### **Why this hierarchy?**
This "Stacking" approach allows for **Partial Lifecycle Management**. For example, you can perform maintenance on the `App-Core` layer (Tier 3) without risk of locking or impacting the `Shared-Infra` (Tier 1) backbone, ensuring maximum availability.
### 9.4 Internal Execution Flow (High-Fidelity Diagram)

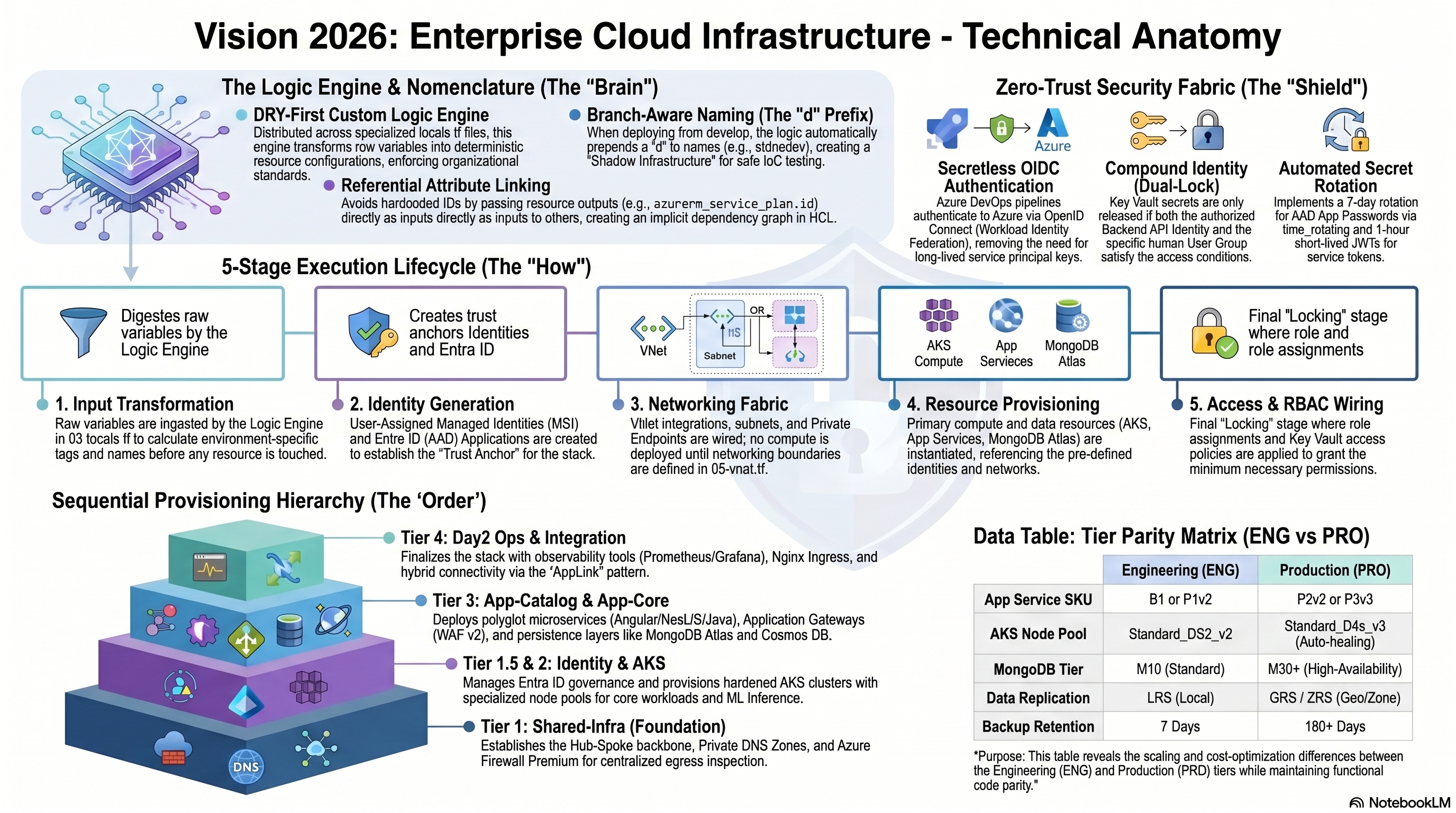

Every major module in this repository follows a deterministic **5-Stage Execution Lifecycle**. This pattern ensures that logic is separated from provisioning, and that security is wired into the resource at the moment of creation.
#### 9.4.1 The 5-Stage Lifecycle Breakdown
1. **Input Transformation (The Logic Engine)**:
Raw variables are ingested and transformed using `locals.tf`. This is where complex logic (like the `"d"` prefix for branches) is calculated before any resource is touched.
* **Evidence**: [`03-locals.tf`](./App-Core/terraform-manifests/modules/appcore_module/03-locals.tf).
2. **Identity Generation (The Trust Anchor)**:
User-Assigned Managed Identities (MSI) and Entra ID (AAD) Applications are created. These serve as the "security context" for the subsequent resources.
* **Evidence**: [`11-app-register-front-spa.tf`](./App-Core/terraform-manifests/modules/appcore_module/11-app-register-front-spa.tf).
3. **Networking Fabric (The Perimeter)**:
VNet integrations, subnets, and Private Endpoints are wired. No compute resource is deployed until its networking boundaries are defined.
* **Evidence**: [`05-vnet.tf`](./App-Core/terraform-manifests/modules/appcore_module/05-vnet.tf).
4. **Resource Provisioning (The Core)**:
The primary resources (App Services, AKS Clusters, Databases) are instantiated, referencing the identities and networking defined in the previous stages.
* **Evidence**: [`18-app-service-back-api.tf`](./App-Core/terraform-manifests/modules/appcore_module/18-app-service-back-api.tf).
5. **Access & RBAC Wiring (The Final Lock)**:
Role assignments and Key Vault access policies are applied to grant the newly created resources the minimum necessary permissions to operate.
* **Evidence**: [`27-rbac-azurerm.tf`](./App-Core/terraform-manifests/modules/appcore_module/27-rbac-azurerm.tf).
##### **Technical Lifecycle Visualization:**
(Logic Engine / locals.tf)"] L2["2. Identity Generation
(MSI / App Registration)"] L3["3. Networking Fabric
(Subnets / Endpoints)"] L4["4. Resource Provisioning
(App Services / DBs)"] L5["5. Access and RBAC Wiring
(IAM / Vault Policies)"] L1 ==> L2 L2 ==> L3 L3 ==> L4 L4 ==> L5 class L1 logic class L2,L5 security class L3,L4 infra
### 9.5 Referential Attribute Linking
In this repository, we strictly avoid hardcoding resource IDs or names. Instead, we utilize **Referential Attribute Linking**—the practice of passing the output attribute of one resource directly as the input of another.
This principle is what we call **IaC Sovereignty**: the HCL code is the single source of truth that defines its own relationships, making the infrastructure self-contained and portable.
##### **Why it matters:**
1. **Implicit Dependency Graph**: Terraform automatically calculates the execution order. It knows it must create the `Subnet` before the `App Service` because the latter requires the `subnet_id` attribute.
2. **State Integrity**: By referencing attributes (like `.id` or `.name`), we ensure that if a resource name changes or is recreated, all dependent resources are updated automatically without manual intervention.
3. **No "Data Source" Spaghetti**: Within the same module, we never use `data` blocks to lookup resources we just created. This reduces API calls and prevents "Chicken and Egg" deployment errors.
##### **Comparative Visualization (Bad vs Good Practice):**
ID changes in Azure"] end subgraph Good_Practice ["✅ Referential Linking (Sovereign)"] R1["Resource: Subnet"] R2["Resource: AppService"] R2 ==>|"subnet_id = azurerm_subnet.net.id"| R1 note2["Benefit: Terraform manages
the lifecycle link"] end classDef bad fill:#f8cecc,stroke:#b85450,color:#333 classDef good fill:#d5e8d4,stroke:#82b366,color:#333 class Bad_Practice bad class Good_Practice good
### 9.6 Real-World Code Evidence
* **App Service Plan Link**: In [`18-app-service-back-api.tf`](./App-Core/terraform-manifests/modules/appcore_module/18-app-service-back-api.tf), the `service_plan_id` is linked directly to the plan's attribute: `service_plan_id = azurerm_service_plan.appcore_service_plan.id`.
* **WAF Policy Link**: In [`21-app-gateway.tf`](./App-Core/terraform-manifests/modules/appcore_module/21-app-gateway.tf), the Application Gateway references the WAF Policy ID and the Public IP ID dynamically.
* **Identity Wiring**: Managed Identities and Role Assignments (RBAC) are wired using `.principal_id` and `.id` attributes in [`27-rbac-azurerm.tf`](./App-Core/terraform-manifests/modules/appcore_module/27-rbac-azurerm.tf).
##### **Validated References:**
* **[Terraform: Resource Attributes](https://developer.hashicorp.com/terraform/language/resources/syntax#resource-attributes)**
* **[Terraform: Implicit Dependencies](https://developer.hashicorp.com/terraform/language/resources/behavior#dependencies)**
* **[Azure: App Service VNet Integration Logic](https://learn.microsoft.com/en-us/azure/app-service/overview-vnet-integration)**
### 9.7 Orchestration Strategy
The repository transitions from an **External Orchestration** model (Legacy) to a **Native HCL Orchestration** model (2026 Standard).
##### **A. Current Implementation (Pipeline-Driven)**
Dependencies are managed externally via Azure DevOps. Each layer is isolated, requiring sequential execution and remote data lookups.
(External Orchestrator)"] S1[("State: Shared")] S2[("State: AKS")] S3[("State: Apps")] ADO --- P1["Step 1: Infra"] ADO --- P2["Step 2: AKS"] ADO --- P3["Step 3: Apps"] P1 ==> S1 P2 ==> S2 P3 ==> S3 S2 -.->|data lookup| S1 S3 -.->|data lookup| S2 class ADO ados class S1,S2,S3 state
##### **B. Future Vision (Native Terraform Stacks)**
Dependencies are natively understood by Terraform. A single logic object orchestrates all components with automatic parallelization and unified planning.
(Native HCL Engine)"} C1[Component: Shared] C2[Component: AKS] C3[Component: Apps] TS ==> C1 TS ==> C2 TS ==> C3 C1 -- "direct link" --> C2 C2 -- "direct link" --> C3 class TS stack
For a deep-dive technical analysis of this shift, refer to:
👉 **[Doc 01: Enterprise Architecture Strategy 2026 - Section 5](./docs/111-ARCHITECTURE_2026.md#5-deep-dive-terraform-stacks-2026-vs-pipeline-orchestration)**
### 9.8 Advanced Architectural Patterns
#### 9.8.1 Data Transformation: YAML-Driven IaC
The platform goes beyond simple variable inputs by utilizing **YAML-Driven Orchestration** for complex identity management.
- **The Logic**: Instead of defining each user manually, the `App-Users` module ingests structured YAML files.
- **Reverse Engineering Evidence**: In [`App-Users/06-locals.tf`](./App-Users/terraform-manifests/06-locals.tf), we utilize nested `flatten()` functions to parse multi-layered user objects.
- **Strategic Benefit**: This allows the "Business" (e.g., HR or Security departments) to manage user access via simple YAML commits without touching core Terraform logic.
#### 9.8.2 Advanced RBAC Matrixing and Granular Control
The repository implements a **Decoupled Identity Mapping** strategy to manage permissions at scale.
- **Implicit Standardization**: Role assignments are derived from the **Logical Tiers**. For example, the Kubelet identity of the AKS cluster is programmatically granted `AcrPull` on the registry without human intervention.
- **Evidence**: [`14-rbac.tf`](./AKS/terraform-manifests/modules/sharedinfra_aks_module/14-rbac.tf).
resource "azurerm_role_assignment" "aks_acr_pull" {
principal_id = azurerm_kubernetes_cluster.aks.kubelet_identity[0].object_id
role_definition_name = "AcrPull"
scope = azurerm_container_registry.acr.id
}
- **Impact**: This "Self-Healing Identity" pattern ensures that every new cluster is automatically wired to its registry, fulfilling the Zero-Trust requirement of **Automatic Least Privilege**.
#### 9.8.3 Collection-Driven Scaling Logic
The repository utilizes advanced HCL patterns to handle enterprise-scale workloads.
- **Dynamic Orchestration**: Every backend pool, listener, and rule in the Application Gateway is generated via **Dynamic Blocks** iterating over client collections.
- **Evidence**: [`21-app-gateway.tf`](./App-Core/terraform-manifests/modules/appcore_module/21-app-gateway.tf).
### 9.9 Repository Engineering Metrics and Analytics
| Domain / Stack | Terraform Resources | YAML Pipelines | TFVars Files | Total Files |
| :--- | :---: | :---: | :---: | :---: |
| **`App-Core`** | 133 | 23 | 14 | 146 |
| **`App-Catalog`** | 43 | 13 | 10 | 61 |
| **`AKS Hub`** | 27 | 20 | 4 | 49 |
| **`Shared-Infra`** | 22 | 19 | 4 | 57 |
| **`Day2 Ops`** | 26 | 43 | 4 | 78 |
| **`Integration`** | 0 | 37 | 0 | 106 |
| **`Identity (Users)`** | 8 | 18 | 0 | 38 |
| **`TOTAL`** | **259** | **173** | **36** | **535** |
#### 9.9.1 Visual Distribution Analysis
| 1. Terraform Resources | 2. YAML Pipelines | 3. Total Files |
| :---: | :---: | :---: |
| See Chart Below | See Chart Below | See Chart Below |
##### . Terraform Resources
##### . YAML Pipelines
##### . Total Files
## 10. Engineering Strategy: Federated Multi-Repo vs. Mono-Repo
This repository implements a **Hybrid Repository Strategy**. While presented as a **Mono-Repo** on GitHub, it was designed using a **Federated Multi-Repo** architecture.
### 10.1 The "Enterprise Stack" Pattern
In production, each tier defined in the **[Master Inventory (Section 8.2)](#82-master-ecosystem-inventory--deployment-order)** exists as a separate repository to ensure isolation.
(Network Backbone)"] ==> AKS["Repo: AKS
(Compute Hub)"] AKS ==> CORE["Repo: App-Core
(Business APIs)"] CORE -.-> CAT["Repo: App-Catalog
(Metadata)"] class SI,AKS,CORE,CAT repo
### 10.2 Architecture Comparison Matrix
| Feature | Federated Multi-Repo (Production) | Mono-Repo (GitHub/Distribution) |
| :--- | :--- | :--- |
| **RBAC** | Fine-grained (Identity team only manages `App-Users`) | All-or-nothing access |
| **State Lock** | Independent per stack (No team blocking) | Potential for global state contention |
| **Blast Radius** | Minimized (Pipelines are isolated) | High (One typo can affect global CI) |
| **CI/CD Speed** | Fast (Only changed stack runs) | Slower (Requires complex filtering) |
| **Versioning** | Semantic tags per component | Global versioning |
| **Context** | Harder to see the "Big Picture" | **Excellent** (Total architectural visibility) |
**Conclusion**: We use **Multi-Repo** for development to ensure security and isolation, but we publish as a **Mono-Repo** to provide a "Single Pane of Glass" for architects to understand the entire ecosystem.
### 10.3 Implementation Evidence: The Decoupling Logic
- **State Decoupling**: Each stack maintains its own `terraform.tfstate` file stored in a centralized, locked Azure Storage Container. This prevents a single lock from blocking the entire engineering team.
- **Referential Integrity**: Downstream stacks (like `App-Core`) consume outputs from upstream stacks (like `Shared-Infra`) via **Data Sources** or **Pipeline Variables**, ensuring network IDs are always consistent.
- **Cross-Repo Promotion**: Changes are promoted through versioned module tags, allowing for "Canary Infrastructure" deployments.
## 11. DevSecOps: Identity, Secrets and OAuth Flow
### 11.1 Governance-First Identity Model
We move beyond basic secret management into a **Governance-First** model where identity is the primary perimeter.

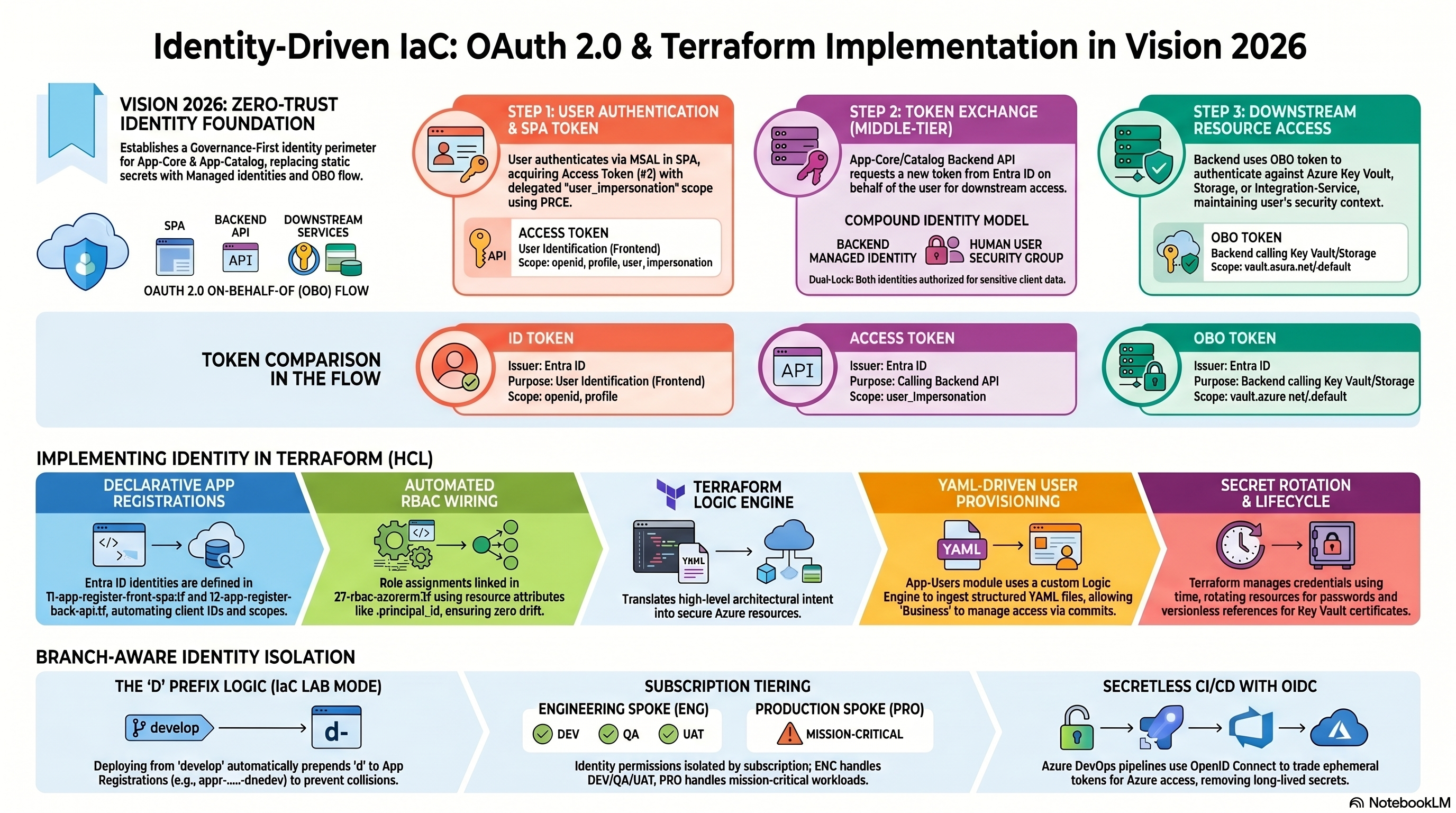

#### 11.1.1 OAuth 2.0 and OBO Flow Deep-Dive
To protect downstream databases (MongoDB Atlas), we utilize the **On-Behalf-Of (OBO)** flow. The backend API never uses a "Master Service Account"; instead, it exchanges the user's JWT for a scoped token.
#### 11.1.2 Advanced DevSecOps: The Compound Identity Model
Access to client-specific sensitive data is governed by a **Dual-Lock mechanism** known as **Compound Identity** (Application-plus-User).
- **The Logic**: A Key Vault secret is only released if the request satisfies TWO conditions simultaneously:
1. **The Caller**: Must be the authorized **App-Core Backend API** Managed Identity (`application_id`).
2. **The User**: Must be a human user belonging to a specific **Security Principal Group** (`object_id`).
- **Implementation**: This is enforced via `azurerm_key_vault_access_policy` where both `application_id` and `object_id` are defined. This prevents "Identity Theft" by a rogue application or "Direct Access" by an unauthorized user.
- **Evidence**: [`23-key-vault-clients.tf`](./App-Core/terraform-manifests/modules/appcore_module/23-key-vault-clients.tf).
resource "azurerm_key_vault_access_policy" "compound_identity" {
key_vault_id = azurerm_key_vault.client.id
application_id = azuread_service_principal.api.application_id # Condition 1
object_id = azuread_group.authorized_users.object_id # Condition 2
secret_permissions = ["Get", "List"]
}
### 11.2 Identity Flow and OAuth Deep-Dive
The [**On-Behalf-Of (OBO)**](./App-Core/terraform-manifests/modules/appcore_module/12-app-register-back-api.tf) flow ([MS Ref](https://learn.microsoft.com/en-us/entra/identity-platform/v2-oauth2-on-behalf-of-flow)) is the cornerstone of our multi-tenant security.
### 11.3 Token Comparison Table
| Token Type | Issuer | Life | Scope | Purpose |
| :--- | :--- | :--- | :--- | :--- |
| **ID Token** | Entra ID | 1hr | [`openid`](./App-Core/terraform-manifests/modules/appcore_module/11-app-register-front-spa.tf) ([MS Ref](https://learn.microsoft.com/en-us/entra/identity-platform/scopes-oidc#openid-connect-scopes)), [`profile`](./App-Core/terraform-manifests/modules/appcore_module/11-app-register-front-spa.tf) ([MS Ref](https://learn.microsoft.com/en-us/entra/identity-platform/scopes-oidc#profile-scope)) | User Identification (Frontend) |
| **Access Token** | Entra ID | 1hr | [`user_impersonation`](./App-Core/terraform-manifests/modules/appcore_module/12-app-register-back-api.tf) ([MS Ref](https://learn.microsoft.com/en-us/entra/identity-platform/v2-oauth2-on-behalf-of-flow)) | Calling Backend API |
| **OBO Token** | Entra ID | 1hr | [`https://vault.azure.net/.default`](./App-Core/terraform-manifests/modules/appcore_module/12-app-register-back-api.tf) ([MS Ref](https://learn.microsoft.com/en-us/azure/key-vault/general/authentication#authentication-in-a-backend-service)) | Backend calling Key Vault as User |
### 11.4 Technical Flow Constraints
- **Application ID URI**: Must be unique per environment (`api://appcore-back-dnedev`).
- **Claim Validation**: The backend validates the `iss` (Issuer) and `aud` (Audience) claims before requesting the OBO exchange.
## 12. Zero-Trust Identity and OIDC Flow (Secretless CI/CD)
We eliminate the most common attack vector in CI/CD: **Long-lived Service Principal Secrets**. By implementing **OpenID Connect (OIDC)**, the pipeline "trades" a short-lived token from Azure DevOps for an Azure access token.
### 12.1 The Workload Identity Trust Chain
### 12.2 Workload Identity Federation (OIDC) Evidence
The platform enforces `use_oidc = true` across all core providers to ensure that build agents are always secretless.
- **Trust Subject Pattern**: `sc://{organization}/{project}/{service_connection}`.
- **Terraform Provider Configuration**:
# providers.tf
provider "azurerm" {
use_oidc = true # Enables OIDC JIT Authentication
}
## 13. Security-by-Design Checklist
This repository undergoes automated security scanning to ensure compliance with the **Enterprise Security Guardrails**. For a high-fidelity technical deep-dive into the implementation of these controls (Private Link, Forced Egress, CMK, DDoS), please refer to the dedicated document:
👉 **[Doc 15: Security-by-Design Checklist](./docs/324-SECURITY_BY_DESIGN_CHECKLIST.md)**
## 14. GreenOps and Sustainability
Sustainability is treated as a first-class citizen through **Carbon-Aware Engineering**.
- **AKS Scale-to-Zero**: User node pools (ML/Jobs) are configured with `min_count = 0`, ensuring we consume zero energy when inference jobs are not running.
- **Spot Instances**: Integration of **Azure Spot VMs** in [`11-aks-cluster-nodepool-004-spot.tf`](./AKS/terraform-manifests/modules/sharedinfra_aks_module/11-aks-cluster-nodepool-004-spot.tf) for non-critical pods, utilizing "waste" capacity at a 70-90% discount.
- **Log Retention Governance**: Granular retention policies (30 days vs 90 days) reduce the "Cold Storage" energy footprint in Azure datacenters.
- **Geographical Selection**: Prioritizing regions like **North Europe** and **West Europe** which have high availability of renewable energy sources.
## 15. Validated Reference Library (Official and Community)
This library provides a curated list of authoritative resources that form the technical and strategic foundation of this architecture.
### 15.1 Foundational and Governance
* **[Microsoft Cloud Adoption Framework (CAF)](https://learn.microsoft.com/en-us/azure/cloud-adoption-framework/)**: Best practices for cloud adoption.
* **[Azure Well-Architected Framework (WAF)](https://learn.microsoft.com/en-us/azure/architecture/framework/)**: Five pillars of architectural excellence.
* **[Enterprise-Scale Landing Zones](https://learn.microsoft.com/en-us/azure/cloud-adoption-framework/ready/enterprise-scale/)**: Design principles for large-scale Azure environments.
### 15.2 Infrastructure as Code (Terraform)
* **[Terraform Standard Module Structure](https://developer.hashicorp.com/terraform/language/modules/develop/structure)**: Official guidance on module design.
* **[Terraform Stacks (Vision 2026)](https://developer.hashicorp.com/terraform/cloud-docs/stacks)**: The future of native HCL orchestration.
* **[Azure Verified Modules (AVM)](https://azure.github.io/Azure-Verified-Modules/)**: Industry-standard library for Azure resources.
* **[Terraform Best Practices](https://www.terraform-best-practices.com/)**: Community-driven guide for scalable IaC.
### 15.3 Security and Zero-Trust Identity
* **[Microsoft Zero Trust Model](https://www.microsoft.com/en-us/security/business/zero-trust)**: Principles of verify explicitly, least privilege, and assume breach.
* **[OAuth 2.0 On-Behalf-Of (OBO) Flow](https://learn.microsoft.com/en-us/entra/identity-platform/v2-oauth2-on-behalf-of-flow)**: Securing multi-tier service calls.
* **[Workload Identity Federation](https://learn.microsoft.com/en-us/entra/workload-id/workload-identity-federation)**: Eliminating secrets in AKS and CI/CD.
* **[OWASP Top 10 Security Risks](https://owasp.org/www-project-top-ten/)**: Essential guide for web application security.
### 15.4 Networking and Traffic Orchestration
* **[Hub-Spoke Topology in Azure](https://learn.microsoft.com/en-us/azure/architecture/reference-architectures/hybrid-networking/hub-spoke)**: Standard reference for regional network design.
* **[Azure Private Link Deep-Dive](https://learn.microsoft.com/en-us/azure/private-link/private-link-overview)**: Keeping traffic within the Microsoft backbone.
* **[WAF Policy Orchestration](https://learn.microsoft.com/en-us/azure/web-application-firewall/ag/ag-overview)**: Managing edge protection at scale.
### 15.5 Compute and Kubernetes (AKS)
* **[AKS Baseline Architecture](https://learn.microsoft.com/en-us/azure/architecture/reference-architectures/containers/aks/baseline-aks)**: Production-ready cluster design.
* **[Azure CNI Overlay](https://learn.microsoft.com/en-us/azure/aks/azure-cni-overlay)**: Advanced networking for high-density pod environments.
* **[Helm: The Package Manager for Kubernetes](https://helm.sh/docs/)**: Managing complex K8s application lifecycles.
### 15.6 SRE, FinOps and Sustainability
* **[The Google SRE Book](https://sre.google/sre-book/table-of-contents/)**: Foundational principles of Site Reliability Engineering.
* **[Azure Monitor Overview](https://learn.microsoft.com/en-us/azure/azure-monitor/overview)**: Centralized observability for Azure resources.
* **[FinOps Foundation](https://www.finops.org/)**: Cloud financial management best practices.
* **[Infracost: Cloud Cost Estimates for Terraform](https://www.infracost.io/)**: Integrating cost visibility into CI/CD pipelines.
* **[Green Software Foundation](https://greensoftware.foundation/)**: Carbon-aware engineering standards.
### 15.7 Community and Expert Influences
Special recognition to the experts whose architectural patterns influenced this repository:
* **[John Savill](https://www.youtube.com/@ntfaqguy)**: Masterclass in Azure Networking and Identity.
* **[Kalyan Reddy Daida](https://stacksimplify.com/)**: Founder of **StackSimplify** and author of the foundational AKS Masterclass patterns. Source code available at **[GitHub/stacksimplify](https://github.com/stacksimplify)**.
* **[Sam Cogan](https://samcogan.com/)**: Azure governance and Multi-subscription strategies.
* **[Chris Pietschmann](https://build5nines.com/)**: Terraform Feature Flag patterns.
* **[Mark Tinderholt](https://medium.com/@marktinderholt)**: Principal Architect at Microsoft and creator of **Azure Terraformer**. Author of the book *[Mastering Terraform](https://marktinderholt.com/books/mastering-terraform)*. A leading expert in Azure IaC automation, sharing deep technical analysis via **[marktinderholt.com](https://marktinderholt.com)**, **[YouTube](https://www.youtube.com/@AzureTerraformer)**, **[LinkedIn](https://www.linkedin.com/in/marktinderholt/)**, and **[X.com](https://x.com/MarkTinderholt)**.
* **[Ned Bellavance](https://www.nedinthecloud.com/)**: Founder of **Ned in the Cloud LLC**, Microsoft MVP, and HashiCorp Ambassador. Author of the *[Terraform Certified Associate Preparation Guide](https://www.nedinthecloud.com/books/)* and creator of dozens of Pluralsight courses. A recognized voice in the IaC community, sharing expert insights via **[YouTube](https://www.youtube.com/c/NedintheCloud)**, **[LinkedIn](https://www.linkedin.com/in/ned-bellavance-ba68a52)**, and his podcast **Day Two Cloud**.
[➡️ Next: Architecture Strategy 2026](./docs/111-ARCHITECTURE_2026.md)
*Technical Documentation: Enterprise Cloud Infrastructure and DevSecOps Patterns | Vision 2026 Architectural Guide*
🚀 **CLICK HERE: Master Gallery (Show All Infographics)**
#### A. Strategic Vision and High-Level Blueprints
Blueprint 1: Cloud Infrastructure Vision 2026 Blueprint (High-Level)
Blueprint 2: Cloud Infrastructure Vision 2026 Blueprint (High-Fidelity)
Blueprint 3: Enterprise Cloud Infrastructure Strategy Blueprint
Blueprint 4: Arquitectura de Nube Empresarial 2026 (Spanish Edition)
Blueprint 5: 2026 Enterprise Cloud Infrastructure Blueprint (High-Level Detailed)
Blueprint 6: Enterprise Cloud Infrastructure Blueprint (High-Level Deep-Dive)
#### B. Architectural Anatomy and Low-Level Deep-Dives
Blueprint 7: Enterprise Cloud Infrastructure Technical Anatomy (Low-Level)
Blueprint 8: Enterprise Cloud and DevSecOps Blueprint (Low-Level Detailed)
#### C. Networking, DNS and Traffic Engineering
Blueprint 9: Enterprise Network Security Architecture (Networking)
Blueprint 10: Vision 2026 Shared Infrastructure Ecosystem
Blueprint 11: Enterprise DNS Ecosystem Blueprint (Private Resolution)
Blueprint 12: Cloud Gateway L7 Traffic Engine (Application Gateway)
#### D. Identity, Security and Governance
Blueprint 13: Cloud Identity Architecture (Entra ID)
Blueprint 14: Cloud Governance and Infrastructure Vision (RBAC and Subscriptions)
Blueprint 15: Identity-Driven Infrastructure Automation Overview (OAuth 2.0)
Blueprint 16: Multi-Tenant Identity Governance Infographic (AE Title)
Blueprint 17: Managed AKS Cluster Certificate Bridge Workflow
Blueprint 18: Cloud Security Vault Ecosystem (Key Vault)
Blueprint 19: Identity Governance as Code (App-Users)
Blueprint 20: Azure DevOps Secure Infrastructure Governance and Permissions
Blueprint 21: Cloud Secrets Vault Governance Playbook
#### E. Compute, Data and Hybrid Integration
Blueprint 22: Enterprise Container Orchestration Blueprint (AKS Hub)
Blueprint 23: Enterprise Cloud Architecture (App Service Ecosystem)
Blueprint 24: Enterprise Cloud Governance (Azure Storage)
Blueprint 25: Enterprise Data Resilience Strategy (Azure Backup)
Blueprint 26: Hybrid Connectivity Engine Architecture (Integration Service)
#### F. IaC Engine and Data Orchestration
Blueprint 27: Environment Data Orchestration Blueprint (.tfvars Engine)
Blueprint 28: Infrastructure Configuration Vision 2026 (.tfvars Detailed)
Blueprint 29: Infrastructure Configuration Vision 2026 (.tfvars Engine Flow)
Blueprint 30: Guia Maestra Archivos tfvars detallado (Spanish Edition)
Blueprint 31: Infrastructure State Command Center (.tfstate Logic)
Blueprint 32: Enterprise Infrastructure Orchestration (Composite vs Atomic Modules)
Blueprint 33: Infrastructure Strategy Comparison (Composite vs Atomic Modules)
Blueprint 34: Cloud Infrastructure Global Variable Architecture Vision
Blueprint 35: Global Configuration Pipeline Variable Flow
Blueprint 36: App-Core Variable Management Engine
Blueprint 37: The Vision 2026 Variable Engine
#### G. DevSecOps and Day 2 Operations
Blueprint 38: Automated Enterprise Software Installation Workflow (InnoSetup)
Blueprint 39: Cloud Infrastructure Orchestration Engine (Azure DevOps Pipelines)
Blueprint 40: Post-Deployment Infrastructure Operations Hierarchy (Day 2)
Blueprint 41: Cloud Infrastructure Pipeline Lifecycle Blueprint
Blueprint 42: Cloud Infrastructure Pipeline Logic
Blueprint 43: Infrastructure Orchestration Azure DevOps Pipeline Template Blueprint
#### H. Future Roadmap and Evolution
Blueprint 44: Infrastructure Evolution Vision 2026 (Terraform Stacks and Module Versioning)
Blueprint 45: Vision 2026 Enterprise Infrastructure Blueprint (High-Fidelity)
Blueprint 46: Infrastructure Automation Roadmap 2026 (AI-Assisted IaC)
Blueprint 47: Vision 2026 Strategic Architecture Roadmap Evolution
Blueprint 48: 2026 Enterprise Architecture AKS Modernization Roadmap
Blueprint 49: Database Roadmap Evolution and Architecture Shift (Cosmos DB)
🔍 1. Strategic Vision and High-Level Blueprints
Blueprint 1: Cloud Infrastructure Vision 2026 Blueprint (High-Level)
Blueprint 2: Cloud Infrastructure Vision 2026 Blueprint (High-Fidelity)
Blueprint 3: Enterprise Cloud Infrastructure Strategy Blueprint
Blueprint 4: Arquitectura de Nube Empresarial 2026 (Spanish Edition)
Blueprint 5: 2026 Enterprise Cloud Infrastructure Blueprint (High-Level Detailed)
Blueprint 6: Enterprise Cloud Infrastructure Blueprint (High-Level Deep-Dive)
🏗️ 2. Architectural Anatomy and Low-Level Deep-Dives
Blueprint 7: Enterprise Cloud Infrastructure Technical Anatomy (Low-Level)
Blueprint 8: Enterprise Cloud and DevSecOps Blueprint (Low-Level Detailed)
🌐 3. Networking, DNS and Traffic Engineering
Blueprint 9: Enterprise Network Security Architecture (Networking)
Blueprint 10: Vision 2026 Shared Infrastructure Ecosystem
Blueprint 11: Enterprise DNS Ecosystem Blueprint (Private Resolution)
Blueprint 12: Cloud Gateway L7 Traffic Engine (Application Gateway)
🔐 4. Identity, Security and Governance
Blueprint 13: Cloud Identity Architecture (Entra ID)
Blueprint 14: Cloud Governance and Infrastructure Vision (RBAC and Subscriptions)
Blueprint 15: Identity-Driven Infrastructure Automation Overview (OAuth 2.0)
Blueprint 16: Multi-Tenant Identity Governance Infographic (AE Title)
Blueprint 17: Managed AKS Cluster Certificate Bridge Workflow
Blueprint 18: Cloud Security Vault Ecosystem (Key Vault)
Blueprint 19: Identity Governance as Code (App-Users)
Blueprint 20: Azure DevOps Secure Infrastructure Governance and Permissions
Blueprint 21: Cloud Secrets Vault Governance Playbook
⚡ 5. Compute, Data and Hybrid Integration
Blueprint 22: Enterprise Container Orchestration Blueprint (AKS Hub)
Blueprint 23: Enterprise Cloud Architecture (App Service Ecosystem)
Blueprint 24: Enterprise Cloud Governance (Azure Storage)
Blueprint 25: Enterprise Data Resilience Strategy (Azure Backup)
Blueprint 26: Hybrid Connectivity Engine Architecture (Integration Service)
⚙️ 6. IaC Engine and Data Orchestration
Blueprint 27: Environment Data Orchestration Blueprint (.tfvars Engine)
Blueprint 28: Infrastructure Configuration Vision 2026 (.tfvars Detailed)
Blueprint 29: Infrastructure Configuration Vision 2026 (.tfvars Engine Flow)
Blueprint 30: Guia Maestra Archivos tfvars detallado (Spanish Edition)
Blueprint 31: Infrastructure State Command Center (.tfstate Logic)
Blueprint 32: Enterprise Infrastructure Orchestration (Composite vs Atomic Modules)
Blueprint 33: Infrastructure Strategy Comparison (Composite vs Atomic Modules)
Blueprint 34: Cloud Infrastructure Global Variable Architecture Vision
Blueprint 35: Global Configuration Pipeline Variable Flow
Blueprint 36: App-Core Variable Management Engine
Blueprint 37: The Vision 2026 Variable Engine
🛠️ 7. DevSecOps and Day 2 Operations
Blueprint 38: Automated Enterprise Software Installation Workflow (InnoSetup)
Blueprint 39: Cloud Infrastructure Orchestration Engine (Azure DevOps Pipelines)
Blueprint 40: Post-Deployment Infrastructure Operations Hierarchy (Day 2)
Blueprint 41: Cloud Infrastructure Pipeline Lifecycle Blueprint
Blueprint 42: Cloud Infrastructure Pipeline Logic
Blueprint 43: Infrastructure Orchestration Azure DevOps Pipeline Template Blueprint
🔮 8. Future Roadmap and Evolution
Blueprint 44: Infrastructure Evolution Vision 2026 (Terraform Stacks and Module Versioning)
Blueprint 45: Vision 2026 Enterprise Infrastructure Blueprint (High-Fidelity)
Blueprint 46: Infrastructure Automation Roadmap 2026 (AI-Assisted IaC)
Blueprint 47: Vision 2026 Strategic Architecture Roadmap Evolution
Blueprint 48: 2026 Enterprise Architecture AKS Modernization Roadmap
Blueprint 49: Database Roadmap Evolution and Architecture Shift (Cosmos DB)
Click to expand: Lifecycle Visualization and Environment Matrix
graph TD %% Class Definitions classDef branch fill:#f9f9f9,stroke:#333,stroke-width:2px classDef prefix_d fill:#fff2cc,stroke:#d6b656,stroke-width:2px,stroke-dasharray: 5 5 classDef prefix_none fill:#dae8fc,stroke:#6c8ebf,stroke-width:2px classDef tier fill:#eeeeee,stroke:#333,stroke-width:1px subgraph Git_Branches [Git Lifecycle] DEV_B["develop branch(IaC Engineering)"] MAIN_B["main branch
(Stable IaC)"] end subgraph Resource_Generation [Nomenclature Logic] direction LR P_D["Prefix 'd'
Shadow Infrastructure"] P_N["No Prefix
Official Resources"] end subgraph Subscriptions [Azure Tiers] direction LR subgraph Sub_ENG [Engineering Spoke] E1[DEV] E2[QA] E3[UAT] end subgraph Sub_PRO [Production Spoke] PR1[PRO] PR2[DEMO] end end %% Flows DEV_B --> P_D MAIN_B --> P_N P_D -.->|"Test IaC in any Env"| Sub_ENG P_D -.->|"Test IaC in any Env"| Sub_PRO P_N ===>|"Run stable Apps"| Sub_ENG P_N ===>|"Run stable Apps"| Sub_PRO class DEV_B,MAIN_B branch class P_D prefix_d class P_N prefix_none class Sub_ENG,Sub_PRO tier
Click to expand: Multi-Layer Logic Lifecycle
graph TD %% Class Definitions classDef input fill:#f9f9f9,stroke:#333,stroke-width:1px classDef engine fill:#fff2cc,stroke:#d6b656,stroke-width:2px classDef resource fill:#dae8fc,stroke:#6c8ebf,stroke-width:1px subgraph Inputs ["Stage 1: Intent Definition"] direction LR TFVARS["env-main.tfvars(Region, Environment)"] PARAM["Pipeline Parameters
(Git Branch)"] end subgraph Engine ["Stage 2: The Logic Engine (locals.tf)"] direction TB B_A["Branch Awareness
If Branch != main
then prefix = 'd'"] I_G["Instance Generator
{prefix}-{region}-{env}"] TAG["Global Tagging
Product, Dept,
Team, CostCenter"] end subgraph Output ["Stage 3: Composite Modules"] direction TB NET["Network Fabric
(VNet, Snet, UDR)"] COMP["Compute Tier
(AKS, AppService)"] SEC["Security Silos
(KeyVault, IAM)"] end TFVARS --> Engine PARAM --> Engine B_A --> I_G I_G --> NET I_G --> COMP I_G --> SEC TAG -.-> Output class TFVARS,PARAM input class B_A,I_G,TAG engine class NET,COMP,SEC resource
Click to expand: High-Fidelity Infrastructure Visualization and Traffic Flow
graph LR %% Class Definitions classDef hub fill:#1f4e79,stroke:#fff,stroke-width:2px,color:#fff classDef eng fill:#c55a11,stroke:#fff,stroke-width:2px,color:#fff classDef pro fill:#548235,stroke:#fff,stroke-width:2px,color:#fff classDef security fill:#7b7b7b,stroke:#fff,stroke-width:2px,color:#fff classDef storage fill:#2e75b6,stroke:#fff,stroke-width:1px,color:#fff classDef atlas fill:#4db33d,stroke:#fff,stroke-width:2px,color:#fff subgraph Hub ["Hub: Shared-Infra(vnet-sharedinfra-pro)"] direction TB FW["Azure Firewall
Premium"] DNS["Private DNS
Resolver"] VPN["VPN Gateway"] subgraph HubSubnets ["Hub Subnets"] S_FW["AzureFirewallSubnet"] S_GW["GatewaySubnet"] end end subgraph ENG ["Engineering Spoke: ENG
(vnet-appcore-dnedev)"] direction TB subgraph VNet_ENG ["VNet-ENG"] AKS_E["aks-dnedev
(Cluster)"] AS_Plan_E["plan-appcore-dnedev
(Premium V3)"] subgraph Apps_ENG [App Services] direction TB APP_FRONT_E["app-front-dnedev
(Angular)"] APP_BACK_E["app-back-dnedev
(NestJS)"] end subgraph ENGSubnets [ENG Subnets] S_AKS_E["snet-aks-dnedev"] S_APP_E["snet-app-dnedev"] S_PE_E["snet-pe-dnedev"] end RT_E["rt-force-fw-dnedev
(UDR: 0.0.0.0/0)"] end KV_E["kv-client-dnedev"] end subgraph PRO ["Production Spoke: PRO
(vnet-appcore-nepro)"] direction TB subgraph VNet_PRO ["VNet-PRO"] AKS_P["aks-nepro
(Cluster)"] AS_Plan_P["plan-appcore-nepro
(Premium V3)"] WAF["appgw-nepro
+ WAF v2"] subgraph Apps_PRO [App Services] direction TB APP_FRONT_P["app-front-nepro
(Angular)"] APP_BACK_P["app-back-nepro
(NestJS / Java)"] end subgraph PROSubnets [PRO Subnets] S_AKS_P["snet-aks-nepro"] S_APP_P["snet-app-nepro"] S_AGW_P["snet-agw-nepro"] S_PE_P["snet-pe-nepro"] end subgraph PEndpoints_P [Private Endpoints] PE_DB_P["pe-cosmosdb-nepro"] PE_KV_P["pe-keyvault-nepro"] PE_SA_P["pe-storage-nepro"] end RT_P["rt-force-fw-nepro
(UDR: 0.0.0.0/0)"] end KV_P["kv-client-nepro"] end subgraph Atlas ["External Cloud: MongoDB Atlas"] direction TB subgraph Atlas_ENG [Project: appcore-dnedev] DB_E["Cluster: appcore-dnedev"] end subgraph Atlas_PRO [Project: appcore-nepro] DB_P["Cluster: appcore-nepro"] end end VPN --- S_GW FW --- S_FW HubSubnets <==>|"VNet Peering"| VNet_ENG HubSubnets <==>|"VNet Peering"| VNet_PRO RT_E ==>|"Force Tunneling"| FW RT_P ==>|"Force Tunneling"| FW WAF -.->|"L7 / mTLS"| Apps_PRO WAF -.->|"L7 Routing"| AKS_P Apps_ENG -- "Internet Egress" --> DB_E Apps_PRO -- "Internet Egress" --> DB_P class Hub,HubSubnets,S_FW,S_GW,FW,DNS,VPN hub class ENG,VNet_ENG,AKS_E,AS_Plan_E,Apps_ENG,S_AKS_E,S_APP_E,S_PE_E,RT_E eng class PRO,VNet_PRO,AKS_P,AS_Plan_P,Apps_PRO,RT_P,S_AKS_P,S_APP_P,S_AGW_P,S_PE_P pro class KV_P,KV_E storage class WAF security class Atlas,Atlas_ENG,Atlas_PRO,DB_E,DB_P atlas
Click to expand: Global Traffic Engineering and Regional Failover
graph TB classDef global fill:#f5f5f5,stroke:#333,stroke-width:2px,color:#333 classDef regional fill:#dae8fc,stroke:#6c8ebf,stroke-width:1px,color:#333 classDef user fill:#eeeeee,stroke:#333,stroke-width:1px,color:#333 USER((👤 Global User)) AFD["Azure Front Door Premium(Global Entry Point)"] subgraph EU_Stack ["European Stack (ne)"] AGW_EU["App Gateway + WAF v2
(North Europe)"] APP_EU["App Service / AKS"] end subgraph US_Stack ["USA Stack (us)"] AGW_US["App Gateway + WAF v2
(East US)"] APP_US["App Service / AKS"] end USER ==>|"HTTPS (Anycast)"| AFD AFD -- "Health Probe" --> AGW_EU AFD -- "Health Probe" --> AGW_US AFD -.->|"Route: Latency"| AGW_EU AFD -.->|"Route: Failover"| AGW_US AGW_EU --- APP_EU AGW_US --- APP_US class USER user class AFD global class EU_Stack,US_Stack,AGW_EU,AGW_US regional
Click to expand: App Service and Microservices Ecosystem
graph LR %% Class Definitions classDef angular fill:#dd0031,stroke:#333,stroke-width:2px,color:#fff classDef nest fill:#e0234e,stroke:#333,stroke-width:2px,color:#fff classDef java fill:#007396,stroke:#333,stroke-width:2px,color:#fff classDef plan fill:#e1f5fe,stroke:#1f4e79,stroke-width:1px classDef atlas fill:#4db33d,stroke:#fff,stroke-width:2px,color:#fff classDef security fill:#fff2cc,stroke:#d6b656,stroke-width:1px %% PRODUCTION ENVIRONMENT subgraph PRO_Tier ["PRODUCTION ENVIRONMENT"] direction TB PLAN_P("App Service Plan (PRO)plan-appcore-nepro") subgraph PRO_Apps ["Microservices (PRO)"] SPA_P["app-front-nepro
(Angular / TS)"] API_P["app-back-nepro
(NestJS / Node)"] INTEG_P["integration-svc-nepro
(Java / SpringBoot)"] end KV_P{{"Key Vault (PRO)
kv-client-nepro"}} PLAN_P --- PRO_Apps API_P -.->|"Get Secret"| KV_P end %% ENGINEERING ENVIRONMENT subgraph ENG_Tier ["ENGINEERING ENVIRONMENT"] direction TB PLAN_E("App Service Plan (ENG)
plan-appcore-dnedev") subgraph ENG_Apps ["Microservices (ENG)"] SPA_E["app-front-dnedev
(Angular / TS)"] API_E["app-back-dnedev
(NestJS / Node)"] INTEG_E["integration-svc-dnedev
(Java / SpringBoot)"] end KV_E{{"Key Vault (ENG)
kv-client-dnedev"}} PLAN_E --- ENG_Apps API_E -.->|"Get Secret"| KV_E end %% EXTERNAL DATA - MONGODB ATLAS subgraph Atlas_Cloud ["External Cloud:
MongoDB Atlas"] direction TB subgraph Proj_PRO ["Project: appcore-nepro"] C_PRO[("Cluster: appcore-nepro")] AUTH_P["DB User Auth
+ IP Whitelist"] end subgraph Proj_ENG ["Project: appcore-dnedev"] C_ENG[("Cluster: appcore-dnedev")] AUTH_E["DB User Auth
+ IP Whitelist"] end AUTH_P --- C_PRO AUTH_E --- C_ENG end %% Logical Connections (Securized) API_P ==>|"1. Secure Egress"| AUTH_P INTEG_P ==>|"1. Secure Egress"| AUTH_P API_E ==>|"1. Secure Egress"| AUTH_E INTEG_E ==>|"1. Secure Egress"| AUTH_E %% Assign Classes class SPA_P,SPA_E angular class API_P,API_E nest class INTEG_P,INTEG_E java class PLAN_P,PLAN_E plan class Atlas_Cloud,Proj_PRO,Proj_ENG,C_PRO,C_ENG atlas class KV_P,KV_E,AUTH_P,AUTH_E security
Click to expand: AKS and Machine Learning Inference Ecosystem
graph LR %% Class Definitions classDef k8s fill:#326ce5,stroke:#fff,stroke-width:2px,color:#fff classDef ai fill:#7030a0,stroke:#fff,stroke-width:2px,color:#fff classDef net fill:#eeeeee,stroke:#333,stroke-width:1px classDef security fill:#fff2cc,stroke:#d6b656,stroke-width:1px,color:#333 subgraph VNet ["VNet: vnet-appcore-nepro"] direction LR subgraph AKS ["AKS Cluster: aks-nepro"] direction TB P_SYS("System Node PoolIngress / Core DNS") P_ML("ML Node Pool (User)
appspool002 (GPU/High-Mem)") P_SYS -.->|"L7 Routing"| P_ML end subgraph Subnets ["Network Isolation"] direction TB S_AKS["Subnet: aks-node-subnet"] S_PE["Subnet: pe-subnet"] end end subgraph Security ["DevSecOps and Data Silos"] direction TB ACR["Azure Container Registry
(Private ML Images)"] KV["Azure Key Vault
(Model Secrets/Keys)"] SA["Azure Storage
(Model Weights/Data)"] end %% Network mapping AKS --- S_AKS S_PE --- Security %% DevSecOps and Data Flows P_ML -.->|"1. AcrPull
(Managed Identity)"| ACR P_ML ==>|"2. Get Secret
(Workload Identity)"| KV P_ML ==>|"3. Fetch Weights
(Private Link)"| SA class AKS,P_SYS k8s class P_ML ai class VNet,Subnets,S_AKS,S_PE net class Security,ACR,KV,SA security
Click to expand: Pipeline Architecture and Dependency Flow
graph TD %% Class Definitions classDef foundation fill:#1f4e79,stroke:#fff,stroke-width:2px,color:#fff classDef platform fill:#5835CC,stroke:#fff,stroke-width:2px,color:#fff classDef workload fill:#548235,stroke:#fff,stroke-width:2px,color:#fff classDef ops fill:#7b7b7b,stroke:#fff,stroke-width:2px,color:#fff subgraph Tier1 [Layer 1: Foundation] P1["1. Shared-InfraHub, DNS, Firewall"] end subgraph Tier2 [Layer 2: Platform] P2["2. AKS Cluster
Control Plane, Nodepools"] P3["3. App-Users
Entra ID Groups and IAM"] end subgraph Tier3 [Layer 3: Workload] P4["4. App-Core
APIs, SPA, WAF, Cosmos"] P5["5. App-Catalog
Metadata Services"] end subgraph Tier4 [Layer 4: Operations] P6["6. Day2-Ops
Prometheus, Grafana, Helm"] end P1 ==> P2 P1 ==> P4 P2 ==> P4 P2 ==> P6 P3 -.-> P4 class P1 foundation class P2,P3 platform class P4,P5 workload class P6 ops
Click to expand: Immutable Deployment Execution Flow
sequenceDiagram autonumber participant Eng as 👤 Platform Engineer participant ADO as 🚀 Azure DevOps participant Azure as ☁️ Azure Cloud participant State as 💾 TF State (Blob) rect rgb(240, 240, 240) Note over Eng, State: STAGE 1: VALIDATION (Static Analysis) Eng->>ADO: Commit to Branch ADO->>ADO: terraform validate and fmt end rect rgb(232, 245, 233) Note over Eng, State: STAGE 2: PLAN (Deterministic Design) ADO->>State: Lease Lock ADO->>Azure: terraform plan -out=tfplan Azure-->>ADO: Plan Artifact Created ADO->>State: Release Lock end rect rgb(255, 243, 224) Note over Eng, State: STAGE 3: APPROVAL GATE (Manual Review) ADO->>Eng: Notification: "Plan ready for Review" Eng->>ADO: Approve Plan (ManualValidation@0) end rect rgb(225, 245, 254) Note over Eng, State: STAGE 4: APPLY (Immutable Change) ADO->>State: Lease Lock ADO->>Azure: terraform apply tfplan Azure-->>ADO: Resources Provisioned ADO->>State: Final State Push and Unlock endClick to expand: Zero-Secret Trust Fabric
graph TB %% Class Definitions classDef vault fill:#f4b183,stroke:#333,stroke-width:2px,color:#333 classDef ado fill:#0078d7,stroke:#fff,stroke-width:2px,color:#fff classDef agent fill:#eeeeee,stroke:#333,stroke-width:1px,color:#333 classDef security fill:#fff2cc,stroke:#d6b656,stroke-width:1px,color:#333 subgraph Security_Tier [Security Tier: Azure Cloud] direction TB KV["Azure Key Vault(kv-sharedinfra-pro)"] subgraph Secrets [Sensitive Data Silos] S1["KubeConfig Certs"] S2["DB Connection Strings"] S3["API Passwords"] end end subgraph Control_Plane [Control Plane: Azure DevOps] direction TB SC["Service Connection
(Workload Identity / OIDC)"] VG["Variable Group
(Link to KV enabled)"] end subgraph Build_Runtime [Execution Tier: Pipeline Agent] direction TB ENV["Environment Variables
(Runtime Only)"] MASK["Log Scrubber
(Secret Masking)"] TF["Terraform / Kubectl"] end %% Flow SC ==>|"1. Authenticate"| KV KV --- Secrets Secrets -.->|"2. Map JIT"| VG VG ==>|"3. Inject"| ENV ENV --- TF TF -.->|"4. Execution Logs"| MASK %% Assign Classes class KV,Secrets security class SC,VG ado class Build_Runtime,ENV,MASK,TF agent
Click to expand: Multi-Region Data Resiliency: Atlas vs. Cosmos DB (POC)
graph LR %% Class Definitions classDef primary fill:#e8f5e9,stroke:#1b5e20,stroke-width:2px,color:#333 classDef poc fill:#fff3e0,stroke:#e65100,stroke-width:1px,color:#333,stroke-dasharray: 5 5 classDef atlas fill:#4db33d,stroke:#fff,stroke-width:2px,color:#fff subgraph Atlas_Global ["Current Standard: MongoDB Atlas"] direction LR P_EU["Project: appcore-nepro(Cluster: NE)"] P_US["Project: appcore-uspro
(Cluster: US)"] P_EU == "Cross-Project Sync" ==> P_US end subgraph Azure_POC ["POC Tier: Cosmos DB"] direction TB C_DB[("Cosmos DB Account
(POC-Lab)")] C_REP[("Secondary Replica
(Geo-Failover)")] C_DB -. "Internal Replication" .-> C_REP end class P_EU,P_US,Atlas_Global atlas class Azure_POC,C_DB,C_REP poc
Click to expand: Dependency Visualization
graph TD classDef foundation fill:#1f4e79,stroke:#fff,stroke-width:2px,color:#fff classDef platform fill:#5835CC,stroke:#fff,stroke-width:2px,color:#fff classDef workload fill:#548235,stroke:#fff,stroke-width:2px,color:#fff classDef link fill:#f9f9f9,stroke:#333,stroke-width:1px,stroke-dasharray: 5 5 subgraph Hierarchy ["Infrastructure Value Chain"] direction TB M1["1. Foundation Hub(Network and DNS)"] M2["2. Platform (AKS)
(Compute and Orchestration)"] M3["3. Workload (Apps)
(APIs and Frontend)"] M1 ==>|"VNet and Subnet Hooks"| M2 M2 ==>|"OIDC and Identity Hooks"| M3 M1 -.->|"DNS and Cert Hooks"| M3 end class M1 foundation class M2 platform class M3 workload
Click to expand: Technical Lifecycle Visualization
graph TD classDef logic fill:#fff2cc,stroke:#d6b656,stroke-width:2px,color:#333 classDef security fill:#f8cecc,stroke:#b85450,stroke-width:2px,color:#333 classDef infra fill:#dae8fc,stroke:#6c8ebf,stroke-width:2px,color:#333 L1["1. Input Transformation(Logic Engine / locals.tf)"] L2["2. Identity Generation
(MSI / App Registration)"] L3["3. Networking Fabric
(Subnets / Endpoints)"] L4["4. Resource Provisioning
(App Services / DBs)"] L5["5. Access and RBAC Wiring
(IAM / Vault Policies)"] L1 ==> L2 L2 ==> L3 L3 ==> L4 L4 ==> L5 class L1 logic class L2,L5 security class L3,L4 infra
Click to expand: Comparative Visualization (Bad vs Good Practice)
graph TD subgraph Bad_Practice ["❌ Hardcoding (Fragile)"] H1["Resource: AppService"] H2["'Hardcoded_Subnet_ID'"] H1 -.->|Manual Link| H2 note1["Risk: Link breaks ifID changes in Azure"] end subgraph Good_Practice ["✅ Referential Linking (Sovereign)"] R1["Resource: Subnet"] R2["Resource: AppService"] R2 ==>|"subnet_id = azurerm_subnet.net.id"| R1 note2["Benefit: Terraform manages
the lifecycle link"] end classDef bad fill:#f8cecc,stroke:#b85450,color:#333 classDef good fill:#d5e8d4,stroke:#82b366,color:#333 class Bad_Practice bad class Good_Practice good
Click to expand: Current Implementation (Pipeline-Driven)
graph LR classDef ados fill:#dae8fc,stroke:#6c8ebf,stroke-width:1px classDef state fill:#f5f5f5,stroke:#666,stroke-width:1px,stroke-dasharray: 5 5 ADO["Azure DevOps(External Orchestrator)"] S1[("State: Shared")] S2[("State: AKS")] S3[("State: Apps")] ADO --- P1["Step 1: Infra"] ADO --- P2["Step 2: AKS"] ADO --- P3["Step 3: Apps"] P1 ==> S1 P2 ==> S2 P3 ==> S3 S2 -.->|data lookup| S1 S3 -.->|data lookup| S2 class ADO ados class S1,S2,S3 state
Click to expand: Future Vision (Native Terraform Stacks)
graph LR classDef stack fill:#d5e8d4,stroke:#82b366,stroke-width:2px TS{"Terraform Stack(Native HCL Engine)"} C1[Component: Shared] C2[Component: AKS] C3[Component: Apps] TS ==> C1 TS ==> C2 TS ==> C3 C1 -- "direct link" --> C2 C2 -- "direct link" --> C3 class TS stack
Click to expand: Resource Distribution Analysis
pie title "Resources" "App-Core" : 133 "App-Catalog" : 43 "AKS Hub" : 27 "Shared-Infra" : 22 "Others" : 34Click to expand: Pipeline Distribution Analysis
pie title "Pipelines" "Day2 Ops" : 43 "Integration" : 37 "App-Core" : 23 "AKS Hub" : 20 "Others" : 50Click to expand: File Distribution Analysis
pie title "Total Files" "App-Core" : 146 "Integration" : 106 "Day2 Ops" : 78 "App-Catalog" : 61 "Others" : 144Click to expand: Enterprise Stack Pattern
graph LR classDef repo fill:#f9f9f9,stroke:#333,stroke-width:2px SI["Repo: Shared-Infra(Network Backbone)"] ==> AKS["Repo: AKS
(Compute Hub)"] AKS ==> CORE["Repo: App-Core
(Business APIs)"] CORE -.-> CAT["Repo: App-Catalog
(Metadata)"] class SI,AKS,CORE,CAT repo
Click to expand: OAuth 2.0 and OBO Flow Deep-Dive
sequenceDiagram participant User as 👤 End User participant AAD as 🔑 Microsoft Entra ID participant API as ⚙️ Backend API participant KV as 🔐 Key Vault User->>AAD: Login Request AAD-->>User: JWT (Scp: user_impersonation) User->>API: Request with JWT API->>AAD: Exchange JWT for OBO Token AAD-->>API: OBO Token (impersonating User) API->>KV: Secret Retrieval (Compound ID check) KV-->>API: Secret (MongoDB ConnString) API-->>User: ResponseClick to expand: Workload Identity Trust Chain
sequenceDiagram participant ADO as 🚀 Azure DevOps participant Entra as 🔑 Microsoft Entra ID participant Azure as ☁️ Azure Resource ADO->>Entra: 1. Request Token (OIDC JWT) Entra->>Entra: 2. Validate Federated Identity Subject Entra-->>ADO: 3. Ephemeral Access Token (60 min) ADO->>Azure: 4. Execute Terraform Apply Azure-->>ADO: 5. Provisioned / Updated标签：DevSecOps, ECS, JSONLines, Terraform, 上游代理, 云原生架构, 子域名突变, 微软云, 零信任
