# F-Security — NetHunter Edition
On-device penetration testing suite for Android / Kali NetHunter
50 modules · automated pipeline engine · KARMA rogue-AP suite · 8 chain data flows · real PTY terminal
F-Security is a mobile penetration testing orchestration layer. All 50 modules run inside a real PTY terminal against the device's Kali NetHunter chroot — no SSH, no ADB bridge, everything on-device. Scripts are bundled inside the APK and deployed to the chroot on first launch.
**This project does not reinvent any tool.** It wraps nmap, nuclei, Metasploit, Hydra, CrackMapExec, Responder, Impacket, bettercap, aircrack-ng, tshark, wifite2, Ingram, fscan, AutoRecon, certipy, Evil-WinRM, chisel, john, hashcat, hostapd, dnsmasq, scapy, and more. F-Security automates repetitive setup, chains results between tools, and puts all of them behind a single tap — or a single automated pipeline run.

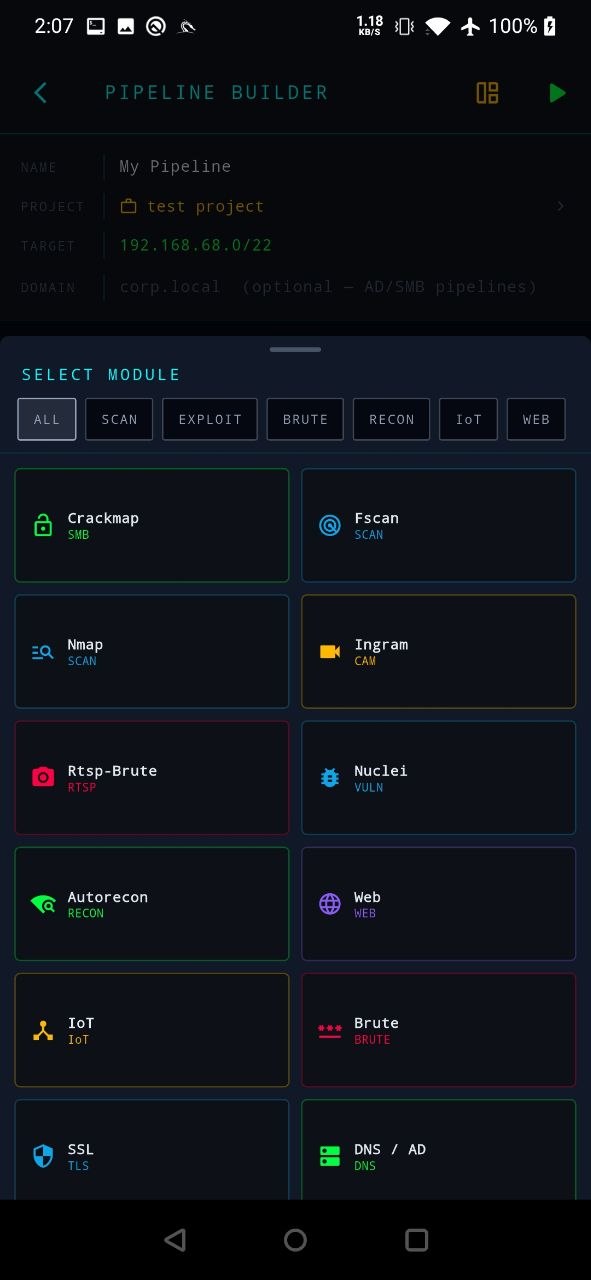

## Pipeline Engine
The centerpiece of F-Security. Define a multi-module sequence once; the engine runs them in order, automatically passing results from each module to the next.
### How it works
Pipeline UI
└─ TARGET (CIDR / IP) ─── injected as $TARGET env var
└─ DOMAIN (AD domain) ─── pre-seeded to chain_domain.txt
Module 1 (e.g. Nmap) runs:
└─ discovers hosts → writes alive_hosts.txt
└─ discovers open ports → writes chain_ports.txt
Module 2 (e.g. Nuclei) runs:
└─ reads chain_ports.txt → only scans known open ports (no rescan)
└─ discovers CVEs → marks done, next module starts
Module 3 (e.g. Brute) runs:
└─ reads chain_ports.txt → targets only services it can brute
└─ cracks creds → writes chain_creds.txt
... and so on until the chain is complete
No prompts. No interaction. No SSH. The phone does the pentest.

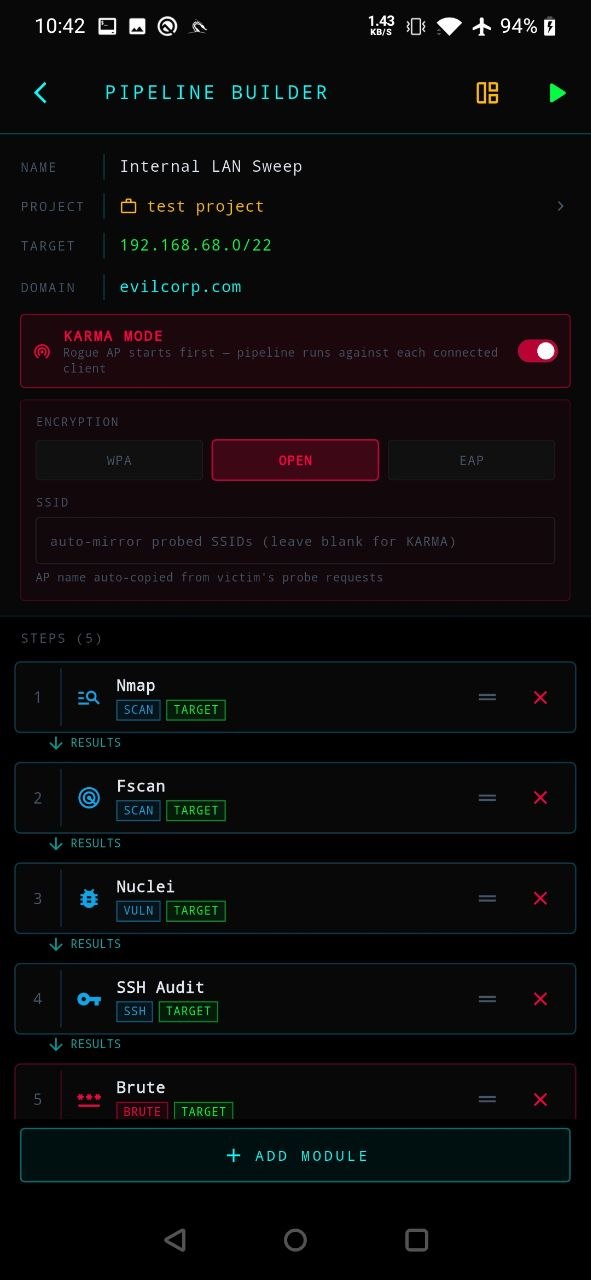

### KARMA pipeline integration
Enable **KARMA MODE** in the pipeline builder to use the rogue AP as the pipeline entry point. Configure encryption (WPA / OPN / Corporate) and an optional fixed SSID — blank means auto-mirror every probed network.
At runtime KARMA starts in the background as a dedicated PTY (visible in the sidebar). When a client connects, the pipeline steps execute against that client's IP. After the steps finish the AP keeps running, ready for the next victim. Stop kills both the AP and any in-progress steps.
| Env var | Values | Effect |
|---------|--------|--------|
| `KARMA_MODE` | `wpa` / `opn` / `eap` | AP encryption type passed to karma.sh |
| `KARMA_SSID` | name or empty | Force a specific SSID; empty = auto-mirror probed networks |
### Chain files
Eight shared state files flow data between modules within a pipeline session:
| File | Producer | Consumer |
|------|----------|----------|
| `alive_hosts.txt` | Nmap, Fscan, Masscan, Bettercap, IoT, RTSP, VNC, NTLM Relay, PRET | All targeted modules |
| `chain_ports.txt` | Nmap, Fscan, Masscan, DNS/AD, VNC, SNMP, PRET | Nuclei, Brute, SSL, SSH Audit, WPScan, VNC, RTSP, SQLMap |
| `chain_creds.txt` | Brute, Crackmap, VNC, Wifite, LinPEAS, PRET, NetSniff | Crackmap, Impacket, EvilWinRM, LDAP Dump |
| `chain_hashes.txt` | Responder, NTLM Relay, MITM6, Kerberos, Crackmap | Hash Cracker |
| `chain_users.txt` | Enum4linux, LDAP Dump, Crackmap | Kerberos, Brute |
| `chain_dc.txt` | DNS/AD (auto-discovered) + Pipeline UI | Kerberos, LDAP Dump, MITM6, EvilWinRM, Certipy |
| `chain_domain.txt` | DNS/AD + Pipeline UI pre-seed | MITM6, LDAP Dump, Kerberos, Certipy |
| `chain_web_urls.txt` | theHarvester, Web | Nuclei, WPScan, SQLMap |
### Interface auto-detection
Every module that needs a network interface calls `resolve_iface` from `lib.sh`. It:

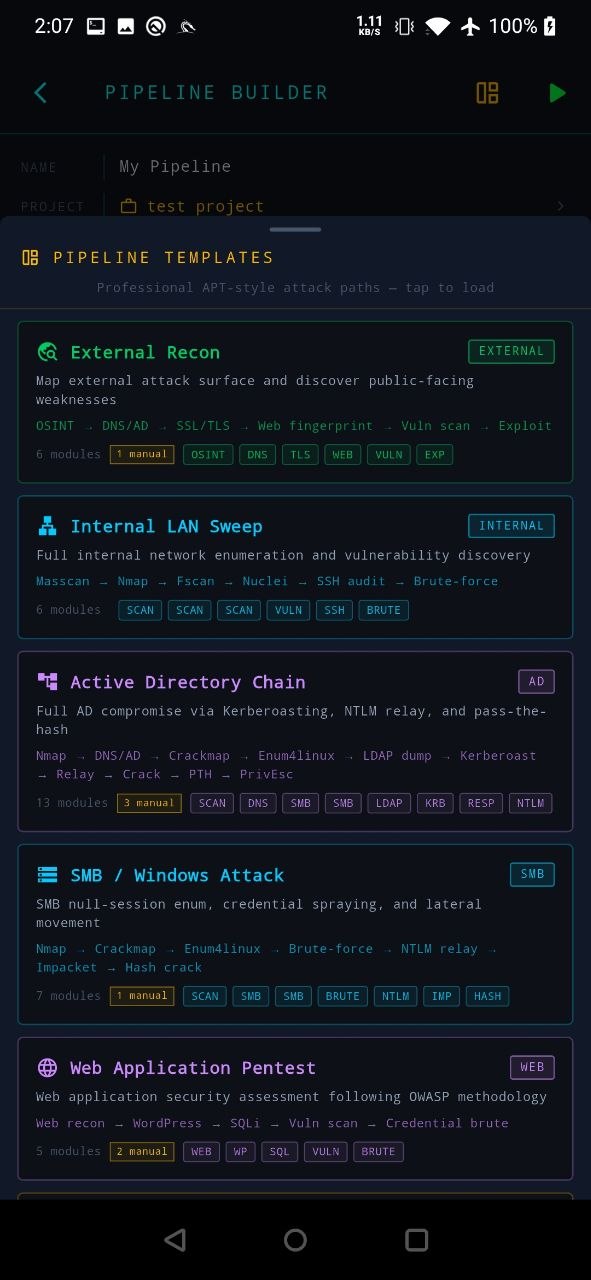

### Built-in pipeline templates
| Template | Modules | Purpose |
|----------|---------|---------|
| **External Recon** | theHarvester → DNS/AD → Web → Nuclei → SSL → Brute | OSINT + external attack surface |
| **Internal LAN Sweep** | Masscan → Nmap → Nuclei → Brute → Crackmap → Exploit → Impacket | Full internal LAN pentest |
| **Active Directory Chain** | Nmap → DNS/AD → Crackmap → Enum4linux → LDAP Dump → Kerberos → Responder → NTLM Relay → MITM6 → Hash Cracker → Impacket → EvilWinRM → LinPEAS | Full AD kill chain |
| **SMB / Windows Attack** | Nmap → Crackmap → Enum4linux → Brute → NTLM Relay → Impacket → Hash Cracker | Windows credential harvesting |
| **Web Application Pentest** | Web → WPScan → SQLMap → Nuclei → Brute | Web app attack chain |
| **WiFi Assault** | Wifite → Bettercap → RTSP-Brute → VNC Brute → PRET | WiFi + post-association |
| **IoT / OT Discovery** | Ingram → SNMP Sweep → PRET → IoT → BLE Recon → Air-BT | IoT/OT full coverage |
| **Post-Exploitation** | LinPEAS → Impacket → Tunnel/Pivot → Hash Cracker → ADCS → EvilWinRM | Post-access escalation |
| **Full APT Kill Chain** | 12-module chain covering OSINT → recon → exploitation → lateral movement → persistence | End-to-end simulation |

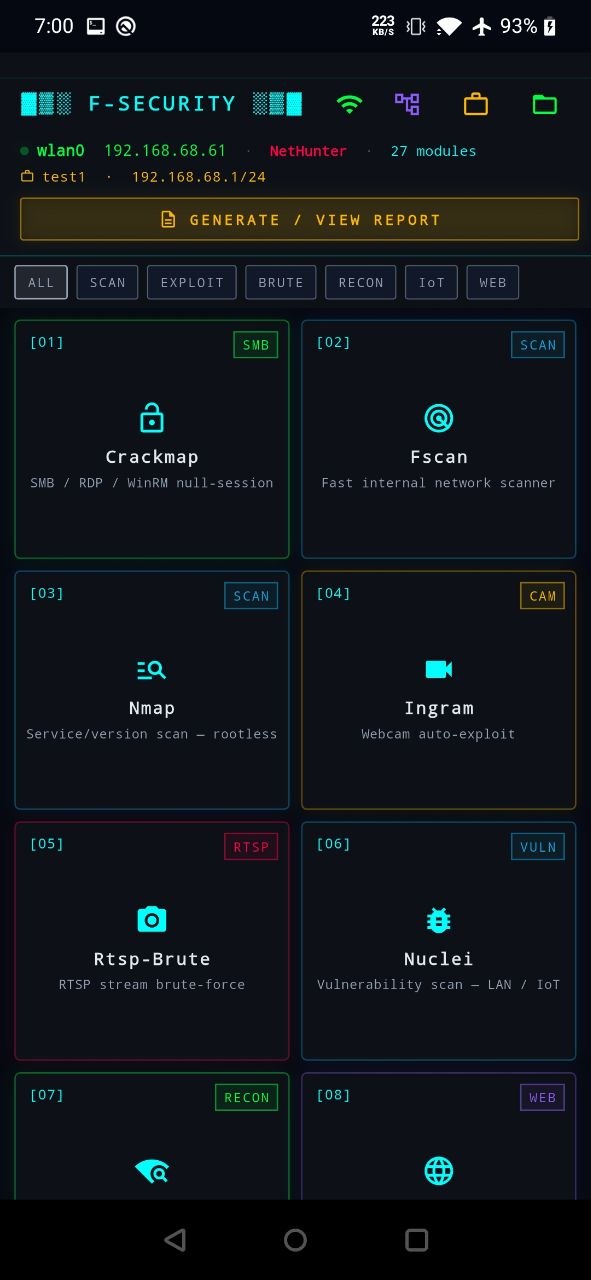

## Modules
50 modules across 8 categories. All pipeline-capable modules run fully unattended when launched from a pipeline (no prompts, auto-detect interfaces, auto-source chain files).
### Scan
| # | Module | Tag | Description |
|---|--------|-----|-------------|
| 02 | Fscan | SCAN | Fast internal network scanner — host discovery + port/service scan |
| 03 | Nmap | SCAN | Full SYN/UDP/version/script scan with root privileges |
| 06 | Nuclei | VULN | CVE template vulnerability scan — LAN / IoT / web |
| 11 | SSL | TLS | TLS/SSL certificate audit — expiry, weak ciphers, CVEs |
| 32 | SSH Audit | SSH | SSH algorithm, cipher, key-exchange audit — multi-host parallel |
| 49 | Masscan | SCAN | Ultra-fast port sweep — million packets/sec — large /8–/16 ranges |
### Recon
| # | Module | Tag | Description |
|---|--------|-----|-------------|
| 01 | Crackmap | SMB | SMB/RDP/WinRM null-session enum · shares · users · RID brute |
| 07 | Autorecon | RECON | Ping sweep + AutoRecon multi-tool recon per host |
| 12 | DNS / AD | DNS | DNS zone transfer + Active Directory / LDAP enum + DC discovery |
| 17 | Responder | RESP | LLMNR/NBT-NS/MDNS poisoning · NTLMv2 hash capture |
| 20 | Deauth Watcher | WIFI | Passive deauth/disassoc detector with attacker MAC tracking |
| 25 | Bettercap | MITM | ARP MITM · net.recon · net.sniff · http.proxy |
| 27 | Wifite | WIFI | Auto WiFi audit — WPA handshake · WPS PIN · PMKID attack |
| 28 | NetSniff | SNIFF | Passive tshark capture · live credential harvester (FTP/HTTP/Telnet/SMTP) |
| 36 | SNMP Sweep | SNMP | 30-string community brute · MIB walk · sysinfo/interfaces/routes/processes |
| 42 | Enum4linux | SMB | SMB/NetBIOS/LDAP/RPC — full Windows/Samba enumeration |
| 43 | theHarvester | OSINT | OSINT — emails · subdomains · IPs · employee names (Google/Bing/Shodan/...) |
| 48 | LDAP Dump | LDAP | ldapdomaindump — AD users · groups · computers · SPNs · GPOs |
### Exploit
| # | Module | Tag | Description |
|---|--------|-----|-------------|
| 14 | Post | POST | Post-discovery action hub — per-host exploit menus |
| 15 | C2 | C2 | 13 reverse shell payload types + background nc/socat listener |
| 16 | Exploit | EXP | CVE port-match quick-strike → MSF launcher — 30+ CVE entries |
| 22 | MAC Bypass | MAC | Wired LAN MAC filter bypass — sniff → spoof → DHCP |
| 26 | NTLM Relay | NTLM | Responder + ntlmrelayx — LLMNR capture → SMB/LDAP relay |
| 34 | MITM6 | MITMv6 | IPv6 DHCPv6 poison → NTLM relay · 4 modes: SMB/LDAP/delegate/ADCS ESC8 |
| 35 | ADCS | ADCS | Certipy — ESC1-8 template enum · auto-exploit ESC1 → PKINIT → NT hash |
| 39 | Impacket | IMP | secretsdump · psexec · wmiexec · Pass-the-Hash · samrdump |
| 44 | Evil-WinRM | WRM | WinRM interactive shell · PTH · certificate auth · file upload/download |
| 45 | Tunnel/Pivot | PIVOT | chisel SOCKS5 · sshuttle · socat port relay · socat SSL wrap |
| 46 | LinPEAS | PE | PEASS-ng privilege escalation — local · remote SSH · credential hunting |
### Brute
| # | Module | Tag | Description |
|---|--------|-----|-------------|
| 05 | RTSP-Brute | RTSP | RTSP stream brute-force · credential discovery for IP cameras |
| 10 | Brute | BRUTE | SSH/FTP/HTTP/Telnet/SMB/RDP brute-force via Hydra |
| 24 | Vivacom Keygen | WIFI | A1/Vivacom default WiFi password generation from BSSID |
| 31 | VNC Brute | VNC | VNC subnet scan · RFB auth brute · no-auth detection · desktop screenshots |
| 33 | Kerberos | KRB | Kerbrute user enum (10M wordlist) → ASREPRoast → Kerberoast |
| 41 | Hash Cracker | HASH | john + hashcat · NTLMv2 · NTLM · Kerberos TGS/AS-REP · auto-source chain |
### Web
| # | Module | Tag | Description |
|---|--------|-----|-------------|
| 08 | Web | WEB | whatweb / gobuster / feroxbuster — multi-tool web recon |
| 40 | SQLMap | SQL | SQL injection — detect · extract · os-shell · full automation |
| 47 | WPScan | WP | WordPress scanner — plugins · themes · users · CVEs |
### IoT
| # | Module | Tag | Description |
|---|--------|-----|-------------|
| 04 | Ingram | CAM | Webcam auto-exploitation via Ingram framework |
| 09 | IoT | IoT | IoT/SCADA/camera discovery + exploit menus |
| 21 | Flipper Detector | BT | Bluetooth scan — detects Flipper Zero by OUI `80:E1:26` |
| 23 | Probe Sniffer | WIFI | WiFi probe request capture · burst detection · GPS logging · wardriving map |
| 30 | PRET | PRT | Printer discovery · PJL/PS/PCL audit + PRET exploit framework |
| 37 | Air-BT | BLE | BLE scanner · GATT enum · 65 CVE matches · attack PoCs · bluebinder auto-init |
| 38 | BLE Recon | BLE | bettercap ble.recon · live scanner · http-ui dashboard over WiFi |
### WiFi / Rogue AP
| # | Module | Tag | Description |
|---|--------|-----|-------------|
| 50 | KARMA | ROGUE | Rogue AP / evil-twin — WPA · OPN · EAP(WPE) · probe-mirror · auto client attack chain · Responder NTLM · tcpdump · pipeline-aware |
### Fire
| # | Module | Tag | Description |
|---|--------|-----|-------------|
| 18 | WiFi Deauth All | WIFI | Monitor mode scan → deauth every detected AP simultaneously |
| 19 | WiFi Deauth Target | WIFI | Select AP → continuous targeted deauth |
| 29 | NetKill | ARP | ARP-poison the gateway → drops internet for all LAN clients |
## Projects & Reports
### Project mode
Assign any module run to a project. The app automatically:
- Attaches the session folder to the project
- Parses `nmap.txt`, `fscan.txt`, `masscan.txt` → imports hosts + open ports
- Parses `brute.txt`, `chain_creds.txt`, `crackmap.txt` → imports credentials
- Parses `cracked.txt` (john/hashcat `--show` output) → imports cracked hashes
All imported data is stored in a local SQLite database (`fsecurity_projects.db`).
### Project tabs
| Tab | Contents |
|-----|----------|
| **Sessions** | All module runs linked to this project — tap to browse result files |
| **Hosts** | Discovered hosts with port lists (tap host to expand) |
| **Creds** | Captured credentials (live brute-force results) + cracked hashes |
| **Notes** | Free-text notes per project |
| **Images** | Screenshots captured during VNC Brute or IoT modules |

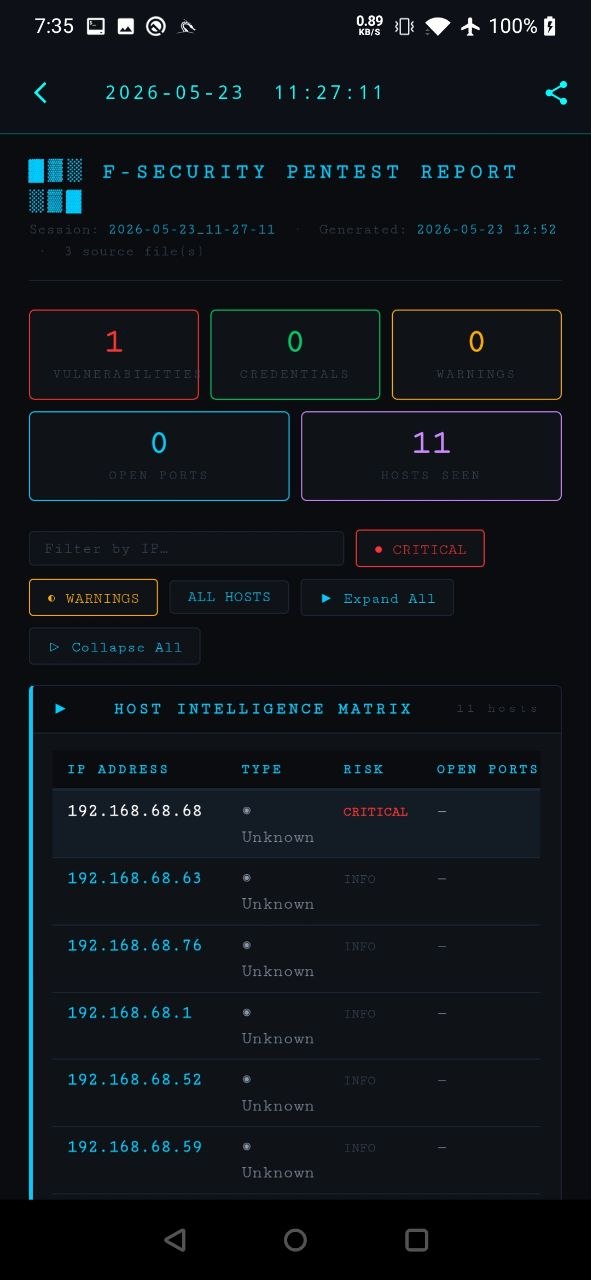

### HTML reports
One tap generates a self-contained HTML report including:
- Executive summary with CVSS-style risk metrics
- Vulnerability findings from nuclei.txt (filtered to medium+)
- Credential table (brute-force + cracked hashes + chain_creds.txt)
- SMB/network share findings
- DNS/Active Directory enumeration results
- IoT device findings
- Raw session file viewer
Reports are generated locally on-device — no cloud, no upload.
## Push Notifications
| Module | Trigger | Notification |
|--------|---------|--------------|
| **Flipper Detector** | Flipper Zero BLE device found | Device name + MAC address |
| **Deauth Watcher** | Real deauth attack detected | Attacker MAC · SSID · burst count |
**Attack vs. legitimate disconnect** heuristics:
- Burst ≥ 5 frames from the same source MAC within 5 s → always an attack
- Broadcast deauth + non-legitimate reason code + ≥ 2 frames → attack
Each alert fires once per attacker+SSID pair per session (deduplicated).
## Requirements
- Android 5.0+ with **root** (Magisk)
- **Kali NetHunter** full chroot at `/data/local/nhsystem/kali-arm64` (or variant)
- Tools installed inside chroot (install as needed per module):
# Core
apt install nmap masscan nuclei hydra crackmapexec enum4linux-ng
# AD / Windows
apt install impacket-scripts evil-winrm certipy-ad bloodhound ldapdomaindump
# Password cracking
apt install john hashcat
# Network / MITM
apt install responder mitm6 bettercap tshark
# Web
apt install gobuster feroxbuster sqlmap wpscan
# WiFi
apt install aircrack-ng wifite2
# KARMA — rogue AP (requires secondary WiFi adapter on wlan1)
apt install hostapd dnsmasq inotify-tools
pip3 install scapy mac-vendor-lookup netaddr colorama getkey
# Pivot
apt install chisel sshuttle socat
### GPS — Probe Sniffer map
The Probe Sniffer module logs GPS coordinates alongside captured probe requests. GPS requires a companion Android app that relays NMEA sentences over TCP to **`127.0.0.1:10110`**.
Install any app named **"gpsdRelay"** or **"GPS NMEA relay"** from the Play Store. Without GPS the sniffer still captures probes — coordinates and map are simply omitted.
## Install
**From release:**
adb install F-Security.apk
**From source** (requires Flutter SDK + Android SDK + Java 21):
git clone https://github.com/InnerFireZ/F-Security-APP.git
cd F-Security-APP
flutter pub get
bash build.sh
adb install app-release.apk
On first launch the app detects root, locates the chroot, and deploys all bundled scripts automatically. Use **Settings → Redeploy** to force a re-deploy if needed.
## Architecture
### Execution model
Every module runs inside a `flutter_pty` pseudoterminal:
su -c "echo $$ > /data/local/tmp/fsec_
.pid; \
chroot /usr/bin/env -i \
HOME=/root TERM=xterm-256color PATH= \
SESSION_DIR= TARGET= DOMAIN= \
/bin/bash /root/f-security/
