cpt-ferna02/detection-validation-engine

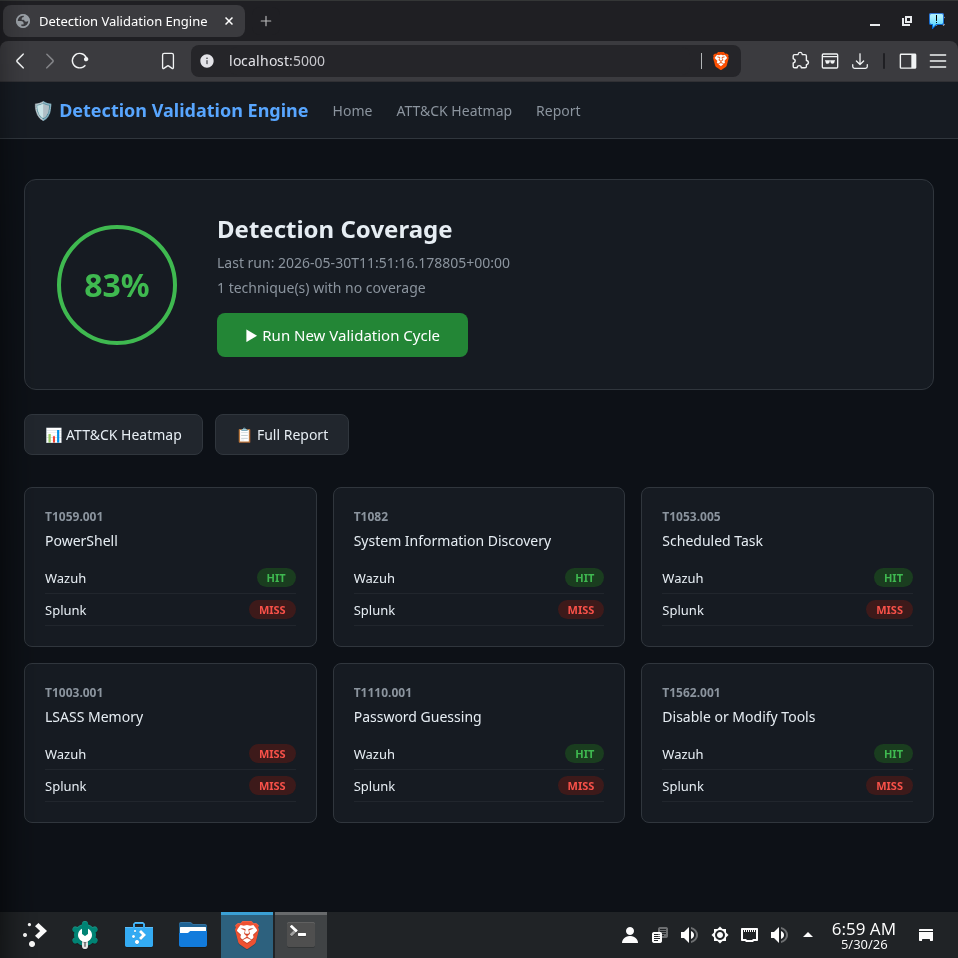

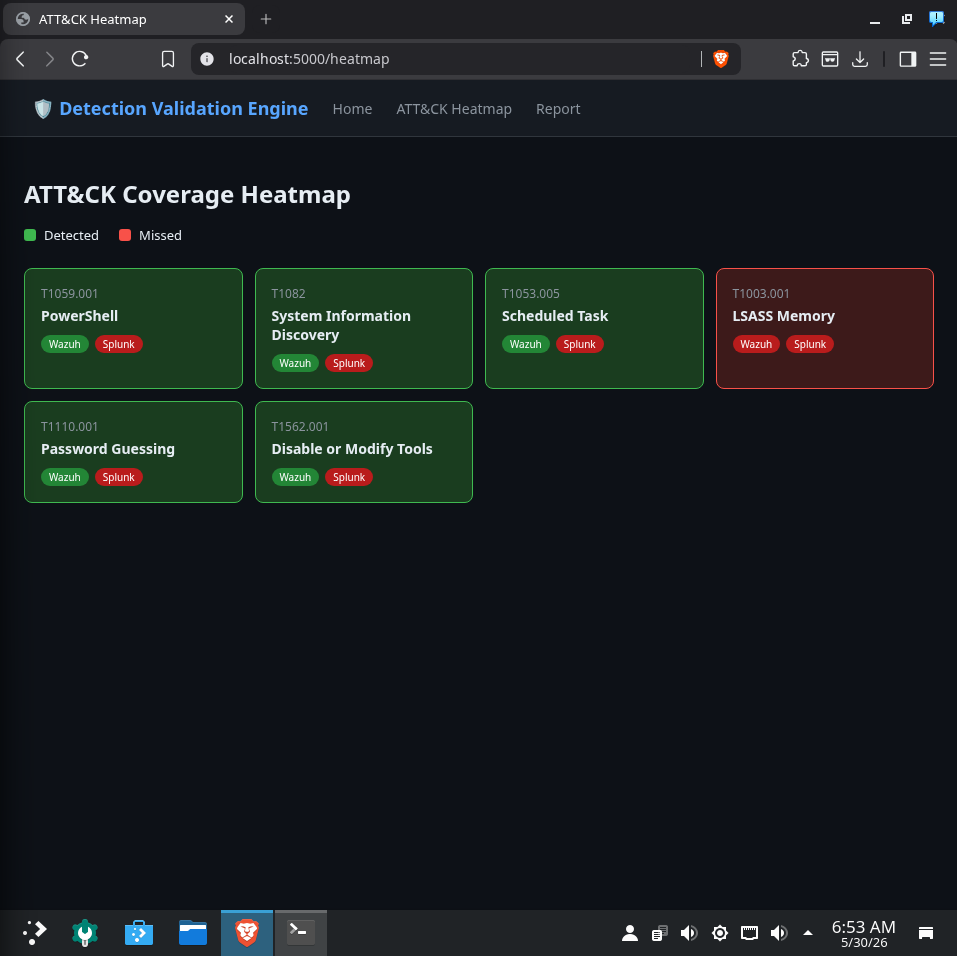

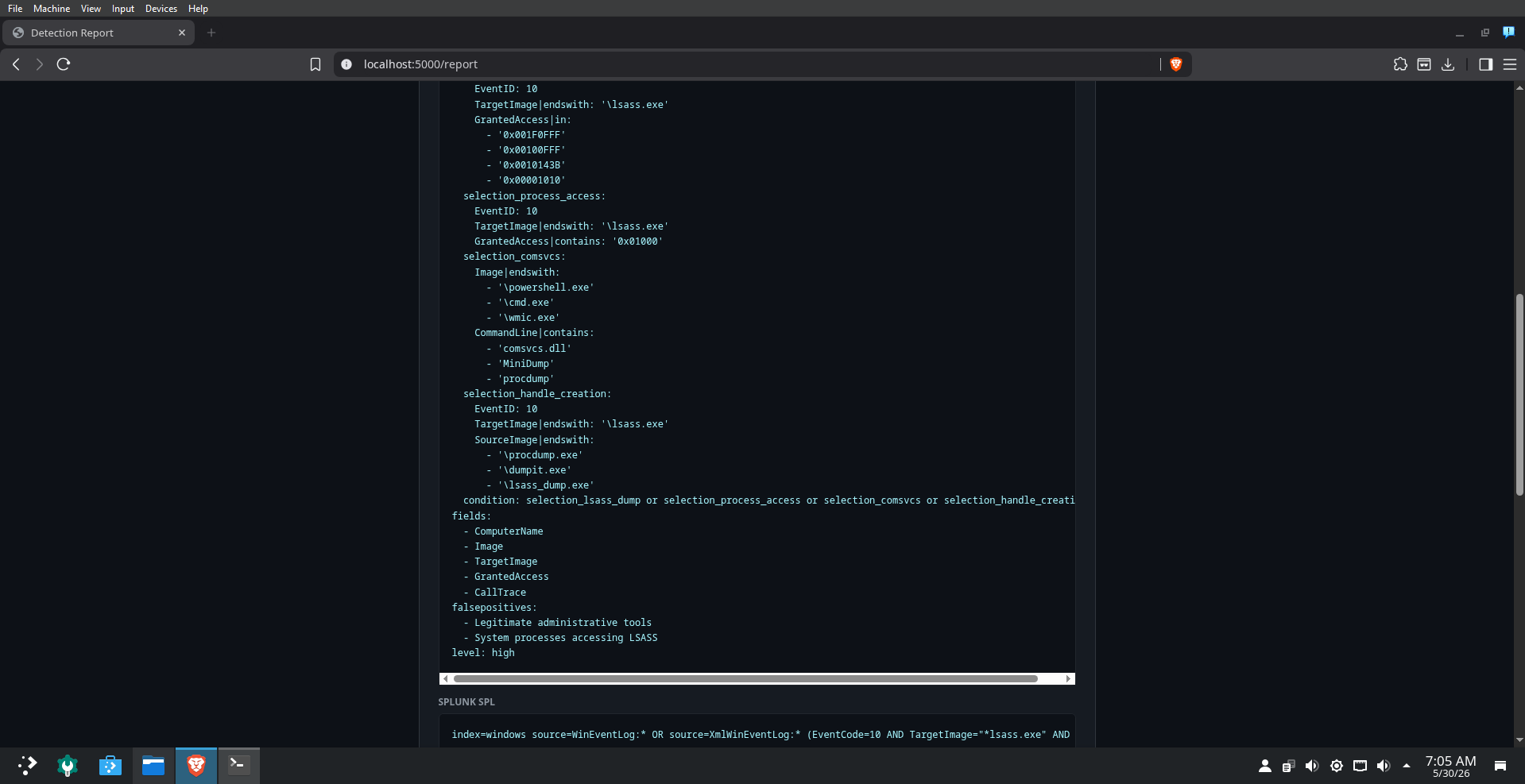

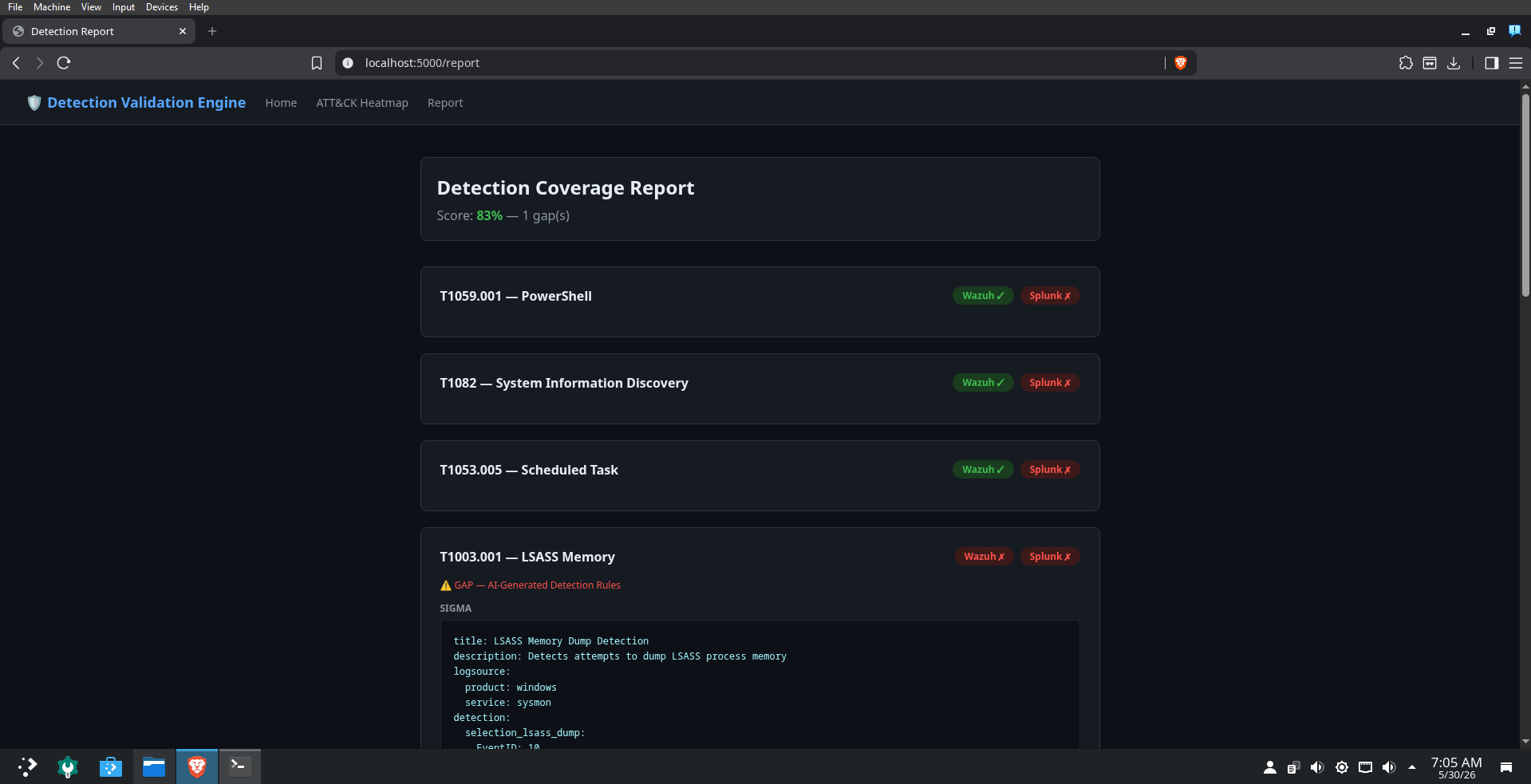

# 🛡️ Autonomous Detection Validation Engine An AI-powered platform that automatically fires MITRE ATT&CK techniques, validates whether your SIEM detects them, identifies coverage gaps, and uses Claude AI to generate detection rules for missed techniques — creating a closed feedback loop for continuous detection improvement. ## 📸 Screenshots ### Main Dashboard — 83% Detection Coverage  *The main dashboard showing real-time detection coverage score, per-technique HIT/MISS status across Wazuh and Splunk, and a one-click button to run a new validation cycle.* ### ATT&CK Coverage Heatmap  *Visual heatmap of MITRE ATT&CK technique coverage. Green = detected, Red = gap. T1003.001 (LSASS Memory) is the one undetected technique, highlighted in red.* ### Detection Coverage Report — Gap Identified  *The full detection report showing per-technique results. T1003.001 is flagged as a GAP with AI-generated detection rules automatically populated below it.* ### AI-Generated Sigma Rule for LSASS Memory (T1003.001)  *Claude-generated Sigma rule for the detected coverage gap. Includes multiple detection selections covering LSASS dump access patterns, known dump tools, and process access event IDs.* ### AI-Generated Splunk SPL + Wazuh XML Rules  *Claude-generated Splunk SPL query and Wazuh XML rule for T1003.001. All three rule formats (Sigma, SPL, Wazuh XML) are generated in a single AI call.* ### Wazuh XML Rules — Full View  *Full Wazuh XML ruleset generated by Claude, covering LSASS Memory Dump Detection, LSASS Memory Dump via Process Creation, and Suspicious LSASS Access via Known Dump Tools — each mapped to T1003.001.* ## 🎯 What It Does 1. **Attacks** — Fires real Atomic Red Team techniques against a Windows 10 target via WinRM 2. **Validates** — Queries both Wazuh and Splunk to check if detections fired 3. **Analyzes** — Identifies which ATT&CK techniques have zero coverage 4. **Generates** — Calls Claude AI to produce Sigma, Splunk SPL, and Wazuh XML rules for gaps 5. **Visualizes** — Displays coverage scores, ATT&CK heatmap, and full report on a Flask dashboard ## 📊 Results - **83% detection coverage** achieved out of the box - **5/6 MITRE ATT&CK techniques** detected by Wazuh (T1059.001, T1082, T1053.005, T1110.001, T1562.001) - **1 coverage gap identified** (T1003.001 LSASS Memory) with AI-generated Sigma, SPL, and Wazuh XML rules auto-generated by Claude - Full autonomous pipeline runs end-to-end with a single button click ## 🏗️ Architecture Arch Linux (SOC Workstation) Windows 10 VM (Target) ┌──────────────────────────────┐ ┌─────────────────────────┐ │ Flask Dashboard :5000 │ │ Atomic Red Team │ │ attack_runner.py │──WinRM────▶│ Real attack techniques │ │ detection_validator.py │ │ Wazuh Agent │ │ gap_analyzer.py │ └─────────────────────────┘ │ ai_rule_generator.py │ │ │ │ │ logs │ Wazuh (Docker) :55000 │◀───────────────────────┘ │ Splunk (Docker) :8089 │ │ Claude API │ └──────────────────────────────┘ ## 🛠️ Tech Stack - **Attack Simulation** — Atomic Red Team, WinRM (pywinrm) - **SIEM** — Wazuh 4.7.5, Splunk (Docker) - **Detection** — Wazuh Indexer REST API, Splunk REST API - **AI** — Anthropic Claude API (claude-haiku-4-5) - **Framework** — MITRE ATT&CK - **Backend** — Python, Flask - **Infrastructure** — Docker, VirtualBox ## 🎯 Techniques Tested | Technique | Name | Wazuh | Splunk | |-----------|------|-------|--------| | T1059.001 | PowerShell | ✅ HIT | ❌ MISS | | T1082 | System Information Discovery | ✅ HIT | ❌ MISS | | T1053.005 | Scheduled Task | ✅ HIT | ❌ MISS | | T1003.001 | LSASS Memory | ❌ MISS | ❌ MISS | | T1110.001 | Password Guessing | ✅ HIT | ❌ MISS | | T1562.001 | Disable or Modify Tools | ✅ HIT | ❌ MISS | ## 🧠 Problem Solving — Obstacles Encountered & How I Fixed Them This project was built in a single day. Below are the real technical obstacles hit during development and how each was diagnosed and resolved. ### 🔴 Obstacle 1: Atomic Red Team Installation Blocked by Windows Defender **Problem:** Running `Install-AtomicRedTeam -getAtomics` failed with `WriteErrorException` — Windows Defender quarantined the Atomics folder. **Fix:** 1. Added exclusion path: `Add-MpPreference -ExclusionPath "C:\AtomicRedTeam"` 2. Disabled real-time monitoring: `Set-MpPreference -DisableRealtimeMonitoring $true` ### 🔴 Obstacle 2: SSH Connection Reset — Pivoted to WinRM **Problem:** Every SSH connection attempt returned `Connection reset by 192.168.1.92 port 22`. **Root Cause:** Multiple layered issues: - The `sshd_config` file had corrupted lines from a failed logging command - The Administrator account was disabled by default (`Account active: No`) - The Administrator account had no password set — OpenSSH refuses passwordless admin accounts **Fix:** 1. Cleaned corrupted `sshd_config` lines using PowerShell string filtering 2. Enabled the Administrator account: `net user Administrator /active:yes` 3. Set a password: `net user Administrator Lab123!` 4. Reinstalled OpenSSH cleanly from the GitHub releases zip **Pivot:** Switched to **WinRM (Windows Remote Management)** via `pywinrm` — purpose-built for remote PowerShell execution and more reliable in lab environments. ### 🔴 Obstacle 3: Disk Space Exhausted (100% Full) **Problem:** Splunk container failed to start with `no space left on device`. **Root Cause:** 49GB disk at 100% capacity. Culprits: - 7.6GB in `/var/cache/pacman/pkg/` - 4.4GB in `/timeshift/snapshots/` - 1.2GB `~/brave-bin/src` - 653MB `~/.cache/go-build` - 628MB `~/.BurpSuite/burpbrowser` **Fix:** sudo rm -rf /var/cache/pacman/pkg/* sudo timeshift --delete-all rm -rf ~/brave-bin ~/.cache/go-build ~/.BurpSuite/burpbrowser Freed ~8GB, bringing available space from 315MB to 3.5GB+. ### 🔴 Obstacle 4: Splunk Minimum Disk Space Check Blocking Searches **Problem:** Splunk refused to execute searches — `The minimum free disk space (5000MB) reached`. **Root Cause:** Splunk's default minimum free disk threshold is 5000MB; lab machine only had ~3.5GB. **Fix:** docker exec -u root splunk bash -c "echo '[diskUsage] minFreeSpace = 500' >> /opt/splunk/etc/system/local/server.conf" docker restart splunk ### 🔴 Obstacle 5: Wazuh Agent Showing "never_connected" **Problem:** Windows agent registered successfully but showed `never_connected` status in the Wazuh manager. **Root Cause:** `ossec.conf` had the manager IP wrapped in single quotes: `'192.168.1.80'` instead of `192.168.1.80` — caused by shell quoting in the MSI install argument. **Fix:** (Get-Content "C:\Program Files (x86)\ossec-agent\ossec.conf") ` -replace "'192.168.1.80'", "192.168.1.80" | ` Set-Content "C:\Program Files (x86)\ossec-agent\ossec.conf" Restart-Service WazuhSvc ### 🔴 Obstacle 6: Atomic Red Team "Not Recognized" via WinRM **Problem:** `Invoke-AtomicTest` returned `CommandNotFoundException` in remote sessions. **Root Cause:** WinRM sessions don't load PowerShell profiles or modules automatically. **Fix:** Updated `attack_runner.py` to explicitly import the module at the start of every WinRM command: cmd = f""" Set-ExecutionPolicy Bypass -Scope Process -Force Import-Module C:\\AtomicRedTeam\\invoke-atomicredteam\\Invoke-AtomicRedTeam.psd1 -Force $PSDefaultParameterValues = @{{'Invoke-AtomicTest:PathToAtomicsFolder'='C:\\AtomicRedTeam\\atomics'}} Invoke-AtomicTest {technique_id} -TestNumbers 1 -TimeoutSeconds 60 """ ### 🔴 Obstacle 7: 0% Detection Despite Attacks Firing **Problem:** All 6 attacks fired successfully but both SIEMs showed 0% detection. **Root Cause:** 1. The Wazuh REST API `/alerts` endpoint wasn't returning results from the indexer correctly 2. Detection validator was searching for exact MITRE IDs — Wazuh's default rules don't tag alerts with MITRE IDs **Fix:** 1. Switched to querying the **Wazuh Indexer directly** via Elasticsearch REST API on port 9200 2. Built a keyword-based detection map matching each technique to realistic log keywords (e.g., T1082 → `systeminfo`, `hostname`, `System Information`) 3. Result: jumped from 0% to **83% coverage** immediately ## 🚀 Setup ### Prerequisites - Arch Linux (or any Linux) with Docker - Windows 10 VM with VirtualBox (Bridged networking) - Anthropic API key ### Installation # Clone the repo git clone https://github.com/cpt-ferna02/detection-validation-engine cd detection-validation-engine # Set up Python environment python -m venv venv source venv/bin/activate pip install flask requests anthropic pywinrm # Configure cp config.example.py config.py # Edit config.py with your IPs, credentials, and API key # Start Wazuh git clone https://github.com/wazuh/wazuh-docker.git -b v4.7.5 wazuh-docker cd wazuh-docker/single-node docker compose -f generate-indexer-certs.yml run --rm generator docker compose up -d cd ../.. # Start Splunk docker run -d --name splunk -p 8000:8000 -p 8089:8089 \ -e SPLUNK_GENERAL_TERMS='--accept-sgt-current-at-splunk-com' \ -e SPLUNK_START_ARGS='--accept-license' \ -e SPLUNK_PASSWORD='Admin1234!' splunk/splunk:latest # Run the dashboard python app.py Open `http://localhost:5000` and click **Run New Validation Cycle**. ### Windows VM Setup # Install Atomic Red Team Set-ExecutionPolicy Bypass -Scope CurrentUser -Force IEX (IWR 'https://raw.githubusercontent.com/redcanaryco/invoke-atomicredteam/master/install-atomicredteam.ps1' -UseBasicParsing) Install-AtomicRedTeam -getAtomics -Force -InstallPath "C:\AtomicRedTeam" # Enable WinRM Enable-PSRemoting -Force winrm set winrm/config/service/auth '@{Basic="true"}' winrm set winrm/config/service '@{AllowUnencrypted="true"}' Set-Item WSMan:\localhost\Client\TrustedHosts -Value "*" -Force # Install Wazuh Agent Invoke-WebRequest -Uri "https://packages.wazuh.com/4.x/windows/wazuh-agent-4.7.5-1.msi" -OutFile "wazuh-agent.msi" Start-Process msiexec.exe -ArgumentList "/i wazuh-agent.msi /q WAZUH_MANAGER='YOUR_ARCH_IP'" -Wait net start WazuhSvc ## 📁 Project Structure detection-validation-engine/ ├── app.py # Flask dashboard ├── attack_runner.py # WinRM-based Atomic Red Team execution ├── detection_validator.py # Wazuh Indexer + Splunk API queries ├── gap_analyzer.py # Coverage gap identification ├── ai_rule_generator.py # Claude API rule generation ├── config.example.py # Configuration template ├── screenshots/ # Dashboard screenshots ├── generated_rules/ # AI-generated detection rules │ ├── T1003_001_sigma.yml │ ├── T1003_001_splunk.spl │ └── T1003_001_wazuh.xml └── templates/ ├── index.html # Main dashboard ├── heatmap.html # ATT&CK coverage heatmap └── report.html # Detailed report with AI rules ## 💡 Key Design Decisions - **WinRM over SSH** — WinRM is purpose-built for remote PowerShell execution on Windows; SSH on Windows has known compatibility issues in lab environments - **Direct Indexer queries** — Querying Wazuh's Elasticsearch indexer directly provides more reliable alert retrieval than the manager API - **Keyword-based detection** — Matching on log content keywords rather than MITRE IDs works with Wazuh's default ruleset without requiring custom rule deployment - **Batched AI calls** — All gaps are sent to Claude in a single API call to minimize token usage (~$0.05 per full run)
