mbackschat/amiga-boing

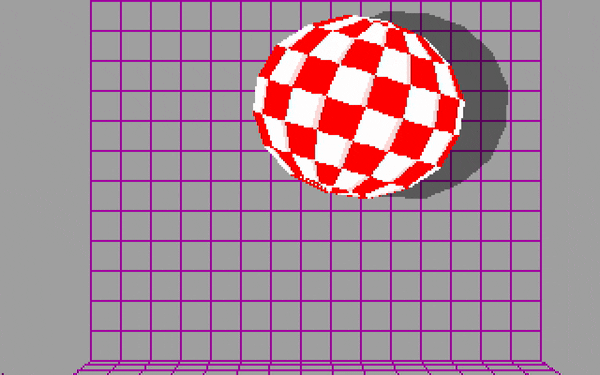

# amiga-boing  The famous **Amiga Boing Ball** demo (Dale Luck / R. J. Mical, 1984 CES) — the red-and-white checkered sphere bouncing in a magenta wireframe room — as buildable, heavily-annotated 68000 assembly, plus deep documentation of how it works. The source here is the **AMICUS Disk 9 "polite" Boing** (a Commodore-Amiga developer sample), reconstructed from Harry "Piru" Sintonen's disassembly, split into readable files and commented. It assembles with `vasm`/`vlink` into a Kickstart 1.x / OCS executable and runs under FS-UAE. See [docs/DEMO-BACKGROUND.md](docs/DEMO-BACKGROUND.md) for the full history and variant lineage. ## Quick start git submodule update --init # fetch vendor/ (see "vendor/" below) ./scripts/build.sh # assemble + link + stage the uae/ run target ./scripts/run.sh # launch the demo in FS-UAE Close the FS-UAE window to quit. Full details and per-OS notes: **[docs/RUNNING.md](docs/RUNNING.md)**. **Requirements:** `vasmm68k_mot` + `vlink` (bundled with the VS Code [amiga-assembly](https://marketplace.visualstudio.com/items?itemName=prb28.amiga-assembly) extension, or on your `PATH`); **FS-UAE**; and the contents of **`vendor/`** (below). ## `vendor/` — copyrighted files you must supply The build needs three third-party, copyrighted components that are **not** redistributable, so they live in a separate **private** git submodule ([`amiga-boing-vendor`](https://github.com/mbackschat/amiga-boing-vendor)) rather than in this repo: vendor/ include/ Amiga 1.3 NDK assembler headers (*.i) © Commodore-Amiga, Inc. libs/ mathtrans.library © Commodore-Amiga + Motorola FFP firmware rom/ kick13.rom (Kickstart 1.3, r34.5) © Commodore / Cloanto (required — native OS) rom/ kick204.rom (Kickstart 2.04, r37.175) © Commodore / Cloanto (optional — default boot ROM when present) If you have access, `git submodule update --init` fetches them. **If you don't**, supply your own copies in that exact layout — e.g. the NDK 1.3 includes and Kickstart ROMs (**1.3 required**, 2.04 optional) from [Cloanto Amiga Forever](https://www.amigaforever.com/), and `mathtrans.library` from a Workbench 1.3 disk. `scripts/build.sh` requires the 1.3 ROM and uses 2.04 as the default boot ROM when it's present; it tells you what's missing. ## Layout src/ demo sources (assembled into one binary) boing.s vasm entry point — INCLUDEs the five .s files below startup.s Lattice C c.o startup boilerplate anim.s _Boing audio per-frame + audio.device setup + sample DATA globe.s _init_globe / _draw_globe — sphere math + polygon fill main.s _main, the main loop, physics, palette cycling, globals runtime.s Lattice C runtime + library glue stubs assets/ boing.samples the "BOING!" 8-bit PCM Boing.info Workbench icon uae/ FS-UAE run-target skeleton (config + startup-sequence + UAEquit) vendor/ copyrighted NDK includes / mathtrans.library / Kickstart ROM (private submodule) scripts/ build.sh, run.sh docs/ analysis & reference (see below) specs/ handoff spec for a separate browser-port project archive/ unmodified originals (Sintonen disasm + Maher's C reconstruction) uae/ generated FS-UAE run target (git-ignored; staged by build.sh) build/ assembler output (git-ignored) ## Documentation - **[docs/RUNNING.md](docs/RUNNING.md)** — build & run (macOS / Linux / Windows), toolchain, `vendor/`, gotchas. - **[docs/DEVIATIONS.md](docs/DEVIATIONS.md)** — the two deliberate changes this repo makes to the original AMICUS source (auto-start; KS2.0+ frame-rate fix), and how to re-verify. - **[docs/ANIMATION-DETAILS.md](docs/ANIMATION-DETAILS.md)** — motion/timing/distances, measured from a UAE recording and reconciled with source (for recreating the animation). - **[docs/BOING-ANALYSIS.md](docs/BOING-ANALYSIS.md)** — per-function analysis of the source. - **[docs/AMIGA-KNOWHOW.md](docs/AMIGA-KNOWHOW.md)** — Amiga 1000 hardware/OS reference, scoped to what this demo uses. - **[docs/DEMO-BACKGROUND.md](docs/DEMO-BACKGROUND.md)** — history, cultural context, variant lineage. - **[docs/BOING-AMICUS(S)-VS-MAHER(C).md](docs/BOING-AMICUS%28S%29-VS-MAHER%28C%29.md)** — comparison with Jimmy Maher's C reconstruction. ## Fidelity note `src/` stays very close to the original AMICUS disassembly (`archive/boing_original.s`), with **two deliberate deviations**: auto-start (the original starts paused), and a Kickstart 2.0+ frame-rate fix (a version-gated commit block that keeps the demo at the native field rate — 50 Hz PAL / 60 Hz NTSC — on later OSes; KS1.x runs the original code path). The first is a one-value flip; the second adds a little code, so the build is no longer strictly byte-identical. Its screen handling is original: the ball screen opens in the **background**, so drag the CLI/Workbench screen's title bar down to reveal it. Full details: **[docs/DEVIATIONS.md](docs/DEVIATIONS.md)**; unmodified originals live in `archive/`.
