iosif-castrucci-hub/n8n-Threat-Intelligence-Enrichment-Pipeline

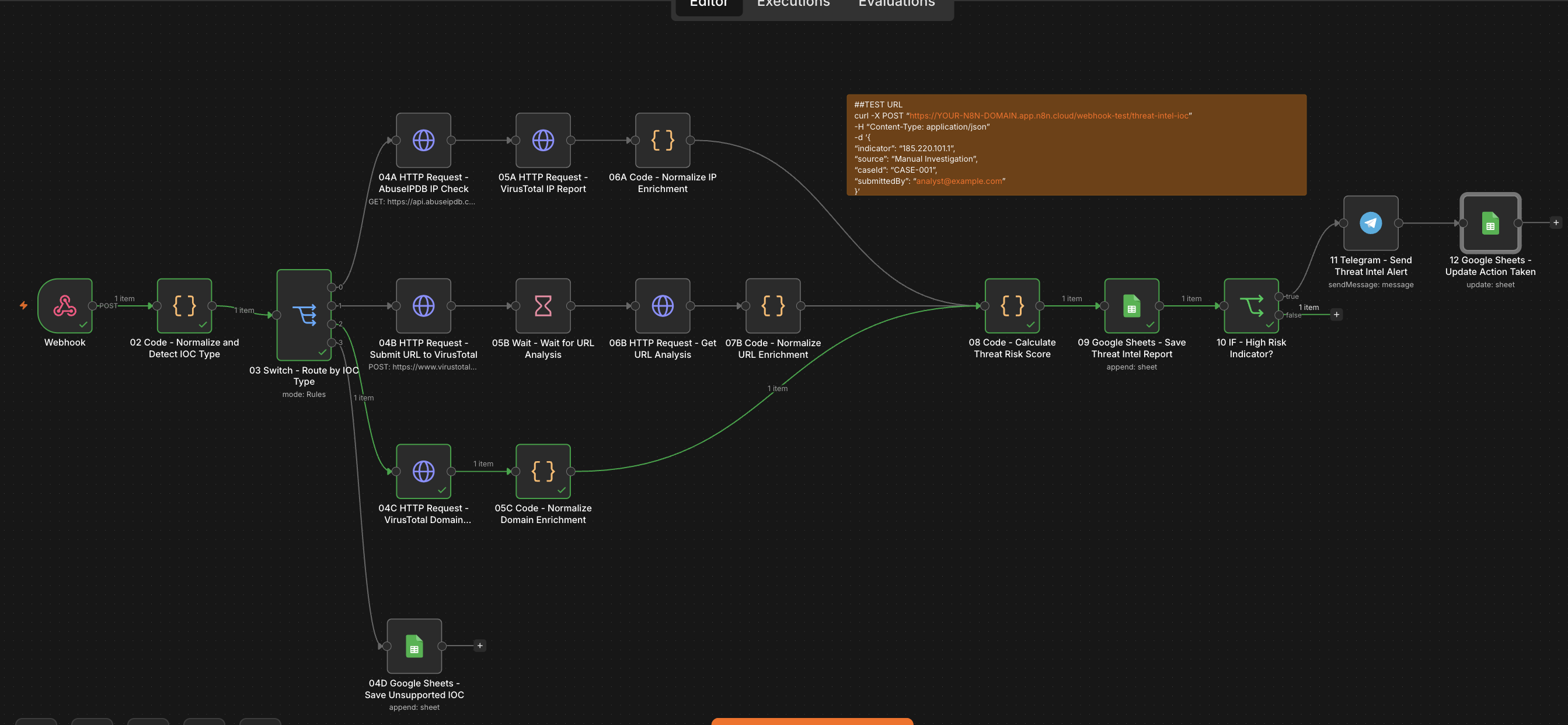

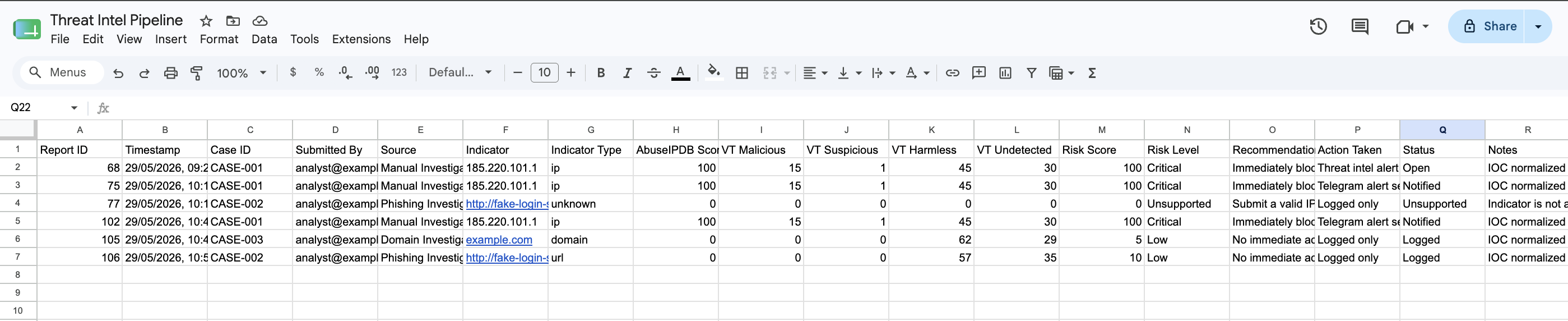

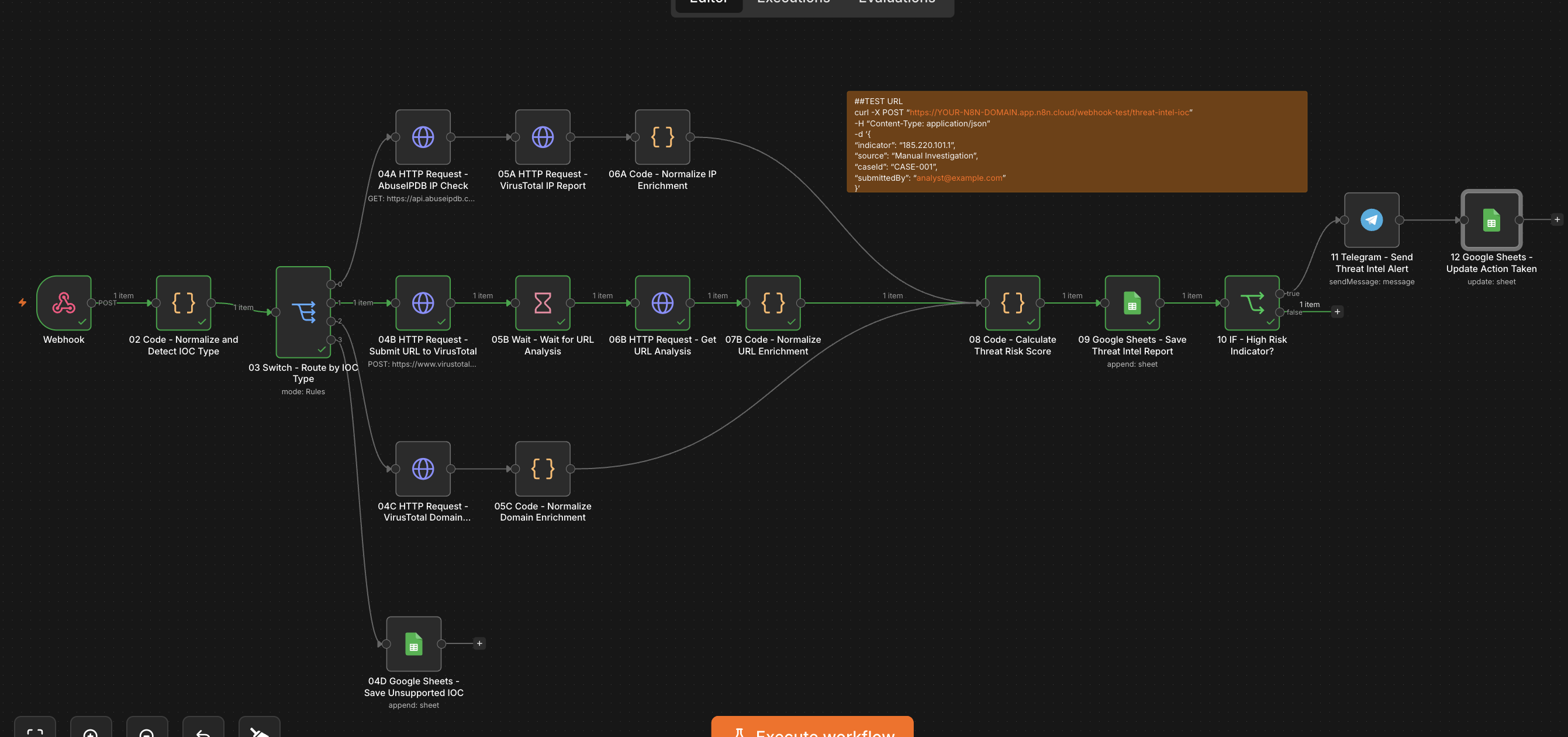

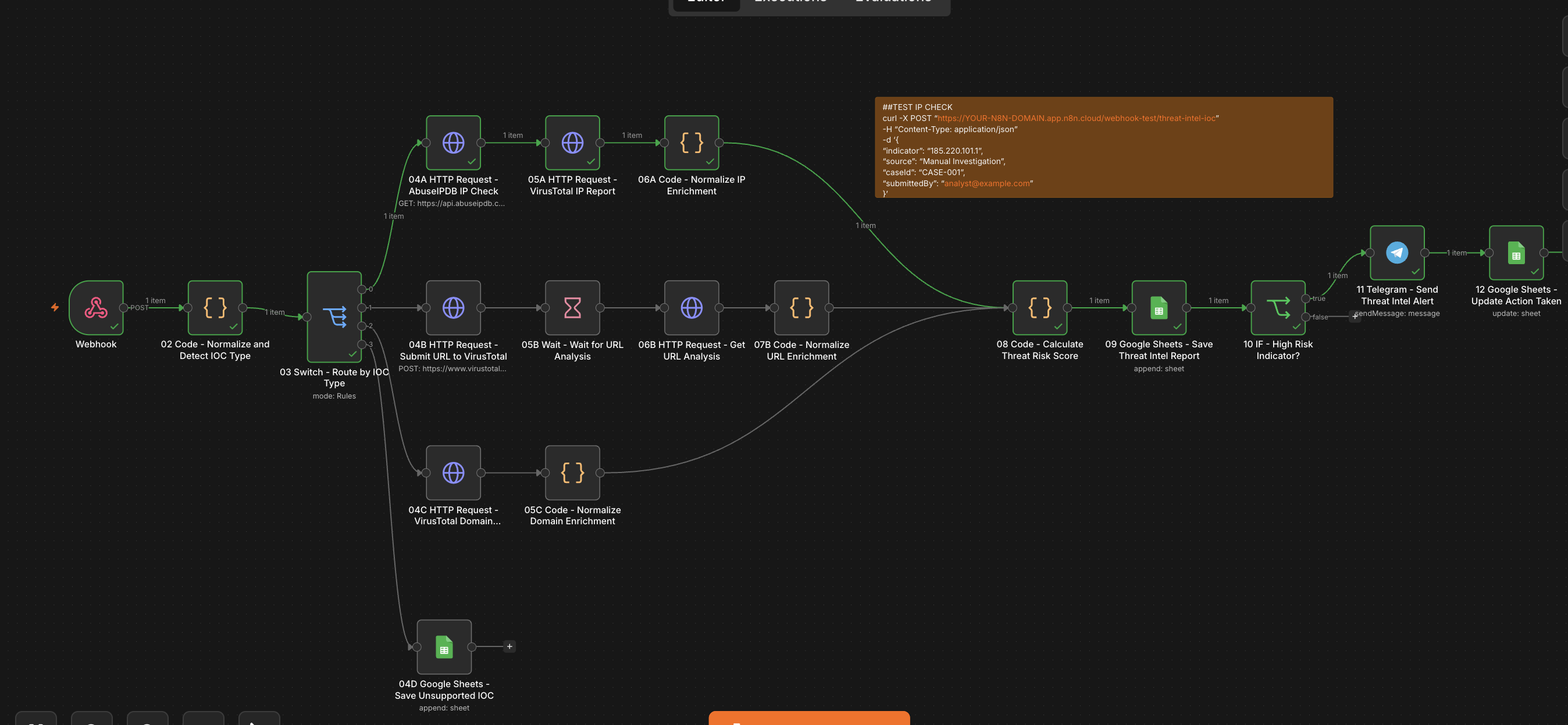

# Threat Intelligence Enrichment Pipeline A cybersecurity automation project built with **n8n**, **AbuseIPDB**, **VirusTotal**, **Google Sheets**, and **Telegram**. This project demonstrates an advanced threat intelligence enrichment pipeline that receives an IOC, detects whether it is an IP address, URL, or domain, enriches it using threat intelligence APIs, calculates a risk score, saves the report in Google Sheets, and sends a Telegram alert when the indicator is classified as high risk. ## Project Overview The goal of this project is to automate the enrichment and triage of Indicators of Compromise. An IOC can be submitted through a Webhook in JSON format. The workflow automatically normalizes the indicator, detects its type, routes it to the correct enrichment branch, collects threat intelligence data, calculates a final risk score, logs the result, and sends an alert if needed. Supported IOC types: IP address URL Domain Unsupported / Unknown IOC This project is designed as a practical demo of **SOAR-style automation**, **threat intelligence enrichment**, **IOC classification**, **risk scoring**, and **security alerting**. ## Tech Stack * **n8n Cloud** — workflow automation platform * **Webhook Trigger** — receives IOC submissions * **Code Nodes** — normalize indicators, process enrichment results, calculate risk * **Switch Node** — routes indicators by type * **HTTP Request Nodes** — call threat intelligence APIs * **Wait Node** — waits for VirusTotal URL analysis * **Google Sheets** — stores enrichment reports * **IF Node** — checks if the IOC is high risk * **Telegram Bot API** — sends high-risk threat intelligence alerts * **AbuseIPDB API** — enriches IP addresses * **VirusTotal API** — enriches IPs, URLs, and domains ## Main Features ### IOC Intake The workflow starts with a Webhook that receives an IOC. Example IP submission: { "indicator": "185.220.101.1", "source": "Manual Investigation", "caseId": "CASE-001", "submittedBy": "analyst@example.com" } Example URL submission: { "indicator": "http://fake-login-security-example.com/verify", "source": "Phishing Investigation", "caseId": "CASE-002", "submittedBy": "analyst@example.com" } Example domain submission: { "indicator": "example.com", "source": "Domain Investigation", "caseId": "CASE-003", "submittedBy": "analyst@example.com" } ### IOC Type Detection The workflow detects whether the submitted indicator is: ip url domain unknown This detection is handled by a Code node before the indicator is routed through the Switch node. ### Routing by IOC Type The workflow uses a Switch node to route indicators into separate enrichment branches. IP → AbuseIPDB + VirusTotal IP Report URL → VirusTotal URL Analysis Domain → VirusTotal Domain Report Unknown → Logged as Unsupported ### IP Enrichment IP indicators are enriched using: AbuseIPDB IP Check VirusTotal IP Report Collected values include: AbuseIPDB Score AbuseIPDB Total Reports Country ISP Usage Type VirusTotal Malicious Detections VirusTotal Suspicious Detections VirusTotal Harmless Detections VirusTotal Undetected Detections ### URL Enrichment URL indicators are submitted to VirusTotal for analysis. The workflow: Submits URL to VirusTotal Waits for the analysis Retrieves the VirusTotal analysis result Normalizes the enrichment output Collected values include: VirusTotal Analysis Status VirusTotal Malicious Detections VirusTotal Suspicious Detections VirusTotal Harmless Detections VirusTotal Undetected Detections Extracted Domain ### Domain Enrichment Domain indicators are enriched using the VirusTotal Domain Report endpoint. Collected values include: VirusTotal Malicious Detections VirusTotal Suspicious Detections VirusTotal Harmless Detections VirusTotal Undetected Detections VirusTotal Domain Reputation VirusTotal Categories ### Unsupported IOC Handling If the submitted indicator is not a valid IP address, URL, or domain, the workflow does not fail. Instead, it logs the indicator as: Indicator Type = unknown Status = Unsupported Risk Level = Unsupported This keeps the workflow stable and provides traceability for invalid submissions. ### Risk Score Calculation The workflow calculates a final risk score from `0` to `100`. Risk factors include: AbuseIPDB score VirusTotal malicious detections VirusTotal suspicious detections Indicator type VirusTotal URL analysis status Negative domain reputation Example scoring logic: High AbuseIPDB score → adds risk VirusTotal malicious detections → adds risk VirusTotal suspicious detections → adds risk URL indicator submitted → adds contextual risk Domain indicator submitted → adds contextual risk Negative domain reputation → adds risk ### Risk Level Classification The workflow classifies the final score as: 0 - 34 Low 35 - 64 Medium 65 - 84 High 85 - 100 Critical ### Google Sheets Reporting Every supported IOC enrichment is saved in Google Sheets. Unsupported IOCs are also logged. Google Sheets acts as a lightweight threat intelligence case log. Stored fields include: Report ID Timestamp Case ID Submitted By Source Indicator Indicator Type AbuseIPDB Score VT Malicious VT Suspicious VT Harmless VT Undetected Risk Score Risk Level Recommendation Action Taken Status Notes ### Telegram Alerting If an IOC is classified as **High** or **Critical**, the workflow sends a Telegram alert. Example alert: 🚨 Threat Intelligence Alert Risk Level: High Risk Score: 90/100 Indicator: 185.220.101.1 Type: ip Case ID: CASE-001 Source: Manual Investigation Submitted By: analyst@example.com AbuseIPDB Score: 100 VirusTotal: Malicious: 12 Suspicious: 3 Harmless: 50 Undetected: 20 Recommendation: Block or monitor the indicator, review related logs, and check for connections from internal assets. Status: Open After sending the Telegram alert, the workflow updates the Google Sheet row: Action Taken = Telegram alert sent Status = Notified ## Workflow Structure The advanced version contains 16 nodes. 01 Webhook - Receive IOC 02 Code - Normalize and Detect IOC Type 03 Switch - Route by IOC Type IP Branch: 04A HTTP Request - AbuseIPDB IP Check 05A HTTP Request - VirusTotal IP Report 06A Code - Normalize IP Enrichment URL Branch: 04B HTTP Request - Submit URL to VirusTotal 05B Wait - Wait for URL Analysis 06B HTTP Request - Get URL Analysis 07B Code - Normalize URL Enrichment Domain Branch: 04C HTTP Request - VirusTotal Domain Report 05C Code - Normalize Domain Enrichment Unsupported Branch: 04D Google Sheets - Save Unsupported IOC Common Branch: 08 Code - Calculate Threat Risk Score 09 Google Sheets - Save Threat Intel Report 10 IF - High Risk Indicator? 11 Telegram - Send Threat Intel Alert 12 Google Sheets - Update Action Taken ## Workflow Flow 01 Webhook - Receive IOC ↓ 02 Code - Normalize and Detect IOC Type ↓ 03 Switch - Route by IOC Type ├── IP │ ↓ │ 04A HTTP Request - AbuseIPDB IP Check │ ↓ │ 05A HTTP Request - VirusTotal IP Report │ ↓ │ 06A Code - Normalize IP Enrichment │ ├── URL │ ↓ │ 04B HTTP Request - Submit URL to VirusTotal │ ↓ │ 05B Wait - Wait for URL Analysis │ ↓ │ 06B HTTP Request - Get URL Analysis │ ↓ │ 07B Code - Normalize URL Enrichment │ ├── Domain │ ↓ │ 04C HTTP Request - VirusTotal Domain Report │ ↓ │ 05C Code - Normalize Domain Enrichment │ └── Unknown ↓ 04D Google Sheets - Save Unsupported IOC 06A / 07B / 05C ↓ 08 Code - Calculate Threat Risk Score ↓ 09 Google Sheets - Save Threat Intel Report ↓ 10 IF - High Risk Indicator? ├── true │ ↓ │ 11 Telegram - Send Threat Intel Alert │ ↓ │ 12 Google Sheets - Update Action Taken └── false end ## Node Details ### 01 Webhook - Receive IOC Receives the IOC submission. Configuration: HTTP Method: POST Path: threat-intel-ioc Authentication: None Respond: Immediately For production usage, authentication or a secret header should be added. ### 02 Code - Normalize and Detect IOC Type Normalizes the submitted indicator and detects its type. Output fields include: reportId timestamp caseId submittedBy source indicator domain indicatorType status notes Supported types: ip url domain unknown ### 03 Switch - Route by IOC Type Routes the IOC based on `indicatorType`. Rules: indicatorType = ip → IP branch indicatorType = url → URL branch indicatorType = domain → Domain branch indicatorType = unknown → Unsupported branch ### 04A HTTP Request - AbuseIPDB IP Check Checks the IP address reputation using AbuseIPDB. Configuration: Method: GET URL: https://api.abuseipdb.com/api/v2/check Query parameters: ipAddress = {{ $('02 Code - Normalize and Detect IOC Type').item.json.indicator }} maxAgeInDays = 90 Headers: Key = YOUR_ABUSEIPDB_API_KEY Accept = application/json ### 05A HTTP Request - VirusTotal IP Report Retrieves the VirusTotal IP report. Configuration: Method: GET URL: https://www.virustotal.com/api/v3/ip_addresses/{{ $('02 Code - Normalize and Detect IOC Type').item.json.indicator }} Headers: x-apikey = YOUR_VIRUSTOTAL_API_KEY accept = application/json ### 06A Code - Normalize IP Enrichment Normalizes AbuseIPDB and VirusTotal IP results into a common format. Output fields include: abuseIpdbScore vtMalicious vtSuspicious vtHarmless vtUndetected enrichmentSource notes ### 04B HTTP Request - Submit URL to VirusTotal Submits a URL for VirusTotal analysis. Configuration: Method: POST URL: https://www.virustotal.com/api/v3/urls Body Content Type: Form URLencoded Headers: x-apikey = YOUR_VIRUSTOTAL_API_KEY accept = application/json Body: url = {{ $('02 Code - Normalize and Detect IOC Type').item.json.indicator }} ### 05B Wait - Wait for URL Analysis Waits before retrieving the VirusTotal URL analysis. Recommended configuration: Resume: After Time Interval Amount: 20 Unit: Seconds If VirusTotal returns `queued`, increase to `30–45 seconds`. ### 06B HTTP Request - Get URL Analysis Retrieves the URL analysis result from VirusTotal. Configuration: Method: GET URL: https://www.virustotal.com/api/v3/analyses/{{ $('04B HTTP Request - Submit URL to VirusTotal').item.json.data.id }} Headers: x-apikey = YOUR_VIRUSTOTAL_API_KEY accept = application/json ### 07B Code - Normalize URL Enrichment Normalizes the VirusTotal URL analysis result. Output fields include: vtStatus vtMalicious vtSuspicious vtHarmless vtUndetected enrichmentSource notes ### 04C HTTP Request - VirusTotal Domain Report Retrieves the VirusTotal domain report. Configuration: Method: GET URL: https://www.virustotal.com/api/v3/domains/{{ $('02 Code - Normalize and Detect IOC Type').item.json.indicator }} Headers: x-apikey = YOUR_VIRUSTOTAL_API_KEY accept = application/json ### 05C Code - Normalize Domain Enrichment Normalizes VirusTotal domain results. Output fields include: vtMalicious vtSuspicious vtHarmless vtUndetected vtDomainReputation vtCategories enrichmentSource notes ### 04D Google Sheets - Save Unsupported IOC Saves unsupported indicators in Google Sheets without calling any enrichment API. Mapped values: Risk Score = 0 Risk Level = Unsupported Recommendation = Submit a valid IP address, URL, or domain for enrichment. Action Taken = Logged only Status = Unsupported ### 08 Code - Calculate Threat Risk Score Calculates the final threat risk score. Inputs: AbuseIPDB Score VirusTotal malicious detections VirusTotal suspicious detections Indicator type VirusTotal domain reputation VirusTotal analysis status Output fields include: riskScore riskLevel recommendation actionTaken status riskReasons notes ### 09 Google Sheets - Save Threat Intel Report Saves the final enrichment report. Google Sheet: Threat Intel Pipeline Tab: Reports ### 10 IF - High Risk Indicator? Checks if the final risk level is: High Critical If true, the Telegram alert is sent. ### 11 Telegram - Send Threat Intel Alert Sends a Telegram alert for high-risk or critical indicators. ### 12 Google Sheets - Update Action Taken Updates the same Google Sheets row after the Telegram alert is sent. Updated fields: Action Taken = Telegram alert sent Status = Notified ## Google Sheets Structure Google Sheet: Threat Intel Pipeline Tab: Reports Columns: Report ID Timestamp Case ID Submitted By Source Indicator Indicator Type AbuseIPDB Score VT Malicious VT Suspicious VT Harmless VT Undetected Risk Score Risk Level Recommendation Action Taken Status Notes Example row: | Report ID | Timestamp | Case ID | Submitted By | Source | Indicator | Indicator Type | AbuseIPDB Score | VT Malicious | VT Suspicious | VT Harmless | VT Undetected | Risk Score | Risk Level | Recommendation | Action Taken | Status | Notes | | --------- | -------------------- | -------- | ------------------------------------------------- | -------------------- | ------------- | -------------- | --------------: | -----------: | ------------: | ----------: | ------------: | ---------: | ---------- | ------------------------------------------------------- | ------------------- | -------- | -------------------- | | 128 | 29/05/2026, 10:30:00 | CASE-001 | [analyst@example.com](mailto:analyst@example.com) | Manual Investigation | 185.220.101.1 | ip | 100 | 12 | 3 | 50 | 20 | 90 | High | Block or monitor the indicator and review related logs. | Telegram alert sent | Notified | AbuseIPDB score: 100 | ### IP Test { "indicator": "185.220.101.1", "source": "Manual Investigation", "caseId": "CASE-001", "submittedBy": "analyst@example.com" } Expected result: IOC detected as IP AbuseIPDB enrichment runs VirusTotal IP report runs Risk score is calculated Google Sheets report is saved Telegram alert is sent if risk is High or Critical ### URL Test { "indicator": "http://fake-login-security-example.com/verify", "source": "Phishing Investigation", "caseId": "CASE-002", "submittedBy": "analyst@example.com" } Expected result: IOC detected as URL VirusTotal URL submission runs Workflow waits for analysis VirusTotal URL analysis is retrieved Risk score is calculated Google Sheets report is saved Telegram alert is sent if risk is High or Critical ### Domain Test { "indicator": "example.com", "source": "Domain Investigation", "caseId": "CASE-003", "submittedBy": "analyst@example.com" } Expected result: IOC detected as Domain VirusTotal domain report runs Risk score is calculated Google Sheets report is saved Telegram alert is sent if risk is High or Critical ### Unsupported IOC Test { "indicator": "not-a-valid-ioc", "source": "Manual Test", "caseId": "CASE-004", "submittedBy": "analyst@example.com" } Expected result: IOC detected as unknown Unsupported IOC is saved in Google Sheets No enrichment API is called No Telegram alert is sent ## cURL Test Examples ### IP Test curl -X POST "https://crmsolutions.app.n8n.cloud/webhook-test/threat-intel-ioc" \ -H "Content-Type: application/json" \ -d '{ "indicator": "185.220.101.1", "source": "Manual Investigation", "caseId": "CASE-001", "submittedBy": "analyst@example.com" }' ### URL Test curl -X POST "https://crmsolutions.app.n8n.cloud/webhook-test/threat-intel-ioc" \ -H "Content-Type: application/json" \ -d '{ "indicator": "http://fake-login-security-example.com/verify", "source": "Phishing Investigation", "caseId": "CASE-002", "submittedBy": "analyst@example.com" }' ### Domain Test curl -X POST "https://crmsolutions.app.n8n.cloud/webhook-test/threat-intel-ioc" \ -H "Content-Type: application/json" \ -d '{ "indicator": "example.com", "source": "Domain Investigation", "caseId": "CASE-003", "submittedBy": "analyst@example.com" }' ### Unsupported IOC Test curl -X POST "https://crmsolutions.app.n8n.cloud/webhook-test/threat-intel-ioc" \ -H "Content-Type: application/json" \ -d '{ "indicator": "not-a-valid-ioc", "source": "Manual Test", "caseId": "CASE-004", "submittedBy": "analyst@example.com" }' ## Repository Screenshots Add your screenshots below. ### IP Enrichment Execution  ### URL Enrichment Execution  ### Domain Enrichment Execution  ### Threat Intel Report Sheet  ## Security and Business Value This project demonstrates an advanced threat intelligence enrichment workflow. It helps security analysts automate repetitive IOC triage tasks by: * receiving IOCs from external systems or analysts * detecting IOC type automatically * enriching IPs, URLs, and domains * calculating a consistent risk score * logging results in a central report * sending alerts only when risk is high * keeping unsupported submissions traceable * SOC automation * threat intelligence operations * incident response triage * phishing investigations * firewall investigation workflows * suspicious domain analysis * case enrichment pipelines ## Possible Real-World Use Cases This workflow can be adapted for: * SIEM alert enrichment * phishing email IOC analysis * firewall alert triage * suspicious IP/domain review * SOC analyst manual submissions * security case enrichment * incident response investigation support * automated blocklist review ## Future Improvements Possible upgrades: * Add URLScan.io enrichment * Add WHOIS enrichment * Add DNS resolution enrichment * Add ASN and geolocation enrichment * Add CISA KEV or CVE correlation * Add multiple IOC batch processing * Add support for file hashes * Add support for IPv6 * Add support for email indicators * Add Slack or Microsoft Teams alerts * Add Jira/Trello/Notion ticket creation * Add duplicate IOC detection * Add case status tracking * Add analyst approval workflow * Add automatic blocklist update * Add dashboard reporting * Add scheduled threat intel summary reports ## Security Notes Before using this in production: * Protect the Webhook with authentication or a secret token. * Do not expose API keys in screenshots or GitHub. * Use n8n credentials or environment variables for secrets. * Review AbuseIPDB and VirusTotal API rate limits. * Avoid submitting sensitive internal indicators to third-party APIs without approval. * Validate incoming payloads. * Add error handling for API failures. * Add retry logic for temporary API errors. * Add deduplication to avoid repeated alerts. * Protect Google Sheets access permissions. * Treat this workflow as an enrichment aid, not a complete detection system. ## Project Status Current version: working advanced demo Implemented: * Webhook IOC intake * IOC normalization * IOC type detection * IP enrichment branch * URL enrichment branch * Domain enrichment branch * Unsupported IOC logging * AbuseIPDB integration * VirusTotal integration * Threat risk scoring * Google Sheets reporting * High/Critical risk IF logic * Telegram alerting * Google Sheets status update after alert ## Author Built by **Iosif Castrucci** GitHub: `iosif-castrucci-hub` Email: `contact.iosifcastrucci@gmail.com` ## Disclaimer This project is a demo cybersecurity automation workflow created for portfolio and educational purposes. It is not a complete SOC, SIEM, SOAR, or threat intelligence platform and should not be used as the only method for making security decisions in production environments. For production use, add authentication, input validation, error handling, deduplication, case management, secure credential storage, audit logging, and a formal incident response process. ## License This repository is intended for portfolio and educational purposes. You may adapt the workflow structure for your own projects.
