markobel/kkt-kolbe-homeassistant

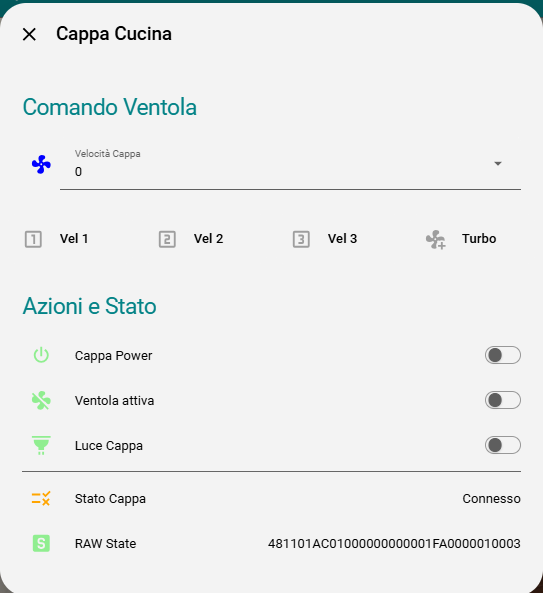

# KKT KOLBE Hood → Home Assistant (Hekr cloud bridge) Control a **KKT KOLBE** range hood (and likely other **Hekr / WISEN** WiFi appliances) from **Home Assistant** — **without any hardware modification**. KKT discontinued the WISEN app, leaving these hoods half-bricked: the WiFi still works, but there's no official way to control them anymore. This project puts a small transparent proxy between the hood and the Hekr cloud, exposing the hood to Home Assistant over MQTT with auto-discovery.  ## Features - Transparent MITM proxy: hood ↔ **bridge** ↔ Hekr cloud - Home Assistant **MQTT auto-discovery** (switch, select, fan, sensors) - Inject commands (power / light / speed) toward the hood - Live logging of the full Hekr JSON protocol for further reverse engineering - Interactive REPL to map unknown command IDs - Runs as a tiny Docker container ## Entities exposed in Home Assistant | Entity | Type | Notes | |---|---|---| | Power | `switch` | master on/off (fan + light) — cmdId `0x02` | | Light | `switch` | light only — cmdId `0x03` | | Speed | `select` | 0 / 1 / 2 / 3 / 4 — cmdId `0x04` | | Fan | `fan` | same as speed, exposed as a fan with percentage | | Connected | `binary_sensor` | online / offline | | Raw state | `sensor` | last raw hex frame (diagnostic) | | Sequence | `sensor` | device frame counter (diagnostic) | ## How it works The hood contains an **ESP-based Hekr WiFi module**. It opens a plain-text TCP connection to the Hekr cloud (no TLS) and exchanges line-delimited JSON: device -> cloud : {"msgId":..,"action":"heartbeat"} device -> cloud : {"msgId":..,"action":"devSend","params":{... "raw":"4811..."}} cloud -> device: {"msgId":..,"action":"appSend","params":{... "raw":"4807..."}} - `devSend.raw` is the **status** frame the hood reports. - `appSend.raw` is a **command** the cloud sends to the hood. - Each `raw` is a short binary payload, hex-encoded. By redirecting the hood's cloud traffic to this bridge (a single DNAT rule on your router), the bridge can read every status update and inject its own commands, while still forwarding everything to the real cloud so the hood keeps working normally. ### Status frame layout (KKT KOLBE FREE) 17 bytes, e.g. `4811 01 23 01 01 00 01 02 00 01 FA 00 00 01 00 7E`: | Offset | Meaning | |---|---| | 0 | `0x48` magic | | 1 | length (`0x11` = 17) | | 2 | frame type | | 3 | sequence counter | | 6 | light (0/1) | | 7 | **speed (0..4)** | | 9–14 | filter / counter block | | 16 | checksum = `sum(prev bytes) & 0xFF` | ### Command frame layout 7 bytes: `48 07 02 [seq] [cmdId] [value] [chk]`, checksum = `sum & 0xFF`. | cmdId | Function | |---|---| | `0x02` | master power (fan + light) | | `0x03` | light on/off | | `0x04` | fan speed (value 0..4) | ## Setup ### Requirements - A hood using the Hekr cloud (WISEN app), reachable on your LAN - A router where you can add a **DNAT** rule (examples: UniFi, OpenWrt, pfSense) - An MQTT broker (e.g. Mosquitto) - Home Assistant with the MQTT integration enabled - Docker + Docker Compose on a host on your network ### 1. Find your device identifiers You need three things: the **device IP**, the **devTid**, and the **ctrlKey**. Capture the hood's traffic (run on the router, or any host that can mirror it): tcpdump -i any -nn -s 0 -w hood.pcap 'host ' While capturing, toggle the hood from the WISEN app (or power-cycle it). Then inspect the JSON (the payloads are plain ASCII): tshark -r hood.pcap -Y 'tcp.len > 0' -T fields -e tcp.payload \ | while read p; do printf "%b\n" "$(echo "$p" | sed 's/\(..\)/\\x\1/g')"; done You'll see lines like: {"action":"devSend","params":{"devTid":"ESP_2M_AABBCCDDEEFF", ...}} {"action":"appSend","params":{"devTid":"ESP_2M_AABBCCDDEEFF", "ctrlKey":"<32 hex chars>", ...}} - `devTid` → `HEKR_DEV_TID` - `ctrlKey` → `HEKR_CTRL_KEY` - the IP the device connects to (`tcp.dstport == 83`) → `HEKR_CLOUD_HOST` ### 2. Configure git clone https://github.com/markobel/kkt-kolbe-homeassistant.git cd kkt-kolbe-homeassistant cp .env.example .env # edit .env with your devTid, ctrlKey, MQTT credentials, etc. nano .env ### 3. Redirect the hood to the bridge (DNAT) Send the hood's cloud traffic to the host running the bridge. Replace IPs/ports to match your setup. **Generic iptables (run on the router):** iptables -t nat -A PREROUTING \ -s -d \ -p tcp --dport 83 \ -j DNAT --to-destination :83 **UniFi (UDR/UDM)** — make it persistent with `on_boot.d` (requires [unifios-utilities](https://github.com/unifi-utilities/unifios-utilities)). Create `/data/on_boot.d/15-hekr-redirect.sh`: #!/bin/sh iptables -t nat -C PREROUTING -s -d \ -p tcp --dport 83 -j DNAT --to-destination :83 2>/dev/null || \ iptables -t nat -A PREROUTING -s -d \ -p tcp --dport 83 -j DNAT --to-destination :83 chmod +x /data/on_boot.d/15-hekr-redirect.sh /data/on_boot.d/15-hekr-redirect.sh ### 4. Run docker compose up -d --build docker compose logs -f hekr-bridge Force the hood to reconnect so it picks up the new route (power-cycle it, or flush the existing connection on the router, e.g. `conntrack -D -s `). You should see: Hekr bridge listening on 0.0.0.0:83 -> :83 MQTT: connected to ... MQTT: published 7 HA discovery entities === DEVICE CONNECT from ('', ...) === === CLOUD CONNECT to :83 ok === STATE CHG: ... The device appears in Home Assistant under **Settings → Devices & Services → MQTT**. ## Mapping more commands (REPL) The container runs an interactive REPL. Attach to it: docker attach hekr-bridge # detach with Ctrl+P then Ctrl+Q (NOT Ctrl+C) Then experiment: speed 1 speed 0 light 1 cmd 05 01 # try unknown command id 0x05 with value 1 state Watch the `STATE CHG` lines to see which byte changes, and map new features (RGB, filter reset, timer, etc.) for your model. Contributions welcome! ## Notes & caveats - The bridge still relies on the **real Hekr cloud** being reachable, because it forwards the login/handshake. If the cloud ever goes away, the captured handshake (`devLoginResp` → `reportDevInfoResp` → `getTimerListResp`) is enough to emulate it locally — PRs welcome. - The `uart timeout` responses you may see are cosmetic on this hardware: the command is executed and the hood reports the new state regardless. - Plain-text TCP, no TLS, no certificate pinning observed on the KKT KOLBE FREE. Your model may differ. ## Disclaimer ## License MIT — see [LICENSE](LICENSE).
