# threat-dash
[](./LICENSE)
[](./Dockerfile)
[](./Dockerfile)
[](./Dockerfile)
[](https://github.com/jtshor14899/threat-dash/issues)
[](https://github.com/jtshor14899/threat-dash/stargazers)
## How it compares
| Tool | What it does | What threat-dash adds |
| --- | --- | --- |
| [CrowdSec](https://crowdsec.net/) | Behaviour-based IPS, community feeds | Globe + outbound visibility + click-to-block at the CF edge instead of iptables |
| Cloudflare dashboard | The data itself | One pane covering inbound + outbound + intel, with a live feed and per-container attribution |
| [Shodan](https://shodan.io/) | Internet-scale scan data | We *consume* Shodan; we don't replace it. Combined with your own outbound list, it's per-destination intel |
| [WatchYourLAN](https://github.com/aceberg/WatchYourLAN) | LAN device discovery | Different scope — WYL is L2 inventory, threat-dash is L7 / external |
| [Grafana + Cloudflare Loki](https://grafana.com/) | DIY dashboarding | Threat-dash is the dashboard. No PromQL/LogQL to write |
## Quick start
# 1. clone
git clone https://github.com/jtshor14899/threat-dash.git
cd threat-dash
# 2. fill in API tokens (Cloudflare required for inbound data;
# Censys / GreyNoise / VT / Shodan optional but make the Intel page sing)
cp .env.example .env
$EDITOR .env
# 3. fetch the free GeoIP databases (~50 MB total, monthly refresh)
./scripts/setup-geoip.sh
# 4. up
docker compose up -d --build
# 5. (optional) seed with realistic synthetic data so the UI is interesting
# before any real Cloudflare events trickle in:
docker compose exec threat-dash python /scripts/seed-demo-data.py
The dashboard is now on `http://127.0.0.1:5959/`. **Don't expose 5959
publicly** — front with one of the deployment patterns below.
## Block backends
| Backend | Where the rule lives | Modes | Setup |
| ------------- | ------------------------ | ---------------------------------- | ----- |
| **Cloudflare**| Zone IP Access Rules | block, challenge (3 flavors), allow| Default — uses your existing `CF_DASH_TOKEN`. |
| **pfSense** | Host alias on your pfSense| block, allow | [docs/PFSENSE.md](docs/PFSENSE.md) — requires the `pfSense-pkg-RESTAPI` package. |
Backends are independent — you can run with one, the other, or both wired
up simultaneously. The Blocks tab dropdown lets you pick per rule.
## Endpoint visibility (Wazuh)
Threat-dash plugs into a **Wazuh** SIEM/XDR manager to surface agent inventory,
vulnerability findings, and file-integrity events in a dedicated **Endpoints**
tab. Strictly read-only — block decisions still go through Cloudflare or
pfSense; Wazuh is for visibility, not enforcement.
| Backend | Surface | What you get | Setup |
| -------- | --------------- | ------------------------------------------------------------ | ----- |
| **Wazuh**| Manager REST API| agent inventory, status KPIs, per-agent CVE drilldown, FIM | [docs/WAZUH.md](docs/WAZUH.md) — works with any Wazuh 4.x manager (single-node `wazuh-docker` is the quickest path). |
A bundled in-memory mock means you can try the Endpoints tab without
standing up a real Wazuh: `docker compose -f docker-compose.yml -f
docker-compose.mock.yml up -d`.
## Deployment patterns
Self-contained recipes for the homelab stacks people actually run. Pick one;
all live under [`examples/`](./examples).
| Pattern | When to use | TLS | Auth | Public? |
| --- | --- | --- | --- | --- |
| **[LAN only](./examples/lan-only-no-proxy/)** | First try / trusted LAN+VPN | ❌ | none | no |
| **[Tailscale sidecar](./examples/tailscale-sidecar/)** | You already use Tailscale | ✓ | tailnet ACLs | no (yes via Funnel) |
| **[Traefik](./examples/traefik/)** | Already on Traefik (the *arr/Jellyfin stack) | ✓ Let's Encrypt | forward-auth | optional |
| **[Caddy](./examples/caddy/)** | Already on Caddy | ✓ Let's Encrypt | forward-auth | optional |
| **[Nginx Proxy Manager](./examples/nginx-proxy-manager/)** | You like the NPM GUI | ✓ Let's Encrypt | NPM access lists | optional |
| **[Cloudflare Tunnel](./examples/cloudflare-tunnel/)** | Public access without port-forwarding | ✓ CF edge | Cloudflare Access SSO | **yes** ✓ |
| **[Authelia / Authentik](./examples/authelia-forward-auth/)** | You run your own SSO | depends on proxy | TOTP/WebAuthn | optional |
**Recommended for most homelabs**: `tailscale-sidecar` (quickest) or
`cloudflare-tunnel + cloudflare-access` (most polished, public-safe).
## Architecture
┌──── Cloudflare edge ────┐ ┌──── Wazuh manager ────┐
│ GraphQL Analytics │ │ REST API :55000 │
│ Firewall events │ │ agents / vulns / FIM │
│ Access audit log │ │ JWT auth, cached │
└────────────┬────────────┘ └──────────┬─────────────┘
│ │
▼ 60s poll ▼ on-demand
┌──────────────────────────────────────┐ ┌──────────────────┐
│ collector.py (background thread) │ │ wazuh_client.py │
│ + outbound_collector.py (sidecar) │ │ (per-request) │
└────────────────────┬─────────────────┘ └────────┬─────────┘
▼ │
┌──────────────────────────────────────┐ │
│ GeoIP / ASN (DB-IP Lite mmdb, free) │ │
│ Auto-enrich (GreyNoise + Censys) │ ← 5/tick │
└────────────────────┬─────────────────┘ │
▼ │
┌─── SQLite (WAL, /data) ────┐ │
│ events, blocks, recon │ │
│ vt_cache, scans, settings │ │
└──────────────┬─────────────┘ │
▼ │
┌──────────────────────────────────────────────────┴─────┐
│ server.py — stdlib http.server │
│ REST + Server-Sent Events on :5959 │
└─────┬───────────────────────┬───────────────────────────┘
▼ ▼
┌────────────────────┐ ┌──────────────────────┐
│ Cloudflare API │ │ pfSense REST API v2 │
│ IP Access Rules │ │ host-alias mutate │
│ (per-IP rules) │ │ + apply │
└────────────────────┘ └──────────────────────┘
▲ ▲
│ click-to-block │
└───── from any IP row ─┘
your reverse proxy
▼
browser (globe.gl + drawer UI)
## Configuration
Two ways to configure threat-dash — pick whichever fits your workflow:
1. **Via the Settings UI** (⚙ in the header, or press `,`). Edit API
tokens, homelab branding, self-detection, and outbound rules from the
dashboard. Changes apply on the next API call — no container restart.
Secrets are **masked on the wire** (only last 4 chars ever leave the
server). Per-provider "Test" buttons verify each token at the source.
2. **Via `.env`** (classic). Env vars always win over UI-set values — the
Settings page shows them as "locked from env". Existing deployments are
unaffected.
See [`.env.example`](./.env.example) for the full list. Highlights:
| Variable | Required? | Notes |
| --- | --- | --- |
| `CF_DASH_TOKEN`, `CF_ZONE_ID`, `CF_ACCOUNT_ID` | for inbound | Cloudflare API. Scopes documented in `.env.example`. |
| `HOMELAB_LAT`, `HOMELAB_LON`, `HOMELAB_LABEL` | recommended | Globe pin location + brand text in the header |
| `VT_API_KEY` | optional | VirusTotal v3 free tier (500 lookups/day) |
| `SHODAN_API_KEY` | optional | Free `oss` tier — region surface + facet drill |
| `CENSYS_TOKEN` | optional | Censys Platform PAT (per-host enrichment, free) |
| `CENSYS_API_ID` + `CENSYS_API_SECRET` | optional | Censys Search v2 (250 queries/month, free) |
| `GREYNOISE_API_KEY` | optional | Community works keyless; auth bumps rate limit |
| `SELF_EMAILS`, `SELF_IPS`, `SELF_ASN_PREFIXES` | optional | Hide your own traffic |
| `OUTBOUND_EXTRA_RANGES` | optional | Comma-separated CIDRs to treat as internal |
| `DEMO_MODE` | optional | `1` disables all live polling — for screenshots |
## API providers — what's free, what's not
| Provider | Free | Paid required for |
| --- | --- | --- |
| **VirusTotal** | 500 v3 lookups/day | Higher quota, hunting |
| **Censys Platform** | per-host enrichment (PAT) | Search, aggregate |
| **Censys Search v2** | 250 search queries/mo | Bulk results, higher quota |
| **GreyNoise** | community classify (50/day keyless) | RIOT context, hunt |
| **Shodan** | `/host/count` + facets (`oss` plan) | `/host/`, `/host/search` |
Anything you don't have a key for is hidden in the UI with a tooltip
explaining why. Threat-dash always degrades gracefully — you can run with
just Cloudflare + DB-IP and still get a useful dashboard.
## REST + SSE endpoints
The UI is a thin client over a small REST API:
GET /api/stats?range=24h&self=hide&direction=in|out
GET /api/arcs?range=24h&limit=400
GET /api/events?range=24h&limit=200
GET /api/intel/outbound?range=24h&limit=250
GET /api/signins?range=24h
GET /api/containers?container=&range=24h
GET /api/blocks
POST /api/block {ip, mode?, reason?, expires_at?}
DEL /api/blocks/
PATCH /api/blocks/ {mode?, reason?, expires_at?}
GET /api/recon/status
GET /api/shodan/surface?base=
GET /api/shodan/drill?base=&category=
GET /api/shodan/host/
GET /api/censys/host/
GET /api/recon/search?q=&per_page=25
GET /api/greynoise/
GET /api/vt/{ip,domain,hash,url}/
POST /api/scan {ip, profile=common|extended, force?}
GET /stream Server-Sent Events
GET /healthz 200 ok (used by HEALTHCHECK)
Useful for scripting threat-dash into bigger SOAR-y workflows — e.g. block a
list of IPs from a Slack slash-command.
## Performance
The frontend is opinionated about not melting your browser:
- SSE events are batched on a 200 ms rAF tick (no per-event re-renders).
- Globe redraws throttled to ~3 fps regardless of feed velocity.
- `renderStats` short-circuits when the data signature is unchanged.
- Periodic refresh slows to 2 min when `document.hidden`.
- All list updates use `DocumentFragment` + `replaceChildren`.
The Python server:
- One process, threaded `HTTPServer`. SSE clients each get a bounded
`queue.Queue` so a slow consumer can't back up the broadcast.
- SQLite WAL with a single `threading.Lock` for writes; reads are
unsynchronised.
- Outbound enrichment is rate-limited to 5 IPs/tick (every 60 s) so the
free-tier API quotas can't be blown by a sudden burst of new
destinations.
On a modest VM (2 vCPU / 2 GB) with ~60 k events/day, RSS sits around 80 MB.
## Security
Threat-dash is a security tool. It deserves a high bar.
- **Never expose port 5959 publicly without auth in front.** There is no
user model. Anyone with the URL can block IPs at your Cloudflare edge.
- Runs as **non-root** (UID 1000) in a multi-stage image with all Linux
capabilities dropped and `no-new-privileges:true`.
- `HEALTHCHECK` on `/healthz` so orchestrators notice when it's wedged.
- Outbound TCP scanner is **operator-triggered**, connect+banner only — no
exploitation paths. Confirm scanning is OK in your jurisdiction.
- `.env` is git-ignored; rotate the Cloudflare token quarterly.
Full threat model + hardening checklist in
[`docs/SECURITY-HARDENING.md`](./docs/SECURITY-HARDENING.md).
Reporting a vulnerability: [`SECURITY.md`](./SECURITY.md).
## Roadmap
- [ ] Built-in basic-auth / proxy-header auth for users not fronting with
their own proxy
- [ ] Saved query bundles ("weekly region attack-surface diff")
- [ ] ntfy / Slack / Discord webhook on threat-score thresholds
- [ ] Cross-reference outbound CVEs with Trivy SBOM scans of your images
- [ ] Image published to GHCR for pull-not-build deploys
- [ ] More providers: AbuseIPDB, AlienVault OTX, IPinfo Lite
Open an issue if you want to vote one up or propose a different one.
## License
[MIT](./LICENSE). The runtime DB-IP Lite databases are CC-BY 4.0 by
[db-ip.com](https://db-ip.com).
Built for homelab operators by a homelab operator. If this saved you
from getting credential-stuffed by a botnet, [⭐ star the repo][stars] —
that's the only marketing budget we have.
(Run scripts/seed-demo-data.py to populate a copy with realistic synthetic data — see SCREENSHOTS.md.)

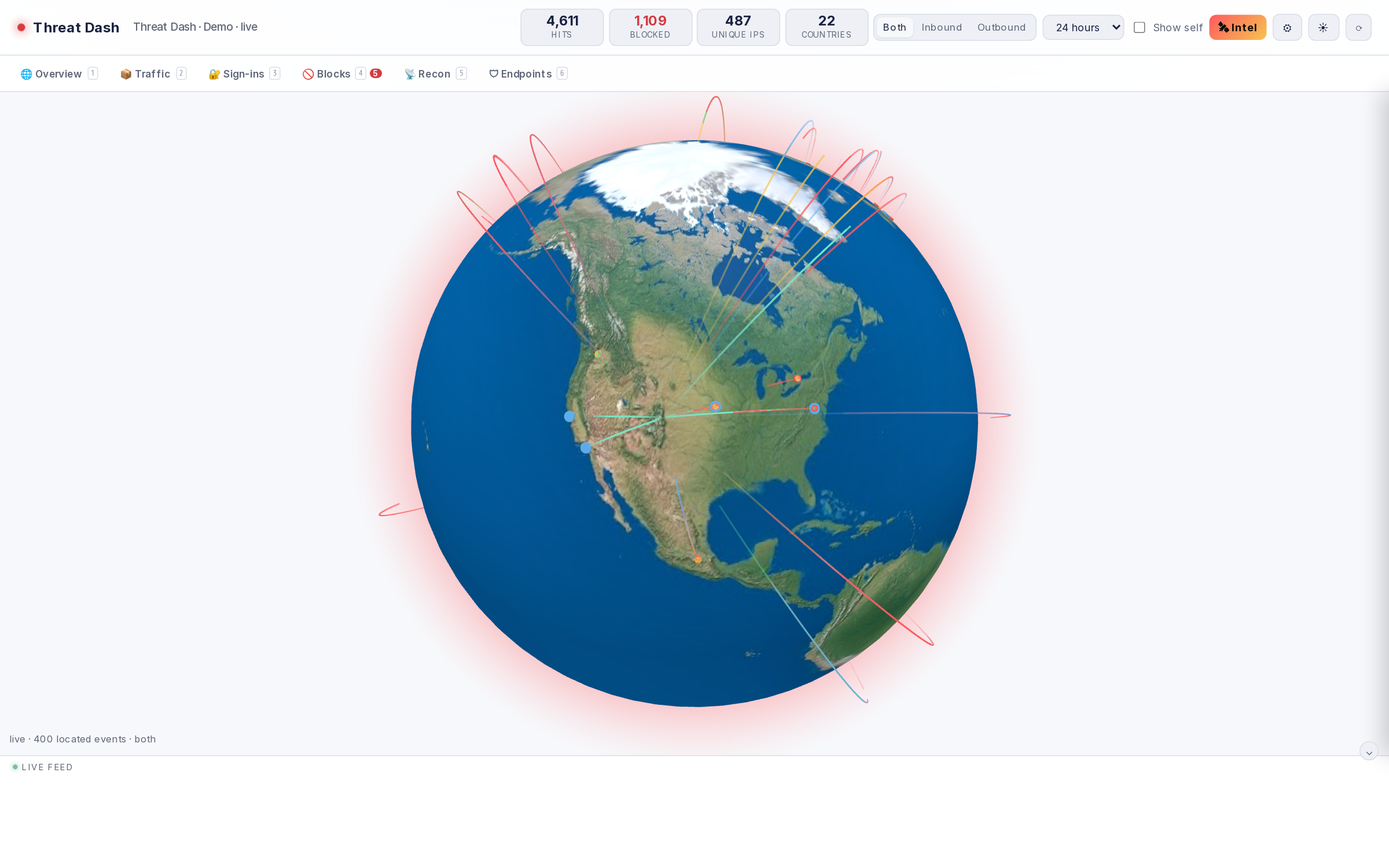

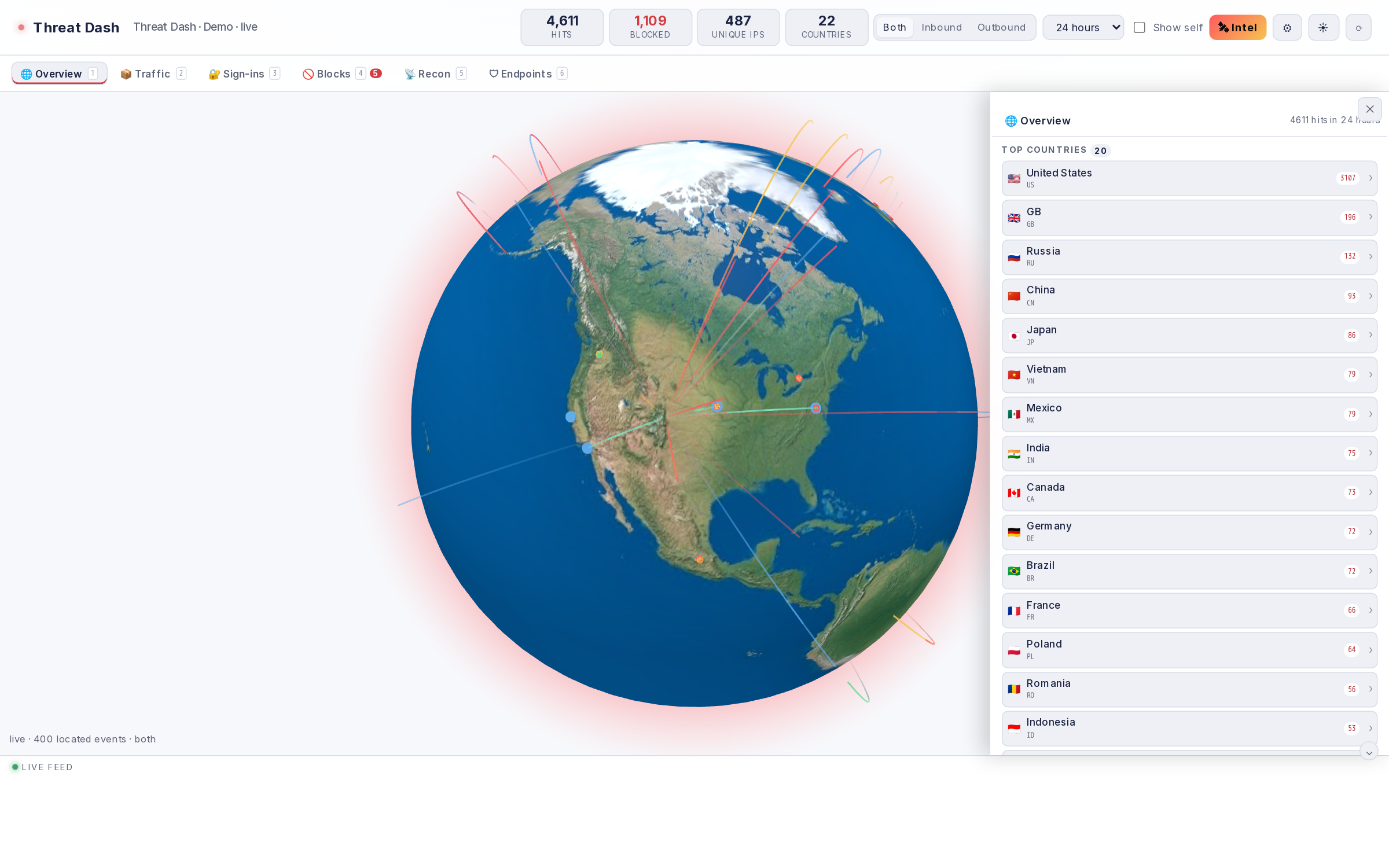

Overview — animated globe + top-attacker country list, opened in the right-side drawer |

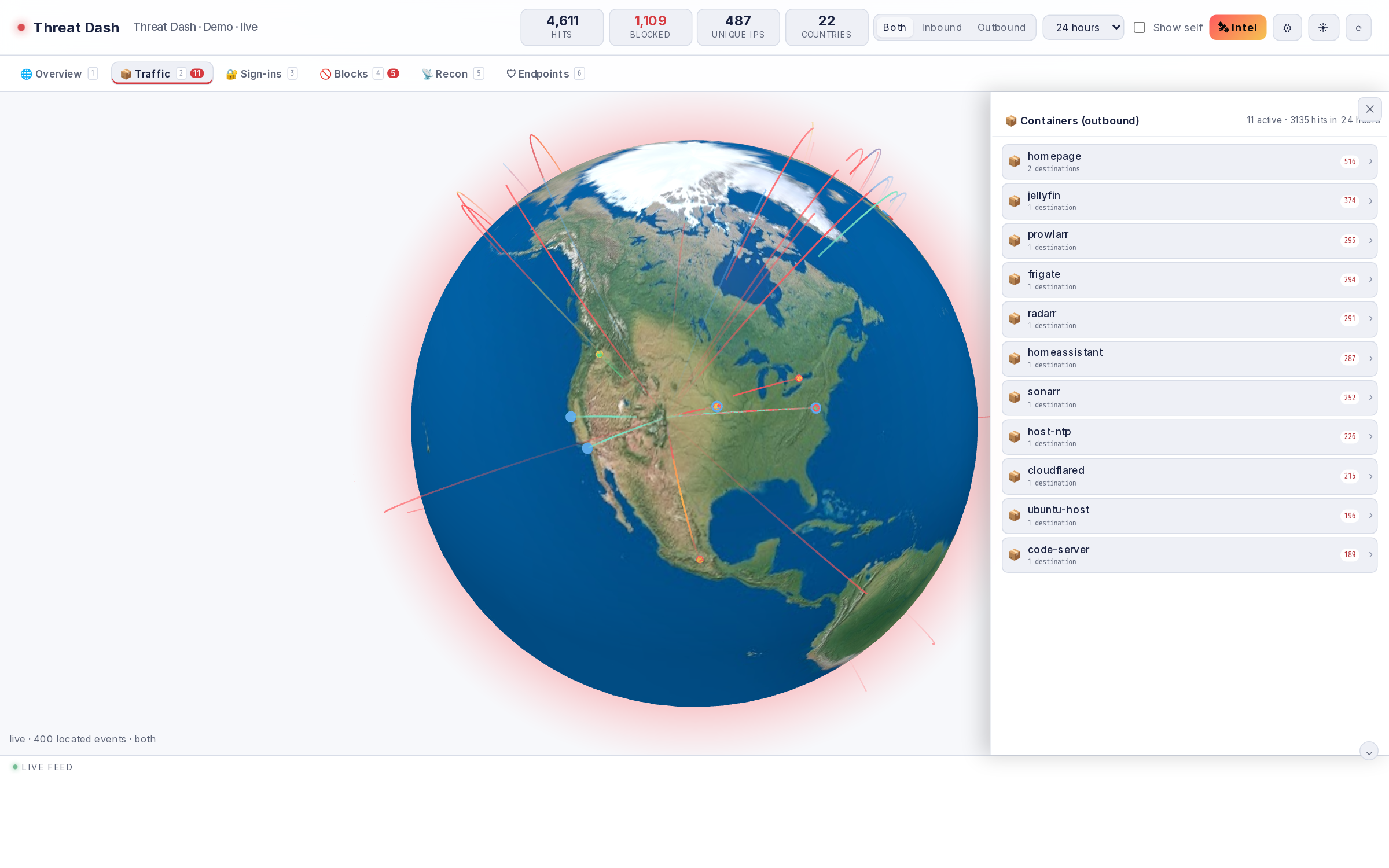

Traffic — per-container outbound destinations, ranked |

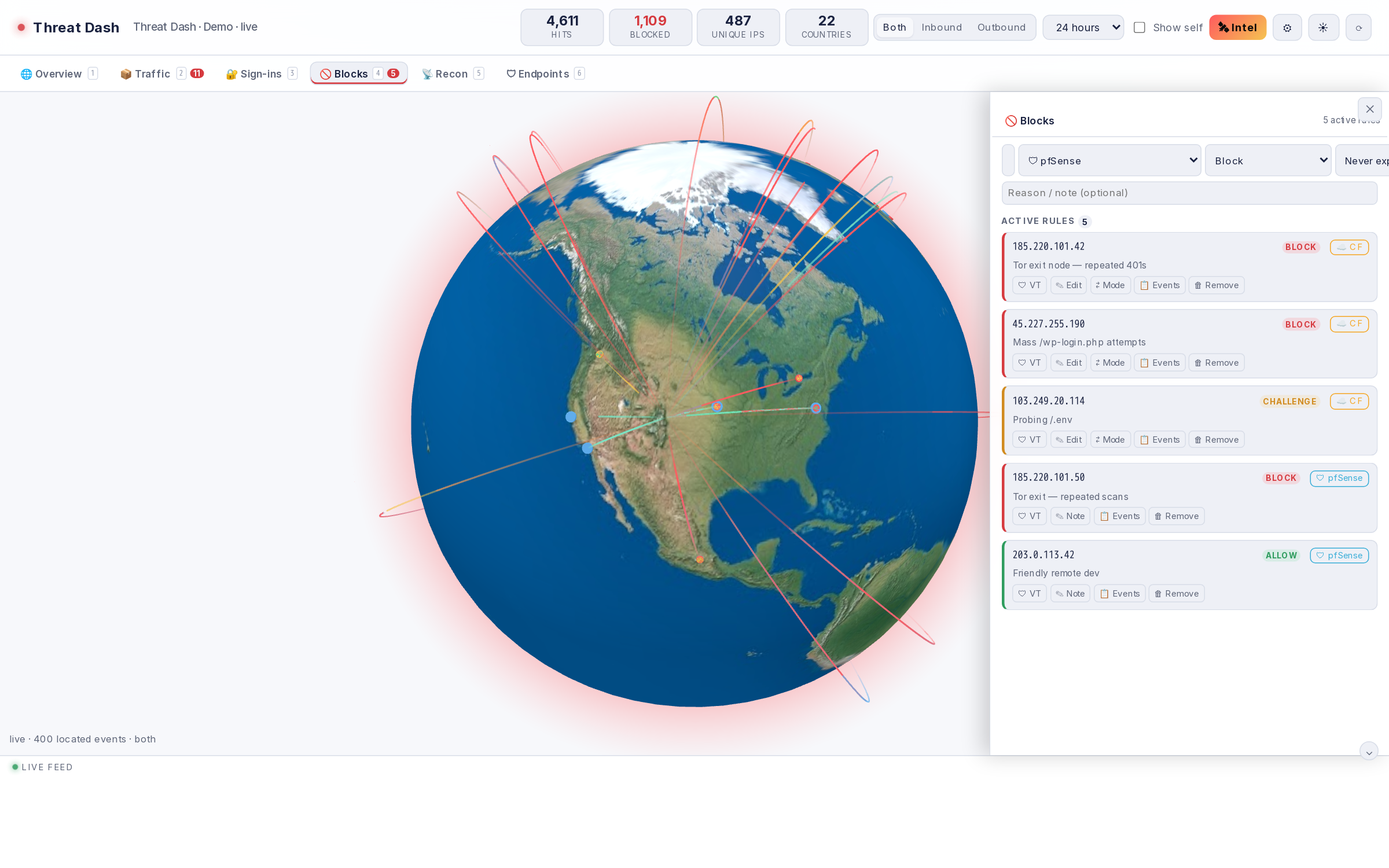

Blocks — Cloudflare and pfSense rules in one list, backend-badged |

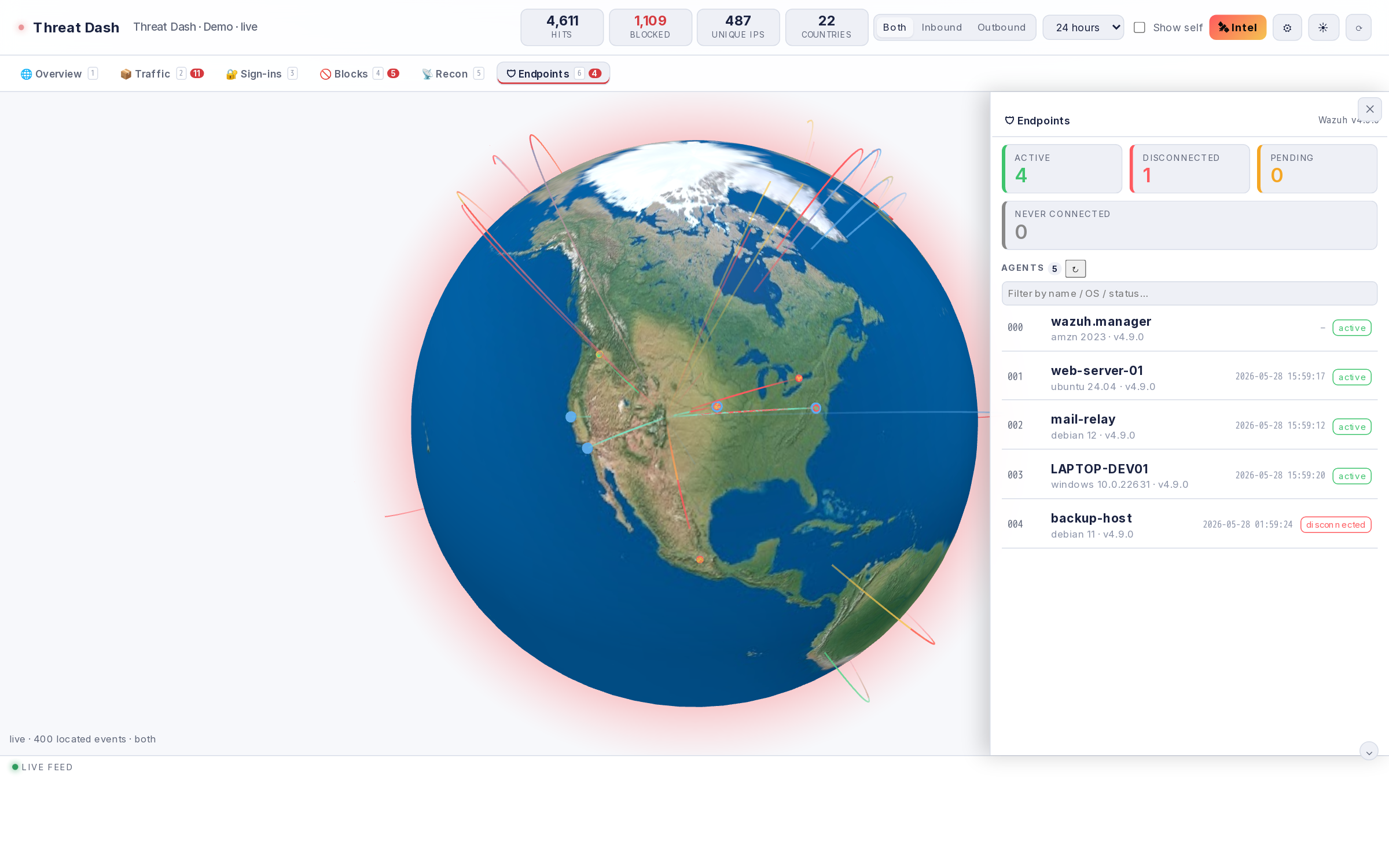

Endpoints — Wazuh agent fleet, status KPIs, CVE drilldown NEW |

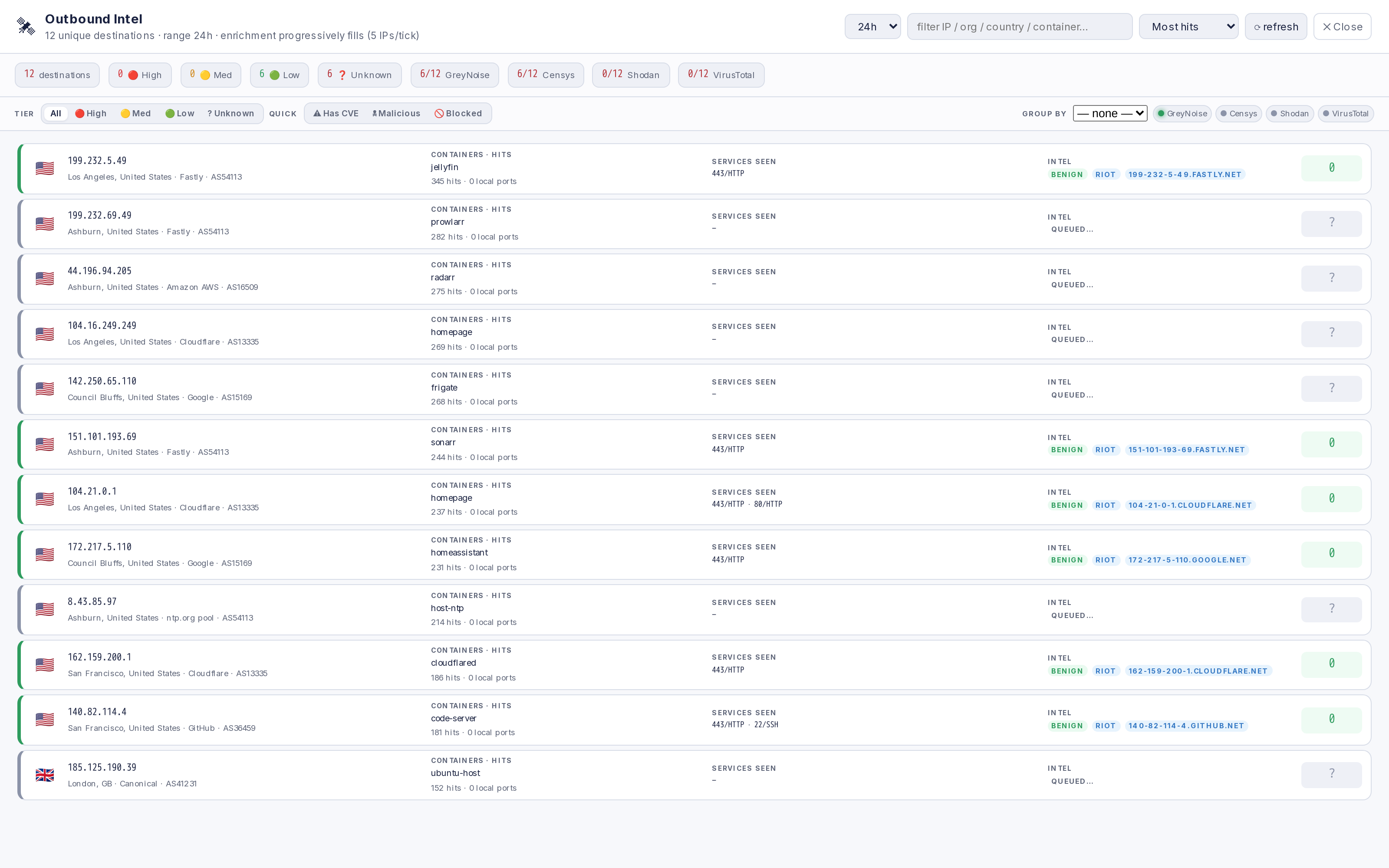

Outbound Intel — GreyNoise / Censys / Shodan / VT enrichment |

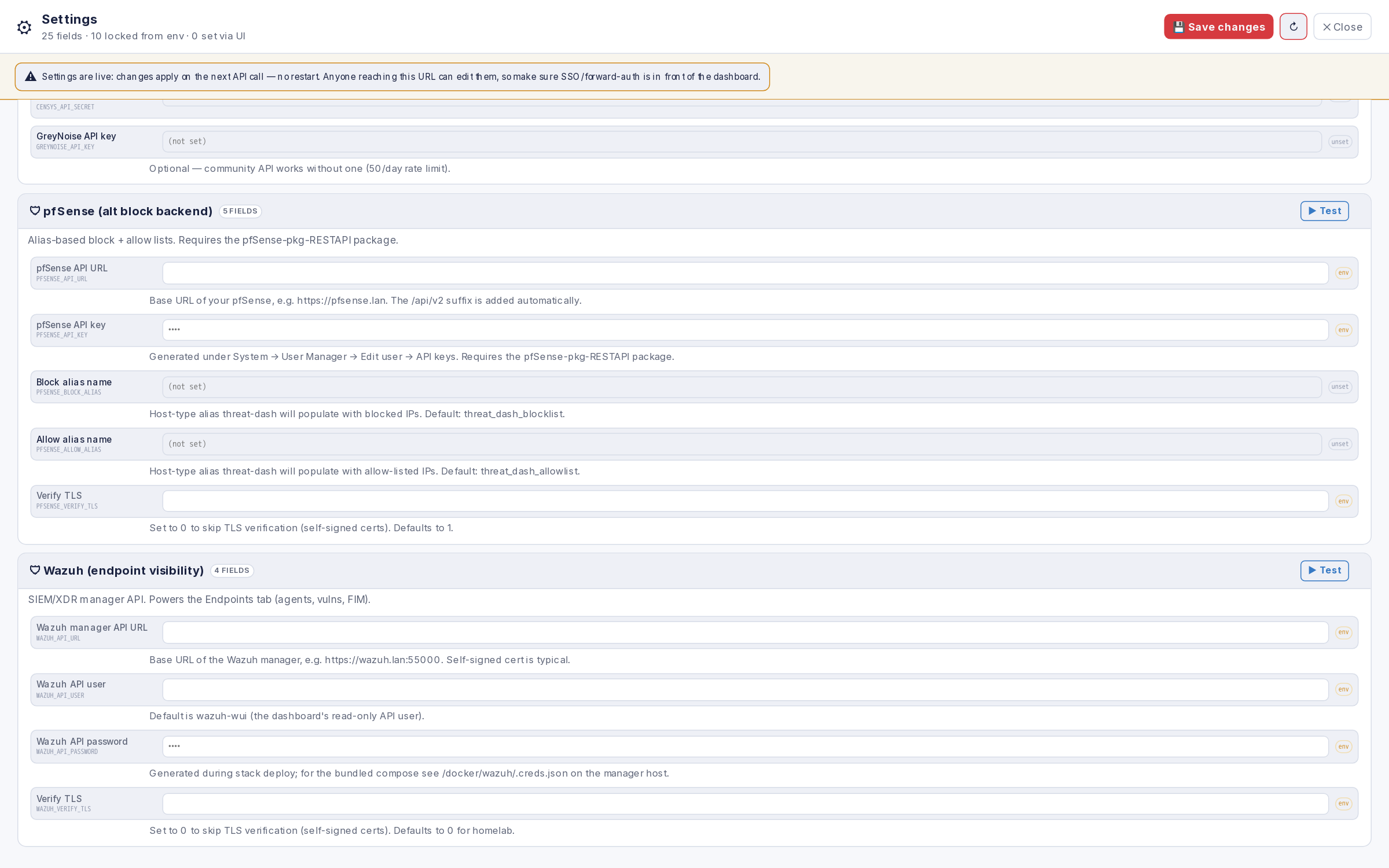

Settings — every credential & toggle (Cloudflare, Shodan, Censys, GreyNoise, pfSense, Wazuh) editable at runtime, no restart. Env vars win and are marked locked. |
