# drag-lint
[](https://github.com/Alexl-git/Delphi-RAG-Lint/releases)
[](LICENSE)
A symbol-aware retrieval + lint + refactoring + IDE-integration tool for Delphi.
Pure Object Pascal at runtime -- no Python, Node, or Rust. No cloud AI.
**Use it as:** CLI tool · LSP server (Zed / VS Code) · MCP server (Claude / Cursor) · RAD Studio 13 plugin.
Built on [`tree-sitter-delphi13`](https://github.com/Alexl-git/tree-sitter-delphi13)
(sibling project) and a vendored Pascal binding for libtree-sitter.
## Quick start
### Standalone CLI
1. Download the [latest release](https://github.com/Alexl-git/Delphi-RAG-Lint/releases)
(`drag-lint.exe` + `tree-sitter*.dll`).
2. Put them in the same directory.
3. Index a Delphi project:
drag-lint index C:\Projects\MyApp --db myapp.sqlite

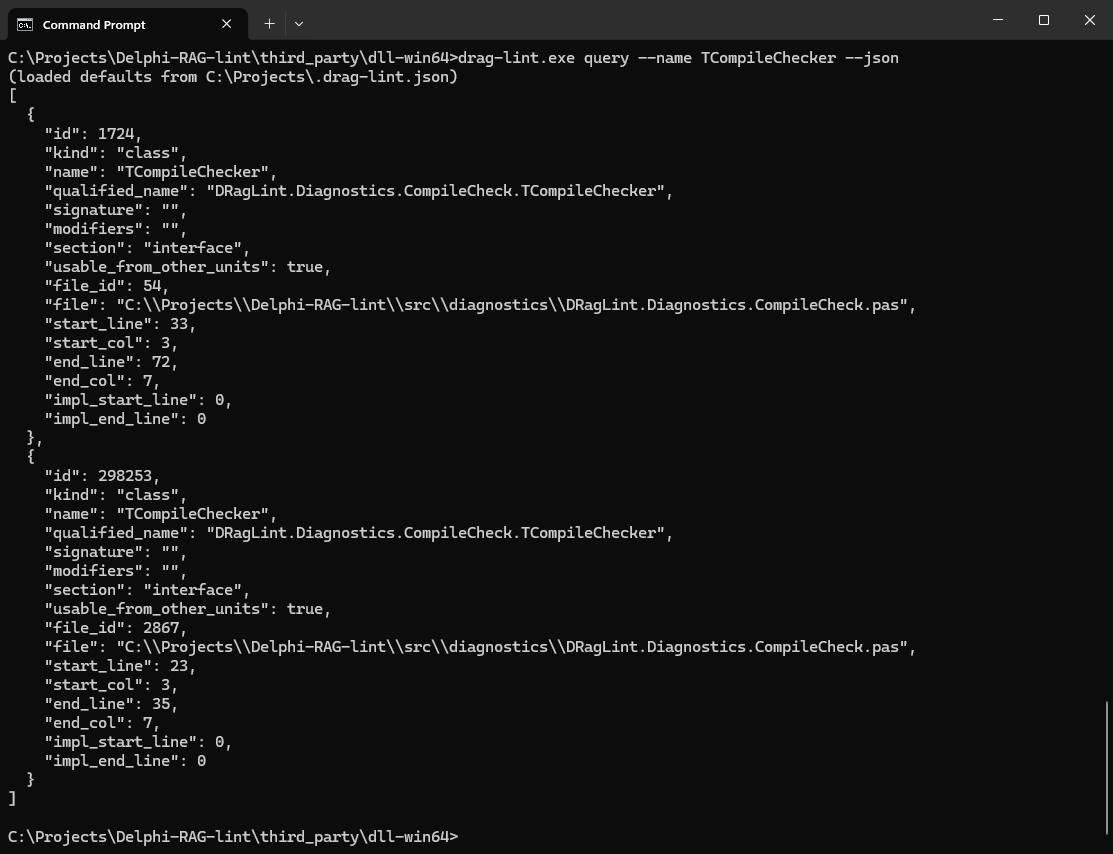

4. Query symbols:
drag-lint query --name TFoo --db myapp.sqlite
drag-lint surface --qname Unit.TFoo --db myapp.sqlite
drag-lint impact --qname Unit.TFoo.DoBar --db myapp.sqlite
### LSP server (Zed / VS Code)
Point your editor's LSP config at `drag-lint.exe lsp --db .sqlite`.
The server speaks JSON-RPC over stdio.
Capabilities: hover, definition, references, completion, signatureHelp,
diagnostics (publishDiagnostics on didSave), workspaceSymbols.
### MCP server (Claude / Cursor)
Add to your MCP config (e.g. `~/.claude/claude_desktop_config.json`):
{
"drag-lint": {
"command": "drag-lint.exe",
"args": ["serve", "--db", "C:\\Projects\\MyApp\\.drag-lint.sqlite"]
}
}
14+ tools are then available to Claude: `find_symbol`, `find_callers`,
`get_symbol_doc`, `get_context_bundle`, `rename_symbol`, `run_compile_check`,
and more (see [MCP tools](#mcp-tools-14) below).

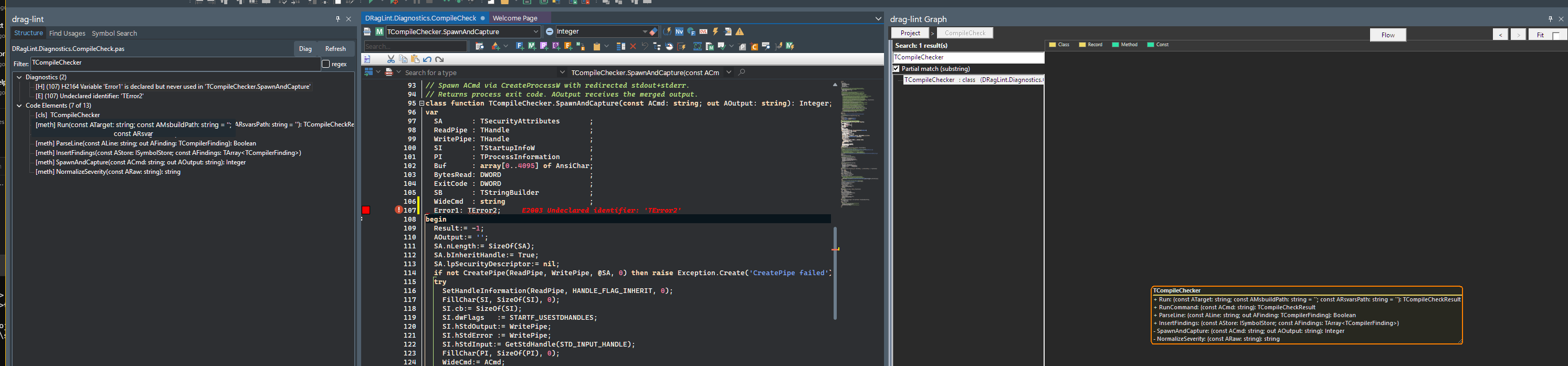

### RAD Studio 13 plugin
1. Build the BPL:
msbuild src/delphi-plugin/dclDragLintWizard.dproj /p:Platform=Win64 /p:Config=Debug
Or download `dclDragLintWizard.bpl` from the latest GitHub release.
2. In RAD Studio: **Component > Install Packages > Add** -- browse to the BPL.
3. Restart RAD Studio.
4. The **Tools > drag-lint** menu now has 12+ entries.
## Features
### CLI (~25 commands)
| Command | Description |
|---------|-------------|
| `index ` | Parse and index a Delphi project into SQLite |
| `query --name ` | Find symbols by name (fuzzy) |
| `surface --qname ` | Show the full source surface of a symbol |
| `slice --qname ` | Extract the call-slice reachable from a symbol |
| `impact --qname ` | Show everything that would be affected by changing a symbol |
| `hover --file --line --col ` | Hover info at a source position |
| `rename --qname
--new-name` | Preview or apply a symbol rename | | `generate-docs --qname ` | Generate an XML doc-comment stub | | `generate-test --qname` | Generate a test-method stub | | `find-deadcode` | List symbols with no callers outside their own unit | | `compile-check` | Run msbuild and store diagnostics in the DB | | `import-log ` | Import a saved msbuild log into the DB | | `format ` | Format a .pas file with the YADF formatter | | `check-ast ` | Run tree-sitter lint rules without compiling | | `lint ` | Run all built-in + external .scm rules | | `find-callers --name ` | List every call-site for a symbol | | `workspace index` | Index all projects in a workspace config | | `workspace status` | Show per-project file counts | | `workspace add ` | Add a project to the workspace config | | `context --qname ` | Emit a compact context bundle for AI prompts | | `bench-context` | Benchmark context bundle throughput | | `lsp [--db ]` | Start the LSP server (stdio) | | `serve [--db ]` | Start the MCP server (stdio) | | `--version` | Print version | | `--help` | Print help | ### MCP tools (14+) | Tool | Description | |------|-------------| | `find_symbol` | Search the index by name | | `find_callers` | List all call-sites for a symbol | | `get_symbol_doc` | Retrieve the doc-comment for a symbol | | `get_context_bundle` | Compact context bundle for AI consumers | | `rename_symbol` | Preview or apply a symbol rename | | `run_compile_check` | Trigger msbuild and return diagnostics | | `import_log` | Import a saved build log | | `run_ast_checks` | Run AST lint rules on a file | | `format_file` | Format a source file with YADF | | `get_surface` | Full source surface of a symbol | | `get_impact` | Call-impact set for a symbol | | `get_slice` | Reachable call-slice | | `workspace_status` | Workspace project/file summary | | `workspace_index` | Re-index all workspace projects | ### Lint rule pack (~13 built-in rules) | Rule id | Severity | Description | |---------|----------|-------------| | `writeln-in-source` | info | Direct `WriteLn` -- use a logger | | `goto-statement` | warning | `goto` considered harmful | | `with-statement` | info | `with` makes scope ambiguous | | `nested-with` | warning | Nested `with` -- scope ambiguity compounds | | `empty-procedure-body` | info | Empty `begin..end` block | | `large-magic-number` | info | Unaliased numeric literal | | `case-magic-numbers` | info | Integer literal as `case` label | | `string-equality-comparison` | info | `=` comparison on string expressions | | `parser-error` | error | Tree-sitter `ERROR` node (malformed syntax) | | `compiler-magic-comments` | info | TODO/FIXME/HACK/XXX in a comment | | `assert-call` | info | `Assert()` -- ensure descriptive second argument | | `boolean-comparison-true` | info | `X = True` or `X = False` -- redundant | | `redundant-as-tobject` | info | `(X as TObject)` -- every object is already TObject | | `inherited-bare` | info | Bare `inherited;` -- verify it calls the right ancestor | Drop custom `.scm` + `.json` pairs in the `rules/` directory; see [rules/README.md](rules/README.md) for the schema. ### RAD Studio plugin **Tools menu** (12 entries): Hover at Cursor, Show Completion, Show Signature Help, Run Diagnostics, Rename Symbol, Compile & Diagnose, Import Build Log, Format with YADF, Show Structure, Run AST Checks, Find Usages, Symbol Search, Settings. **Keystroke bindings** (registered via `IOTAKeyBindingServices`): | Shortcut | Action | |----------|--------| | Ctrl+Alt+H | Hover at Cursor | | Ctrl+Alt+C | Show Completion | | Ctrl+Alt+S | Show Signature Help | | Ctrl+Alt+D | Run Diagnostics | | Ctrl+Alt+I | In-editor diagnostic hint popup | | Ctrl+Alt+R | Rename Symbol | | Ctrl+Alt+F | Find Usages | | Ctrl+Alt+T | Symbol Search | **In-editor diagnostics**: gutter dot markers + wavy underlines via `IOTAEditViewNotifier.BeforeDrawLine`. Severity colours from the IDE colour scheme registry. **Hover tooltip** (v0.35): a 200ms timer shows `Application.HintWindow` with the diagnostic message when the cursor is stable for 600ms over a row that has a diagnostic. Caret-based (not pixel-precise). Toggle via Settings. **Code lens** (v0.32): dim grey `[N callers]` text next to method declarations. **Structure form** (v0.30): floating `fsStayOnTop` form showing the symbol tree of the active file, updated on view activation. **Find Usages form** (v0.33): `Ctrl+Alt+F` prompts for a symbol name; shows callers grouped by file in a TTreeView; double-click jumps the editor. **Symbol Search form** (v0.33): `Ctrl+Alt+T` debounced live search over the indexed symbol table; Enter navigates the editor to the selected location. **Native Tools > Options page** (v0.30): all settings via `INTAAddInOptions`. ## Architecture drag-lint.exe | +-- CLI dispatch (DRagLint.CLI) | | | +-- Indexer (DRagLint.Core.Indexer) | | +-- tree-sitter-delphi13.dll (Delphi 13 grammar) | | +-- tree-sitter-dfm.dll (DFM grammar) | | +-- tree-sitter.dll (libtree-sitter runtime) | | +-- SQLite storage | | | +-- Query / Surface / Impact / Slice | +-- Lint (rule runner over .scm files) | +-- Refactor (rename, doc stubs, test stubs, YADF format) | +-- Compiler diagnostics (msbuild integration) | +-- Workspace (multi-project shared DB) | +-- LSP server (DRagLint.LSP.Server) -- stdio JSON-RPC | +-- MCP server (DRagLint.MCP.Server) -- stdio JSON-RPC | +-- CLI context bundler (DRagLint.Context.Bundler) dclDragLintWizard.bpl (Delphi IDE plugin) +-- Wizard / menu / keystrokes / EditViewNotifier +-- LSP client -> drag-lint.exe lsp +-- DiagnosticCache -> in-editor markers + hover tooltip +-- CodeLensCache -> inline [N callers] +-- Structure / Refactor / Usages / SymbolSearch forms +-- Options (INTAAddInOptions) All three entry-points (CLI, LSP, MCP) call the same indexer, query, lint, and refactor engine. The IDE plugin is a thin wrapper around the LSP client plus direct CLI calls for features the LSP protocol doesn't cover. ## Building from source Prerequisites: - RAD Studio 13 Florence (37.0) with Win64 target - `tree-sitter-delphi13` DLLs in `third_party/dll/` Build the CLI: call "C:\Program Files (x86)\Embarcadero\Studio\37.0\bin\rsvars.bat" msbuild drag-lint.dproj /p:Config=Release /p:Platform=Win64 Build the IDE plugin: msbuild src/delphi-plugin/dclDragLintWizard.dproj /p:Config=Debug /p:Platform=Win64 Run the test suite (batch files in `tests/fixtures/`): tests\fixtures\T61_hovertracker.bat tests\fixtures\T62_lint_rules_v035.bat tests\fixtures\T56_lint_rules_v032.bat :: ... etc. ## Version history See [CHANGELOG.md](CHANGELOG.md) for the full v0.16 to v0.35 history (20 versions, released 2026-05-28 through 2026-05-29). ## License MIT. See [LICENSE](LICENSE).
