Strixhack/phishing-triage-pipeline

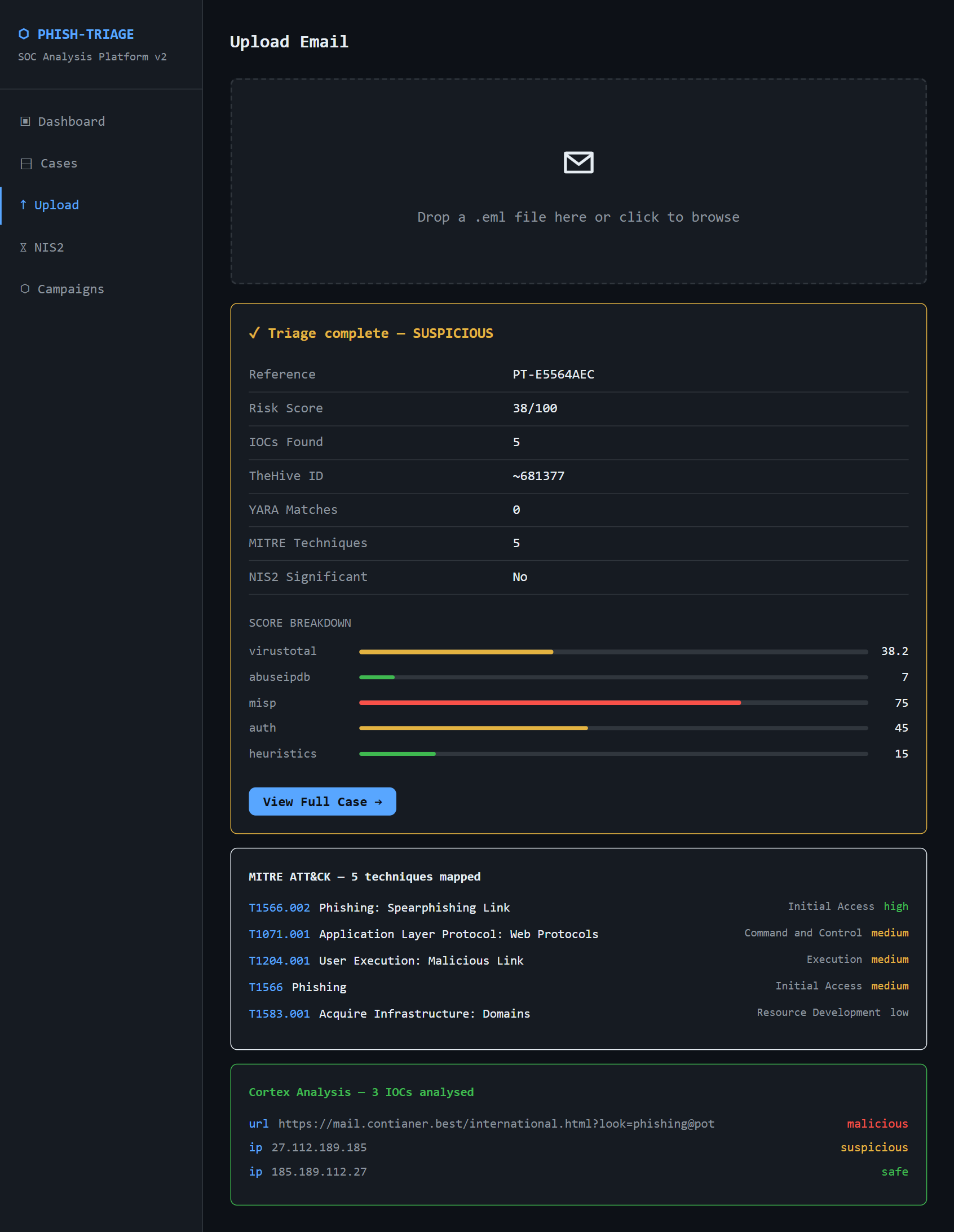

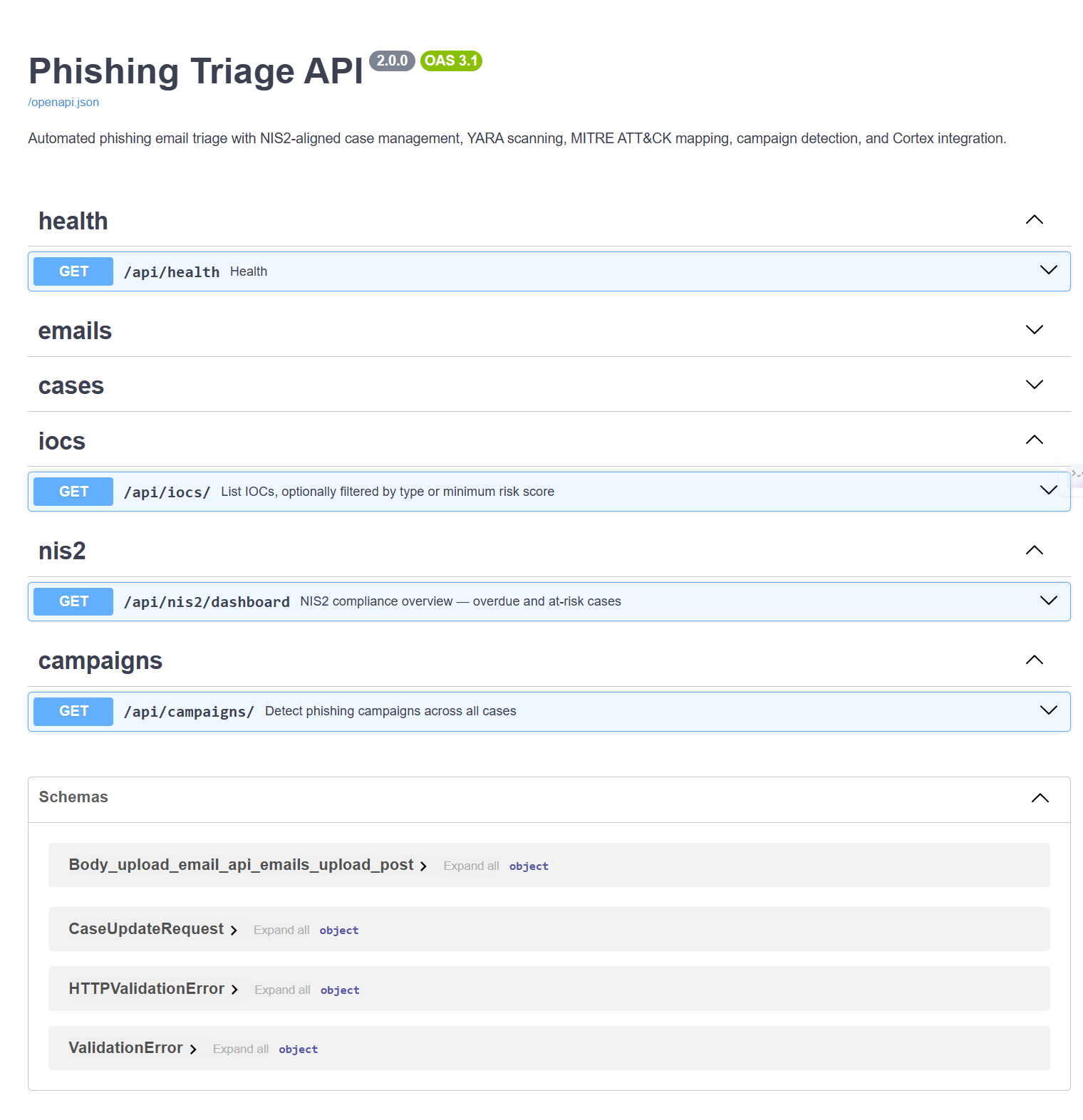

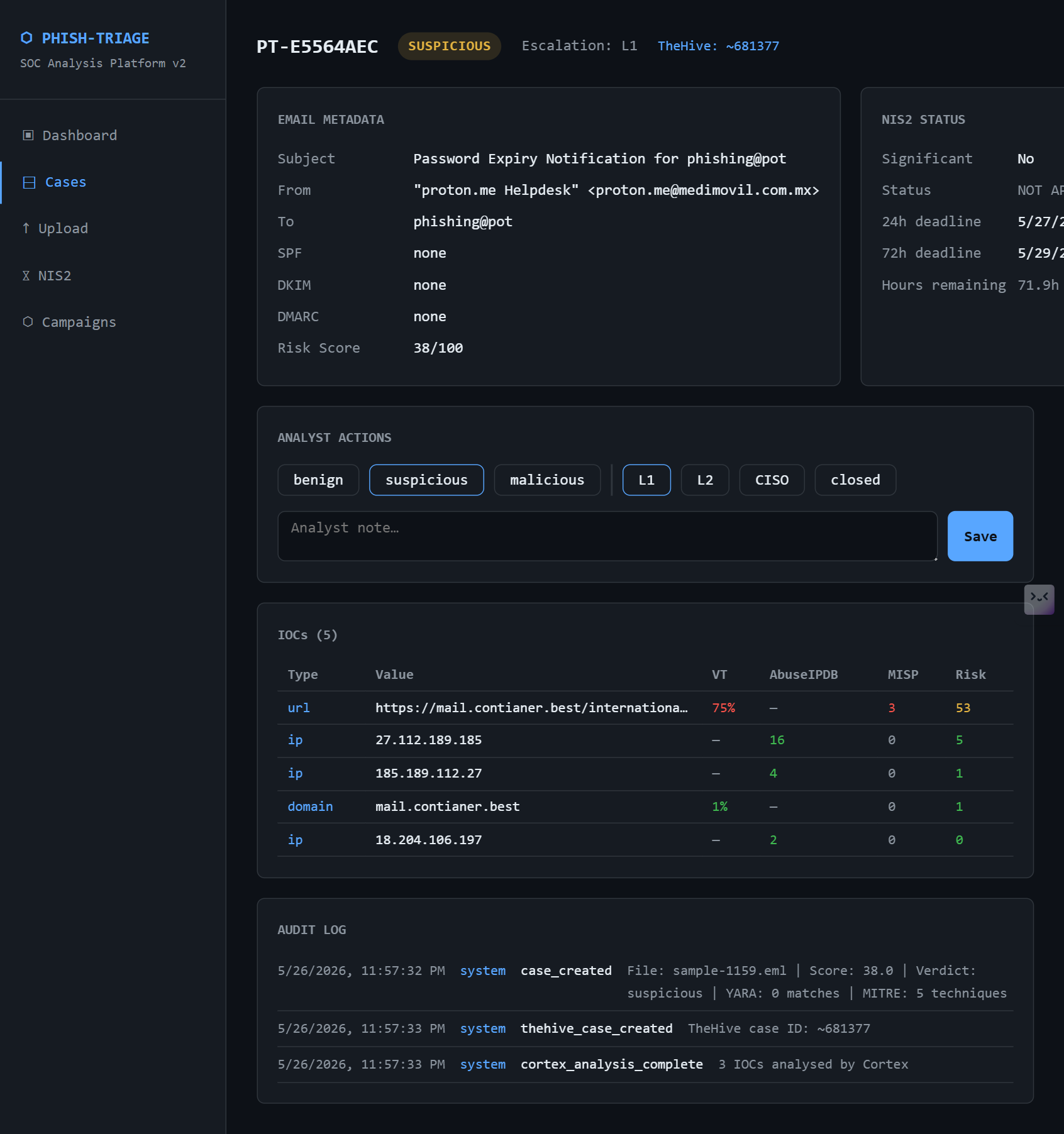

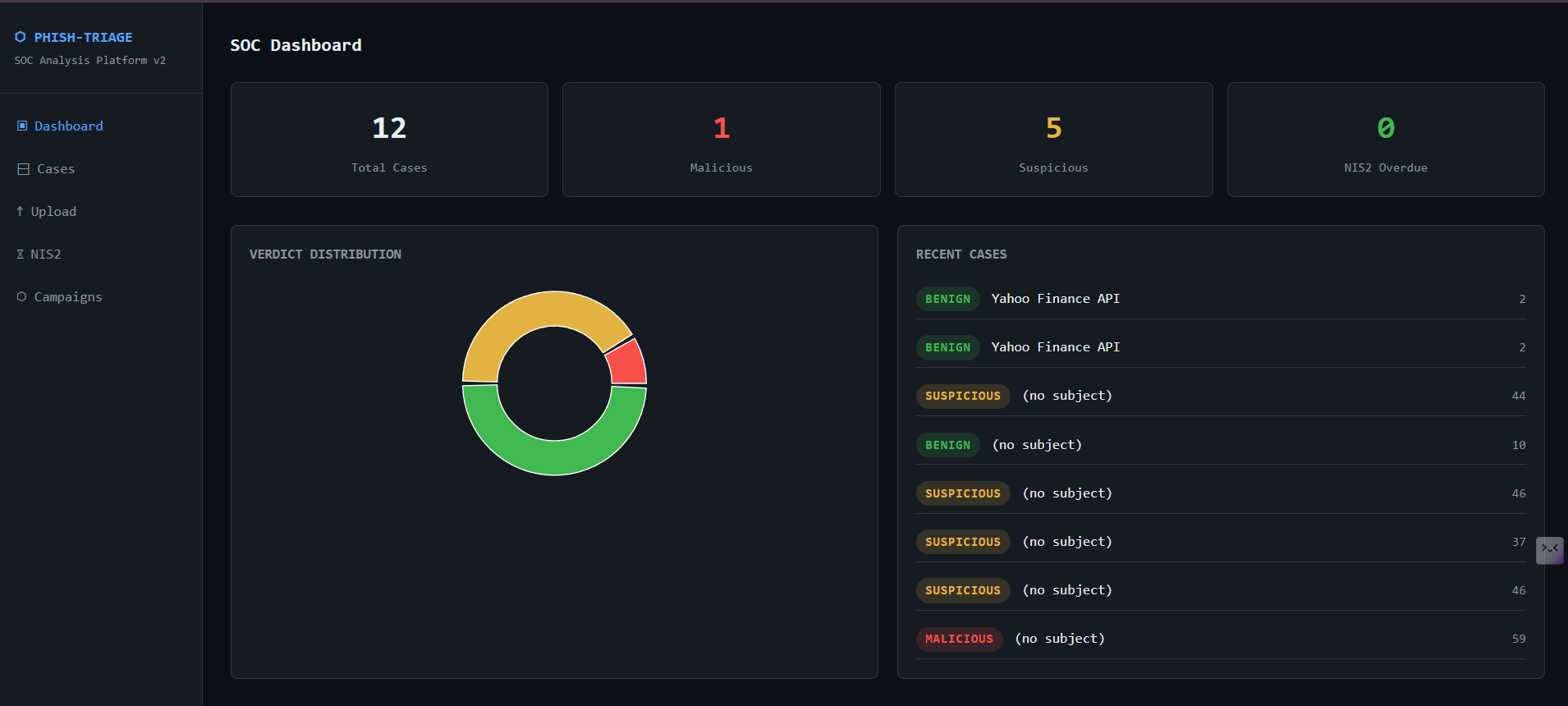

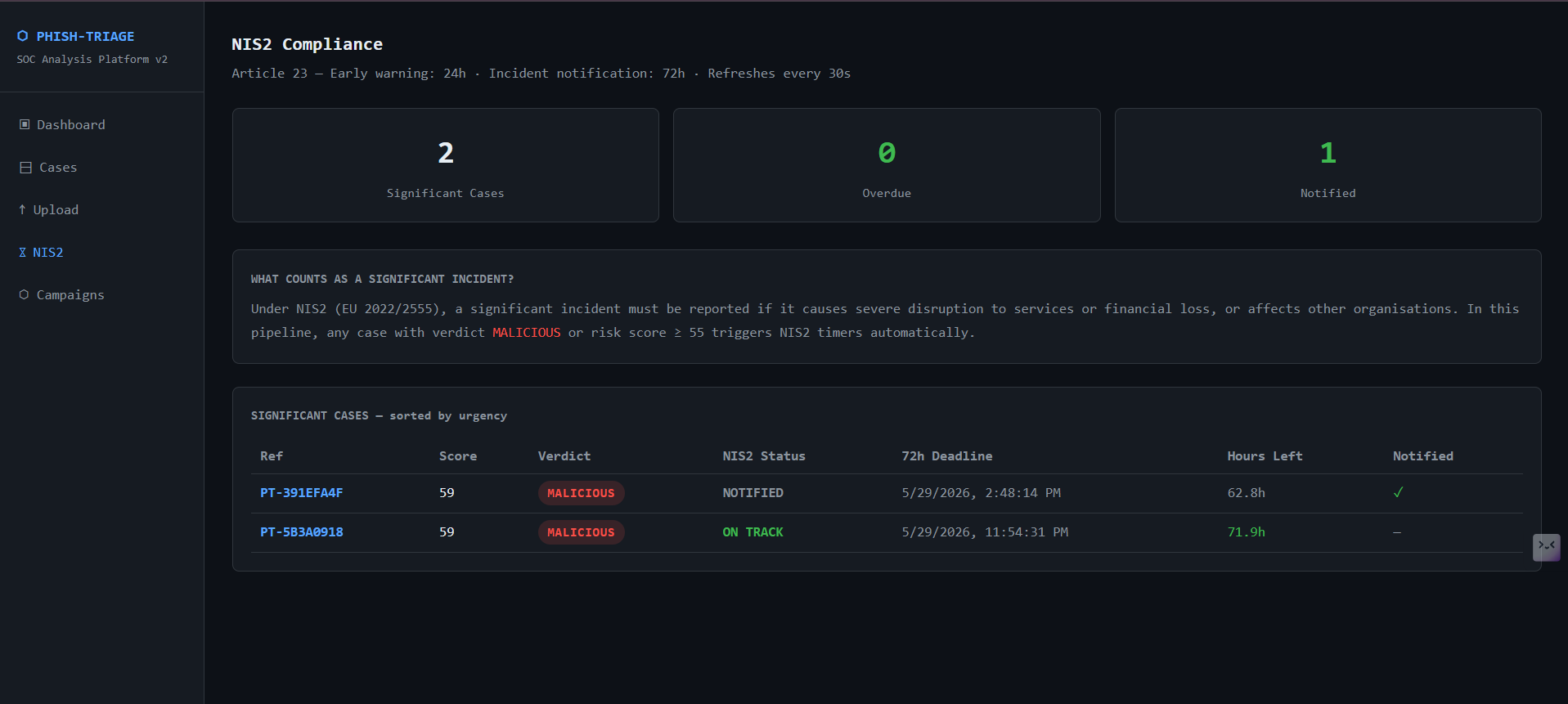

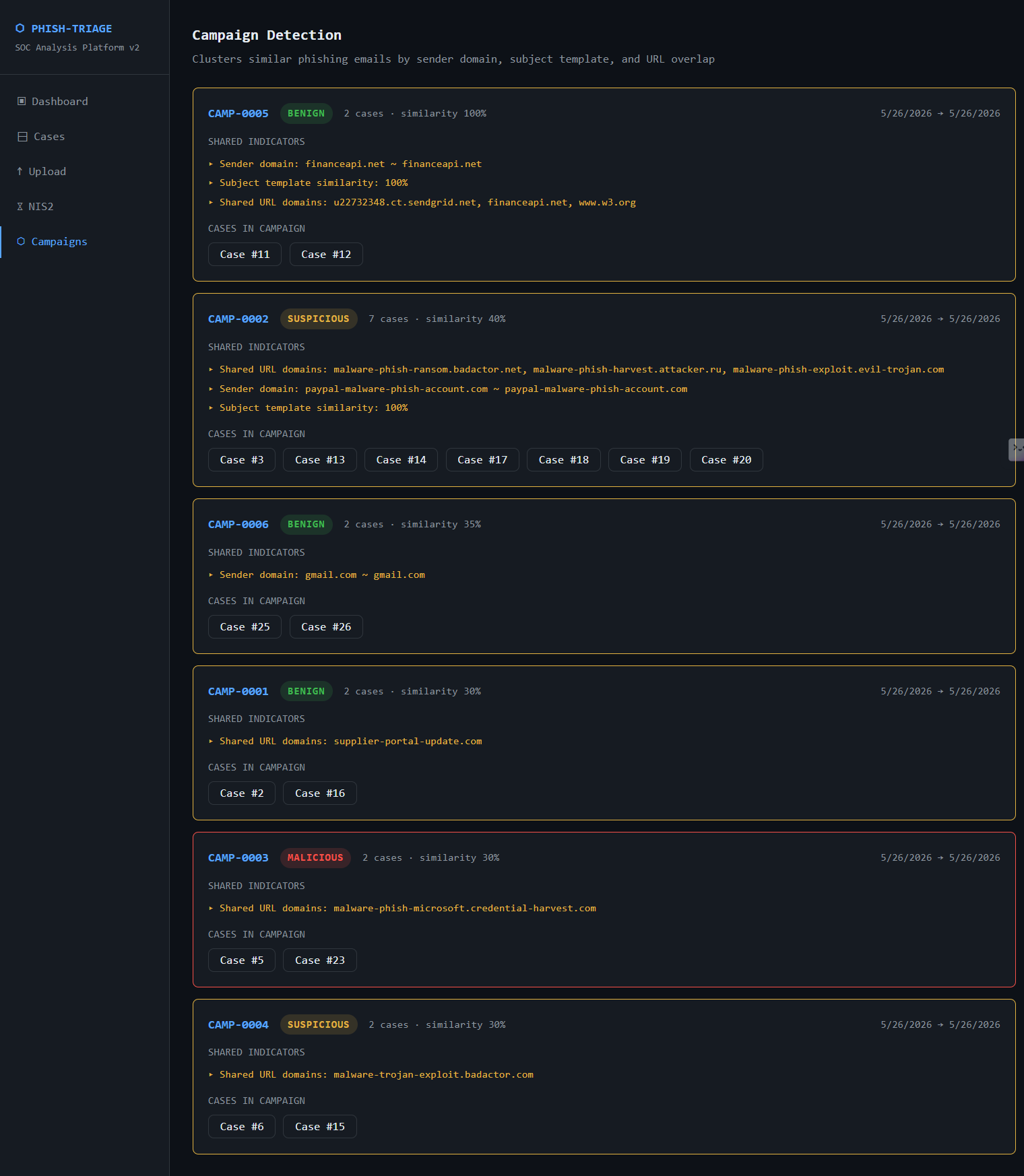

# Phishing Triage Pipeline Automated SOC phishing email triage platform. Upload a `.eml` file the pipeline parses headers, extracts IOCs, enriches them against VirusTotal, AbuseIPDB and MISP, runs YARA rules, maps MITRE ATT&CK techniques, scores risk 0-100, creates a TheHive case, runs Cortex analysers, tracks NIS2 Article 23 deadlines, and detects coordinated phishing campaigns. Built as a portfolio project targeting EU SOC intern and L1 analyst roles. ## Quick Start git clone https://github.com/Strixhack/phishing-triage-pipeline cd phishing-triage-pipeline cp .env.example .env docker compose up --build Open http://localhost:3000 Sample emails are in `samples/` upload any `.eml` to get started. ## Screenshots ### Dashboard verdict distribution, case stats, recent cases  ### Upload triage result with MITRE ATT&CK mapping and Cortex analysis  ### Case Detail IOC table with real VT/AbuseIPDB scores, audit log, NIS2 status  ### NIS2 Compliance Article 23 timers, significant cases sorted by urgency  ### Campaign Detection clusters phishing emails by shared IOCs and sender patterns  ### API Documentation Swagger UI, all endpoints  ## What it does A real phishing email (`sample-1159.eml` from phishing_pot honeypot) scored **38/100 SUSPICIOUS** with: - URL `https://mail.contianer.best` **75% VT detections**, flagged **malicious** by Cortex - IP `27.112.189.185` AbuseIPDB score **16**, flagged **suspicious** by Cortex - IP `185.189.112.27` AbuseIPDB score **4** - **5 MITRE ATT&CK techniques** mapped: T1566.002, T1071.001, T1204.001, T1566, T1583.001 - TheHive case **~681377** auto-created - **3 IOCs** analysed by Cortex ## Features | Feature | Details | |---|---| | Email parsing | SPF/DKIM/DMARC from Authentication-Results header, IOC extraction via regex | | IOC types | URLs, IPs (RFC-1918 filtered), domains, SHA256/SHA1/MD5 hashes | | Enrichment | VirusTotal v3, AbuseIPDB v2, MISP async parallel per IOC | | YARA scanning | 7 rules: credential harvest, BEC, macro malware, ransomware, dropper, fake login | | MITRE ATT&CK | Automatic technique mapping from IOCs, auth results, heuristics, YARA matches | | Risk scoring | VT 35% + AbuseIPDB 20% + MISP 20% + Auth 15% + Heuristics 10% = 0-100 | | Verdict | BENIGN under 30, SUSPICIOUS 30-54, MALICIOUS 55+ | | NIS2 compliance | Article 23: 24h early warning + 72h notification timers, auto-flagged at score 55+ | | TheHive | Auto case creation: TLP:AMBER, severity 1-3, tags, enriched IOC summary | | Cortex | Top 3 IOCs analysed: VirusTotal_GetReport, URLhaus, DomainTools, Abuse_Finder, MalwareBazaar | | Campaign detection | Clusters emails by sender domain similarity, subject template, URL domain overlap | | Audit log | Append-only every action recorded: upload, scoring, TheHive, Cortex, analyst changes | | Mock stubs | Full offline demo without API keys, deterministic scores for reproducible demo | ## Stack | Layer | Technology | |---|---| | Backend | Python 3.12, FastAPI, SQLAlchemy 2.0 async, aiosqlite | | Enrichment | VirusTotal v3, AbuseIPDB v2, MISP REST, TheHive REST, Cortex REST | | Detection | yara-python, MITRE ATT&CK static mapping | | Frontend | React 18, React Router, Recharts, Vite | | Infra | Docker Compose — 3 services: API :8000, UI :3000, mock stubs :9000 | | Compliance | NIS2 Article 23 (EU 2022/2555) | ## Risk Scoring Model VirusTotal 35% malicious detections / total engines x 100 AbuseIPDB 20% confidence score 0-100 MISP 20% attribute hits x 25, capped at 100 Auth 15% SPF/DKIM/DMARC fail=40pts, softfail=25pts each Heuristics 10% subject keywords, reply-to mismatch, dangerous attachments YARA boost +15% of YARA score contribution added on top ## NIS2 Implementation Cases with verdict MALICIOUS or risk score >= 55 are flagged as significant incidents under NIS2 Article 23. - `detected_at` recorded at upload time - `early_warning_due` = detected_at + 24h - `notification_due` = detected_at + 72h - NIS2 dashboard shows all significant cases sorted by urgency - Overdue cases highlighted in red - Analyst clicks Mark as Notified — recorded in immutable audit log ## Campaign Detection The `/api/campaigns/` endpoint clusters all cases in the database using: - Sender domain similarity exact match 1.0, same TLD+1 match 0.5 - Subject template similarity token overlap after stripping variable parts (IDs, dates, tokens) - URL domain overlap fraction of shared domains across emails Cases with combined similarity >= 0.12 are grouped into a campaign. In testing with 26 uploaded emails, 6 campaigns were detected including CAMP-0002 with 7 cases sharing `malware-phish` URL domains. ## Services | Service | URL | |---|---| | Dashboard | http://localhost:3000 | | API | http://localhost:8000 | | Swagger docs | http://localhost:8000/api/docs | | Mock stubs | http://localhost:9000 | | Stub docs | http://localhost:9000/docs | ## Sample Emails 10 scenarios in `samples/`: | File | Scenario | Expected Verdict | |---|---|---| | 01-clean-legitimate.eml | Q3 budget report | BENIGN | | 02-suspicious-invoice.eml | Invoice payment fraud | SUSPICIOUS | | 03-malicious-phishing.eml | PayPal credential harvest | MALICIOUS | | 04-bec-ceo-fraud.eml | CEO wire transfer BEC | SUSPICIOUS | | 05-credential-harvest-m365.eml | Microsoft 365 spoof | MALICIOUS | | 06-malware-attachment-invoice.eml | .exe dropper delivery | MALICIOUS | | 07-delivery-scam-dhl.eml | DHL redelivery scam | SUSPICIOUS | | 08-hr-payroll-redirect.eml | Payroll bank redirect | MALICIOUS | | 09-legitimate-newsletter.eml | Internal newsletter | BENIGN | | 10-it-security-alert-spoof.eml | Ransomware alert spoof | MALICIOUS | ## Live API Mode Edit `.env`: USE_MOCK_STUBS=false VT_API_KEY=your_virustotal_key ABUSEIPDB_API_KEY=your_abuseipdb_key MISP_URL=https://your-misp-instance MISP_API_KEY=your_misp_key THEHIVE_URL=http://localhost:9001 THEHIVE_API_KEY=your_thehive_key CORTEX_URL=http://localhost:9002 CORTEX_API_KEY=your_cortex_key Free VirusTotal API: 4 requests/minute. Triage of emails with many IOCs will take 30-60 seconds. ## Known Limitations - Free VT API rate-limited to 4 req/min slows on IOC-heavy emails - SQLite used for portability PostgreSQL recommended for production - Campaign detection tuned for demo volumes threshold may need adjustment at scale - YARA scans body text only attachment byte scanning not yet implemented ## SOC L1 Runbook See [docs/SOC_L1_RUNBOOK.md](docs/SOC_L1_RUNBOOK.md) triage procedure, escalation matrix (L1/L2/CISO), NIS2 notification steps. ## Project Structure phishing-triage/ backend/ app/ api/ FastAPI route handlers core/ config, database models/ SQLAlchemy models (Case, IOC, AuditLog) services/ email_parser, enrichment, risk_scorer, yara_scanner, mitre_mapper, nis2, thehive, cortex, campaign_detector stubs/ mock API server (VT, AbuseIPDB, MISP, TheHive, Cortex) tests/ yara_rules/ phishing.yar frontend/ src/ api/ API client pages/ Dashboard, CaseList, CaseDetail, Upload, NIS2Dashboard, Campaigns docs/ SOC_L1_RUNBOOK.md samples/ 10 test .eml files docker-compose.yml ## License MIT ## Real-World Triage Example A real phishing email from the [phishing_pot](https://github.com/rf-peixoto/phishing_pot) honeypot dataset was uploaded with live VirusTotal API enabled.  **Results:** | Field | Value | |---|---| | Reference | PT-E5564AEC | | Subject | Password Expiry Notification for phishing@pot | | Risk Score | 38/100 SUSPICIOUS | | IOCs Found | 5 (1 URL, 3 IPs, 1 domain) | | TheHive Case | ~681377 auto-created | | YARA Matches | 0 | | MITRE Techniques | 5 mapped | **Score breakdown from live APIs:** | Source | Score | Finding | |---|---|---| | VirusTotal | 38.2 | URL https://mail.contianer.best - real detections | | AbuseIPDB | 7 | IP 27.112.189.185 reported | | MISP | 75 | threat intel hits | | Auth | 45 | SPF/DKIM/DMARC none | | Heuristics | 15 | suspicious indicators | **MITRE ATT&CK techniques mapped automatically:** | Technique | Name | Tactic | Confidence | |---|---|---|---| | T1566.002 | Phishing: Spearphishing Link | Initial Access | high | | T1071.001 | Application Layer Protocol: Web Protocols | Command and Control | medium | | T1204.001 | User Execution: Malicious Link | Execution | medium | | T1566 | Phishing | Initial Access | medium | | T1583.001 | Acquire Infrastructure: Domains | Resource Development | low | **Cortex analysis of top 3 IOCs:** | Type | IOC | Result | |---|---|---| | url | https://mail.contianer.best/international.html | malicious | | ip | 27.112.189.185 | suspicious | | ip | 185.189.112.27 | safe |
