# Malware Traffic Analysis — Nuclear Exploit Kit Infection
A network forensics investigation of a real malware infection, analyzed from a packet
capture (PCAP) in **Wireshark**. This report reconstructs a drive-by-download attack in
which a Windows host was compromised via the **Nuclear Exploit Kit** after visiting a
legitimate-but-hacked website, and documents the full infection chain, extracted malware
samples, indicators of compromise (IOCs), and MITRE ATT&CK mapping.
## Executive Summary
A Windows workstation (`K34EN6W3N-PC`, `172.16.165.165`) became infected after a user
browsed to a compromised website. The site silently redirected the browser through a gate
to a Nuclear Exploit Kit server, which fired **Flash and Java exploits** against the
victim's outdated browser plugins. Exploitation succeeded and the kit delivered an
**obfuscated Windows executable (~401 KB)** disguised as an MP3 request. The full chain
was reconstructed from HTTP traffic, and all three malicious files (payload + two exploits)
were extracted and hashed.
## Victim Host Identification
| Attribute | Value | How it was found |
|---|---|---|

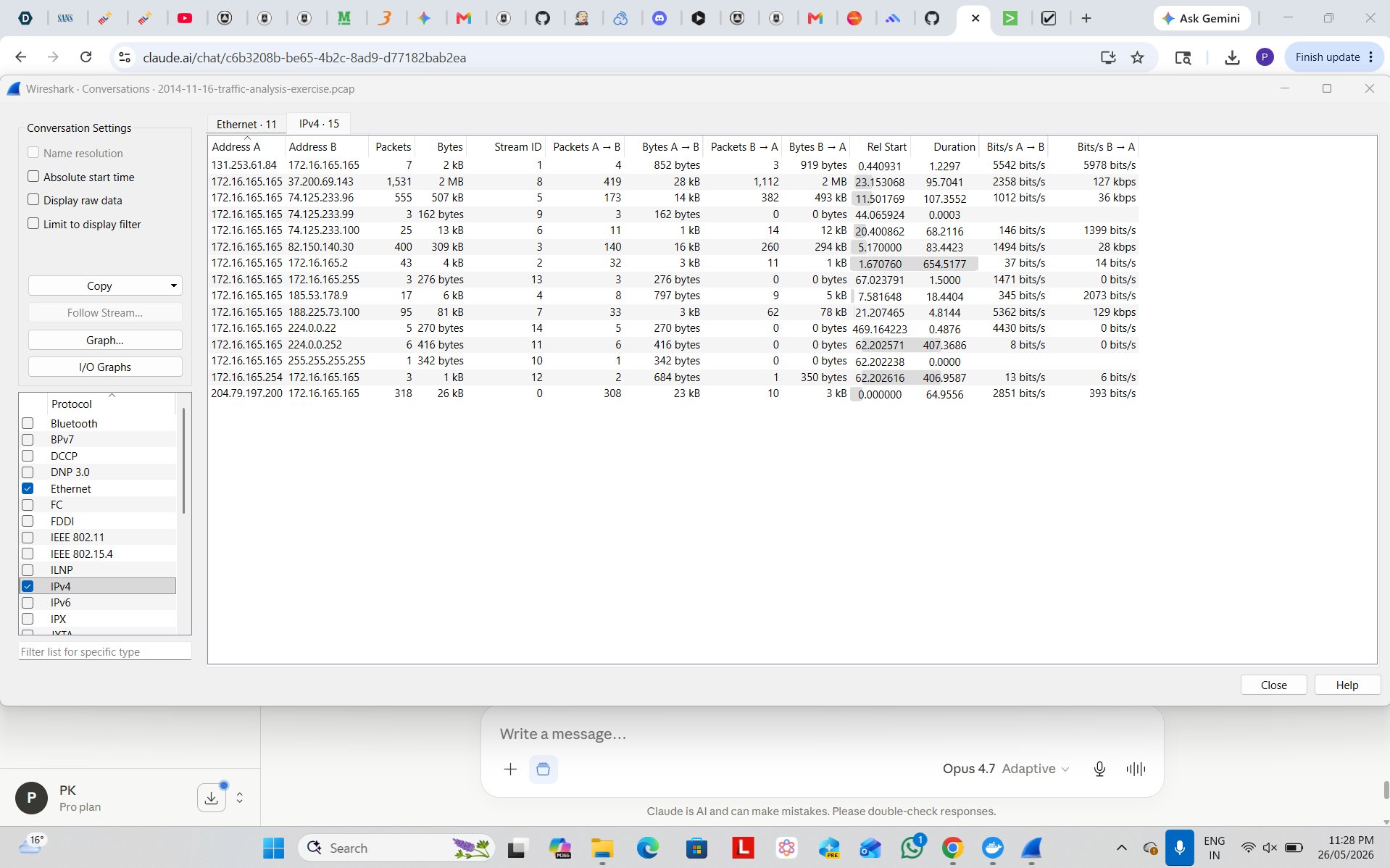

| IP address | `172.16.165.165` | `Statistics → Conversations → IPv4` — busiest internal host, fanning out to many external IPs |
| MAC address | `f0:19:af:02:9b:f1` | Ethernet conversation (3,000 pkts / 2 MB) + Ethernet II layer |

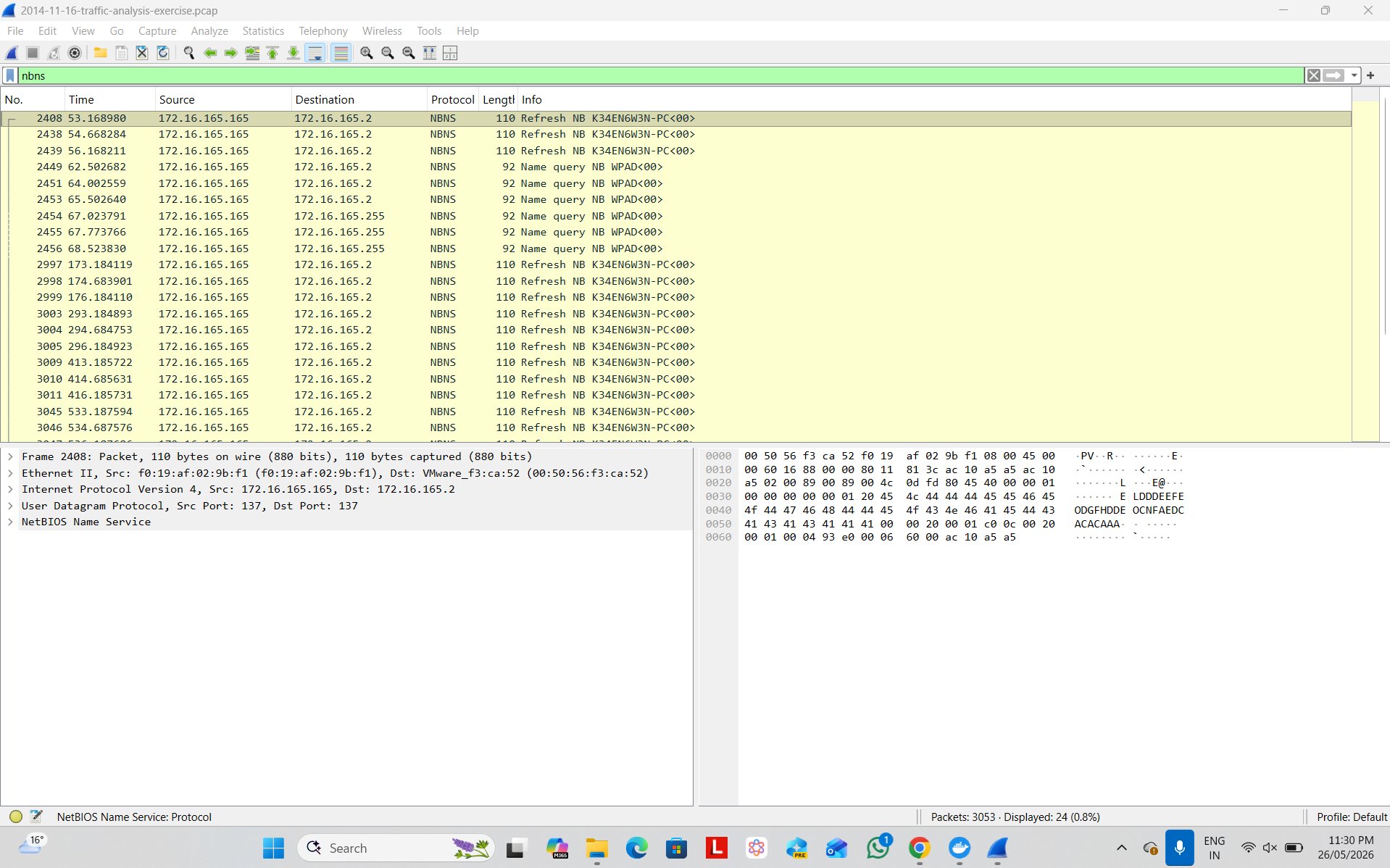

| Host name | `K34EN6W3N-PC` | NBNS traffic (`nbns` filter) — "Refresh NB K34EN6W3N-PC" |
## The Infection Chain

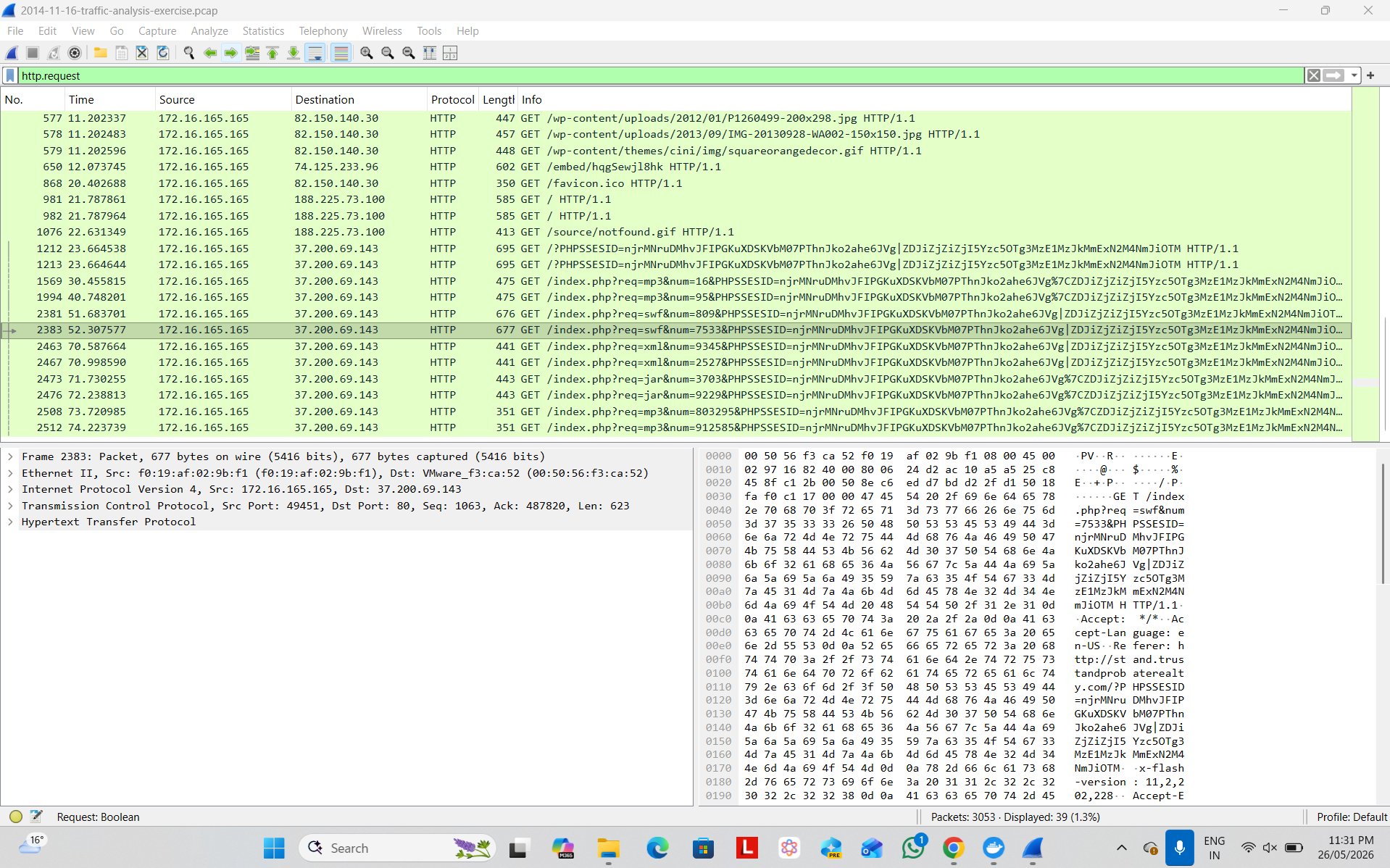

The attack unfolded across four stages, reconstructed using the `http.request` display
filter and `File → Export Objects → HTTP`:
1. Compromised site → ciniholland.nl (legitimate Dutch site, hacked)
2. Redirect / gate → 24corp-shop.com (silent redirect to the EK)
3. Exploit Kit → stand.trustandprobaterealty.com (Nuclear EK landing + exploits)
4. Payload delivery → obfuscated .exe (~401 KB) (disguised as an "mp3" request)
**Stage 1 — Compromised website (`ciniholland.nl`).**
The user browsed to this legitimate website. Normal page assets (`wp-content/...`, CSS, JS,
images) confirm it is a WordPress site that had been compromised to redirect visitors.
**Stage 2 — Redirect gate (`24corp-shop.com`).**
The compromised page quietly redirected the browser here (`/notfound.gif` and related
requests), which forwarded the victim on to the exploit kit.
**Stage 3 — Nuclear Exploit Kit (`stand.trustandprobaterealty.com`).**
The hallmark of the kit is its URL structure. Requests followed the pattern
`index.php?req=
&num=&PHPSSESID=`, serving exploits by type:
- `req=swf` → Adobe Flash exploit (`application/x-shockwave-flash`)
- `req=jar` → Java exploit (`application/java-archive`)
- `req=mp3` → the malware payload (`application/x-msdownload`, disguised by the "mp3" label)
The victim's outbound request advertised `x-flash-version: 11,2,2...`, indicating the
vulnerable Flash plugin the kit targeted.
**Stage 4 — Payload delivery.**
The kit delivered a ~401 KB Windows executable three times (`num=16`, `num=95`,
`num=803295`) over HTTP. The file is obfuscated in transit (does not present a clean PE
header on the wire), a common EK technique to evade network detection; the browser exploit
decodes it on execution.
## Extracted Artifacts & IOCs

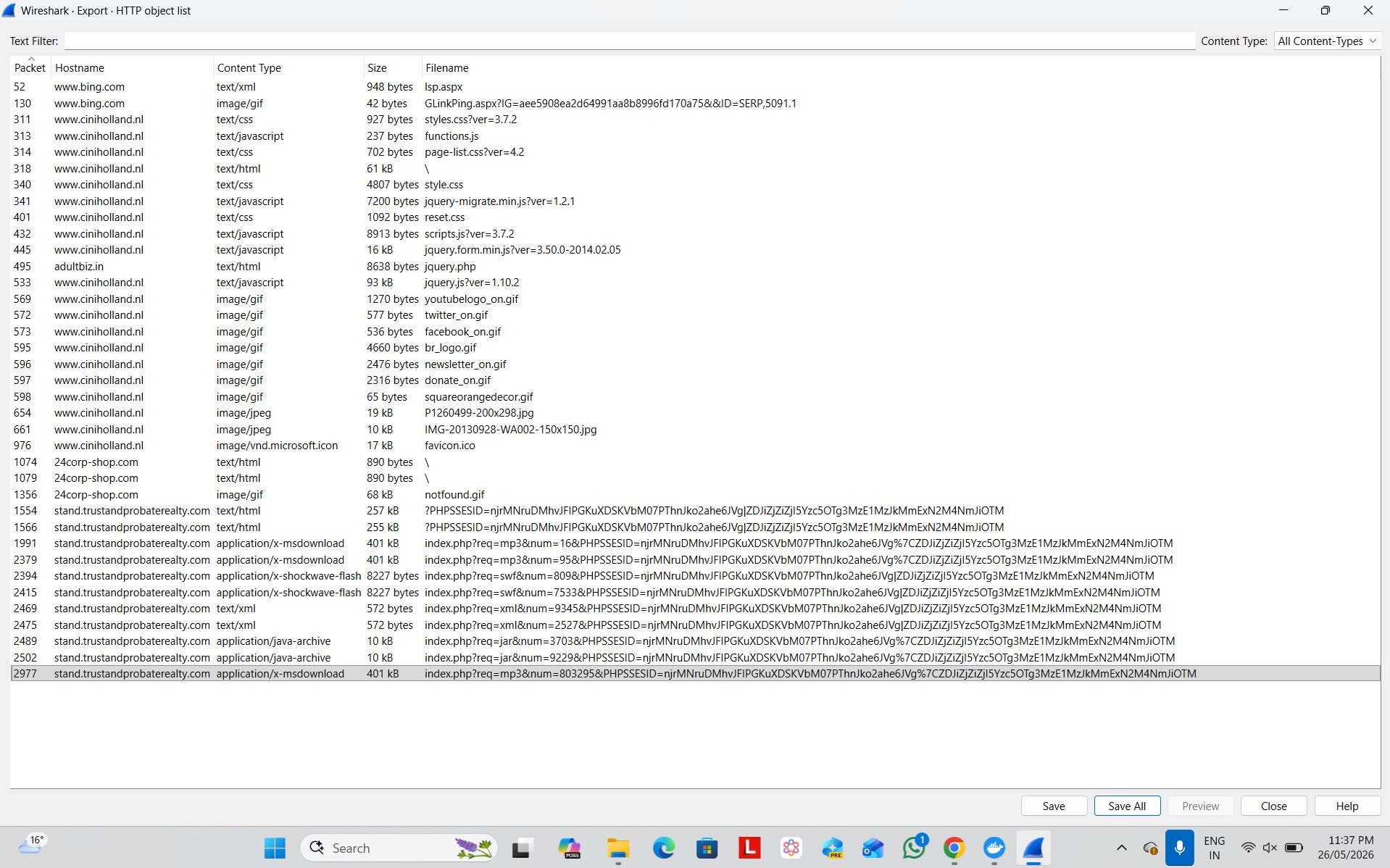

All three malicious files were carved from the PCAP via `Export Objects → HTTP` and hashed
offline. **No file was executed.**
### Network IOCs
| Indicator | Type | Role |
|---|---|---|
| `ciniholland.nl` | Domain | Compromised website (entry point) |
| `24corp-shop.com` | Domain | Redirect gate |
| `stand.trustandprobaterealty.com` | Domain | Nuclear EK server |
| `82.150.140.30` | IP | Compromised site |
| `188.225.73.100` | IP | Redirect gate |
| `37.200.69.143` | IP | Nuclear EK server |
### File IOCs
**Malware payload** — Windows executable, ~401 KB, obfuscated in transit
- MD5: `d276c86dcdbcdb6b74ee02496bc90d98`
- SHA1: `640cba2ecde8af90b9f87a51f2fa59c7c8dfa8fc`
- SHA256: `ce5d1c41f6ca739f6c69f175a8f688334df2ea4d2e0fb5e3243ae01efd251e81`
**Flash exploit** — `Macromedia Flash data (compressed), version 22`, 8,227 bytes
- MD5: `7b3baa7d6bb3720f369219789e38d6ab`
- SHA256: `e2e33b802a0d939d07bd8291f23484c2f68ccc33dc0655eb4493e5d3aebc0747`
**Java exploit** — `Java archive (JAR)`, 10,606 bytes
- MD5: `1e34fdebbf655cebea78b45e43520ddf`
- SHA256: `178be0ed83a7a9020121dee1c305fd6ca3b74d15836835cfb1684da0b44190d3`
## MITRE ATT&CK Mapping
| Technique | ID | Evidence |
|---|---|---|
| Drive-by Compromise | **T1189** | User infected by visiting a compromised website (`ciniholland.nl`) |
| Exploitation for Client Execution | **T1203** | Flash (`.swf`) and Java (`.jar`) exploits served by the EK |
| Ingress Tool Transfer | **T1105** | ~401 KB executable downloaded over HTTP from the EK server |
| Obfuscated Files or Information | **T1027** | Payload obfuscated in transit (no clean PE header on the wire) |
## Analysis Workflow (Wireshark)
The investigation followed a repeatable analyst loop:
1. **Identify the victim** — `Statistics → Conversations` (IPv4) to find the busy internal host.
2. **Get host identity** — Ethernet layer for MAC, `nbns` / `dhcp` filters for hostname.
3. **Trace web activity** — `http.request` filter to see every request in chronological order.
4. **Follow the chain** — read the Host + URI columns to separate compromised site → gate → EK.
5. **Extract files** — `File → Export Objects → HTTP` to carve the payload and exploits.
6. **Hash for IOCs** — compute MD5/SHA256 offline; never execute the sample.

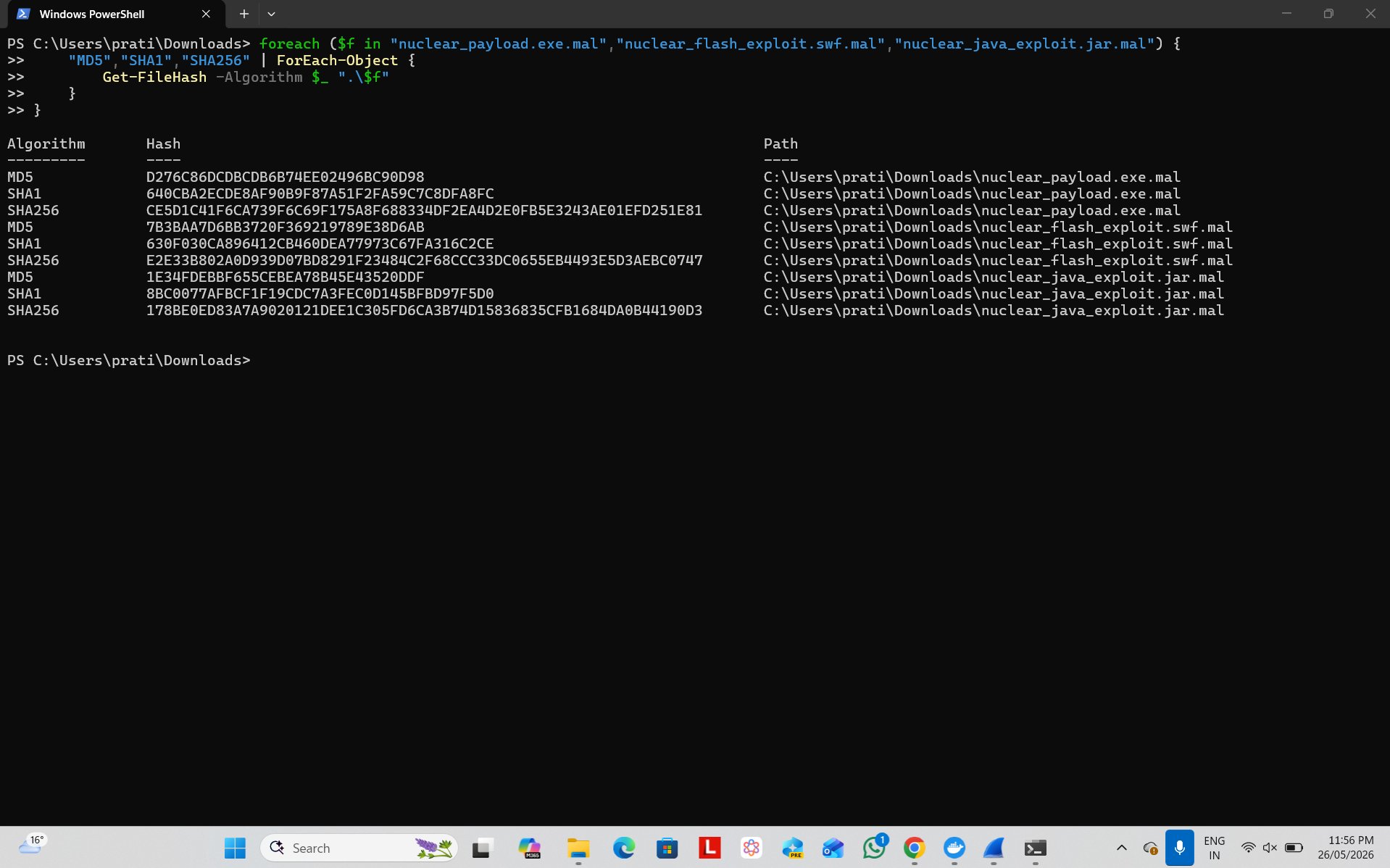

Hashes were generated on Windows with PowerShell's `Get-FileHash`:
foreach ($f in "nuclear_payload.exe.mal","nuclear_flash_exploit.swf.mal","nuclear_java_exploit.jar.mal") {
"MD5","SHA1","SHA256" | ForEach-Object { Get-FileHash -Algorithm $_ ".\$f" }
}
## Skills Demonstrated
- Packet analysis and display filtering in **Wireshark** (`http.request`, `nbns`, `dhcp`)
- Reconstructing a multi-stage **drive-by / exploit-kit infection chain** from raw traffic
- Distinguishing legitimate page traffic from malicious redirects and exploit delivery
- **Carving files** from a PCAP (Export Objects) and computing **file hashes** as IOCs
- Safe malware handling (analyze and hash, never execute)
- **MITRE ATT&CK** mapping and structured incident reporting
## Notes & Safety
- This analysis was performed on a packet capture (a passive recording). A PCAP cannot
infect the analyst's machine.
- The extracted `.exe` is **live malware** and was only hashed, never executed. It was saved
with a non-executable extension to prevent accidental launch.
- This is a learning/portfolio exercise using a public training PCAP from
malware-traffic-analysis.net.
