# Miele XKM3000Z Local Zigbee Bridge for Home Assistant
Reverse-engineered local integration for older Miele washing machines with XKM3000Z Zigbee communication module, tested with a Miele WPS 820 generation appliance.
This repository focuses only on the Miele XKM3000Z module, its local Zigbee telemetry, selected write experiments, MQTT publishing, and Home Assistant discovery. It intentionally does not cover any separate smart-home gateway migration topic.
## Documentation
- [Full protocol documentation](docs/Miele_XKM3000Z_Protokoll_Dokumentation_final.md)
- [Home Assistant examples](homeassistant/)
- [Docker example](examples/docker-run.sh)
## Screenshots

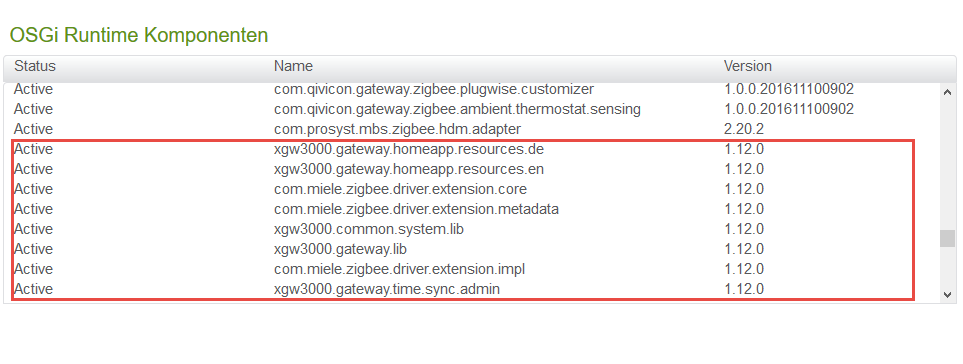

### Reverse engineering environment

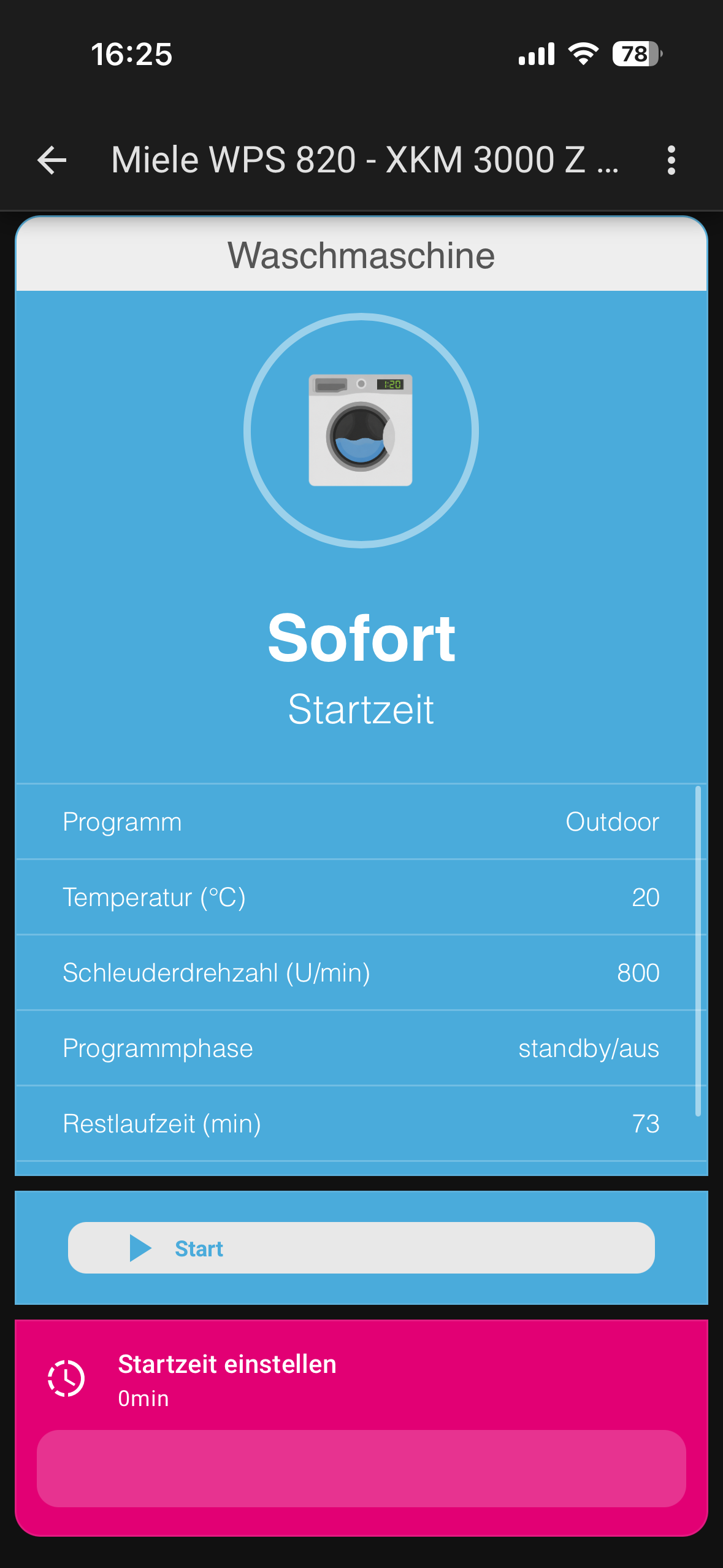

### Home Assistant Dashboard
### Zigbee Traffic
## Current status
Working / confirmed:
- Local readout through a Texas Instruments ZNP-compatible Zigbee adapter.
- MQTT publishing with Home Assistant MQTT discovery.
- Status decoding: off, ready, delay start, running, finished, fault, cancelled, service test mode.
- Program decoding for known program IDs.
- Remaining time and start delay decoding.
- Start now via confirmed delay-start reset to 0 minutes.
- Door open/closed events via raw event cluster `0x0B02`.
- Fault/alarm recognition via `status_code=8` and phase byte `B0=0x0A`.
- Water inlet fault candidate via `status_code=8`, `B0=0x0A`, `B1=4`.
- Parameter block decoding for current drum speed and max spin speed.
- Water Plus availability for the selected program.
Experimental / not confirmed:
- Program selection writes.
- Pause/cancel control commands.
- Short option bit.
- Direct temperature readout.
- Direct NTC, float switch, lock-state and actuator-state readout.
- Service diagnostic container `FD01/0x0020`, which currently returns `0x8F`.
## Architecture
Miele washing machine + XKM3000Z
│ Zigbee
TI ZNP adapter / TCP serial bridge
│
Python bridge
│ MQTT
Home Assistant MQTT discovery
flowchart LR
A[Miele Washing Machine] --> B[XKM3000Z]
B --> C[SLZB-06
TI ZNP Adapter] C --> D[Python MQTT Bridge] D --> E[MQTT Broker] E --> F[Home Assistant] F --> G[Dashboard] F --> H[Automations] F --> I[Notifications] ## Quick start Copy the repository into your Zigbee2MQTT/docker work folder or mount it into a Python container. Example: docker run --rm -it --network host \ -v /volume2/docker/zigbee2mqtt:/work \ -e MIELE_ZNP_HOST=1'xx'.'xxx'.'xxx'.'xxx' \ -e MIELE_ZNP_PORT='xxxx' \ -e MIELE_TARGET_NWK=0x537D \ -e MQTT_HOST=1'xx'.'xxx'.'xxx'.'xxx' \ -e MQTT_USER='your mqtt User' \ -e MQTT_PASS='your-password' \ python:3.12-alpine \ sh -c "apk add --no-cache mosquitto-clients && python /work/src/miele_gateway_mqtt.py" ## Environment variables | Variable | Default | Meaning | |---|---:|---| | `MIELE_ZNP_HOST` | `1'xx'.'xxx'.'xxx'.'xxx'` | TCP host of the ZNP adapter | | `MIELE_ZNP_PORT` | `'xxxx'` | TCP port of the ZNP adapter | | `MIELE_TARGET_NWK` | `0x537D` | Zigbee NWK address of the Miele module | | `MQTT_HOST` | `1'xx'.'xxx'.'xxx'.'xxx'` | MQTT broker host | | `MQTT_USER` | 'User' | MQTT username | | `MQTT_PASS` | 'Password' | MQTT password | | `MQTT_BASE` | `miele_xkm3000z` | MQTT topic base | | `MIELE_POLL_INTERVAL` | `30` | Poll interval in seconds | | `MIELE_ENABLE_TIME_SYNC` | `true` | Enable Zigbee Time Cluster sync | ## Important findings ### Status codes | Code | Meaning | |---:|---| | `1` | off | | `3` | ready | | `4` | delay start active | | `5` | running | | `7` | finished | | `8` | fault/alarm | | `9` | cancelled | | `12` | service test mode | ### Program phase byte B0 / `phase_a` | B0 | Meaning | |---:|---| | `1` | off | | `2` | init / wakeup | | `3` | normal on | | `4` | shutdown transition | | `7` | special state, observed with service test mode | | `10 / 0x0A` | fault / alarm | ### Water inlet fault candidate A water inlet fault is not only inferred from `phase_b=4`; the corrected rule is: status_code = 8 phase_a / B0 = 0x0A phase_b / B1 = 4 This identifies a fault/alarm in the washing/water-inlet context. A specific internal Miele F-code was not observed over Zigbee. ### Door events The raw event cluster is `0x0B02`. Observed values: | Payload ending | Meaning | |---|---| | `... 00 01 00` | door closed | | `... 00 11 00` | door open | | `... 02 01 00` | door closed in another runtime/service context | | `... 02 11 00` | door open in another runtime/service context | A separate locked/door-lock state has not been found yet. ### Parameter block The parameter block contains several useful fields: - B5 = current drum speed in `rpm / 10`. - B6/B7 = max spin speed, big endian. - Water Plus bit = availability of Water Plus in the current program. - Short bit = unresolved candidate; no reliable state change observed. ### Time sync The bridge keeps Zigbee Time Cluster sync enabled by default. The appliance interacts with cluster `0x000A`; delay-start behavior is expected to be more stable with a valid time base. Disable via: -e MIELE_ENABLE_TIME_SYNC=false ## Repository layout src/miele_gateway_mqtt.py Main MQTT/Home Assistant bridge tools/miele_raw_aps_zcl_monitor.py Passive raw APS/ZCL monitor tools/miele_full_cluster_attribute_scanner.py Read-only scanner for research docs/protocol-notes.md Current protocol notes examples/docker-run.sh Example container start homeassistant/automation_finished.yaml Example finished notification automation ## Safety notes This is research software. The bridge includes experimental write functions, but the productive integration is designed around readout and the confirmed start-delay write. Do not run multiple scanners/bridges against the same adapter at the same time. ## License MIT. See `LICENSE`.
TI ZNP Adapter] C --> D[Python MQTT Bridge] D --> E[MQTT Broker] E --> F[Home Assistant] F --> G[Dashboard] F --> H[Automations] F --> I[Notifications] ## Quick start Copy the repository into your Zigbee2MQTT/docker work folder or mount it into a Python container. Example: docker run --rm -it --network host \ -v /volume2/docker/zigbee2mqtt:/work \ -e MIELE_ZNP_HOST=1'xx'.'xxx'.'xxx'.'xxx' \ -e MIELE_ZNP_PORT='xxxx' \ -e MIELE_TARGET_NWK=0x537D \ -e MQTT_HOST=1'xx'.'xxx'.'xxx'.'xxx' \ -e MQTT_USER='your mqtt User' \ -e MQTT_PASS='your-password' \ python:3.12-alpine \ sh -c "apk add --no-cache mosquitto-clients && python /work/src/miele_gateway_mqtt.py" ## Environment variables | Variable | Default | Meaning | |---|---:|---| | `MIELE_ZNP_HOST` | `1'xx'.'xxx'.'xxx'.'xxx'` | TCP host of the ZNP adapter | | `MIELE_ZNP_PORT` | `'xxxx'` | TCP port of the ZNP adapter | | `MIELE_TARGET_NWK` | `0x537D` | Zigbee NWK address of the Miele module | | `MQTT_HOST` | `1'xx'.'xxx'.'xxx'.'xxx'` | MQTT broker host | | `MQTT_USER` | 'User' | MQTT username | | `MQTT_PASS` | 'Password' | MQTT password | | `MQTT_BASE` | `miele_xkm3000z` | MQTT topic base | | `MIELE_POLL_INTERVAL` | `30` | Poll interval in seconds | | `MIELE_ENABLE_TIME_SYNC` | `true` | Enable Zigbee Time Cluster sync | ## Important findings ### Status codes | Code | Meaning | |---:|---| | `1` | off | | `3` | ready | | `4` | delay start active | | `5` | running | | `7` | finished | | `8` | fault/alarm | | `9` | cancelled | | `12` | service test mode | ### Program phase byte B0 / `phase_a` | B0 | Meaning | |---:|---| | `1` | off | | `2` | init / wakeup | | `3` | normal on | | `4` | shutdown transition | | `7` | special state, observed with service test mode | | `10 / 0x0A` | fault / alarm | ### Water inlet fault candidate A water inlet fault is not only inferred from `phase_b=4`; the corrected rule is: status_code = 8 phase_a / B0 = 0x0A phase_b / B1 = 4 This identifies a fault/alarm in the washing/water-inlet context. A specific internal Miele F-code was not observed over Zigbee. ### Door events The raw event cluster is `0x0B02`. Observed values: | Payload ending | Meaning | |---|---| | `... 00 01 00` | door closed | | `... 00 11 00` | door open | | `... 02 01 00` | door closed in another runtime/service context | | `... 02 11 00` | door open in another runtime/service context | A separate locked/door-lock state has not been found yet. ### Parameter block The parameter block contains several useful fields: - B5 = current drum speed in `rpm / 10`. - B6/B7 = max spin speed, big endian. - Water Plus bit = availability of Water Plus in the current program. - Short bit = unresolved candidate; no reliable state change observed. ### Time sync The bridge keeps Zigbee Time Cluster sync enabled by default. The appliance interacts with cluster `0x000A`; delay-start behavior is expected to be more stable with a valid time base. Disable via: -e MIELE_ENABLE_TIME_SYNC=false ## Repository layout src/miele_gateway_mqtt.py Main MQTT/Home Assistant bridge tools/miele_raw_aps_zcl_monitor.py Passive raw APS/ZCL monitor tools/miele_full_cluster_attribute_scanner.py Read-only scanner for research docs/protocol-notes.md Current protocol notes examples/docker-run.sh Example container start homeassistant/automation_finished.yaml Example finished notification automation ## Safety notes This is research software. The bridge includes experimental write functions, but the productive integration is designed around readout and the confirmed start-delay write. Do not run multiple scanners/bridges against the same adapter at the same time. ## License MIT. See `LICENSE`.
