# nautobot-app-scanner [](https://opensource.org/licenses/Apache-2.0) [](https://www.python.org/downloads/) [](https://docs.nautobot.com/) [](https://github.com/rsp2k/nautobot-app-scanner/releases) **nmap inside Nautobot.** Scan IPAM-defined targets, store hosts / ports / services / CVEs as first-class models, and surface results directly on the `dcim.Device`, `ipam.IPAddress`, and `ipam.Prefix` pages your team already uses.  ## What it does | | | |---|---| | **Targets you already have** | Scans `ipam.Prefix` and `ipam.IPAddress` records — no separate target list to maintain. | | **Two execution models** | Run nmap inside the Nautobot worker (`LocalBackend`), or off-load to one or many remote agents (`RemoteBackend`) for DMZ / OT / branch segments Nautobot can't reach. | | **Read-only by default** | Scan output lives in *separate* `DiscoveredHost` / `DiscoveredPort` / `NseFinding` models. Promote-to-IPAddress and Promote-to-Device are explicit, permission-gated escape hatches. | | **Where you'll look anyway** | A `TemplateExtension` injects scanner panels onto Device / IPAddress / Prefix detail pages, so you find scan data where you find everything else. | | **Real nmap, not a wrapper** | Profiles are nmap argument strings (`-sS -sV -O --top-ports 1000` etc.). The seeded catalog covers discovery, port-scan, OS fingerprint, full-TCP, vuln, traceroute, and UDP. Write your own in 30 seconds. | | **First-class job machinery** | Scans dispatch via Nautobot Jobs — scheduling, audit trail, log streaming, retry, JobResult page all come free. | ## How it works flowchart TD job([RunScan Job]) subgraph local["LocalBackend — in Celery worker"] direction TB localScan["Scan
status=running"] nmap1["nmap subprocess
parser.parse_xml
parser.persist"] localDone["Scan
status=completed"] localScan --> nmap1 --> localDone end subgraph remote["RemoteBackend — standalone agents"] direction TB remoteScan["Scan
status=pending
ingestion_token=uuid"] agent["Agent polls /pending-scans/
runs nmap locally
POSTs XML to /ingest/"] remoteDone["Scan
status=completed"] remoteScan --> agent --> remoteDone end job --> localScan job --> remoteScan host[(DiscoveredHost)] port[(DiscoveredPort)] vuln[(NseFinding)] trace[(TraceRouteHop)] localDone --> host remoteDone --> host host --> port host --> trace port --> vuln The local backend is two containers (Nautobot + worker) and a single Python dependency. Remote agents are a single Python file in a Docker container — three included compose variants cover host-network, bridge-network, and dev-bridge scenarios. ### Where scan data shows up

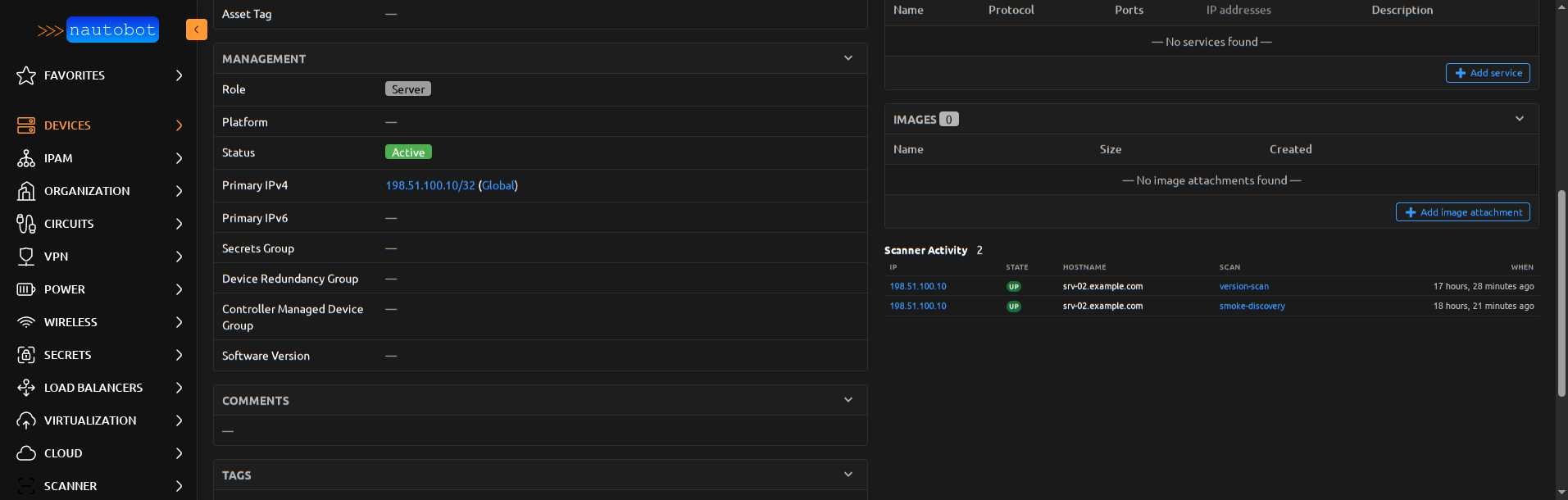

**On a `dcim.Device` detail page** Auto-linked by IP match against `Device.primary_ip4/6` at ingest time — no manual linkage step.

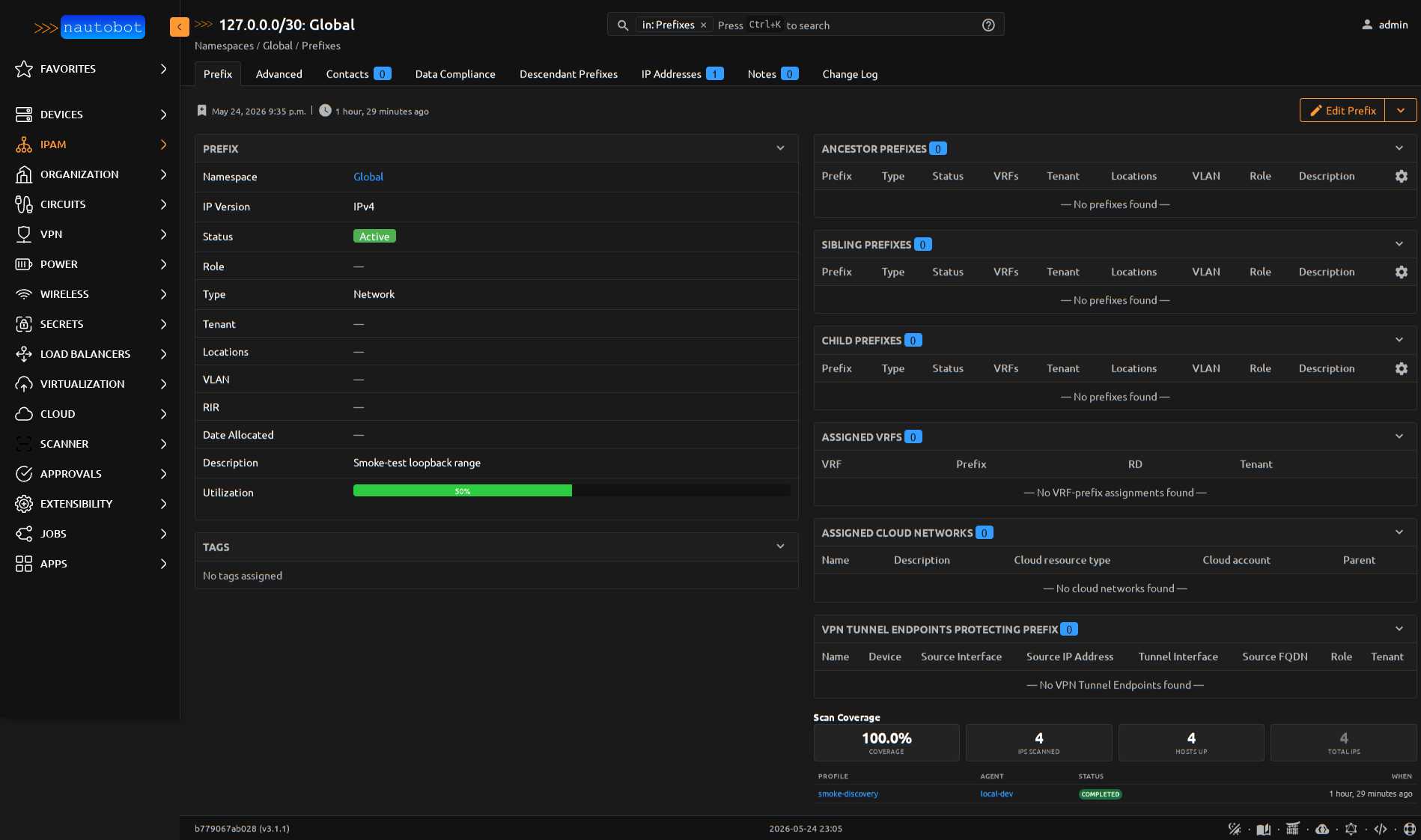

**On an `ipam.Prefix` detail page** Coverage stats (% IPs scanned, hosts up, recent scans) cached for 5 minutes so /16s don't stall the page.

## Install pip install nautobot-app-scanner Then in `nautobot_config.py`: PLUGINS = ["nautobot_scanner"] …and: nautobot-server migrate nautobot-server post_upgrade The migration ships a 7-profile catalog (`discovery`, `top-100-tcp`, `os-detect`, `full-tcp`, `vuln`, `topology`, `udp-common`) seeded via `get_or_create` — your edits survive subsequent migrations. ## Quickstart — dev environment git clone https://github.com/rsp2k/nautobot-app-scanner cd nautobot-app-scanner cp development/.env.example development/.env # edit development/.env: set DOMAIN and rotate the changeme- secrets make build make up make migrate Browse to `https://${DOMAIN}/` (Caddy handles TLS) and log in with the seed superuser. Then **Apps > Scanner > Scanner Agents > Add** a local agent, **Jobs > Run Scan**, and pick a `Prefix` from your IPAM as the target. The full dev guide — including the docker external-network setup and the `smoke_local_scan.py` helper — lives at [docs/dev/dev_environment.md](docs/dev/dev_environment.md). ## Remote agents For scanning network segments Nautobot can't reach (DMZ, OT, branch offices, partner peers), the [`agent/`](agent/) directory ships a containerized reference agent. Same image, three compose variants: | Mode | When to use it | Compose file | |---|---|---| | **Host network** | LAN scanning, SPAN ports, physical interfaces, OT segments | `agent/docker-compose.host-mode.yml` | | **Bridge / attached** | Inventorying services inside a specific docker overlay | `agent/docker-compose.bridge-mode.yml` | | **Dev-bridge** | Local development against the dev stack | `agent/docker-compose.dev-bridge.yml` | Agent auth uses a dedicated `auth.User` per `ScannerAgent` (auto-created via signal) with a DRF Token as the bearer credential. Custom agents in any language can speak the [Agent Protocol](docs/dev/agent_protocol.md) — it's three HTTP endpoints. ## Docs | | | |---|---| | **[App Overview](docs/user/app_overview.md)** | What the app stores and how it integrates with the rest of Nautobot | | **[Running Scans](docs/user/running_scans.md)** | Dispatch via Jobs, scheduling, overlap policy, cancellation | | **[Scan Profiles](docs/user/scan_profiles.md)** | The 7 shipped profiles, how to write your own, NSE script handling | | **[Promote a Discovered Host](docs/user/promotion.md)** | Promote-to-IPAddress and Promote-to-Device flows | | **[Scanner Agents](docs/user/agents.md)** | Local vs remote, liveness, the offline marker | | **[Install Remote Agent](docs/admin/install_remote_agent.md)** | Operational deploy walkthrough — 6 steps + troubleshooting | | **[Agent Protocol](docs/dev/agent_protocol.md)** | REST contract for custom agents | | **[Architecture Decisions](docs/dev/architecture.md)** | Why this app looks the way it does (and what's deliberately out of scope) | A full MkDocs site is bundled with the app — once installed, browse it in-app at **Apps > Scanner > docs** or build it locally with `mkdocs serve`. ## What's *not* here A few common asks that were deliberately scoped out — each one has a reason in [Architecture Decisions](docs/dev/architecture.md): - **Auto-sync IPAM from scans** — false positives become permanent IPAM rows. Use Promote. - **Custom cron scheduler** — Nautobot's built-in Job scheduler does this. Don't reinvent. - **`ARPBinding` model** — `DiscoveredHost.mac_address` already captures ARP-resolved MACs. - **A `ServiceFingerprint` model** — fingerprint fields live directly on `DiscoveredPort`; nmap's `-sV` produces them with `service_name` anyway. ## License [Apache-2.0](LICENSE) — © Ryan Malloy
