jhanvipatel2905/wireshark-network-analysis

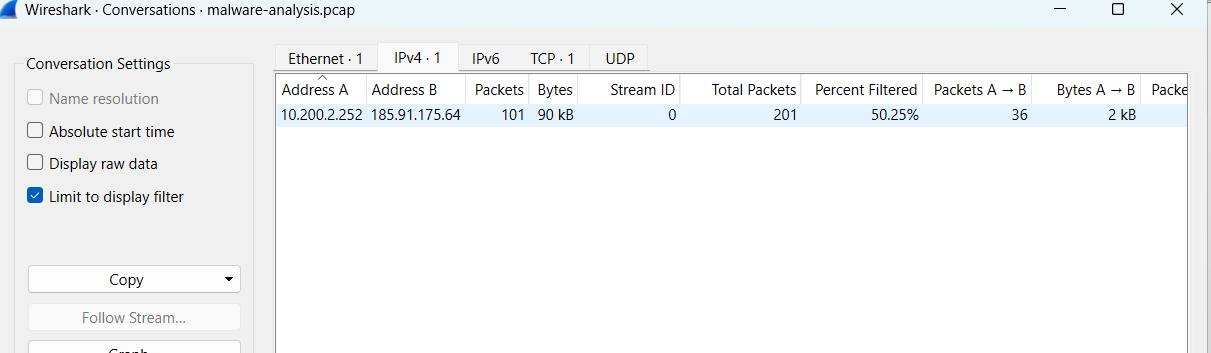

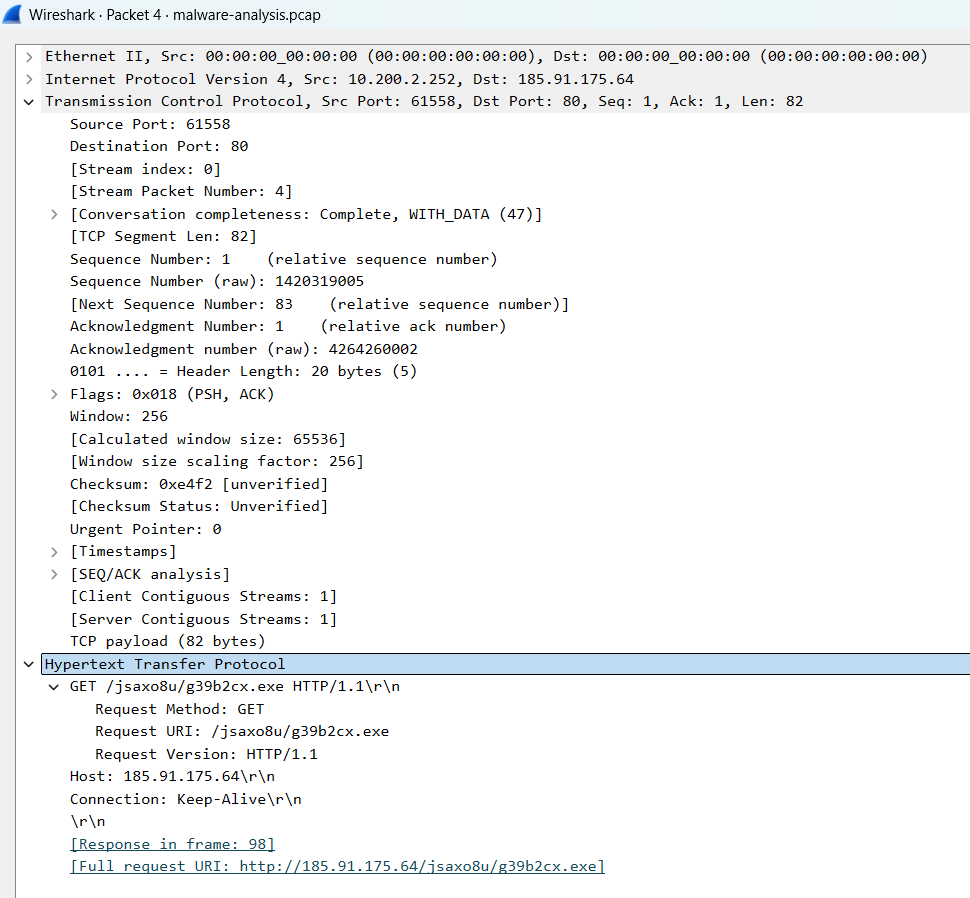

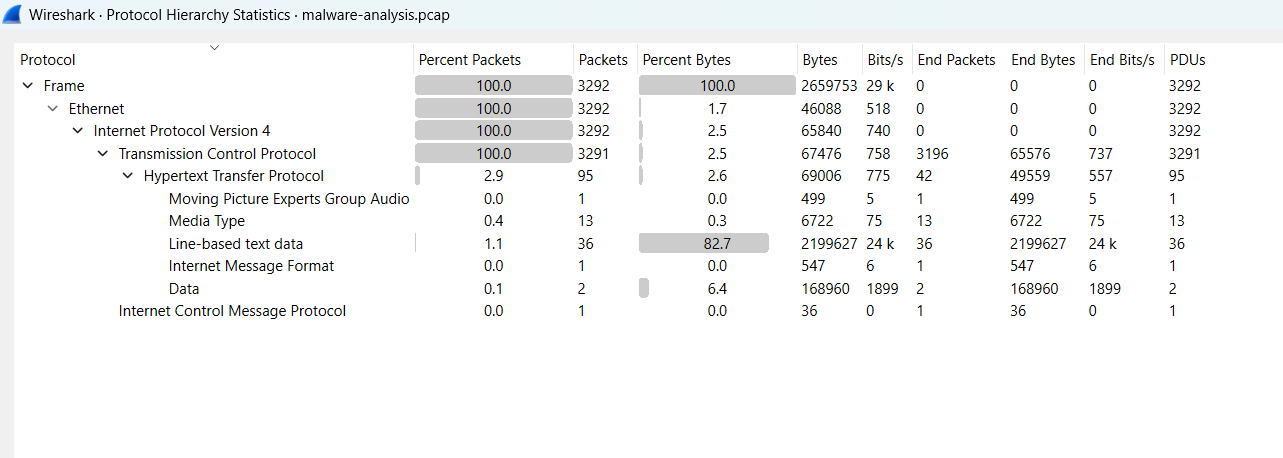

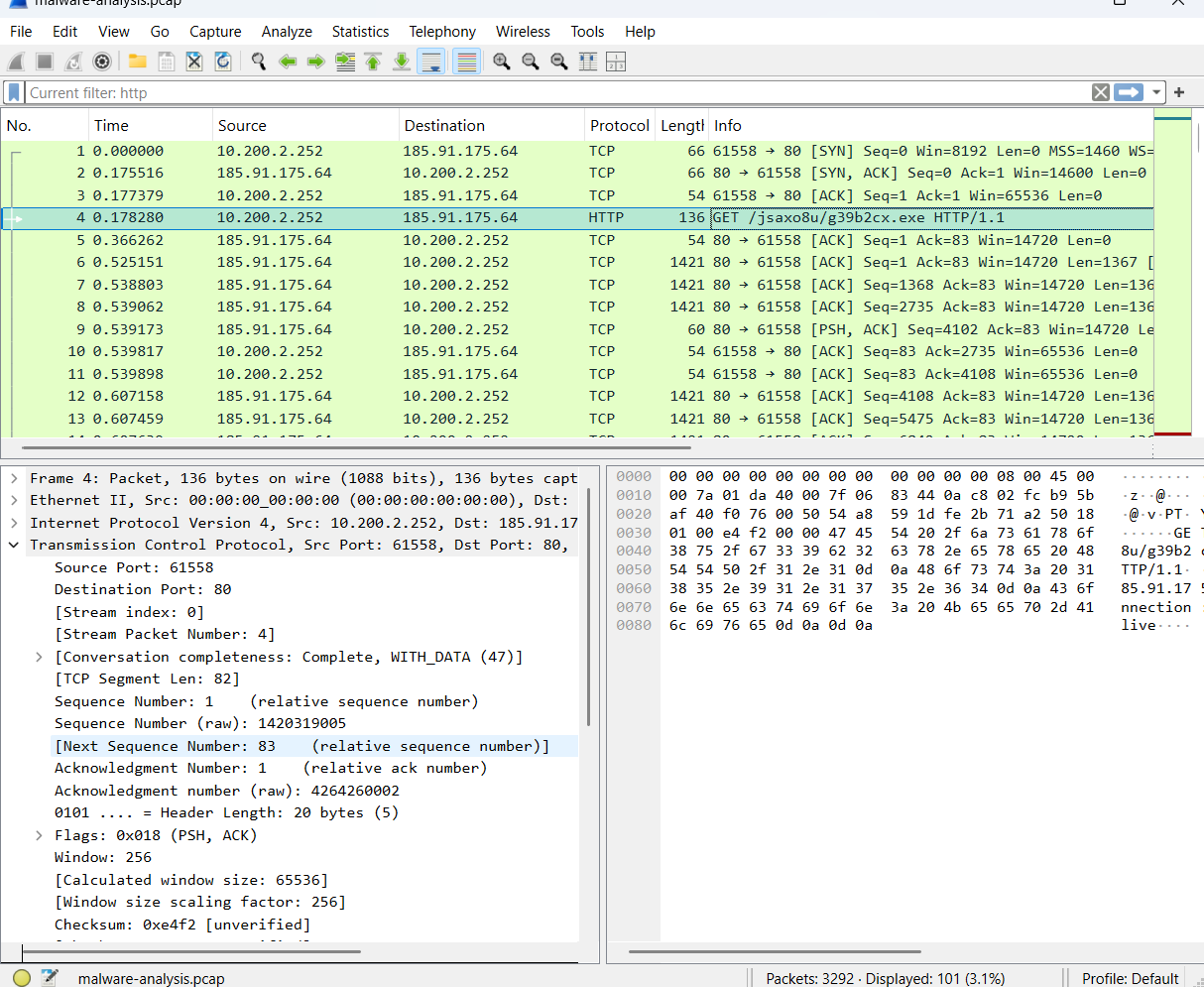

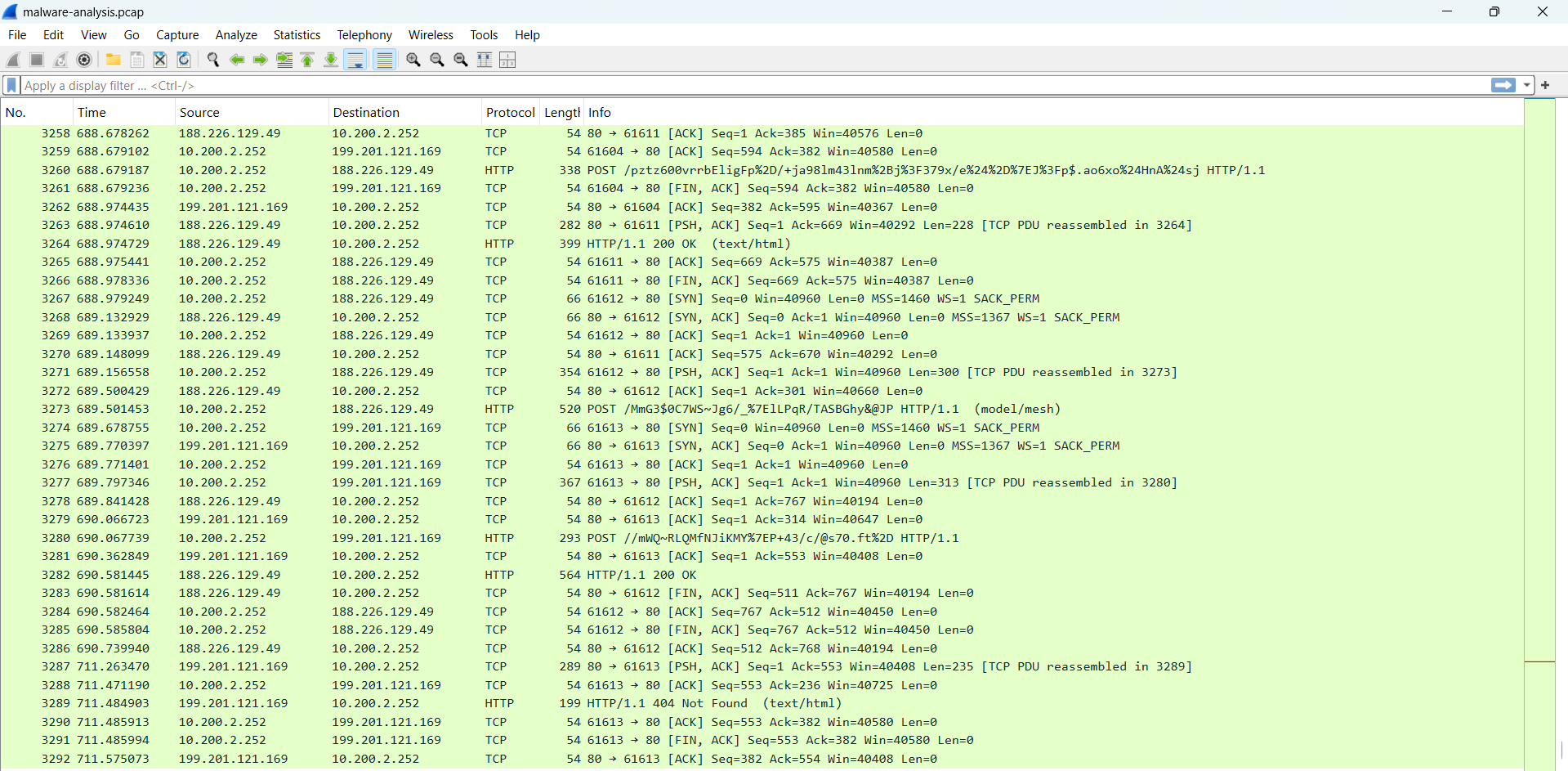

# Wireshark Malware Traffic Analysis ## Project Overview This project focuses on analyzing suspicious network traffic using Wireshark to identify potentially malicious activity, suspicious HTTP communication, executable payload delivery and network-based indicators of compromise (IOCs). The investigation involved protocol analysis, TCP stream reconstruction, packet inspection, HTTP object analysis and IOC documentation using a malware traffic capture file. # Objectives - Analyze suspicious packet capture (PCAP) traffic - Investigate HTTP-based communication - Identify suspicious executable downloads - Perform TCP stream reconstruction - Extract indicators of compromise (IOCs) - Understand malware traffic behavior # Tools Used - Wireshark - Protocol Hierarchy Statistics - TCP Stream Analysis - HTTP Object Export - Packet Inspection Filters # Skills Demonstrated - Network Traffic Analysis - Malware Traffic Investigation - Packet Inspection - Protocol Analysis - IOC Identification - HTTP Traffic Investigation - TCP Stream Reconstruction - Security Documentation # Investigation Steps ## 1. Initial Traffic Inspection The packet capture file was opened in Wireshark to observe: - Packet count - Active protocols - Source and destination communication - Overall traffic behavior ## 2. Protocol Hierarchy Analysis Protocol hierarchy statistics were analyzed to identify dominant protocols within the capture. Observed protocols included: - TCP - HTTP - DNS - IPv4 TCP was identified as the dominant protocol. ## 3. DNS Analysis DNS traffic was inspected to identify domain-based communication patterns. Minimal DNS activity was observed, suggesting possible direct IP communication. ## 4. HTTP Traffic Analysis HTTP traffic inspection revealed suspicious executable download activity. Suspicious request identified: GET /jsaxo8u/g39b2cx.exe HTTP/1.1 Observations: - Executable payload download - Direct IP communication - Randomized filename - Unencrypted HTTP transfer ## 5. TCP Stream Reconstruction TCP stream analysis reconstructed the communication between systems and revealed executable payload content. Observed indicator: This program cannot be run in DOS mode This suggested Windows executable file transfer behavior. ## 6. HTTP Object Analysis HTTP objects were exported to identify transferred files associated with suspicious communication. Binary payload delivery behavior was observed during analysis. ## 7. Packet Inspection Detailed packet inspection confirmed: - HTTP communication over port 80 - Executable payload transfer - External host communication - Suspicious request behavior # Indicators of Compromise (IOCs) Type Value Observation External IP 185.91.175.64 Suspicious communication host Executable File g39b2cx.exe Potential malicious payload Protocol HTTP Unencrypted communication Content-Type application/octet-stream Binary executable transfer HTTP Request GET /jsaxo8u/g39b2cx.exe Suspicious payload request # Screenshots Included - Opened PCAP Analysis - Protocol Hierarchy Statistics - DNS Analysis - HTTP Analysis - TCP Stream Reconstruction - Exported HTTP Objects - IP Conversations - Packet Details - IOC Documentation # Project Structure wireshark-network-analysis/ │ ├── screenshots/ ├── reports/ ├── pcap-files/ └── README.md # Key Findings The investigation revealed several suspicious indicators consistent with potential malware delivery activity, including: - Suspicious HTTP communication - Executable payload transfer - Binary content delivery - Direct IP communication - Suspicious external host interaction # Conclusion This project demonstrated the use of Wireshark for malware traffic analysis, packet inspection, TCP stream reconstruction, IOC extraction, and suspicious network activity investigation. The analysis workflow simulated real-world SOC and DFIR investigation techniques used to identify potentially malicious network behavior. # Report Detailed findings are available in the investigation report located in the `final-doc.pdf`. #Screenshots ## Opened PCAP File  ## Protocol Hierarchy Analysis  ## DNS Analysis  ## HTTP Traffic Analysis  ## TCP Stream Reconstruction  ## Exported HTTP Objects  ## IP Conversations Analysis  ## Packet Details Inspection  ## IOC Documentation
