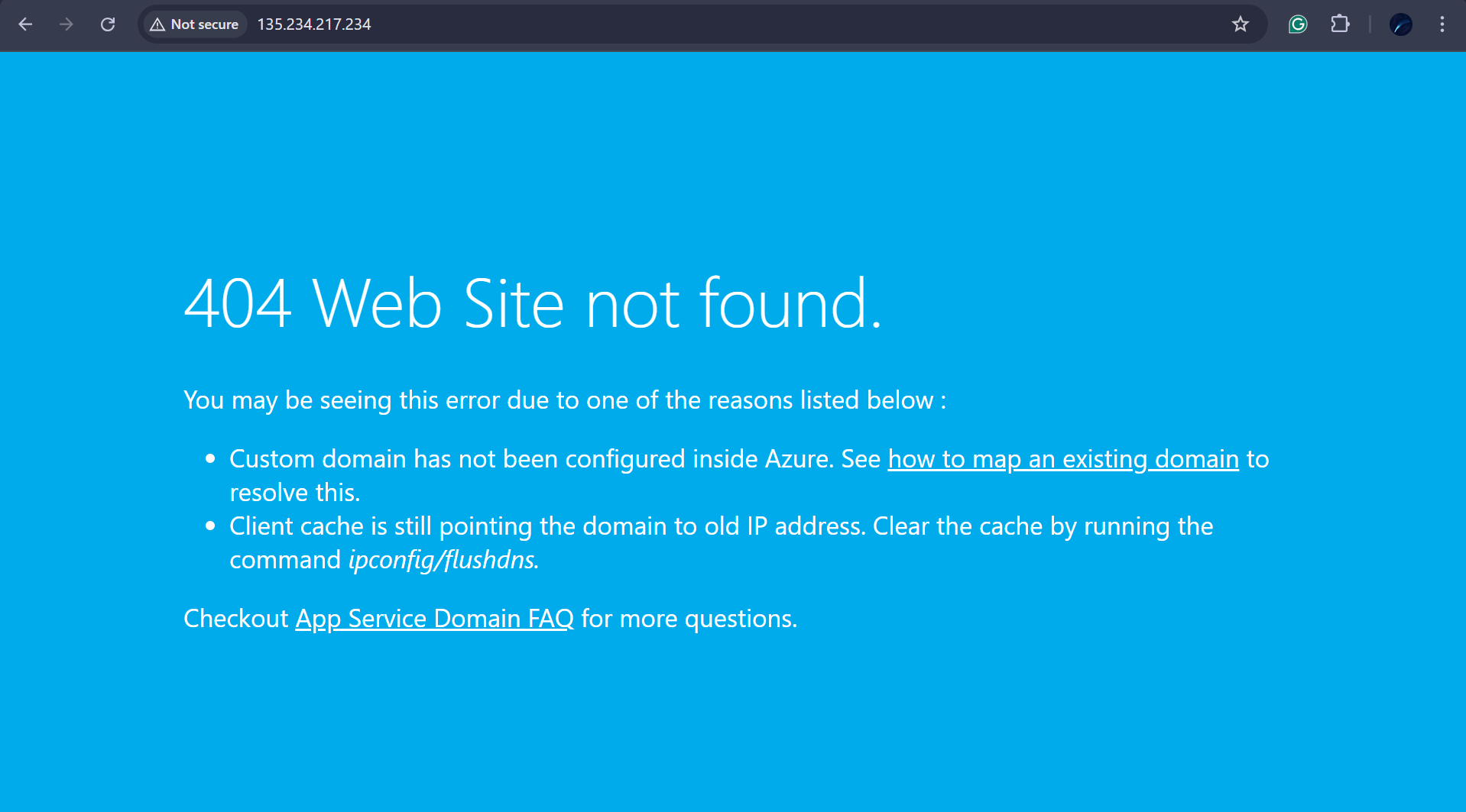

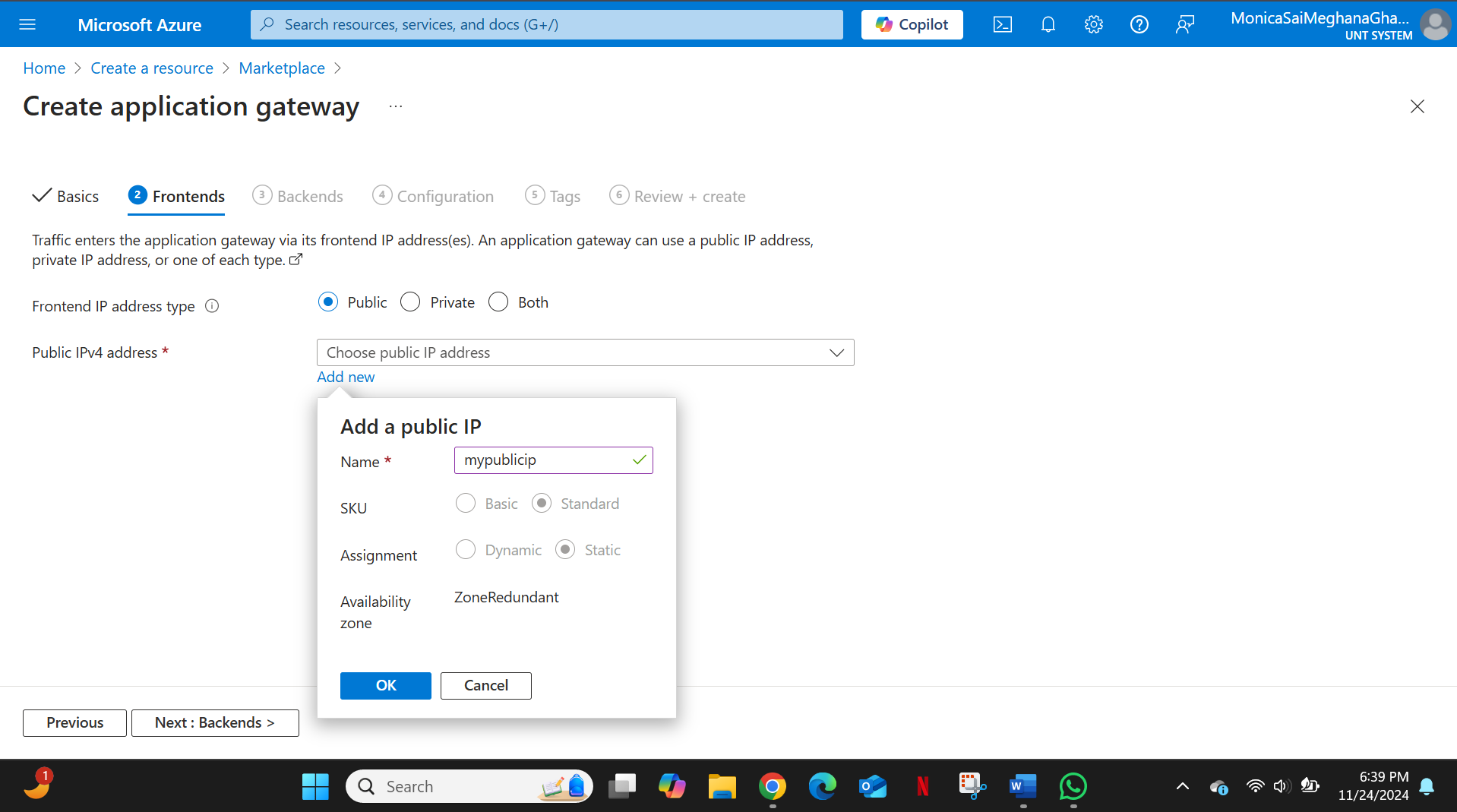

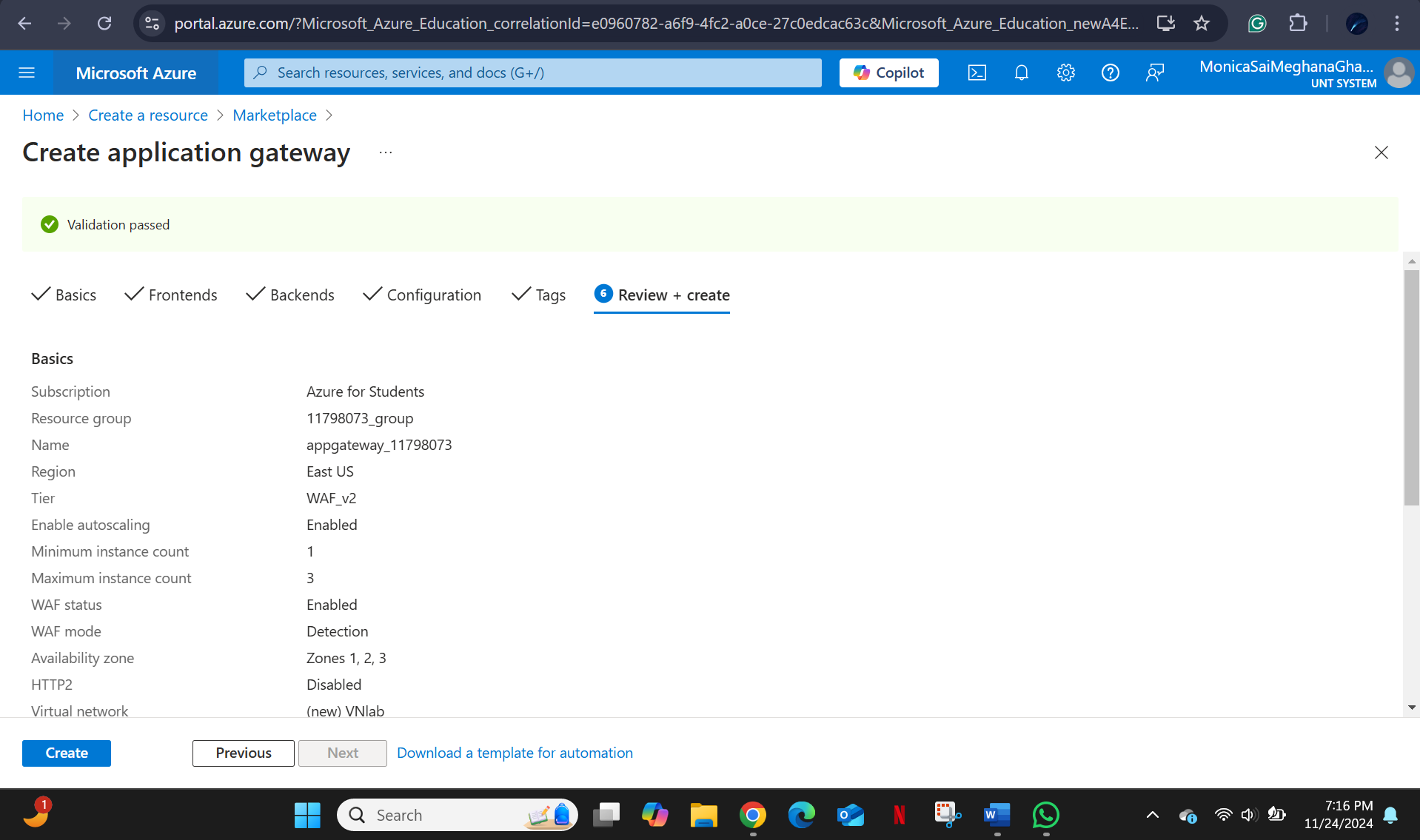

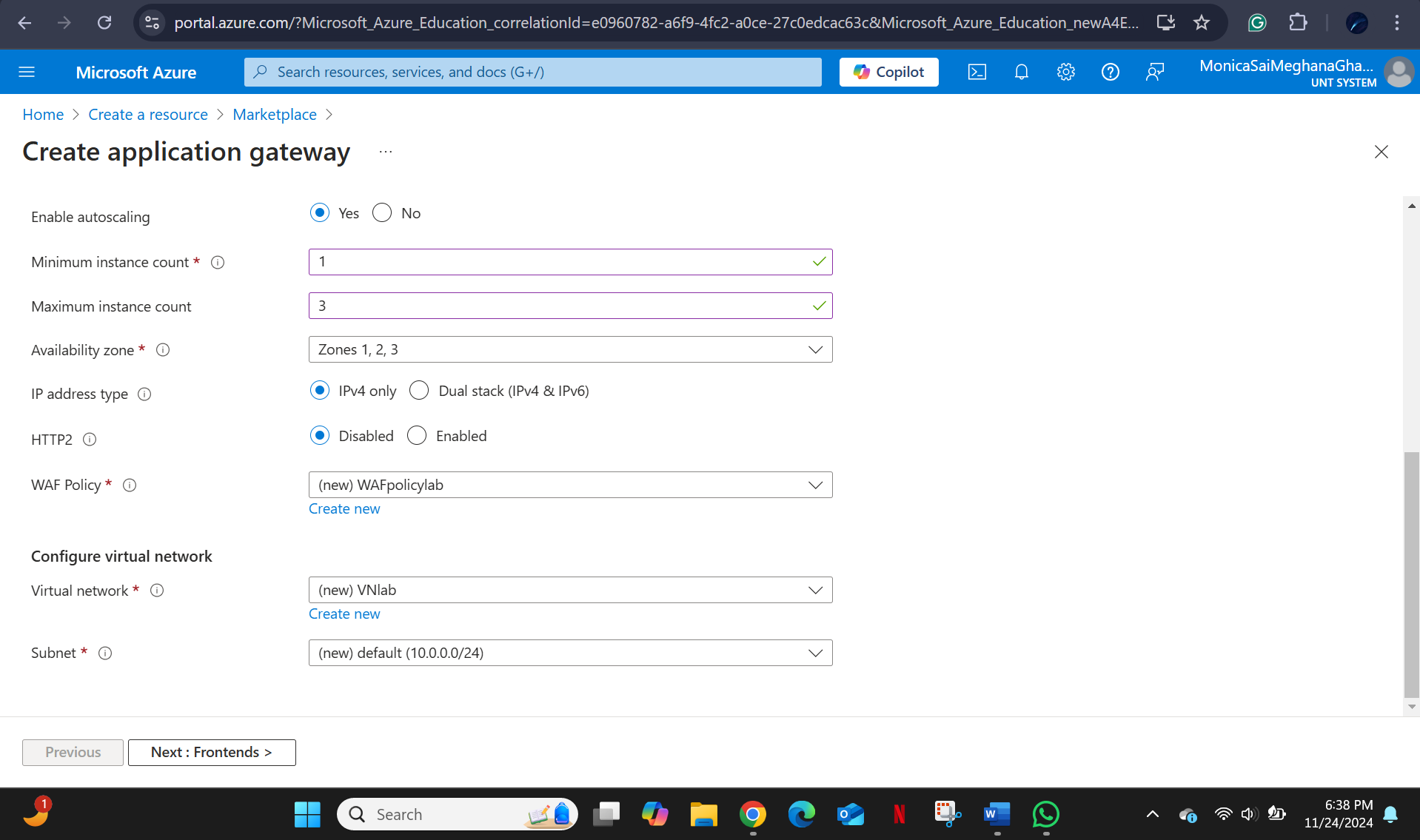

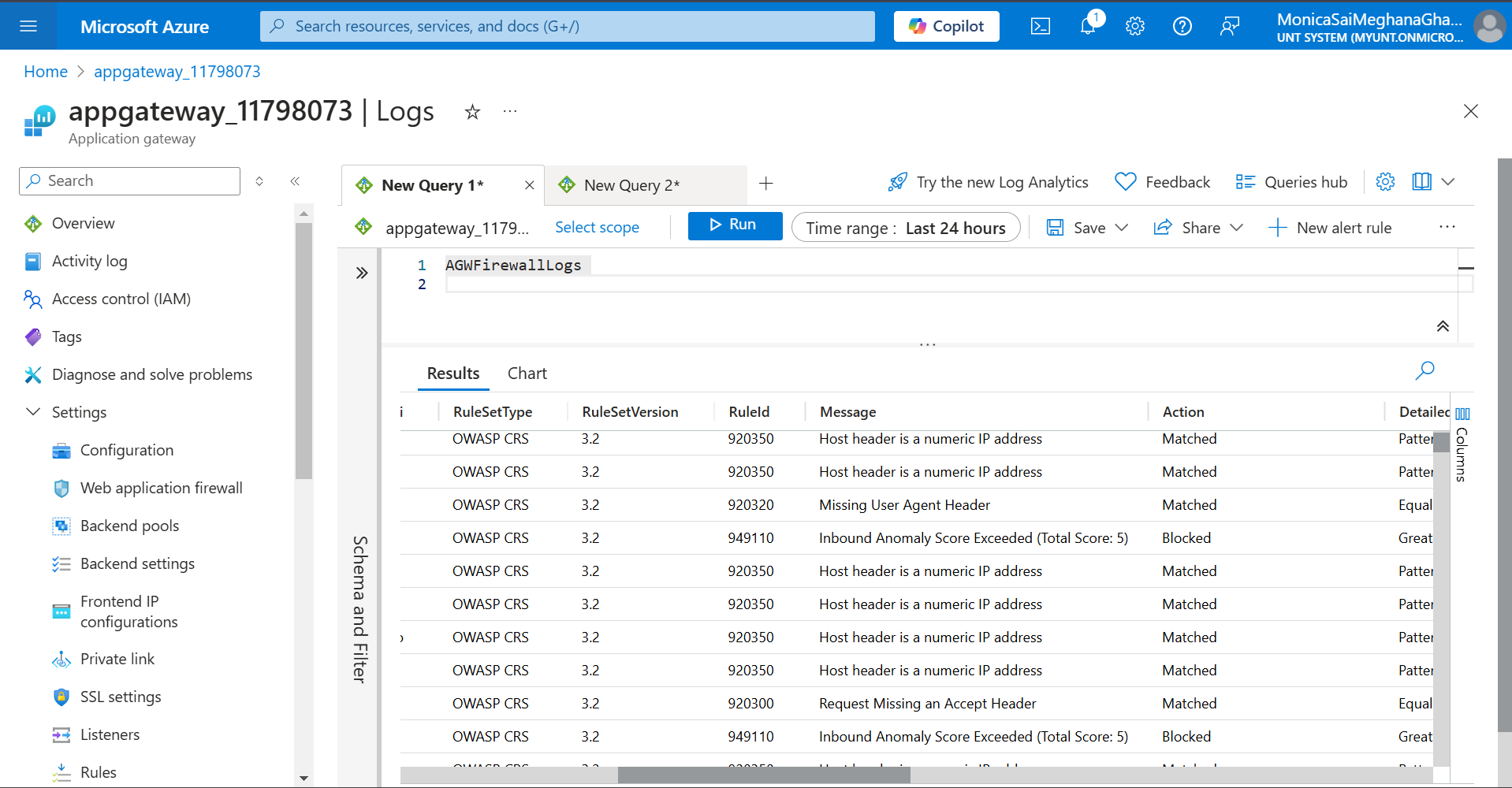

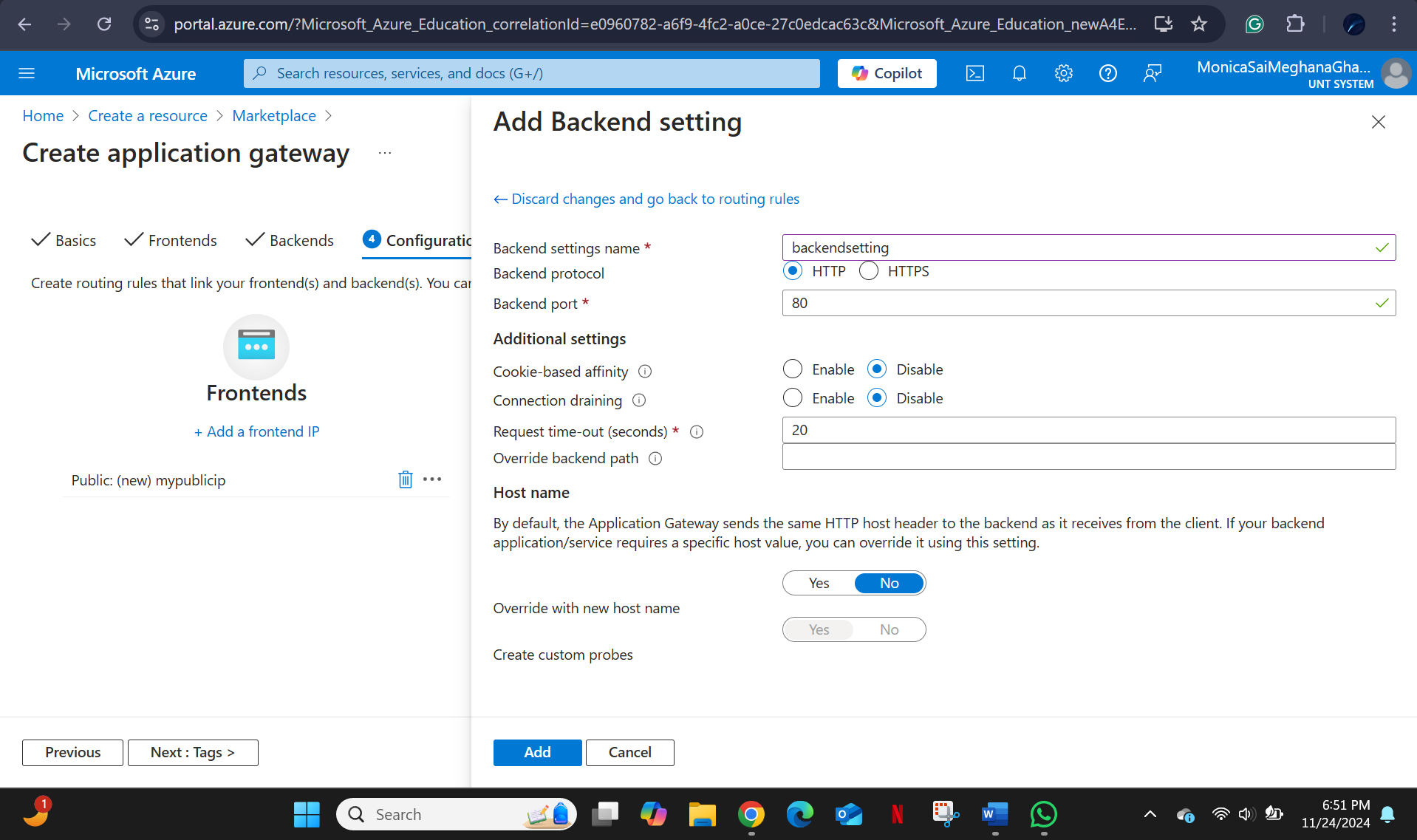

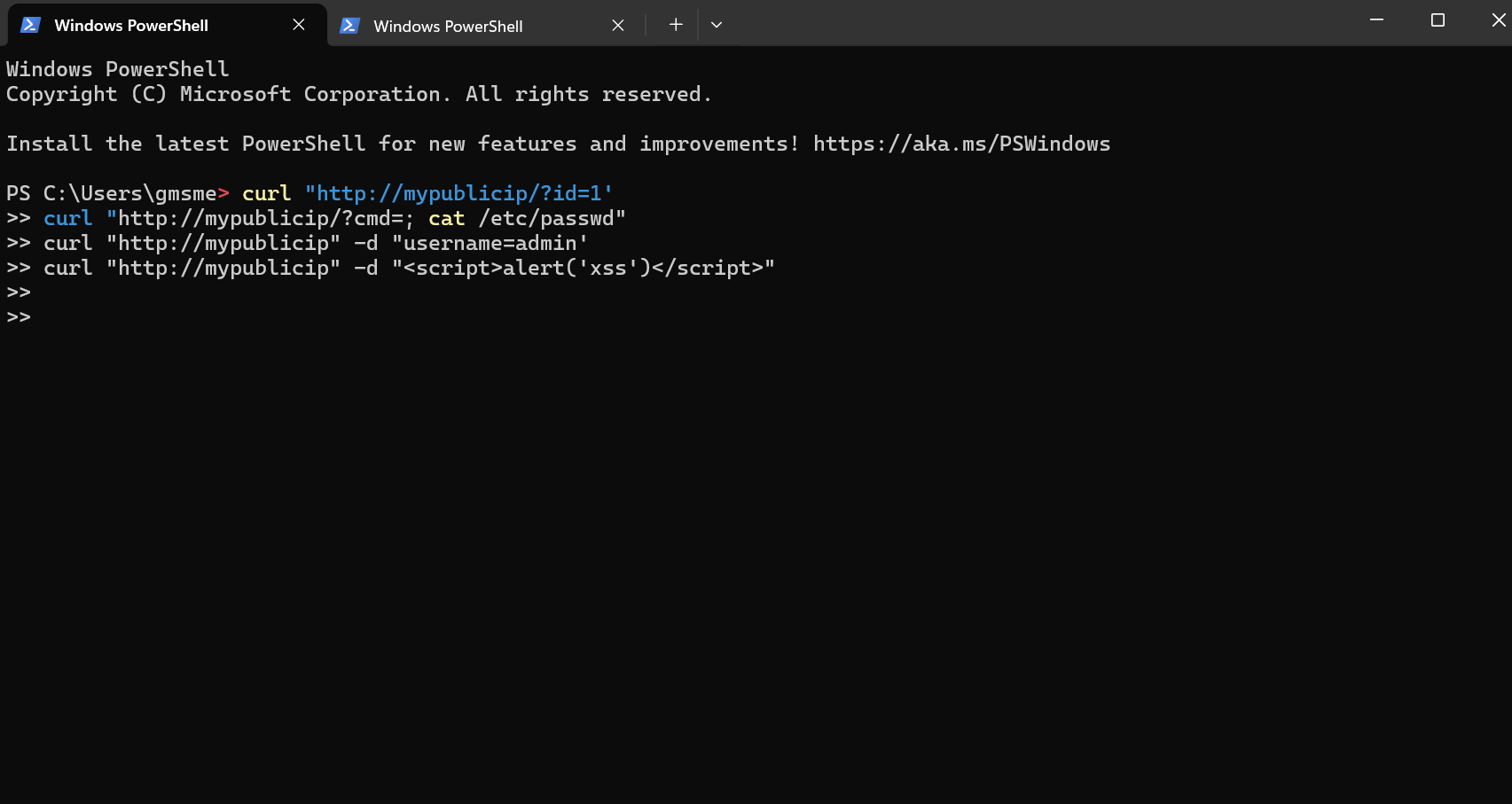

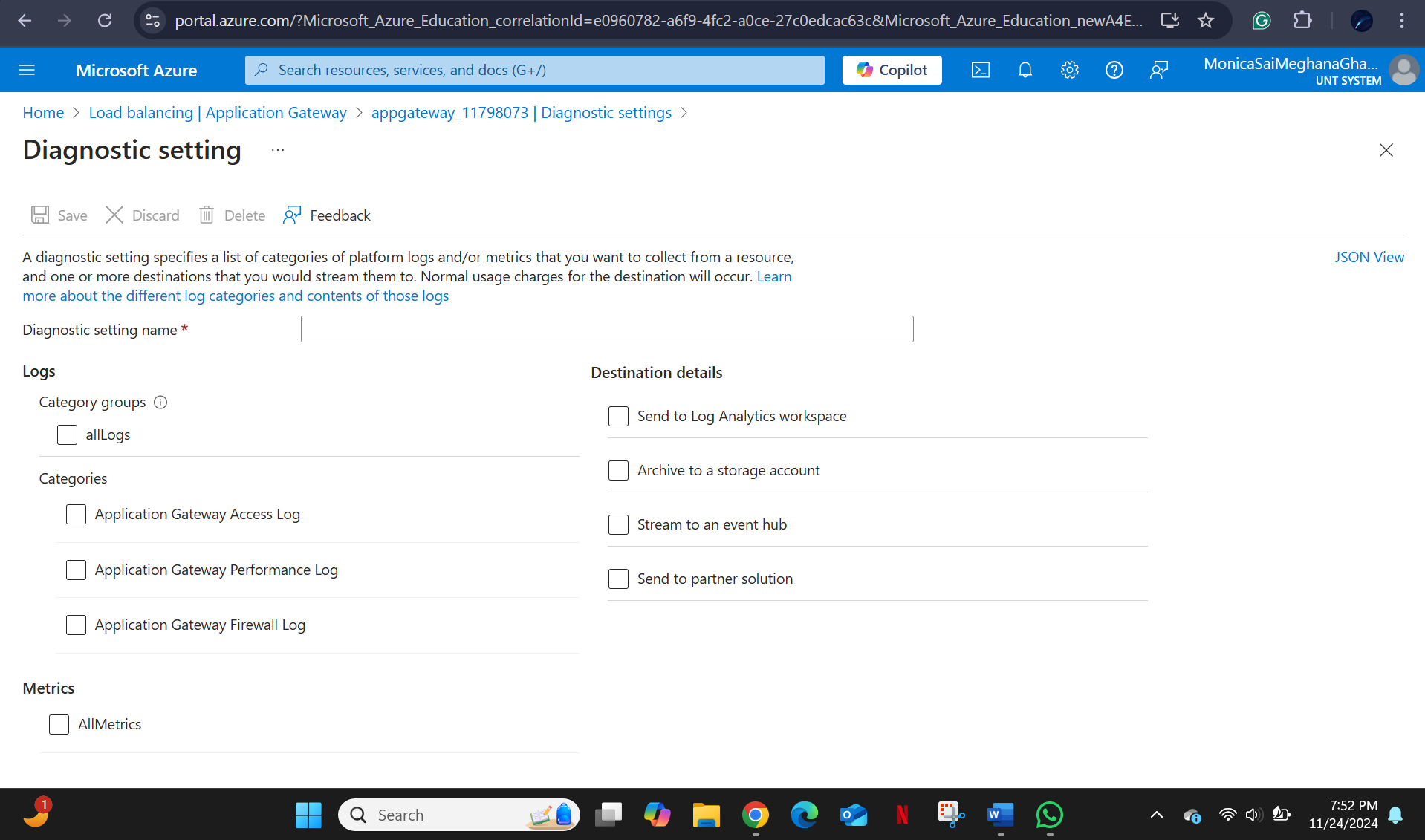

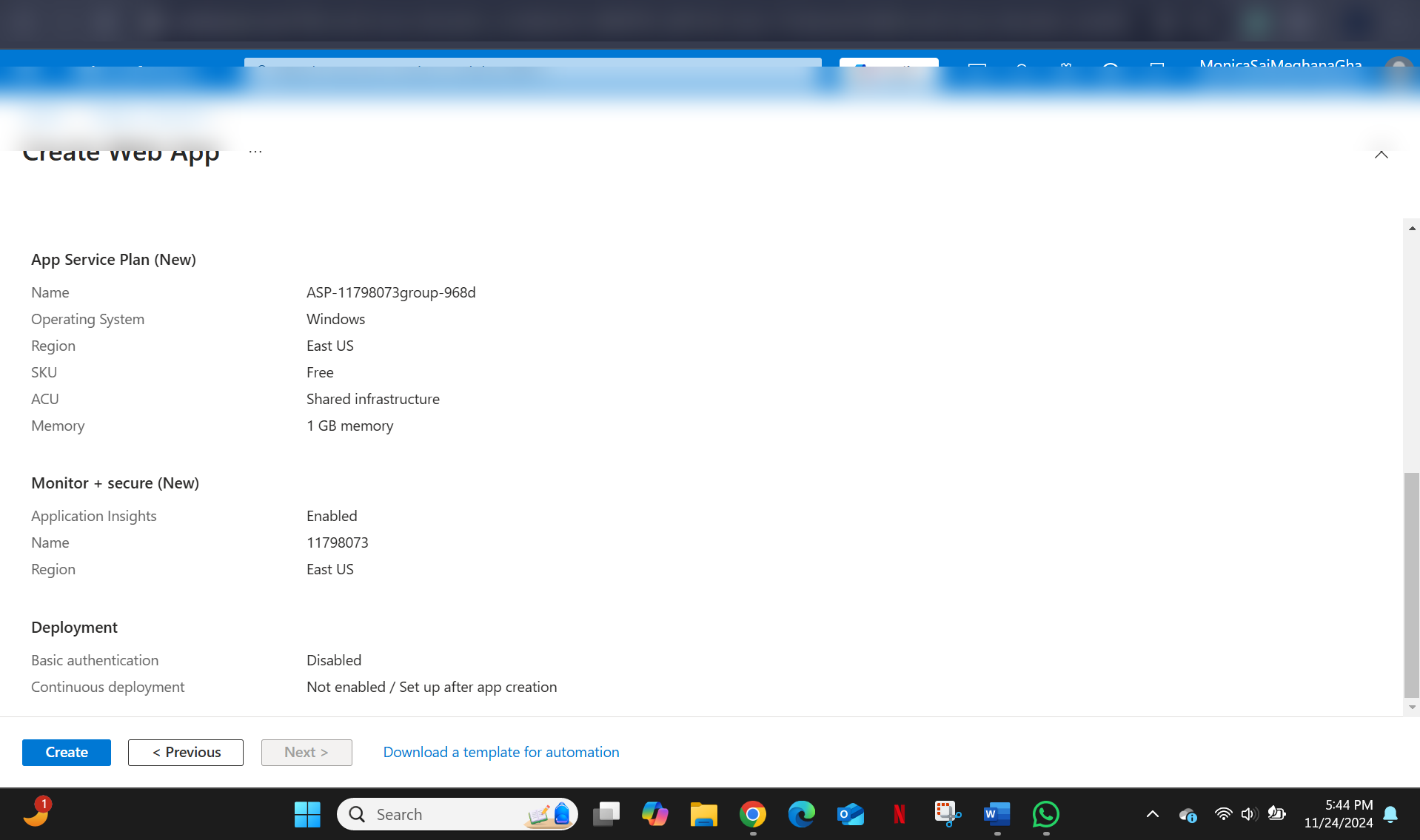

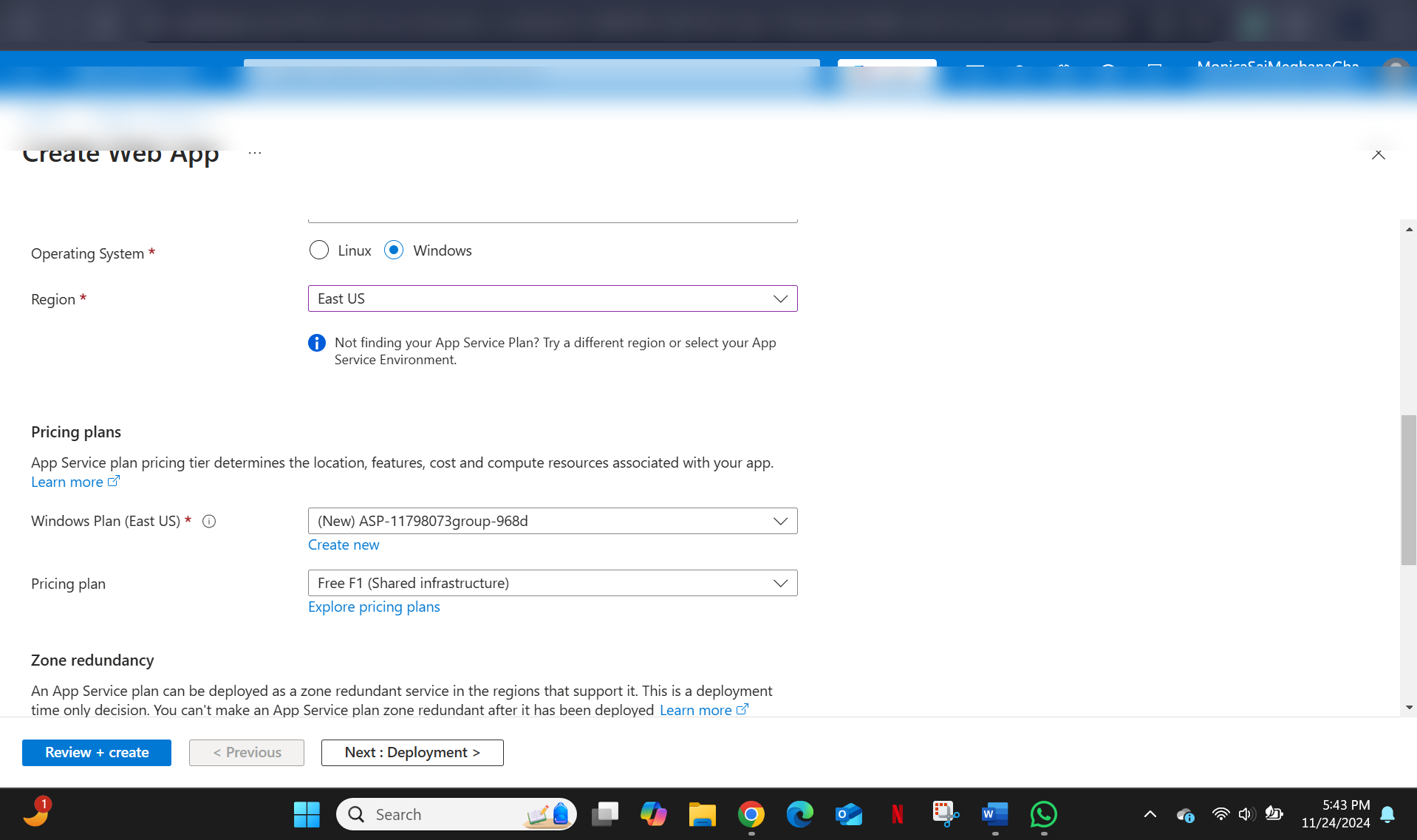

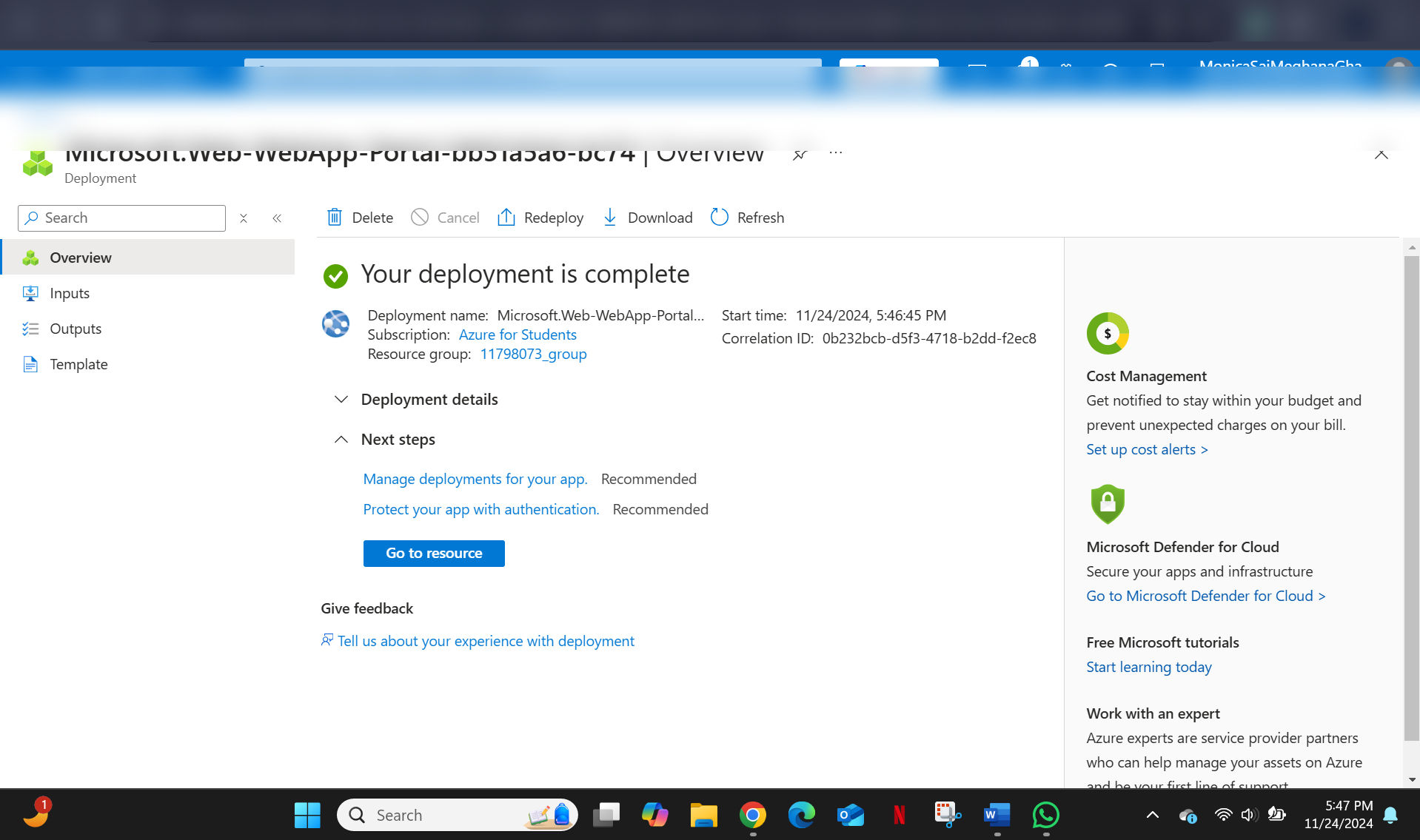

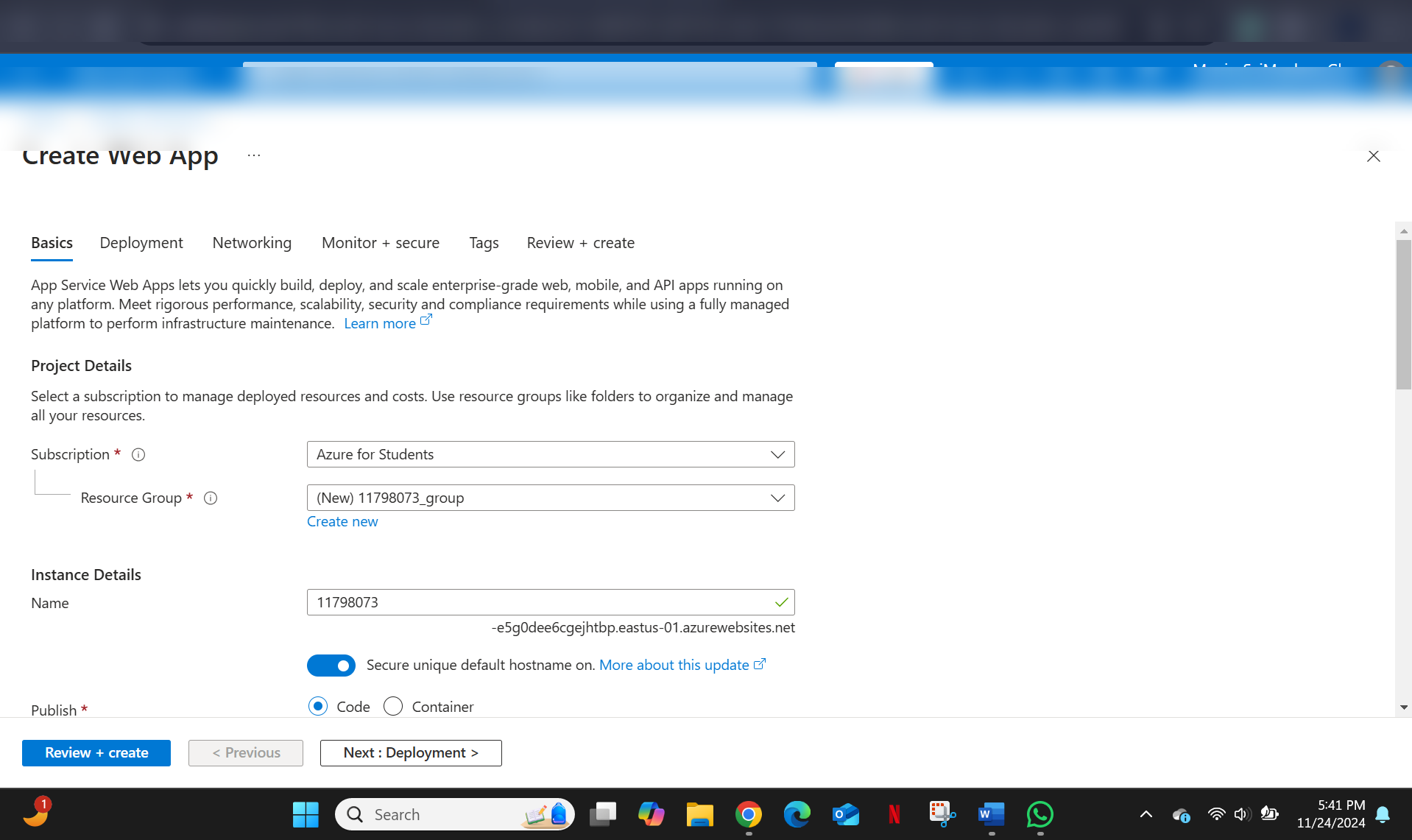

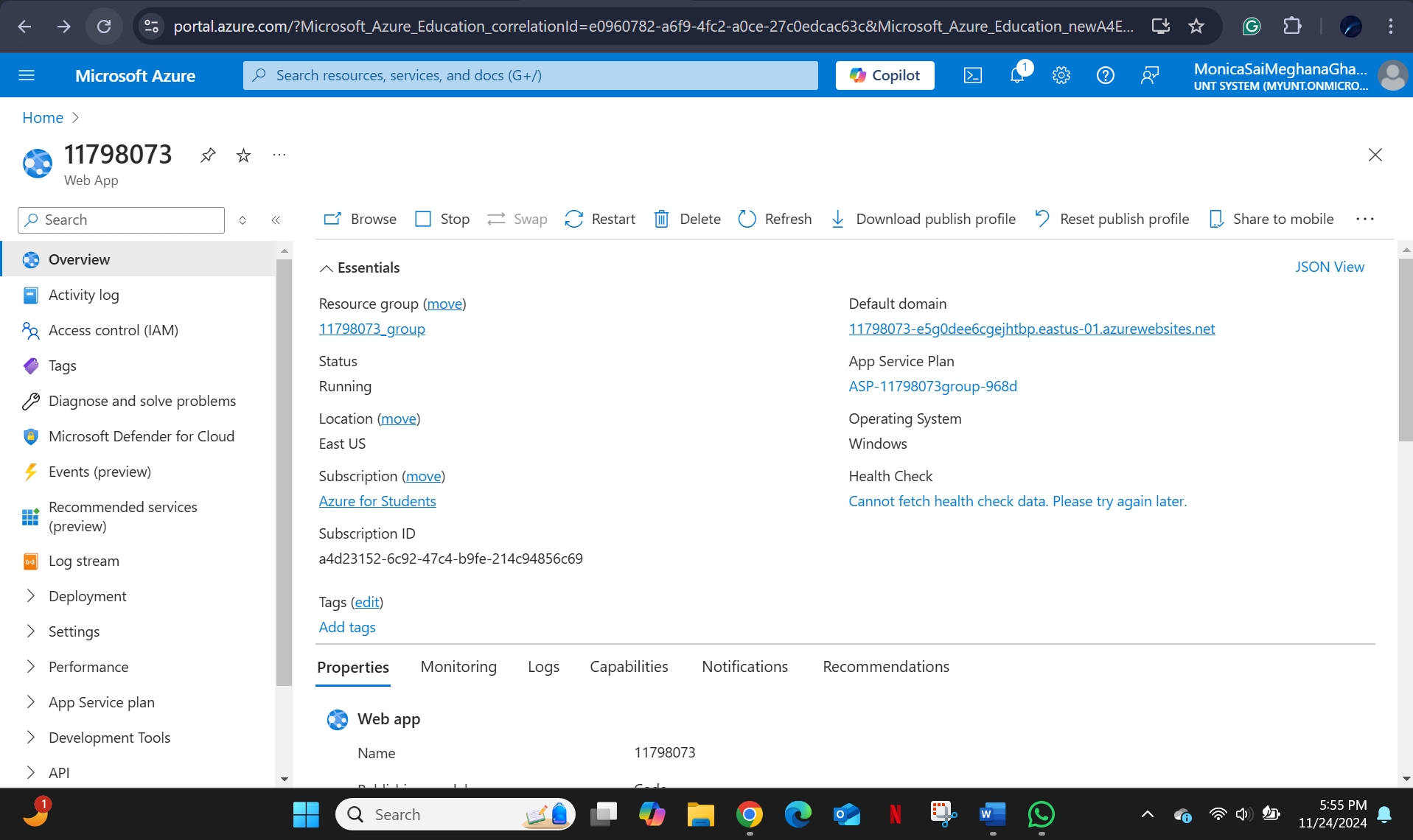

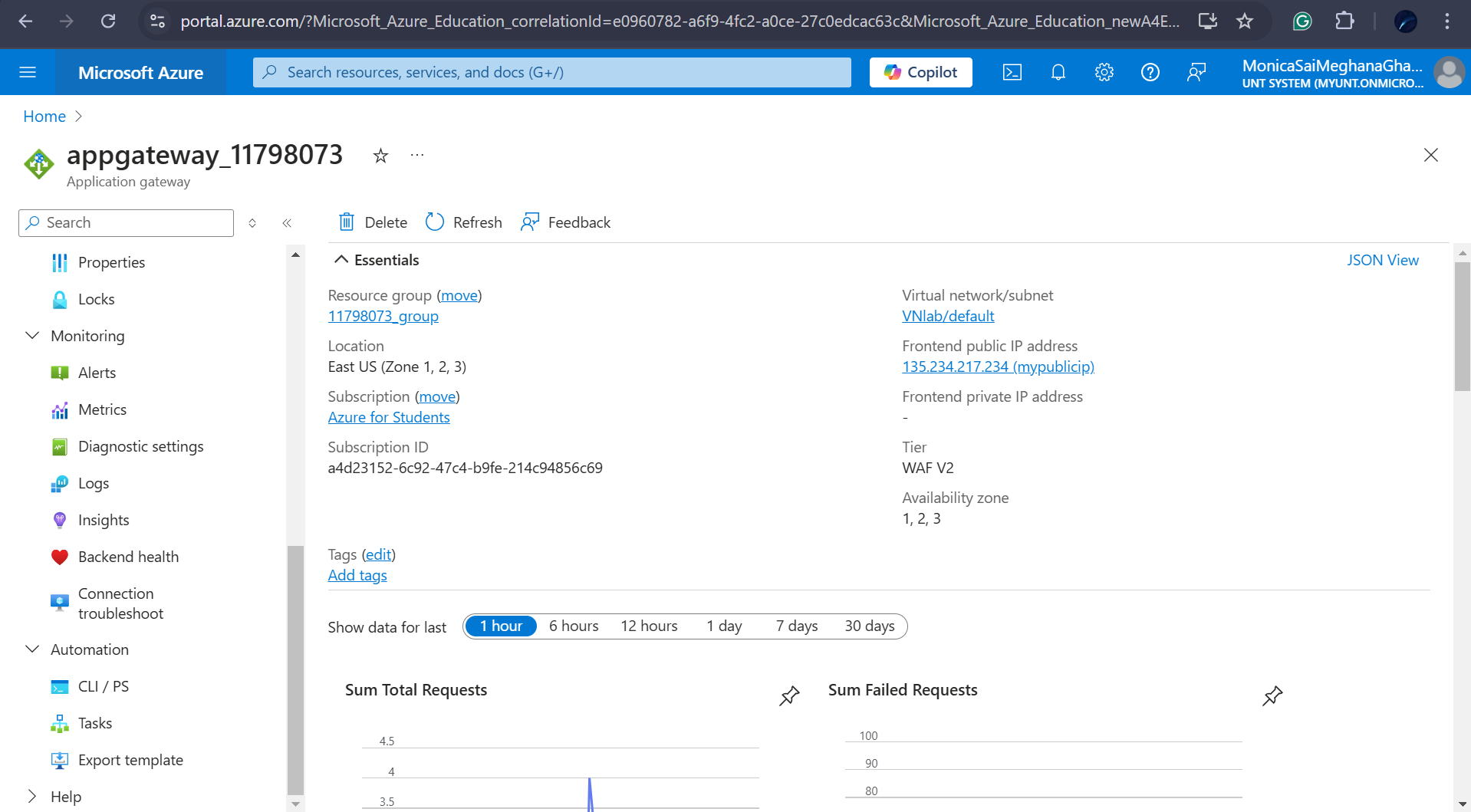

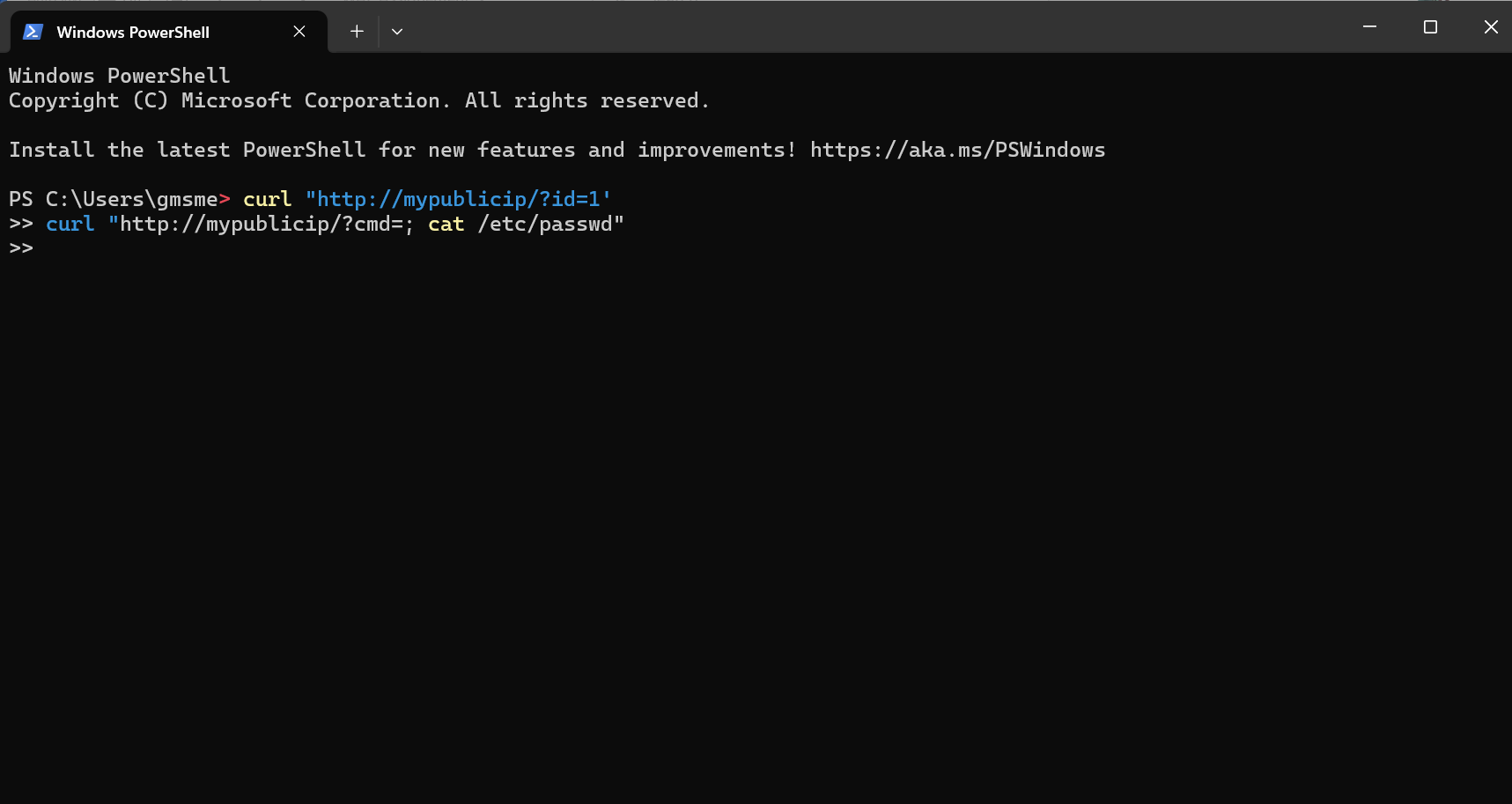

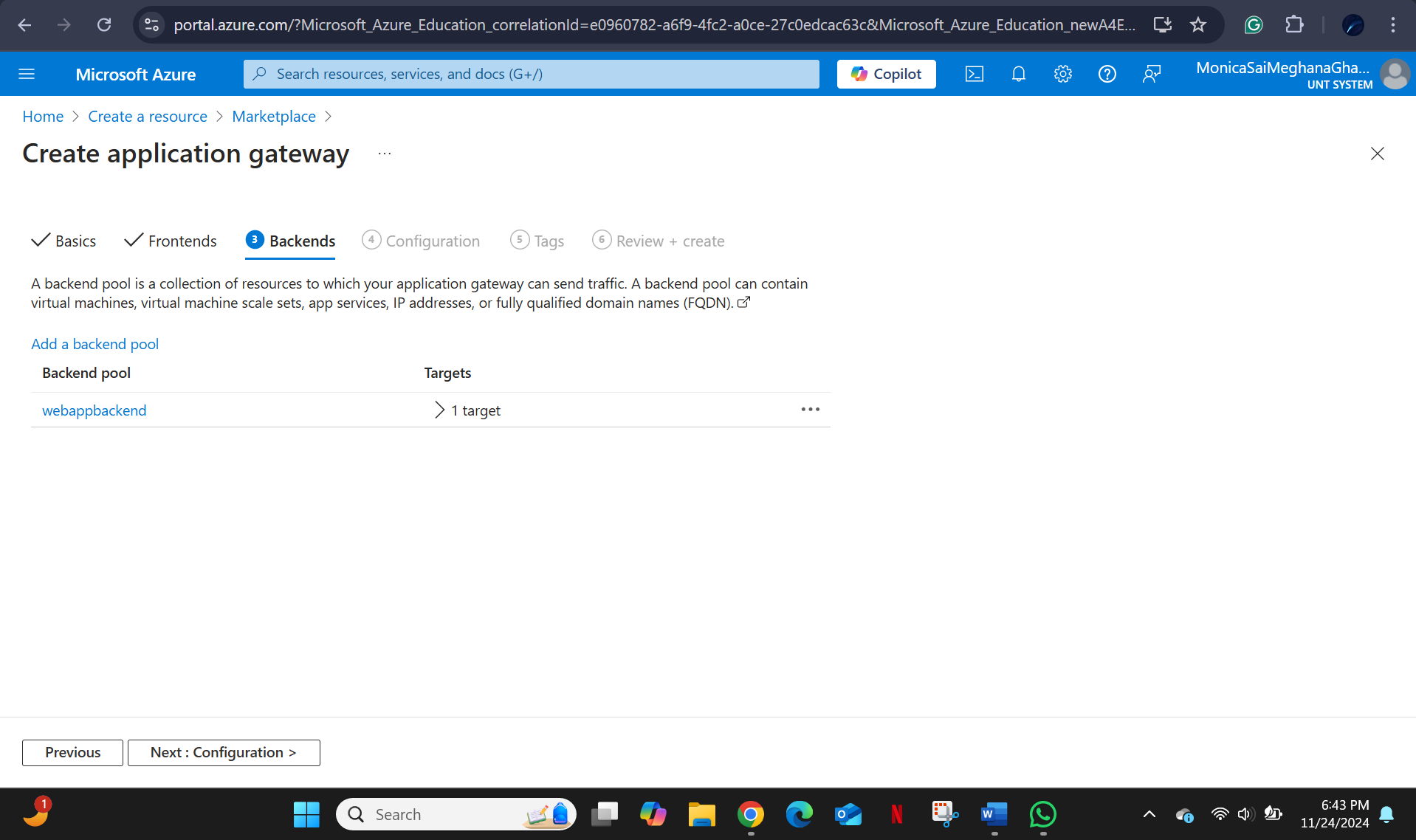

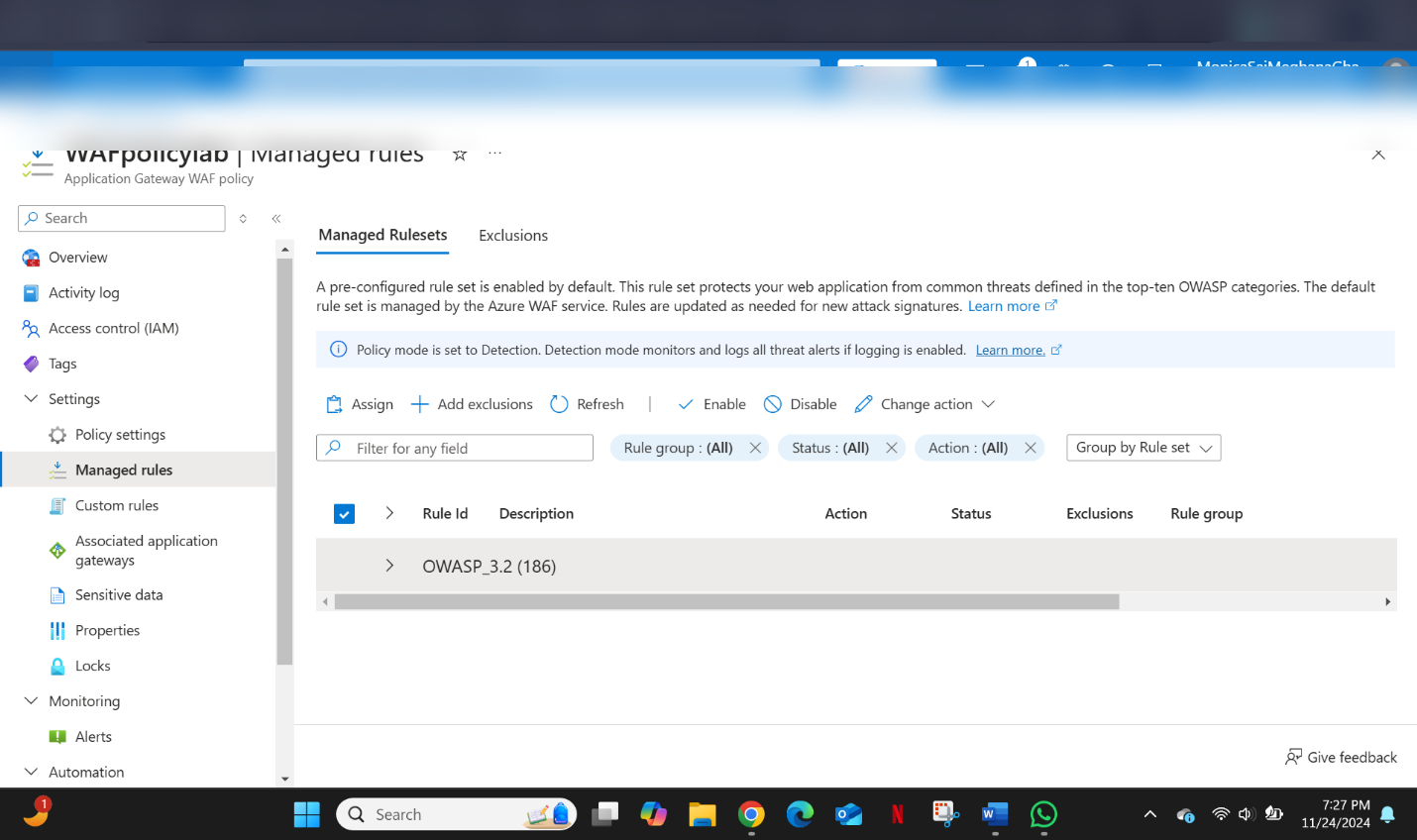

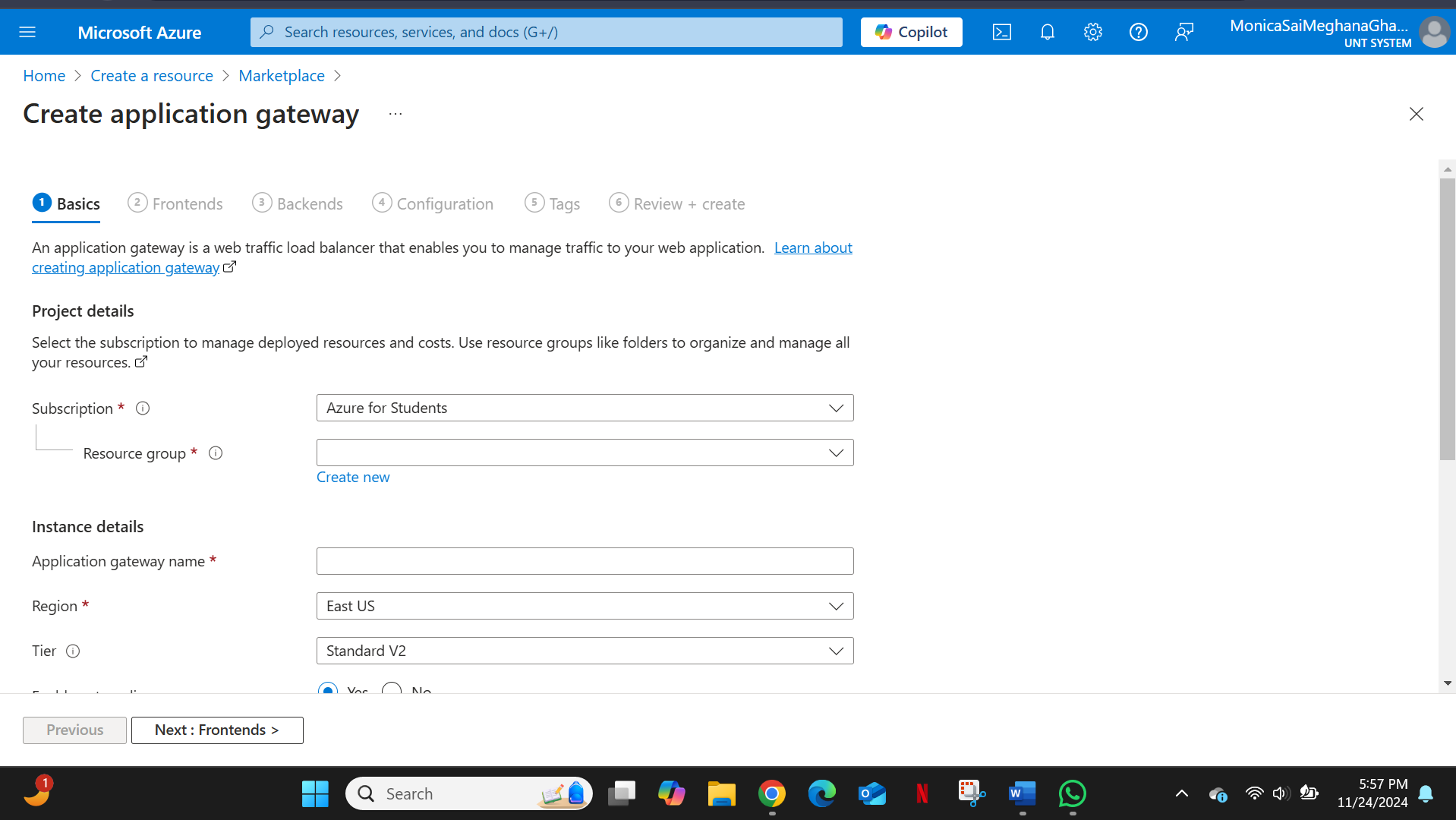

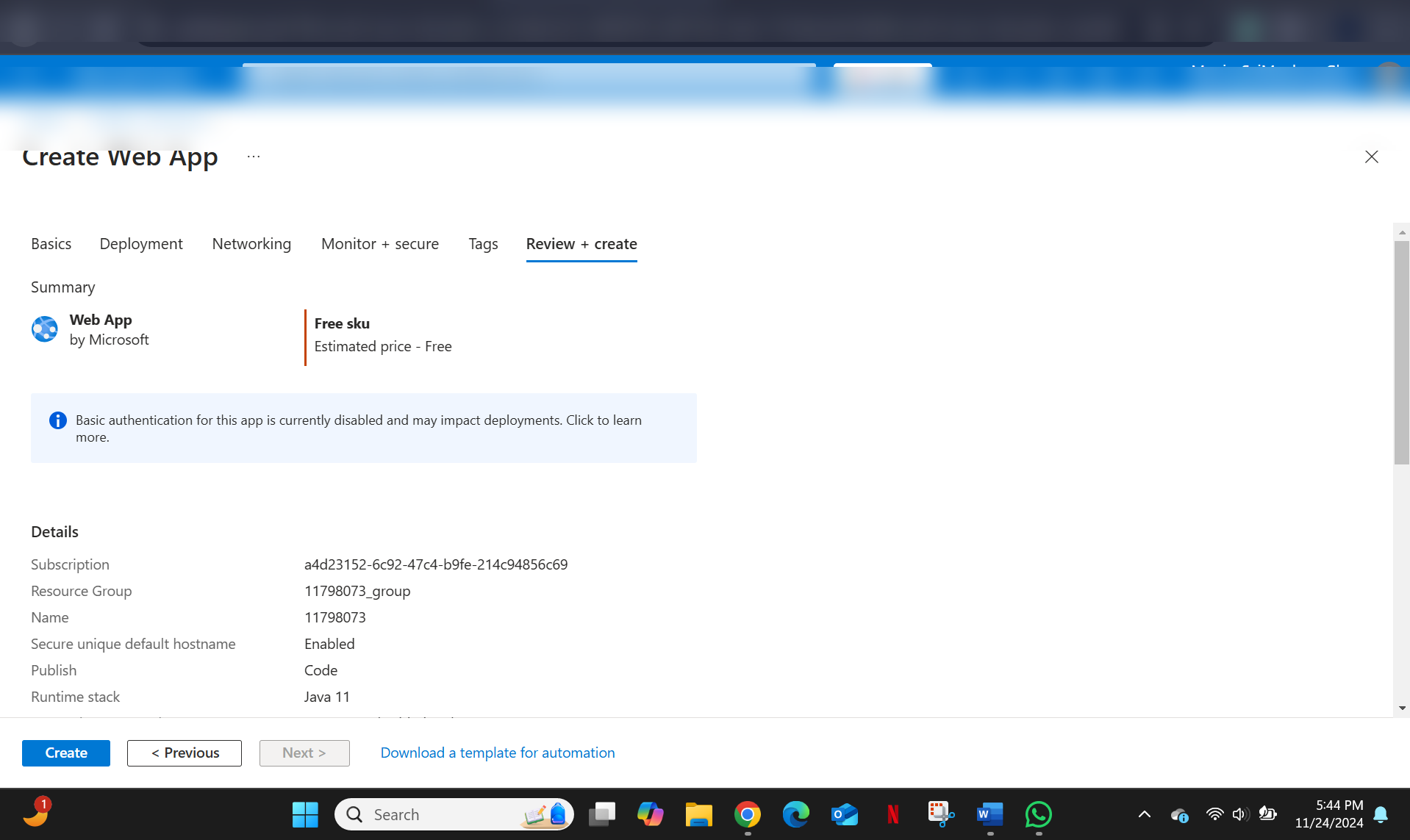

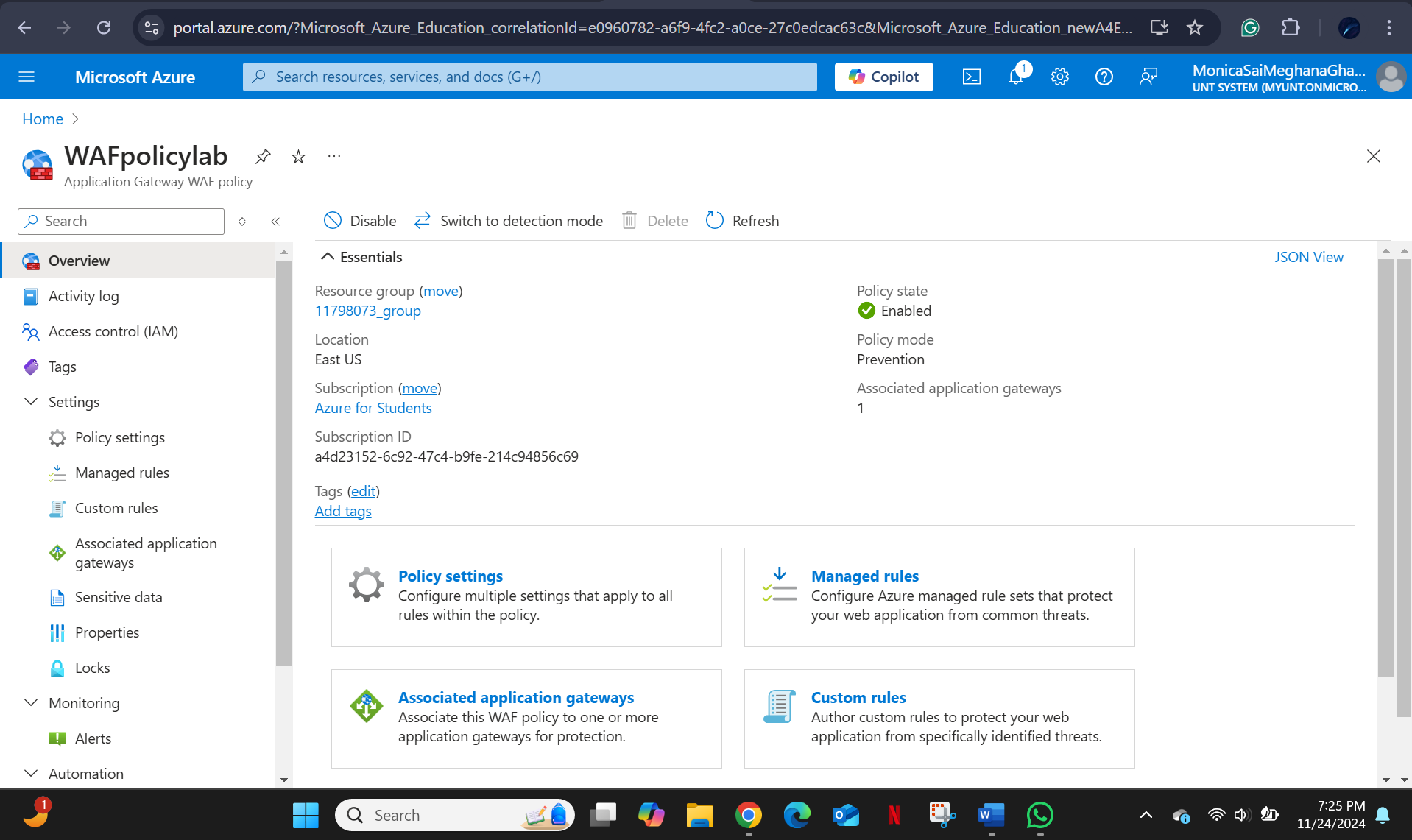

# Azure Web Application Firewall (WAF) — Hands-On Lab A practical walkthrough of deploying and testing **Azure Web Application Firewall (WAF)** using Azure Application Gateway. This lab covers setup, configuration, attack simulation, log analysis, and rule tuning recommendations. ## Tools & Environment | Tool / Service | Purpose | |----------------|---------| | Microsoft Azure | Cloud platform | | Azure App Service | Target web application | | Azure Application Gateway | WAF host | | Azure Log Analytics | Log querying and threat analysis | | curl | Attack simulation from command line | | OWASP Core Rule Set (CRS) | WAF detection rules | ## Step 1 — Deploy the Web Application Created an Azure Web Application and deployed it via Azure App Service.        ## Step 2 — Configure Application Gateway Set up the Application Gateway with the following components: - **Frontend IP** — public IP assigned to the gateway - **Backend Pool** — pointing to the deployed web app - **HTTP Settings** — protocol and port configuration - **Listener** — to receive incoming traffic          The public IP address assigned after configuration:  ## Step 3 — Enable Diagnostic Settings Enabled diagnostic settings on the Application Gateway to route WAF logs to Log Analytics for querying and analysis.  ## Step 4 — Verify Backend Health Confirmed the backend pool is healthy and traffic can flow from the gateway to the web application.  ## Step 5 — Query Logs Used Log Analytics to run queries against WAF logs and verify that events are being captured correctly.  ## Step 6 — Disable WAF Policy (for baseline testing) Temporarily disabled the WAF policy to establish a baseline — confirming that requests pass through without the WAF active before re-enabling for attack testing.   ## Step 7 — Attack Simulation # SQL Injection curl "http:///?id=1'" # Command Injection / Directory Traversal curl "http:///?cmd=; cat /etc/passwd" # SQL Injection via POST body curl "http://" -d "username=admin'" # Cross-Site Scripting (XSS) curl "http://" -d ""    ## Results | Attack Type | OWASP CRS Rule | Action | Log Message | |-------------|---------------|--------|-------------| | SQL Injection | Rule 942100 | Blocked | SQL Injection detected using AND/OR operator within query parameter | | Cross-Site Scripting (XSS) | Rule 941130 | Blocked | Cross-site scripting vulnerability detected in query string | | Directory Traversal | Rule 930120 | Blocked | Directory traversal sequence found within URL path | | Normal Traffic | None | Passed | No suspicious activity detected | ## Observations **Threat Blocking** The WAF successfully identified and blocked SQL Injection, XSS, and Directory Traversal attacks. OWASP CRS rules fired correctly based on attack signatures. **False Positives** Some legitimate traffic triggered WAF rules — for example, parameter names containing keywords like `SELECT` were flagged by Rule 942100. This highlights the need for rule tuning in production environments. **Logging and Insights** WAF logs provided detailed information per blocked request including source IP, rule ID, and the malicious payload. Correlating log patterns with request behavior was key to understanding the threat landscape. ## WAF Tuning Recommendations **Reduce False Positives** For rules like 942100 (SQL Injection), adjust sensitivity using subrule exclusions or threshold tuning to avoid blocking legitimate traffic that contains SQL-like keywords. **Log Analytics Patterns** Build log queries to surface repetitive attack patterns — these can be used to further refine WAF rules over time. **Automate Threat Response** Integrate WAF logs with **Azure Sentinel** or a SIEM solution to enable automated alerting and response for high-severity threats. ## Key Takeaways - Azure WAF with OWASP CRS provides strong out-of-the-box protection against common web attacks - Logging and diagnostics are essential — without them, WAF events are invisible - Rule tuning is necessary in real deployments to balance security with availability - WAF is one layer of defense — it works best as part of a broader security architecture ## Disclaimer This lab was performed in a controlled Azure environment for educational purposes. All attack simulations were conducted against resources owned and managed by the tester.
