# 🔐 Rakie K3s — Security Hardening, Observability & Controlled Testing
## CA1 → CA2 Progression
CA1 built the platform. CA2 secures, monitors, and validates it.
| CA1 Delivered | CA2 Added |
|---|---|
| 5 microservices on K3s | 6 security weaknesses identified + prioritised by CVSS |
| Traefik ingress NodePort 30080 | NetworkPolicy: flat trust zone → least-privilege |
| KEDA HTTP autoscaling (cron trigger corrected) | securityContext hardened on all 4 app pods |
| PostgreSQL with PVC | SA token disabled on all 4 deployments |
| Basic health endpoints | Credentials: plaintext stringData → base64 imperative |
| | CVE-2026-31789 OpenSSL CRITICAL → fixed (CRITICAL: 0) |
| | CVE-2026-42033 axios HIGH → fixed (axios 1.15.2) |
| | Structured JSON logging + X-Request-Id on all 4 services |
| | Prometheus + Grafana: 13 ServiceMonitors, 35 PrometheusRules |
| | 3-state failure scenario: root cause in under 60 seconds |
| | Container penetration tests CT-1 through CT-7 |

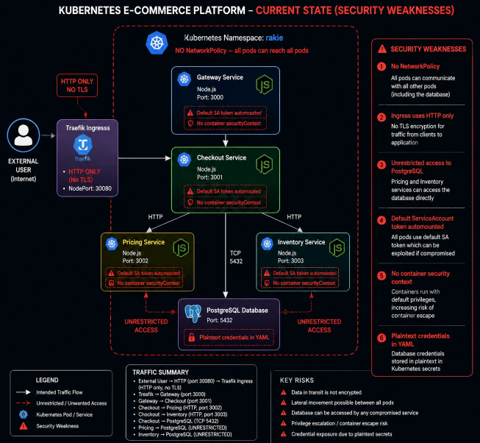

## Architecture — Current State (Before Hardening)
[](docs/architecture/beforePlatformARchitecture.png)
┌─────────────────────────────────────────────┐
│ K3s CLUSTER — namespace: rakie │
│ NO NetworkPolicy — flat trust zone │
External User ───► │ │
(HTTP) │ Traefik (HTTP only, NodePort 30080) │
│ ▼ │
│ Gateway (port 3000) │
│ ⚠ default SA token ⚠ no securityContext │
│ ▼ │
│ Checkout (port 3001) │
│ ⚠ hardcoded DB pwd ⚠ no securityContext │
│ ▼ ▼ ▼ │
│ Pricing Inventory PostgreSQL │
│ (3002) (3003) (5432) │
│ ⚠ any pod can reach postgres directly │
│ ⚠ plaintext POSTGRES_PASSWORD in YAML │
└─────────────────────────────────────────────┘
Security weaknesses:
1. No NetworkPolicy — CVSS 9.8 CRITICAL
2. Plaintext credentials in secret.yaml — CVSS 7.5
3. No securityContext on any pod — CVSS 7.8
4. Default SA token automounted — CVSS 7.5
5. CVE-2026-31789 OpenSSL (CRITICAL) + CVE-2026-42033 axios (HIGH) in all images
6. HTTP-only Traefik ingress — CVSS 5.9

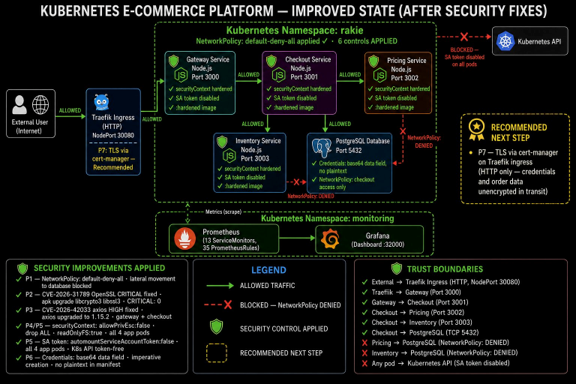

## Architecture — Improved State (After Hardening)
[](docs/architecture/improvedarchitecture.png)
┌─────────────────────────────────────────────────────────┐
│ K3s CLUSTER — namespace: rakie │
│ NetworkPolicy: default-deny-all + 5 scoped allow rules │
│ 6 controls APPLIED │
External User ───► │ │
(HTTP) P7► │ Traefik (HTTP, NodePort 30080) [TLS: Recommended] │
TLS │ │ ALLOWED │
recommended │ ▼ │
│ Gateway (port 3000) ──✗──► Kubernetes API │
│ ✓ securityContext hardened BLOCKED (SA disabled) │
│ ✓ SA token: false │
│ ✓ :hardened image │
│ │ ALLOWED │
│ ▼ │
│ Checkout (port 3001) │
│ ✓ securityContext hardened │
│ ✓ SA token: false │
│ ✓ :hardened image (axios 1.15.2) │
│ │ ALLOWED │ ALLOWED │ ALLOWED │
│ ▼ ▼ ▼ │
│ Pricing Inventory PostgreSQL (5432) │
│ ✓ hardened ✓ hardened ✓ base64 credentials │
│ │ ✓ checkout access only │
│ └──✗──────────────► BLOCKED (NetworkPolicy) │
│ pricing/inventory → postgres: DENIED │
└─────────────────────────────────────────────────────────┘
┌──────────────────────────────────┐
│ namespace: monitoring │
│ Prometheus ──► Grafana (:32000) │
│ 13 ServiceMonitors │
│ 35 PrometheusRules │
└──────────────────────────────────┘
Controls APPLIED (P1-P6):
✅ P1 — NetworkPolicy: default-deny-all + 5 scoped allow rules
✅ P2 — CVE-2026-31789 OpenSSL CRITICAL: fixed (apk upgrade → CRITICAL: 0)
✅ P3 — CVE-2026-42033 axios HIGH: fixed (npm install axios@1.15.2)
✅ P4 — securityContext: allowPrivEsc:false, drop:ALL, readOnlyFS:true
✅ P5 — automountServiceAccountToken: false on all 4 app pods
✅ P6 — Credentials: base64 data field, imperative creation, no plaintext
Recommended (P7):
📋 P7 — TLS via cert-manager on Traefik ingress (HTTP only — unencrypted)
## Security Findings — P1 through P8
| P# | Finding | CVSS | Status | Report Evidence |
|---|---|---|---|---|
| P1 | No NetworkPolicy — flat trust zone, any pod reaches postgres | 9.8 | ✅ APPLIED | FX-1, CT-6, CT-7 |
| P2 | CVE-2026-31789 OpenSSL heap overflow — all 4 images | 9.8 | ✅ APPLIED | T2, CVE-1 to CVE-6 |
| P3 | CVE-2026-42033 axios prototype pollution — gateway + checkout | 8.1 | ✅ APPLIED | T3, CVE-5, CVE-6 |
| P4 | allowPrivilegeEscalation:true on all workloads | 7.8 | ✅ APPLIED | FX-2, FX-3 |
| P5 | readOnlyRootFilesystem:false + SA token automounted | 5.5/7.5 | ✅ APPLIED | SA-1 to SA-4 |
| P6 | Plaintext POSTGRES_PASSWORD in secret.yaml stringData | 7.5 | ✅ APPLIED | SEC-1 to SEC-5 |
| P7 | HTTP-only Traefik ingress — no TLS | 5.9 | 📋 Recommended | — |
| P8 | — | — | — | — |
## All Commands Used (CA2 Brief Requirement)
### PART 1 — Cluster State Verification
# Confirm K3s node ready
kubectl get nodes -o wide
# Full resource inventory — Figure 1, Figure 2
kubectl get pods -n rakie
kubectl get all -n rakie
# Confirm no NetworkPolicy before fix — Figure 3
kubectl get networkpolicies -n rakie
# Show plaintext credentials — Figure 4
cat /home/eaduser/rakie/k8s/secrets/postgres-secret.yaml
# Show default SA only — Figure 5
kubectl get serviceaccounts -n rakie
# Show HTTP-only ingress — Figure 6
kubectl get ingress -n rakie -o yaml
### PART 1 — P1 Fix: NetworkPolicy (CVSS 9.8 CRITICAL)
# Apply default-deny-all — blocks ALL ingress/egress in rakie namespace
kubectl apply -f k8s/networkpolicy/00-default-deny-all.yaml
# Apply 5 scoped allow rules (minimum required paths only)
kubectl apply -f k8s/networkpolicy/01-allow-rules.yaml
# Verify 6 NetworkPolicy objects created — Figure FX-1
kubectl get networkpolicies -n rakie
# Verify NetworkPolicy objects with detail
kubectl describe networkpolicy -n rakie
### PART 1 — P4/P5 Fix: SecurityContext Hardening (CVSS 7.8/5.5)
# Apply hardened securityContext to all 4 app deployments — Figure FX-2
kubectl apply -f k8s/securitycontext/all-deployments.yaml
# Verify patch applied on gateway — Figure FX-3
kubectl get deployment gateway -n rakie \
-o jsonpath='{.spec.template.spec.containers[0].securityContext}'
# Confirm all pods restarted and running
kubectl get pods -n rakie
# Full deployment YAML confirmation
kubectl get deployment gateway -n rakie -o yaml | grep -A 15 securityContext
### PART 1 — P5 Fix: SA Token Hardening (CVSS 7.5)
# Check state BEFORE — blank defaults to true — Figure SA-1
kubectl get deployment gateway checkout pricing inventory \
-n rakie \
-o jsonpath='{range .items[*]}{.metadata.name}{": "}{.spec.template.spec.automountServiceAccountToken}{"\n"}{end}'
# Patch all 4 app deployments — Figure SA-2
for svc in gateway checkout pricing inventory; do
kubectl patch deployment $svc -n rakie \
--type='json' \
-p='[{"op":"add","path":"/spec/template/spec/automountServiceAccountToken","value":false}]'
echo "$svc patched"
done
# Verify false on all 4 — Figure SA-3
kubectl get deployment gateway checkout pricing inventory \
-n rakie \
-o jsonpath='{range .items[*]}{.metadata.name}{": automountServiceAccountToken="}{.spec.template.spec.automountServiceAccountToken}{"\n"}{end}'
# Confirm all 5 pods still Running — Figure SA-4
kubectl get pods -n rakie
### PART 1 — P6 Fix: Credentials Hardening (CVSS 7.5)
# Delete the insecure secret (had plaintext stringData)
kubectl delete secret postgres-secret -n rakie
# Recreate imperatively — values go to base64 data field
kubectl create secret generic postgres-secret \
--from-literal=POSTGRES_USER=rakie \
--from-literal=POSTGRES_PASSWORD="$(openssl rand -base64 16)" \
--from-literal=POSTGRES_DB=rakie \
-n rakie
# Verify no plaintext visible — shows byte counts only — Figure SEC-1
kubectl describe secret postgres-secret -n rakie
# Verify base64 data field in YAML — Figure SEC-2
kubectl get secret postgres-secret -n rakie -o yaml
# Confirm all pods still running — Figure SEC-3
kubectl get pods -n rakie
# Verify on live VM — Figure SEC-4
cat /home/eaduser/rakie/k8s/secrets/postgres-secret.yaml
# Confirm system still operational — Figure SEC-5
curl -s -X POST http://localhost:30080/api/checkout \
-H "Content-Type: application/json" \
-H "X-Request-Id: ca2-creds-verify" \
-d '{"sku":"SKU-001","qty":1}'
### PART 1 — P2/P3 Fix: CVE Remediation (CVSS 9.8 + 8.1)
# Find all Dockerfiles
find /home/eaduser/rakie -name "Dockerfile" | sort
# View original Dockerfile before fix
cat /home/eaduser/rakie/gateway/Dockerfile
# --- ADD CVE FIXES TO DOCKERFILES ---
# P2: Fix CVE-2026-31789 OpenSSL CRITICAL on ALL 4 images
# Upgrades libcrypto3 from 3.5.5-r0 (vulnerable) to 3.5.6-r0 (fixed)
sed -i '/^FROM/a RUN apk upgrade --no-cache libcrypto3 libssl3' \
/home/eaduser/rakie/gateway/Dockerfile
sed -i '/^FROM/a RUN apk upgrade --no-cache libcrypto3 libssl3' \
/home/eaduser/rakie/checkout/Dockerfile
sed -i '/^FROM/a RUN apk upgrade --no-cache libcrypto3 libssl3' \
/home/eaduser/rakie/pricing/Dockerfile
sed -i '/^FROM/a RUN apk upgrade --no-cache libcrypto3 libssl3' \
/home/eaduser/rakie/inventory/Dockerfile
# P3: Fix CVE-2026-42033 axios HIGH on gateway + checkout ONLY
# pricing and inventory make no outbound HTTP calls — no axios dependency
sed -i '/npm ci\|npm install/a RUN npm install axios@1.15.2 --save' \
/home/eaduser/rakie/gateway/Dockerfile
sed -i '/npm ci\|npm install/a RUN npm install axios@1.15.2 --save' \
/home/eaduser/rakie/checkout/Dockerfile
# Verify all 4 Dockerfiles updated — Figure CVE-1
grep -A1 "^FROM" /home/eaduser/rakie/gateway/Dockerfile
grep -A1 "^FROM" /home/eaduser/rakie/checkout/Dockerfile
grep -A1 "^FROM" /home/eaduser/rakie/pricing/Dockerfile
grep -A1 "^FROM" /home/eaduser/rakie/inventory/Dockerfile
# --- BUILD :hardened IMAGES ---
cd /home/eaduser/rakie
# Build all 4 images — Figure CVE-2: "ALL 4 BUILDS COMPLETE"
docker build -t rakie-gateway:hardened ./gateway/ && \
docker build -t rakie-checkout:hardened ./checkout/ && \
docker build -t rakie-pricing:hardened ./pricing/ && \
docker build -t rakie-inventory:hardened ./inventory/ && \
echo "ALL 4 BUILDS COMPLETE"
# --- IMPORT INTO K3s ---
# K3s does NOT use Docker daemon — must import separately
# Figure CVE-3: "ALL IMAGES IMPORTED"
docker save rakie-gateway:hardened | sudo k3s ctr images import -
docker save rakie-checkout:hardened | sudo k3s ctr images import -
docker save rakie-pricing:hardened | sudo k3s ctr images import -
docker save rakie-inventory:hardened | sudo k3s ctr images import -
echo "ALL IMAGES IMPORTED"
# --- DEPLOY HARDENED IMAGES ---
kubectl set image deployment/gateway gateway=rakie-gateway:hardened -n rakie
kubectl set image deployment/checkout checkout=rakie-checkout:hardened -n rakie
kubectl set image deployment/pricing pricing=rakie-pricing:hardened -n rakie
kubectl set image deployment/inventory inventory=rakie-inventory:hardened -n rakie
# Force rollout restart
kubectl rollout restart deployment/gateway -n rakie
kubectl rollout restart deployment/checkout -n rakie
kubectl rollout restart deployment/pricing -n rakie
kubectl rollout restart deployment/inventory -n rakie
# Confirm all 5 pods Running with :hardened images — Figure CVE-4
kubectl get pods -n rakie
kubectl get pods -n rakie \
-o jsonpath='{range .items[*]}{.metadata.name}{": "}{.spec.containers[0].image}{"\n"}{end}'
### PART 2 — Prometheus + Grafana Installation
# Add Helm repo
helm repo add prometheus-community \
https://prometheus-community.github.io/helm-charts
helm repo update
# Create isolated monitoring namespace
kubectl create namespace monitoring
# Install kube-prometheus-stack — Figure OB-1
helm install monitoring prometheus-community/kube-prometheus-stack \
--namespace monitoring \
--set grafana.service.type=NodePort \
--set grafana.service.nodePort=32000
# Verify all 6 monitoring pods running
kubectl get pods -n monitoring
# Grafana at http://10.0.2.15:32000 — Figure OB-2, OB-3, OB-4
# Login: admin / prom-operator
### PART 2 — Structured JSON Logging Verification
# Send real checkout request and read logs
curl -s -X POST http://localhost:30080/api/checkout \
-H "Content-Type: application/json" \
-H "X-Request-Id: ca2-json-final" \
-d '{"sku":"SKU-001","qty":1}'
# Read structured JSON output — Figure JSON-1
kubectl logs -n rakie deployment/checkout --tail=5
kubectl logs -n rakie deployment/gateway --tail=5
# Each line: {"timestamp":"...","level":"info","service":"checkout",
# "requestId":"ca2-json-final","status":200,"durationMs":787}
### PART 2 — Observability Scenario: Inventory Failure (3 States)
# ── STATE 1: HEALTHY BASELINE ──────────────────────────────
curl -s -X POST http://localhost:30080/api/checkout \
-H "Content-Type: application/json" \
-H "X-Request-Id: ca2-healthy" \
-d '{"sku":"SKU-001","qty":1}'
# Returns: {"status":"confirmed","orderId":128}
kubectl logs -n rakie deploy/gateway --tail=3
kubectl logs -n rakie deploy/checkout --tail=5
# ── STATE 2: FAILURE INDUCED ────────────────────────────────
# Scale inventory to 0 replicas — Figure OB-5
kubectl scale deployment inventory --replicas=0 -n rakie
kubectl get pods -n rakie # inventory shows Terminating
# Send 5 requests — all return 503 — Figure OB-6
for i in $(seq 1 5); do
curl -s -X POST http://localhost:30080/api/checkout \
-H "Content-Type: application/json" \
-H "X-Request-Id: ca2-obs-$i" \
-d '{"sku":"SKU-001","qty":1}'
done
# 3-STEP DIAGNOSIS using X-Request-Id:
# Step 1: gateway shows 503 — Figure OB-8
kubectl logs -n rakie deploy/gateway | grep "ca2-obs-1"
# Step 2: checkout shows ECONNREFUSED on inventory-svc:3003 — Figure OB-7
kubectl logs -n rakie deploy/checkout | grep "ca2-obs-1"
# Step 3: pod list confirms inventory at 0/0
kubectl get pods -n rakie | grep inventory
# Root cause: inventory pod down — identified in under 60 seconds
# ── STATE 3: RECOVERY ───────────────────────────────────────
# Scale back to 1 — Figure OB-9
kubectl scale deployment inventory --replicas=1 -n rakie
sleep 15 && kubectl get pods -n rakie # all 5 pods 1/1 Running
# Confirm recovery
curl -s -X POST http://localhost:30080/api/checkout \
-H "Content-Type: application/json" \
-H "X-Request-Id: ca2-recover-1" \
-d '{"sku":"SKU-001","qty":1}'
# Returns: {"status":"confirmed"}
### PART 3 — Trivy Image Scanning
# INSTALL Trivy (if not installed)
curl -sSfL https://raw.githubusercontent.com/aquasecurity/trivy/main/contrib/install.sh \
| sh -s -- -b /usr/local/bin v0.70.0
trivy --version
# BEFORE HARDENING — confirms CRITICAL CVEs present
# Figure T2: gateway OpenSSL CRITICAL CVE-2026-31789
trivy image rakie-gateway:latest \
--severity CRITICAL,HIGH --no-progress
# Figure T3: gateway axios HIGH CVE-2026-42033
# (same scan output, different section)
# Figure T4: checkout — same CVEs (axios triggered every POST /checkout)
trivy image rakie-checkout:latest \
--severity CRITICAL,HIGH --no-progress
# Figure T5: inventory — OpenSSL only (no axios)
trivy image rakie-inventory:latest \
--severity CRITICAL,HIGH --no-progress
trivy image rakie-pricing:latest \
--severity CRITICAL,HIGH --no-progress
# AFTER HARDENING — Figure CVE-5, CVE-6
# Confirms CRITICAL: 0, alpine 3.23.4: 0, axios: 0
trivy image rakie-gateway:hardened \
--severity CRITICAL,HIGH --no-progress 2>/dev/null | head -20
trivy image rakie-gateway:hardened \
--severity CRITICAL,HIGH --no-progress 2>/dev/null | grep "^Total:"
# Scan all 4 after
for img in gateway checkout pricing inventory; do
echo "=== rakie-$img:hardened ==="
trivy image rakie-$img:hardened \
--severity CRITICAL,HIGH --no-progress 2>/dev/null | grep "^Total:"
done
### PART 3 — kubeaudit Posture Review
# INSTALL kubeaudit v0.22.2
curl -sSL \
https://github.com/Shopify/kubeaudit/releases/download/v0.22.2/kubeaudit_linux_amd64.tar.gz \
| tar xz && sudo mv kubeaudit /usr/local/bin/
kubeaudit version
# BEFORE FIXES — baseline: 32 errors — Figures K2, K3, K4
kubeaudit all --namespace rakie
# Count errors before
kubeaudit all --namespace rakie 2>&1 | grep "^ERRO" | wc -l
# Specific checks that showed findings:
# Figure K3: MissingDefaultDenyNetworkPolicy
kubeaudit netpols --namespace rakie
# Figure K4: checkout 6 errors
kubeaudit all --namespace rakie 2>&1 | grep checkout
# AFTER FIXES — 19 errors (-40%) — Figures K1, K5
kubeaudit all --namespace rakie
# Count errors after
kubeaudit all --namespace rakie 2>&1 | grep "^ERRO" | wc -l
# Figure K5: gateway resolved errors
kubeaudit all --namespace rakie 2>&1 | grep gateway
### PART 3 — Container Penetration Tests (CT-1 through CT-7)
# CT-1: Non-root user confirmed — uid=1000 — Figure CT-1
kubectl exec -n rakie deploy/checkout -- whoami
kubectl exec -n rakie deploy/checkout -- id
# CT-2: K8s API reachable but 401 — SA token disabled — Figure CT-2
kubectl exec -n rakie deploy/checkout -- \
wget -qO- --timeout=5 https://kubernetes.default.svc/api 2>&1 | head -3
# CT-3: checkout → postgres OPEN — correct (sole DB writer) — Figure CT-3
kubectl exec -n rakie deploy/checkout -- nc -zv postgres-svc 5432
# CT-4: inventory → postgres BEFORE NetworkPolicy — CRITICAL OPEN — Figure CT-4
kubectl exec -n rakie deploy/inventory -- nc -zv postgres-svc 5432
# No legitimate need — CRITICAL finding
# CT-5: pricing → postgres BEFORE NetworkPolicy — CRITICAL OPEN — Figure CT-5
kubectl exec -n rakie deploy/pricing -- nc -zv postgres-svc 5432
# No legitimate need — CRITICAL finding
# CT-6: inventory → postgres AFTER NetworkPolicy — BLOCKED — Figure CT-6
kubectl exec -n rakie deploy/inventory -- nc -zv postgres-svc 5432
# Expected: nc: bad address 'postgres-svc'
# Lateral movement prevented
# CT-7: pricing → postgres AFTER NetworkPolicy — BLOCKED — Figure CT-7
kubectl exec -n rakie deploy/pricing -- nc -zv postgres-svc 5432
# Expected: nc: bad address 'postgres-svc'
# Both services confirmed blocked
### PART 4 — Final Verification
# All 5 pods running with :hardened images — Figure FV-HARD-2
kubectl get pods -n rakie -o wide
kubectl get pods -n rakie \
-o jsonpath='{range .items[*]}{.metadata.name}{": "}{.spec.containers[0].image}{"\n"}{end}'
# 6 NetworkPolicy objects active — Figure FV-4
kubectl get networkpolicies -n rakie
# securityContext confirmed — from Figure FX-3
kubectl get deployment gateway -n rakie \
-o jsonpath='{.spec.template.spec.containers[0].securityContext}' \
| python3 -m json.tool
# SA token false on all 4 — from Figure SA-3
kubectl get deployment gateway checkout pricing inventory \
-n rakie \
-o jsonpath='{range .items[*]}{.metadata.name}{": automount="}{.spec.template.spec.automountServiceAccountToken}{"\n"}{end}'
# Final end-to-end checkout — Figure FV-HARD (orderId: 141)
curl -s -X POST http://localhost:30080/api/checkout \
-H "Content-Type: application/json" \
-H "X-Request-Id: ca2-hardened-final" \
-d '{"sku":"SKU-001","qty":1}'
# Returns: {"status":"confirmed","orderId":141,"requestId":"ca2-hardened-final"}
## Repository Structure
rakie-k3s-security2/
│
├── README.md ← All commands (CA2 brief requirement)
│ Architecture diagrams (current + improved)
│
├── k8s/
│ ├── networkpolicy/
│ │ ├── 00-default-deny-all.yaml ← P1: default-deny blocks all rakie traffic
│ │ └── 01-allow-rules.yaml ← P1: 5 scoped allow rules (min required)
│ ├── securitycontext/
│ │ └── all-deployments.yaml ← P4/P5: hardened securityContext all 4 pods
│ └── secrets/
│ └── secret.yaml ← P6: base64 data field template (not plaintext)
│
├── services/
│ ├── gateway/
│ │ ├── Dockerfile ← P2: apk upgrade + P3: axios@1.15.2
│ │ └── logger.js ← Structured JSON logger (requestId, durationMs)
│ ├── checkout/Dockerfile ← P2: apk upgrade + P3: axios@1.15.2
│ ├── pricing/Dockerfile ← P2: apk upgrade only (no axios)
│ └── inventory/Dockerfile ← P2: apk upgrade only (no axios)
│
├── security/
│ ├── trivy/scan-all.sh ← Trivy before/after for all 4 images
│ ├── kubeaudit/audit.sh ← kubeaudit before/after + specific checks
│ └── pentest/pentest.sh ← CT-1 through CT-7 automated script
│
├── monitoring/
│ └── prometheus/values.yaml ← kube-prometheus-stack Helm values
│
├── .github/workflows/
│ └── trivy-scan.yml ← CI: blocks PRs with CRITICAL CVEs
│
└── docs/
├── SECURITY_FINDINGS.md ← P1–P8: CVSS, impact, fix, evidence
├── REMEDIATION_LOG.md ← Chronological: what, how, evidence ref
└── OBSERVABILITY.md ← JSON logging + 3-state failure scenario
## Results
### Trivy — CVE Remediation
| Image | CRITICAL Before | CRITICAL After | Fixed |
|---|---|---|---|
| rakie-gateway:hardened | 2 | **0** ✅ | CVE-2026-31789 + CVE-2026-42033 |
| rakie-checkout:hardened | 2 | **0** ✅ | CVE-2026-31789 + CVE-2026-42033 |
| rakie-pricing:hardened | 2 | **0** ✅ | CVE-2026-31789 only |
| rakie-inventory:hardened | 2 | **0** ✅ | CVE-2026-31789 only |
### kubeaudit — Posture Review
| Deployment | Before | After | Resolved |
|---|---|---|---|
| gateway | 6 | 3 | CapabilityMissing, AllowPrivEsc, ReadOnlyRootFS |
| checkout | 6 | 3 | Same as gateway |
| pricing | 6 | 3 | Same as gateway |
| inventory | 6 | 3 | Same as gateway |
| postgres | 7 | 7 | Accepted — UID 999 required by postgres:15-alpine |
| Namespace | 1 | 0 | NetworkPolicy applied |
| **TOTAL** | **32** | **19 (−40%)** | **13 errors resolved** |
## Tools Used
| Tool | Version | Purpose | Report Figures |
|---|---|---|---|
| [Trivy](https://trivy.dev) | v0.70.0 | Container image CVE scanning (Alpine OS + npm) | T1–T5, CVE-1–CVE-6 |
| [kubeaudit](https://github.com/Shopify/kubeaudit) | v0.22.2 | Kubernetes cluster posture review (live cluster) | K1–K5 |
| kubectl exec (nc, wget) | K3s native | Container penetration testing — CT-1 through CT-7 | CT-1–CT-7 |
| [kube-prometheus-stack](https://github.com/prometheus-community/helm-charts) | Helm latest | Prometheus + Grafana + AlertManager | OB-1–OB-9 |
| K3s | v1.34.6 | Lightweight Kubernetes distribution | Platform |
| Docker | latest | Image build (K3s requires import via k3s ctr) | CVE-2–CVE-4 |
## Recommended Next Steps (Not Applied)
| Item | Reason Not Applied |
|---|---|
| P7 — TLS via cert-manager on Traefik | Requires ClusterIssuer + IngressRoute changes — risk before submission |
| Bitnami Sealed Secrets | Infrastructure change — base64 is encoding not encryption |
| mTLS east-west (Linkerd) | NetworkPolicy permits but does not encrypt connections |
| node-tar HIGH CVEs | No upstream fix available — build-time only, not runtime |
## Related Repository
**CA1 — Platform Build:** [rakie-k3s_E-commerce](https://github.com/Rakeshu99/rakie-k3s_E-commerce)
CA1: microservice deployment, KEDA HTTP autoscaling, K3s cluster setup, Traefik ingress, PostgreSQL persistence.
## Author
**Rakesh Uday Kumar** · [GitHub @Rakeshu99](https://github.com/Rakeshu99)
MSc Cloud & DevOps · TU Dublin · 2025/2026
Open to **DevOps**, **DevSecOps**, and **Platform Engineering** roles
