iHazelly/Banking-Transaction-Data-Pipeline-

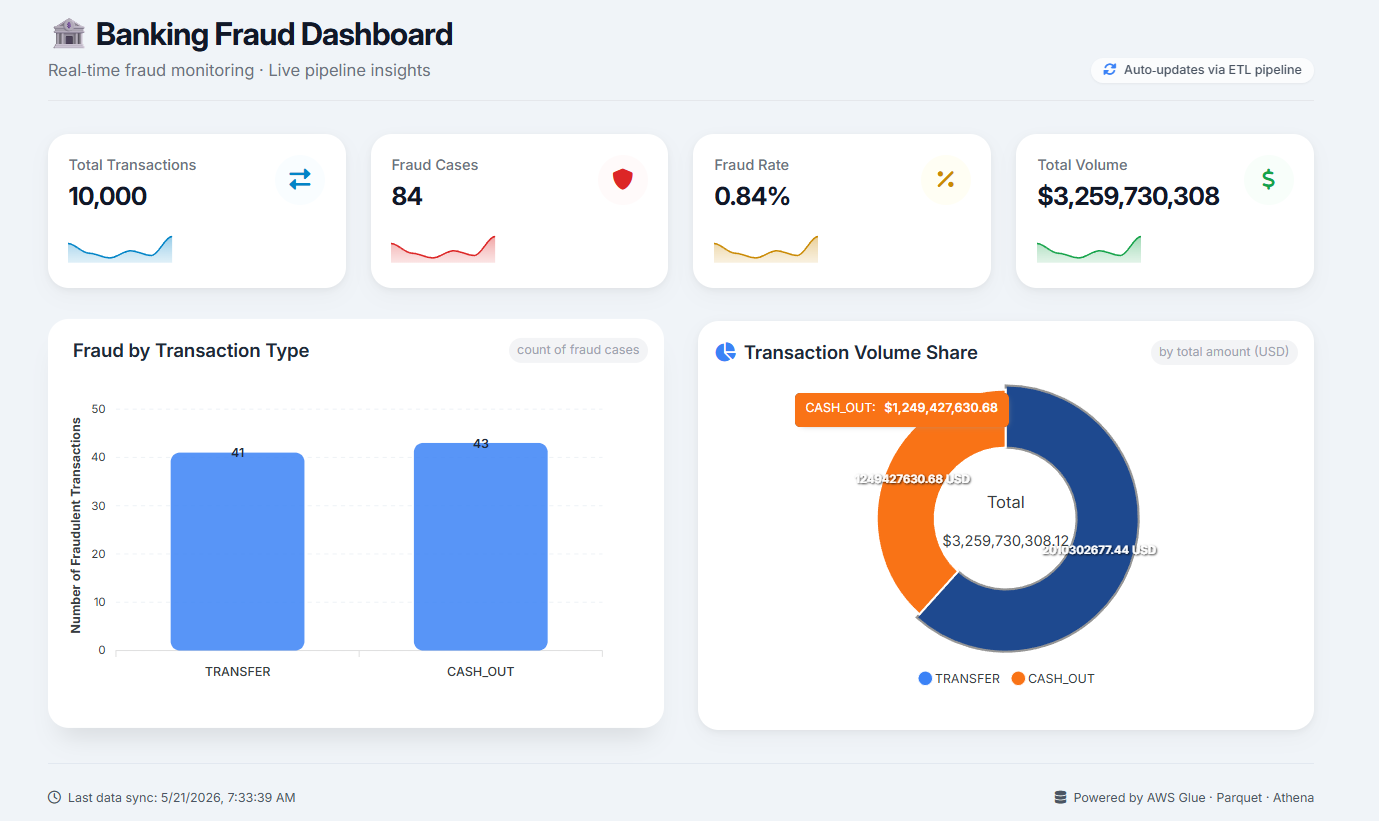

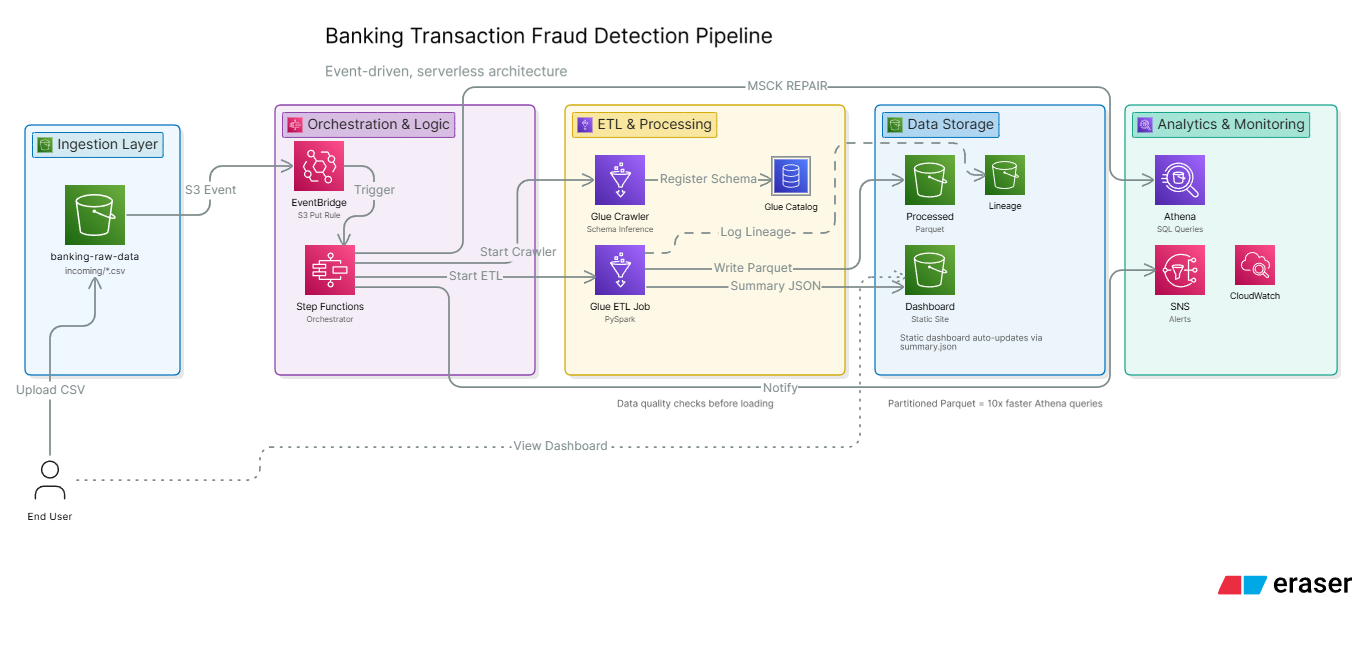

# 🏦 Banking Transaction Data Pipeline — AWS Production Grade      An **event‑driven, end‑to‑end data pipeline** that simulates a real‑world banking fraud detection system. It ingests transaction data (PaySim), performs data quality checks, transforms and partitions data using **AWS Glue (PySpark)**, stores it as **Parquet**, makes it queryable via **Amazon Athena**, and visualizes key metrics through an **interactive static dashboard** – all automated and serverless. ## 📌 Business Problem Banks process millions of transactions daily. Traditional batch jobs run at midnight and take hours. If a file is corrupted or the job fails, no one knows until morning → delayed fraud detection, financial loss. **This project solves that by building an automated pipeline that:** - Triggers **immediately** when a new CSV file arrives in S3. - **Validates data quality** before processing. - **Transforms and partitions** data into columnar Parquet format (10x faster queries). - **Logs data lineage** and sends **success/failure alerts** via email. - **Serves live insights** via an interactive dashboard that auto‑updates after every run. ## 🏗️ Architecture Overview *High‑level architecture – event‑driven pipeline using AWS services.* | Layer | Service | Role | |-------|---------|------| | **Ingestion** | S3 | Raw CSV files land in `/incoming/` | | **Orchestration** | EventBridge → Step Functions | Triggers pipeline on file upload, manages retries | | **Schema Detection** | Glue Crawler | Automatically infers schema of raw data | | **Transformation** | Glue ETL (PySpark) | Data quality checks, cleansing, enrichment, partitioning, Parquet conversion | | **Storage** | S3 | Partitioned Parquet files (`year/month/day/type`) | | **Query** | Amazon Athena | Serverless SQL analytics on Parquet | | **Monitoring** | CloudWatch + SNS | Logging, metrics, email alerts on success/failure | | **Visualization** | S3 Static Website (ApexCharts) | Interactive dashboard with auto‑refresh | ## 🛠️ Technologies & Services Used | Category | Tools / Services | |----------|------------------| | **Cloud** | AWS (S3, Glue, Athena, Step Functions, EventBridge, SNS, CloudWatch, IAM) | | **Data Processing** | PySpark (AWS Glue 4.0), Parquet, Snappy compression | | **Query Engine** | Amazon Athena (Presto) | | **Orchestration** | Step Functions, EventBridge | | **Monitoring & Alerting** | CloudWatch, SNS (email) | | **Visualization** | HTML, Tailwind CSS, ApexCharts.js | | **Infrastructure as Code** | AWS CloudFormation | | **Version Control** | Git, GitHub | ## 📊 Dataset - **Source**: [PaySim Financial Dataset](https://www.kaggle.com/datasets/ealaxi/paysim1) (Kaggle) - **Rows**: 6.3M (sample used: 10k for testing) - **Key columns**: `step` (time), `type` (TRANSFER, CASH_OUT, etc.), `amount`, `nameOrig`, `nameDest`, `oldbalanceOrg`, `newbalanceOrig`, `isFraud` - **Fraud distribution**: Only `TRANSFER` and `CASH_OUT` contain fraudulent transactions. ## 🧠 What the Pipeline Does (Step‑by‑Step) 1. **File Upload** → CSV file dropped into `s3://banking-raw-.../incoming/` 2. **EventBridge** → Detects S3 `PutObject` event and triggers Step Functions. 3. **Step Functions** → Orchestrates: - Run Glue Crawler (schema update) - Run Glue ETL job (transform & load) - Run `MSCK REPAIR TABLE` in Athena - Send success/failure email via SNS 4. **Glue ETL (PySpark)** does: - Data quality checks (nulls, amount>0, valid types, balance consistency) - Enrichment (account type, suspicious flags, time features) - Write data as **Parquet** partitioned by `year/month/day/type` - Log **data lineage** (JSON) to S3 lineage bucket - Export **summary JSON** to dashboard bucket (`data/summary.json`) 5. **Athena** → External table on the Parquet location, ready for SQL queries. 6. **Static Dashboard** (S3 website) → Fetches `summary.json` and renders: - KPI cards (total transactions, fraud cases, fraud rate, total volume) - Bar chart (fraud by transaction type) - Pie chart (transaction volume share) - Sparklines for trends - Last updated timestamp ## 🚀 Deployment Instructions (CloudFormation) ### Prerequisites - AWS account with permissions (or AWS Learner Lab). - AWS CLI installed (optional, you can use Console). ### Steps **1. Clone the repository** git clone https://github.com/yourusername/banking-pipeline.git cd banking-pipeline **2. Upload the Glue script to S3** aws s3 cp glue/banking_etl_job.py s3://banking-raw-/scripts/ **3. Deploy the CloudFormation stack** - Go to AWS Console → CloudFormation → Create stack → Upload a template file → select `cloudformation/banking-pipeline-iac.yaml` - Provide parameters: - `EnvironmentName`: `dev` - `BucketSuffix`: a unique suffix (e.g., `yourname-2026`) - `EmailAddress`: your email (to receive alerts) - `GlueScriptS3Key`: `scripts/banking_etl_job.py` - Acknowledge IAM capabilities → Create stack - Wait for `CREATE_COMPLETE` (~2-3 minutes) **4. Upload test data** Upload `dataset/sample_10k.csv` to your raw bucket: aws s3 cp dataset/sample_10k.csv s3://banking-raw-/incoming/ **5. Monitor the pipeline** - Step Functions Console → watch execution graph - Glue Console → Jobs → view run logs - Check email for success/failure notification **6. Enable Dashboard** - Go to S3 Console → `banking-dashboard-` bucket - Properties → Static website hosting → Enable → Index document: `index.html` - Upload `dashboard/index.html` to the bucket root - Open the website URL — dashboard shows live data once Glue job produces `data/summary.json` ## 🔐 Security & Cost Optimization - **Encryption**: SSE-S3 enabled on all buckets - **Public Access**: All buckets have public access blocked, except dashboard bucket (static website) - **IAM**: Least-privilege roles (LabRole used in this implementation) - **Partitioning**: Data partitioned by `year/month/day/type` → reduces Athena scan cost significantly - **Lifecycle Policies**: Processed data moves to `STANDARD_IA` after 30 days, expires after 365 days - **Cost**: Total pipeline cost < $5 for full development and testing (AWS Learner Lab $40 credits) ## 🧠 Skills Demonstrated | Skill | Evidence | |---|---| | Data Pipeline (ETL/ELT) | Glue PySpark script — extract, transform, load | | Data Quality | Null checks, range validation, business rule validation | | Data Lineage | JSON logging of source, transformations, target | | Partitioning & Columnar Format | Parquet + Snappy, Hive-style partitioning | | Serverless Orchestration | Step Functions + Lambda event trigger | | Monitoring & Alerting | CloudWatch logs + SNS email alerts | | Data Lake & Querying | Athena external tables on S3 | | Dashboard & Visualization | HTML + ApexCharts, S3 static hosting | | Infrastructure as Code | CloudFormation (YAML) | | Security & Cost Awareness | Bucket policies, encryption, lifecycle rules | ## 🔮 Future Improvements - **Real-time streaming** — replace batch with Amazon Kinesis + Lambda for near-instant fraud detection - **Advanced data quality** — integrate Great Expectations or Deequ for automated DQ reporting - **ML integration** — use SageMaker to predict fraud probability and surface in dashboard - **CI/CD pipeline** — automate deployment with GitHub Actions - **Graph analytics** — Neo4j for circular transfer ring detection (money laundering patterns) ## 🤖 AI Use Declaration During the development of this project, AI tools were used for: - Language translation and sentence refinement - Code suggestions, debugging, and structural guidance - Writing assistance for the README and documentation - Brainstorming and conceptual support However, all core architectural decisions, data modeling, feature engineering, pipeline configuration, result interpretation, and final technical validations were performed by the author (Paradorn Khanongsuwan). All AI-generated outputs have been manually verified and adapted. ## 📜 Citation @misc{khanongsuwan_2026_banking_pipeline, title={Banking Transaction Data Pipeline – Production-Grade AWS ETL with Real-time Dashboard}, author={Khanongsuwan, Paradorn}, year={2026}, howpublished={\url{https://github.com/iHazelly/Banking-Transaction-Data-Pipeline-}} } ## 🙏 Acknowledgements - **Dataset**: [PaySim Financial Dataset](https://www.kaggle.com/datasets/ealaxi/paysim1) (Kaggle) - **AWS Learner Lab** — cloud credits for hands-on learning - **Asian Institute of Technology (AIT)** — academic guidance - **Open-source libraries**: Apache Spark, boto3, ApexCharts, Tailwind CSS ## 📬 Contact - **GitHub**: github.com/iHazelly Feel free to open an issue or pull request for improvements! ## ✅ Summary This project is a complete, production-grade data pipeline showcasing every stage of modern data engineering — from ingestion to visualization — on AWS. Designed to be reproducible, cost-efficient, and portfolio-ready. Perfect for demonstrating skills required for **Data Engineer**, **Analytics Engineer**, or **Data Platform Engineer** roles, especially in the banking and finance domain.
