# Active Directory Enumeration & Attacks Lab
**A fully automated, self-contained Active Directory lab for practicing real-world attack techniques**
## Overview
This lab simulates a realistic enterprise Active Directory environment with intentional
misconfigurations covering a wide range of AD attack techniques — from basic enumeration
to advanced persistence and cross-domain escalation.
**One command. Full lab. Start hacking.**
git clone https://github.com/0x4161/active-directory-lab.git
cd active-directory-lab
vagrant plugin install vagrant-reload
vagrant up

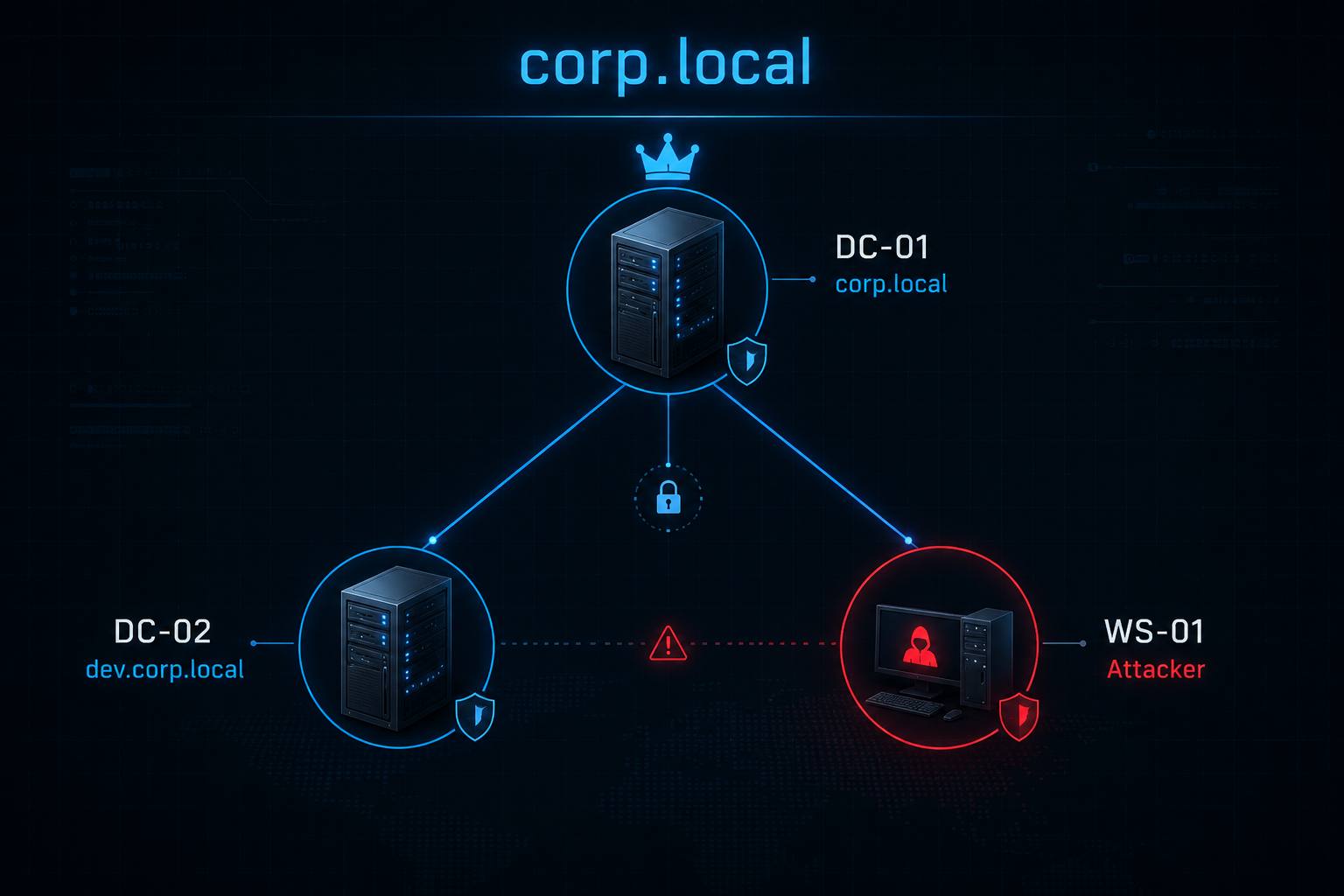

## Lab Topology
DC-01 192.168.56.10 — corp.local (Forest Root DC + CA)
DC-02 192.168.56.20 — dev.corp.local (Child Domain DC)
WS-01 192.168.56.30 — Attacker Workstation
Network : Host-Only (192.168.56.0/24)
Internet: NAT (separate adapter)
## VM Specifications
| VM | Role | OS | RAM | CPU | Disk | IP |
|-------|-----------------------|-------------------------|------|-----|-------|----------------|
| DC-01 | Forest Root DC + CA | Windows Server 2019 | 4 GB | 2 | 60 GB | 192.168.56.10 |
| DC-02 | Child Domain DC | Windows Server 2019 | 4 GB | 2 | 60 GB | 192.168.56.20 |
| WS-01 | Attacker Workstation | Windows 10/11 | 4 GB | 2 | 60 GB | 192.168.56.30 |
**Total RAM required: 12 GB minimum (16 GB recommended)**
## Quick Start
### Option A — Vagrant (Recommended)
**One command builds the entire lab automatically.**
# Requirements: VirtualBox + Vagrant
git clone https://github.com/0x4161/active-directory-lab.git
cd active-directory-lab
vagrant plugin install vagrant-reload
vagrant up
### Option B — Build From Scratch (Manual)
git clone https://github.com/0x4161/active-directory-lab.git
cd active-directory-lab
1. Create Host-Only network `vboxnet0` (`192.168.56.1`) in VirtualBox — DHCP disabled
2. Create 3 VMs: each with **Adapter 1: Host-Only** + **Adapter 2: NAT**
3. Install Windows Server 2019 on DC-01 and DC-02, Windows 10/11 on WS-01
4. **DC-01** → static IP `192.168.56.10` → run `setup/promote-dc01.ps1` → run `scripts/Setup-CorpLocal.ps1`
5. **DC-02** → static IP `192.168.56.20`, DNS `192.168.56.10` → run `setup/promote-dc02.ps1` → run `scripts/Setup-DevCorpLocal.ps1`
6. **WS-01** → static IP `192.168.56.30`, DNS `192.168.56.10` → run `setup/join-ws01.ps1`
## Default Credentials
| Account | Domain | Password | Role |
|-------------------|-----------------|------------|---------------------------------------|
| Administrator | corp.local | p@ssw0rd | Domain Admin |
| admin1 | corp.local | p@ssw0rd | Domain Admin |
| **attacker.01** | corp.local | p@ssw0rd | **Your starting point (low priv)** |
| ahmad.ali | corp.local | p@ssw0rd | IT Admin |
| fahad.salem | corp.local | p@ssw0rd | Helpdesk Lead |
| sara.khalid | corp.local | p@ssw0rd | HR Manager |
| faisal.omar | corp.local | p@ssw0rd | Finance Director |
| walid.saeed | corp.local | p@ssw0rd | Finance Analyst [AS-REP Roastable] |
| svc_sql | corp.local | p@ssw0rd | Service Account [Kerberoastable] |
| svc_backup | corp.local | p@ssw0rd | Service Account [DCSync Rights] |
| faris.admin | dev.corp.local | p@ssw0rd | Child Domain Admin |
| **attacker.dev** | dev.corp.local | p@ssw0rd | Child domain starting point |
## Extra Attack Surfaces (Optional)
After the base lab is running, you can add **14 additional attack surfaces** with one script:
# On DC-01 — run after Setup-CorpLocal.ps1 completes
cd C:\vagrant\scripts # or wherever you copied the repo
.\Setup-ExtraAttacks.ps1
**What it enables:**
| # | Misconfiguration | Attack Technique |
|---|-----------------|-----------------|
| 1 | WDigest enabled | `sekurlsa::wdigest` → cleartext passwords in LSASS |
| 2 | NTLMv1 allowed | Downgrade NTLM → easier to crack / relay |
| 3 | RunAsPPL = 0 | Skeleton Key (`misc::skeleton`) — any password works |
| 4 | UAC token filter disabled | Pass-the-Hash via SMB/WinRM to local admins |
| 5 | Print Spooler running | PrinterBug (MS-RPRN) coercion → relay/capture DC hash |
| 6 | WebClient service running | WebDAV coercion → NTLM relay over HTTP |
| 7 | khalid.nasser → DnsAdmins | DLL injection via DNS service (runs as SYSTEM) |
| 8 | dana.rashid → Backup Operators | Copy NTDS.dit → dump all domain hashes offline |
| 9 | nasser.web → Account Operators | Create/modify users in most OUs |
| 10 | noura.ahmed → DCSync rights | Second independent DCSync path |
| 11 | maryam.hassan → WriteSPN on reem.sultan | Targeted Kerberoasting via WriteSPN ACE |
| 12 | hessa.jaber → AS-REP roastable | Extra AS-REP roasting target |
| 13 | Remote Registry enabled | Read SAM/SYSTEM hive remotely |
| 14 | Windows Firewall disabled | Unrestricted lateral movement |
**Attack guides for each technique:** [`attacks/09`](attacks/09-silver-ticket.md) · [`10`](attacks/10-pass-the-hash.md) · [`11`](attacks/11-skeleton-key.md) · [`12`](attacks/12-coercion.md) · [`13`](attacks/13-dns-admins.md) · [`14`](attacks/14-backup-operators.md)
## Attack Scenarios Included
| # | Attack | Difficulty | Path |
|----|-------------------------------------|------------|-----------------------------------|
| 1 | Domain Enumeration | Easy | BloodHound / PowerView |
| 2 | Kerberoasting | Easy | 6 service accounts |
| 3 | AS-REP Roasting | Easy | 4 users (incl. hessa.jaber) |
| 4 | Password Spray | Easy | Weak passwords |
| 5 | Credentials in AD Attributes | Easy | LDAP enumeration |
| 6 | GPP / SYSVOL Password | Easy | Groups.xml |
| 7 | WDigest — Cleartext Creds | Easy | Mimikatz sekurlsa::wdigest |
| 8 | Pass-the-Hash | Easy | LocalAccountTokenFilterPolicy=1 |
| 9 | ACL — GenericAll | Medium | noura.ahmed -> faisal.omar |
| 10 | ACL — WriteDACL | Medium | ahmad.ali -> Finance Users |
| 11 | ACL — ForceChangePassword | Medium | fahad.salem -> faisal.omar |
| 12 | ACL — DCSync Rights | Medium | svc_backup -> domain |
| 13 | ACL — WriteOwner | Medium | Helpdesk -> IT Admins |
| 14 | ACL — WriteSPN (Targeted Kerberoast)| Medium | maryam.hassan -> reem.sultan |
| 15 | Shadow Credentials | Medium | omar.coder -> WEB-SRV-01 |
| 16 | Unconstrained Delegation | Medium | WEB-SRV-01 / svc_web |
| 17 | PrinterBug / PetitPotam Coercion | Medium | Coerce DC-01 auth -> relay/capture|
| 18 | DnsAdmins DLL Injection | Medium | khalid.nasser -> SYSTEM on DC-01 |
| 19 | Backup Operators — NTDS Dump | Medium | dana.rashid -> all domain hashes |
| 20 | Account Operators — Account Abuse | Medium | nasser.web -> create/modify users |
| 21 | Silver Ticket | Hard | svc_sql hash -> forge TGS |
| 22 | Skeleton Key | Hard | RunAsPPL=0 -> misc::skeleton |
| 23 | Constrained Delegation (KCD) | Hard | svc_iis -> CIFS/DC-01 |
| 24 | Resource-Based Constrained (RBCD) | Hard | tariq.dev -> WEB-SRV-02 |
| 25 | DCSync (2nd path) | Hard | noura.ahmed -> Replication rights |
| 26 | AdminSDHolder Persistence | Hard | svc_backup -> all DAs |
| 27 | DSRM Abuse | Hard | Local admin on DC |
| 28 | ADCS ESC1 | Hard | Forge admin certificate |
| 29 | ADCS ESC4 | Hard | Modify writable template |
| 30 | ADCS ESC6 | Hard | SAN in any template |
| 31 | ADCS ESC7 | Hard | CA Manager abuse |
| 32 | ADCS ESC8 | Hard | NTLM relay to ADCS |
| 33 | Golden Ticket | Expert | After krbtgt dump |
| 34 | Child-to-Parent (ExtraSids) | Expert | dev -> corp.local EA |
| 35 | Trust Ticket | Expert | Inter-realm TGT forgery |
| 36 | SID History Abuse | Expert | dev.backdoor -> EA rights |
## Network Configuration
VirtualBox Network Setup:
Adapter 1 (Host-Only): vboxnet0 — 192.168.56.0/24
Purpose : VM-to-VM communication + host access
DC-01 : 192.168.56.10 (static)
DC-02 : 192.168.56.20 (static)
WS-01 : 192.168.56.30 (static or DHCP)
Adapter 2 (NAT):
Purpose : Internet access for downloading tools
All VMs : DHCP (10.0.x.x)
## Supported Hypervisors
## Screenshots
screenshots/
├── 01-lab-topology.png
├── 02-bloodhound-graph.png
├── 03-kerberoast.png
├── 04-adcs-esc1.png
└── 05-golden-ticket.png
## Repository Structure
## License
MIT License — see [LICENSE](LICENSE)
Built for security education. Use responsibly.
