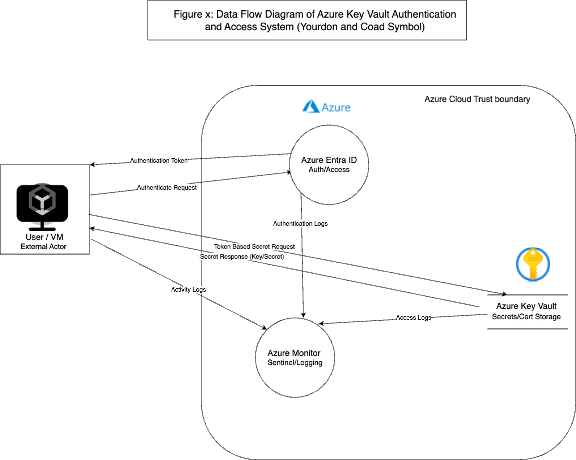

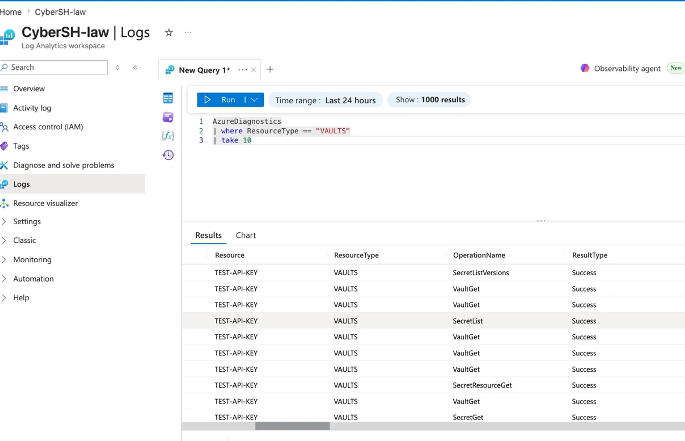

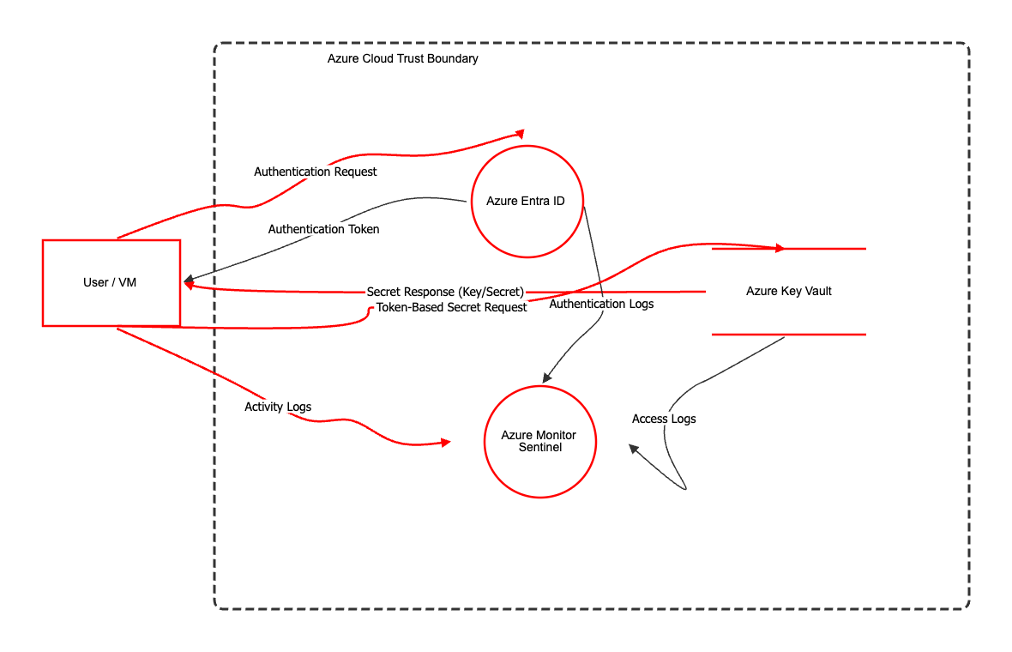

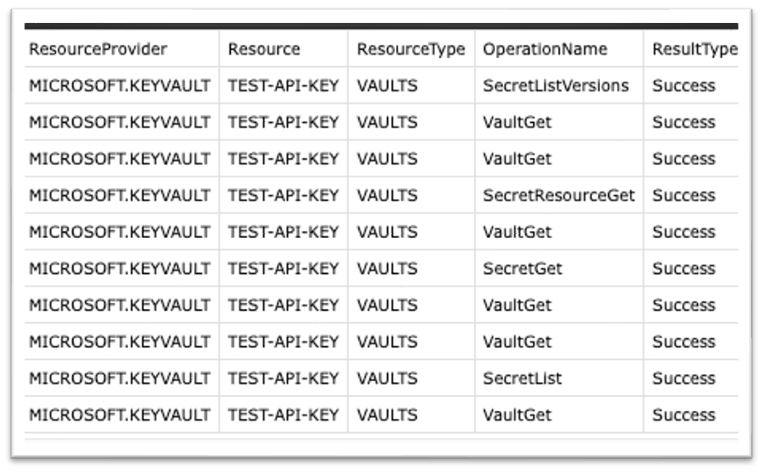

# 🛡️ CyberShield-360 — Azure Security Assessment     ## 📋 Overview 60-page security assessment covering Azure Key Vault architecture, NIST SP 800-171 gap analysis, STRIDE threat modeling, and a full root cause analysis of the **2024 Midnight Blizzard (APT29) breach**. Built on a real Azure for Students environment — not a simulation. 📄 **[View Full Report (PDF)](./Microsoft_Azure_Security_Assessment.pdf)** ## 🔍 What's Inside | Section | Description | |---|---| | **Risk Assessment** | NIST SP 800-30 vs OCTAVE Allegro comparison for large-scale cloud environments | | **Gap Analysis** | NIST SP 800-171 Rev.2 — AC, IA, SC, AU control families mapped against Azure Key Vault | | **Threat Modeling** | STRIDE analysis + OWASP Threat Dragon DFD of Azure Key Vault auth workflow | | **Breach Analysis** | APT29 / Midnight Blizzard root cause — password spraying → OAuth token abuse → lateral movement | | **Live Hardening** | Real Azure environment: RBAC, diagnostic logging, KQL monitoring, MFA enforcement | | **Web App Scan** | HTTP security header assessment of Microsoft public-facing applications | ## Live Azure Environment Hardening performed on a real provisioned Azure environment: Resource Group: cybershield-kv Key Vault: test-api-key Log Analytics: CyberSH-law Subscription: Azure for Students **RBAC principals configured:** - `Isaac Martinez` — Owner + Key Vault Administrator (inherited) - `IsaacMartinez@MartinezIsaac` — Key Vault Reader scoped to single secret (external user + MFA) - `cybershield-app` — Key Vault Secrets User (service principal) **KQL query used for live monitoring:** AzureDiagnostics | where ResourceType == "VAULTS" | take 10 Operations verified over 24-hour window: `SecretGet` · `SecretList` · `VaultGet` · `SecretListVersions` · `SecretResourceGet` ## STRIDE Threat Model | Category | Component | Threat | |---|---|---| | **Spoofing** | API / Identity Flow | OAuth token forgery and JWT replay attacks | | **Tampering** | Azure Key Vault | Unauthorized rotation/deletion of KEK and DEK material | | **Repudiation** | Azure Monitor | Audit log manipulation to conceal access activity | | **Info Disclosure** | Azure Key Vault | Secret exposure via misconfigured policies | | **Denial of Service** | Key Vault Endpoint | Endpoint flooding to disrupt availability | | **Elevation of Privilege** | Azure Entra ID | Privilege escalation via misconfigured AD policies | ## Midnight Blizzard Breach — Attack Chain Password spraying against legacy test accounts (no MFA) ↓ Entra ID manipulation — attacker adds own credentials to compromised accounts ↓ Custom OAuth POST requests → authenticated token generation ↓ full_access_as_app Exchange permission → corporate mailbox access ↓ Senior leadership email accounts compromised Same vector used against HPE in 2023. Findings fed directly into hardening steps. ## Identified Gaps & Remediation | Risk | Gap | Timeline | |---|---|---| | 🔴 HIGH | HSM-backed key storage not mandated — software tiers fail FIPS 140-2 | 0–30 days | | 🔴 HIGH | RBAC least privilege inconsistent across contractor tenants | 0–30 days | | 🔴 HIGH | Audit log retention not standardized across Monitor/Sentinel | 30–60 days | | 🟡 MEDIUM | MFA not enforced via Conditional Access on all accounts | 30–60 days | | 🟡 MEDIUM | No automated Key Vault access recertification reviews | 60–90 days | ## Tech Stack `Microsoft Azure` `Azure Key Vault` `Microsoft Entra ID` `Azure Monitor` `Microsoft Sentinel` `Azure Policy` `Microsoft Defender for Cloud` `OWASP Threat Dragon` `KQL` `FIPS 140-2` ## Screenshots **KQL Live Query Output**  **IAM Role Assignments & Ownership Hierarchy**  **Azure Log Analytics Workspace**  **OWASP Threat Dragon DFD**  **Azure Key Vault DFD**  ## **Risk Timeline**  ## Author **Isaac Martinez** — [@imartinez-88](https://github.com/imartinez-88)
