Thegitfiddler/GuardDuty-Auto-Response

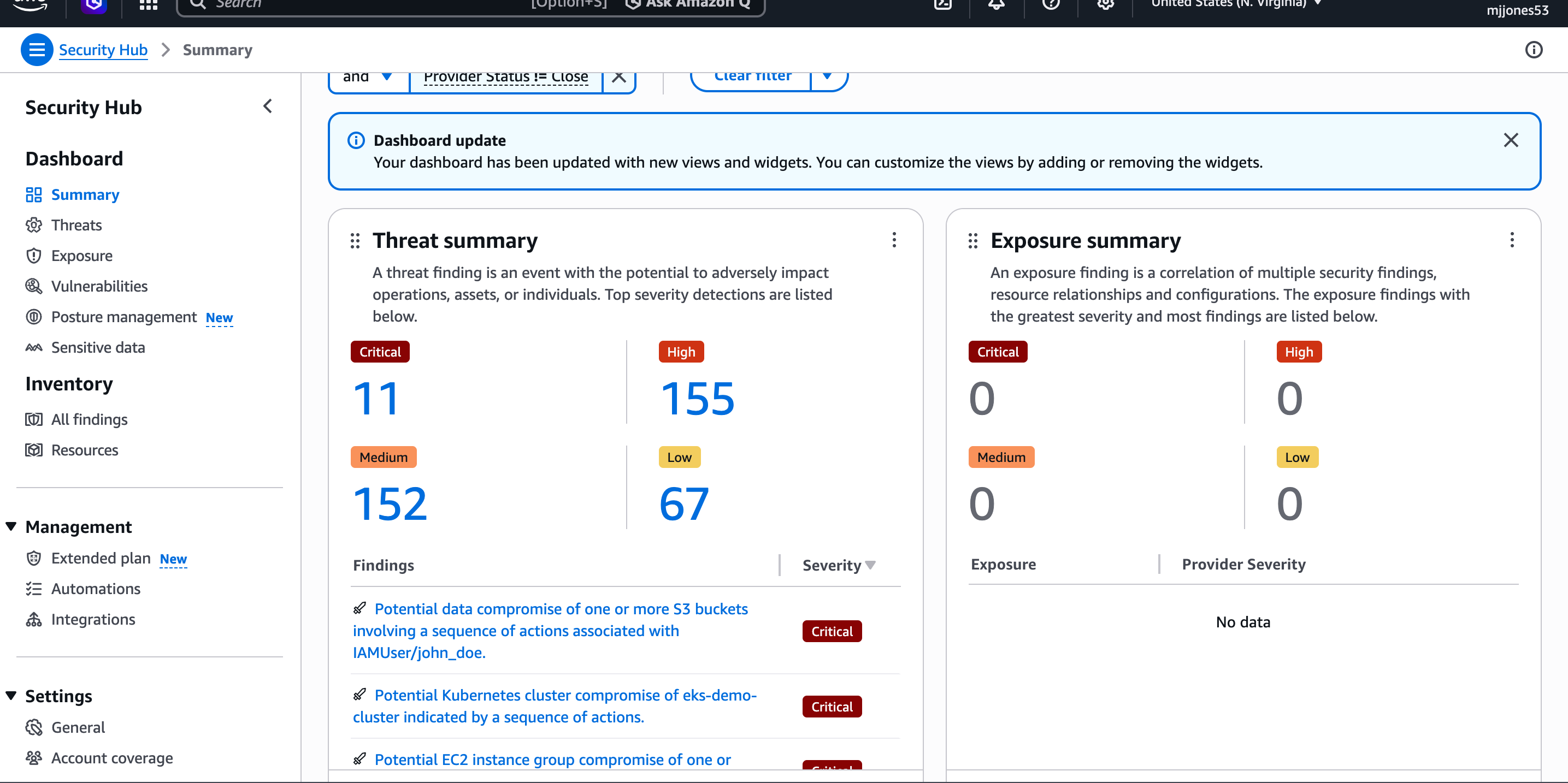

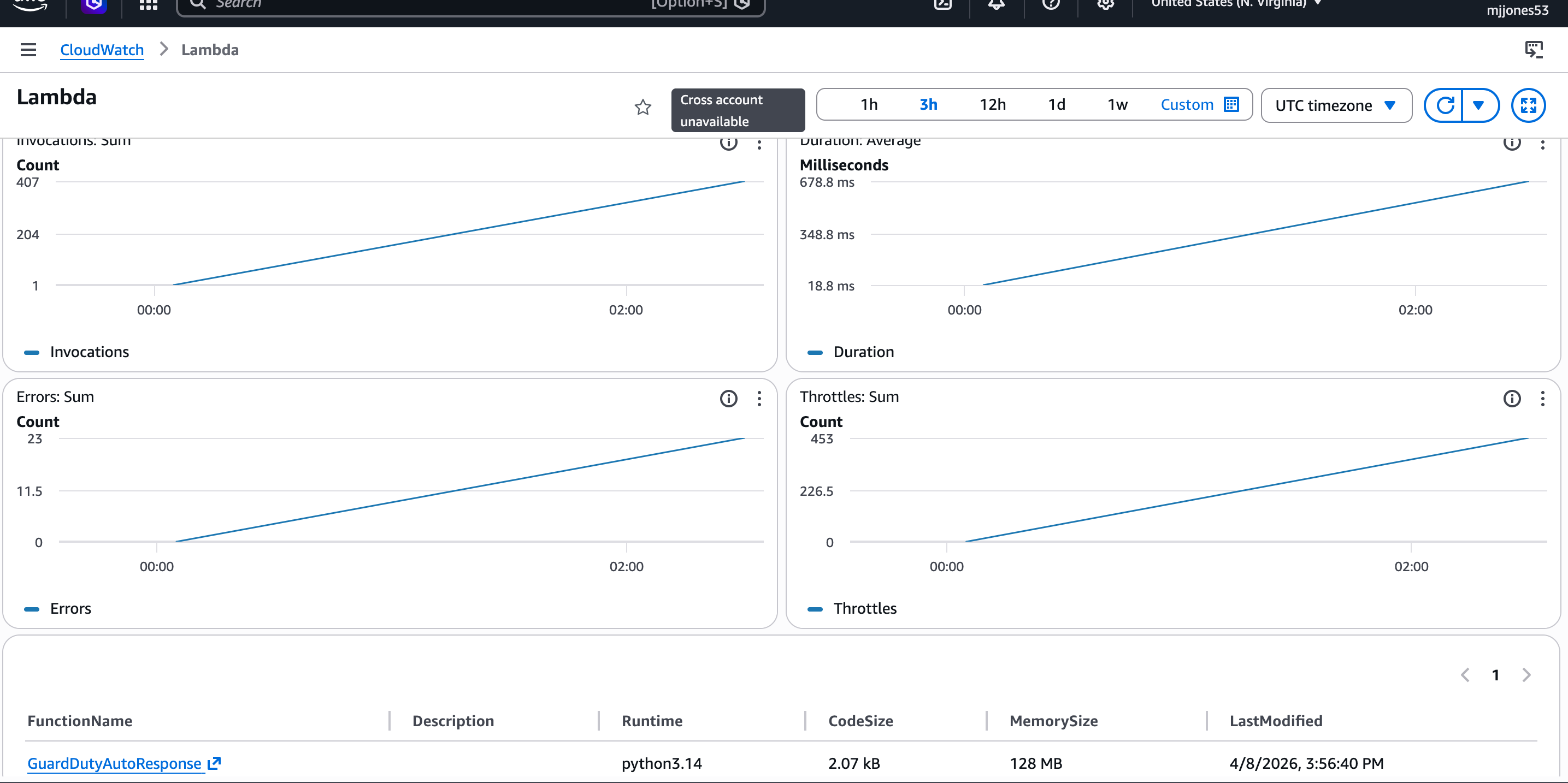

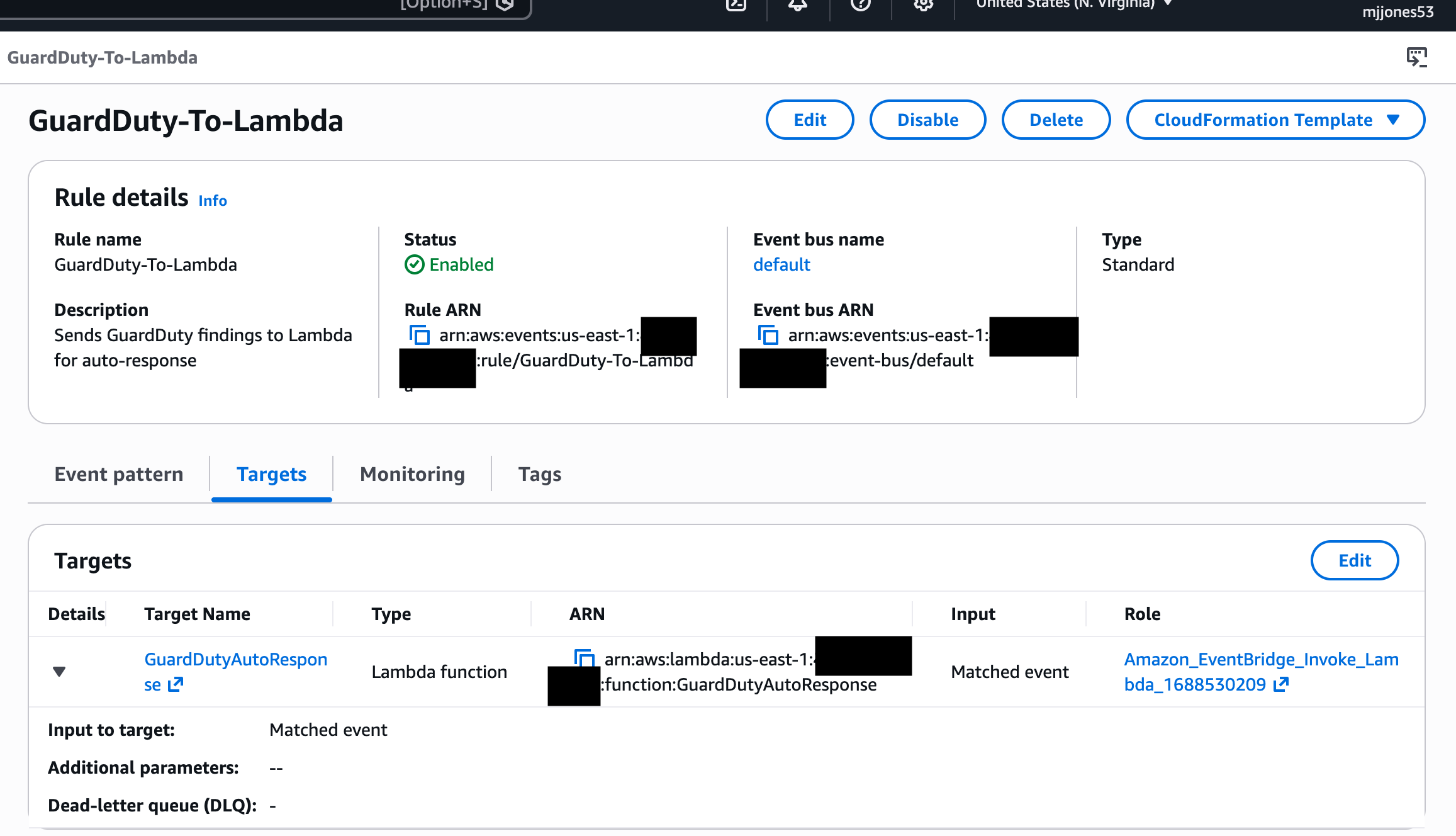

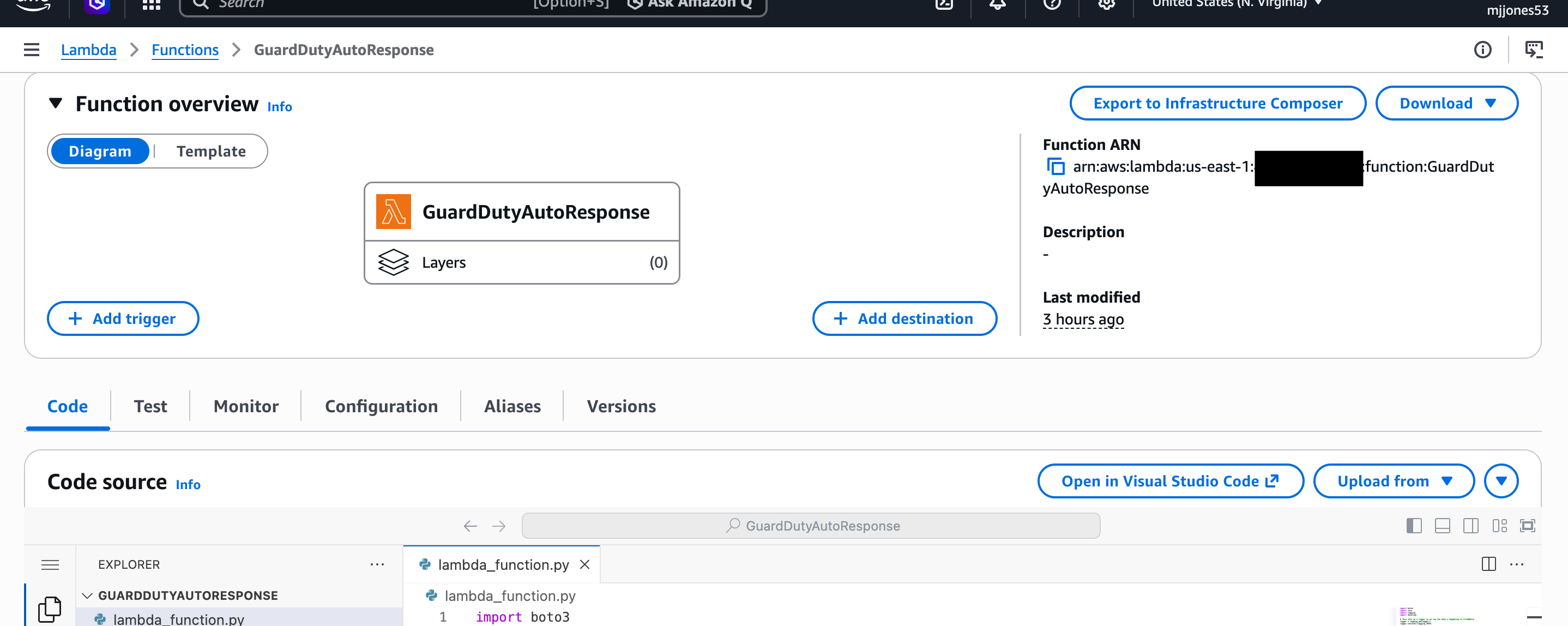

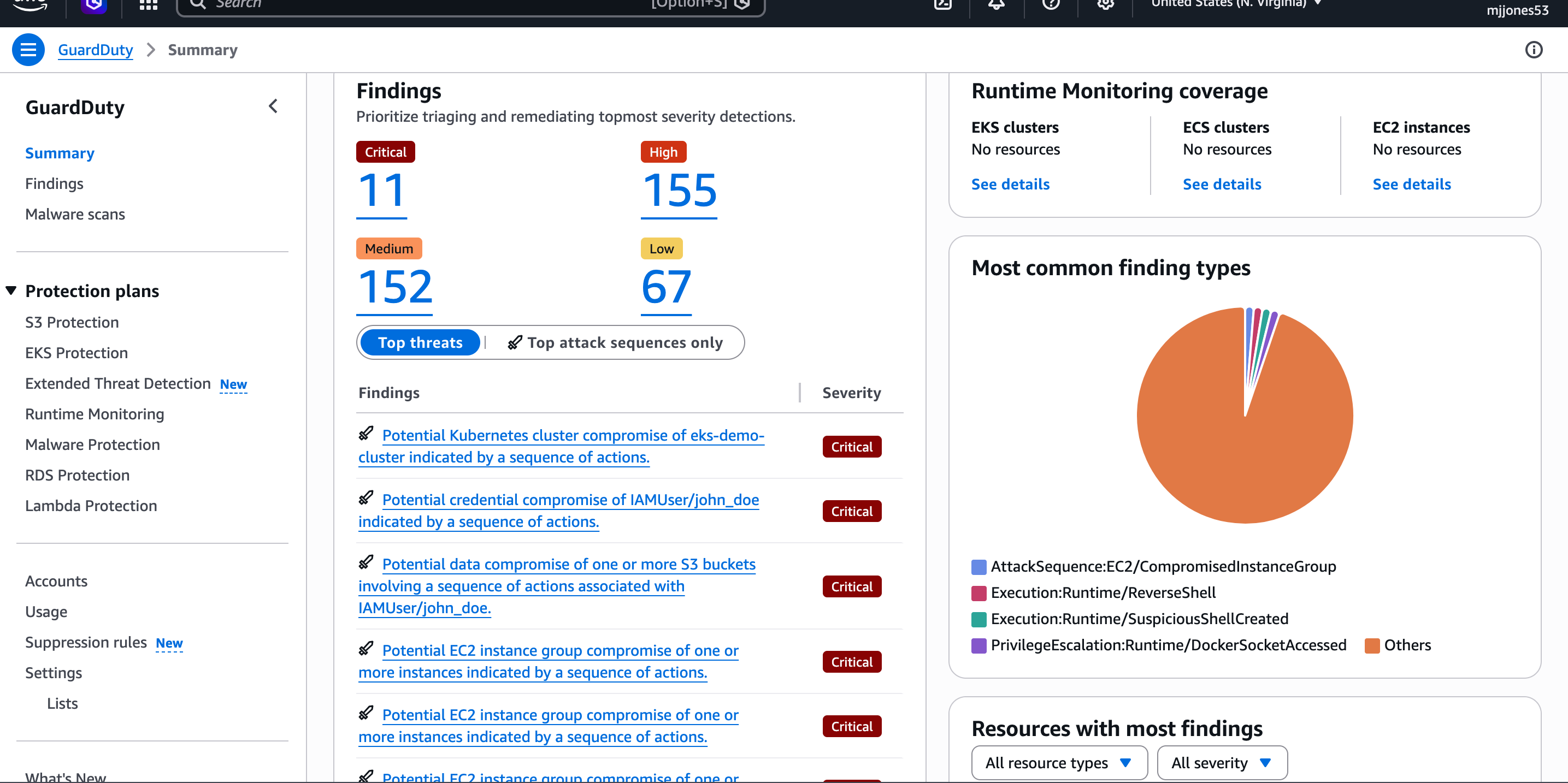

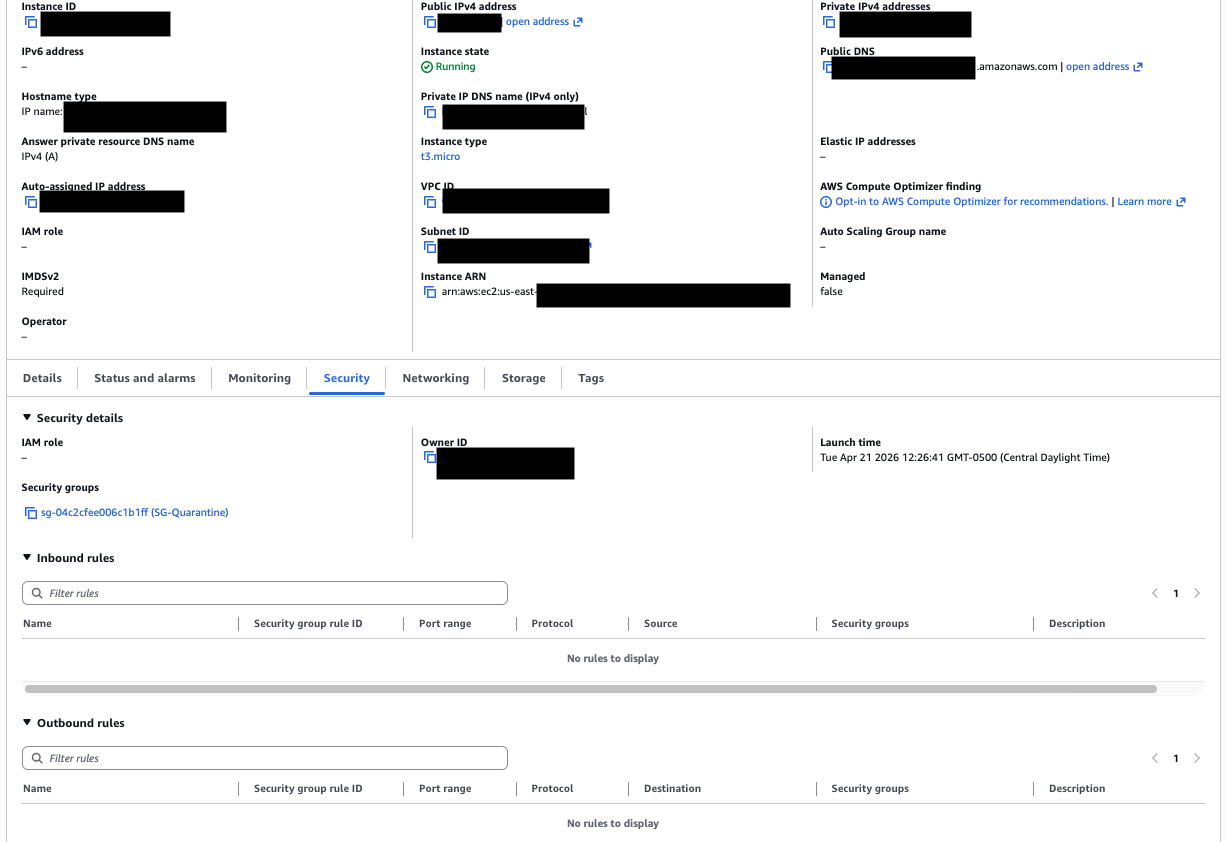

# GuardDuty Automated Incident Response An automated cloud security pipeline built on AWS that detects threats and isolates compromised resources within seconds — without any manual intervention. ## Project Overview This project simulates a real-world Security Operations Center (SOC) automated response workflow using native AWS security services. When Amazon GuardDuty detects a HIGH severity threat, this pipeline automatically: 1. Identifies the affected EC2 instance 2. Creates a quarantine security group (no inbound/outbound traffic) 3. Attaches it to the compromised instance, cutting off all access 4. Logs the full incident to CloudWatch 5. Posts a structured finding to AWS Security Hub **Response time: under 10 seconds from detection to isolation.** ## Architecture GuardDuty (detects threat) ↓ EventBridge (routes finding) ↓ Lambda (executes response) ↓ ↓ ↓ Isolate EC2 CloudWatch Security Hub (quarantine) (logs) (findings) ## AWS Services Used | Service | Role in Project | |---|---| | Amazon GuardDuty | Threat detection and finding generation | | AWS Lambda | Automated response logic (Python 3.12) | | Amazon EventBridge | Event routing from GuardDuty to Lambda | | Amazon EC2 | Target resource being protected/isolated | | AWS Security Hub | Centralized security findings dashboard | | Amazon CloudWatch | Execution logs and audit trail | | AWS IAM | Least privilege access control | ## Security Practices ### Least Privilege IAM The Lambda execution role is granted only the exact permissions required. Broad managed policies are intentionally avoided. | Permission | Reason | |---|---| | ec2:DescribeInstances | Identify the VPC of the affected instance | | ec2:CreateSecurityGroup | Create an isolated quarantine group | | ec2:RevokeSecurityGroupEgress | Remove all outbound rules | | ec2:ModifyInstanceAttribute | Attach quarantine group to instance | | securityhub:BatchImportFindings | Report incident to Security Hub | | sts:GetCallerIdentity | Retrieve account ID for ARN construction | | logs:CreateLogGroup/Stream/PutLogEvents | Write execution logs | CloudWatch access is scoped to this function's log group only. ### No Hardcoded Credentials All AWS API calls use the Lambda execution role via IAM. No access keys or secrets exist anywhere in this codebase. ### Sensitive Data Excluded A `.gitignore` is configured to prevent credentials, `.env` files, and key files from ever being committed. ## How to Deploy ### Prerequisites - An AWS account - AWS Console access - GuardDuty and Security Hub enabled in us-east-1 ### Steps 1. Enable GuardDuty in your AWS account 2. Enable Security Hub and connect GuardDuty as a data source 3. Create a Lambda function (Python 3.12) and paste `lambda/lambda_function.py` 4. Attach the IAM policy in `iam/least_privilege_policy.json` to the Lambda role 5. Create an EventBridge rule using the pattern in `eventbridge/event_pattern.json` 6. Set the EventBridge target to your Lambda function 7. Test using GuardDuty → Settings → Generate sample findings ## Testing GuardDuty includes a built-in sample findings generator. 1. Go to GuardDuty → Settings → Generate sample findings 2. Navigate to CloudWatch → Log groups → `/aws/lambda/GuardDutyAutoResponse` 3. Confirm logs show isolation executed for HIGH severity findings 4. Navigate to Security Hub → Findings to confirm the report was posted ## Proof of Work The screenshots below document the full pipeline running in a live AWS environment. Sample findings were generated using GuardDuty's built-in testing tool to simulate a real HIGH severity threat. All sensitive values including AWS account IDs and instance IDs have been redacted. ## Screenshots | Step | Screenshot | |---|---| | GuardDuty enabled |  | GuardDuty enabled and actively monitoring the AWS account for threats 24/7 | | Lambda function deployed |  | Lambda function deployed with Python 3.12 — contains the full automated response logic | | EventBridge rule configured |  | EventBridge rule routing GuardDuty findings directly to the Lambda function | | CloudWatch logs showing isolation |  | CloudWatch logs confirming Lambda executed and isolated the compromised instance | | Security Hub finding posted |  | Security Hub finding posted automatically by Lambda after incident response completed | | IAM least privilege policy |  | Custom least privilege IAM policy — Lambda granted only 7 specific permissions | ## What I Learned Building this project deepened my understanding of how detection and response pipelines operate at the infrastructure level. Designing the EventBridge-to-Lambda trigger flow reinforced how event-driven architecture reduces response time compared to traditional polling methods. The IAM least privilege implementation was a deliberate design decision — replacing broad managed policies with 7 scoped permissions reflects how production security teams minimize blast radius in the event of a compromised role. Working across GuardDuty, Lambda, Security Hub, and CloudWatch also reinforced how native AWS services can be chained together to build a detection and response capability without third-party tooling. ## Author Michael Jones Aspiring Security/Detection Engineer
