# SOC Mini-Lab: Snort + Wazuh + T-Pot + Shuffle SOAR

SOC Mini-Lab — Integrated Security Operations Center

## 目录 - [Highlights](#-highlights) - [Architecture Overview](#-architecture-overview) - [Network Topology](#-network-topology) - [Tools Used](#-tools--technology-stack) - [Detection Pipeline](#-detection-pipeline) - [Automation Workflow](#-automation-workflow) - [Performance Results](#-performance-results) - [Installation](#-installation-guide) - [Screenshots](#-screenshots--demo) - [Project Structure](#-project-structure) - [Future Improvements](#-future-roadmap) - [References](#-references) ## 亮点

5 Core Components Wazuh • Snort • Shuffle • T-Pot • Sysmon

<15s Attack to Block End-to-end automated response

3 Active Agents Kali + Windows + T-Pot

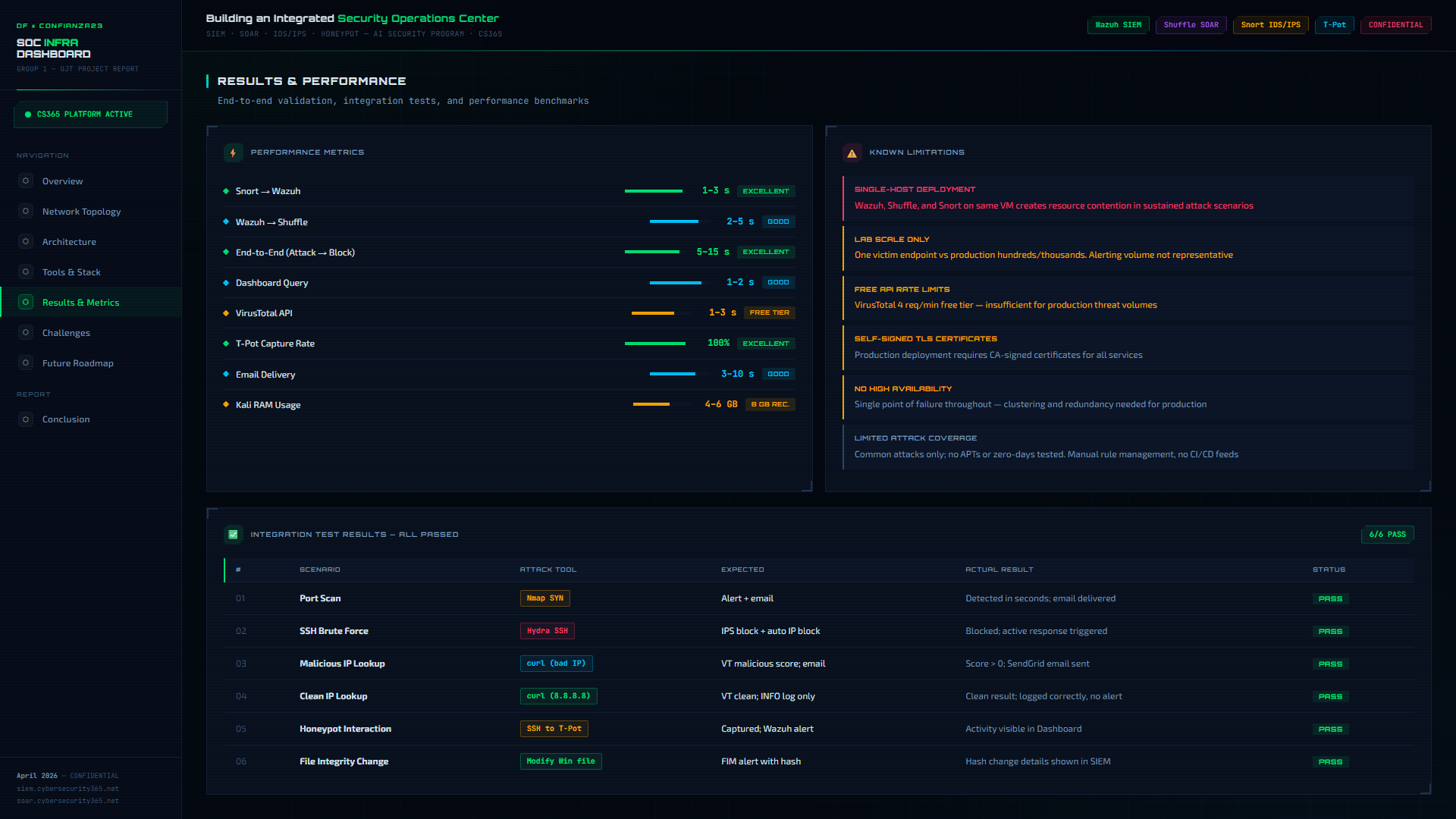

6/6 Tests Passed 100% detection rate

## 架构概述 ``` flowchart TB subgraph INTERNET["INTERNET"] NET[("WAN")] end subgraph KALI["KALI LINUX — Gateway + Attacker"] ETH0["eth0: NAT\n192.168.61.128"] SNORT["Snort 3.12.1.0\nIPS: NFQUEUE drop\nIDS: alert_fast.txt"] WAGENT1["Wazuh Agent"] SHUFFLE["Shuffle SOAR\n:3443"] end subgraph INTERNAL["INTERNAL LAN — 192.168.1.0/24"] WIN["Windows 10\n192.168.1.32\nWazuh Agent + Sysmon"] WAZUH["Wazuh Server\n192.168.1.33\nManager + Indexer + Dashboard"] TPOT["T-Pot Honeypot\n192.168.1.34\nWazuh Agent"] end subgraph EXTERNAL["EXTERNAL SERVICES"] VT["VirusTotal API"] SG["SendGrid Email"] end NET -->|NAT| ETH0 ETH0 --> SNORT SNORT -->|"clean traffic"| WIN SNORT -->|"attack traffic"| TPOT SNORT -->|"alerts"| WAGENT1 WAGENT1 -->|TCP 1514| WAZUH WIN -->|"events"| WAZUH TPOT -->|"honeypot logs"| WAZUH WAZUH -->|"webhook L10+"| SHUFFLE SHUFFLE --> VT SHUFFLE --> SG style KALI fill:#1a1a2e,stroke:#00ff41,color:#00ff41 style INTERNAL fill:#0d1117,stroke:#58a6ff,color:#58a6ff style SNORT fill:#ff4444,stroke:#ff4444,color:#fff style WAZUH fill:#0066cc,stroke:#0066cc,color:#fff style TPOT fill:#ff8800,stroke:#ff8800,color:#fff style SHUFFLE fill:#9933ff,stroke:#9933ff,color:#fff ```

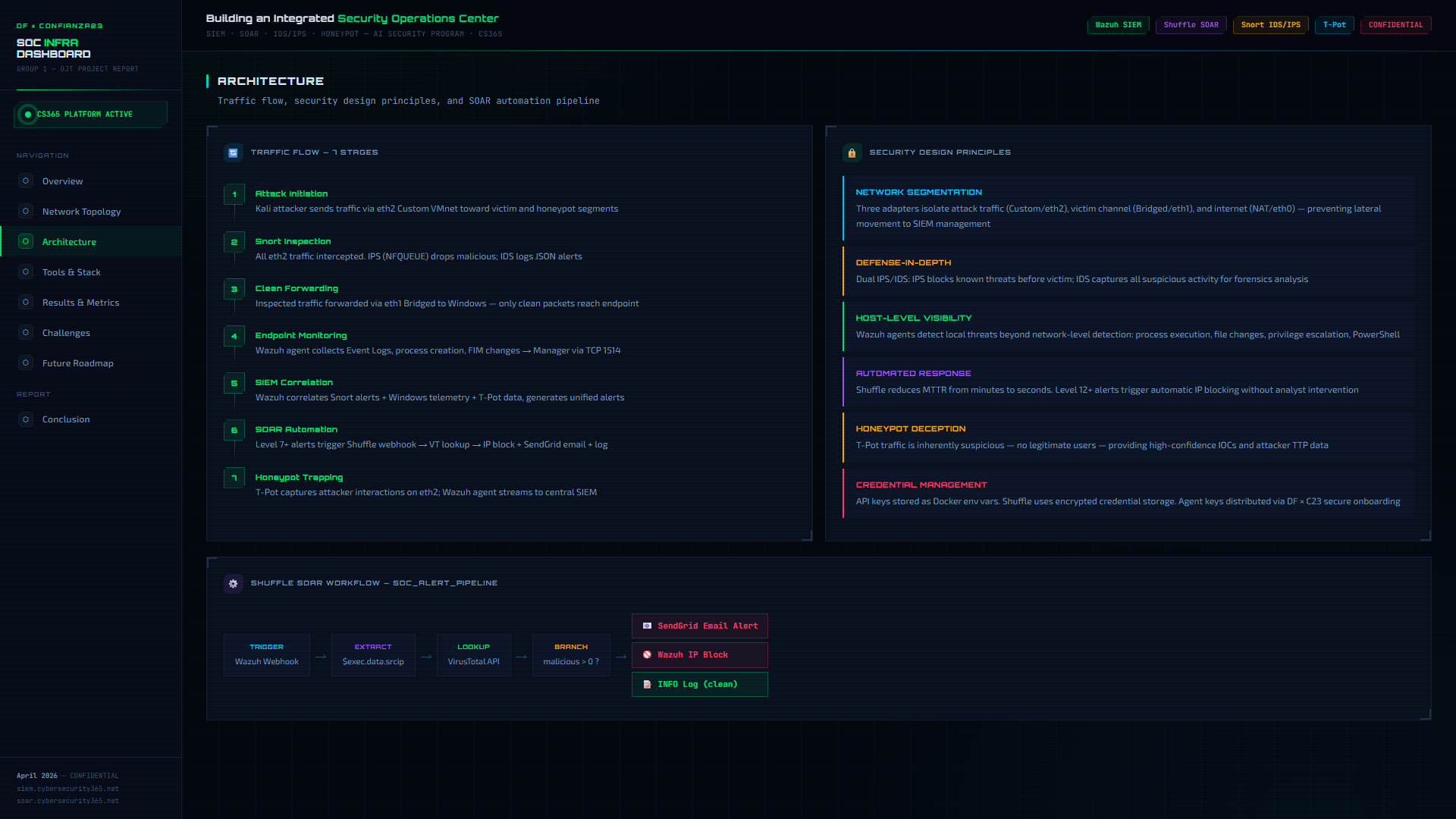

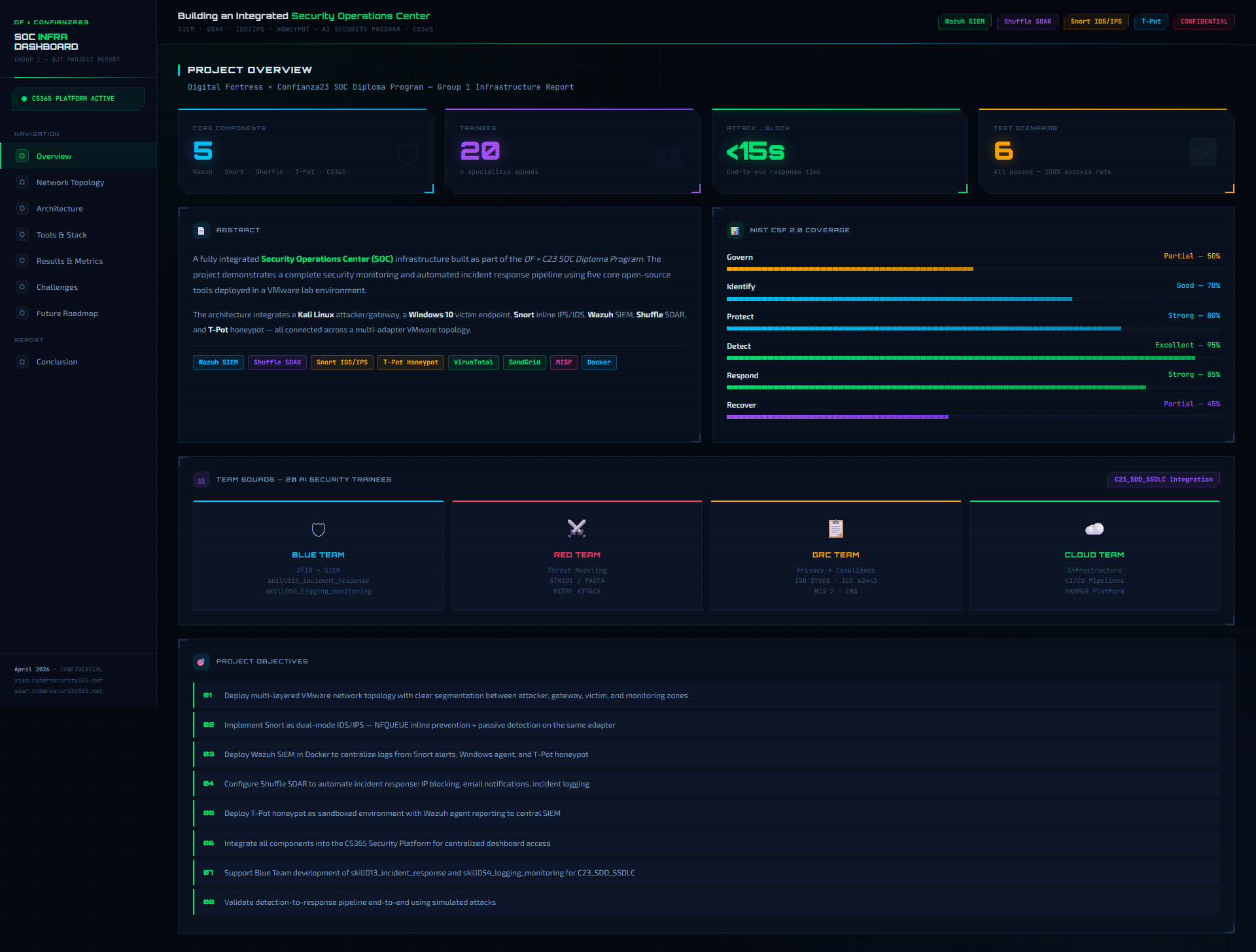

View Architecture Dashboard Screenshot

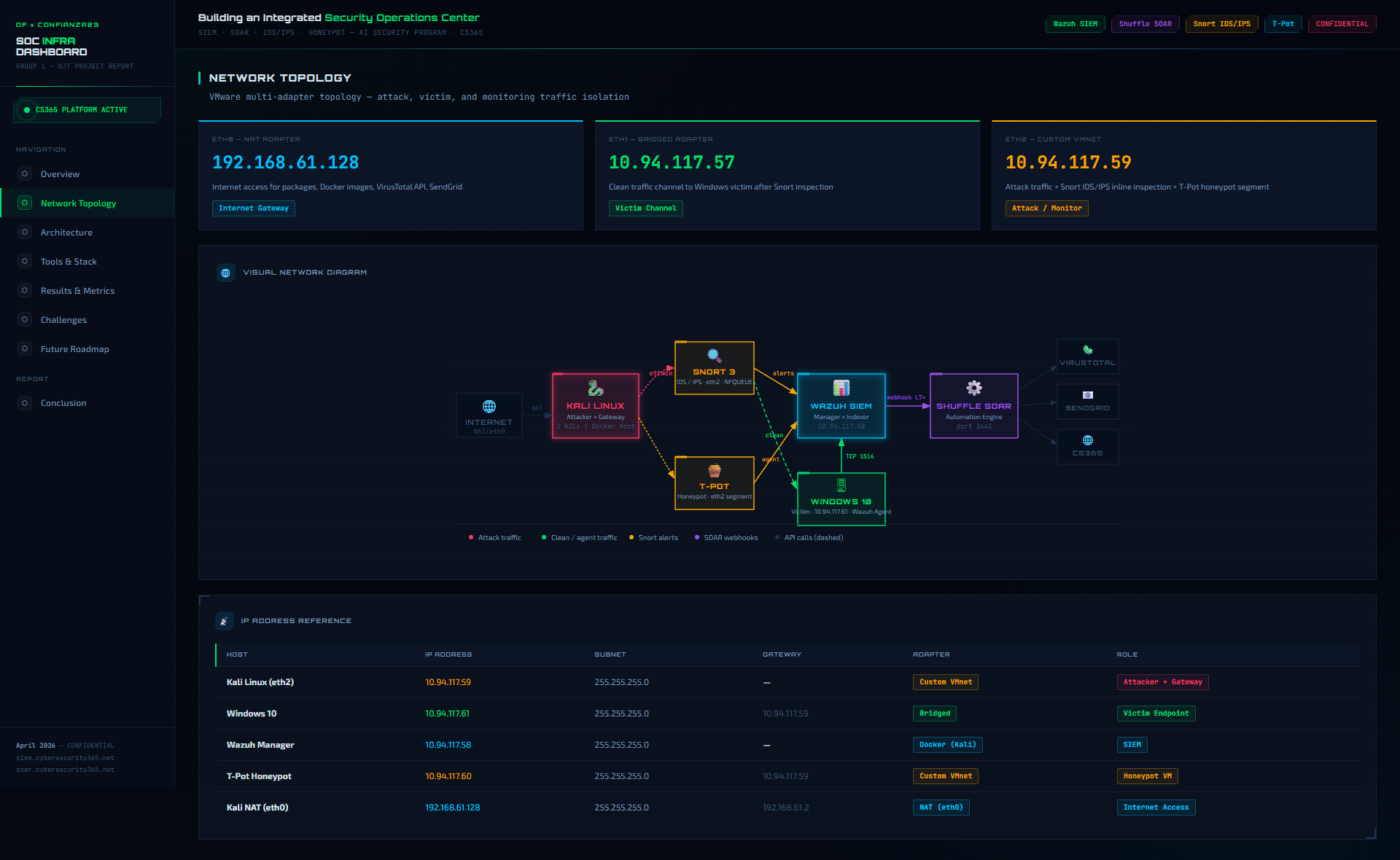

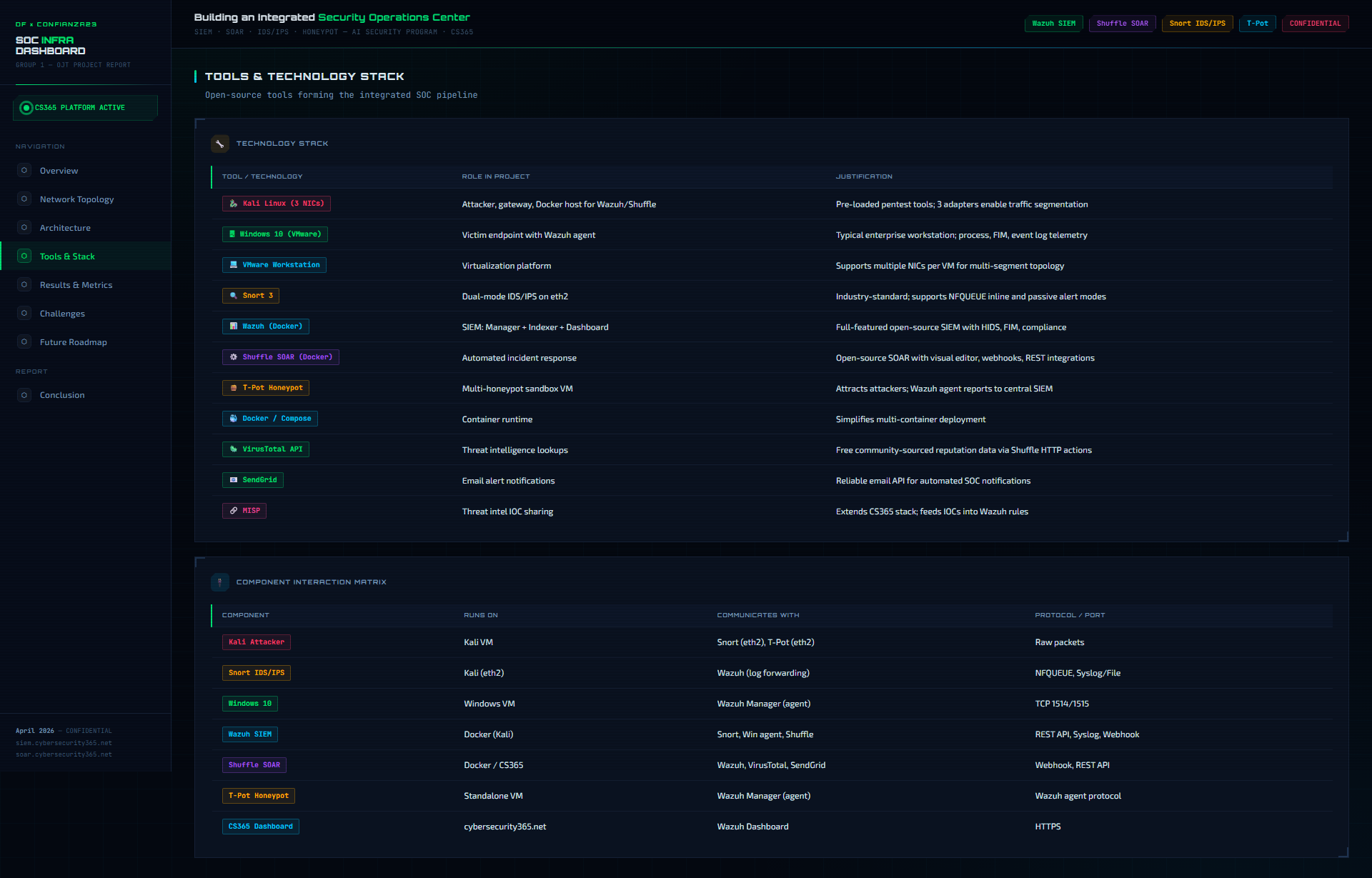

**Full architecture details:** [`architecture/README.md`](architecture/README.md) ## 网络拓扑 ### IP 分配 | Machine | Interface | IP Address | Network | Role | |:--------|:----------|:-----------|:--------|:-----| | Kali Linux | eth0 | `192.168.61.128` | NAT | Internet egress | | Kali Linux | eth1 | `192.168.1.31` | Bridged | Internal LAN | | Kali Linux | eth2 | `10.94.117.59` | Bridged | Snort inspection | | Windows 10 | eth0 | `192.168.1.32` | Bridged | Victim + Wazuh agent | | Wazuh Server | eth0 | `192.168.1.33` | Bridged | SIEM manager | | T-Pot | eth0 | `192.168.1.34` | Bridged | Honeypot | | Shuffle SOAR | Docker | `10.94.117.58:3443` | — | SOAR engine | ### 网络分段 | Segment | CIDR | Purpose | |:--------|:-----|:--------| | NAT | `192.168.61.0/24` | Internet access for Kali only | | Internal LAN | `192.168.1.0/24` | All agents to Wazuh manager | | Management | `10.94.117.0/24` | Snort interface + Shuffle | ### 流量流向 ``` sequenceDiagram participant K as Kali (Attacker) participant S as Snort IPS/IDS participant W as Windows (Victim) participant T as T-Pot (Honeypot) participant M as Wazuh Manager participant SH as Shuffle SOAR participant VT as VirusTotal participant E as SendGrid Email K->>S: Attack traffic (eth2) S--xK: IPS: DROP malicious packets S->>W: Clean traffic forwarded (eth1) S->>M: IDS alerts via Wazuh agent W->>M: Endpoint events (Sysmon/Security) T->>M: Honeypot hits via Wazuh agent M->>SH: Level 10+ alert webhook SH->>VT: IP reputation lookup VT-->>SH: Malicious score SH->>E: Alert email notification SH->>M: IP block (active response) ``` **Full topology details:** [`topology/README.md`](topology/README.md) ## 工具与技术栈 | Tool | Version | Purpose | License | |:-----|:--------|:--------|:--------| | Kali Linux | 2025.4 | Attacker + gateway + Docker host | GPL | | Snort | 3.12.1.0 | Network IDS/IPS (NFQUEUE inline) | GPL-2.0 | | Wazuh | 4.14.4 OVA | SIEM: Manager + Indexer + Dashboard | GPL-2.0 | | Windows 10 | 10.0.17763 | Victim endpoint | Proprietary | | Sysmon | v15 | Enhanced Windows event logging | Free | | T-Pot | 24.04 HIVE | Multi-honeypot platform | Apache-2.0 | | Shuffle SOAR | Latest | Automated incident response | GPL-3.0 | | VirusTotal API | v3 | IP reputation lookups | Free tier | | SendGrid | v3 API | Email notifications | Free tier | | VMware Workstation | Pro | Kali + Windows virtualization | Proprietary | | VirtualBox | Latest | Wazuh + T-Pot virtualization | GPL-2.0 | | Docker | Latest | Shuffle containers | Apache-2.0 | | iptables/NFQUEUE | Kernel | Inline packet routing to Snort | GPL | ### 功能对比 | Capability | Traditional SOC | This Lab | |:-----------|:----------------|:---------| | Detection method | Manual log review | Automated IDS/IPS + SIEM correlation | | Response time | Minutes to hours | **< 15 seconds** | | Threat intel | Manual IOC lookup | Automated VirusTotal enrichment | | Alerting | Email on schedule | Real-time webhook + email | | Honeypot integration | Separate system | Unified in SIEM pipeline | | Incident response | Manual playbooks | SOAR-automated workflows | ## 检测流水线 ``` flowchart LR subgraph ATTACK["ATTACK"] A1["Nmap SYN Scan"] A2["Hydra SSH Brute"] A3["ICMP Sweep"] A4["Honeypot Probe"] end subgraph DETECT["DETECT"] D1["Snort IDS\nalert_fast.txt"] D2["Snort IPS\nNFQUEUE DROP"] D3["Sysmon\nWindows Events"] D4["T-Pot\nJSON Logs"] end subgraph CORRELATE["CORRELATE"] C1["Wazuh Manager\n192.168.1.33"] end subgraph RESPOND["RESPOND"] R1["Shuffle SOAR"] R2["VirusTotal API"] R3["SendGrid Email"] R4["IP Block"] end A1 --> D1 & D2 A2 --> D1 & D2 A3 --> D1 & D2 A4 --> D4 D1 --> C1 D3 --> C1 D4 --> C1 C1 -->|"Level 10+"| R1 R1 --> R2 R2 --> R3 R2 --> R4 style ATTACK fill:#ff4444,stroke:#ff4444,color:#fff style DETECT fill:#ff8800,stroke:#ff8800,color:#fff style CORRELATE fill:#0066cc,stroke:#0066cc,color:#fff style RESPOND fill:#00cc44,stroke:#00cc44,color:#fff ``` ### 自定义 Snort 规则 | SID | Type | Rule | Threshold | |:----|:-----|:-----|:----------| | 1000001 | IDS | ICMP Ping Sweep | 5 pings / 2 sec | | 1000002 | IDS | Nmap SYN Port Scan | 20 SYN / 1 sec | | 1000003 | IDS | SSH Brute Force | 5 attempts / 60 sec | | 1000004 | IDS | HTTP Non-Standard Port (C2) | per packet | | 1000005 | **IPS** | **Aggressive Port Scan** | **30 SYN / 5 sec** | | 1000006 | IDS | RDP Brute Force | 5 attempts / 30 sec | | 1000007 | **IPS** | **ICMP Flood** | **50 pings / 1 sec** | | 1000008 | IDS | FTP Login Attempt | per packet | | 100009 | IDS | DNS Amplification | dsize > 512 | **Detection rules, decoders, and rule IDs:** [`detection-pipeline/README.md`](detection-pipeline/README.md) ## 自动化工作流 ### Shuffle SOAR — 告警 enrichment 流水线 ``` flowchart TD A["Wazuh Alert\nLevel >= 10"] -->|webhook| B["Shuffle\nWebhook Trigger"] B --> C["Extract src_ip\n(regex parse)"] C --> D["VirusTotal\nIP Lookup"] D --> E{"Malicious\nscore > 0?"} E -->|YES| F["SendGrid\nAlert Email"] E -->|YES| G["Wazuh\nIP Block"] E -->|NO| H["Log: Benign\n(INFO level)"] style A fill:#0066cc,stroke:#0066cc,color:#fff style E fill:#ff8800,stroke:#ff8800,color:#fff style F fill:#00cc44,stroke:#00cc44,color:#fff style G fill:#ff4444,stroke:#ff4444,color:#fff style H fill:#666,stroke:#666,color:#fff ``` **Trigger condition:** Wazuh alert level >= 10 **Average response time:** < 15 seconds from detection to email **Full workflow documentation:** [`automation-workflows/shuffle-lab1.md`](automation-workflows/shuffle-lab1.md) ## 性能结果 | Metric | Result | Rating | |:-------|:-------|:-------| | Snort to Wazuh latency | 1-3 seconds | Excellent | | Wazuh to Shuffle latency | 2-5 seconds | Good | | End-to-end (attack to block) | **5-15 seconds** | Excellent | | VirusTotal API response | 1-3 seconds | Free Tier | | T-Pot capture rate | 100% | Excellent | | Email delivery (SendGrid) | 3-10 seconds | Good | | Dashboard query time | 1-2 seconds | Good | ### 验证的攻击场景 | # | Attack | Tool | IPS Response | IDS Alert | SOAR Action | Status | |:--|:-------|:-----|:-------------|:----------|:------------|:-------| | 1 | Port scan | `nmap -sS` | Blocked after 30 SYN/5s | Rule 1000002 | Email sent | PASS | | 2 | SSH brute force | `hydra` | Blocked after 5 attempts | Rule 1000003 | IP blocked | PASS | | 3 | ICMP sweep | `ping -c` | Blocked after 50/s | Rule 1000001 | Logged | PASS | | 4 | Malicious IP probe | `curl` | N/A | Wazuh alert | VT score > 0 - email | PASS | | 5 | Honeypot SSH | `ssh` to T-Pot | N/A | Rule 200002 | Dashboard alert | PASS | | 6 | FIM change | File edit on Win | N/A | Sysmon EID 1 | Dashboard alert | PASS | ## 安装指南 Follow these guides in order: | Step | Guide | Time | |:-----|:------|:-----| | 0 | [External Accounts Setup](installation/00-accounts-setup.md) | 15 min | | 1 | [Kali Environment Setup](installation/01-kali-setup.md) | 20 min | | 2 | [Snort IDS/IPS Configuration](installation/02-snort-ids-ips.md) | 30 min | | 3 | [Wazuh Agent on Kali](installation/03-wazuh-agent-kali.md) | 20 min | | 4 | [Windows Agent + Sysmon](installation/04-windows-agent-sysmon.md) | 25 min | | 5 | [T-Pot Honeypot](installation/05-tpot-honeypot.md) | 60 min | | 6 | [Shuffle SOAR Workflow](installation/06-shuffle-soar.md) | 30 min | | 7 | [End-to-End Verification](installation/07-verification.md) | 15 min | ### 先决条件 - VMware Workstation Pro (any recent version) - VirtualBox (latest) - Kali Linux VM with 3 network adapters configured - Minimum **16 GB RAM** on host machine (8 GB for T-Pot alone) ## 截图与演示 ## 项目结构 ``` SOC-Lab/ | |-- README.md # You are here |-- architecture/ | +-- README.md # Component interaction + data flow |-- topology/ | +-- README.md # Network design + traffic flow |-- installation/ | |-- 00-accounts-setup.md # VirusTotal + SendGrid accounts | |-- 01-kali-setup.md # Kali network configuration | |-- 02-snort-ids-ips.md # Snort full setup guide | |-- 03-wazuh-agent-kali.md # Wazuh agent on Kali | |-- 04-windows-agent-sysmon.md # Windows agent + Sysmon | |-- 05-tpot-honeypot.md # T-Pot install guide | |-- 06-shuffle-soar.md # Shuffle workflow build | +-- 07-verification.md # End-to-end test checklist |-- configurations/ | |-- snort.lua # Snort 3 main config | |-- local.rules # Custom IDS/IPS detection rules | |-- ossec-kali-agent.conf # Wazuh agent config (Kali) | |-- ossec-windows-snippet.xml # Windows agent localfile blocks | |-- tpot-decoder.xml # Custom T-Pot Wazuh decoder | +-- tpot-rules.xml # Custom T-Pot Wazuh rules |-- detection-pipeline/ | +-- README.md # Alert pipeline + rule reference |-- automation-workflows/ | +-- shuffle-lab1.md # SOAR workflow documentation |-- screenshots/ | +-- README.md # Screenshot guide + placeholders |-- scripts/ | |-- setup-nfqueue.sh # iptables NFQUEUE setup | +-- verify-lab.sh # Full lab health check |-- troubleshooting/ | +-- README.md # Common errors + fixes +-- references/ +-- README.md # All links + citations ``` ## 未来路线图 - [ ] **Distributed architecture** — separate Wazuh components onto dedicated VMs/cloud - [ ] **MISP integration** — automated IOC feeds for proactive threat hunting - [ ] **AI/UEBA** — behavior analytics for anomaly detection beyond signatures - [ ] **CACAO v2.0 playbooks** — standardize Shuffle workflows - [ ] **Expanded honeypots** — additional T-Pot instances (web, DB, OT/ICS) - [ ] **Ticketing integration** — connect Shuffle to TheHive or Jira - [ ] **Compliance dashboards** — map Wazuh to NIS 2, ISO 27001, IEC 62443 - [ ] **MITRE ATT&CK mapping** — tag detection rules with ATT&CK technique IDs - [ ] **HA/clustering** — eliminate single point of failure - [ ] **Automated rule feeds** — CI/CD for Snort + Wazuh rule deployment

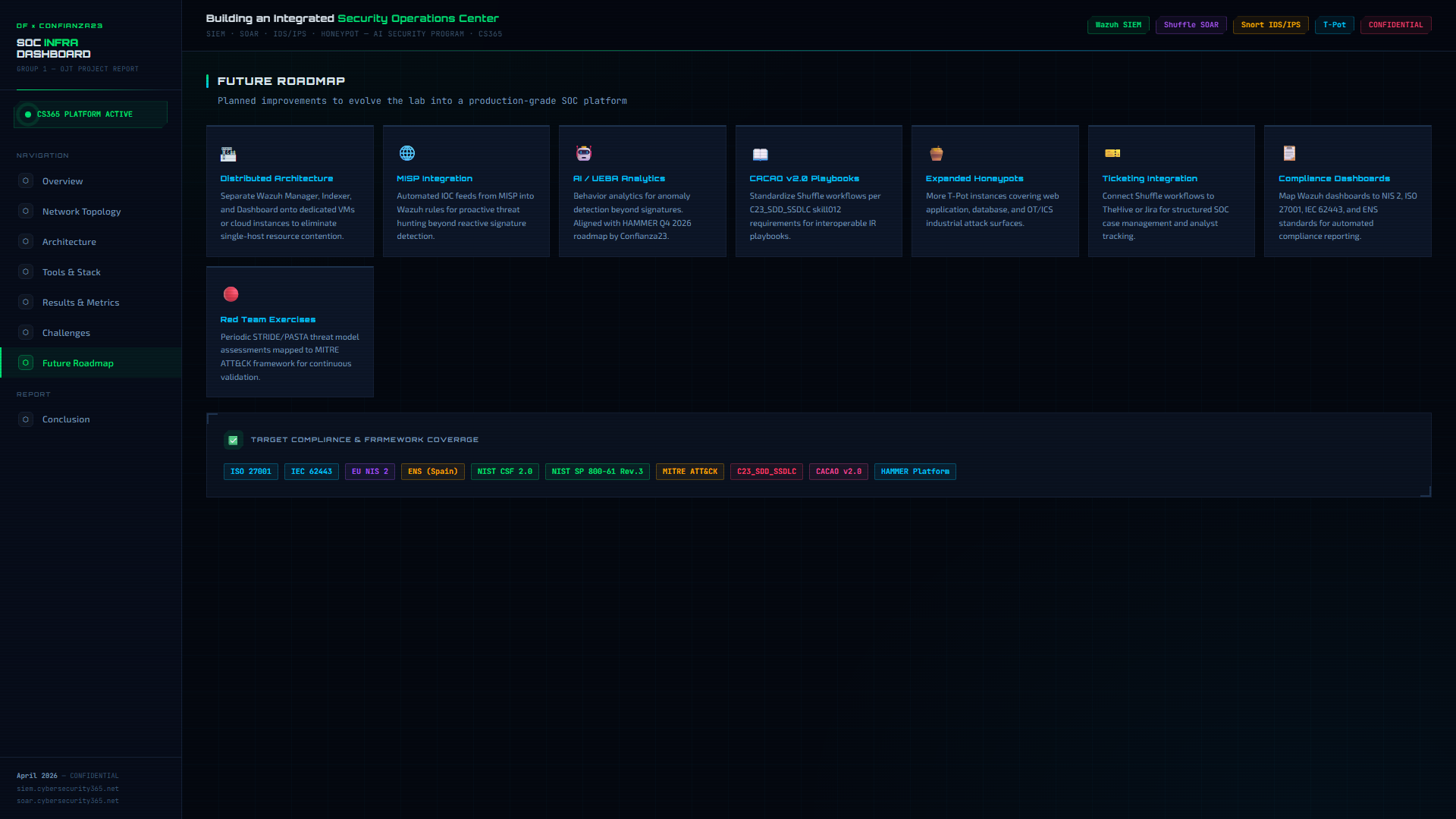

View Future Roadmap Dashboard

## 参考 | Resource | URL | |:---------|:----| | Wazuh Documentation | https://documentation.wazuh.com | | Snort 3 Documentation | https://docs.snort.org | | Shuffle SOAR | https://shuffler.io/docs | | T-Pot GitHub | https://github.com/telekom-security/tpotce | | VirusTotal API v3 | https://developers.virustotal.com/reference | | NIST CSF 2.0 | https://www.nist.gov/cyberframework | | MITRE ATT&CK | https://attack.mitre.org | | NIST SP 800-61 Rev. 3 | https://csrc.nist.gov/publications/detail/sp/800-61/rev-3/final | Full references: [`references/README.md`](references/README.md)

Built as a SOC prototype. Open-source tools, production-representative architecture.
Security Framework: NIST Cybersecurity Framework 2.0 — Detect, Respond, Recover
