DurgaRamireddy/Phishing-Simulation-SOC-Investigation-Lab

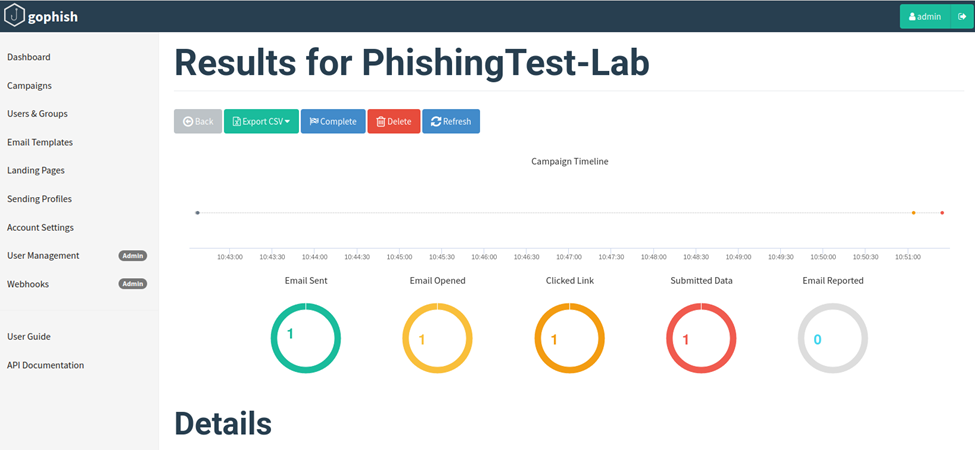

# 钓鱼模拟与 SOC 调查实验 一个端到端的钓鱼模拟和 SOC 调查实验环境，构建于隔离的 VMware 环境中，部署 GoPhish 攻击者基础设施，针对 Windows 受害者执行凭据窃取活动，并使用 Splunk 和 Windows Security 事件日志调查完整的攻击链。 **MITRE ATT&CK:** T1566.002 · T1204.001 · T1078 · T1056.003 **Tools:** GoPhish · Splunk Enterprise 9.3.2 · Splunk Universal Forwarder · VMware ## 实验架构 ``` ┌─────────────────────────────────────────────────────┐ │ Host-Only Network: 192.168.255.0/24 │ │ │ │ ┌──────────────────┐ ┌──────────────────────┐ │ │ │ Ubuntu VM │ │ Windows 10 VM │ | │ │ 192.168.255.131 │◄─────│ 192.168.255.132 | │ │ │ │ │ │ │ │ │ • Splunk 9.3.2 │ │ • Victim Endpoint │ │ │ │ • GoPhish 0.12.1│ │ • SUF 10.2.1 │ │ │ │ (Attacker Infra)│ │ • Log Source │ │ │ └──────────────────┘ └──────────────────────┘ │ │ │ | │ │ │ └─────────────────────────────────────────────────────┘ ``` **日志管道:** Windows 10 -> Splunk Universal Forwarder (端口 9997) -> Ubuntu 上的 Splunk Enterprise ## 攻击链 ``` [1] SETUP [2] DELIVERY [3] EXECUTION [4] CAPTURE GoPhish deployed -> Phishing email -> Victim clicks -> Credentials on Ubuntu crafted with link at harvested: with fake IT spoofed sender 22:50:44 john.doe / portal page and urgent CTA Edge from Password123 explorer.exe ```  ## MITRE ATT&CK 映射 | Technique | ID | Tactic | Evidence | |---|---|---|---| | Phishing: Spearphishing Link | T1566.002 | Initial Access | GoPhish campaign with spoofed IT identity | | User Execution: Malicious Link | T1204.001 | Execution | Edge spawned by explorer.exe at 22:50:44 (EventID 4688) | | Valid Accounts | T1078 | Defense Evasion | Harvested credentials captured by GoPhish | | Web Portal Capture | T1056.003 | Credential Access | Fake login form submitted to attacker server | ## 关键取证发现 关键的 IOC 是 **Microsoft Edge 直接从 `explorer.exe` 启动**，通过 Windows Security EventID 4688 捕获： ``` Time: 2026-03-16 22:50:44 Process: C:\Program Files (x86)\Microsoft\Edge\Application\msedge.exe Parent: C:\Windows\explorer.exe Host: DESKTOP-FL9KRGR ``` 这种父子关系是一个可靠的钓鱼执行信号，与其他进程触发的正常浏览器启动截然不同。它确认了用户与钓鱼链接的交互，而无需任何网络层面的可见性。 ## Splunk 检测查询 (SPL) ### T1566 - 浏览器活动时间线 ``` index=main host="DESKTOP-FL9KRGR" EventCode=4688 New_Process_Name="*msedge*" | table _time, New_Process_Name, Creator_Process_Name | sort _time ``` ### T1204 - 来自 Explorer 的用户执行 (关键 IOC) ``` index=main host="DESKTOP-FL9KRGR" EventCode=4688 Creator_Process_Name="*explorer*" | table _time, New_Process_Name, Creator_Process_Name | sort _time ``` ### T1078 - 账户登录事件 ``` index=main host="DESKTOP-FL9KRGR" EventCode=4624 | table _time, Account_Name, Logon_Type, Source_Network_Address | sort _time ``` ### 凭据访问活动随时间变化 ``` index=main host="DESKTOP-FL9KRGR" EventCode=5379 | timechart count span=15m ``` ## Splunk 仪表板 4 面板 SOC 调查 dashboard，将每个检测映射到 MITRE ATT&CK 技术：     ## 入侵指标 (IOCs) | Type | Value | Context | |---|---|---| | IP | 192.168.255.131 | GoPhish phishing server | | URL | `http://192.168.255.131/?rid=SrjXtqB` | Phishing landing page with campaign ID | | Email | it-support@company-internal.com | Spoofed sender identity | | Credentials | john.doe@company-internal.com / Password123 | Harvested credentials | | Process | msedge.exe spawned by explorer.exe | Phishing click indicator (EventID 4688) | ## 检测缺口与经验教训 **发现的缺口：** - 没有网络层面的 URL 可见性 - Sysmon EventID 3 或 network tap 可以捕获访问的实际钓鱼 URL。进程创建日志确认了执行，但未确认目的地。 - 在默认审计策略下，EventID 5379 字段值（`Target_Name`, `User_Name`）为空 - 需要高级审计策略配置才能进行完整的凭据访问日志记录。 **有效的方法：** - 通过端口 9997 的 Splunk Universal Forwarder 全程保持稳定（由于在此 VMware 环境中持续出现 `code 17 - globally disabled` 错误，放弃了 HEC） - EventID 4688 进程创建日志提供了足够的取证证据来确认钓鱼执行，而无需任何网络可见性 - GoPhish dashboard 在攻击者侧提供了凭据捕获的即时确认 ## 生产环境检测规则 ``` // Alert: Browser spawned by explorer.exe outside business hours index=main EventCode=4688 (New_Process_Name="*chrome*" OR New_Process_Name="*msedge*" OR New_Process_Name="*firefox*") Creator_Process_Name="*explorer*" | eval hour=strftime(_time, "%H") | where hour < 8 OR hour > 18 | stats count by host, New_Process_Name, _time // Alert: Credential manager access spike index=main EventCode=5379 | bucket _time span=5m | stats count by _time, host | where count > 50 ``` ## 防御建议 | Control | Purpose | |---|---| | MFA on all accounts | Harvested passwords become useless without second factor | | Email security gateway (Proofpoint, Mimecast) | URL rewriting and sandboxing before delivery | | DNS filtering (Cisco Umbrella) | Block phishing domains at resolution | | Sysmon with SwiftOnSecurity config | Network connection logging (EventID 3) for URL visibility | | Regular phishing simulation training | Build user resilience against social engineering | ## 关键要点 本实验表明，仅凭进程创建日志 (EventID 4688) 就足以确认钓鱼执行，explorer.exe 与浏览器之间的父子关系是一个可靠且低噪声的信号，不需要网络可见性。它还强化了为什么 MFA 是对抗凭据窃取攻击最有效的单一控制措施：无论钓鱼页面多么具有说服力，如果没有第二因素，捕获的密码将毫无价值。 ## 项目结构 ``` ├── README.md ├── Phishing_SOC_Incident_Report.docx └── splunk/ └── dashboard_phishing_soc.xml ``` ## 相关项目 [Splunk HOME SOC 检测实验](https://github.com/DurgaRamireddy/Splunk-HOME-SOC-Detection-Lab---End-to-End-Alert-Lifecycle) - 完整的 SOC Tier 1 告警生命周期，包括暴力破解、PowerShell 持久化检测和 4 面板 dashboard。 **作者:** Durga Sai Sri Ramireddy | MS Cybersecurity, University of Houston [](https://linkedin.com/in/durga-ramireddy) [](https://github.com/DurgaRamireddy)

标签：ATT&CK模拟, Cloudflare, Conpot, EventID 4688, GoPhish, MITRE ATT&CK, SOC Lab, SOC调查, Sysmon, VMware, Windows事件日志, Windows安全, 凭证收集, 安全运营中心, 数据展示, 端点检测, 红队, 网络安全实验, 网络映射, 网络靶场, 进程分析
