Apex 是一个模块化、跨平台的命令与控制（C2）框架，为红队提供从 agent 生成、多协议通信到后渗透操作的全流程对抗模拟能力。
Stars: 1 | Forks: 0
# Apex C2 Framework
A modern, modular Command & Control framework built for red team operations and adversary simulation. Features a Go team server, Tauri + React operator client, and multi-platform agents (Windows, Linux, macOS) with integrated evasion, BOF loading, token manipulation, and malleable C2 profiles.
╔═══════════════════════════════════════════╗
║ ║
║ █████╗ ██████╗ ███████╗██╗ ██╗ ║
║ ██╔══██╗██╔══██╗██╔════╝╚██╗██╔╝ ║
║ ███████║██████╔╝█████╗ ╚███╔╝ ║
║ ██╔══██║██╔═══╝ ██╔══╝ ██╔██╗ ║
║ ██║ ██║██║ ███████╗██╔╝ ██╗ ║
║ ╚═╝ ╚═╝╚═╝ ╚══════╝╚═╝ ╚═╝ ║
║ ║
║ C O M M A N D & C O N T R O L ║
╚═══════════════════════════════════════════╝
## Table of Contents
- [Architecture Overview](#architecture-overview)
- [Feature Summary](#feature-summary)
- [Technology Stack](#technology-stack)
- [Fresh Machine Setup](#fresh-machine-setup)
- [Quick Start](#quick-start)
- [Project Structure](#project-structure)
- [Team Server](#team-server)
- [Operator Client](#operator-client)
- [Agents](#agents)
- [Windows Agent](#windows-agent)
- [Linux Agent](#linux-agent)
- [macOS Agent](#macos-agent)
- [Agent Builder](#agent-builder)
- [Token Manipulation (Windows)](#token-manipulation-windows)
- [Beacon Object Files (BOF)](#beacon-object-files-bof)
- [Evasion Capabilities](#evasion-capabilities)
- [Windows Evasion](#windows-evasion)
- [Linux Evasion](#linux-evasion)
- [macOS Evasion](#macos-evasion)
- [Malleable C2 Profiles](#malleable-c2-profiles)
- [Listener Types](#listener-types)
- [API Reference](#api-reference)
- [Database Schema](#database-schema)
- [Configuration Reference](#configuration-reference)
- [Deployment](#deployment)
- [Make Targets](#make-targets)
- [Security Considerations](#security-considerations)
- [Troubleshooting](#troubleshooting)
## Architecture Overview
┌───────────────────────────┐
│ Apex Team Server │
│ (Go) │
┌────────────────────┐ │ │
│ Apex Client │ REST/SSE │ ┌──────┐ ┌───────────┐ │
│ (Tauri + React) │◄═══════════►│ │Router │ │ Event Hub │ │
│ │ JWT Auth │ │(Chi) │ │ (SSE) │ │
│ - Dashboard │ │ └──┬───┘ └─────┬─────┘ │
│ - Listeners │ │ │ │ │
│ - Agents │ gRPC+mTLS │ ┌──┴───────────┴────┐ │
│ - Terminal │◄═══════════►│ │ Agent Manager │ │
│ - Agent Builder │ │ │ Task Queue │ │
│ - Modules (BOF) │ │ └──┬───────────┬────┘ │
│ - Attack Graph │ │ │ │ │
│ - MITRE ATT&CK │ │ ┌──┴───┐ ┌────┴─────┐ │
│ - Settings │ │ │ PG │ │ Redis │ │
└────────────────────┘ │ └──────┘ └──────────┘ │
└──────────┬───────────────┘
│
┌────────────────┼────────────────┐
│ │ │
┌─────────┴──────┐ ┌───────┴──────┐ ┌──────┴───────┐
│ Listeners │ │ Listeners │ │ Listeners │
│ HTTP/HTTPS/mTLS│ │ TCP/DNS │ │ SMB │
└────────┬───────┘ └──────┬───────┘ └──────┬───────┘
│ │ │
┌────────┴───────┐ ┌──────┴───────┐ ┌──────┴───────┐
│ Windows Agent │ │ Linux Agent │ │ macOS Agent │
│ (C/WinHTTP) │ │ (C/Sockets) │ │ (C/Sockets) │
│ EXE/DLL/BIN │ │ ELF │ │ Mach-O │
└────────────────┘ └──────────────┘ └──────────────┘
## Feature Summary
### Team Server
- Multi-protocol listeners: HTTP, HTTPS, mTLS (mutual TLS), TCP, DNS, SMB
- JWT authentication with role-based access control (Admin, Operator, Readonly)
- Real-time event streaming via Server-Sent Events (SSE)
- Redis-backed task queue with pub/sub result delivery
- PostgreSQL persistence for agents, tasks, credentials, and operations log
- Malleable C2 profile support (YAML-based traffic shaping) with upload/management API
- gRPC service layer with auth interceptors for programmatic access
- Multi-platform agent builder (Windows, Linux, macOS) with per-platform evasion flags
- Agent deduplication (prevents duplicates from same host+user+IP within 24h)
- Server-side payload compilation pipeline
### Operator Client
- Cross-platform Tauri desktop application (also runs in browser)
- Real-time dashboard with agent status and listener health
- Per-agent interactive terminal with command history and tabbed sessions
- **Multi-platform Agent Builder** with Windows/Linux/macOS tabs and per-platform evasion toggles

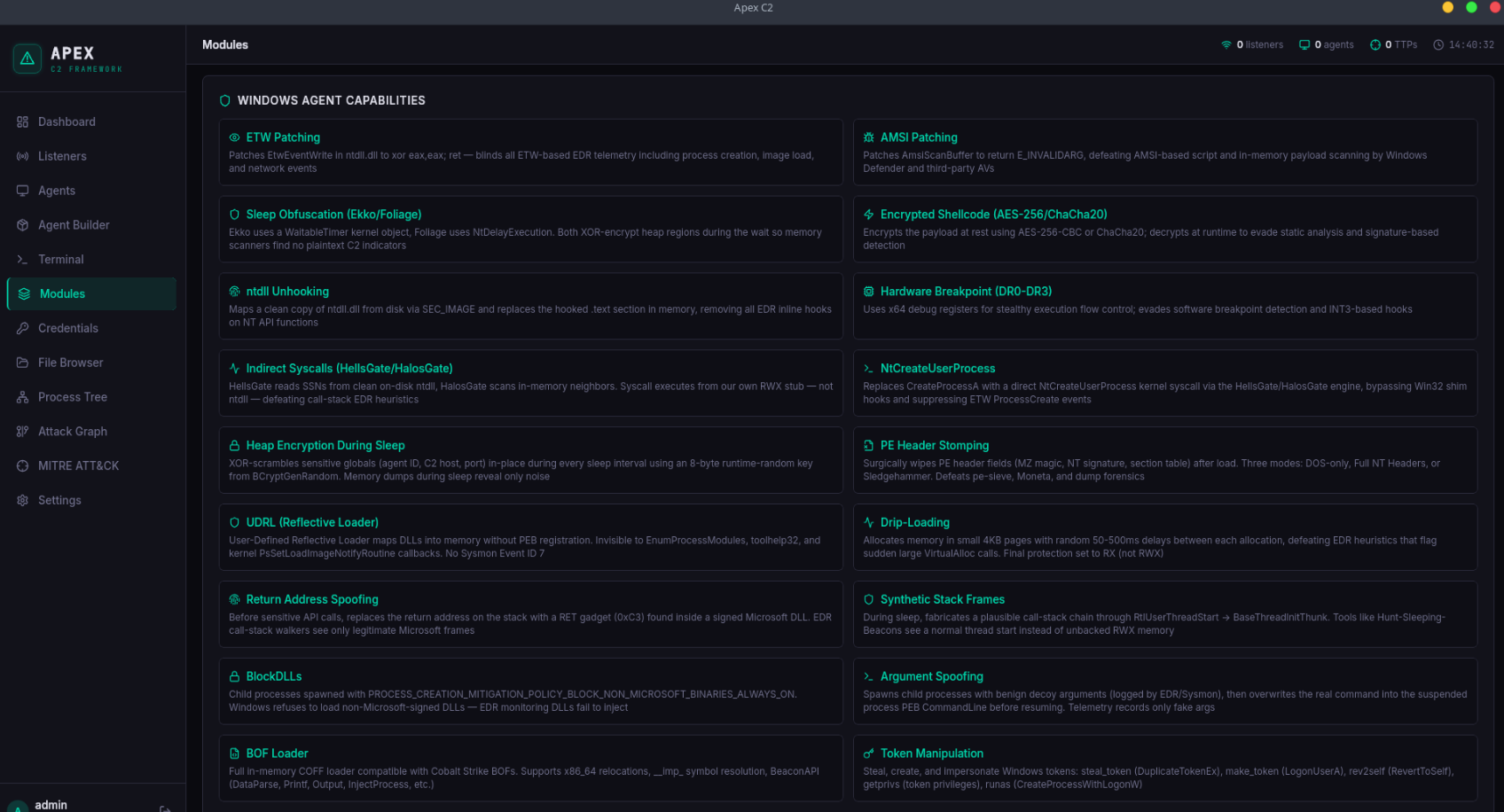

- Modules page: BOF upload/management, malleable profile upload, evasion capability reference
- **Credentials vault** — auto-captured and manual entries, type-coded (NTLM/plaintext/Kerberos/token/cert), search & filter
- **Interactive file browser** — breadcrumb navigation, upload/download, Windows `dir` and Linux `ls -la` parsing
- **Process tree visualization** — expandable hierarchy, agent PID highlight, search, kill process
- Attack graph visualization (React Flow) — OS icons, agent stats, double-click to terminal
- Automatic MITRE ATT&CK technique mapping with tabbed matrix/timeline views
- OPSEC warning system (18 built-in rules with risk levels and safer alternatives)
- **Glitch/cyber-themed UI animations** — scan lines, RGB text glitch, pulse glow, card hover effects
### Windows Agent
- HTTP/HTTPS beacon over WinHTTP
- Configurable sleep interval with jitter (runtime-adjustable)
- Evasion: ETW patching, AMSI patching, ntdll unhooking, encrypted sleep (Ekko/Foliage)
- **Indirect syscalls** (HellsGate/HalosGate), NtCreateUserProcess, heap encryption, PE header stomping
- **UDRL** (User-Defined Reflective Loader) — DLL loading without PEB registration
- **Drip-Loading** — gradual memory allocation with jittered delays
- **Return Address Spoofing** — fake return addresses from signed Microsoft DLLs
- **Synthetic Stack Frames** — fabricated call chains during sleep (defeats Hunt-Sleeping-Beacons)
- **BlockDLLs** — block non-Microsoft DLLs in child processes (runtime toggle)
- **Argument Spoofing** — decoy command-line arguments in PEB (runtime toggle)
- In-memory BOF (Beacon Object File) loader with full Cobalt Strike BeaconAPI
- **Token manipulation**: steal_token, make_token, rev2self, getprivs, runas
- **Keylogger**: low-level keyboard hook with start/stop/dump commands
- **Screenshot capture**: GDI-based screen grab, saved server-side as BMP
- **Port scanner**: built-in TCP connect scan with CIDR and port range support
- AES-256-CBC encryption via Windows CNG
- Multiple output formats: EXE, DLL, **true PIC shellcode** (.bin), Service EXE
- PIC shellcode: reflective PE loader stub (PEB walk → kernel32 → VirtualAlloc/LoadLibrary) + DLL; injects into any process without a PE loader
- Multi-task per beacon — processes multiple queued tasks per check-in
- Process listing, file upload/download, directory navigation, shell execution
### Linux Agent
- HTTP/HTTPS beacon over raw TCP sockets with optional OpenSSL TLS
- Auto-daemonizes (forks to background, detaches from terminal)
- Evasion: ptrace anti-debug, TracerPid check, process name masking (`[kworker/u:0]`), argv overwrite, self-delete, LD_PRELOAD cleanup, sandbox/VM detection
- **Screenshot capture**: via `scrot` / ImageMagick `import` fallback
- **Port scanner**: built-in TCP connect scan with CIDR support
- Multi-task per beacon, file upload/download
- Reports correct OS and architecture (amd64, arm64, arm)
### macOS Agent
- HTTP/HTTPS beacon over raw TCP sockets with optional OpenSSL TLS
- Auto-daemonizes
- Evasion: PT_DENY_ATTACH, sysctl P_TRACED check, process name masking, self-delete via `_NSGetExecutablePath`, DYLD environment cleanup, sandbox/VM detection
- LaunchAgent persistence support
- Same command set as Linux (screenshot, portscan, upload/download)
## Technology Stack
| Component | Technology | Notes |
| ------------------- | ------------------------- | ------------- |
| Team Server | Go | 1.24+ |
| HTTP Router | go-chi/chi/v5 | v5.x |
| Authentication | golang-jwt/jwt/v5, bcrypt | |
| Database | PostgreSQL | 16 |
| Queue / Pub-Sub | Redis | 7 |
| gRPC | google.golang.org/grpc | |
| Serialization | Protocol Buffers | proto3 |
| Client Framework | Tauri | 2.5 |
| Client UI | React, TypeScript | 19.x, 5.8 |
| Build Tool | Vite | 6.x |
| State Management | Zustand | 5.x |
| Styling | Tailwind CSS | 4.x |
| Icons | Lucide React | |
| Graph Visualization | @xyflow/react | |
| Windows Agent | C (MinGW cross-compiled) | |
| Linux Agent | C (GCC native) | |
| macOS Agent | C (clang / osxcross) | |
## Fresh Machine Setup
### Ubuntu / Debian / Parrot OS
sudo apt update
sudo apt install -y build-essential git curl unzip
# Go (1.22+)
wget https://go.dev/dl/go1.26.1.linux-amd64.tar.gz
rm -rf /usr/local/go && tar -C /usr/local -xzf go1.26.1.linux-amd64.tar.gz
export PATH=$PATH:/usr/local/go/bin
source ~/.bashrc
# Node.js (20+)
curl -fsSL https://deb.nodesource.com/setup_20.x | sudo -E bash -
sudo apt install -y nodejs
# Rust (for Tauri client)
curl --proto '=https' --tlsv1.2 -sSf https://sh.rustup.rs | sh -s -- -y
. "$HOME/.cargo/env"
# Tauri system dependencies
sudo apt install -y libwebkit2gtk-4.1-dev libgtk-3-dev libappindicator3-dev librsvg2-dev patchelf
# Protocol Buffers compiler
sudo apt install -y protobuf-compiler
go install google.golang.org/protobuf/cmd/protoc-gen-go@latest
go install google.golang.org/grpc/cmd/protoc-gen-go-grpc@latest
# MinGW (Windows agent cross-compilation)
sudo apt install -y mingw-w64
# Docker & Docker Compose (for PostgreSQL + Redis)
sudo apt install -y docker.io docker-compose-plugin
sudo systemctl enable --now docker
sudo usermod -aG docker $USER
# Podman (rootless) instead of Docker — common on Kali with podman-docker
# sudo apt install -y podman podman-docker docker-compose-plugin
systemctl --user enable --now podman.socket # creates /run/user/$UID/podman/podman.sock
# Optional: sudo touch /etc/containers/nodocker # silence "Emulate Docker CLI" message
### Verify Installation
go version # 1.22+
node --version # v20+
rustc --version # 1.70+
x86_64-w64-mingw32-gcc --version # MinGW
gcc --version # GCC (Linux agent)
docker --version # 20+
## Quick Start
### 1. Clone and enter project
git clone https://github.com/hrdebraj/Apex.git
cd Apex
### 2. Start databases
make db
### 3. Configure team server
Edit `teamserver/config.yaml` — set `server.agent_dir`, database credentials, and `auth.jwt_secret`.
### 4. Build and run team server
make server-run
Listens on **HTTP API**: `0.0.0.0:8443` and **gRPC**: `0.0.0.0:50051`.
### 5. Run the operator client
cd client && npm install && npm run tauri dev
Or use the pre-built binary from `release/apex-client`.
### 6. Login
Default credentials: `admin` / `apex`
### 7. Create a listener and deploy
Listeners > Create > HTTP/HTTPS/mTLS > Start > Agent Builder > Select platform > Generate > Deploy
## Project Structure
apex/
├── teamserver/ # Go team server
│ ├── cmd/teamserver/ # Entry point (main.go)
│ ├── internal/
│ │ ├── agents/ # Agent manager, lifecycle, events
│ │ │ ├── credentials/ # Credential vault: auto-capture, CRUD, regex parsers
│ │ ├── api/ # REST handlers, router, SSE, profile, payload & credential handlers
│ │ ├── auth/ # JWT, bcrypt, RBAC
│ │ ├── builder/ # Multi-platform payload compilation pipeline
│ │ ├── config/ # YAML config loader
│ │ ├── db/ # PostgreSQL + Redis clients
│ │ ├── grpc/ # gRPC service implementations
│ │ ├── listeners/ # HTTP, HTTPS, mTLS, TCP, DNS listener engines
│ │ ├── profile/ # Malleable profile parser
│ │ ├── server/ # Server orchestration
│ │ └── tasks/ # Redis task queue + pub/sub
│ └── pkg/proto/apexpb/ # Generated protobuf Go code
│
├── client/ # Tauri + React operator client
│ ├── src/
│ │ │ ├── pages/ # Dashboard, Listeners, Agents, Terminal, AgentBuilder,
│ │ │ # Modules, Graph, Mitre, Credentials, FileBrowser, ProcessTree, Settings
│ │ ├── stores/ # Zustand state management
│ │ ├── services/ # API client, task, listener, payload, BOF packer services
│ │ ├── components/ # Layout, Sidebar (glitch effects), TopBar
│ │ ├── styles/ # globals.css (glitch, scan line, pulse animations)
│ │ └── hooks/ # useSSE, usePolling
│ └── src-tauri/ # Rust Tauri backend
│
├── agent/ # Multi-platform C agents
│ ├── main.c # Windows beacon loop, HTTP (WinHTTP), command dispatch
│ ├── agent_posix.c # Linux/macOS beacon loop, HTTP (raw sockets)
│ ├── evasion.h # Windows: ETW/AMSI patching, encrypted sleep, ntdll unhook
│ ├── evasion_linux.h # Linux: ptrace, process mask, self-delete, sandbox detect
│ ├── evasion_macos.h # macOS: PT_DENY_ATTACH, sysctl, DYLD cleanup
│ ├── bof.h # COFF/BOF loader with BeaconAPI
│ ├── token.h # Windows: steal_token, make_token, rev2self, getprivs, runas
│ ├── crypto.h # AES-256-CBC (CNG), XOR string encryption
│ ├── keylogger.h # Windows: WH_KEYBOARD_LL hook, start/stop/dump
│ ├── screenshot.h # Windows: GDI screen capture to BMP
│ ├── portscan.h # Cross-platform: TCP connect scan, CIDR, port ranges
│ ├── pic_loader.c # PIC reflective PE loader stub (PEB walk, PE mapper)
│ ├── gen_shellcode.c # Host tool: combines PIC stub + DLL → raw shellcode
│ └── Makefile # Multi-platform: exe, dll, shellcode (PIC), linux-elf, macos-macho
│
├── tools/ # Testing utilities
│ └── shellcode_loader.c # Sample loader for testing PIC shellcode (.bin)
│
├── bofs/ # Beacon Object File templates
│ ├── bof_api.h # BOF compatibility header (BeaconAPI declarations)
│ ├── lateral/ # psexec.c, scshell.c, wmiexec.c
│ ├── recon/ # netview.c (share enum), whoami_bof.c (token info)
│ └── persist/ # schtask.c, registry_run.c
│
├── profiles/ # Malleable C2 profiles (7 pre-built)
│ ├── amazon.yaml # AWS-style traffic
│ ├── microsoft.yaml # Microsoft 365/Azure traffic
│ ├── google.yaml # Google services traffic
│ ├── cloudflare.yaml # Cloudflare API traffic
│ ├── slack.yaml # Slack API traffic
│ ├── github.yaml # GitHub API v3 traffic
│ └── default.yaml # Generic web browsing traffic
│
├── proto/ # Protobuf definitions
├── migrations/ # PostgreSQL schema
├── deployments/ # Docker Compose, systemd unit
├── release/ # Pre-built binaries (teamserver, apex-client)
└── Makefile # Root build orchestration
## Team Server
### Components
| Package | Responsibility |
| ------------------------ | --------------------------------------------------------------------- |
| `agents/manager.go` | Agent registry, PostgreSQL persistence, dedup, check-in, events |
| `api/router.go` | Chi HTTP router with CORS, JWT middleware |
| `api/payload_handler.go` | Multi-platform payload generation, BOF CRUD |
| `api/profile_handler.go` | Malleable profile list, upload, delete |
| `api/events.go` | SSE event hub for real-time streaming |
| `auth/service.go` | JWT generation/validation, bcrypt, RBAC |
| `builder/builder.go` | Multi-platform build pipeline (Windows/Linux/macOS) |
| `listeners/http.go` | HTTP/HTTPS listener — registration, check-in, task delivery |
| `listeners/mtls.go` | mTLS listener — mutual certificate authentication |
| `listeners/tcp.go` | TCP listener (length-prefixed framing) |
| `listeners/dns.go` | DNS listener (TXT/A responses) |
| `profile/profile.go` | Malleable profile YAML parser |
| `tasks/queue.go` | Redis task queue with pub/sub result delivery |
| `credentials/vault.go` | Credential store with auto-capture regex (SAM, NTLM, plaintext pairs) |
| `api/cred_handler.go` | Credential CRUD REST endpoints |
### Authentication & Authorization
| Role | Permissions |
| ---------- | --------------------------------------------------------------- |
| `admin` | Full access — create operators, manage listeners, agents, tasks |
| `operator` | Create/manage listeners and tasks, view agents |
| `readonly` | View-only access to all resources |
### Real-Time Events (SSE)
| Event Type | Trigger |
| -------------------- | ------------------------------- |
| `agent:registered` | New agent registers |
| `agent:checked_in` | Agent beacon check-in |
| `agent:disconnected` | Agent missed check-in threshold |
| `agent:task_result` | Task result received from agent |
## Operator Client
### Pages
| Page | Description |
| ------------- | ---------------------------------------------------------------- |
| Dashboard | Agent count, listener status, recent activity |
| Listeners | Create HTTP/HTTPS/mTLS/TCP/DNS/SMB listeners |
| Agents | Live agent table with OS, hostname, user, PID, last check-in |
| Terminal | Per-agent interactive shell with history and tabbed sessions |
| Agent Builder | **Windows/Linux/macOS** tabs with per-platform evasion toggles |
| Modules | BOF management, malleable profile upload, evasion reference |
| Credentials | Auto-captured & manual credential vault with type badges & search|
| File Browser | Interactive directory navigation with upload/download |
| Process Tree | Expandable process hierarchy with search, agent highlight, kill |
| Attack Graph | Visual topology with OS icons, stats, double-click interaction |
| MITRE ATT&CK | Technique mapping with tabbed matrix/timeline views |
| Settings | Server connection and operator preferences |
### Terminal Commands
**Agent commands (sent to implant):**
| Command | Description |
| ------------------------------------ | ---------------------------------------- |
| `whoami` | Current user + admin/root status |
| `getuid` | User info with PID and privilege |
| `ps` | Process listing |
| `pwd` | Print current working directory |
| `cd ` | Change directory |
| `download ` | Download file from target |
| `upload ` | Upload file to target |
| `shell ` | Execute shell command |
| `sleep [jitter%]` | Change beacon interval |
| `screenshot` | Capture target screen (saved on server) |
| `keylogger ` | Keyboard logger (Windows) |
| `portscan ` | Built-in TCP port scanner |
| `bof [args]` | Auto-resolve, fetch & execute BOF (Windows) |
| `steal_token ` | Steal token from process (Windows) |
| `make_token ` | Create token with credentials (Windows) |
| `rev2self` | Revert to original token (Windows) |
| `getprivs` | List token privileges (Windows) |
| `runas ` | Run command as another user (Windows) |
| `blockdlls ` | Block non-MS DLLs in child processes |
| `argspoof ` | Spoof process arguments (PEB overwrite) |
| `exit` | Terminate agent |
## Agents
### Windows Agent
**Source**: `agent/main.c` + `evasion.h` + `bof.h` + `token.h` + `crypto.h`
| File | Purpose |
| --------------- | ---------------------------------------------------------------- |
| `main.c` | Beacon loop (WinHTTP), command dispatch, multi-task processing |
| `evasion.h` | ETW/AMSI patching, encrypted sleep (Ekko), ntdll unhooking |
| `bof.h` | COFF loader with full Cobalt Strike BeaconAPI + IAT tracking |
| `token.h` | Token steal, make_token, rev2self, getprivs, runas |
| `crypto.h` | AES-256-CBC via Windows CNG, XOR encryption, CSPRNG |
| `keylogger.h` | WH_KEYBOARD_LL hook, background thread, start/stop/dump |
| `screenshot.h` | GDI BitBlt screen capture, scaled BMP, base64 output |
| `portscan.h` | TCP connect scan, CIDR expansion, port ranges (cross-platform) |
| `pic_loader.c` | PIC reflective PE loader: PEB walk, export parsing, PE mapper |
| `gen_shellcode.c`| Host combiner: patches offset marker, concatenates stub + DLL |
**Compile-time flags**: `ENABLE_ETW_PATCH`, `ENABLE_AMSI_PATCH`, `ENABLE_SLEEP_ENCRYPT`, `ENABLE_UNHOOK`, `ENABLE_INDIRECT_SYSCALL`, `ENABLE_NT_PROCESS`, `ENABLE_HEAP_ENCRYPT`, `ENABLE_PE_STOMP`, `ENABLE_UDRL`, `ENABLE_DRIP_LOAD`, `ENABLE_RET_ADDR_SPOOF`, `ENABLE_SYNTHETIC_FRAMES`, `ENABLE_BLOCK_DLLS`, `ENABLE_ARG_SPOOF`
**Output formats**: EXE, DLL, **PIC Shellcode** (.bin), Service EXE
**Shellcode generation pipeline**:
make shellcode
├─ 1. Compile agent as DLL (all evasion flags preserved)
├─ 2. Compile PIC stub (pic_loader.c) → raw binary via objcopy
├─ 3. gen_shellcode patches PE offset marker, concatenates stub + DLL
└─ Output: agent.bin (true PIC — executes at any address, no PE loader needed)
### Linux Agent
**Source**: `agent/agent_posix.c` + `evasion_linux.h`
- Raw TCP socket HTTP client (zero external dependencies)
- Compiles natively on the team server with `gcc`
- Auto-daemonizes (double-fork, setsid, stdio redirect)
- Masquerades as `[kworker/u:0]` in process listings
- Reports OS as "Linux", detects architecture (amd64/arm64/arm)
**Compile-time flags**: `ENABLE_ANTI_DEBUG`, `ENABLE_PROC_MASK`, `ENABLE_SELF_DELETE`, `ENABLE_ENV_CLEAN`, `ENABLE_SANDBOX_CHECK`
**Output**: ELF binary
### macOS Agent
**Source**: `agent/agent_posix.c` + `evasion_macos.h` (shared POSIX source with `#ifdef __APPLE__`)
- Same raw socket HTTP client as Linux
- Cross-compilation requires `osxcross` toolchain (or native clang on macOS)
- Supports LaunchAgent persistence via plist generation
**Compile-time flags**: Same as Linux
**Output**: Mach-O binary
## Agent Builder
The Agent Builder UI provides **three platform tabs** — Windows, Linux, macOS — each with platform-specific output formats and evasion toggles.
### Build Pipeline
Client (AgentBuilderPage)
│ POST /api/payloads/generate
│ { platform, output_format, listener_id, evasion_opts... }
▼
PayloadHandler.Generate()
│ Resolve platform → Windows/Linux/macOS
│ Resolve listener → c2_host, c2_port, use_https
│ Build EvasionOpts or PosixEvasionOpts
▼
builder.BuildBase64()
│ ResolveAgentDir()
│ Set env vars: C2_HOST, C2_PORT, platform evasion flags
│ exec: make -C agent/ clean
│ exec: make -C agent/ exe|dll|shellcode|linux-elf|macos-macho
│ For shellcode: DLL build → PIC stub compile → gen_shellcode combine
│ Read output → base64 encode
▼
Response → Client downloads binary
### Make Targets
| Platform | Target | Compiler | Output |
| -------- | ------------- | ----------------------- | ------------- |
| Windows | `exe` | x86_64-w64-mingw32-gcc | `agent.exe` |
| Windows | `dll` | x86_64-w64-mingw32-gcc | `agent.dll` |
| Windows | `shellcode` | x86_64-w64-mingw32-gcc | `agent.bin` (PIC) |
| Linux | `linux-elf` | gcc (native) | `agent_linux` |
| macOS | `macos-macho` | o64-clang / clang | `agent_macos` |
## Token Manipulation (Windows)
The Windows agent includes Cobalt Strike-style token manipulation via `token.h`:
| Command | Windows API | Description |
| --------------------------- | -------------------------------- | --------------------------------------- |
| `steal_token ` | OpenProcess → DuplicateTokenEx | Steal and impersonate a process token |
| `make_token ` | LogonUserA (NEW_CREDENTIALS) | Create token with credentials |
| `rev2self` | RevertToSelf | Revert to original process token |
| `getprivs` | GetTokenInformation | List all privileges (enabled/disabled) |
| `runas ` | CreateProcessWithLogonW | Execute command as another user |
## Beacon Object Files (BOF)
Full in-memory COFF loader compatible with Cobalt Strike BOFs. Supports x86_64 relocations, `__imp_Library$Function` symbol resolution, and these BeaconAPI functions:
`BeaconDataParse`, `BeaconDataInt`, `BeaconDataShort`, `BeaconDataLength`, `BeaconDataExtract`, `BeaconOutput`, `BeaconPrintf`, `BeaconUseToken`, `BeaconRevertToken`, `BeaconIsAdmin`, `BeaconGetSpawnTo`, `BeaconSpawnTemporaryProcess`, `BeaconInjectProcess`, `BeaconInjectTemporaryProcess`
### BOF Execution — By Name
The operator terminal supports **BOF-by-name execution**. Upload a `.o` / `.obj` file via the Modules page, then run it by name — the client automatically resolves the BOF, fetches its binary data from the server, packs arguments, and sends everything to the agent. No manual base64 encoding required.
bof whoami_bof # No args
bof netview 192.168.1.5 # Default: wide string arg
bof psexec Z:target Z:svc Z:cmd.exe # Explicit wide strings
bof custom_bof i:443 z:narrow_str # Mixed types
### Argument Packer
The client includes a built-in argument packer compatible with `BeaconDataParse`. Typed prefixes control the binary format:
| Prefix | Type | Binary Format |
| ------ | ---- | ------------- |
| *(none)* | Wide string (UTF-16LE) | `[4-byte len][wchar data + null]` |
| `Z:` | Wide string (explicit) | Same as above |
| `z:` | Narrow string (UTF-8) | `[4-byte len][char data + null]` |
| `i:` | 32-bit integer | `[4-byte LE value]` |
| `s:` | 16-bit short | `[2-byte LE value]` |
| `b:` | Raw binary blob | `[4-byte len][base64-decoded bytes]` |
### Available BOF Templates
**Lateral Movement:**
| BOF | MITRE | Description |
| ---------------- | ------- | -------------------------------------------------------- |
| `psexec.o` | T1021.002 | PsExec-style remote service creation via SCM |
| `scshell.o` | T1543.003 | SCShell — hijack existing service binary path |
| `wmiexec.o` | T1047 | WMI remote command execution via COM |
**Reconnaissance:**
| BOF | MITRE | Description |
| ---------------- | ------- | -------------------------------------------------------- |
| `netview.o` | T1135 | SMB share enumeration via NetShareEnum |
| `whoami_bof.o` | T1033 | Extended token info: user, groups, privileges |
**Persistence:**
| BOF | MITRE | Description |
| ---------------- | ------- | -------------------------------------------------------- |
| `schtask.o` | T1053.005 | Scheduled task creation (ONLOGON/DAILY/ONSTART) |
| `registry_run.o` | T1547.001 | HKCU Run key persistence |
### API
| Method | Endpoint | Description |
| -------- | ------------------------------- | ------------------------------------ |
| `GET` | `/api/payloads/bofs` | List uploaded BOFs |
| `GET` | `/api/payloads/bofs/{id}/data` | Fetch BOF binary as base64 |
| `POST` | `/api/payloads/bofs` | Upload BOF (.o/.obj) |
| `DELETE` | `/api/payloads/bofs?id=` | Delete BOF |
## Evasion Capabilities
### Windows Evasion
| Technique | Flag | Description |
| ----------------------- | -------------------------- | ------------------------------------------------------------------------- |
| ETW Patching | `ENABLE_ETW_PATCH` | Patches `EtwEventWrite` to `xor eax,eax; ret` — blinds all ETW telemetry |
| AMSI Patching | `ENABLE_AMSI_PATCH` | Patches `AmsiScanBuffer` to return `E_INVALIDARG` |
| Sleep Obfuscation | `SLEEP_METHOD` (0/1/2) | Ekko (WaitableTimer) or Foliage (NtDelayExecution) + heap XOR encryption |
| Heap Encryption | `ENABLE_HEAP_ENCRYPT` | XOR-encrypts agent ID, C2 host/port during sleep with BCryptGenRandom key |
| ntdll Unhooking | `ENABLE_UNHOOK` | Replaces hooked ntdll .text from clean `SEC_IMAGE` disk mapping |
| Indirect Syscalls | `ENABLE_INDIRECT_SYSCALL` | HellsGate/HalosGate SSN resolution; syscall from own RWX stub |
| NtCreateUserProcess | `ENABLE_NT_PROCESS` | Direct NT syscall for process creation; suppresses ETW ProcessCreate |
| PE Header Stomping | `ENABLE_PE_STOMP` | Wipes MZ/NT headers in-memory; defeats pe-sieve, Moneta, dump forensics |
| UDRL | `ENABLE_UDRL` | Reflective DLL loader without PEB registration; invisible to module enum |
| Drip-Loading | `ENABLE_DRIP_LOAD` | Gradual 4KB page allocation with 50-500ms jitter; avoids large alloc IOCs |
| Return Addr Spoofing | `ENABLE_RET_ADDR_SPOOF` | Spoofs return addresses with RET gadgets from signed Microsoft DLLs |
| Synthetic Stack Frames | `ENABLE_SYNTHETIC_FRAMES` | Fake RtlUserThreadStart→BaseThreadInitThunk chain during sleep |
| BlockDLLs | `ENABLE_BLOCK_DLLS` | Blocks non-Microsoft DLLs in child processes via mitigation policy |
| Argument Spoofing | `ENABLE_ARG_SPOOF` | Decoy args in PEB; real command written after CREATE_SUSPENDED |
| Token Manipulation | (always on) | steal_token, make_token, rev2self, getprivs, runas |
| AES-256-CBC | (always on) | CNG-based encryption for C2 channel |
### Linux Evasion
| Technique | Description |
| ------------------ | -------------------------------------------------------------------- |
| Anti-Debug | `ptrace(PTRACE_TRACEME)` + `/proc/self/status` TracerPid check |
| Process Masking | `prctl(PR_SET_NAME)` + argv overwrite → appears as `[kworker/u:0]` |
| Self-Delete | Unlinks binary from disk via `/proc/self/exe` readlink + unlink |
| LD_PRELOAD Cleanup | Removes `LD_PRELOAD` and `LD_AUDIT` from environment |
| Sandbox Detection | Checks CPU count (<2), RAM (<1GB), uptime (<120s) |
| Timestomping | Backdates file modification times via `utimensat` |
### macOS Evasion
| Technique | Description |
| ------------------ | ------------------------------------------------------------------ |
| Anti-Debug | `ptrace(PT_DENY_ATTACH)` + sysctl `P_TRACED` flag check |
| Process Masking | argv overwrite to hide true process name |
| Self-Delete | `_NSGetExecutablePath` + realpath + unlink |
| DYLD Cleanup | Strips `DYLD_INSERT_LIBRARIES`, `DYLD_FORCE_FLAT_NAMESPACE`, etc |
| Sandbox Detection | sysctl CPU count + `hw.memsize` check |
| Persistence | LaunchAgent plist writer for user-level persistence |
## Malleable C2 Profiles
Profiles shape agent HTTP traffic to mimic legitimate services. Stored as YAML in `profiles/`. Upload via the Modules page or place files directly in the directory.
### Pre-built Profiles
| Profile | Mimics | Sleep | Jitter |
| ------------ | -------------------- | ----- | ------ |
| `amazon` | AWS SDK/EC2 | 90s | 25% |
| `microsoft` | Microsoft 365/Azure | 75s | 20% |
| `google` | Google Services | 60s | 20% |
| `cloudflare` | Cloudflare API | 45s | 15% |
| `slack` | Slack API | 55s | 18% |
| `github` | GitHub API v3 | 70s | 22% |
| `default` | Generic web traffic | 60s | 20% |
### Profile API
| Method | Endpoint | Description |
| -------- | ---------------------- | ----------------------- |
| `GET` | `/api/profiles` | List all profiles |
| `POST` | `/api/profiles` | Upload profile (.yaml) |
| `GET` | `/api/profiles/{name}` | Get profile details |
| `DELETE` | `/api/profiles/{name}` | Delete profile |
## Listener Types
| Protocol | Description | Agent Support |
| -------- | --------------------------------------------------------- | -------------------- |
| HTTP | Plain HTTP listener for agent check-ins | Windows, Linux, macOS |
| HTTPS | TLS-encrypted HTTP with auto-generated or custom certs | Windows, Linux, macOS |
| mTLS | Mutual TLS — server and client both present certificates | Windows |
| TCP | Raw TCP with length-prefixed framing | Windows |
| DNS | DNS tunneling via subdomains and TXT records | Windows |
| SMB | Named pipe communication (planned) | Windows |
## API Reference
### Authentication
| Method | Endpoint | Description |
| ------ | ------------------ | ---------------------------- |
| `POST` | `/api/auth/login` | Login (returns JWT) |
| `POST` | `/api/auth/logout` | Logout |
| `GET` | `/api/auth/me` | Current operator info |
| `POST` | `/api/operators` | Create operator (admin only) |
### Listeners
| Method | Endpoint | Description |
| -------- | --------------------------- | -------------------- |
| `GET` | `/api/listeners` | List all listeners |
| `POST` | `/api/listeners` | Create listener |
| `POST` | `/api/listeners/{id}/start` | Start listener |
| `POST` | `/api/listeners/{id}/stop` | Stop listener |
| `DELETE` | `/api/listeners/{id}` | Delete listener |
### Agents
| Method | Endpoint | Description |
| -------- | ------------------ | ----------------- |
| `GET` | `/api/agents` | List all agents |
| `GET` | `/api/agents/{id}` | Get agent details |
| `DELETE` | `/api/agents/{id}` | Remove agent |
### Tasks
| Method | Endpoint | Description |
| ------ | ----------------------------- | --------------------- |
| `POST` | `/api/agents/{agentID}/tasks` | Create task for agent |
| `GET` | `/api/agents/{agentID}/tasks` | List tasks for agent |
### Credentials
| Method | Endpoint | Description |
| -------- | ----------------------- | ------------------------------ |
| `GET` | `/api/credentials` | List all captured credentials |
| `POST` | `/api/credentials` | Add credential manually |
| `DELETE` | `/api/credentials/{id}` | Delete credential |
### Payloads
| Method | Endpoint | Description |
| ------ | ------------------------ | ---------------------- |
| `POST` | `/api/payloads/generate` | Generate agent payload |
### Events
| Method | Endpoint | Description |
| ------ | ------------- | --------------------------- |
| `GET` | `/api/events` | SSE stream (requires token) |
## Database Schema
Seven tables across PostgreSQL 16: `operators`, `listeners`, `agents`, `tasks`, `task_results`, `credentials`, `operations_log`.
Key relationships:
- `agents.listener_id` → `listeners.id`
- `tasks.agent_id` → `agents.id`
- `task_results.task_id` → `tasks.id`
- `credentials.agent_id` → `agents.id`
- `operations_log.operator_id` → `operators.id`
## Configuration Reference
### Team Server (`teamserver/config.yaml`)
server:
grpc_addr: "0.0.0.0:50051"
http_addr: "0.0.0.0:8443"
agent_dir: "/path/to/agent"
tls:
enabled: false
cert_file: ""
key_file: ""
ca_file: ""
database:
postgres:
host: "localhost"
port: 5432
user: "apex"
password: "apex"
dbname: "apex"
sslmode: "disable"
redis:
addr: "localhost:6379"
password: ""
db: 0
auth:
jwt_secret: "change-me-in-production"
token_expiry: "24h"
logging:
level: "debug"
pretty: true
## Deployment
### Docker Compose (Development)
make db # Start PostgreSQL + Redis
make db-down # Stop containers
make db-reset # Wipe data and restart
### Systemd (Production)
make server
sudo cp deployments/apex-teamserver.service /etc/systemd/system/
sudo systemctl daemon-reload
sudo systemctl enable --now apex-teamserver
## Make Targets
| Target | Description |
| --------------------- | ---------------------------------------------- |
| `make all` | Generate protobuf + build server |
| `make server` | Build team server binary |
| `make server-run` | Build and run team server |
| `make client-install` | Install client npm dependencies |
| `make client-dev` | Start Vite dev server |
| `make client-build` | Production build of React client |
| `make agent` | Build Windows agent EXE |
| `make db` | Start PostgreSQL + Redis |
| `make clean` | Remove all build artifacts |
## Security Considerations
- **Change default credentials** — `admin`/`apex` must be changed immediately
- **JWT secret** — Use a strong, random `auth.jwt_secret` (minimum 32 bytes)
- **TLS everywhere** — Enable TLS/mTLS for API, gRPC, and C2 listeners
- **Network isolation** — PostgreSQL and Redis should only be accessible from the team server
- **Agent OPSEC** — Disable unnecessary evasion features per engagement
- **BOF validation** — Only execute trusted BOFs
- **Token hygiene** — Use `rev2self` after token operations to prevent detection
## Troubleshooting
### Agent not checking in
1. Verify the listener is started (green status)
2. Check callback host/port matches the listener
3. Ensure firewall allows inbound on the listener port
4. Check server logs for `DBG Listener: incoming request`
### Build failures
1. Windows: verify MinGW — `x86_64-w64-mingw32-gcc --version`
2. Linux: verify GCC — `gcc --version`
3. macOS: verify osxcross or native clang
4. Check `server.agent_dir` in config
### Database connection errors
1. Verify containers: `docker ps` or `podman ps`
2. **Podman rootless:** if you see `Cannot connect ... podman.sock`, run:
`systemctl --user enable --now podman.socket` then `make db` again (do **not** use `sudo make db` — the socket is per-user).
3. Test PostgreSQL: `psql -h localhost -U apex -d apex`
4. Test Redis: `redis-cli ping`
### Agent stops after BOF execution / no BOF result
1. **OPSEC confirmation** — When you type `y` to confirm a risky command, ensure you're not in a state where `y` gets sent as a separate task. The client now intercepts `y`/`n` before sending to the agent.
2. **BOF crash** — A buggy or incompatible BOF can crash the agent process (access violation, etc.). The agent has no SEH around BOF execution (MinGW limitation), so the whole process exits. Use only trusted, tested BOFs; verify BOFs in an isolated VM first.
3. **Argument format** — Ensure BOF arguments use the correct packer prefixes (`Z:` for wide strings, `z:` for narrow, etc.). Mismatched formats can cause the BOF to read invalid memory and crash.
## Roadmap / TODO
### ✅ Recently Completed
### 🔓 Open — Windows Agent Evasion & Stealth
- [ ] 🔴 **Implement Ekko / Foliage encrypted sleep** — `encrypted_sleep()` in `evasion.h` is a stub calling plain `Sleep()`. Implement ROP-based timer sleep so agent memory is XOR-encrypted while waiting.
- [ ] 🔴 **Heap encryption during sleep** — XOR-encrypt malloc'd heap regions during sleep so memory dumps reveal nothing.
~~~- [ ] 🔴 **PE header stomping** — Overwrite `MZ`/`PE` magic and key header fields in-memory after load to defeat `pe-sieve`.~~~
- [ ] 🔴 **PPID spoofing** — Set parent PID to `explorer.exe` / `svchost.exe` when spawning subprocesses.
- [ ] 🔴 **Replace `CreateProcessA` with `NtCreateUserProcess` syscall** — Avoid `CreateProcess` ETW events.
- [ ] 🟡 **Stack spoofing** — Spoof call stacks during sleep/wait states to defeat `Hunt-Sleeping-Beacons`.
- [ ] 🟡 **Module stomping** — Write shellcode into `.text` section of a legitimate loaded DLL.
- [ ] 🟡 **Thread creation via `NtCreateThreadEx`** — Lower-level NT API to reduce event generation.
- [ ] 🟡 **Wire malleable profile headers to agent at build time** — Inject profile URI, headers, User-Agent as compile-time flags.
- [ ] 🟡 **Compile-time string/config encryption** — XOR/AES128-encrypt C2 host, port, path; decrypt at runtime.
- [ ] 🟡 **PE `TimeDateStamp` backdating** — Set plausible historical date after compile.
- [ ] 🟢 **Heaven's Gate (32→64 bit transition)** — WOW64 Heaven's Gate for 32-bit evasion.
- [ ] 🟢 **Persistence modules** — Registry Run, Task Scheduler, COM hijack.
- [ ] 🟢 **Alternative transports** — DNS-over-HTTPS, ICMP, Slack webhook variants.
### 🔓 Open — Linux / macOS Agent
- [ ] 🟡 **Built-in `ls`/`dir` command** — Use `readdir()` directly instead of spawning `ls`.
- [ ] 🟡 **Chunked file download** — Multi-chunk requests for files larger than 64 KB.
- [ ] 🟡 **Process injection on Linux** — `ptrace()` + `mmap` or `memfd_create()`.
- [ ] 🟡 **Linux persistence commands** — cron, systemd user unit, `.bashrc` injection, setuid abuse.
- [ ] 🟢 **Unix domain socket / FIFO pivot channel** — Named FIFO relay for internal pivoting.
### 🔓 Open — Team Server
- [ ] 🔴 **Staged payload delivery** — Tiny stager that downloads full payload at runtime.
- [ ] 🔴 **Payload obfuscation pipeline** — `donut` or custom packer/encoder before delivery.
- [ ] 🔴 **End-to-end encrypted C2 channel** — Curve25519 ECDH key exchange + AES-256-GCM.
- [ ] 🟡 **Kill date & working-hours constraint** — Beacon window (Mon–Fri 09:00–18:00).
- [ ] 🟡 **Domain fronting support** — `Host` header override for HTTP/HTTPS listeners.
- [ ] 🟡 **Redirector config generator** — Apache/Nginx config for non-agent traffic proxy.
- [ ] 🟡 **SMB named-pipe listener** — Windows named-pipe listener for internal pivoting.
- [ ] 🟡 **Agent auto-update** — Push replacement payload to upgrade in-place.
- [ ] 🟡 **Multi-operator task locking** — Prevent conflicting concurrent tasks.
- [ ] 🟢 **P2P / pivot chains** — Agent relay mode for internal agent proxying.
- [ ] 🟢 **External C2 plugin API** — gRPC/REST hooks for third-party channels.
### 🔓 Open — Collection & Post-Exploitation
- [ ] 🟡 **Clipboard capture** — `GetClipboardData` (Windows) / `xclip`/`pbpaste` (POSIX).
- [ ] 🟡 **Webcam capture** — Windows DirectShow / `gstreamer` on Linux.
- [ ] 🟡 **Token state display in terminal** — Show current impersonated token in header.
- [ ] 🟡 **Full operations log UI** — Surface `operations_log` table in client.
- [ ] 🟡 **Credential-based auto-spray** — Use stored credentials against SMB, WinRM, SSH.
- [ ] 🟢 **Active Directory recon BOFs** — `ldapsearch`, domain trust, SPN query, BloodHound.
- [ ] 🟢 **Kerberos attacks** — `asktgt`, Kerberoasting, AS-REP roasting.
### 🔓 Open — Operator Client UI/UX
- [ ] 🟡 **Terminal auto-complete & syntax highlighting** — CodeMirror / Monaco upgrade.
- [ ] 🟡 **Agent comparison view** — Side-by-side sysinfo diff.
- [ ] 🟡 **Live beacon countdown timer** — Countdown to next check-in in Agents table.
- [ ] 🟡 **Shared operator notes** — SSE-backed collaborative markdown scratchpad.
- [ ] 🟡 **Light / stealth theme** — Toggle between glitch-dark and clean-light.
- [ ] 🟡 **Configurable OPSEC rules** — Editable rules in PostgreSQL per engagement.
- [ ] 🟡 **Listener health heartbeat** — Real-time port-open check.
- [ ] 🟡 **Agent tagging & grouping** — Tag and filter for large engagements.
- [ ] 🟡 **Exfil download manager** — Progress bars, download history, per-file hash.
- [ ] 🟢 **Integrated report generator** — One-click PDF/JSON export with MITRE mappings.
- [ ] 🟢 **Command macros / playbooks** — Saved command sequences for any agent.
### 🔓 Open — BOF Loader
- [ ] 🟡 **Expand built-in BOF library** — `Seatbelt`, `Rubeus`, `SharpView`, `nanodump`.
- [ ] 🟡 **Categorised BOF storage** — Tag by category in database.
- [ ] 🟢 **x86 BOF support** — COFF loader for `IMAGE_FILE_MACHINE_I386`.
### 🔓 Open — DevOps & Packaging
- [ ] 🔴 **Hermetic Docker build environment** — Pinned MinGW/GCC for reproducible payloads.
- [ ] 🟡 **CI/CD pipeline (GitHub Actions)** — `go test`, linting, builder smoke-test.
- [ ] 🟡 **Agent C unit tests** — Test harness for BOF loader, base64, JSON, crypto.
- [ ] 🟡 **Build cache** — Cache compiled payloads by config hash.
- [ ] 🟡 **One-command installer script** — `setup.sh` with all deps + TLS cert.
- [ ] 🟢 **Signed release binaries** — GPG-signed with reproducible build attestation.
- [ ] 🟢 **Multi-teamserver federation** — Share agents/creds across instances via gRPC.
### 🔓 Open — Security Hardening
- [ ] 🔴 **Default HTTPS on REST API** — Auto-generate self-signed cert at startup.
- [ ] 🔴 **mTLS for operator client** — Mutual TLS between Tauri client and server.
- [ ] 🟡 **Rate limiting on check-in** — Redis-backed per-IP rate limiter.
- [ ] 🟡 **Agent IP allowlist** — Restrict source IPs for agent registration.
- [ ] 🟡 **Enforce default credential change** — Refuse start with default `jwt_secret`.
- [ ] 🟡 **One-time payload download token** — Unique token per agent build download.
---
## License
This software is intended for authorized security testing and research only. Unauthorized use against systems you do not own or have permission to test is illegal and unethical.
## Table of Contents
- [Architecture Overview](#architecture-overview)
- [Feature Summary](#feature-summary)
- [Technology Stack](#technology-stack)
- [Fresh Machine Setup](#fresh-machine-setup)
- [Quick Start](#quick-start)
- [Project Structure](#project-structure)
- [Team Server](#team-server)
- [Operator Client](#operator-client)
- [Agents](#agents)
- [Windows Agent](#windows-agent)
- [Linux Agent](#linux-agent)
- [macOS Agent](#macos-agent)
- [Agent Builder](#agent-builder)
- [Token Manipulation (Windows)](#token-manipulation-windows)
- [Beacon Object Files (BOF)](#beacon-object-files-bof)
- [Evasion Capabilities](#evasion-capabilities)
- [Windows Evasion](#windows-evasion)
- [Linux Evasion](#linux-evasion)
- [macOS Evasion](#macos-evasion)
- [Malleable C2 Profiles](#malleable-c2-profiles)
- [Listener Types](#listener-types)
- [API Reference](#api-reference)
- [Database Schema](#database-schema)
- [Configuration Reference](#configuration-reference)
- [Deployment](#deployment)
- [Make Targets](#make-targets)
- [Security Considerations](#security-considerations)
- [Troubleshooting](#troubleshooting)
## Architecture Overview
┌───────────────────────────┐
│ Apex Team Server │
│ (Go) │
┌────────────────────┐ │ │
│ Apex Client │ REST/SSE │ ┌──────┐ ┌───────────┐ │
│ (Tauri + React) │◄═══════════►│ │Router │ │ Event Hub │ │
│ │ JWT Auth │ │(Chi) │ │ (SSE) │ │
│ - Dashboard │ │ └──┬───┘ └─────┬─────┘ │
│ - Listeners │ │ │ │ │
│ - Agents │ gRPC+mTLS │ ┌──┴───────────┴────┐ │
│ - Terminal │◄═══════════►│ │ Agent Manager │ │
│ - Agent Builder │ │ │ Task Queue │ │
│ - Modules (BOF) │ │ └──┬───────────┬────┘ │
│ - Attack Graph │ │ │ │ │
│ - MITRE ATT&CK │ │ ┌──┴───┐ ┌────┴─────┐ │
│ - Settings │ │ │ PG │ │ Redis │ │
└────────────────────┘ │ └──────┘ └──────────┘ │
└──────────┬───────────────┘
│
┌────────────────┼────────────────┐
│ │ │
┌─────────┴──────┐ ┌───────┴──────┐ ┌──────┴───────┐
│ Listeners │ │ Listeners │ │ Listeners │
│ HTTP/HTTPS/mTLS│ │ TCP/DNS │ │ SMB │
└────────┬───────┘ └──────┬───────┘ └──────┬───────┘
│ │ │
┌────────┴───────┐ ┌──────┴───────┐ ┌──────┴───────┐
│ Windows Agent │ │ Linux Agent │ │ macOS Agent │
│ (C/WinHTTP) │ │ (C/Sockets) │ │ (C/Sockets) │
│ EXE/DLL/BIN │ │ ELF │ │ Mach-O │
└────────────────┘ └──────────────┘ └──────────────┘
## Feature Summary
### Team Server
- Multi-protocol listeners: HTTP, HTTPS, mTLS (mutual TLS), TCP, DNS, SMB
- JWT authentication with role-based access control (Admin, Operator, Readonly)
- Real-time event streaming via Server-Sent Events (SSE)
- Redis-backed task queue with pub/sub result delivery
- PostgreSQL persistence for agents, tasks, credentials, and operations log
- Malleable C2 profile support (YAML-based traffic shaping) with upload/management API
- gRPC service layer with auth interceptors for programmatic access
- Multi-platform agent builder (Windows, Linux, macOS) with per-platform evasion flags
- Agent deduplication (prevents duplicates from same host+user+IP within 24h)
- Server-side payload compilation pipeline
### Operator Client
- Cross-platform Tauri desktop application (also runs in browser)
- Real-time dashboard with agent status and listener health
- Per-agent interactive terminal with command history and tabbed sessions
- **Multi-platform Agent Builder** with Windows/Linux/macOS tabs and per-platform evasion toggles
- Modules page: BOF upload/management, malleable profile upload, evasion capability reference
- **Credentials vault** — auto-captured and manual entries, type-coded (NTLM/plaintext/Kerberos/token/cert), search & filter
- **Interactive file browser** — breadcrumb navigation, upload/download, Windows `dir` and Linux `ls -la` parsing
- **Process tree visualization** — expandable hierarchy, agent PID highlight, search, kill process
- Attack graph visualization (React Flow) — OS icons, agent stats, double-click to terminal
- Automatic MITRE ATT&CK technique mapping with tabbed matrix/timeline views
- OPSEC warning system (18 built-in rules with risk levels and safer alternatives)
- **Glitch/cyber-themed UI animations** — scan lines, RGB text glitch, pulse glow, card hover effects
### Windows Agent
- HTTP/HTTPS beacon over WinHTTP
- Configurable sleep interval with jitter (runtime-adjustable)
- Evasion: ETW patching, AMSI patching, ntdll unhooking, encrypted sleep (Ekko/Foliage)
- **Indirect syscalls** (HellsGate/HalosGate), NtCreateUserProcess, heap encryption, PE header stomping
- **UDRL** (User-Defined Reflective Loader) — DLL loading without PEB registration
- **Drip-Loading** — gradual memory allocation with jittered delays
- **Return Address Spoofing** — fake return addresses from signed Microsoft DLLs
- **Synthetic Stack Frames** — fabricated call chains during sleep (defeats Hunt-Sleeping-Beacons)
- **BlockDLLs** — block non-Microsoft DLLs in child processes (runtime toggle)
- **Argument Spoofing** — decoy command-line arguments in PEB (runtime toggle)
- In-memory BOF (Beacon Object File) loader with full Cobalt Strike BeaconAPI
- **Token manipulation**: steal_token, make_token, rev2self, getprivs, runas
- **Keylogger**: low-level keyboard hook with start/stop/dump commands
- **Screenshot capture**: GDI-based screen grab, saved server-side as BMP
- **Port scanner**: built-in TCP connect scan with CIDR and port range support
- AES-256-CBC encryption via Windows CNG
- Multiple output formats: EXE, DLL, **true PIC shellcode** (.bin), Service EXE
- PIC shellcode: reflective PE loader stub (PEB walk → kernel32 → VirtualAlloc/LoadLibrary) + DLL; injects into any process without a PE loader
- Multi-task per beacon — processes multiple queued tasks per check-in
- Process listing, file upload/download, directory navigation, shell execution
### Linux Agent
- HTTP/HTTPS beacon over raw TCP sockets with optional OpenSSL TLS
- Auto-daemonizes (forks to background, detaches from terminal)
- Evasion: ptrace anti-debug, TracerPid check, process name masking (`[kworker/u:0]`), argv overwrite, self-delete, LD_PRELOAD cleanup, sandbox/VM detection
- **Screenshot capture**: via `scrot` / ImageMagick `import` fallback
- **Port scanner**: built-in TCP connect scan with CIDR support
- Multi-task per beacon, file upload/download
- Reports correct OS and architecture (amd64, arm64, arm)
### macOS Agent
- HTTP/HTTPS beacon over raw TCP sockets with optional OpenSSL TLS
- Auto-daemonizes
- Evasion: PT_DENY_ATTACH, sysctl P_TRACED check, process name masking, self-delete via `_NSGetExecutablePath`, DYLD environment cleanup, sandbox/VM detection
- LaunchAgent persistence support
- Same command set as Linux (screenshot, portscan, upload/download)
## Technology Stack
| Component | Technology | Notes |
| ------------------- | ------------------------- | ------------- |
| Team Server | Go | 1.24+ |
| HTTP Router | go-chi/chi/v5 | v5.x |
| Authentication | golang-jwt/jwt/v5, bcrypt | |
| Database | PostgreSQL | 16 |
| Queue / Pub-Sub | Redis | 7 |
| gRPC | google.golang.org/grpc | |
| Serialization | Protocol Buffers | proto3 |
| Client Framework | Tauri | 2.5 |
| Client UI | React, TypeScript | 19.x, 5.8 |
| Build Tool | Vite | 6.x |
| State Management | Zustand | 5.x |
| Styling | Tailwind CSS | 4.x |
| Icons | Lucide React | |
| Graph Visualization | @xyflow/react | |
| Windows Agent | C (MinGW cross-compiled) | |
| Linux Agent | C (GCC native) | |
| macOS Agent | C (clang / osxcross) | |
## Fresh Machine Setup
### Ubuntu / Debian / Parrot OS
sudo apt update
sudo apt install -y build-essential git curl unzip
# Go (1.22+)
wget https://go.dev/dl/go1.26.1.linux-amd64.tar.gz
rm -rf /usr/local/go && tar -C /usr/local -xzf go1.26.1.linux-amd64.tar.gz
export PATH=$PATH:/usr/local/go/bin
source ~/.bashrc
# Node.js (20+)
curl -fsSL https://deb.nodesource.com/setup_20.x | sudo -E bash -
sudo apt install -y nodejs
# Rust (for Tauri client)
curl --proto '=https' --tlsv1.2 -sSf https://sh.rustup.rs | sh -s -- -y
. "$HOME/.cargo/env"
# Tauri system dependencies
sudo apt install -y libwebkit2gtk-4.1-dev libgtk-3-dev libappindicator3-dev librsvg2-dev patchelf
# Protocol Buffers compiler
sudo apt install -y protobuf-compiler
go install google.golang.org/protobuf/cmd/protoc-gen-go@latest
go install google.golang.org/grpc/cmd/protoc-gen-go-grpc@latest
# MinGW (Windows agent cross-compilation)
sudo apt install -y mingw-w64
# Docker & Docker Compose (for PostgreSQL + Redis)
sudo apt install -y docker.io docker-compose-plugin
sudo systemctl enable --now docker
sudo usermod -aG docker $USER
# Podman (rootless) instead of Docker — common on Kali with podman-docker
# sudo apt install -y podman podman-docker docker-compose-plugin
systemctl --user enable --now podman.socket # creates /run/user/$UID/podman/podman.sock
# Optional: sudo touch /etc/containers/nodocker # silence "Emulate Docker CLI" message
### Verify Installation
go version # 1.22+
node --version # v20+
rustc --version # 1.70+
x86_64-w64-mingw32-gcc --version # MinGW
gcc --version # GCC (Linux agent)
docker --version # 20+
## Quick Start
### 1. Clone and enter project
git clone https://github.com/hrdebraj/Apex.git
cd Apex
### 2. Start databases
make db
### 3. Configure team server
Edit `teamserver/config.yaml` — set `server.agent_dir`, database credentials, and `auth.jwt_secret`.
### 4. Build and run team server
make server-run
Listens on **HTTP API**: `0.0.0.0:8443` and **gRPC**: `0.0.0.0:50051`.
### 5. Run the operator client
cd client && npm install && npm run tauri dev
Or use the pre-built binary from `release/apex-client`.
### 6. Login
Default credentials: `admin` / `apex`
### 7. Create a listener and deploy
Listeners > Create > HTTP/HTTPS/mTLS > Start > Agent Builder > Select platform > Generate > Deploy
## Project Structure
apex/
├── teamserver/ # Go team server
│ ├── cmd/teamserver/ # Entry point (main.go)
│ ├── internal/
│ │ ├── agents/ # Agent manager, lifecycle, events
│ │ │ ├── credentials/ # Credential vault: auto-capture, CRUD, regex parsers
│ │ ├── api/ # REST handlers, router, SSE, profile, payload & credential handlers
│ │ ├── auth/ # JWT, bcrypt, RBAC
│ │ ├── builder/ # Multi-platform payload compilation pipeline
│ │ ├── config/ # YAML config loader
│ │ ├── db/ # PostgreSQL + Redis clients
│ │ ├── grpc/ # gRPC service implementations
│ │ ├── listeners/ # HTTP, HTTPS, mTLS, TCP, DNS listener engines
│ │ ├── profile/ # Malleable profile parser
│ │ ├── server/ # Server orchestration
│ │ └── tasks/ # Redis task queue + pub/sub
│ └── pkg/proto/apexpb/ # Generated protobuf Go code
│
├── client/ # Tauri + React operator client
│ ├── src/
│ │ │ ├── pages/ # Dashboard, Listeners, Agents, Terminal, AgentBuilder,
│ │ │ # Modules, Graph, Mitre, Credentials, FileBrowser, ProcessTree, Settings
│ │ ├── stores/ # Zustand state management
│ │ ├── services/ # API client, task, listener, payload, BOF packer services
│ │ ├── components/ # Layout, Sidebar (glitch effects), TopBar
│ │ ├── styles/ # globals.css (glitch, scan line, pulse animations)
│ │ └── hooks/ # useSSE, usePolling
│ └── src-tauri/ # Rust Tauri backend
│
├── agent/ # Multi-platform C agents
│ ├── main.c # Windows beacon loop, HTTP (WinHTTP), command dispatch
│ ├── agent_posix.c # Linux/macOS beacon loop, HTTP (raw sockets)
│ ├── evasion.h # Windows: ETW/AMSI patching, encrypted sleep, ntdll unhook
│ ├── evasion_linux.h # Linux: ptrace, process mask, self-delete, sandbox detect
│ ├── evasion_macos.h # macOS: PT_DENY_ATTACH, sysctl, DYLD cleanup
│ ├── bof.h # COFF/BOF loader with BeaconAPI
│ ├── token.h # Windows: steal_token, make_token, rev2self, getprivs, runas
│ ├── crypto.h # AES-256-CBC (CNG), XOR string encryption
│ ├── keylogger.h # Windows: WH_KEYBOARD_LL hook, start/stop/dump
│ ├── screenshot.h # Windows: GDI screen capture to BMP
│ ├── portscan.h # Cross-platform: TCP connect scan, CIDR, port ranges
│ ├── pic_loader.c # PIC reflective PE loader stub (PEB walk, PE mapper)
│ ├── gen_shellcode.c # Host tool: combines PIC stub + DLL → raw shellcode
│ └── Makefile # Multi-platform: exe, dll, shellcode (PIC), linux-elf, macos-macho
│
├── tools/ # Testing utilities
│ └── shellcode_loader.c # Sample loader for testing PIC shellcode (.bin)
│
├── bofs/ # Beacon Object File templates
│ ├── bof_api.h # BOF compatibility header (BeaconAPI declarations)
│ ├── lateral/ # psexec.c, scshell.c, wmiexec.c
│ ├── recon/ # netview.c (share enum), whoami_bof.c (token info)
│ └── persist/ # schtask.c, registry_run.c
│
├── profiles/ # Malleable C2 profiles (7 pre-built)
│ ├── amazon.yaml # AWS-style traffic
│ ├── microsoft.yaml # Microsoft 365/Azure traffic
│ ├── google.yaml # Google services traffic
│ ├── cloudflare.yaml # Cloudflare API traffic
│ ├── slack.yaml # Slack API traffic
│ ├── github.yaml # GitHub API v3 traffic
│ └── default.yaml # Generic web browsing traffic
│
├── proto/ # Protobuf definitions
├── migrations/ # PostgreSQL schema
├── deployments/ # Docker Compose, systemd unit
├── release/ # Pre-built binaries (teamserver, apex-client)
└── Makefile # Root build orchestration
## Team Server
### Components
| Package | Responsibility |
| ------------------------ | --------------------------------------------------------------------- |
| `agents/manager.go` | Agent registry, PostgreSQL persistence, dedup, check-in, events |
| `api/router.go` | Chi HTTP router with CORS, JWT middleware |
| `api/payload_handler.go` | Multi-platform payload generation, BOF CRUD |
| `api/profile_handler.go` | Malleable profile list, upload, delete |
| `api/events.go` | SSE event hub for real-time streaming |
| `auth/service.go` | JWT generation/validation, bcrypt, RBAC |
| `builder/builder.go` | Multi-platform build pipeline (Windows/Linux/macOS) |
| `listeners/http.go` | HTTP/HTTPS listener — registration, check-in, task delivery |
| `listeners/mtls.go` | mTLS listener — mutual certificate authentication |
| `listeners/tcp.go` | TCP listener (length-prefixed framing) |
| `listeners/dns.go` | DNS listener (TXT/A responses) |
| `profile/profile.go` | Malleable profile YAML parser |
| `tasks/queue.go` | Redis task queue with pub/sub result delivery |
| `credentials/vault.go` | Credential store with auto-capture regex (SAM, NTLM, plaintext pairs) |
| `api/cred_handler.go` | Credential CRUD REST endpoints |
### Authentication & Authorization
| Role | Permissions |
| ---------- | --------------------------------------------------------------- |
| `admin` | Full access — create operators, manage listeners, agents, tasks |
| `operator` | Create/manage listeners and tasks, view agents |
| `readonly` | View-only access to all resources |
### Real-Time Events (SSE)
| Event Type | Trigger |
| -------------------- | ------------------------------- |
| `agent:registered` | New agent registers |
| `agent:checked_in` | Agent beacon check-in |
| `agent:disconnected` | Agent missed check-in threshold |
| `agent:task_result` | Task result received from agent |
## Operator Client
### Pages
| Page | Description |
| ------------- | ---------------------------------------------------------------- |
| Dashboard | Agent count, listener status, recent activity |
| Listeners | Create HTTP/HTTPS/mTLS/TCP/DNS/SMB listeners |
| Agents | Live agent table with OS, hostname, user, PID, last check-in |
| Terminal | Per-agent interactive shell with history and tabbed sessions |
| Agent Builder | **Windows/Linux/macOS** tabs with per-platform evasion toggles |
| Modules | BOF management, malleable profile upload, evasion reference |
| Credentials | Auto-captured & manual credential vault with type badges & search|
| File Browser | Interactive directory navigation with upload/download |
| Process Tree | Expandable process hierarchy with search, agent highlight, kill |
| Attack Graph | Visual topology with OS icons, stats, double-click interaction |
| MITRE ATT&CK | Technique mapping with tabbed matrix/timeline views |
| Settings | Server connection and operator preferences |
### Terminal Commands
**Agent commands (sent to implant):**
| Command | Description |
| ------------------------------------ | ---------------------------------------- |
| `whoami` | Current user + admin/root status |
| `getuid` | User info with PID and privilege |
| `ps` | Process listing |
| `pwd` | Print current working directory |
| `cd Click to expand completed items (18 issues closed)
#### BOF Loader & Module System - [x] ✅ **Fix IAT `VirtualAlloc` leak in `bof.h`** (#64) — Added `iat_tracker` struct to dynamically track all `VirtualAlloc`'d IAT entries during relocation. All entries freed in `bof_exec` cleanup block. - [x] ✅ **Implement `BeaconInjectProcess` / `BeaconInjectTemporaryProcess`** (#65) — Implemented classic injection: `VirtualAllocEx(RW)` → `WriteProcessMemory` → `VirtualProtectEx(RX)` → `CreateRemoteThread` with 30s wait and handle cleanup. #### Agent — Communication & Core - [x] ✅ **Implement TLS/HTTPS in POSIX agent** (#17) — Integrated OpenSSL into `agent_posix.c` with conditional `SSL_connect`/`SSL_write`/`SSL_read` wrappers. Makefile conditionally links `-lssl -lcrypto` when `USE_HTTPS=1`. - [x] ✅ **Upload command for agents** (#18) — Added `handle_upload()` to both Windows and POSIX agents. Accepts `path\nbase64data`, decodes and writes to disk. - [x] ✅ **Multi-task per beacon** (#19) — Both agents now parse task arrays from server response, execute up to 16 tasks sequentially, and return all results in a single `{"results":[...]}` POST. #### Agent — Collection & Reconnaissance - [x] ✅ **Credentials vault & auto-capture** (#37) — Server-side `credentials/vault.go` with regex parsers for SAM hashes, NTLM, and plaintext pairs. Auto-called on every task result. REST API + full UI page with type badges, search, and add/delete. - [x] ✅ **Keylogger** (#38) — Windows `keylogger.h` using `WH_KEYBOARD_LL` hook in a dedicated thread. Supports `start`/`stop`/`dump` with 32KB ring buffer and `ToUnicode` translation. - [x] ✅ **Screenshot command** (#39) — Windows GDI capture (`StretchBlt` + `GetDIBits`) at max 640px width. POSIX fallback via `scrot`/`import`. Server detects BMP magic bytes and saves to `data/screenshots/`. - [x] ✅ **Port scanner** (#40) — Cross-platform `portscan.h` with CIDR expansion, port range parsing, non-blocking TCP connect (1500ms timeout). Works on Windows (Winsock2) and POSIX (`poll`). - [x] ✅ **Lateral movement modules** (#41) — 7 BOF templates: `psexec.c` (SCM service creation), `scshell.c` (service hijack), `wmiexec.c` (WMI COM), `netview.c` (share enum), `whoami_bof.c` (token interrogation), `schtask.c` (scheduled tasks), `registry_run.c` (Run key persistence). #### Operator Client — UI - [x] ✅ **Build out Attack Graph page** (#49) — Enhanced with OS-specific emoji icons on agent nodes, alive/dead statistics on server node, per-listener agent counts, and double-click agent to open terminal. - [x] ✅ **Interactive file browser** (#50) — Full `FileBrowserPage.tsx` with breadcrumb navigation, file/folder table, upload (reads file → base64 → sends), download, and parsing for both Windows `dir` and Linux `ls -la`. - [x] ✅ **Process tree visualization** (#51) — `ProcessTreePage.tsx` with expandable tree hierarchy, handles 3-column (Windows) and 4-column (Linux) `ps` output, agent PID highlight, search with ancestor expansion, kill button. #### BOF Usability — Execution & Packing - [x] ✅ **BOF-by-name execution** — Terminal now auto-resolves BOF names, fetches binary data from the server via `GET /api/payloads/bofs/{id}/data`, and sends it to the agent. No manual base64 encoding needed. - [x] ✅ **BOF argument packer in client UI** — Built-in `bofPacker.ts` produces binary data compatible with `BeaconDataParse`/`BeaconDataExtract`/`BeaconDataInt`/`BeaconDataShort`. Supports typed prefixes: `i:` (int32), `s:` (short), `z:` (narrow string), `Z:` (wide string, default), `b:` (binary blob). Operator types `bof psexec Z:target Z:svc Z:cmd.exe` and arguments are automatically packed and base64-encoded.标签：BOF, C2框架, DNS 反向解析, Go, IP 地址批量处理, Python工具, React, Ruby工具, Syscalls, Tauri, 免杀技术, 安全学习资源, 客户端加密, 搜索引擎查询, 日志审计, 暴力破解检测, 欺骗防御, 测试用例, 网络信息收集
