bqmxnh/IDSforSDN
GitHub: bqmxnh/IDSforSDN
基于 SDN 架构的 DDoS 攻击检测系统，整合 Open vSwitch、Ryu 控制器与 Suricata，实现从攻击检测到日志监控的完整安全运营演示。
Stars: 0 | Forks: 0
# 用于 DDoS 攻击检测的软件定义网络入侵检测系统

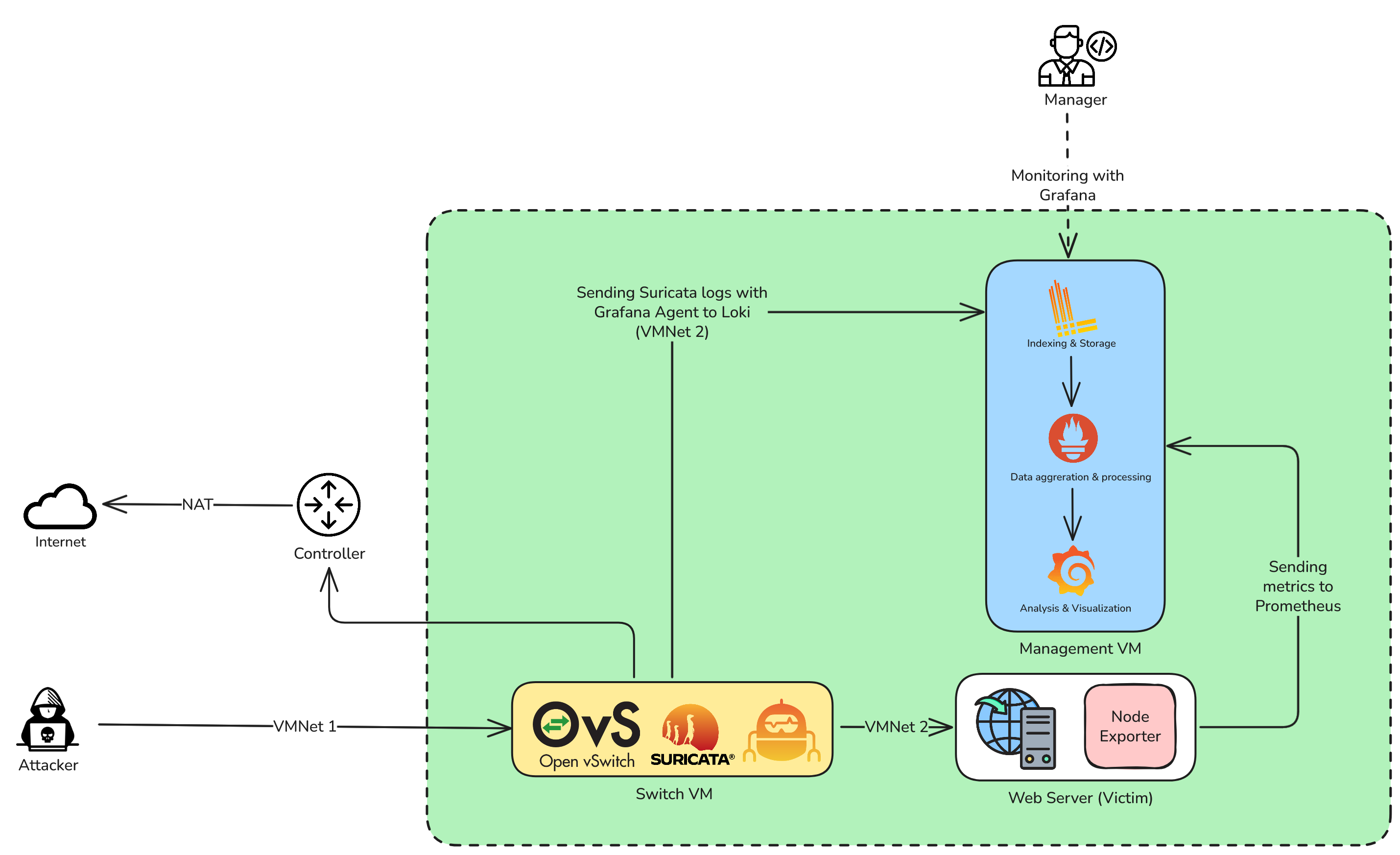

## 系统架构:
## IP 地址:
| 机器名称 | 接口 | IP 地址 |
| :--- | :--- | :--- |
| Switch VM | VMNet 2, VMNet 1 | VMNet 2: 192.168.111.10/24

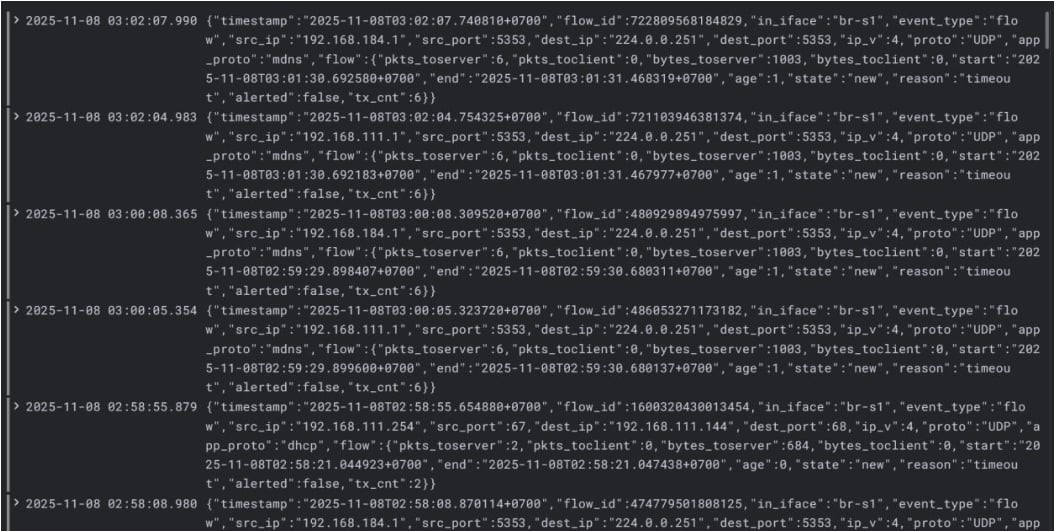

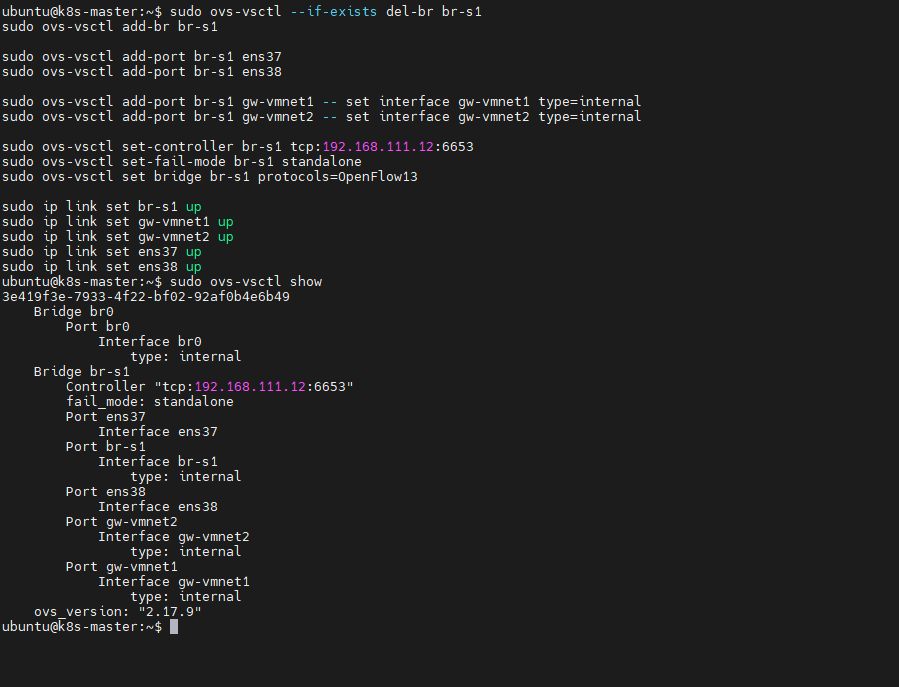

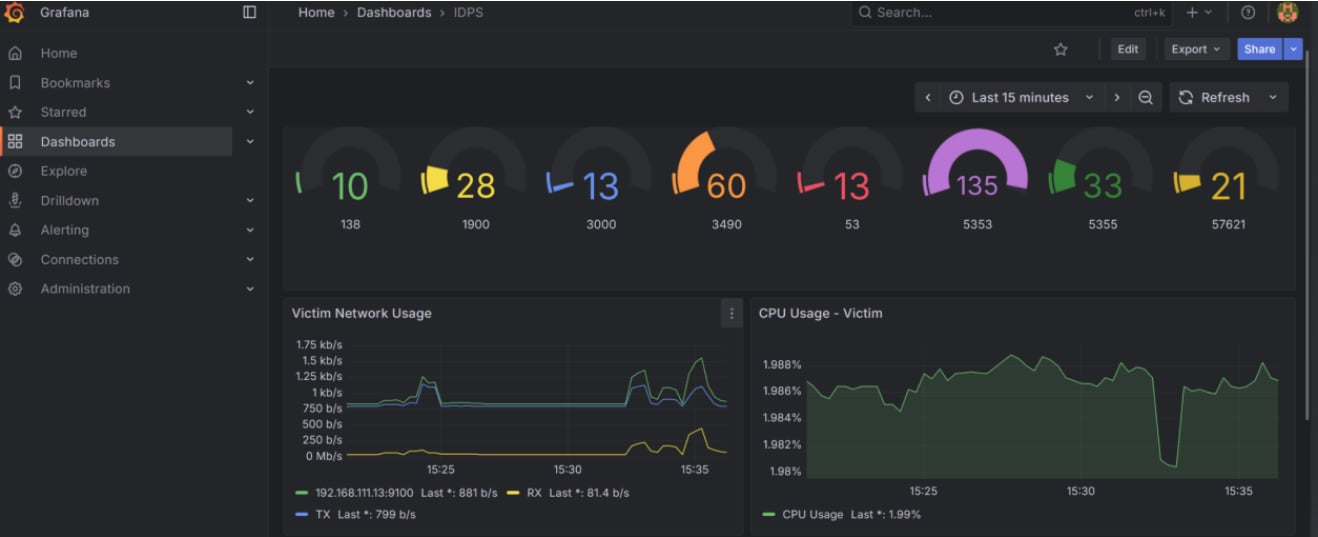

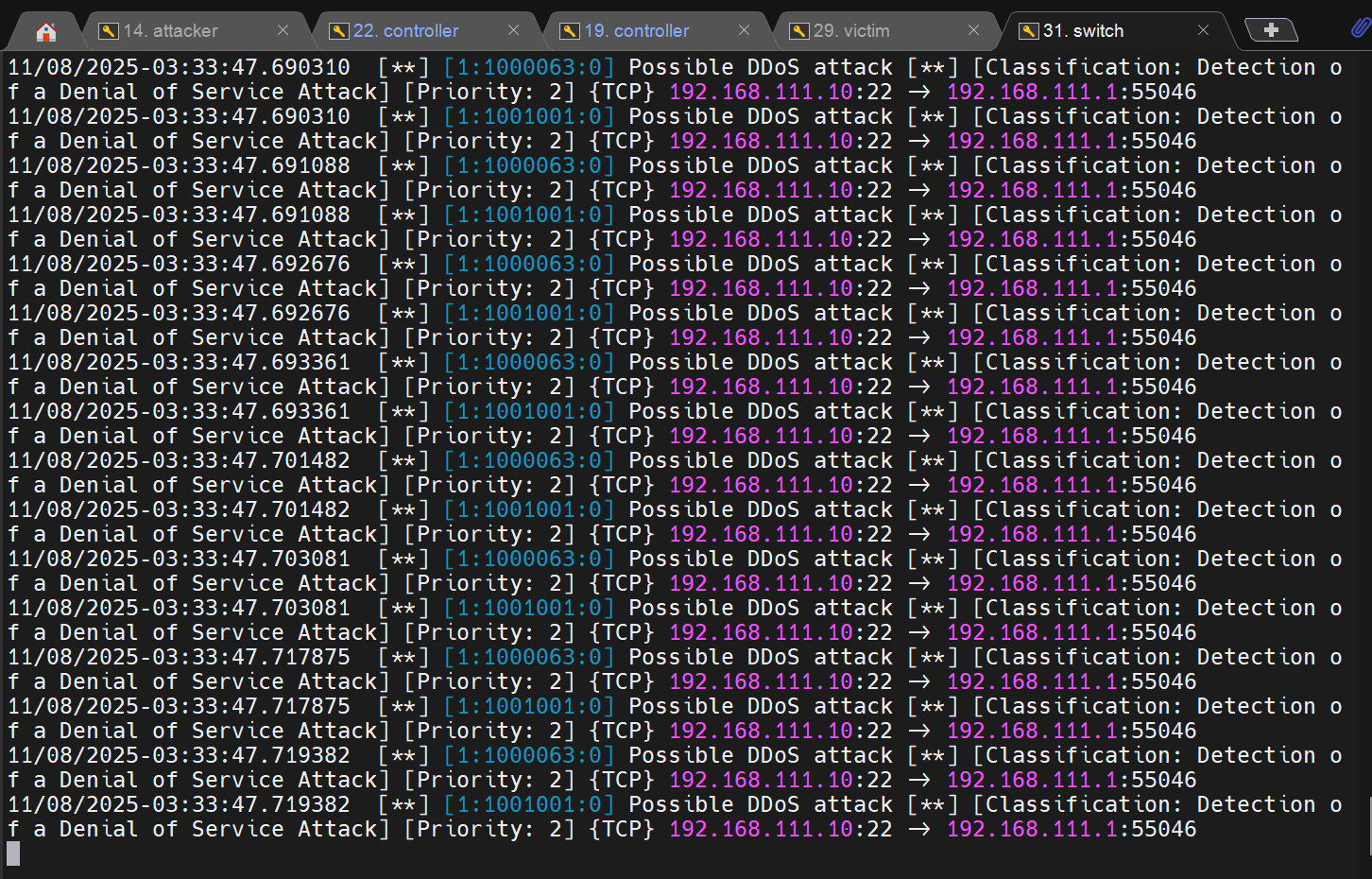

VMNet 1: 192.168.184.10/24 | | Management VM | VMNet 2 | VMNet 2: 192.168.111.11/24 | | Controller VM | VMNet 2 | VMNet 2: 192.168.111.12/24 | | Victim VM | VMNet 2 | VMNet 2: 192.168.111.13/24 | | Attacker | VMNet 1 | 192.168.184.11 | ## 工作流程 (越南语): ``` sequenceDiagram participant A as Attacker (hping3) participant S as OVS Switch participant C as Ryu Controller participant I as Suricata IDS participant V as Victim Note over A: Bắt đầu tấn công SYN Flood loop Hàng ngàn packets/giây A->>S: Gửi TCP SYN (Src IP ngẫu nhiên) par Xử lý SDN S->>C: Packet-In (Gói tin mới) C->>S: Packet-Out + FlowMod (Cài luật) Note right of C: CPU Controller tăng vọt (Quá tải) and Xử lý IDS S->>I: Mirror/Copy Traffic I->>I: Khớp luật (Signature Match) I-->>Log: Ghi log "Possible DDoS attack" end S->>V: Chuyển tiếp gói tin (Nếu không bị drop) end ``` ## 结果: - 搭建了包含 OVSSwitch 和 Ryu Controller 的 SDN 架构:  - 使用 Prometheus, Grafana, Loki 的监控系统:     - 通过 Suricata 成功检测到 DDoS 攻击  ## 安装与部署指南: [安装说明](SETUP.md) ## 工具栈参考 - **Open vSwitch (OVS)** – 用于软件定义网络的虚拟交换机 https://docs.openvswitch.org/ - **Ryu SDN Controller** – 基于 Python 的 SDN 控制器框架 https://ryu.readthedocs.io/ - **Suricata IDS/IPS** – 网络入侵检测和防御系统 https://docs.suricata.io/ - **Prometheus** – 监控和指标收集系统 https://prometheus.io/docs/ - **Grafana** – 可视化和监控仪表盘 https://grafana.com/docs/ - **Grafana Loki** – 面向云原生环境的日志聚合系统 https://grafana.com/docs/loki/ - **hping3** – 用于生成 TCP SYN flood 流量的网络工具 https://github.com/antirez/hping
VMNet 1: 192.168.184.10/24 | | Management VM | VMNet 2 | VMNet 2: 192.168.111.11/24 | | Controller VM | VMNet 2 | VMNet 2: 192.168.111.12/24 | | Victim VM | VMNet 2 | VMNet 2: 192.168.111.13/24 | | Attacker | VMNet 1 | 192.168.184.11 | ## 工作流程 (越南语): ``` sequenceDiagram participant A as Attacker (hping3) participant S as OVS Switch participant C as Ryu Controller participant I as Suricata IDS participant V as Victim Note over A: Bắt đầu tấn công SYN Flood loop Hàng ngàn packets/giây A->>S: Gửi TCP SYN (Src IP ngẫu nhiên) par Xử lý SDN S->>C: Packet-In (Gói tin mới) C->>S: Packet-Out + FlowMod (Cài luật) Note right of C: CPU Controller tăng vọt (Quá tải) and Xử lý IDS S->>I: Mirror/Copy Traffic I->>I: Khớp luật (Signature Match) I-->>Log: Ghi log "Possible DDoS attack" end S->>V: Chuyển tiếp gói tin (Nếu không bị drop) end ``` ## 结果: - 搭建了包含 OVSSwitch 和 Ryu Controller 的 SDN 架构:  - 使用 Prometheus, Grafana, Loki 的监控系统:     - 通过 Suricata 成功检测到 DDoS 攻击  ## 安装与部署指南: [安装说明](SETUP.md) ## 工具栈参考 - **Open vSwitch (OVS)** – 用于软件定义网络的虚拟交换机 https://docs.openvswitch.org/ - **Ryu SDN Controller** – 基于 Python 的 SDN 控制器框架 https://ryu.readthedocs.io/ - **Suricata IDS/IPS** – 网络入侵检测和防御系统 https://docs.suricata.io/ - **Prometheus** – 监控和指标收集系统 https://prometheus.io/docs/ - **Grafana** – 可视化和监控仪表盘 https://grafana.com/docs/ - **Grafana Loki** – 面向云原生环境的日志聚合系统 https://grafana.com/docs/loki/ - **hping3** – 用于生成 TCP SYN flood 流量的网络工具 https://github.com/antirez/hping
