fran-olivares/usulnet

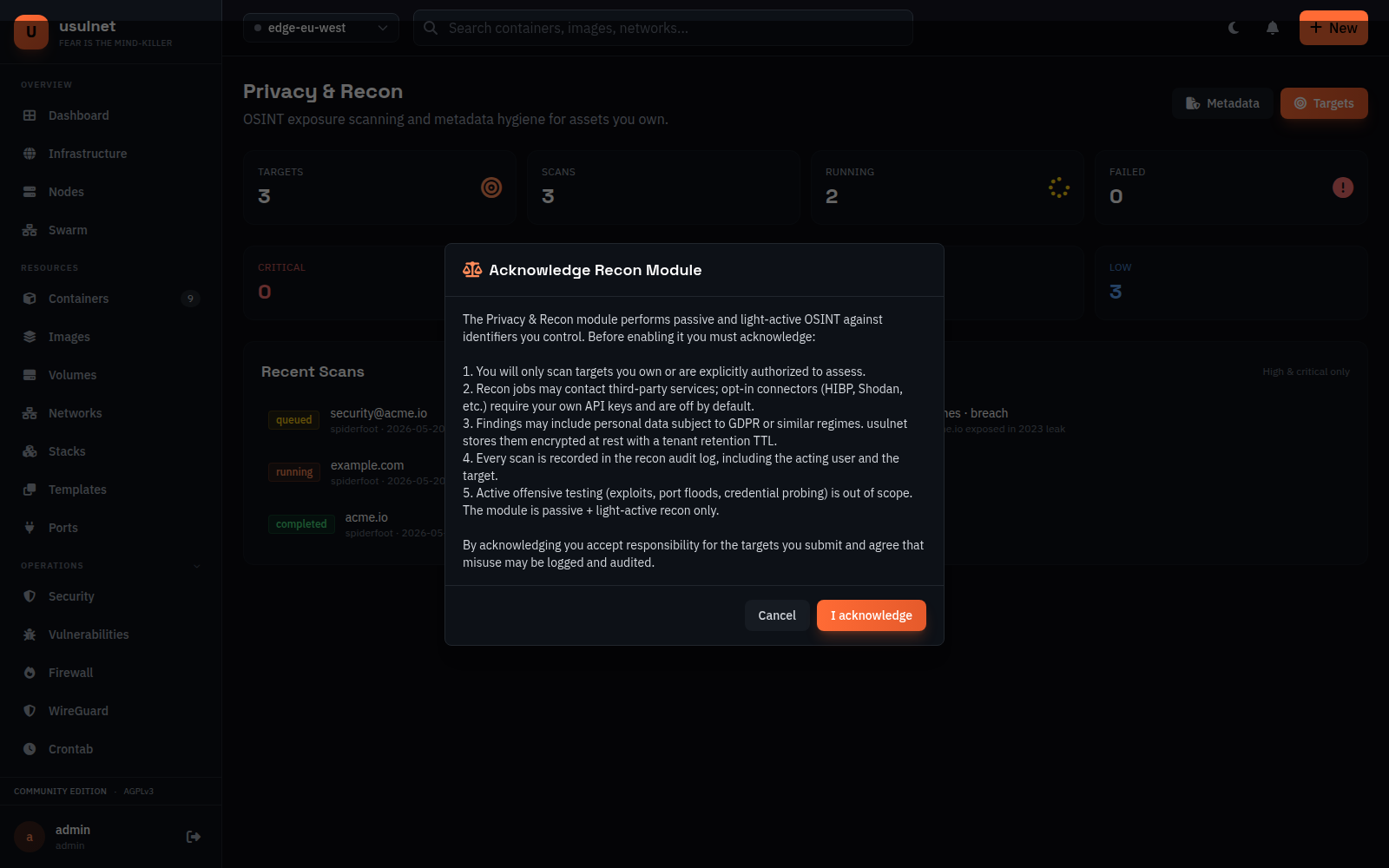

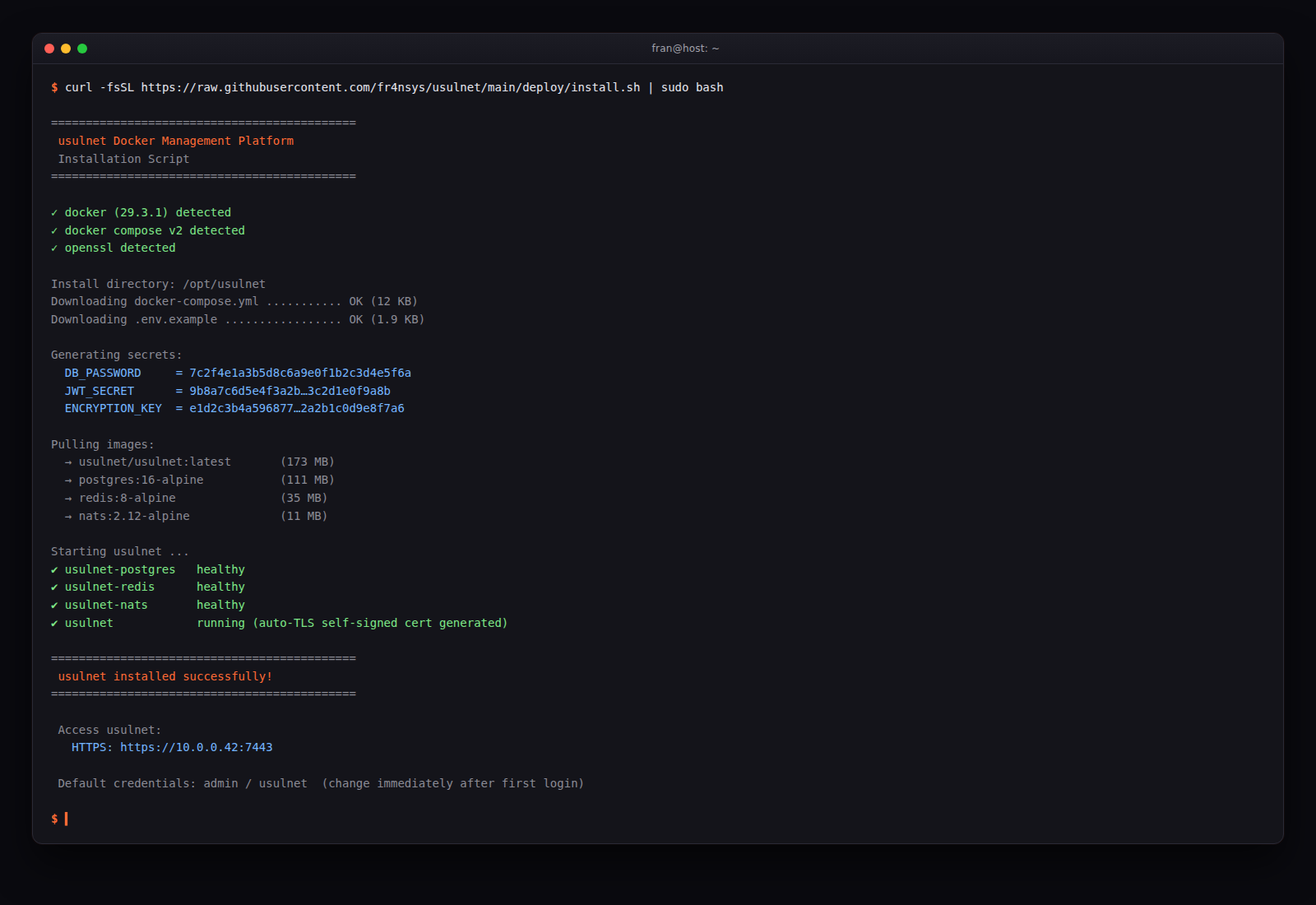

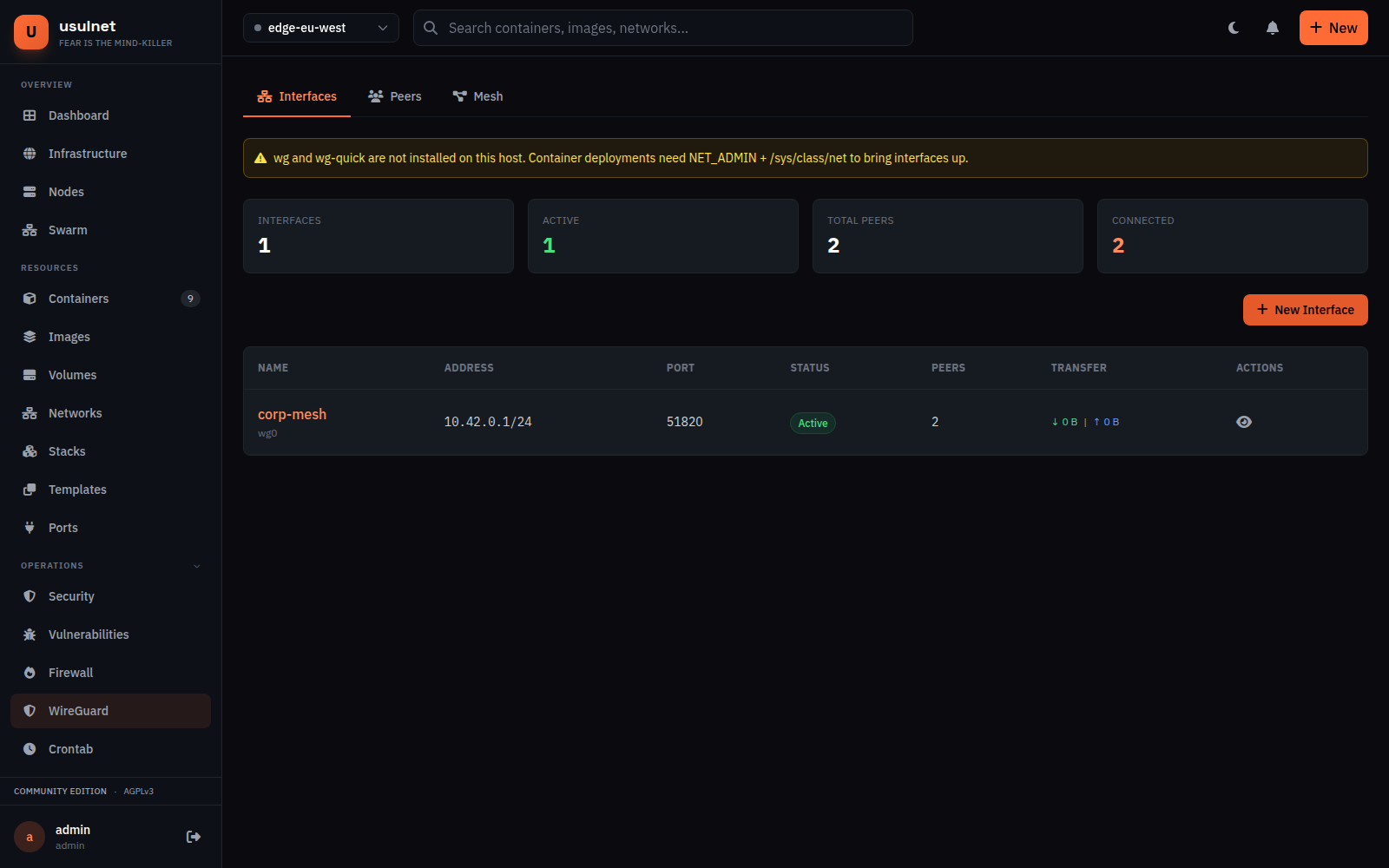

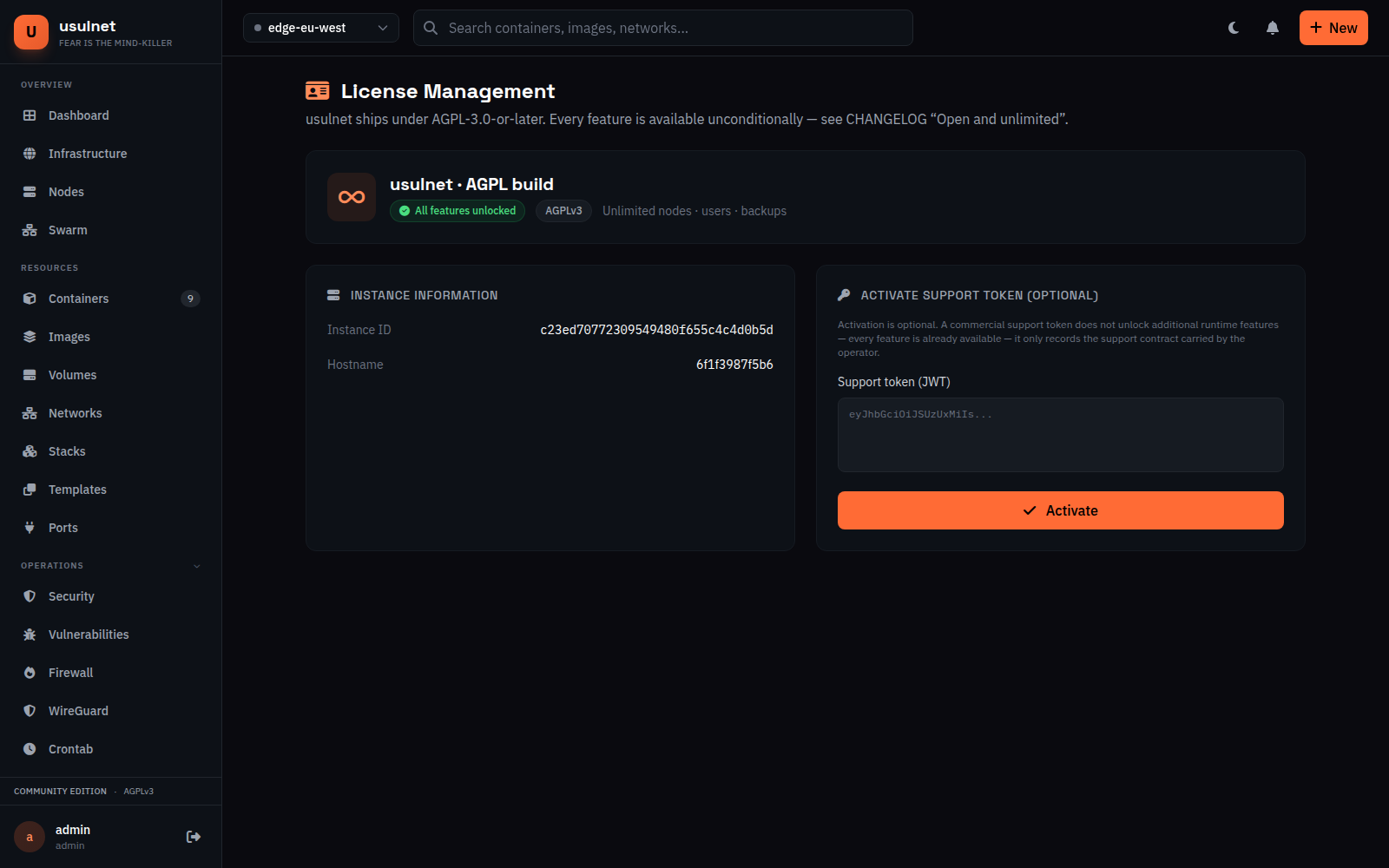

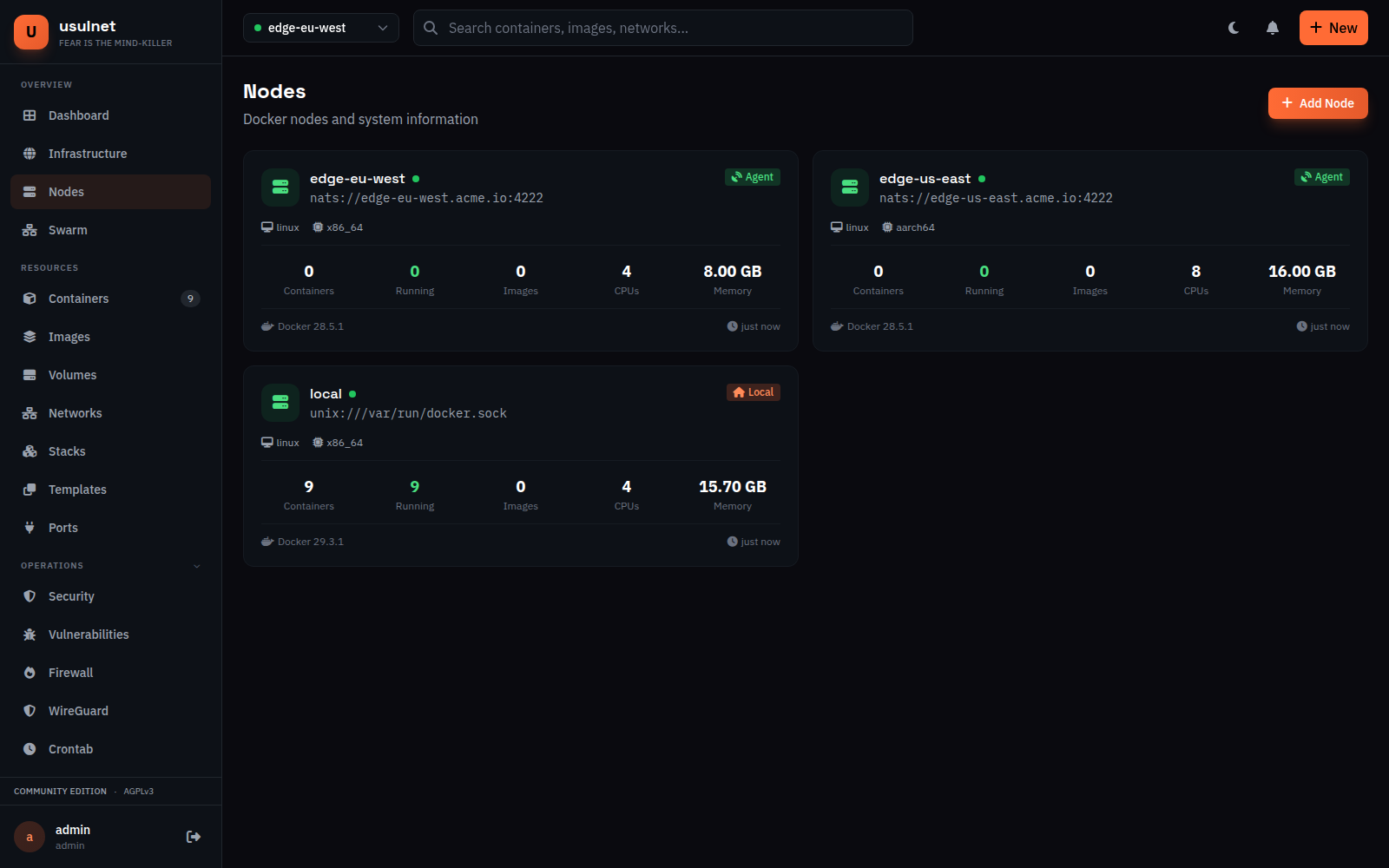

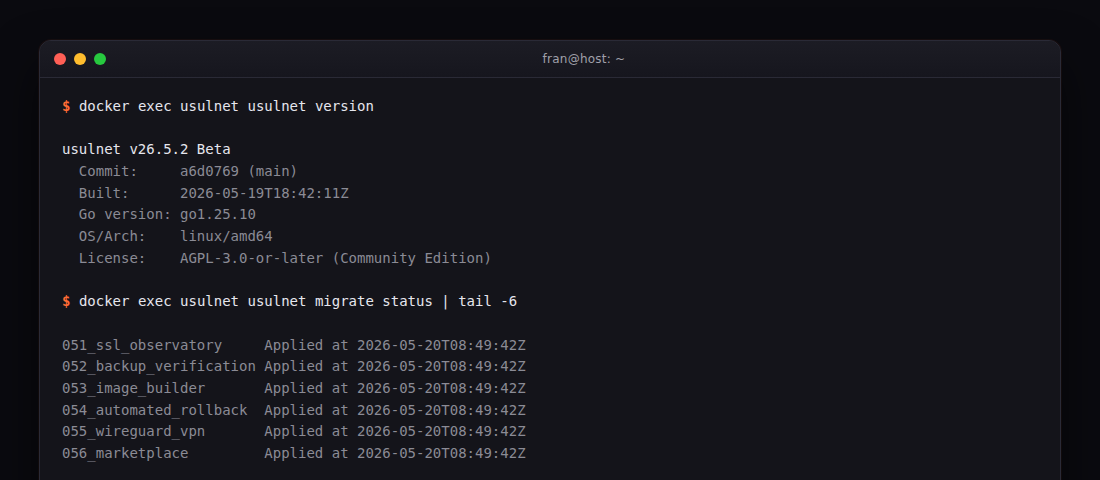

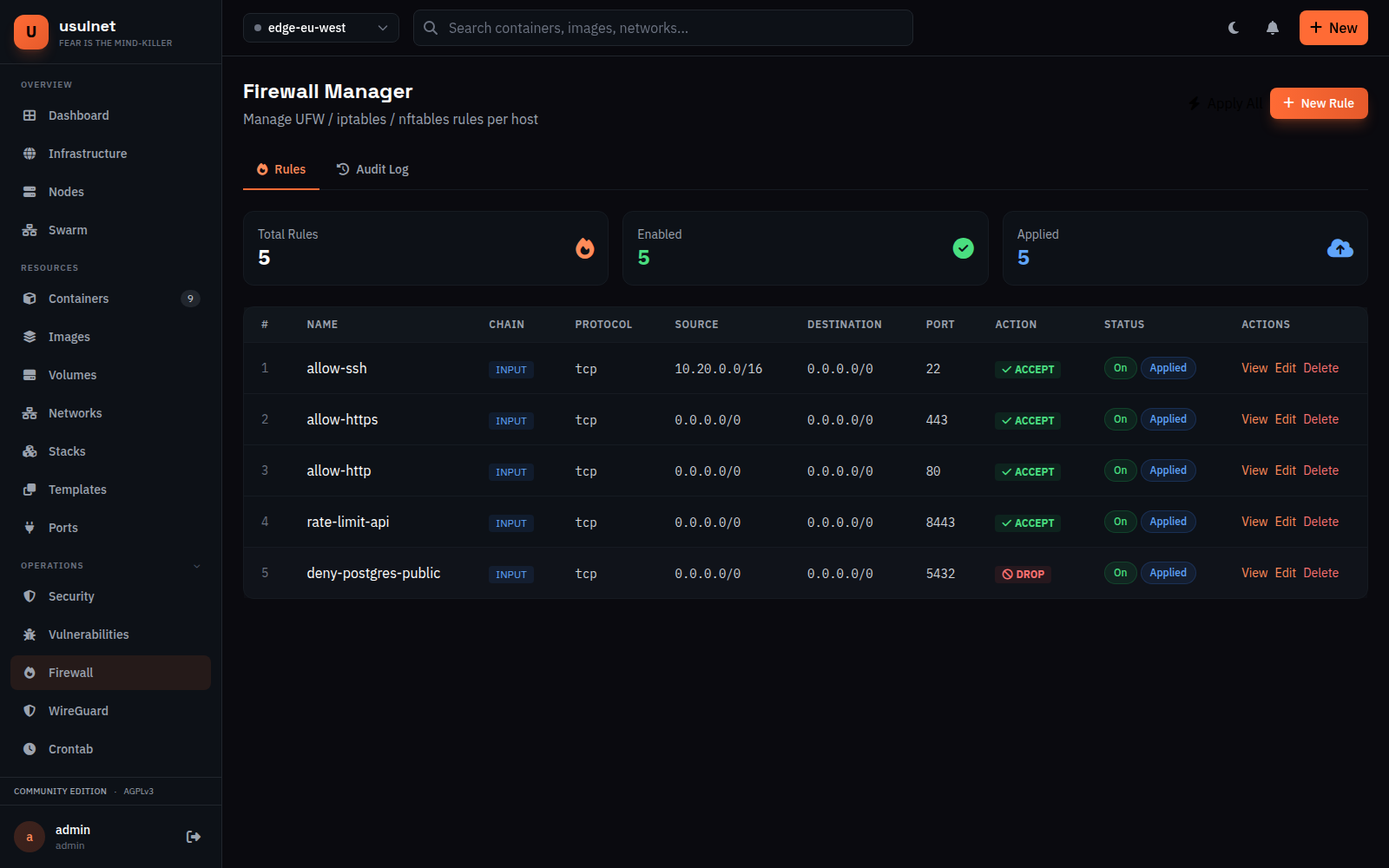

# usulnet Self-hosted Docker management plane with built-in privacy tooling. Single Go binary, AGPL-3.0, one build — every feature in this repo ships in the standard binary, no edition gating, no call-home. [](go.mod) [](LICENSE) [](https://github.com/fr4nsys/usulnet/releases) usulnet runs container lifecycle, security scanning, backups, reverse-proxy configuration, monitoring, multi-node orchestration, host infrastructure tooling (firewall, crontab, WireGuard mesh, docker-engine config, image builder), and an opt-in privacy module (OSINT recon plus file metadata hygiene) from a single process on hardware you own. v26.5.2 Beta — released 2026-05-19. Bug reports: [issues](https://github.com/fr4nsys/usulnet/issues). Release notes: [`CHANGELOG.md`](CHANGELOG.md) and [`docs/v26.5.2/release-notes.md`](docs/v26.5.2/release-notes.md) (v26.5.1 archive: [`docs/v26.5/release-notes-v26.5.1.md`](docs/v26.5/release-notes-v26.5.1.md)).  ## Quick start curl -fsSL https://raw.githubusercontent.com/fr4nsys/usulnet/main/deploy/install.sh | sudo bash The installer pulls the production compose file, generates the database password, JWT secret, AES-256 data-encryption key, and a self-signed TLS cert. It prints the access URL when ready.  Open `https://:7443`, log in as `admin` / `usulnet`, then change the password from the profile page.  Manual Docker Compose install, standalone binary install, and offline procedures live in [`docs/installation.md`](docs/installation.md). ## What's new in v26.5.2 Polish release on top of v26.5.1. **No database migration.** Adds the Shodan recon connector to the AGPL binary (second BYO-key external connector after HIBP), ports `usulnet-agent` to Cobra with `run` / `version` / `validate-config` subcommands and a canonical `USULNET_AGENT_DOCKER_HOST` env var, lands global CLI `--quiet` / `--json` flags with a JSON error envelope, adds `migrate up` / `down [N]` / `status` subcommands, ships header / sidebar / modal / flash a11y landmarks across the web chrome, bakes shell tab-completion into both production Docker images, and publishes a new operator CLI reference at [`docs/cli.md`](docs/cli.md). Per-feature detail in [`docs/v26.5.2/release-notes.md`](docs/v26.5.2/release-notes.md); full per-PR changelog in `[v26.5.2]` of [`CHANGELOG.md`](CHANGELOG.md). ## What's in v26.5.1 Eleven modules previously gated behind the Business edition now ship in the standard AGPL build, plus a proxy-extended enhancement and the opt-in local-services TLS dispatcher. Per-feature detail in [`docs/v26.5/release-notes-v26.5.1.md`](docs/v26.5/release-notes-v26.5.1.md); full per-migration audit in `[v26.5.1]` of [`CHANGELOG.md`](CHANGELOG.md).  | Module | What it does | | --- | --- | | **Calendar** | Operations calendar with manual events plus read-only aggregation of backup runs and scheduled jobs; RFC 5545 `.ics` export. | | **Proxy extended** | Access lists, dead hosts, locations, redirections, streams. Authoritative state in PostgreSQL; backend feature matrix surfaced via `GET /api/v1/proxy/support`. | | **DNS** | Provider plugins for Cloudflare, AWS Route 53, DigitalOcean, RFC 2136. ACME DNS-01 state machine that survives restarts. Credentials AES-256-GCM at rest. | | **Crontab** | Managed shell / docker / http cron jobs scheduled via `robfig/cron/v3`. WebSocket live tail, paginated executions, body cap. | | **Firewall** | UFW / nftables / iptables rule management over the existing host-management SSH transport. | | **SSL observatory** | In-process TLS scanning, certificate health grading, per-target alert thresholds, SNI virtual-host scans, daily sweep. | | **Backup verification** | Scheduled + on-demand restore tests in the sandboxed recon-launcher container. Real checksum + extract via the backup-service `Verify` pipeline. | | **Image builder** | Local Dockerfile pipeline with live log streaming (Redis pub/sub + WebSocket/SSE), 256 MiB context cap, seven AGPL-compatible starter templates, optional cosign hook. | | **Automated rollback** | Detects failed deploys via event-driven `changes.Service.Subscribe` and reverts to the last known-good stack version. Per-stack mutex, cooldown, dry-run preview, append-only Postgres-trigger audit log. | | **WireGuard** | Peer + interface manager extended into a master→agent mesh over NATS. Real Curve25519 keys, AES-256-GCM at rest, one-time QR with 5-min TTL, per-agent mesh status page. | | **Marketplace** | Curated app catalog baked into the binary via `go:embed`. Zero outbound HTTP at runtime. Local-only reviews. Installs wire through the stack service. | Also in v26.5.1: the **docker-engine config** editor (atomic `daemon.json` writes with snapshot history and reload-with-rollback — no migration), the **sidebar edition cleanup** (all `isEditionAvailable` / `RequireFeature` / `limitProvider` callsites removed; `license.CELimits()` collapsed into `license.OpenLimits()`), the **bootstrap restructure** (the 2,700-line `startStandalone` split into phased `init_*.go` files), and **opt-in local-services TLS** via `USULNET_TLS_LOCAL_SERVICES=true` for in-cluster Postgres / Redis / NATS. ## Features ### Docker control plane | Area | Capability | | --- | --- | | Containers | Full lifecycle (create / start / stop / restart / pause / kill / remove), bulk operations, real-time stats, exec terminal, log viewer, filesystem browser. | | Images | Pull, inspect, prune, layer history; Docker Hub and private registries with encrypted credentials. | | Image builder | Local Dockerfile build pipeline with live log streaming (Redis pub/sub + WebSocket/SSE), capped context uploads (256 MiB default), AGPL-compatible starter templates, optional cosign signing hook. | | Volumes and networks | Create, inspect, prune, file browser; bridge / overlay / macvlan; connect and disconnect containers. | | Stacks | Docker Compose deployments from YAML, Git repositories, or built-in catalogue. | | Marketplace | Offline curated app catalog baked into the binary via `go:embed`; local-only reviews; install action drives an existing stack via templated docker-compose. | | Swarm | Cluster init, node management, services, replica scaling, standalone-to-swarm conversion. | | Multi-node | `standalone`, `master`, and `agent` modes; agent ↔ master traffic over NATS with mTLS; agent deploy from the UI via SSH. | | Reverse proxy | Caddy and Nginx Proxy Manager adapters; Let's Encrypt with auto-renewal; TCP/UDP stream proxying. Extended state (access lists, dead hosts, locations, redirections, streams) authoritative in PostgreSQL with explicit backend support matrix. | | DNS automation | Provider plugins for Cloudflare, AWS Route 53, DigitalOcean, and RFC 2136 nameservers; ACME DNS-01 state machine that survives restarts; credentials AES-256-GCM at rest. | | Backups | Container / volume / stack targets; cron schedules with retention; gzip or zstd; local, S3, MinIO, Azure Blob, GCS, B2, SFTP. | | Backup verification | Scheduled + on-demand restore tests in a sandboxed container (read-only rootfs, dropped caps, no-new-privileges, default seccomp); real checksum + extract via the backup-service `Verify` pipeline. | | Automated rollback | Detects failed deploys via event-driven `changes` subscription and reverts to the last known-good stack version; per-stack mutex prevents racing manual deploys; cooldown window; dry-run preview; append-only audit log via Postgres trigger. | | SSL observatory | In-process TLS scanning, certificate health grading, per-target alert thresholds, SNI virtual-host scans, daily scheduled sweep, expiry alerts routed via the notification service. | | Monitoring | Per-container and per-host CPU / RAM / network / disk; threshold alerts with `OK → Pending → Firing → Resolved` state machine; 11 notification channels (Email, Slack, Discord, Telegram, Gotify, ntfy, PagerDuty, Opsgenie, Microsoft Teams, generic webhook, custom). | | Logs and events | Aggregated container logs with search; Docker event stream with filtering; packet capture per network interface. | | Vulnerabilities | Trivy CVE scans for images and filesystems; 0–100 security score per container and infrastructure-wide; SBOM in CycloneDX and SPDX; Docker CIS Benchmark checks. | | Calendar | Operations calendar with manual events and read-only aggregation of backup runs + scheduled jobs; RFC 5545 `.ics` export. |  ### Host & infrastructure tooling | Area | Capability | | --- | --- | | Firewall | UFW / nftables / iptables rule management over the existing SSH host transport. Web UI + REST API; closed-enum validation; audit log of every apply. | | Crontab | Managed cron jobs (shell, docker, http types) parsed with `robfig/cron/v3`; paginated executions; WebSocket live tail; HTTP body capped at 64 KiB. | | Docker engine config | `/etc/docker/daemon.json` editor with atomic writes (temp + `fsync` + `rename`), snapshot history with rotation, and reload-with-rollback under a hard 60 s timeout. Monaco diff editor + history page. | | WireGuard | Peer + interface manager extended into a master→agent mesh over the NATS gateway. Real Curve25519 keys, private/preshared keys AES-256-GCM at rest, one-time QR endpoint with 5-min TTL, per-agent mesh status page. |   ### Capability requirements The modules in the previous table reach the host through the existing host-management transport or a bind mount. Capability requirements: | Module | Needed | | --- | --- | | firewall | `NET_ADMIN` on the agent process; `ufw` / `nft` / `iptables` available on the host. | | WireGuard | WireGuard kernel module + `wg` / `wg-quick` on each agent host; `NET_ADMIN` on the agent process; `USULNET_ENCRYPTION_KEY` set on the master. | | docker-engine config | Host `/etc/docker` bind-mounted into the usulnet container as `:rw`. | | image builder | Docker socket mount (already required by the platform). | | backup verification | Docker socket mount (already required). | | DNS providers | Outbound egress to each provider's API endpoint; `USULNET_ENCRYPTION_KEY` set. | All other v26.5.1 modules (crontab, ssl-observatory, calendar, marketplace, rollback, proxy-extended) need nothing beyond the default compose stack. Full detail in [`docs/installation.md`](docs/installation.md#capability-requirements-v2651-modules). ### Privacy and recon (opt-in) Off by default — every recon route returns 404 until an admin sets `USULNET_RECON_ENABLED=true` and records the legal-notice acknowledgement (`POST /api/v1/recon/_ack`). Full design and threat model in [`docs/recon.md`](docs/recon.md); signed review at [`docs/v26.5/security-review-checklist.md`](docs/v26.5/security-review-checklist.md).  | Area | Capability | | --- | --- | | OSINT recon | SpiderFoot-driven passive scans against emails, domains, phones, IPs, usernames. Ownership is verified (DNS TXT, e-mail link, RDAP, admin-attest, self-assert) before a scan can start. | | Scan profiles | Four built-in profiles plus full CRUD for user-defined profiles. Built-in rows are immutable; the module catalogue is closed. | | Reports | Per-scan JSON, CSV, and paginated A4 PDF at `/api/v1/recon/scans/{id}/report.{json,csv,pdf}`. PDF is pure Go and byte-deterministic. | | Metadata hygiene | `mat2` strip plus `exiftool` / `pdfid` / `oletools` extract. Each job runs in a fresh container with read-only rootfs, all Linux capabilities dropped, seccomp default, and PID / memory caps. | | Sandbox network | Dedicated `usulnet-recon` Docker network with a strict egress allow-list (DNS, 80, 443 by default). | | HIBP connector | Optional Have-I-Been-Pwned integration. Credentials AES-256-GCM at rest in `recon_connectors`; keys are never returned through the API or logs. | | Retention | Daily prune of findings, scans, and audit log past the per-tenant TTL (default 90 days). Two-phase delete on metadata artifacts. | | Audit | Append-only `recon_audit_log` records every state-changing action with actor, target, and request hash. | ### Auth, RBAC, platform | Area | Capability | | --- | --- | | Authentication | JWT with configurable expiry; `X-API-KEY` for programmatic access; TOTP 2FA with backup codes; LDAP / Active Directory; OAuth2 / OIDC (GitHub, Google, Microsoft, custom). | | Authorisation | RBAC with 44+ granular permissions, custom roles, team-based resource scoping. | | Secrets | AES-256-GCM at rest for every sensitive value; bcrypt password hashing; configurable password complexity; account lockout. | | Transport | TLS with auto-generated self-signed certs (or BYO); mTLS for inter-node messaging; configurable rate limiting; CSRF; secure cookie defaults. Opt-in local-services TLS for in-cluster Postgres / Redis / NATS via `USULNET_TLS_LOCAL_SERVICES=true`. | | Audit | Per-user action log persisted to PostgreSQL with IP, timestamp, detail; CSV export. | | Observability | Prometheus `/metrics` (admin-auth) including Go runtime and process metrics; OpenTelemetry instrumentation. | | API | REST under `/api/v1`; OpenAPI 3.0 at `/api/v1/openapi.json`; Swagger UI at `/docs/api`; WebSocket streams for logs, exec, stats, events, metrics, packet capture, and nvim. | ### Developer tools Web-based terminal hub (xterm.js) with container exec and host SSH. Monaco editor and Neovim with `lazy.nvim` for in-browser file editing. Filesystem browsers for containers, hosts, and SFTP. Snippets and cheat sheets. Outgoing webhooks on container events with retry. Auto-deploy rules triggered by Git push. Runbooks for multi-step operations. Cron-scheduled jobs for backups, scans, metrics, update checks, recon retention, and cleanup. ## Architecture usulnet ships as a single binary that runs in one of three modes: - `standalone` — one Docker host, all services local. NATS not required. - `master` — `standalone` plus a NATS gateway server for remote agents. - `agent` — connects to a master via NATS. No web UI; executes Docker operations against its local host. PostgreSQL stores domain state across **56 migrations** (users, RBAC, connections, backups, scans, alerts, recon, audit log, plus the v26.5.1 ported modules: calendar, proxy-extended, DNS, crontab, firewall, SSL observatory, backup verification, image builder, automated rollback, WireGuard, marketplace). Redis backs session storage and JWT blacklisting. NATS with JetStream carries inter-node traffic with persistence. Full component diagram, request flow, and topology in [`docs/architecture.md`](docs/architecture.md). ### Multi-node setup # On the control plane host export USULNET_MODE=master AGENT_TOKEN= docker compose up -d # On each remote host you want to manage docker run -d --name usulnet-agent --restart unless-stopped \ -v /var/run/docker.sock:/var/run/docker.sock \ usulnet/usulnet-agent:latest \ --gateway nats://:4222 \ --token Master ↔ agent traffic flows over NATS with mTLS on the `usulnet-backend` Docker network. Full agent protocol, NATS subject map, and TLS provisioning at [`docs/agents.md`](docs/agents.md).  ### Stack | Layer | Component | | --- | --- | | Language | Go 1.25.10 | | HTTP router | Chi v5 | | Templates | Templ (compile-time HTML) | | CSS | Tailwind via the standalone CLI (no Node.js) | | Browser | Alpine.js, HTMX, xterm.js, Monaco | | Database | PostgreSQL 16 via pgx/v5 and sqlx | | Cache / sessions | Redis 7 | | Messaging | NATS 2.10 with JetStream | | Auth | JWT, OAuth2 / OIDC, LDAP, TOTP | | Vulnerability scanner | Trivy | | PDF | gofpdf (pure Go) | | Scheduling | robfig/cron v3 | | DNS (provider plugins) | net/http (Cloudflare, DigitalOcean), aws-sdk-go-v2/route53, miekg/dns (RFC 2136 + TSIG) | | WireGuard | golang.org/x/crypto/curve25519 + agent-side `wg` / `wg-quick` | ## Configuration `config.yaml` plus environment variables prefixed `USULNET_` (nested keys joined by `_`). The Viper loader treats environment overrides as canonical. USULNET_SERVER_PORT=9090 USULNET_DATABASE_URL=postgres://usulnet:secret@db/usulnet?sslmode=disable USULNET_SECURITY_JWT_SECRET=<64-hex> USULNET_ENCRYPTION_KEY=<64-hex> USULNET_RECON_ENABLED=true USULNET_MODE=standalone # Opt-in TLS for in-cluster Postgres / Redis / NATS (v26.5.1) USULNET_TLS_LOCAL_SERVICES=true # Module knobs USULNET_IMAGE_BUILDER_MAX_CONTEXT_BYTES=268435456 # 256 MiB USULNET_SSL_OBSERVATORY_PER_TARGET_CONCURRENCY=4 Full reference, defaults, and the production compose template are in [`docs/installation.md`](docs/installation.md). ## CLI usulnet serve # run the server usulnet migrate up # apply pending migrations usulnet migrate status # show migration state usulnet migrate down [N] # roll back N migrations (default 1) usulnet config check # validate configuration usulnet config show # display config with secrets masked usulnet admin reset-password # reset the admin password usulnet recon … # opt-in recon subcommand tree usulnet meta … # opt-in metadata hygiene subcommand tree usulnet version # print build info Global flags affect every subcommand: `--quiet` suppresses informational summaries (errors and primary data still print); `--json` is a shortcut for `--output json` and also switches the error formatter to a single-record envelope on stderr — `{"error":"","code":}`. Plain errors carry a fixed `usulnet:` prefix. Exit codes (0 success, 64 usage, 70 infra, 71 server unreachable, 72 auth) are stable across the binary. Full reference: [`docs/cli.md`](docs/cli.md). The agent binary (`usulnet-agent`) ships as a Cobra tree with `run`, `version`, and `validate-config` subcommands. Validate a config before restarting an agent: usulnet-agent validate-config --config /etc/usulnet-agent/config.yaml Full agent reference: [`docs/agents.md`](docs/agents.md).  ## API examples REST under `/api/v1`, authenticated with `X-API-KEY` or `Authorization: Bearer `. Full OpenAPI at `/api/v1/openapi.json`, Swagger UI at `/docs/api`. Reference: [`docs/api.md`](docs/api.md). # List running containers curl -fsSL -H "X-API-KEY: $USULNET_API_KEY" \ https://usulnet.example.com:7443/api/v1/containers?status=running | jq # Browse the embedded marketplace catalog curl -fsSL -H "X-API-KEY: $USULNET_API_KEY" \ https://usulnet.example.com:7443/api/v1/marketplace/apps | jq '.[].slug' # Trigger an SSL observatory scan against every enabled target curl -fsSL -X POST -H "X-API-KEY: $USULNET_API_KEY" \ https://usulnet.example.com:7443/api/v1/ssl/scan # Apply a firewall rule on a host through the agent transport curl -fsSL -X POST -H "X-API-KEY: $USULNET_API_KEY" \ -H "Content-Type: application/json" \ -d '{"host_id":"","chain":"INPUT","action":"ACCEPT","protocol":"tcp","port":22,"comment":"ssh"}' \ https://usulnet.example.com:7443/api/v1/firewall/rules # Start a backup verification run curl -fsSL -X POST -H "X-API-KEY: $USULNET_API_KEY" \ https://usulnet.example.com:7443/api/v1/backup-verify/runs \ -d '{"backup_id":"","method":"extract"}' WebSocket endpoints for live container logs / exec / stats / image build output / crontab execution tail follow the same path scheme with the `Upgrade: websocket` header. ## Documentation | Topic | Path | | --- | --- | | Installation and deployment | [`docs/installation.md`](docs/installation.md) | | Capability requirements (v26.5.1 modules) | [`docs/installation.md#capability-requirements-v2651-modules`](docs/installation.md#capability-requirements-v2651-modules) | | Development setup and workflow | [`docs/development.md`](docs/development.md) | | CLI reference (`usulnet` binary) | [`docs/cli.md`](docs/cli.md) | | REST and WebSocket API | [`docs/api.md`](docs/api.md) | | Architecture | [`docs/architecture.md`](docs/architecture.md) | | Recon and metadata modules | [`docs/recon.md`](docs/recon.md) | | Multi-node agents | [`docs/agents.md`](docs/agents.md) | | Licensing | [`docs/licensing.md`](docs/licensing.md) | | Signed security review (recon, v26.5) | [`docs/v26.5/security-review-checklist.md`](docs/v26.5/security-review-checklist.md) | | Security review (v26.5.1 hardening audit) | [`docs/v26.5/security-review-v26.5.1.md`](docs/v26.5/security-review-v26.5.1.md) | | Security review (v26.5.2 hardening audit) | [`docs/v26.5/security-review-v26.5.2.md`](docs/v26.5/security-review-v26.5.2.md) | | Release notes (v26.5.2) | [`docs/v26.5.2/release-notes.md`](docs/v26.5.2/release-notes.md) | | Release notes (v26.5.1) | [`docs/v26.5/release-notes-v26.5.1.md`](docs/v26.5/release-notes-v26.5.1.md) | | Ported modules status board | [`docs/v26.5/v26.5.1-ported-modules.md`](docs/v26.5/v26.5.1-ported-modules.md) | | Full changelog | [`CHANGELOG.md`](CHANGELOG.md) | | Screenshots | [`docs/screenshots/`](docs/screenshots/) | ## Development git clone https://github.com/fr4nsys/usulnet.git cd usulnet make dev-up # postgres, redis, nats, minio make build # templ generate + tailwind compile + go build make run `make quality` runs the full gate: `golangci-lint`, `go vet`, `scripts/check-naming.sh`, and the coverage threshold check (15 % interim, 40 % target). `make publish-public` produces the curated public-mirror tree under `build/public/` for the release workflow. The full developer guide — workflow, hooks, profiling, debugging — is in [`docs/development.md`](docs/development.md). ## License [AGPL-3.0-or-later](LICENSE). Self-hosted use is free in perpetuity. One AGPL build, all features — no edition gating, no closed-source extension point, no feature gated by a paid license tier. Optional commercial support contracts are documented in [`docs/licensing.md`](docs/licensing.md); they do not unlock additional runtime features.  ## Security Report vulnerabilities to . Do not open public issues for security findings. Security posture: - **External port surface:** only HTTPS (7443) is published by default. HTTP (8080) and NATS (4222) stay internal to the `usulnet-backend` Docker network. - **No call-home.** No outbound request to any usulnet-controlled endpoint at runtime. Every outbound call (registry, DNS provider, OAuth issuer, HIBP) is operator-configured. - **Container user** `usulnet:1000` (non-root). Recon sandbox runs as `nobody:nogroup` (65534) with read-only rootfs and all Linux capabilities dropped. - **AES-256-GCM at rest** for every sensitive value (passwords are bcrypt; WireGuard keys, DNS provider credentials, HIBP keys, raw recon payloads, JWT signing keys, OAuth client secrets). - **govulncheck in CI** on every push and PR. v26.5.1 dependency baseline covers Go 1.25.10, pgx 5.9.2, NATS 1.52.0, go-redis 9.19.0, go-chi 5.2.5, jwt 5.3.1, go-oidc 3.18.0, go-ldap 3.4.13, docker 28.5.2; two Moby false positives (GO-2026-4883, GO-2026-4887) are in the allowlist with inline justification. Full hardening audits: [`docs/v26.5/security-review-v26.5.2.md`](docs/v26.5/security-review-v26.5.2.md) (current — covers v26.5.2 deltas: Shodan connector, agent Cobra port, CLI tab-completion install script, web a11y landmarks, JSON error envelope, route-scoped frontend gzip with BREACH mitigation, batched alert event resolution, request-id `strconv` swap) and [`docs/v26.5/security-review-v26.5.1.md`](docs/v26.5/security-review-v26.5.1.md) (baseline — eleven v26.2.7 modules ported into the AGPL build).
