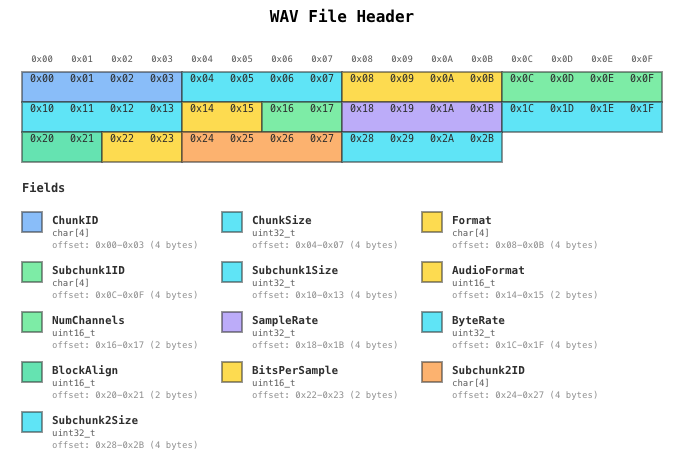

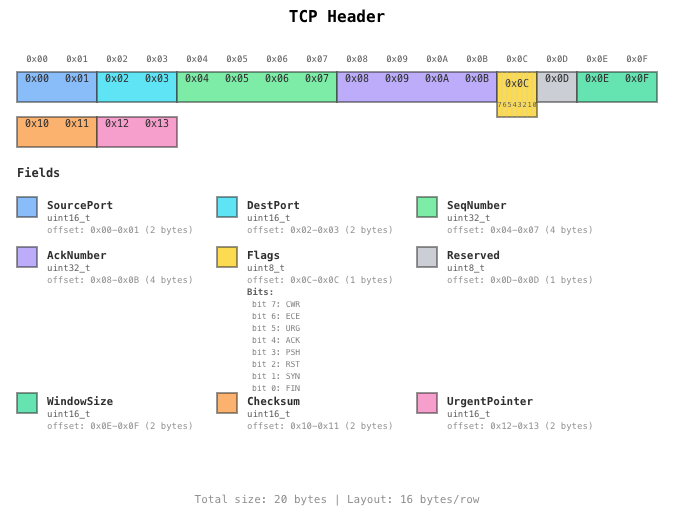

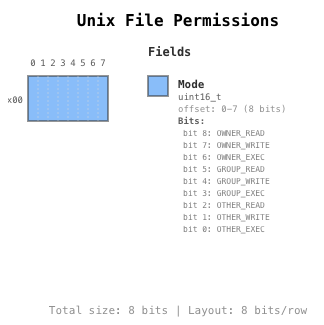

# ByteGrid **ByteGrid** is an Obsidian plugin that transforms YAML definitions into beautiful, interactive SVG diagrams showing memory layouts of binary data structures. Perfect for reverse engineering, protocol analysis, file format documentation, and understanding low-level data structures. ## ✨ Features - 🎨 **Auto Color Assignment** - Fields are automatically color-coded for easy distinction - 📏 **Byte-Accurate Layouts** - Precise grid-based visualization of memory structures - 🔍 **Bitfield Support** - Visualize individual bits within bytes - 🎯 **Multiple Layout Modes** - Byte-level or bit-level layouts - 🌈 **Color Schemes** - Default, dark, and light modes - 📊 **Flexible Legend** - Customizable position (left, right, bottom) and multi-column support - 📐 **Row-Major Ordering** - Intuitive left-to-right field arrangement ## 📸 Screenshots ### WAV File Header  ### TCP Header with Bitfields  ### Unix File Permissions with Bitfields  ## 🚀 Installation ### Manual Installation 1. Download the latest release from [GitHub Releases](https://github.com/waaraawa/ByteGrid/releases) 2. Extract `main.js`, `manifest.json`, and `styles.css` into your vault's `.obsidian/plugins/bytegrid/` folder 3. Reload Obsidian 4. Enable the plugin in Settings → Community Plugins ## 📖 Usage ### Basic Example Create a code block with the `bytegrid` language tag: ```bytegrid name: Simple Structure size: 16 layout: 16 fields: - offset: 0-3 name: ID type: uint32_t - offset: 4-7 name: Timestamp type: uint32_t - offset: 8-11 name: Value type: float - offset: 12-15 name: Checksum type: uint32_t ``` ### Configuration Options name: Structure Name # Required: Name of the structure size: 16 # Required: Total size in bytes layout: 16 # Optional: Bytes per row (default: 16) layoutUnit: byte # Optional: 'byte' or 'bit' (default: byte) # Color Options autoColor: true # Optional: Auto-assign colors (default: true) colorScheme: default # Optional: 'default', 'dark', or 'light' # Legend Options legendPosition: right # Optional: 'right', 'left', 'bottom', 'none' legendColumns: 1 # Optional: Number of columns in legend (default: 1) # Other Options showFooter: true # Optional: Show footer (default: true) fields: - offset: 0-3 # Required: Byte range (SSOT) name: FieldName # Required: Field name type: uint32_t # Required: Data type color: blue # Optional: Explicit color description: '...' # Optional: Description endianness: little # Optional: 'little' or 'big' bitfields: # Optional: Bit-level fields - name: Flag1 bits: '0-3' description: '...' ### Supported Data Types **Integer Types:** - `char`, `int8_t`, `uint8_t` - `int16_t`, `uint16_t`, `short` - `int32_t`, `uint32_t`, `int` - `int64_t`, `uint64_t`, `long` **Floating Point:** - `float`, `double` **Arrays:** - `char[4]`, `uint8_t[16]`, etc. **Special:** - `reserved`, `padding` (always gray) ### Color Palette When `autoColor: true` (default), fields cycle through these colors: - 🔵 blue - 🔷 cyan - 🟡 yellow - 🟢 green - 🟠 orange - 🟣 purple - 🟢 mint - 🩷 pink ## 📚 Examples Check the [examples](./examples) folder for more: - WAV audio file headers - TCP/IP headers with bitfields - ELF binary formats - Unix file permissions - CPU flags registers ## 🛠️ Development ### For Plugin Development # Install dependencies npm install # Build all packages npm run build # Run tests npm run test # Development mode (watch) cd packages/obsidian-plugin npm run dev ### Project Structure bytegrid/ ├── packages/ │ ├── core/ # Core rendering engine │ └── obsidian-plugin/ # Obsidian plugin wrapper └── examples/ # Example files ### Development Guidelines ### Key Design Principles - **offset is SSOT** - Field size calculated from offset ranges - **No magic numbers** - Use constants for layout values - **Dynamic sizing** - Calculate dimensions from content - **Explicit padding** - Use `reserved` or `padding` types ## 📝 License MIT License - see [LICENSE](./LICENSE) for details ## 🙏 Acknowledgments Built with: - [Obsidian API](https://github.com/obsidianmd/obsidian-api) - [js-yaml](https://github.com/nodeca/js-yaml) - TypeScript & esbuild
