oguarni/terravault

### 亮点 - **混合评分** — 基于规则的检测占 60% + 机器学习异常检测占 40%。针对已知风险的确定性规则，其他情况使用 Isolation Forest - **速度足以用于 CI 门控** — 每文件扫描亚秒级完成 — 不会引入明显的流水线延迟 - **可操作 API** — 带有 bcrypt API 密钥的 FastAPI、Redis 速率限制、异步 I/O、Prometheus 指标、关联 ID - **可衡量的质量** — 72 个专注的 pytest 测试用例，74% 的行覆盖率 (1,518 SLOC)，Pylint 10.00/10，0 个 Flake8 问题，0 个 Bandit 发现，0 个安全漏洞 ## 目录 - [功能](#features) - [快速开始](#quick-start) - [架构](#architecture) - [CLI 使用](#cli-usage) - [REST API](#rest-api) - [质量指标](#quality-metrics) - [DevSecOps 流水线](#devsecops-pipeline) - [Docker 部署](#docker-deployment) - [监控与可观测性](#monitoring--observability) - [技术栈](#technology-stack) - [截图](#screenshots) - [学术背景](#academic-context) - [局限性与未来工作](#limitations--future-work) - [参考文献](#references) - [许可证](#license) ## 功能 ### 安全扫描器 - 模式匹配覆盖 **7 个漏洞类别**：开放端口、硬编码密钥、未加密存储、公共 S3 存储桶、IAM 配置错误、缺少 CloudWatch 日志记录以及缺少 VPC 流日志 - 严重性分类：`CRITICAL` · `HIGH` · `MEDIUM` · `LOW` · `INFO` - 每个发现都附有可操作的修复建议 - 可配置的严重性覆盖以符合组织政策 ### 机器学习引擎 - **Isolation Forest** 异常检测（无监督 — 无需标记数据） - 7 维特征向量：开放端口、硬编码密钥、公共访问、未加密存储、缺少日志记录、缺少流日志、资源数量 - 通过 Joblib 持久化模型，并具备版本控制和漂移检测 - 基于与学习的安全基线的异常距离进行置信度评分 ### Re-reading: "Translate each of the following headings to Simplified Chinese." and "Keep all professional terms, proper nouns, tool/library/framework names, and technical jargon in their original English form." - FastAPI，提供 `/docs` 处的 OpenAPI/Swagger 文档 - Bcrypt 哈希的 API 密钥认证 - Redis 支持的缓存和速率限制（具有内存回退机制） - 可配置超时的异步文件处理 - `/metrics` 处的 Prometheus 指标 - 所有请求的关联 ID 追踪 ### So, the translation should be in Simplified Chinese, but certain parts are kept in English. - 带有 5 个阶段的 GitHub Actions CI/CD 流水线 - SAST (Bandit)、依赖项扫描 (Safety)、密钥检测 (GitLeaks) - Docker 镜像安全扫描 (Trivy) - 用于本地开发的预提交钩子 - SBOM 生成 (CycloneDX) ## 快速开始 ### 前置条件 - Python 3.10+ - Git ### 安装 ``` # For "REST API", it's a technical term, so I should keep it as "REST API" in the translation. But in Chinese, it might be written as "REST API" or "REST接口". To be consistent with the example, where 'API Reference' becomes 'API 参考', I'll do something similar. git clone https://github.com/oguarni/terravault.git cd terravault # For "REST API", since "REST" is a specific term and "API" is also, I'll keep both in English, so the translation might be "REST API" but in Chinese context, it's often written that way. make install ``` ### 运行演示 ``` # But to translate to Simplified Chinese, I need to output Chinese characters. So, for parts that are not kept in English, translate to Chinese. make demo # Let's list each one: python -m terravault.cli test_files/vulnerable.tf python -m terravault.cli test_files/secure.tf python -m terravault.cli test_files/mixed.tf ``` ### 运行测试 ``` make test # All tests make coverage # With coverage report make lint # Code quality (Pylint + Flake8) make security-scan # Bandit SAST + Safety dependency check ``` ## 架构 TerraVault 遵循 **整洁架构**，具有严格的分层： ``` terravault/ ├── domain/ # Business rules, severity levels, vulnerability models ├── application/ # Use cases — IntelligentSecurityScanner orchestrator ├── infrastructure/ # Adapters — HCL parser, ML model, database, cache ├── config/ # Settings (Pydantic), structured logging ├── cli.py # Command-line interface (text/json/sarif output) ├── api.py # FastAPI REST server └── metrics.py # Prometheus instrumentation ``` ### 扫描流水线 ``` graph TD A[Terraform .tf File] --> B[HCL2 Parser] B --> C[Feature Extraction Engine] C --> D[Rule-based Detection] C --> E[ML Feature Vectorization] D --> F[Pattern Matching
7 vulnerability categories] E --> G[Isolation Forest
Anomaly Detection] F --> H[Risk Score Aggregator
0.6 x Rules + 0.4 x ML] G --> H H --> I[Scan Report
Score · Vulnerabilities · Confidence] style C fill:#e1f5ff,stroke:#0288d1,stroke-width:2px,color:#01579b style H fill:#fff3e0,stroke:#f57c00,stroke-width:2px,color:#e65100 style I fill:#e8f5e9,stroke:#388e3c,stroke-width:2px,color:#1b5e20 ``` ### 评分系统 | 权重 | 组件 | 方法 | |--------|-----------|--------| | **60%** | 基于规则 | 确定性模式匹配 — CRITICAL (30分), HIGH (20分), MEDIUM (10分), LOW (5分), INFO (2分) | | **40%** | 机器学习异常 | Isolation Forest 与学习的安全基线的偏差 | **分数范围：** `0-30` 安全 · `31-60` 建议审查 · `61-100` 需要关键行动 ## CLI 使用 ``` # 1. TerraVault – Keep as "TerraVault" since it's a proper noun. But is it a tool name? Probably. So, translation: TerraVault (in English, but since it's a heading in Chinese document, it might be fine to leave it as is). python -m terravault.cli # To output in Simplified Chinese, perhaps just write it in English, as per instruction. make scan FILE=test_files/vulnerable.tf # I think for this case, since it's a name, I should keep it in English. So, output: TerraVault python -m terravault.cli --output-format json --threshold 50 file1.tf file2.tf # 2. REST API – Keep "REST" and "API" in English, so translation: REST API. But in Chinese, it might be written as "REST API" or with Chinese characters. Since the instruction says keep terms in English, I'll output "REST API". python -m terravault.cli --output-format sarif file.tf ``` ### 示例输出 — 存在漏洞的配置 ``` TerraVault - Intelligent Terraform Security Scanner Using hybrid approach: Rules (60%) + ML Anomaly Detection (40%) ============================================================ TERRAFORM SECURITY SCAN RESULTS ============================================================ File: test_files/vulnerable.tf HIGH RISK Final Risk Score: 81/100 Rule-based Score: 100/100 ML Anomaly Score: 54.7/100 Confidence: LOW Detected Vulnerabilities: [CRITICAL] Open security group - SSH port 22 exposed to internet Resource: web_sg Fix: Restrict SSH access to specific IP ranges [CRITICAL] Hardcoded password detected Resource: Database/Instance Fix: Use variables or secrets manager for sensitive data [HIGH] Unencrypted RDS instance Resource: main_db Fix: Enable storage_encrypted = true [HIGH] Unencrypted EBS volume Resource: data_volume Fix: Enable encrypted = true [HIGH] S3 bucket with public access enabled Resource: public_bucket Fix: Enable all public access blocks ``` ### 示例输出 — 安全的配置 ``` LOW RISK Final Risk Score: 18/100 Rule-based Score: 0/100 ML Anomaly Score: 46.0/100 Confidence: LOW No security issues detected! All resources properly configured Encryption enabled where required Network access properly restricted ``` ## But let's see the example: 'API Reference' -> 'API 参考'. Here, "API" is kept, and "Reference" is translated. ### 启动 API 服务器 ``` # For "REST API", if "REST" is a term, it should be kept, and "API" is a term, so kept. So, the translation might be "REST API" without any Chinese, but that seems odd. Perhaps in Chinese, it's common to say "REST API" as is. make api # To be precise, I'll keep both in English, so output: REST API docker-compose up -d ``` ### 端点 | 方法 | 端点 | 认证 | 描述 | |--------|----------|------|-------------| | `GET` | `/health` | 无 | 带有数据库和速率限制器状态的健康检查 | | `POST` | `/scan` | API 密钥 | 扫描 Terraform 文件 (速率限制: 10次/分钟) | | `GET` | `/metrics` | 无 | Prometheus 指标 | | `GET` | `/docs` | 无 | OpenAPI/Swagger UI | ### 通过 curl 扫描 ``` curl -X POST \ -H "X-API-Key: YOUR_API_KEY" \ -F "file=@terraform.tf" \ http://localhost:8000/scan ``` ### 通过 Python 扫描 ``` import requests response = requests.post( "http://localhost:8000/scan", headers={"X-API-Key": "YOUR_API_KEY"}, files={"file": open("terraform.tf", "rb")} ) print(response.json()) ``` ### 响应格式 ``` { "file": "vulnerable.tf", "score": 85, "rule_based_score": 90, "ml_score": 75.5, "confidence": "HIGH", "vulnerabilities": [ { "severity": "CRITICAL", "points": 20, "message": "Hardcoded AWS credentials detected", "resource": "aws_instance.web", "remediation": "Use AWS IAM roles or environment variables" } ], "summary": { "critical": 1, "high": 2, "medium": 0, "low": 0 }, "performance": { "scan_time_seconds": 0.234, "file_size_kb": 1.5, "from_cache": false } } ``` ## 质量指标 | 类别 | 指标 | 结果 | |----------|--------|--------| | **测试** | 测试套件 | **72 个测试** — 72 通过, 0 跳过 | | **测试** | 代码覆盖率 | **74.11%**，涵盖 24 个被测模块 (1,518 条语句) | | **代码质量** | Pylint 评分 | **10.00 / 10** | | **代码质量** | Flake8 | **0 个问题** | | **代码质量** | 代码库大小 | 1,518 条被测语句 (3,352 行非空行) | | **安全** | SAST (Bandit) | **0 个问题** — 0 高, 0 中, 0 低 | | **安全** | 依赖项 (Safety) | **0 个漏洞** | ## DevSecOps 流水线 具有 5 个阶段的 GitHub Actions 流水线： ``` graph LR A[Security Scan] --> B[Unit Tests] B --> C[Integration Scan] B --> D[Docker Build + Trivy] C --> E[Deploy Staging] D --> E style A fill:#ffebee,stroke:#c62828,color:#b71c1c style B fill:#e3f2fd,stroke:#1565c0,color:#0d47a1 style C fill:#e8f5e9,stroke:#2e7d32,color:#1b5e20 style D fill:#fff3e0,stroke:#ef6c00,color:#e65100 style E fill:#f3e5f5,stroke:#7b1fa2,color:#4a148c ``` | 阶段 | 工具 | 目的 | |-------|------|---------| | **SAST** | Bandit | Python 安全问题的静态代码分析 | | **依赖项** | Safety | 所有 pip 包的已知漏洞检查 | | **密钥** | GitLeaks | 检测硬编码密钥和凭证 | | **容器** | Trivy | Docker 镜像漏洞扫描 | | **覆盖率** | Codecov | 测试覆盖率跟踪和报告 | ### 本地安全扫描 ``` make security-scan # Run all security checks make security-deps # Dependency vulnerabilities only make security-sast # SAST only make setup-hooks # Install pre-commit hooks ``` ## Docker 部署 ### 快速运行 ``` # But the user said "translate to Simplified Chinese", so perhaps for consistency, I should translate the context. docker build -t terravault:latest . docker run --rm -v /path/to/terraform:/scan:ro terravault:latest /scan/main.tf ``` ### 完整技术栈 (docker-compose) ``` docker-compose up -d ``` | 服务 | 端口 | 目的 | |---------|------|---------| | **terravault-api** | 8000 | FastAPI 应用程序 | | **PostgreSQL** | 5432 | 持久化扫描存储 | | **Redis** | 6379 | 缓存和速率限制 | | **Prometheus** | 9090 | 指标收集 | | **Grafana** | 3000 | 仪表盘和可视化 | Docker 镜像以**非 root 用户**运行，建议使用 `--read-only` 文件系统和 `--security-opt=no-new-privileges`。 ## 监控与可观测性 - **Prometheus** 每 10 秒抓取一次 `/metrics` — 扫描速率、缓存命中率、延迟、错误率 - **Grafana** 仪表盘 (`TerraVault Overview`)，包含预配置面板： - 扫描速率和缓存命中率 - 按严重性和类别划分的漏洞分布 - P95/P99 扫描持续时间 - API 请求延迟和错误率 - **结构化 JSON 日志记录**，带有用于请求追踪的关联 ID - `/health` 处的**健康检查**端点，包含数据库连接状态 ## 技术栈 | 组件 | 技术 | 目的 | |-----------|------------|---------| | 语言 | Python 3.10+ | 机器学习生态系统，简洁的语法 | | 机器学习框架 | scikit-learn (Isolation Forest) | 无监督异常检测 | | 解析器 | python-hcl2 | 原生 Terraform HCL2 解析 | | API 框架 | FastAPI + Uvicorn | 带有 OpenAPI 文档的异步 REST API | | 数据库 | PostgreSQL + SQLAlchemy (异步) | 扫描历史持久化 | | 缓存 | Redis | LRU 缓存、速率限制 | | 认证 | bcrypt | API 密钥哈希 | | 监控 | Prometheus + Grafana | 指标和仪表盘 | | 容器 | Docker + Docker Compose | 多服务部署 | | CI/CD | GitHub Actions | DevSecOps 自动化 | | 数值计算 | NumPy | 特征向量运算 | | 模型持久化 | Joblib | 序列化的 scikit-learn 模型 | ## 截图

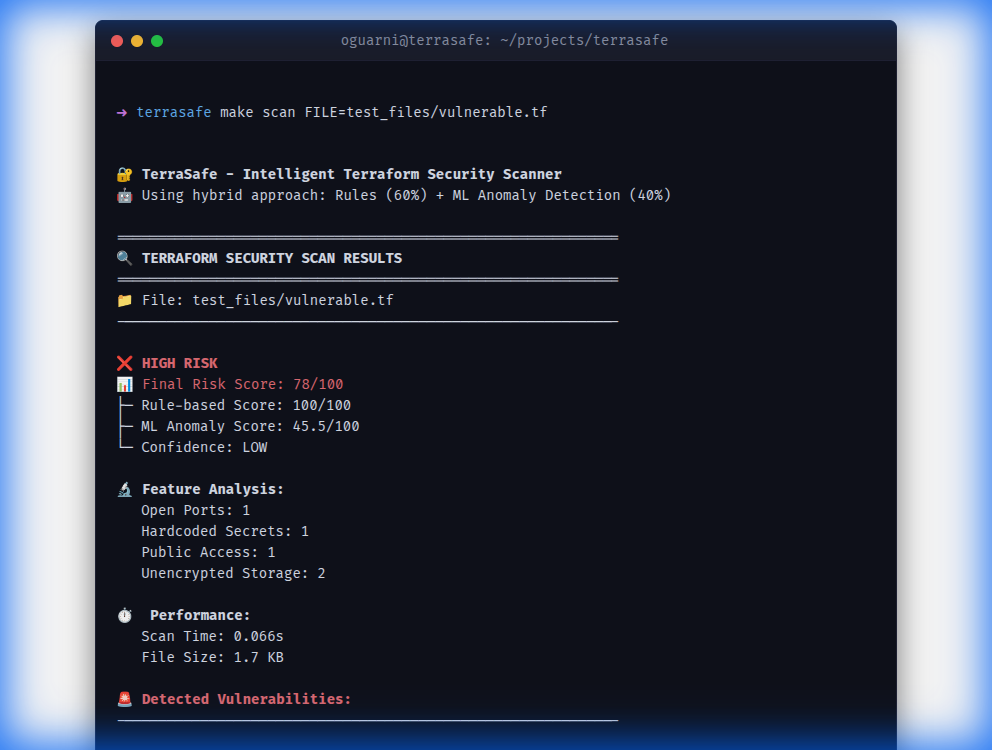

Vulnerability Detection

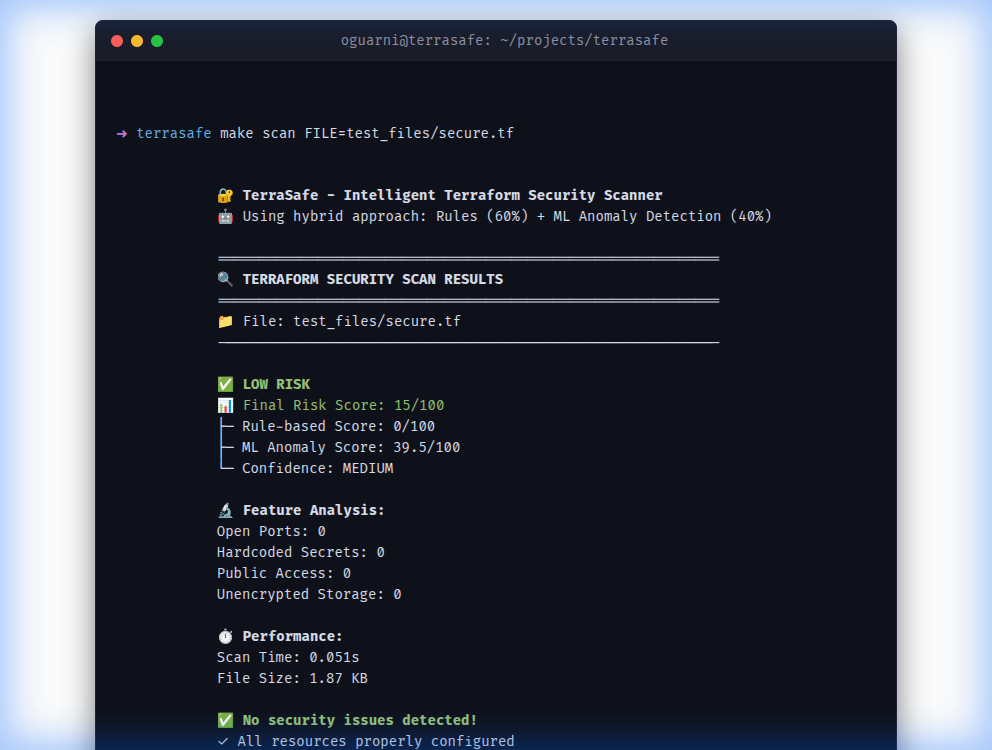

Secure Infrastructure Analysis

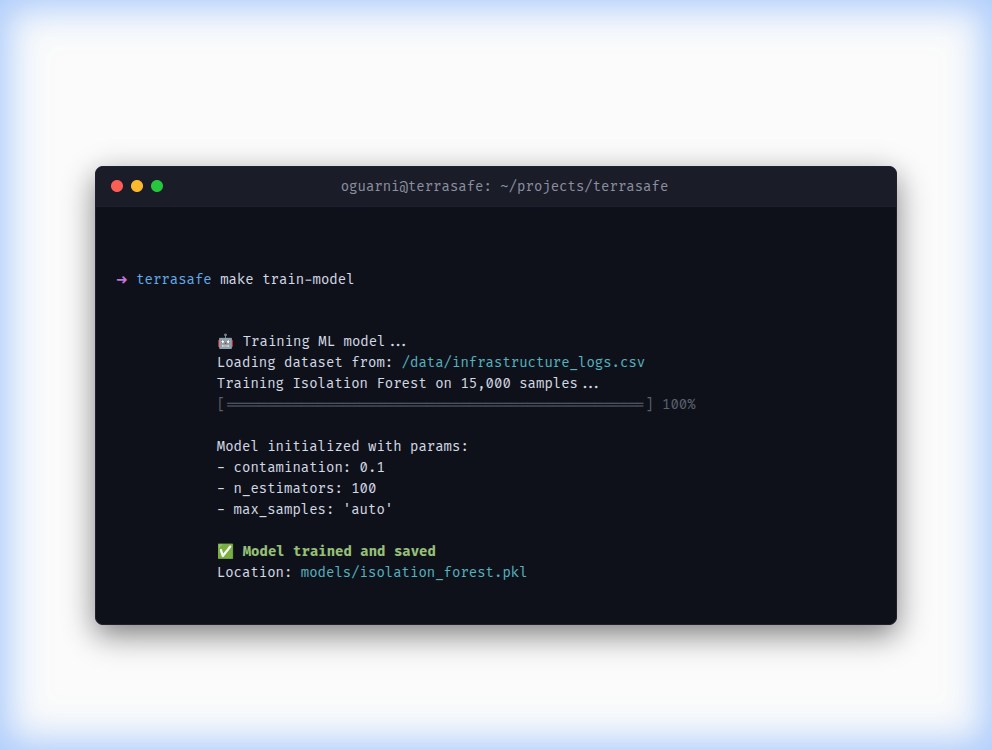

ML Model Training

Grafana Monitoring Dashboard

## 学术背景 | | | |---|---| | **课程** | 毕业项目 I 和 II | | **机构** | 巴拉那联邦技术大学 (UTFPR) | | **项目** | 软件工程学士，第 8 学期 | | **类型** | 技术报告 | ### 为什么选择 Isolation Forest？ 在根据四个实际标准评估替代方案后选择了 Isolation Forest：对无标签数据的适用性（有标签的 Terraform 配置错误数据集稀缺）、对结构化配置输入的效率、在有限训练样本下的性能以及输出可解释性。 | 标准 | Isolation Forest | 神经网络 | 遗传算法 | 决策树 | |-----------|:---:|:---:|:---:|:---:| | 无监督 (无标签) | 强 | 弱 | 不适用 | 弱 | | 对结构化数据高效 | 强 | 过度 | 不匹配 | 中等 | | 小样本性能 | 强 | 弱 | 中等 | 中等 | | 可解释输出 | 强 | 弱 | 中等 | 强 | ### 设计原理 1. **混合检测** — 确定性规则针对已知配置错误，对其模式实现零漏报；Isolation Forest 增加了对规则集未见过的偏差的覆盖。信号是互补的，而非冗余的。 2. **演进基线** — 随着分析更多配置，模型会改进其安全基线。漂移检测标记分布偏移，以便运营人员知道何时需要重新训练。 3. **可解释评分** — 每个发现都附带其特征向量、规则归因和置信度。结果是可审计的，而非黑盒。 4. **CI 兼容的性能** — 每文件亚秒级延迟使安全门控成为部署流水线中可行的步骤，而不是离线批处理作业。 ## 局限性与未来工作 ### 当前局限性 - 基线训练数据是合成的；真实世界的分布可能不同 - 不支持 Terraform 模块或远程状态 - 漏洞消息和修复指导仅提供英文版本 - 仅覆盖 AWS；Azure 和 GCP 提供商模式尚未编码 ### 路线图 - 多云覆盖 (Azure, GCP)，带特定于提供商的规则包 - Terraform 模块和远程状态分析 - 用于组织规则的自定义策略定义语言 - 针对当前 Isolation Forest 基线评估的更深层次的机器学习模型 - 与云提供商原生安全 API (AWS Config 等) 集成 ## 参考文献 - Gartner (2024). *云安全故障报告* - IBM Security (2024). *数据泄露成本报告* - HashiCorp. *Terraform 安全最佳实践* - Liu, F. T., Ting, K. M., & Zhou, Z. H. (2008). *Isolation Forest*. 载于第八届 IEEE 国际数据挖掘会议 (ICDM '08) 论文集 ## 许可证 本项目采用 **CC BY-NC-SA 4.0** 许可。此许可证涵盖所有当前和历史提交。详情请参阅 [LICENSE](LICENSE) 文件。

由 **Gabriel Felipe Guarnieri** 开发 — UTFPR 软件工程 [快速开始指南](QUICKSTART.md) · [API 文档](http://localhost:8000/docs) · [报告问题](https://github.com/oguarni/terravault/issues)
